HOME>>Brands>>Case CX360B

2012 Case CX360B

1/6
Used Case CX360B Excavator 2012 Model / 1

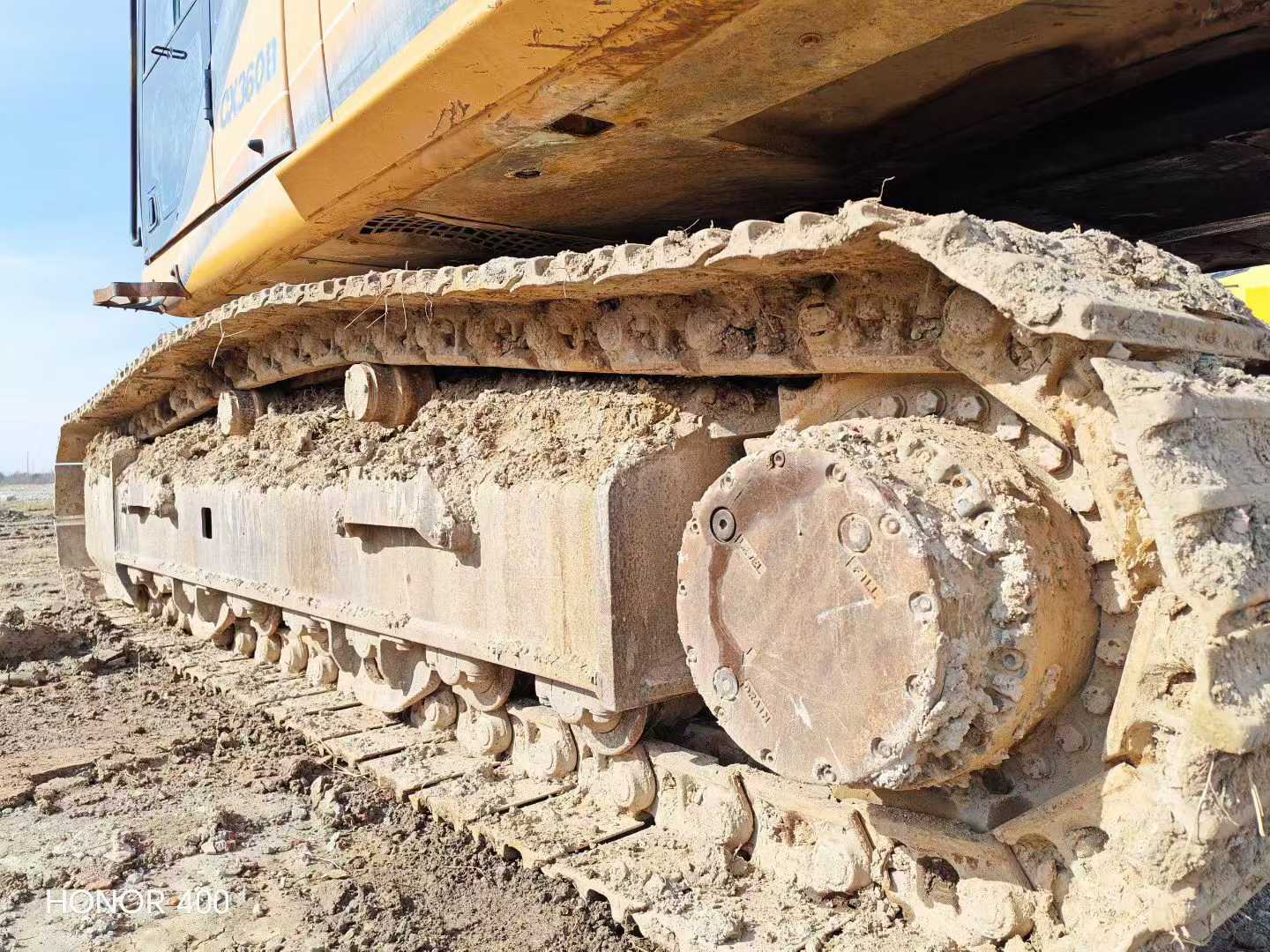

Used Case CX360B Excavator 2012 Model / 2

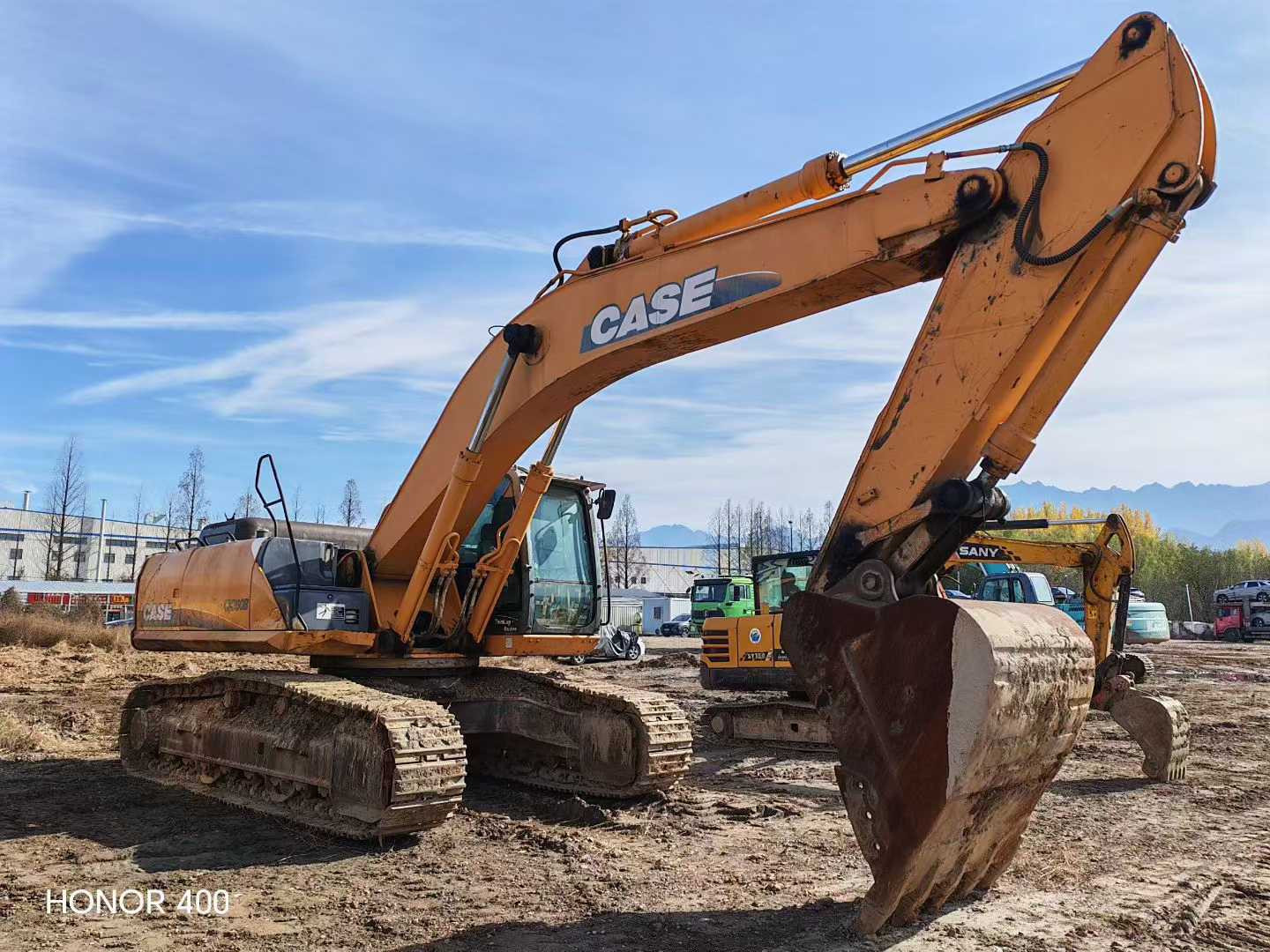

Used Case CX360B Excavator 2012 Model / 3
Used Case CX360B Excavator 2012 Model / 4

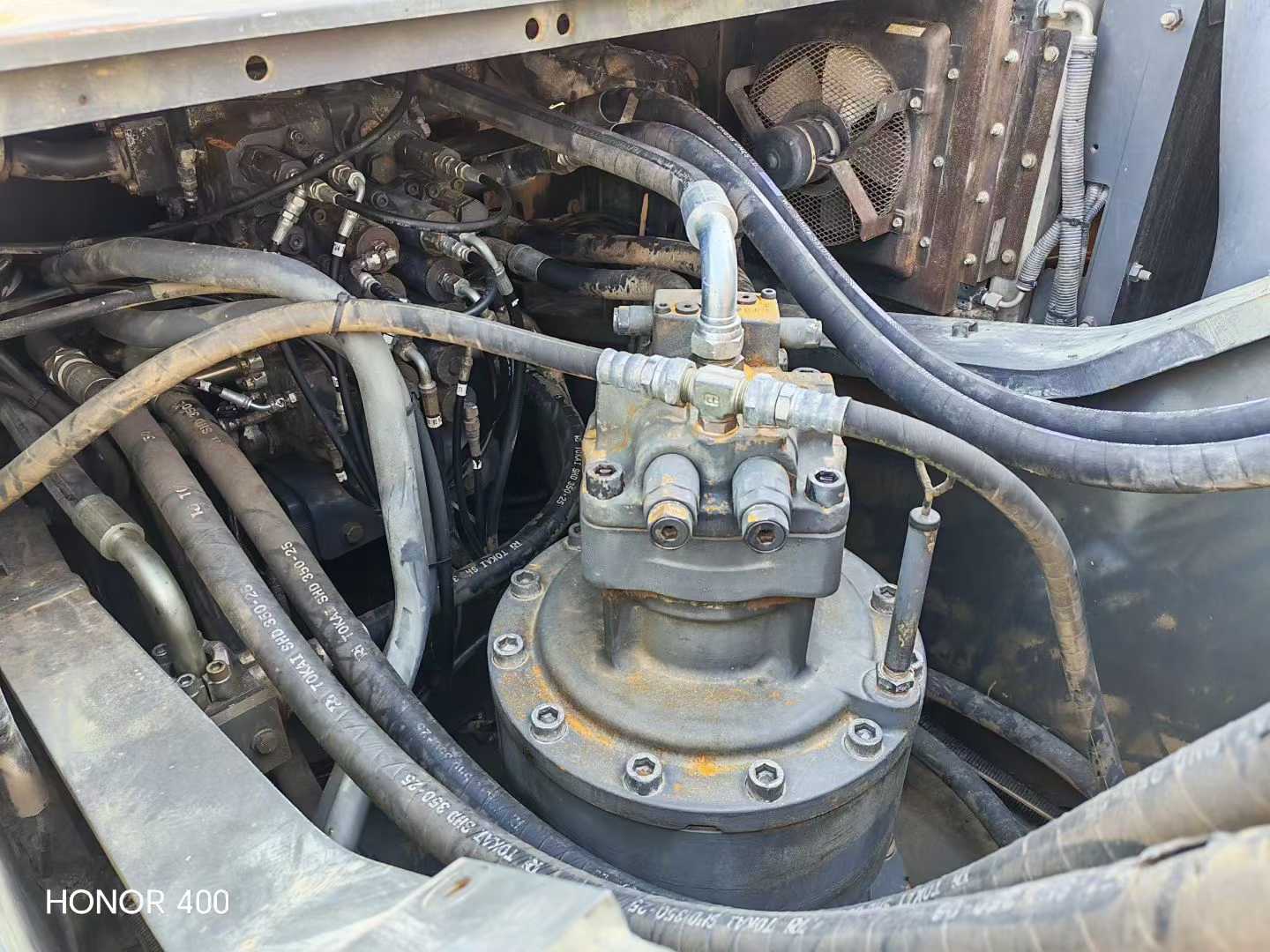

Used Case CX360B Excavator 2012 Model / 5

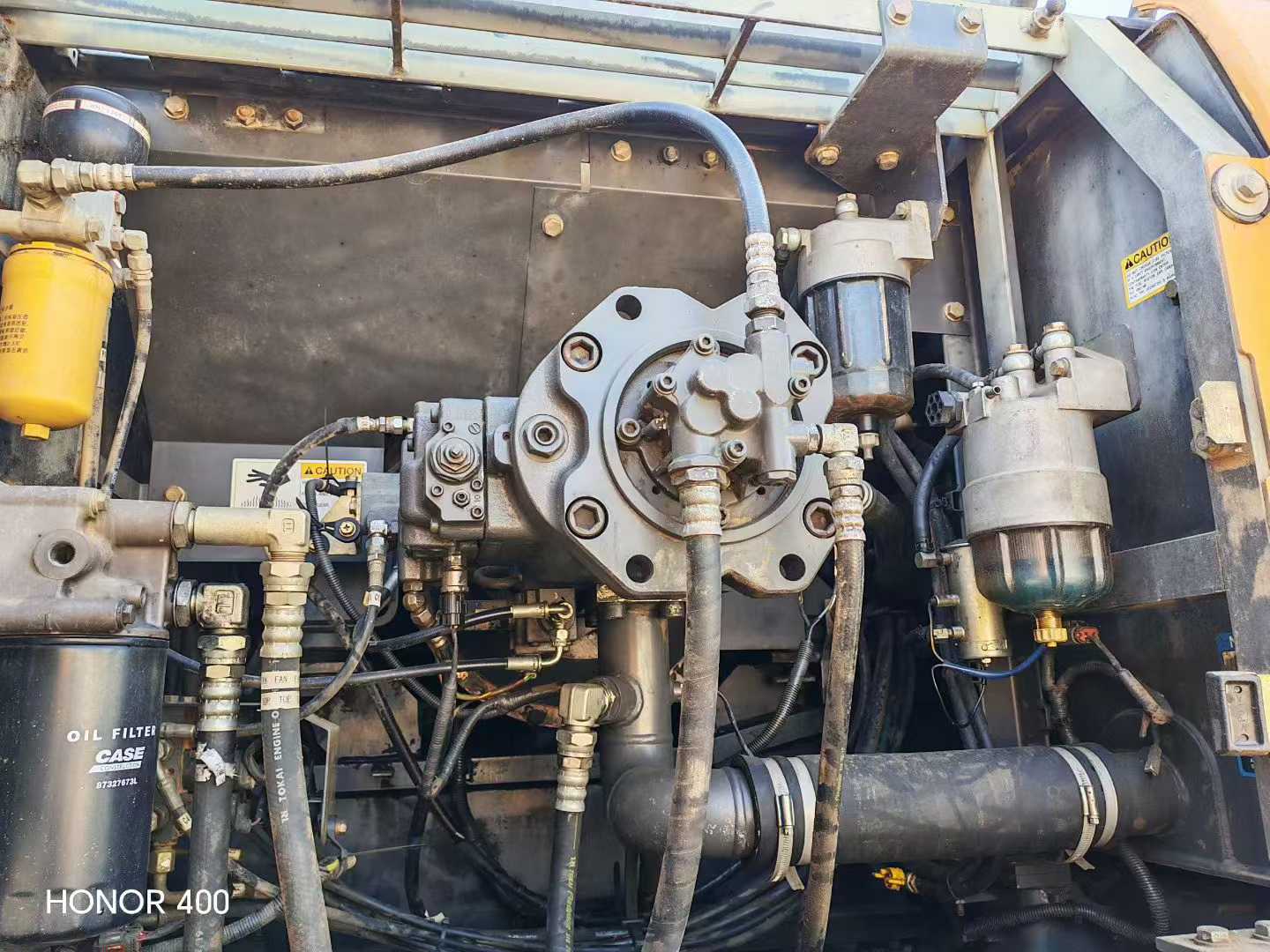

Used Case CX360B Excavator 2012 Model / 6

Product Description

【 Premium Recommendation 】2012 Case 360B excavator, with an outstanding working time of 7,000 hours, is in excellent condition and has stable and reliable performance. It is your reliable assistant for engineering operations. This Case 360B excavator adopts an advanced power system and is equipped with a highly efficient and energy-saving engine. It not only has strong power but also excellent fuel economy, significantly reducing your operating costs. After meticulous maintenance and care, the engine operates in good condition without any abnormal noise or oil leakage, ensuring stability during long-term operation. In terms of the hydraulic system, this machine adopts CASE's unique intelligent hydraulic technology, which features high operational sensitivity and fast response speed. It can handle complex working conditions such as excavation, loading, and crushing with ease. Both the hydraulic pump and the motor are original imported parts, reliable and durable in quality, ensuring the long-term performance of the equipment in high-intensity working environments. In addition, the overall structure of the machine is solid. Key parts such as the bucket rod and the boom are all made of high-strength steel, effectively enhancing the machi

SpecificationsValue
No.969400
Tonnage (tons)36
Working weight (kg)36100
Bucket capacity (m³)1.4-2.1
Boom length (mm)6450
Rod length (mm)2630
Country of originShanghai
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeIsuzu AH-6HK1XYSS(Tie3)
Rated power (kw/rpm)207.3/2000
Cooling modewater-cooling
Cylinder diameter × stroke (mm)115 x 125
Number of cylinders (PCS)6
Displacement (L)7.79
Working formFour-stroke, direct injection, full electronic control, turbocharged, with intercooling
Ground specific pressure (Kpa)67
Rotation speed (rpm)9.8
Bucket digging force (kN)232 (Standard mode) /252 (Extra mode)
Rod digging force (kN)199 (Standard mode) /215 (Plus mode)
Travel speed (km/h)3.5/5.5
Rotary hydraulic motor typeQuantitative axial piston motor
Type of walking hydraulic motorVariable axial piston motor
Maximum flow of main pump (l/min)300 x 2
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)30.4
Control Hydraulic Circuit (Mpa)3.9
Main pump typeVariable axial piston pump ×2
Working Hydraulic Circuit (Mpa)37.3
Bucket cylinders - Number × diameter × stroke (mm)1-150 x 1210
Bucket rod cylinders - Number × diameter × stroke (mm)1-170 x 1748
Boom cylinders - Number × diameter × stroke (mm)2-145 x 1495
Fuel Tank (L)580
Hydraulic Tank (L)175
Engine Oil changes (L)38
Coolant (L)30
Hydraulic System (L)350
Total transport length (mm)11130
Total transport width (mm)3200
Total transport height (mm)3500
Full cab height (mm)3130
Counterweight ground clearance (mm)1210
Minimum ground clearance (mm)480
Minimum turning radius of front working device (mm)4500
Back end turning radius (mm)3450
Total track length (mm)4980
Track gauge (mm)2600
Track plate width (mm)600
Total track width (mm)3200
Track ground length (mm)4040
Maximum digging radius (mm)10670
Maximum digging depth (mm)6730
Maximum excavation height (mm)10320
Maximum unloading height (mm)7140
Maximum vertical digging depth (mm)5970
Maximum excavation radius of stop surface (mm)10470
Maximum effective digging depth (mm)6550
see more

Overview

No.969400

Brand Name:

Case

Model Number:

CX360B

Year:

2012

Location:

Shaanxi China
