2019 Caterpillar 313D

1/9
Used Caterpillar 313D Excavator 2019 Model / 1

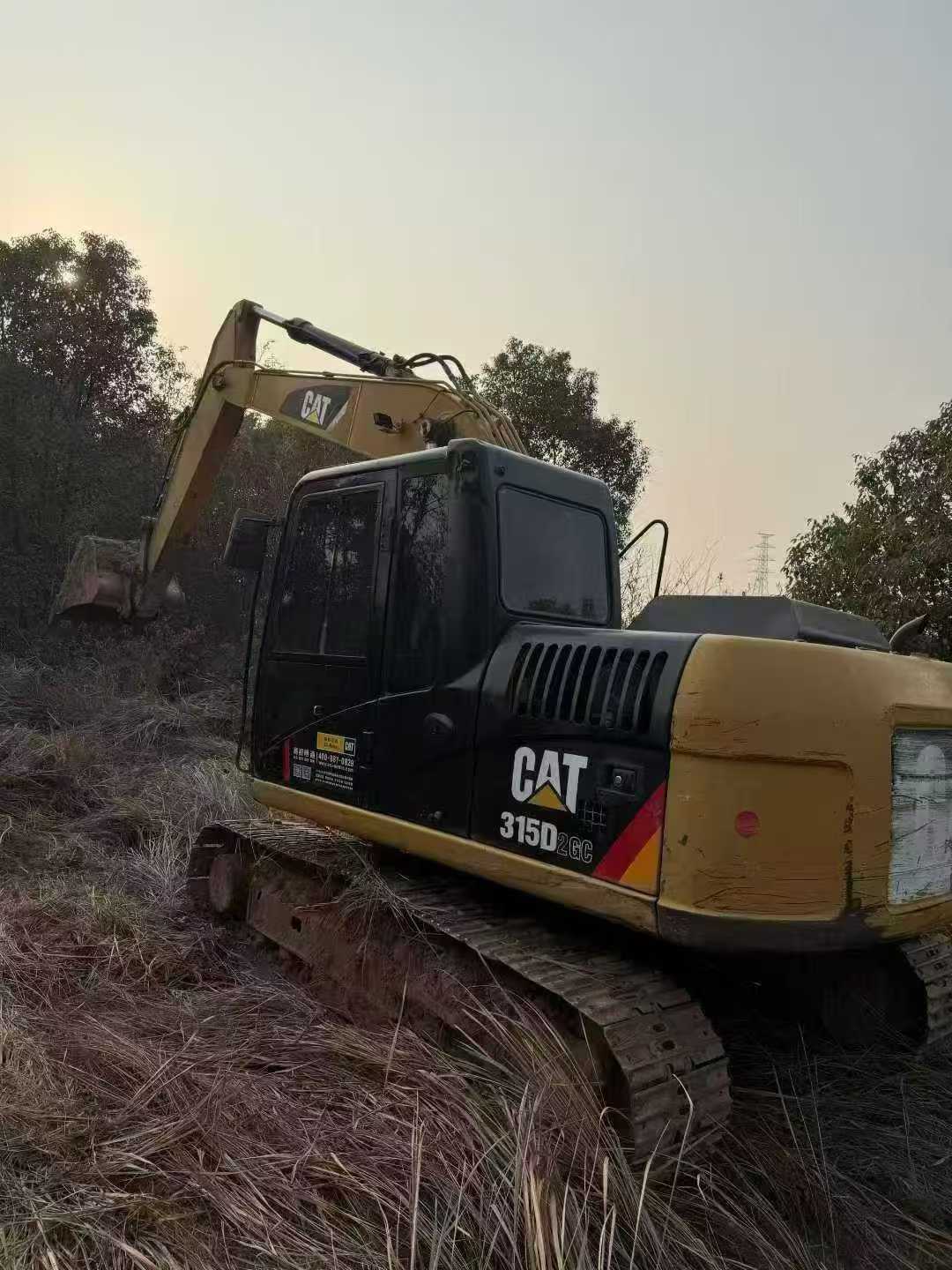

Used Caterpillar 313D Excavator 2019 Model / 2

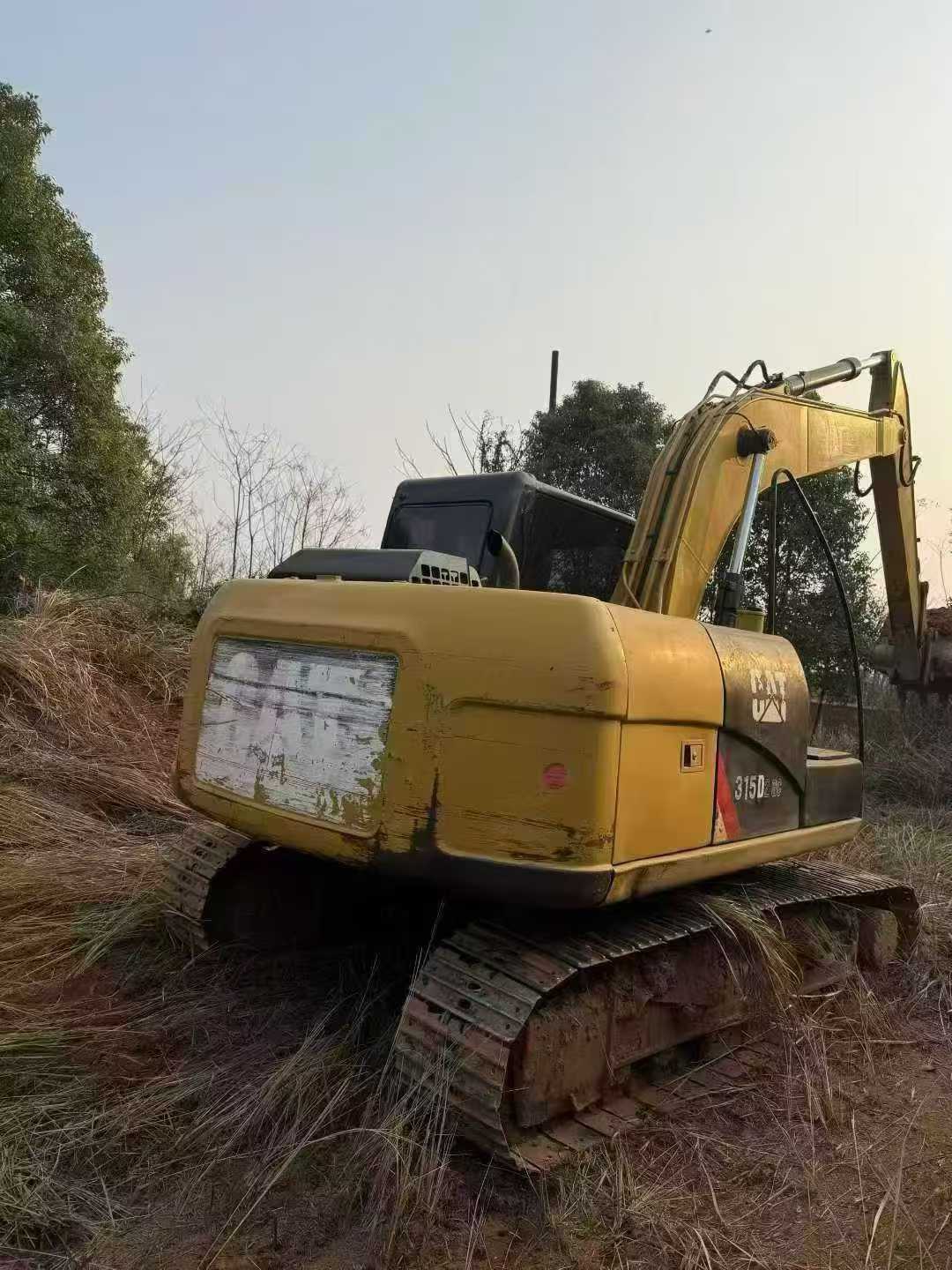

Used Caterpillar 313D Excavator 2019 Model / 3

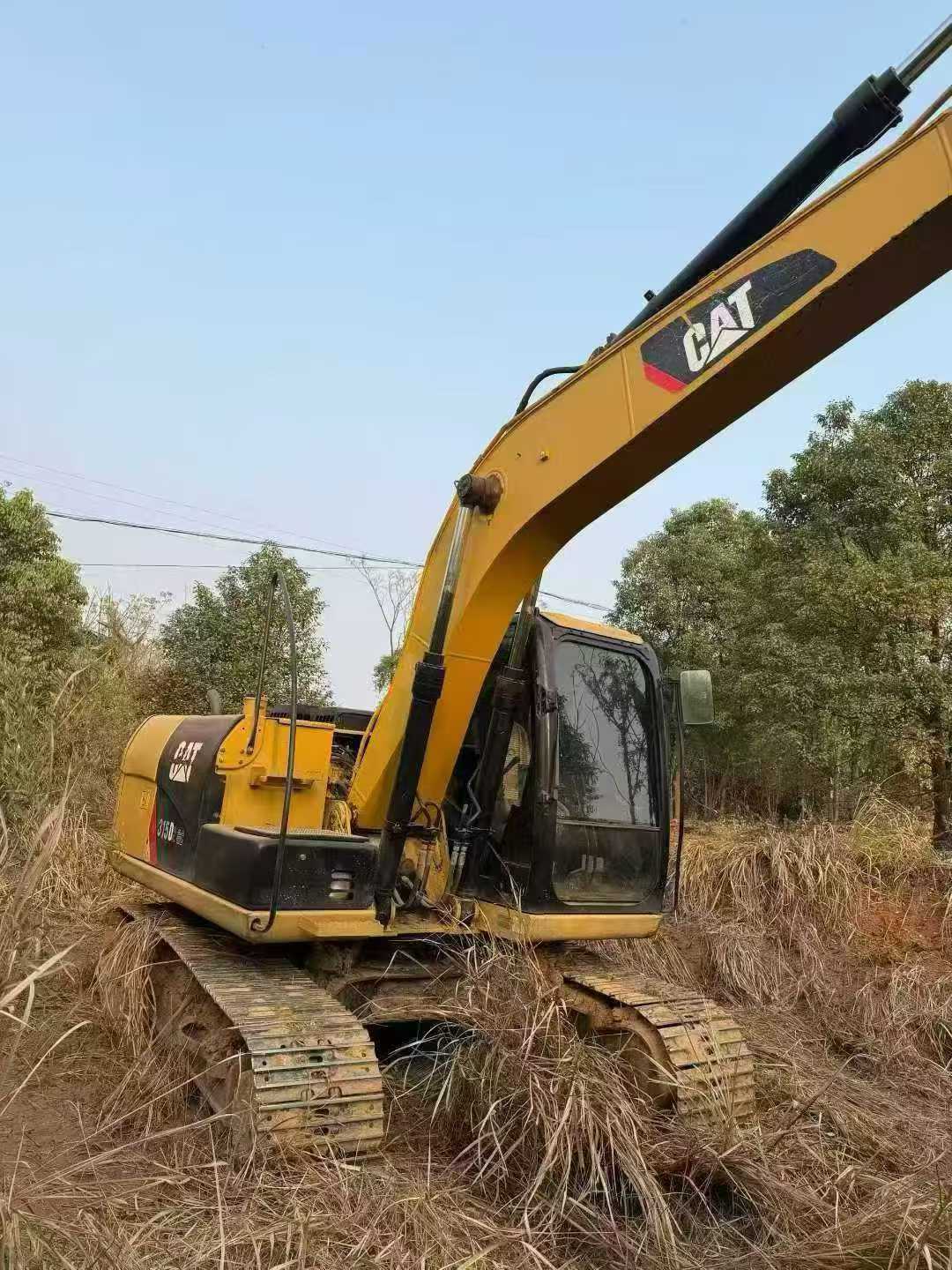

Used Caterpillar 313D Excavator 2019 Model / 4

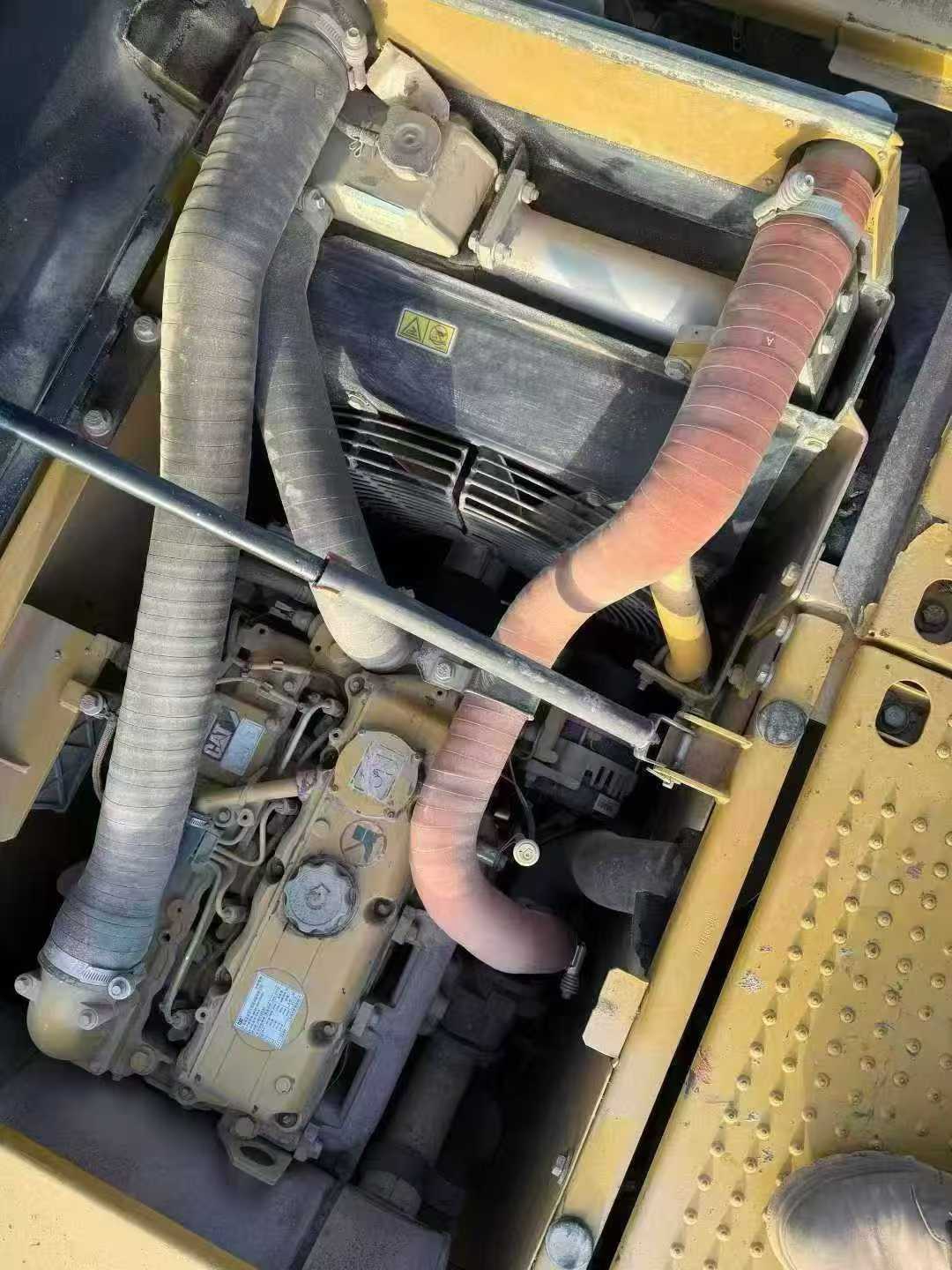

Used Caterpillar 313D Excavator 2019 Model / 5

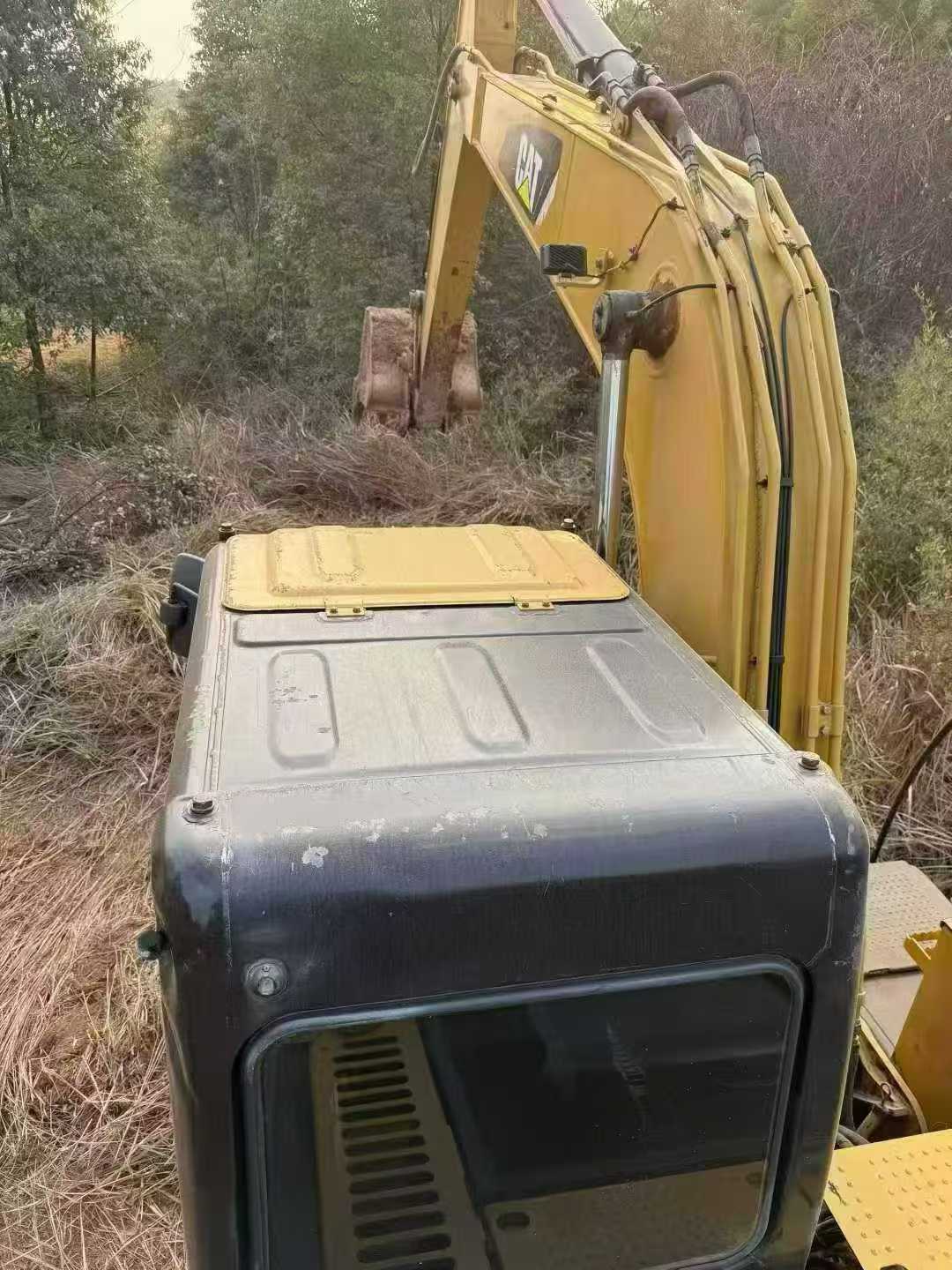

Used Caterpillar 313D Excavator 2019 Model / 6

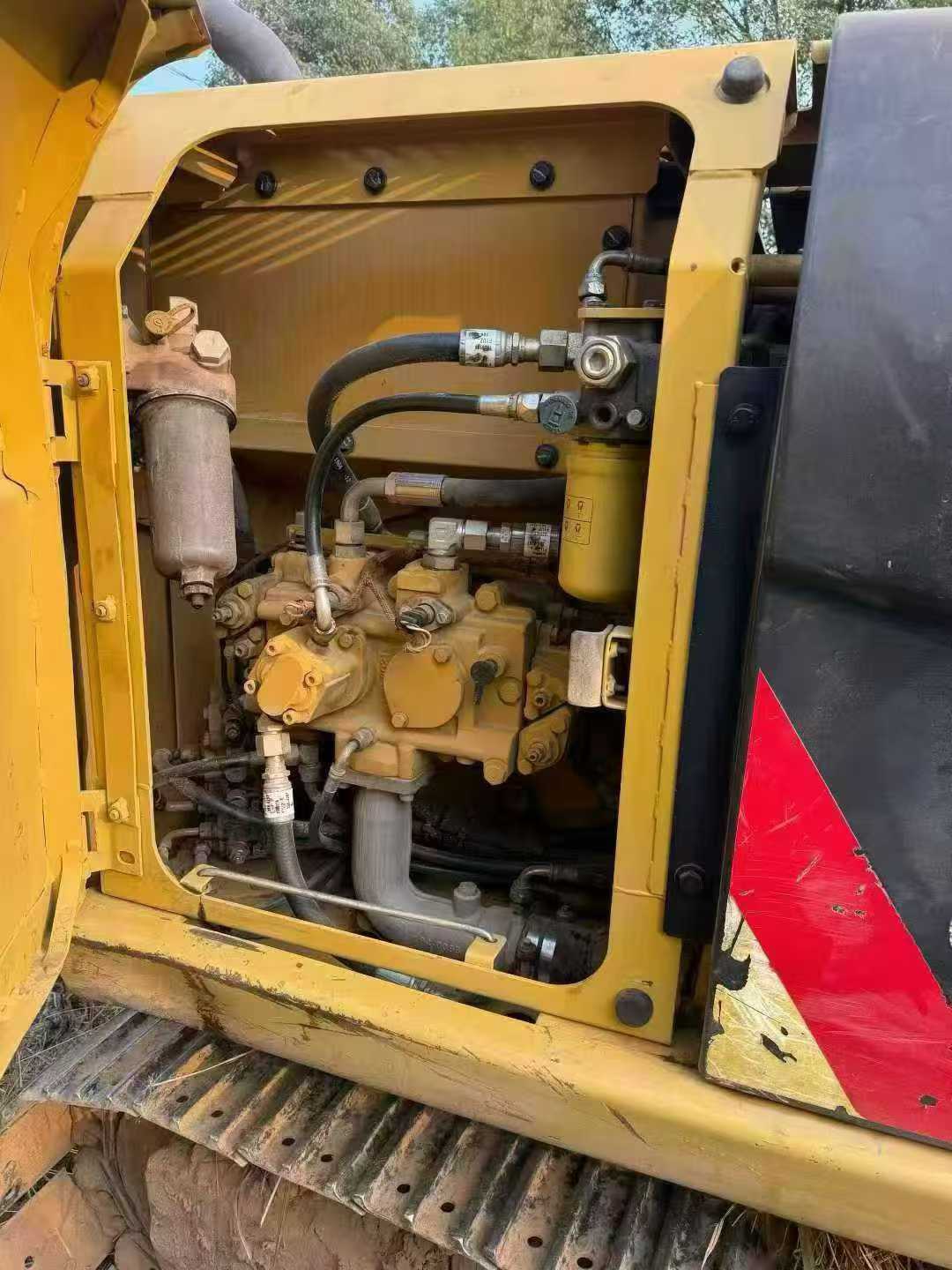

Used Caterpillar 313D Excavator 2019 Model / 7

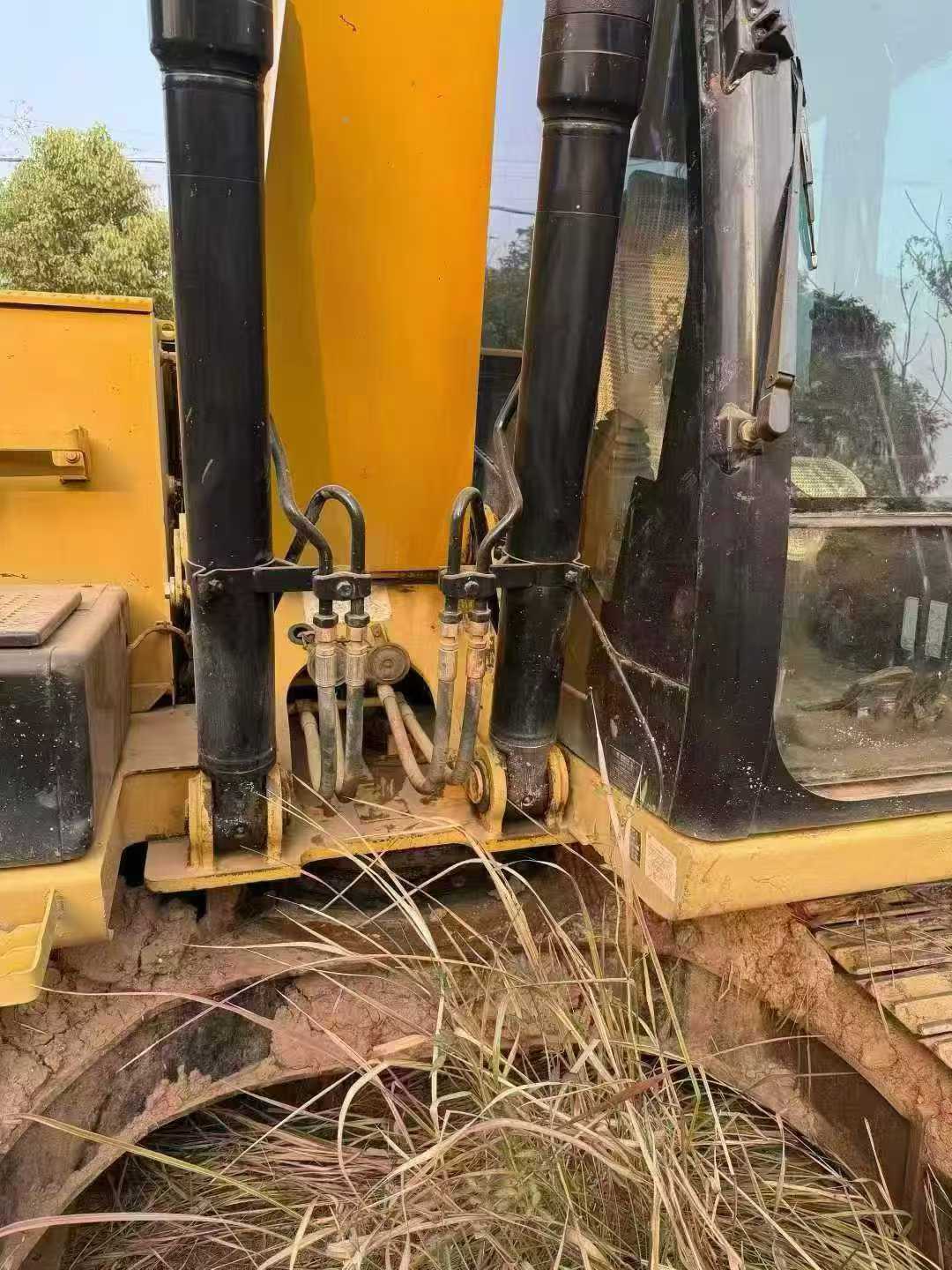

Used Caterpillar 313D Excavator 2019 Model / 8

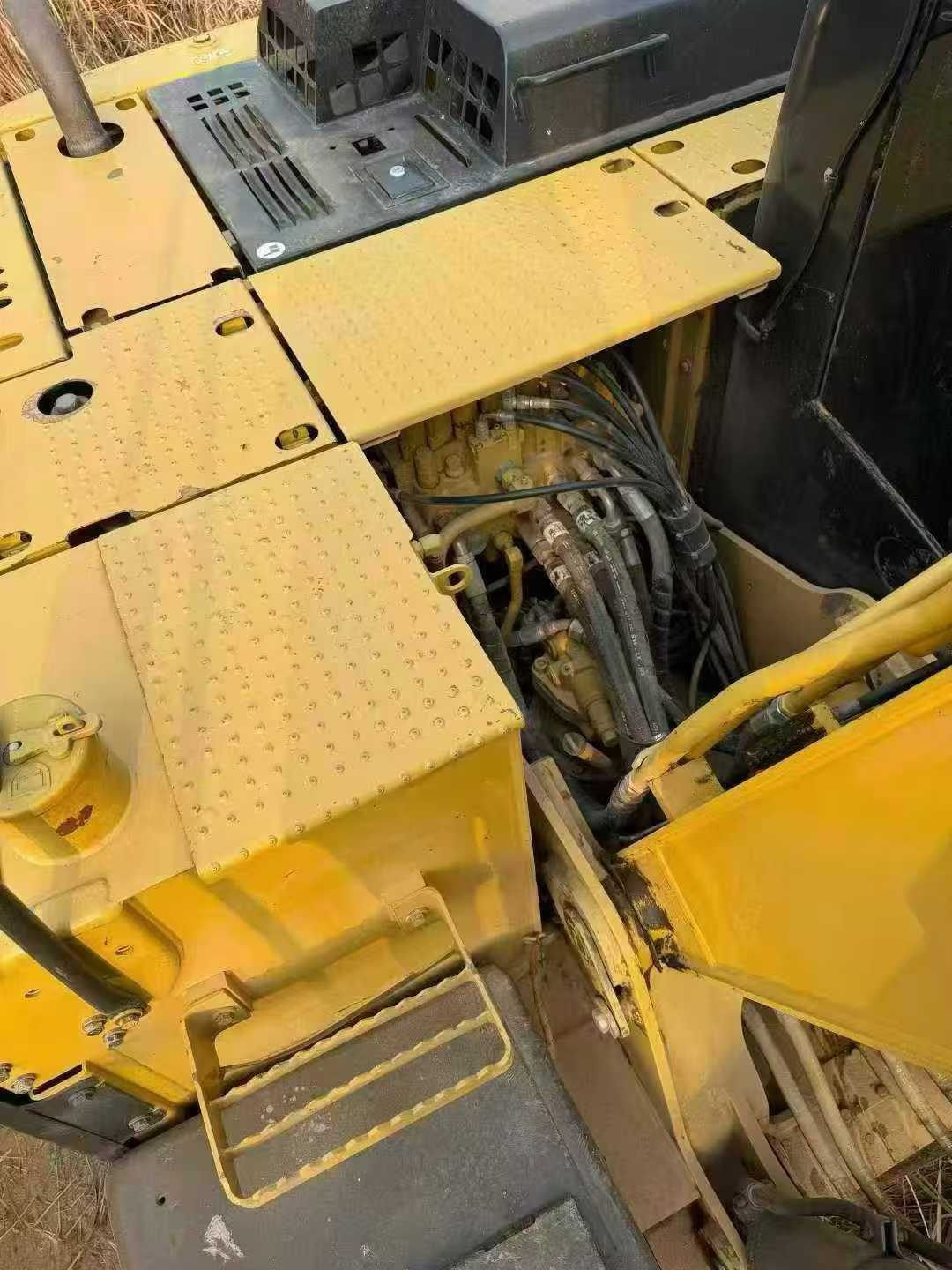

Used Caterpillar 313D Excavator 2019 Model / 9

Product Description

【 Premium Recommendation 】2019 Caterpillar 313DGC excavator, original vehicle with no accidents, outstanding performance, quick and sensitive movements, is your reliable assistant for engineering operations. Since its manufacture, this excavator has accumulated a working time of only 1,800 hours, which is equivalent to almost brand new equipment. It is highly suitable for customers who have strict requirements for the service life and working hours of machinery. In terms of the power system, the 313DGC model is equipped with Caterpillar's self-developed C4.4 engine. This four-cylinder in-line turbocharged diesel engine is renowned for its powerful output and smooth operation, with a maximum power output of 75kW (approximately 100 horsepower). Even in complex and ever-changing construction environments, it can handle them with ease. It ensures the efficient completion of tasks while also having excellent fuel economy, significantly reducing operating costs. The hydraulic system adopts advanced electric control positive flow control technology, combined with an efficient main pump and precise valve body design, making the operation of the entire machine more accurate and smooth. The "swift action" is no exaggeration. Whether it is exca

SpecificationsValue
No.966171
Tonnage (tons)13
Working weight (kg)13430
Bucket capacity (m³)0.52
Boom length (mm)4650
Rod length (mm)2500
Country of originXuzhou, Jiangsu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCaterpillar Cat C4.2 ACERT
Rated power (kw/rpm)67 (Net power)
Cooling modewater-cooling
Cylinder diameter × stroke (mm)102 x 130
Number of cylinders (PCS)4
Displacement (L)4.25
Working formMeets the emission requirements of US EPA Tier 3 and European IIIA Directive 97/68/EC.
Ground specific pressure (Kpa)41.8 (with 500mm track plate)
Rotation speed (rpm)12.4
Bucket digging force (kN)82
Rod digging force (kN)63
Maximum tractive force (kN)114
Travel speed (km/h)5.5
Main overflow set pressure (Mpa)30.5
Maximum flow of main pump (l/min)127
Traveling Hydraulic Circuit (Mpa)35
Rotary Hydraulic Circuit (Mpa)23
Pilot Oil Circuit (MPa)41.2
Pilot pump flow (L/min)21.9
Bucket cylinders - Number × diameter × stroke (mm)1 x 100 x 939
Bucket rod cylinders - Number × diameter × stroke (mm)1 x 120 x 1197
Boom cylinders - Number × diameter × stroke (mm)2 x 110 x 1015
Fuel Tank (L)250
Hydraulic Tank (L)150
Engine Oil changes (L)19.5
Coolant (L)17.9
Hydraulic System (L)162 (including fuel tank)
Total transport length (mm)7610
Total transport width (mm)2490
Total transport height (mm)2830 (to top of boom)
Full cab height (mm)2760
Counterweight ground clearance (mm)915
Minimum ground clearance (mm)430
Back end turning radius (mm)2140
Total track length (mm)3490
Track gauge (mm)1990
Track plate width (mm)500 (standard)
Total track width (mm)2490
Maximum digging depth (mm)5580
Maximum unloading height (mm)6060
Maximum vertical digging depth (mm)5040
Bulldozer lift or depth (mm)There is no
Dodging plate width × height (mm)There is no
Maximum excavation radius of stop surface (mm)8220
Boom turning Angle (left/right °)There is no
Maximum effective digging depth (mm)5380
see more

Overview

No.966171

Brand Name:

Caterpillar

Model Number:

313D

Year:

2019

Location:

Jiangxi China
