2019 Caterpillar 313D

1/9
Used Caterpillar 313D Excavator 2019 Model / 1

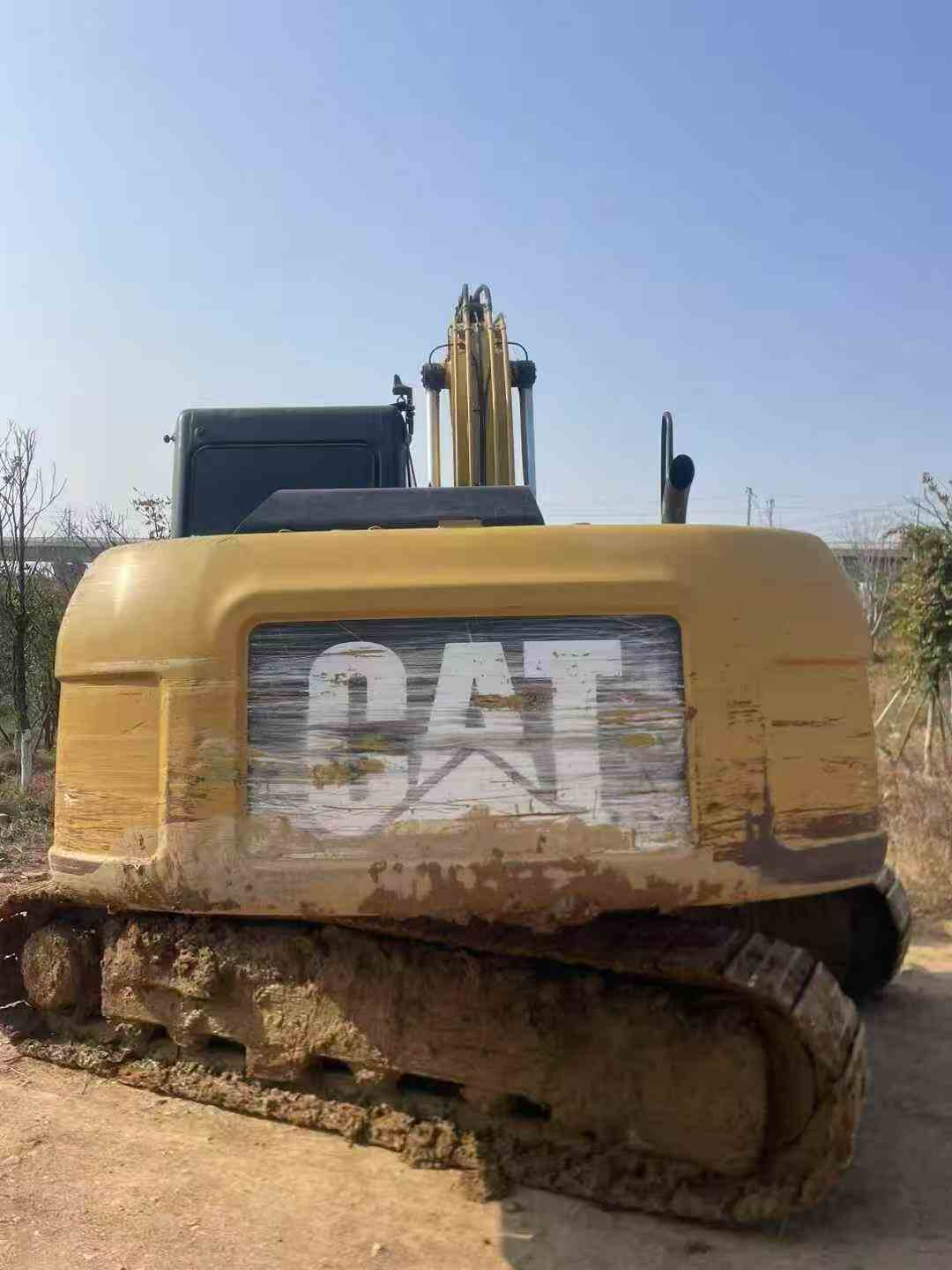

Used Caterpillar 313D Excavator 2019 Model / 2

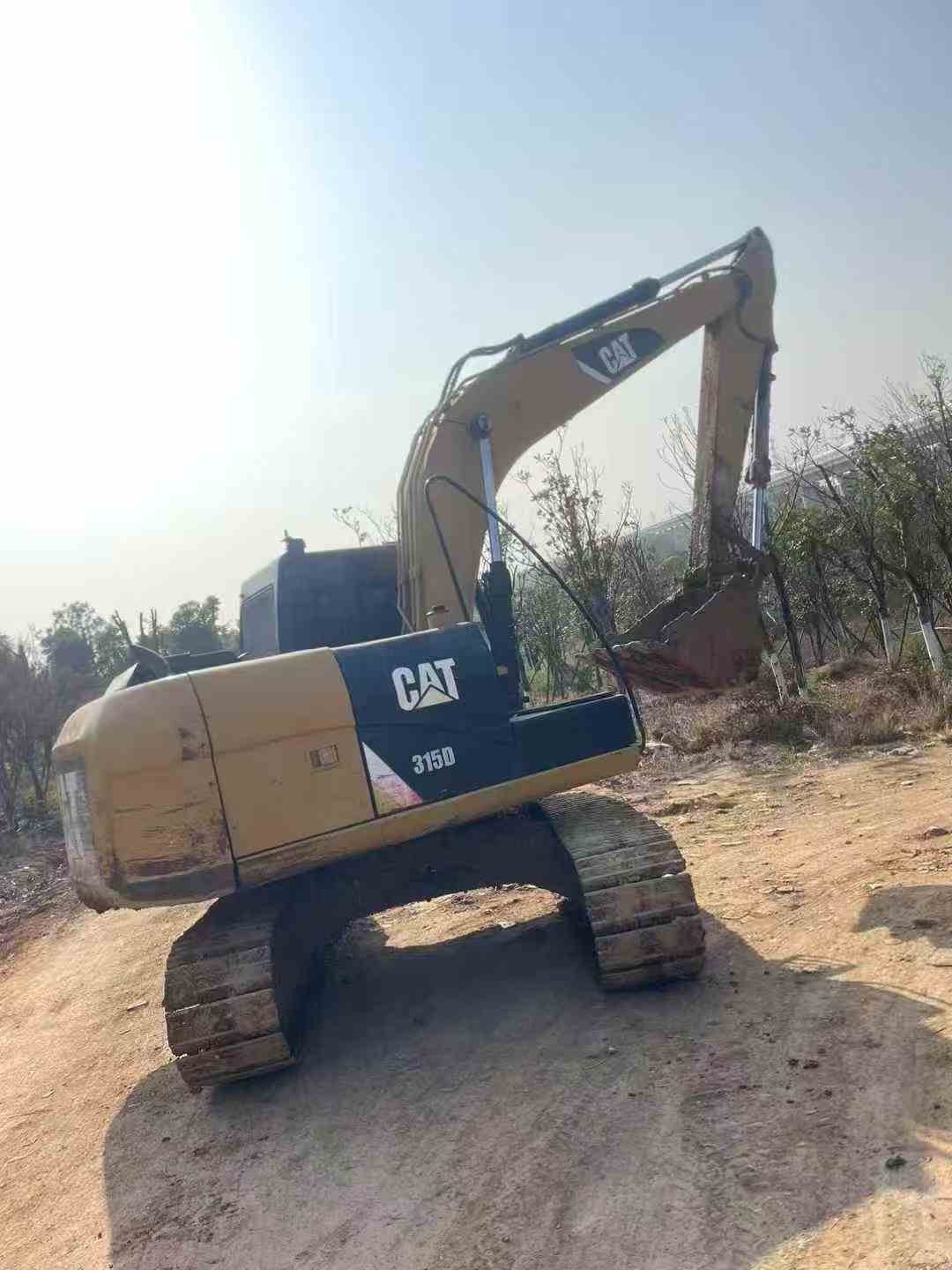

Used Caterpillar 313D Excavator 2019 Model / 3

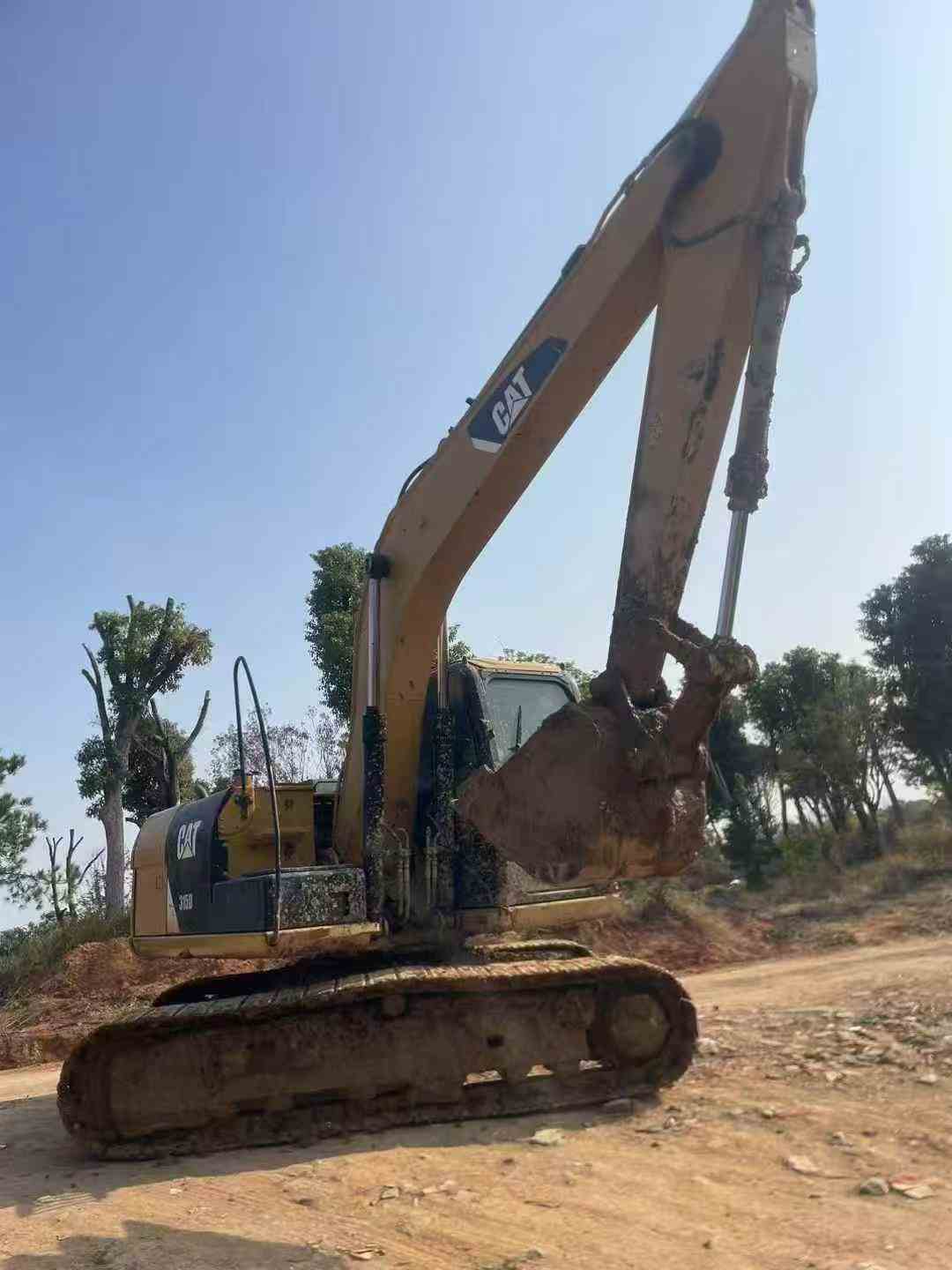

Used Caterpillar 313D Excavator 2019 Model / 4

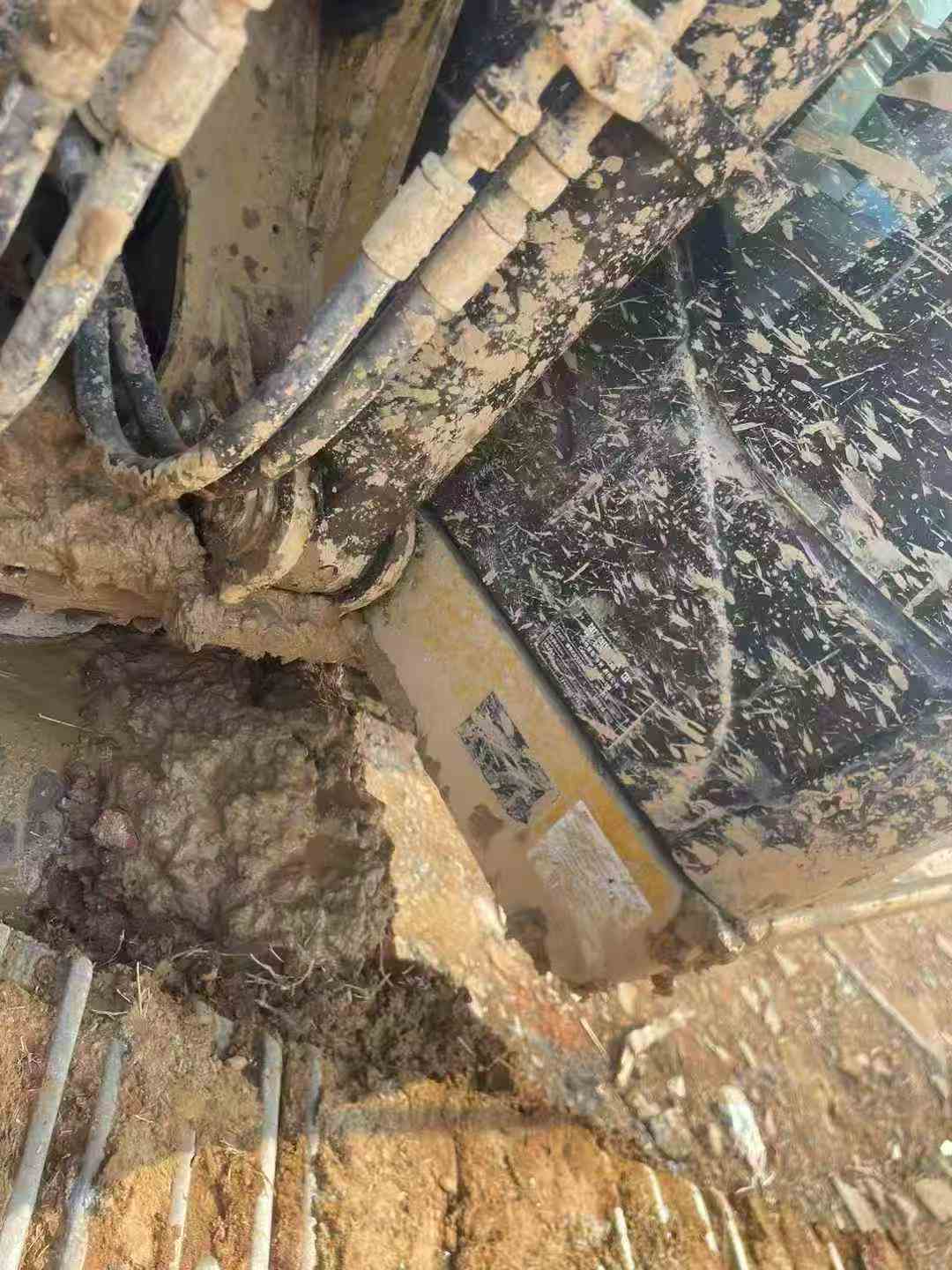

Used Caterpillar 313D Excavator 2019 Model / 5

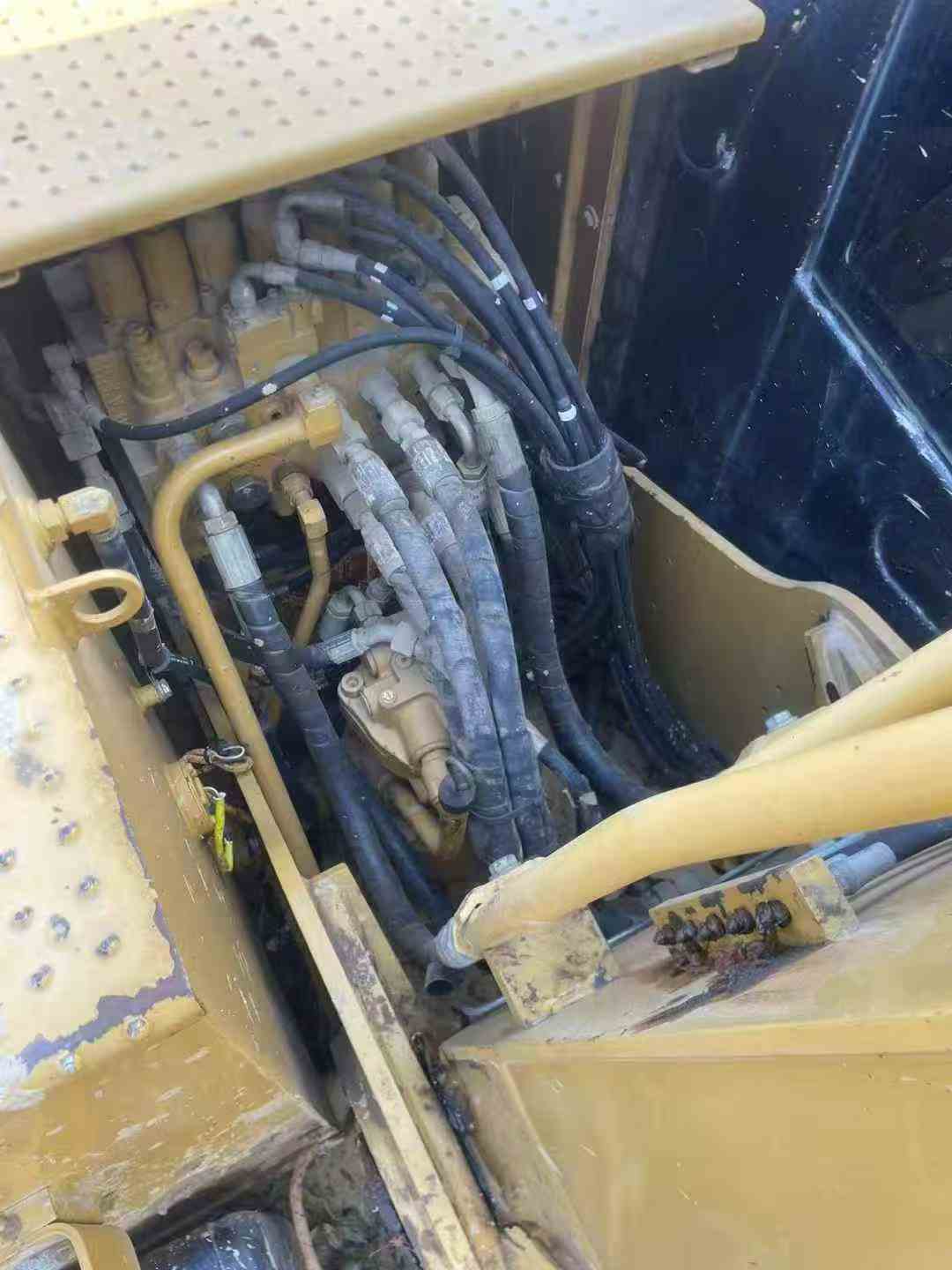

Used Caterpillar 313D Excavator 2019 Model / 6
Used Caterpillar 313D Excavator 2019 Model / 7

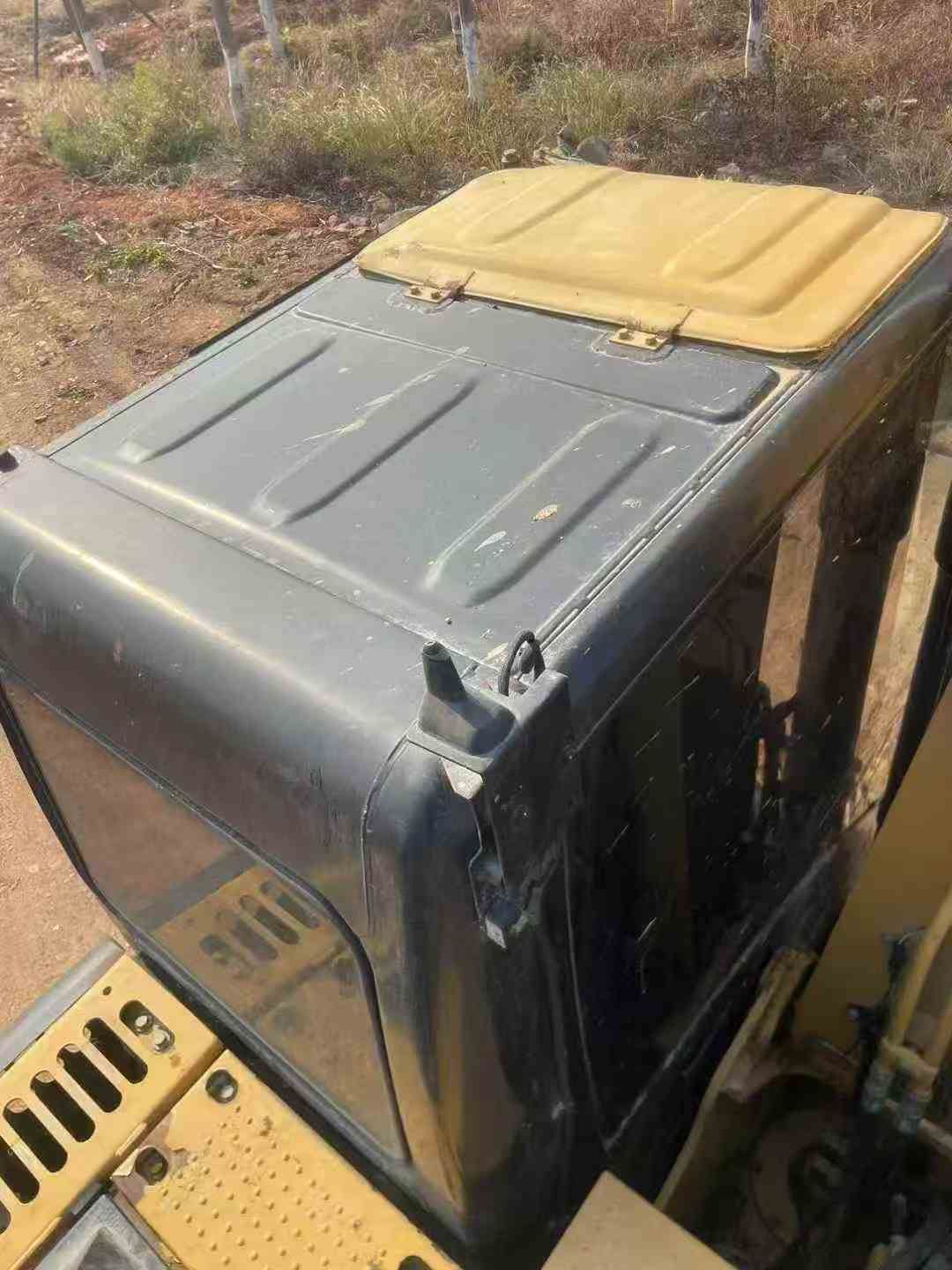

Used Caterpillar 313D Excavator 2019 Model / 8

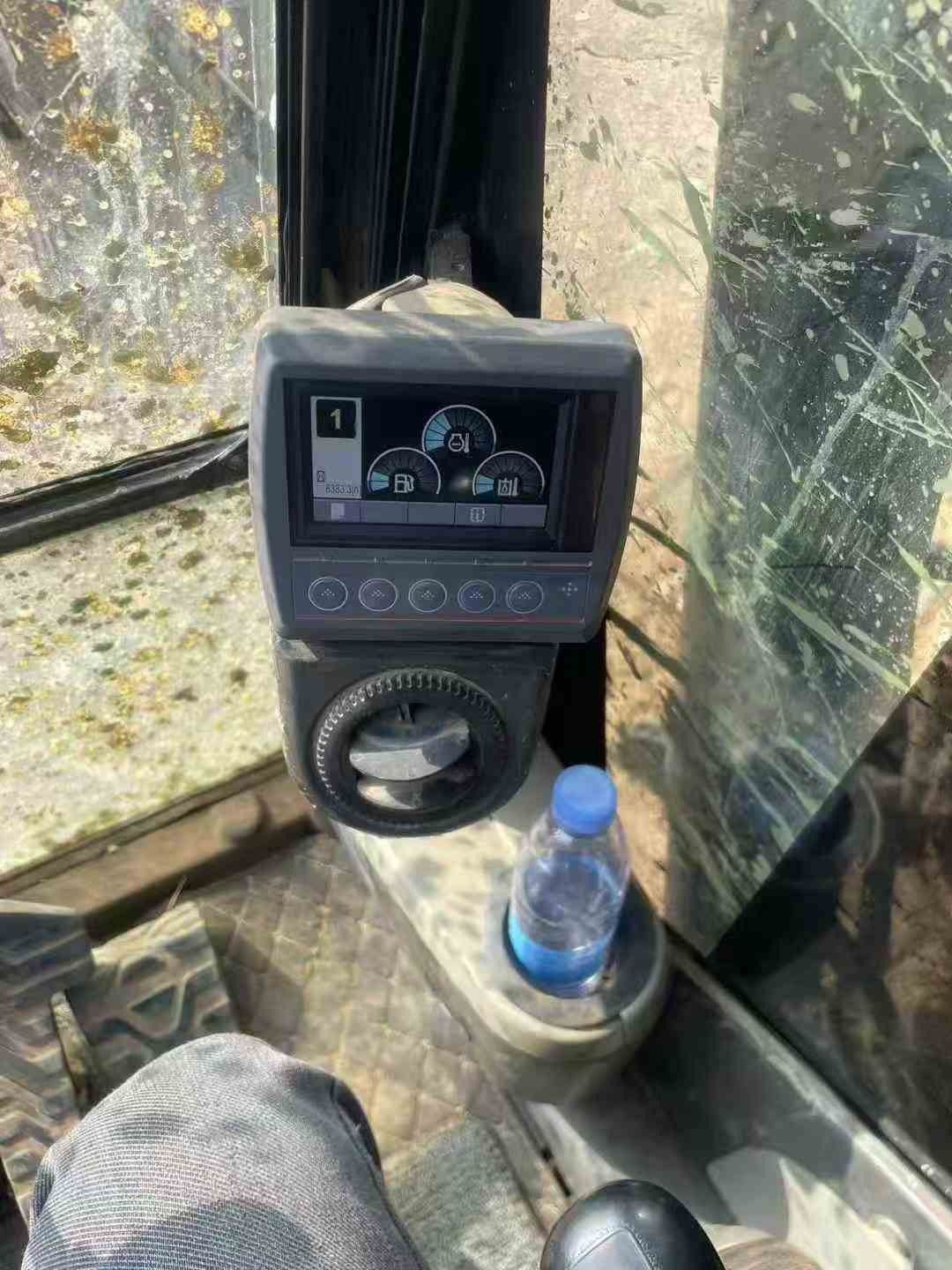

Used Caterpillar 313D Excavator 2019 Model / 9

Product Description

【 Premium Recommendation 】 This 2019 Caterpillar 313D2GC excavator is a rare high-quality second-hand construction machinery in the market. It not only has outstanding working performance, but also maintains an excellent condition from appearance to interior. It is painted in its original color without any refurbishment treatment, showcasing its original charm and durability. This equipment has only been in operation for about 2,800 hours since it left the factory, which is far lower than the average service life of similar models, indicating that it still has a long service life to be explored. In terms of power, it is equipped with a powerful engine developed by Caterpillar itself, which can provide stable and strong power output. It can handle both hard rocks and soft soil with ease. The advanced hydraulic system ensures smooth and precise operation, rapid and sensitive response, greatly improving work efficiency while reducing energy consumption. In addition, all relevant procedures have been completed, including but not limited to vehicle registration certificates, environmental protection labels and other important documents. Buyers can purchase with confidence without worrying about subsequent issues. At present, this machine

SpecificationsValue
No.969362
Tonnage (tons)13
Working weight (kg)13430
Bucket capacity (m³)0.52
Boom length (mm)4650
Rod length (mm)2500
Country of originXuzhou, Jiangsu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCaterpillar Cat C4.2 ACERT
Rated power (kw/rpm)67 (Net power)
Cooling modewater-cooling
Cylinder diameter × stroke (mm)102 x 130
Number of cylinders (PCS)4
Displacement (L)4.25
Working formMeets the emission requirements of US EPA Tier 3 and European IIIA Directive 97/68/EC.
Ground specific pressure (Kpa)41.8 (with 500mm track plate)
Rotation speed (rpm)12.4
Bucket digging force (kN)82
Rod digging force (kN)63
Maximum tractive force (kN)114
Travel speed (km/h)5.5
Main overflow set pressure (Mpa)30.5
Maximum flow of main pump (l/min)127
Traveling Hydraulic Circuit (Mpa)35
Rotary Hydraulic Circuit (Mpa)23
Pilot Oil Circuit (MPa)41.2
Pilot pump flow (L/min)21.9
Bucket cylinders - Number × diameter × stroke (mm)1 x 100 x 939
Bucket rod cylinders - Number × diameter × stroke (mm)1 x 120 x 1197
Boom cylinders - Number × diameter × stroke (mm)2 x 110 x 1015
Fuel Tank (L)250
Hydraulic Tank (L)150
Engine Oil changes (L)19.5
Coolant (L)17.9
Hydraulic System (L)162 (including fuel tank)
Total transport length (mm)7610
Total transport width (mm)2490
Total transport height (mm)2830 (to top of boom)
Full cab height (mm)2760
Counterweight ground clearance (mm)915
Minimum ground clearance (mm)430
Back end turning radius (mm)2140
Total track length (mm)3490
Track gauge (mm)1990
Track plate width (mm)500 (standard)
Total track width (mm)2490
Maximum digging depth (mm)5580
Maximum unloading height (mm)6060
Maximum vertical digging depth (mm)5040
Bulldozer lift or depth (mm)There is no
Dodging plate width × height (mm)There is no
Maximum excavation radius of stop surface (mm)8220
Boom turning Angle (left/right °)There is no
Maximum effective digging depth (mm)5380
see more

Overview

No.969362

Brand Name:

Caterpillar

Model Number:

313D

Year:

2019

Location:

Jiangxi China
