2016 Caterpillar 320B

1/9
Used Caterpillar 320B Excavator 2016 Model / 1

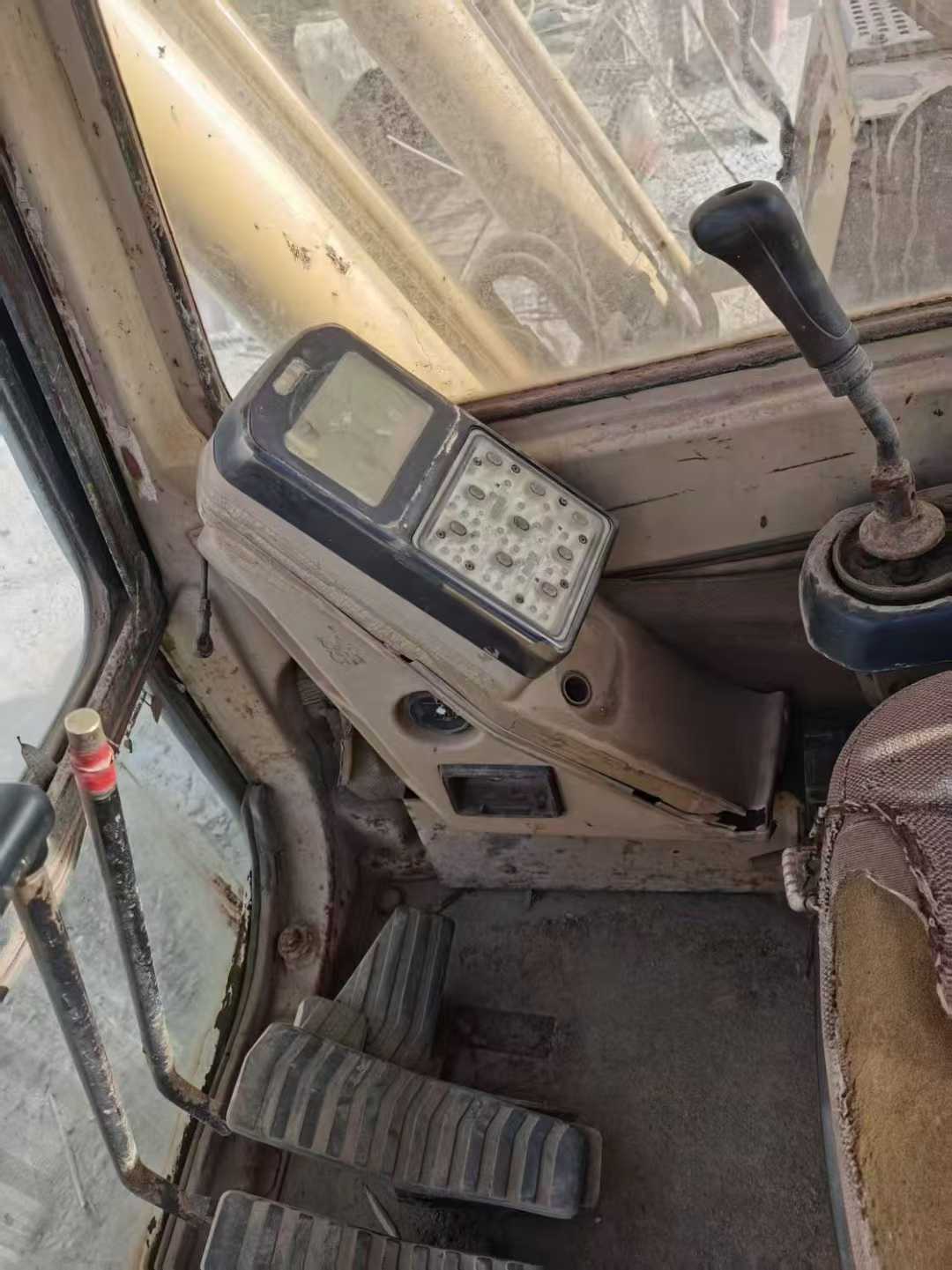

Used Caterpillar 320B Excavator 2016 Model / 2

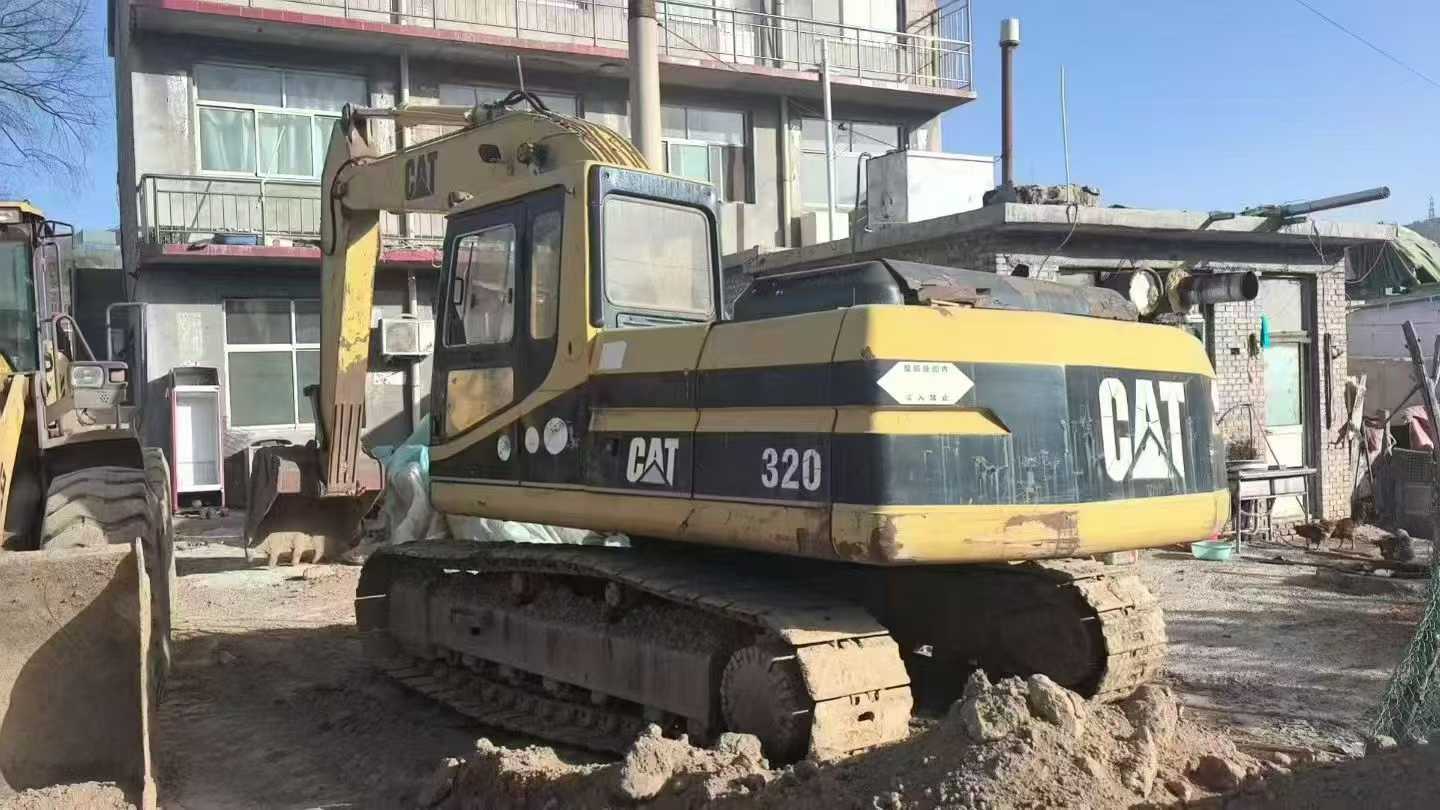

Used Caterpillar 320B Excavator 2016 Model / 3

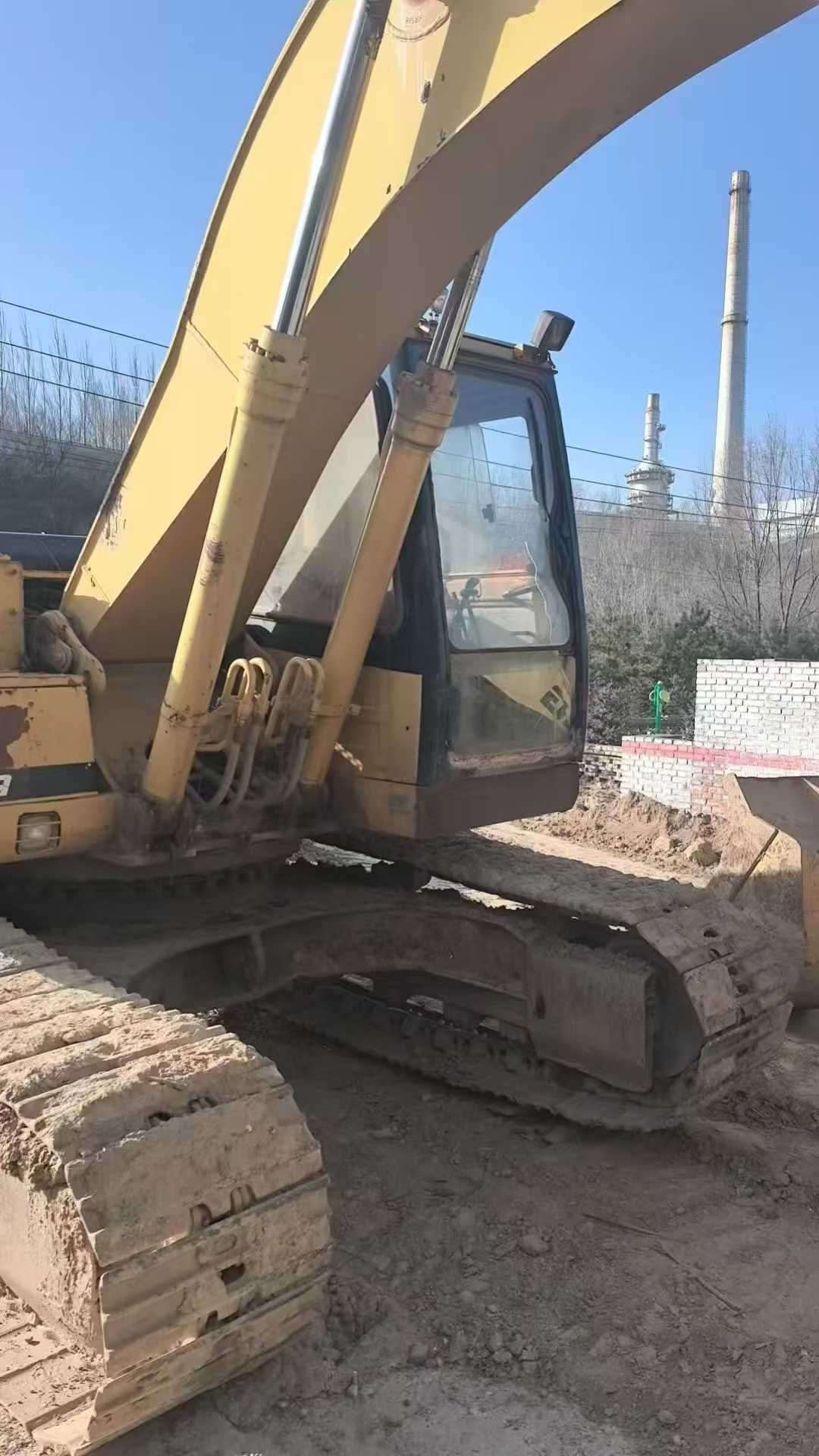

Used Caterpillar 320B Excavator 2016 Model / 4

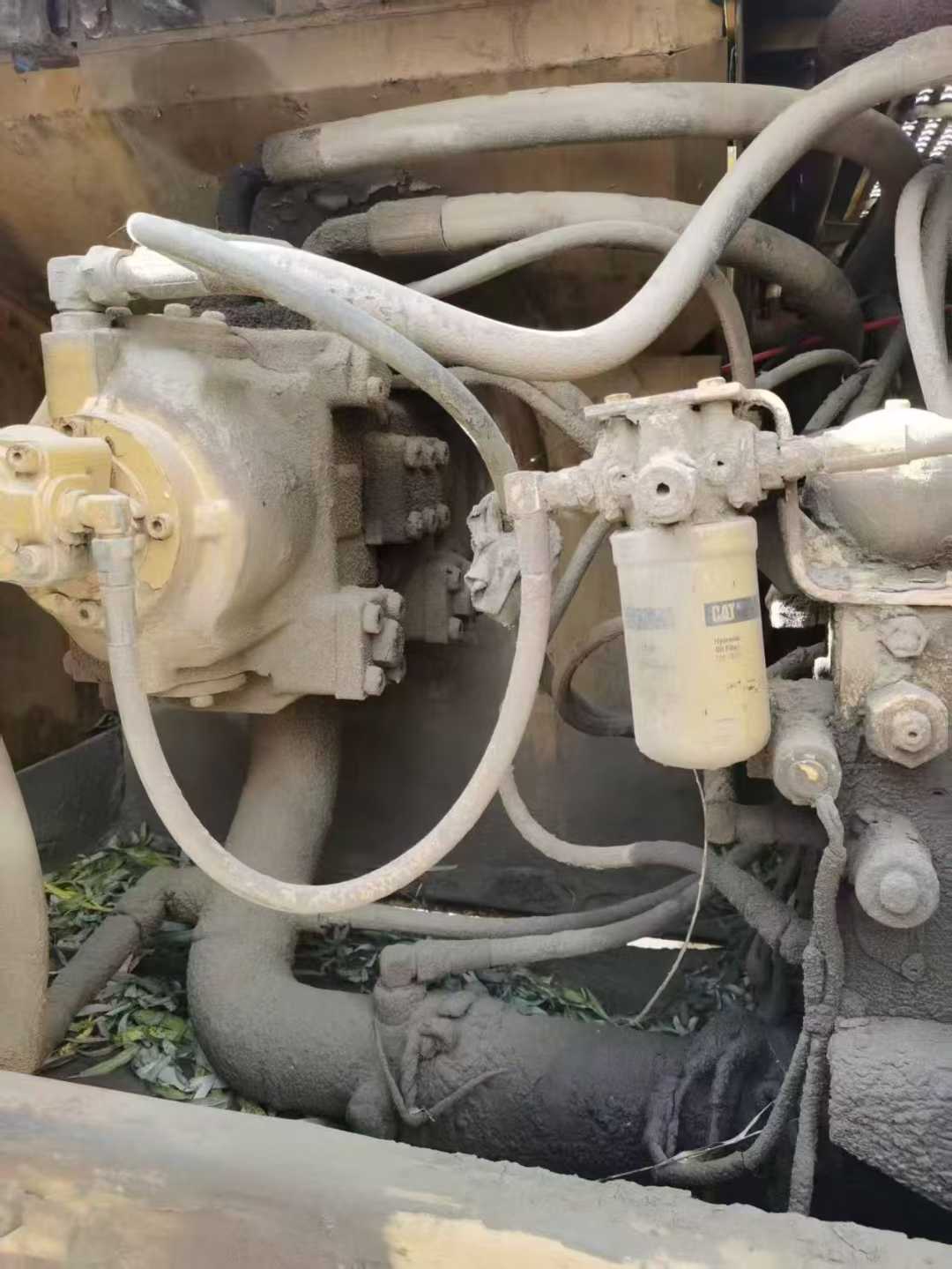

Used Caterpillar 320B Excavator 2016 Model / 5

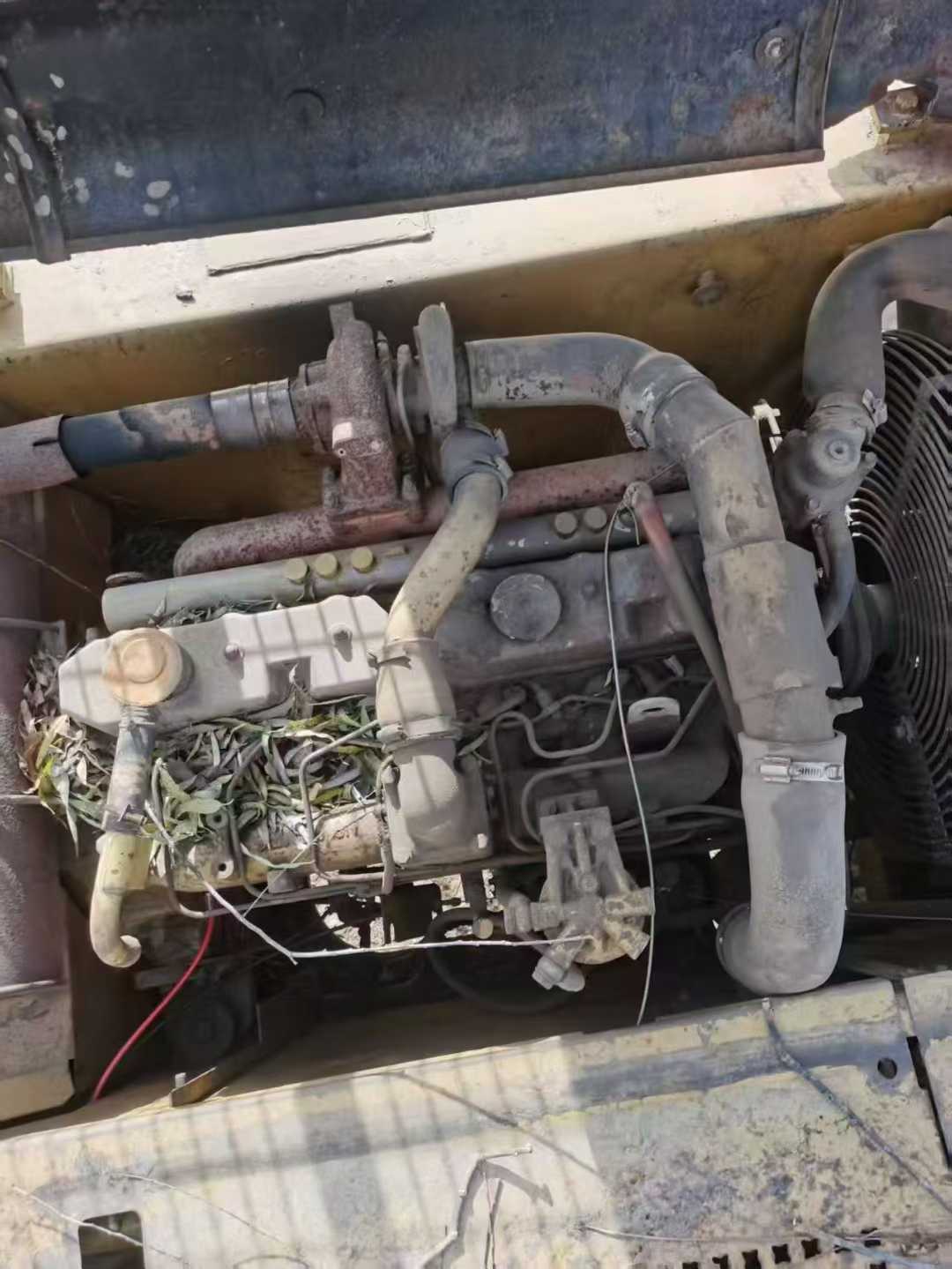

Used Caterpillar 320B Excavator 2016 Model / 6

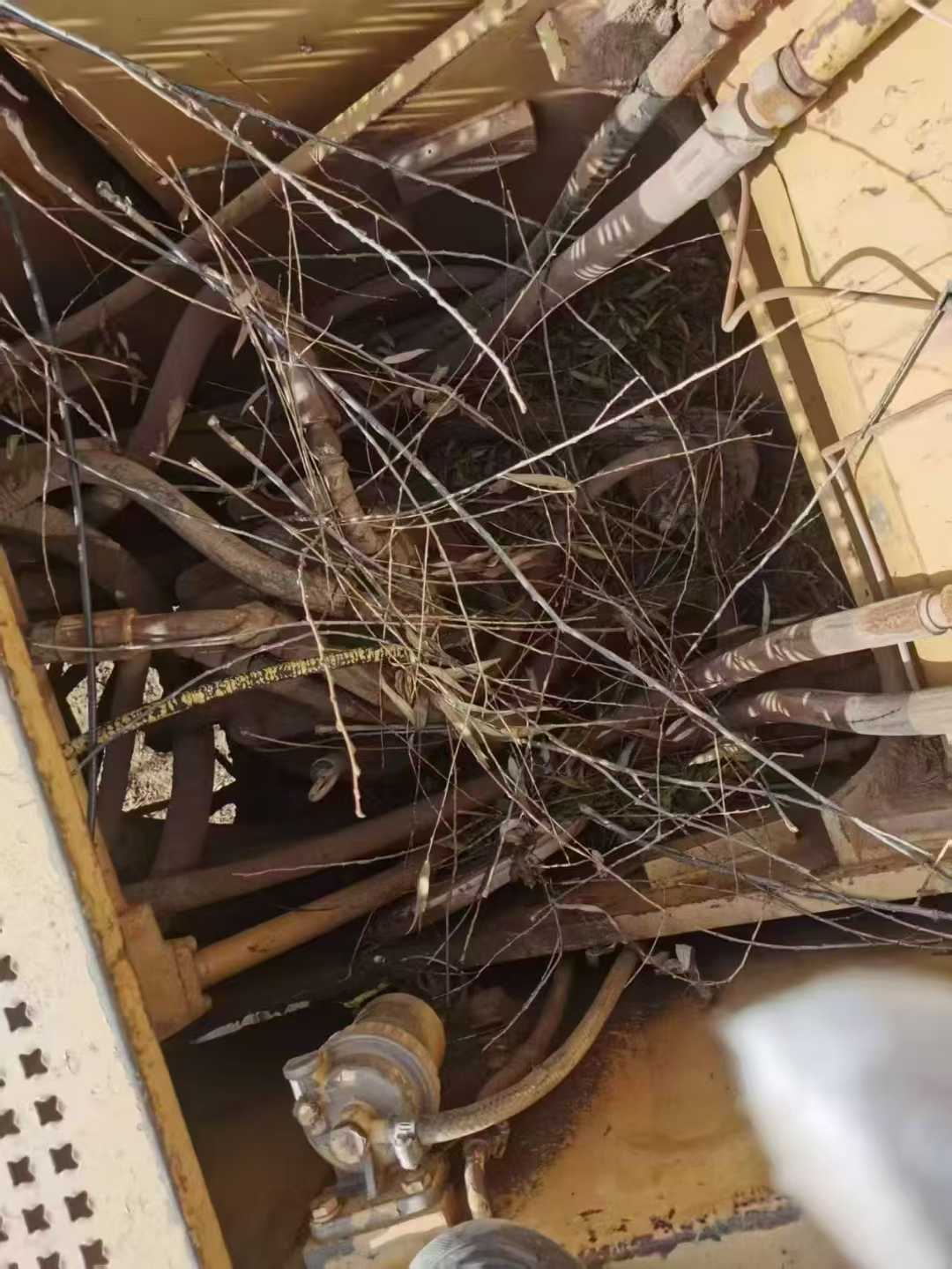

Used Caterpillar 320B Excavator 2016 Model / 7

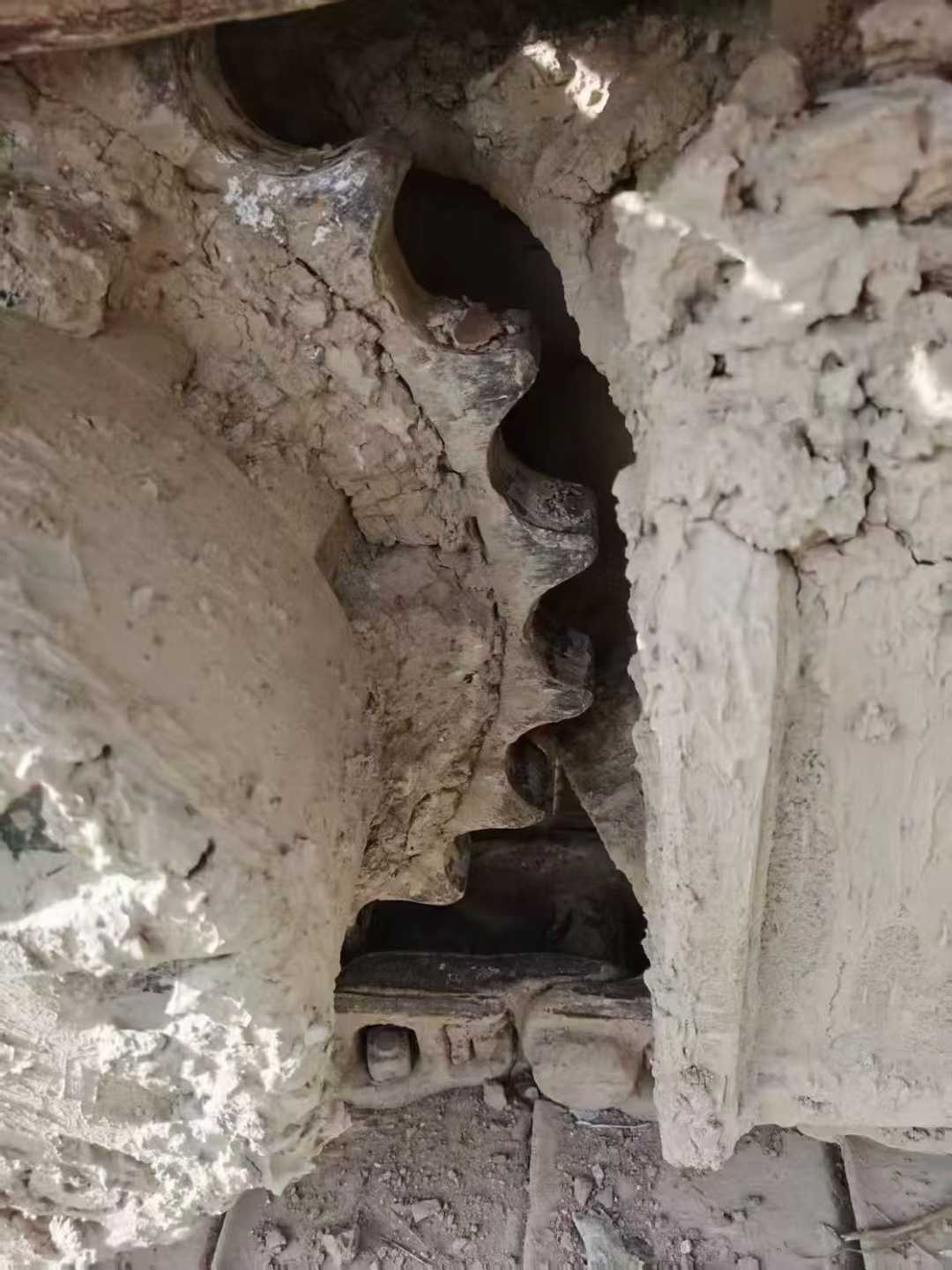

Used Caterpillar 320B Excavator 2016 Model / 8

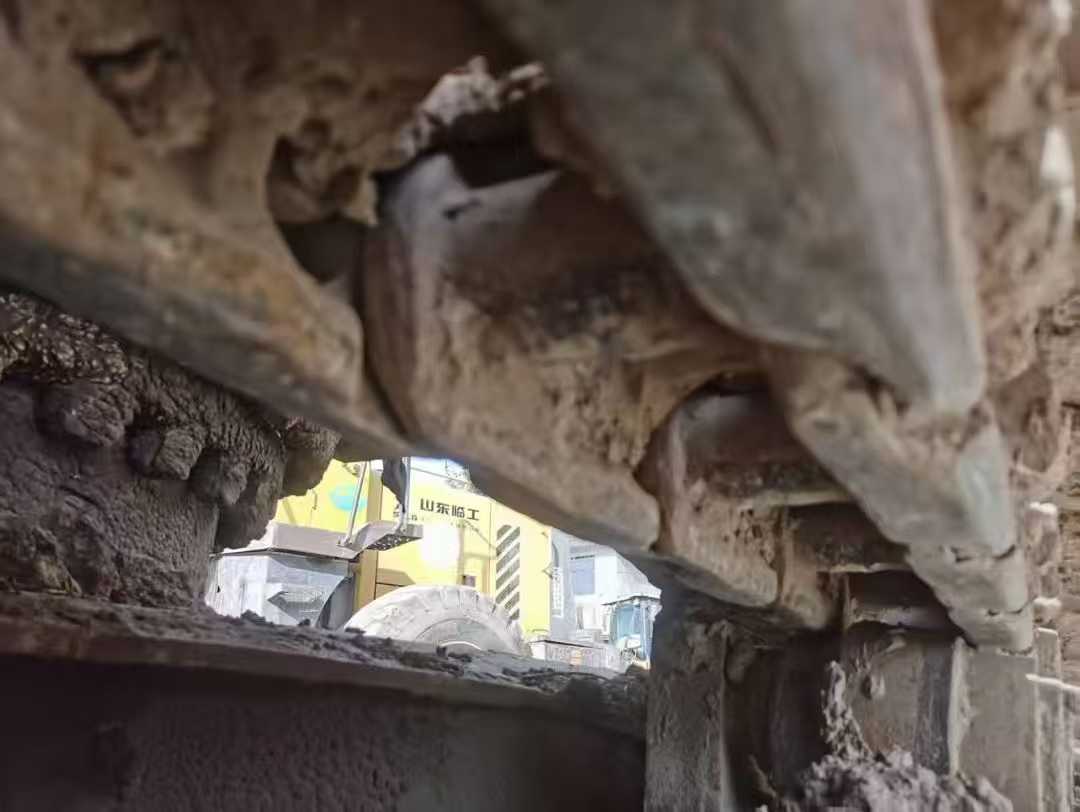

Used Caterpillar 320B Excavator 2016 Model / 9

Product Description

【 Used Caterpillar 320B Excavator This second-hand Caterpillar 320B excavator, with its outstanding performance and durability, is the ideal choice for your engineering operations. Since its commissioning, this machine has accumulated a working time of only 5,800 hours and is in the best working condition, ensuring the efficient operation and long service life of the equipment. Its power system adopts the original Caterpillar C6.4 engine, which is renowned for its powerful output and smooth operation. Even in harsh working environments, it can maintain stable working efficiency. In addition, advanced fuel injection technology and optimized combustion processes not only enhance fuel economy but also reduce emissions, meeting environmental protection requirements. In terms of the hydraulic system, the 320B is equipped with Caterpillar's unique positive flow control technology, which makes the operation more precise and smooth. It can handle complex working conditions such as excavation, loading and crushing with ease. The powerful combination of the main pump and motor ensures sufficient force transmission. Meanwhile, through the intelligent control system, precise control of each action link is achieved, significantly enhancing work e

SpecificationsValue
No.963987
Tonnage (tons)20
Working weight (kg)19400
Bucket capacity (m³)0.92
Boom length (mm)5680
Rod length (mm)2900
Country of originJapan
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCaterpillar CAT 3066T
Rated power (kw/rpm)99.9/1800
Cylinder diameter × stroke (mm)102 x 130
Displacement (L)6.4
Rotation speed (rpm)10.7
Travel speed (km/h)3.4/5.5
Maximum flow of main pump (l/min)185
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)23
Working Hydraulic Circuit (Mpa)34.3
Pilot Oil Circuit (MPa)4.12
Bucket cylinders - Number × diameter × stroke (mm)1-120 x 1030
Bucket rod cylinders - Number × diameter × stroke (mm)1-140 x 1430
Boom cylinders - Number × diameter × stroke (mm)2-120 x 1260
Fuel Tank (L)340
Hydraulic Tank (L)130
Engine Oil changes (L)20.5
Coolant (L)25
Hydraulic System (L)220
Total transport length (mm)9440
Total transport width (mm)2800
Total transport height (mm)2940
Full cab height (mm)2940
Minimum ground clearance (mm)475
Back end turning radius (mm)2750
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3265
Maximum digging depth (mm)6640
Maximum excavation height (mm)9470
Maximum unloading height (mm)6570
Maximum vertical digging depth (mm)6040
Maximum excavation radius of stop surface (mm)9780
see more

Overview

No.963987

Brand Name:

Caterpillar

Model Number:

320B

Year:

2016

Location:

Shandong China
