2016 Caterpillar 320B

1/6
Used Caterpillar 320B Excavator 2016 Model / 1

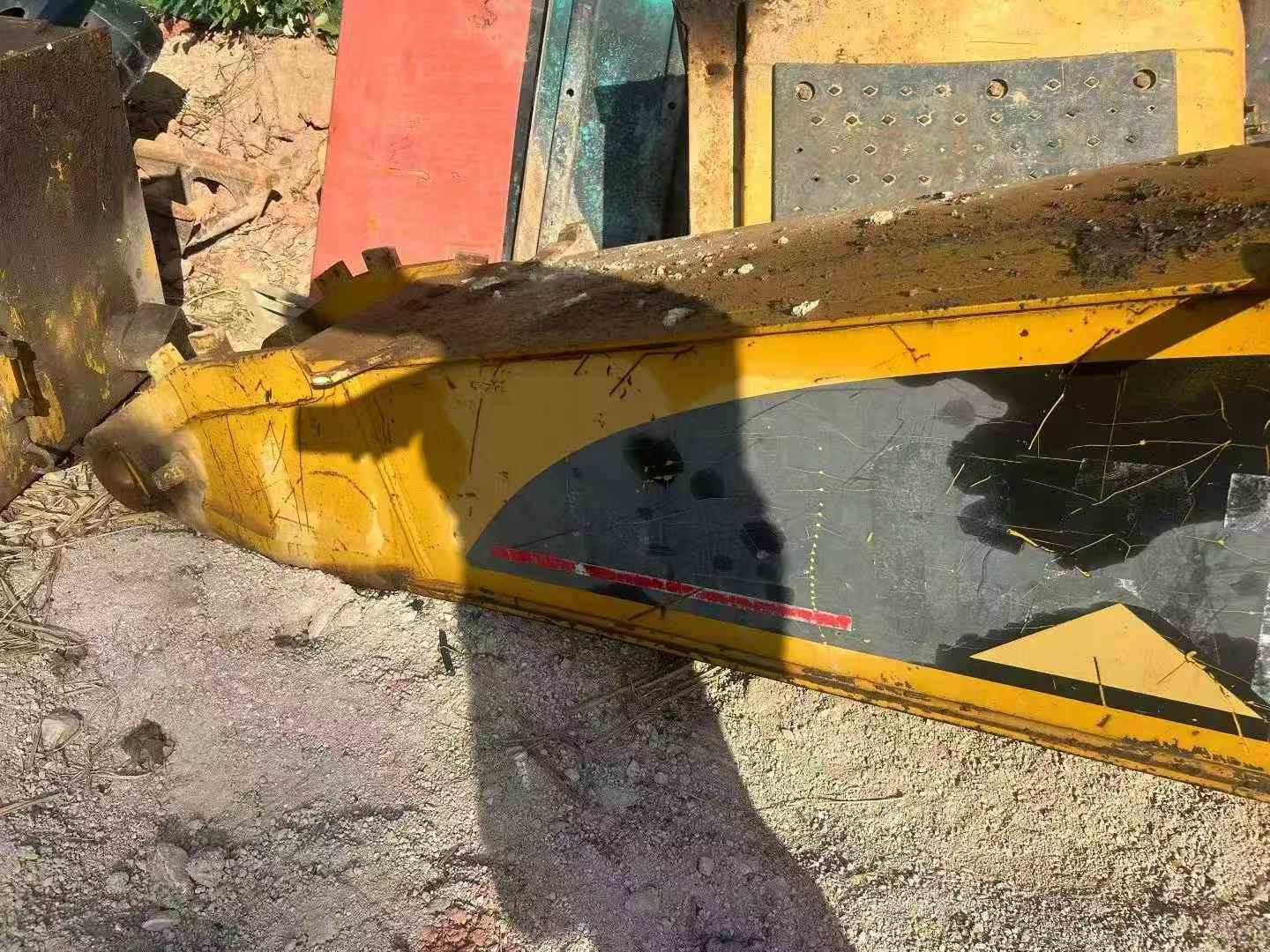

Used Caterpillar 320B Excavator 2016 Model / 2
Used Caterpillar 320B Excavator 2016 Model / 3

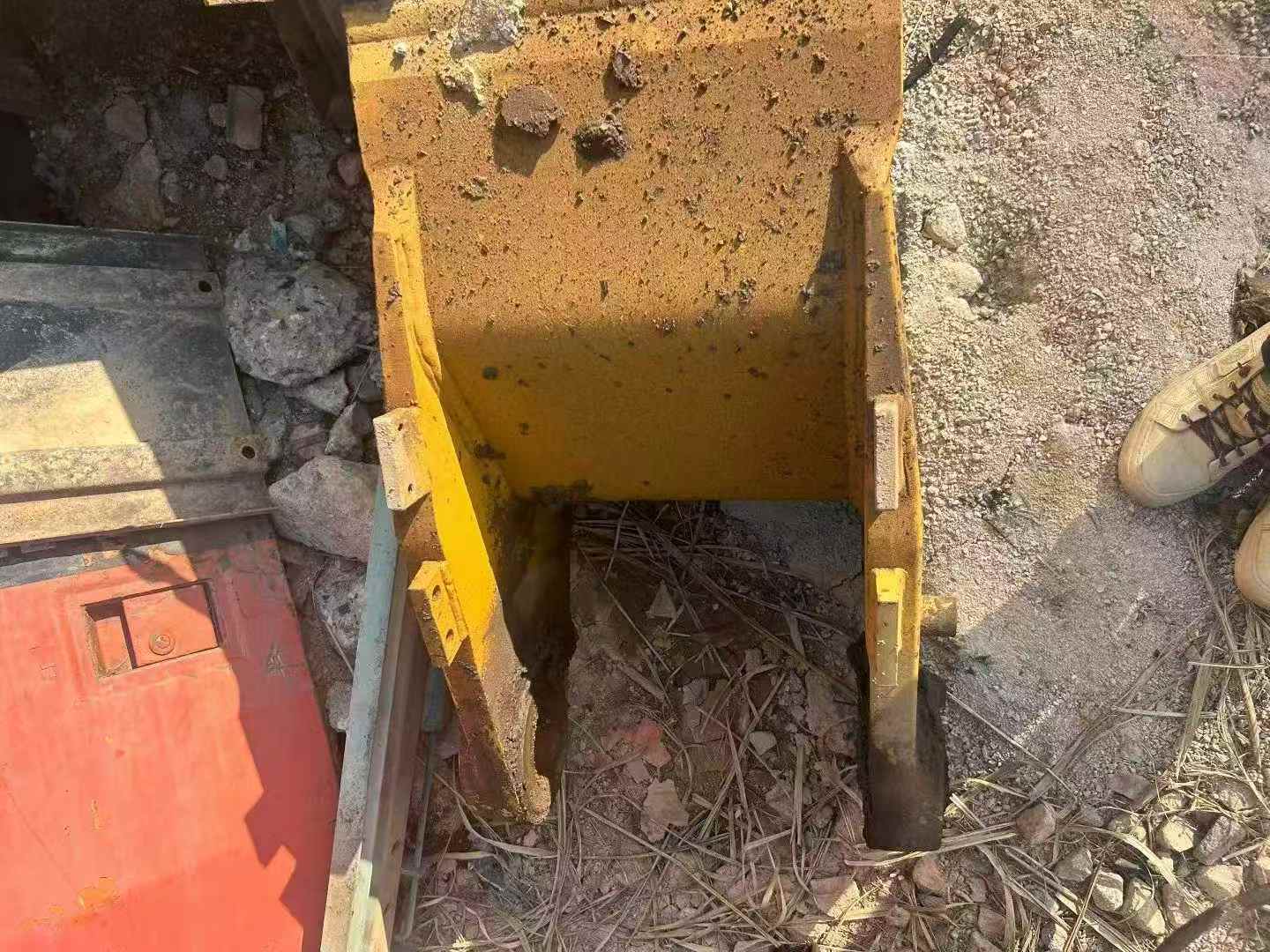

Used Caterpillar 320B Excavator 2016 Model / 4

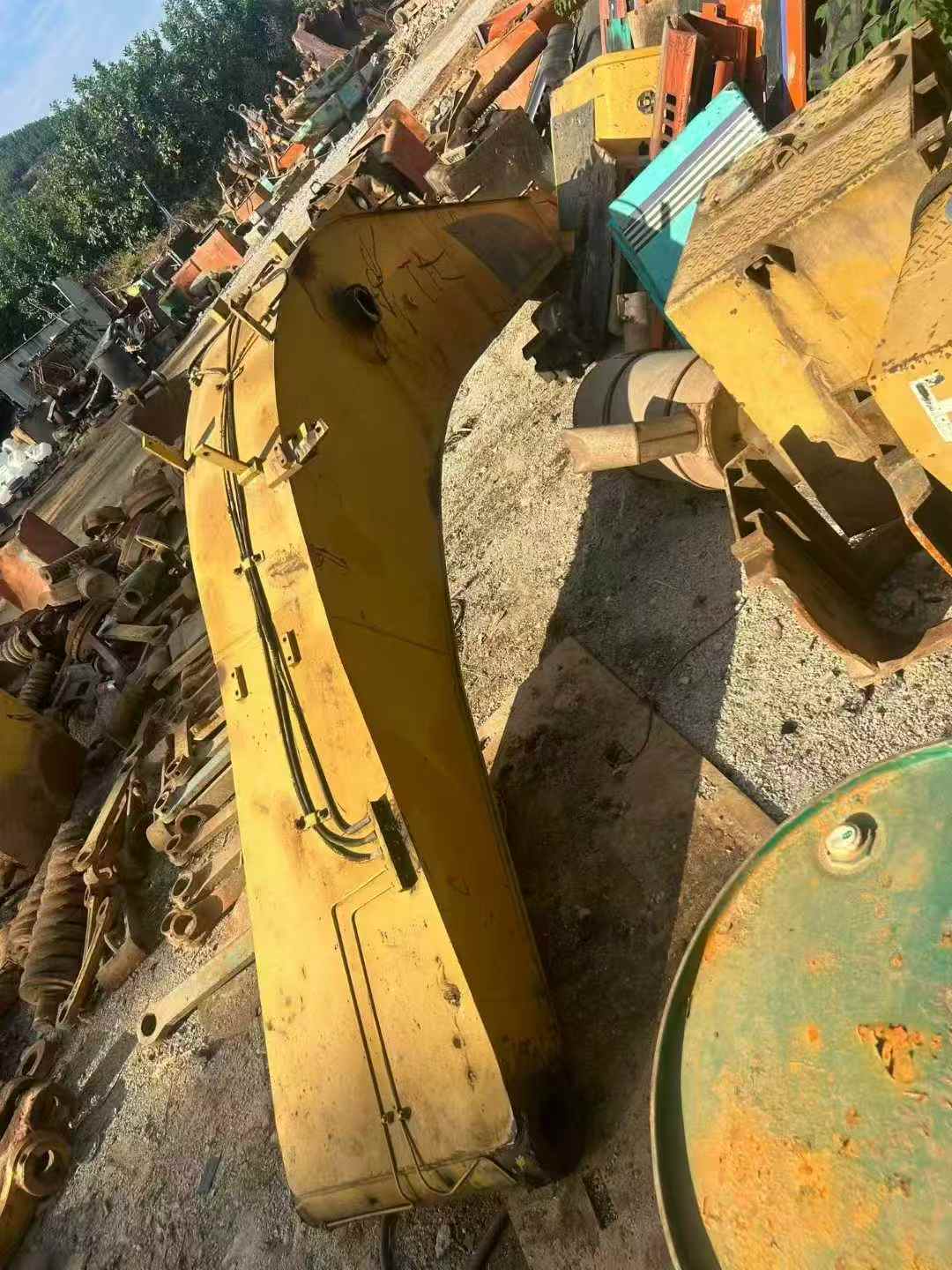

Used Caterpillar 320B Excavator 2016 Model / 5
Used Caterpillar 320B Excavator 2016 Model / 6

Product Description

Second-hand Caterpillar 320B/320C excavator boom assembly We have carefully prepared two high-quality second-hand excavator boom assemblies from Caterpillar for you - Caterpillar 320B and Caterpillar 320C. Both of these two devices have undergone strict testing to ensure their stable and reliable performance, making them suitable for use in various construction environments. - ** Working Time ** : The large arm assembly of the Caterpillar 320B model has a working record of approximately 5,000 hours. The Caterpillar 320C model, on the other hand, is slightly lower, approximately 4,500 hours. Despite this, both are in good operating condition and have undergone comprehensive inspection and maintenance by professional teams, capable of meeting the requirements of long-term and high-intensity operations. - ** Powertrain ** : Both the 320B and 320C are equipped with powerful and efficient engines that can provide sufficient power support, enabling them to handle complex terrains or heavy-load tasks with ease. Meanwhile, these engines also have excellent fuel economy, which helps to reduce operating costs. - ** Hydraulic System ** : Designed with advanced hydraulic technology, it ensures smoothness and accuracy during operation. Especial

SpecificationsValue
No.964684
Tonnage (tons)20
Working weight (kg)19400
Bucket capacity (m³)0.92
Boom length (mm)5680
Rod length (mm)2900
Country of originJapan
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCaterpillar CAT 3066T
Rated power (kw/rpm)99.9/1800
Cylinder diameter × stroke (mm)102 x 130
Displacement (L)6.4
Rotation speed (rpm)10.7
Travel speed (km/h)3.4/5.5
Maximum flow of main pump (l/min)185
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)23
Working Hydraulic Circuit (Mpa)34.3
Pilot Oil Circuit (MPa)4.12
Bucket cylinders - Number × diameter × stroke (mm)1-120 x 1030
Bucket rod cylinders - Number × diameter × stroke (mm)1-140 x 1430
Boom cylinders - Number × diameter × stroke (mm)2-120 x 1260
Fuel Tank (L)340
Hydraulic Tank (L)130
Engine Oil changes (L)20.5
Coolant (L)25
Hydraulic System (L)220
Total transport length (mm)9440
Total transport width (mm)2800
Total transport height (mm)2940
Full cab height (mm)2940
Minimum ground clearance (mm)475
Back end turning radius (mm)2750
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3265
Maximum digging depth (mm)6640
Maximum excavation height (mm)9470
Maximum unloading height (mm)6570
Maximum vertical digging depth (mm)6040
Maximum excavation radius of stop surface (mm)9780
see more

Overview

No.964684

Brand Name:

Caterpillar

Model Number:

320B

Year:

2016

Location:

Fujian China
