2016 Caterpillar 320C

1/9
Used Caterpillar 320C Excavator 2016 Model / 1

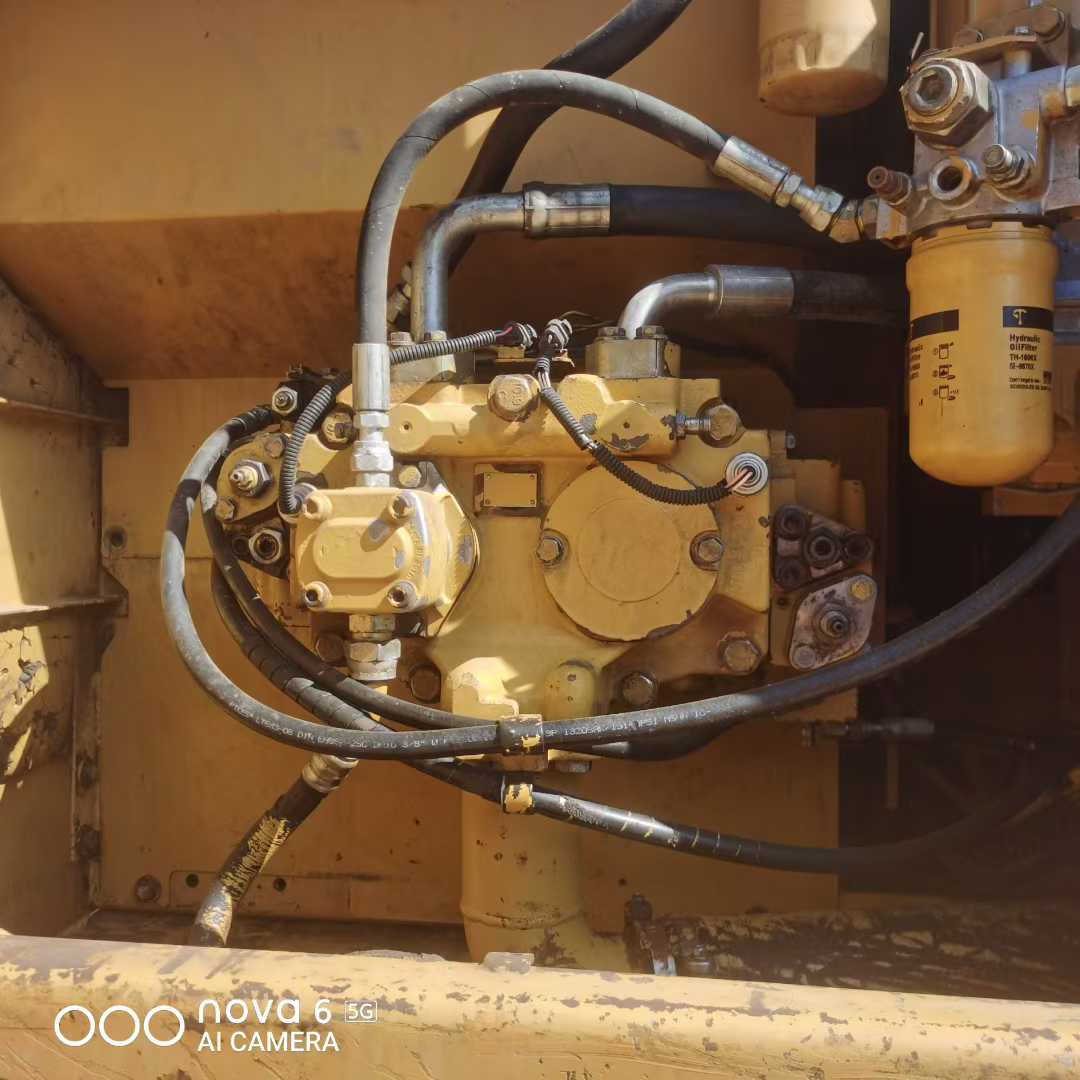

Used Caterpillar 320C Excavator 2016 Model / 2

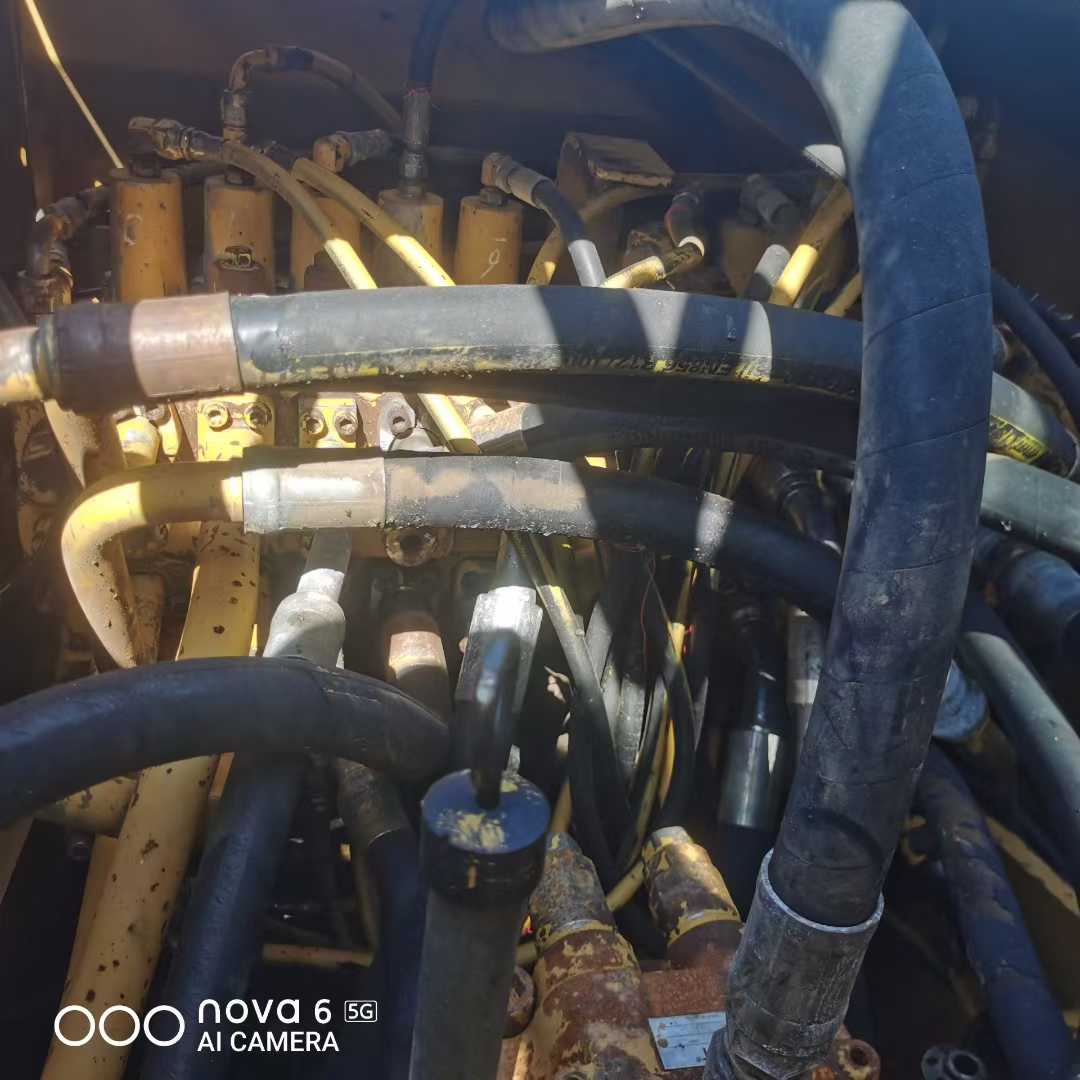

Used Caterpillar 320C Excavator 2016 Model / 3

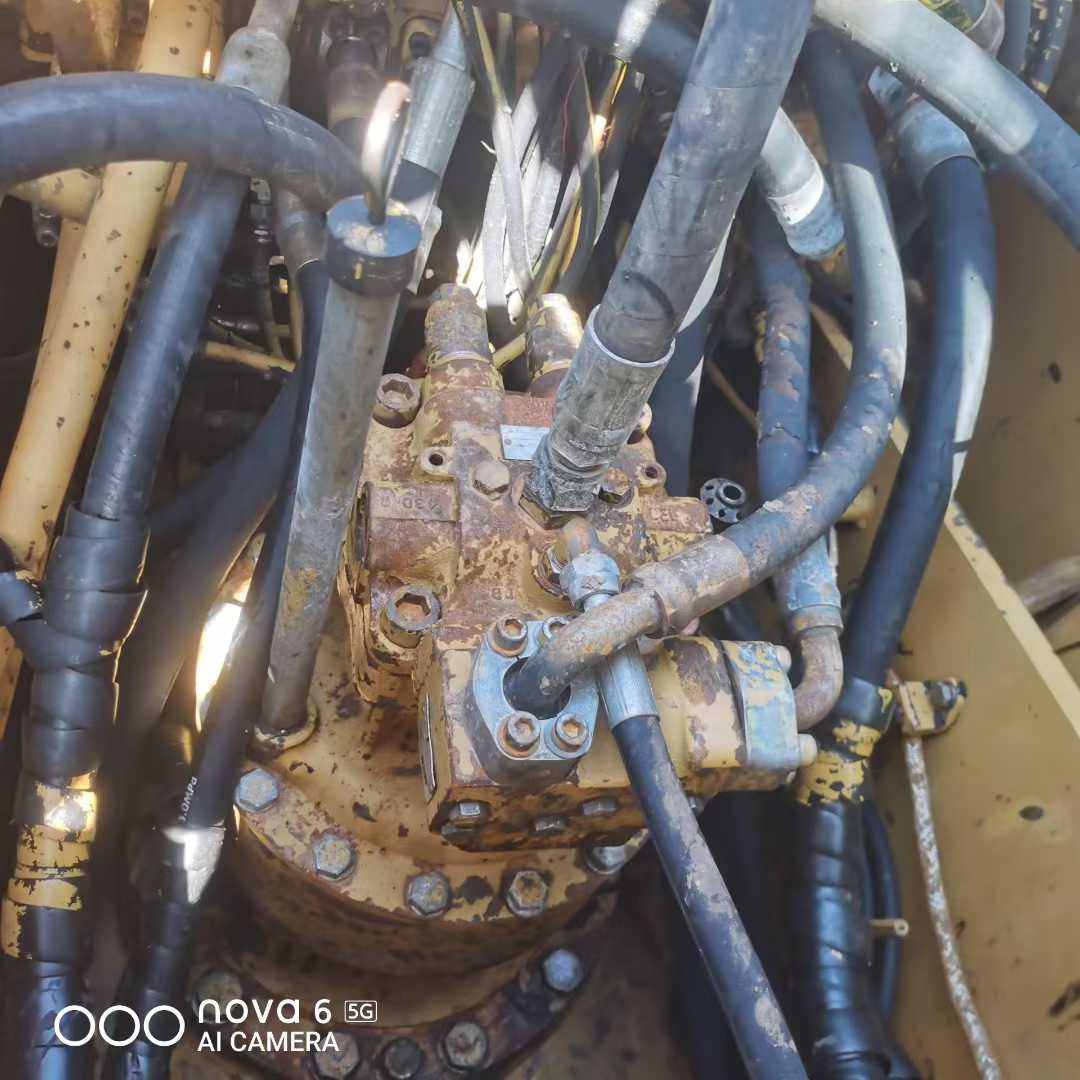

Used Caterpillar 320C Excavator 2016 Model / 4

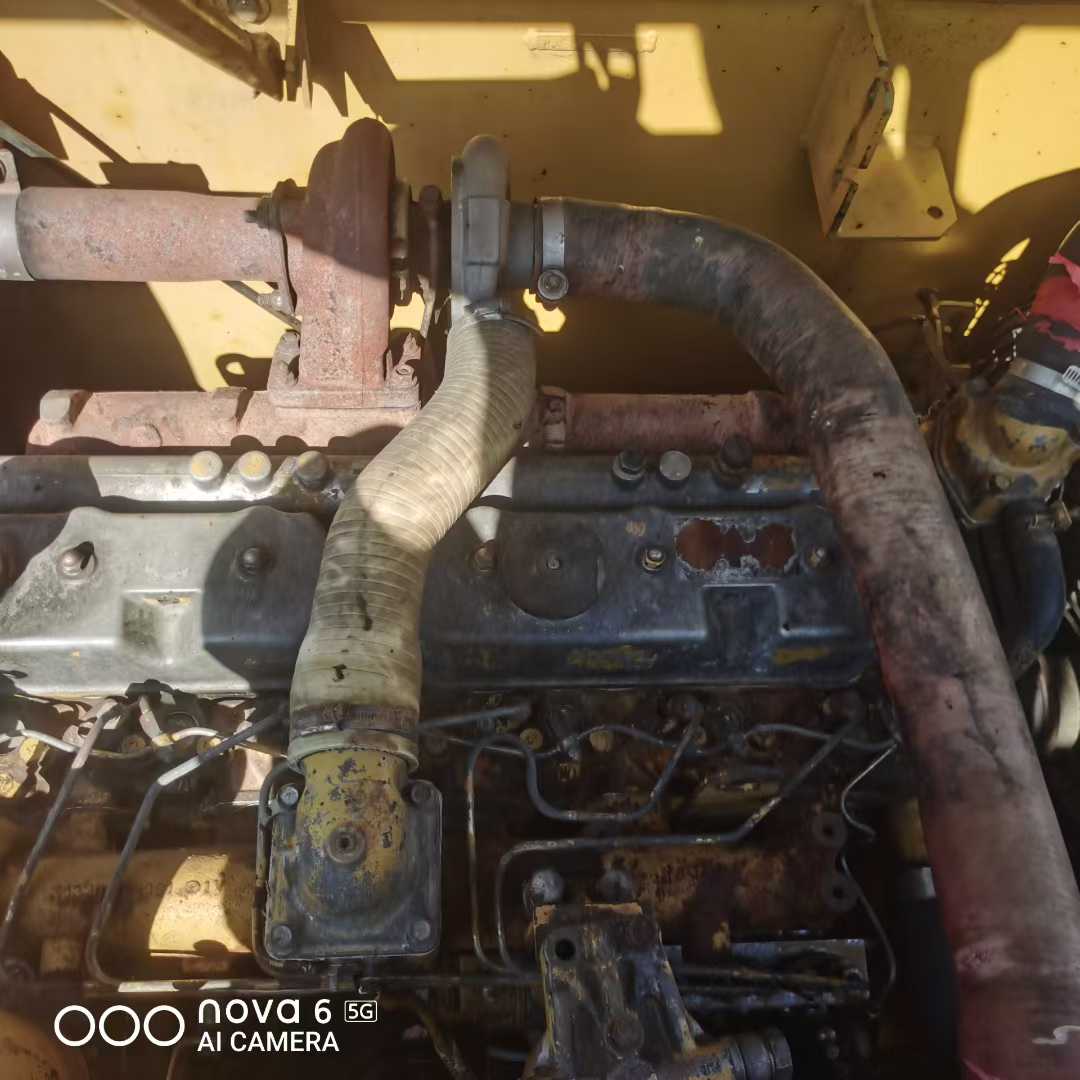

Used Caterpillar 320C Excavator 2016 Model / 5

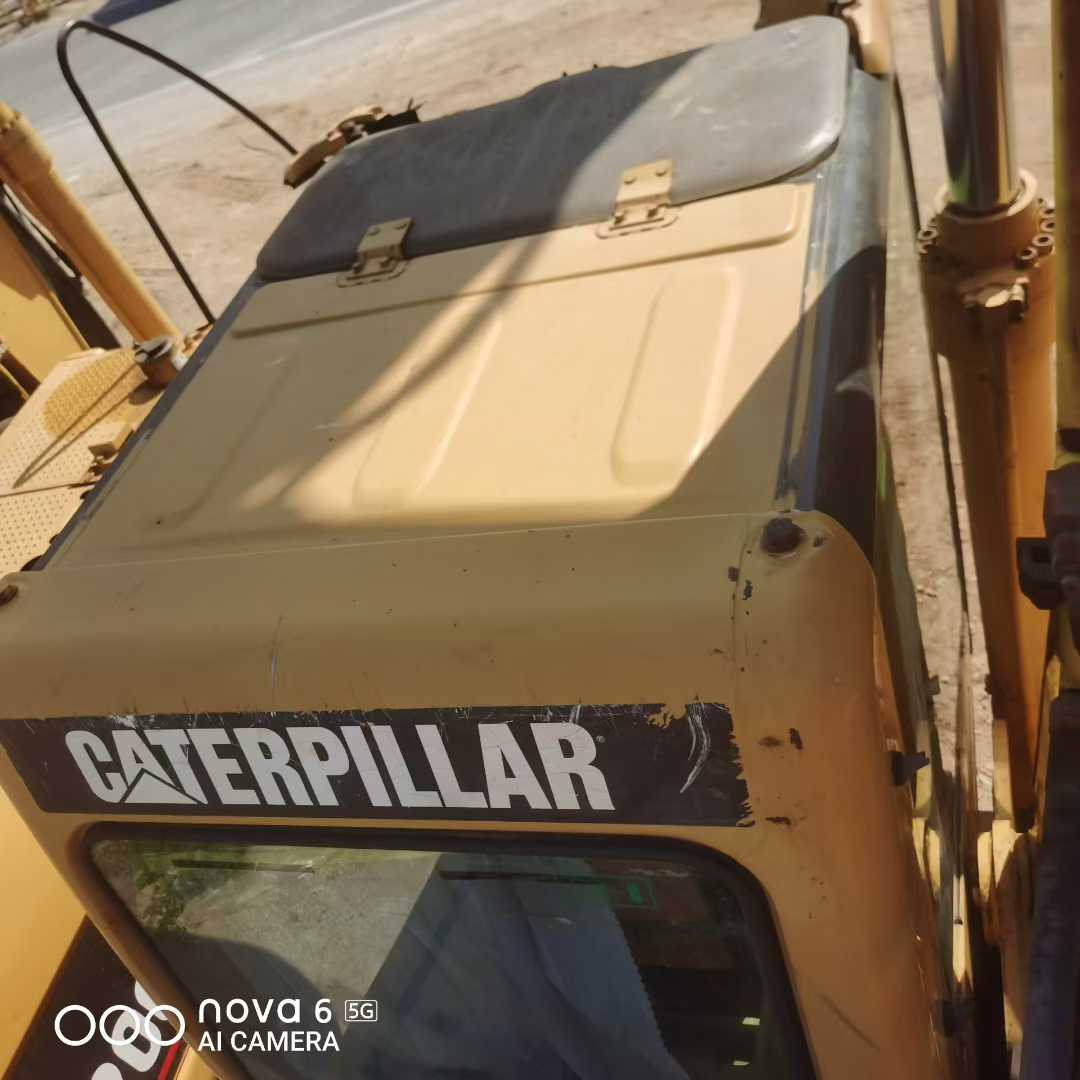

Used Caterpillar 320C Excavator 2016 Model / 6

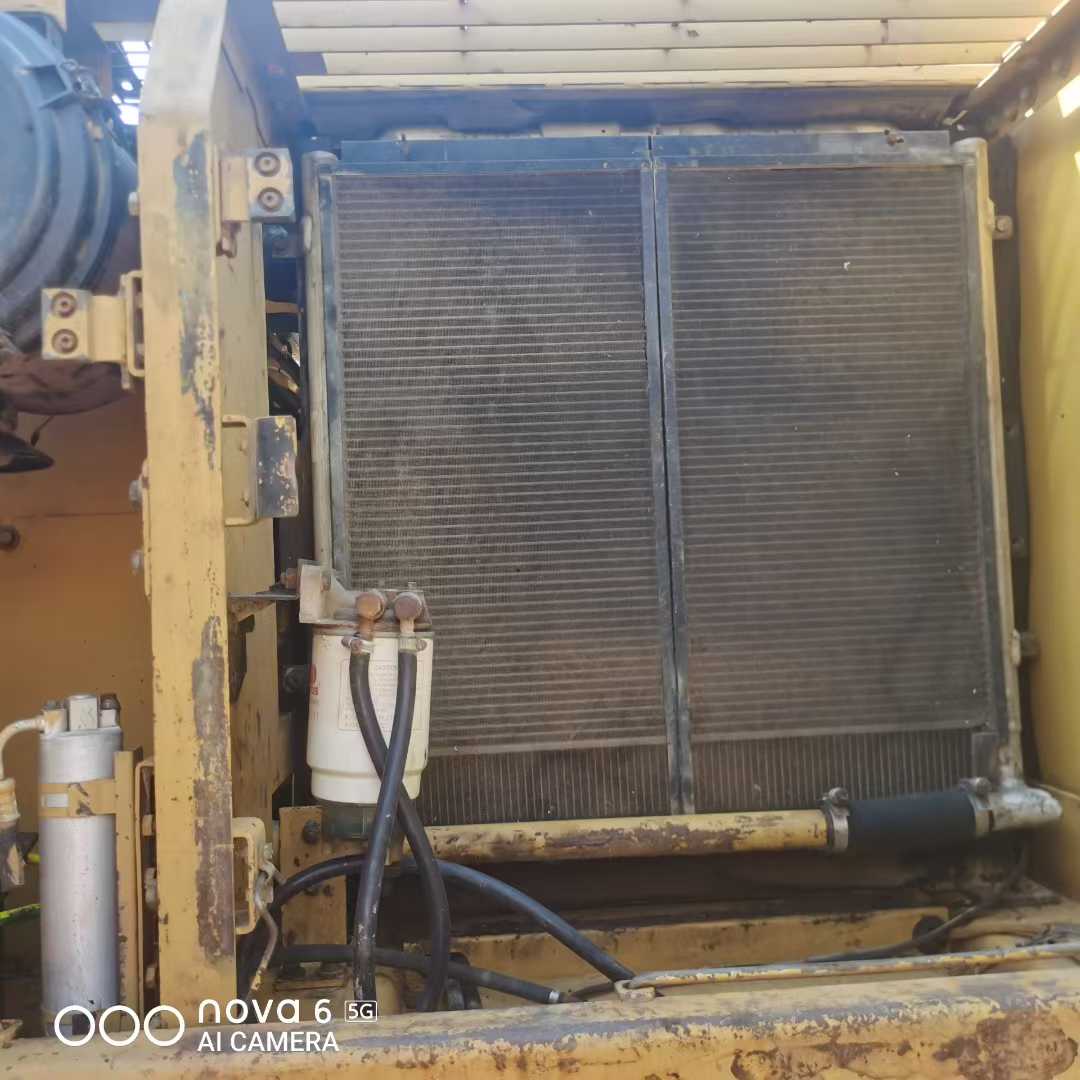

Used Caterpillar 320C Excavator 2016 Model / 7

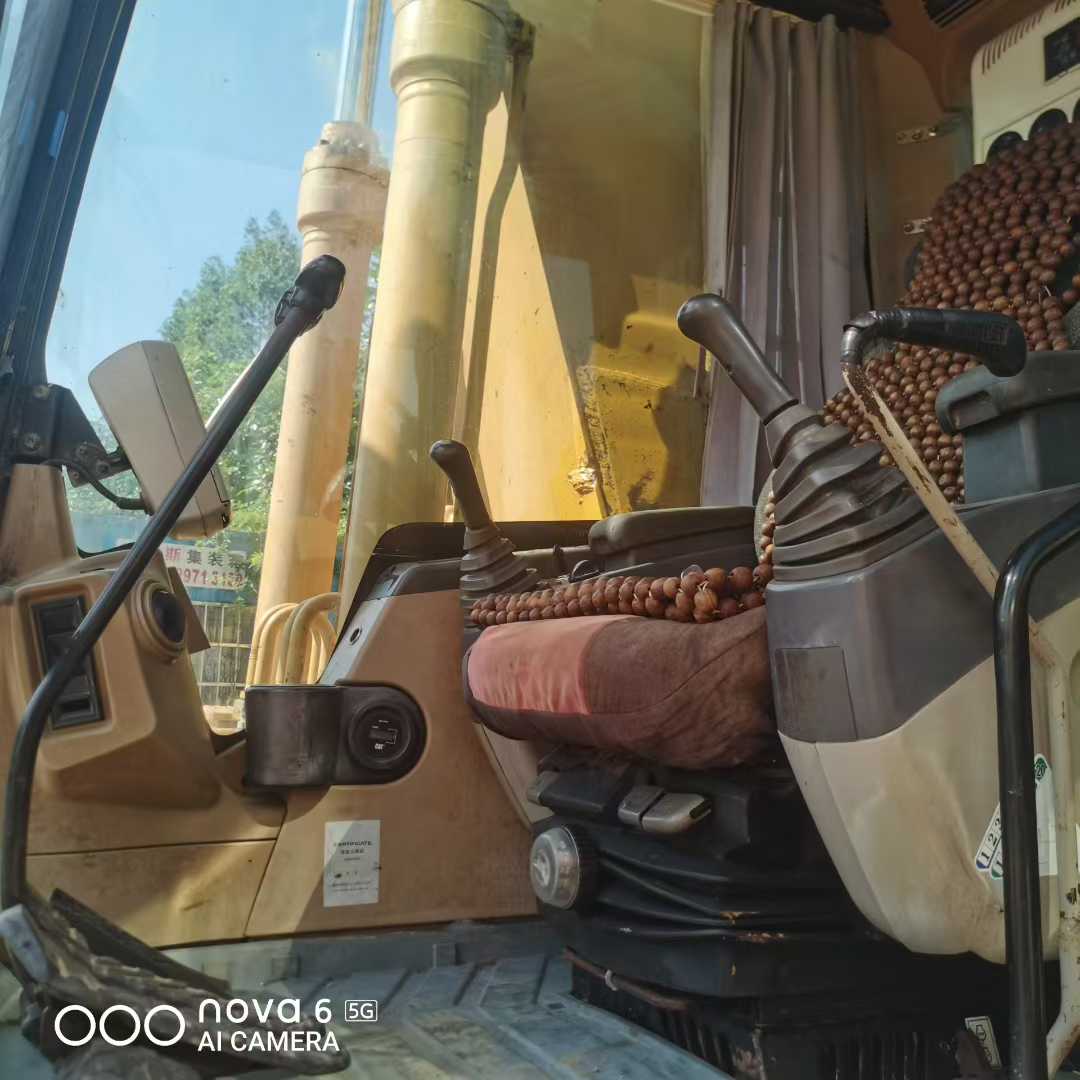

Used Caterpillar 320C Excavator 2016 Model / 8

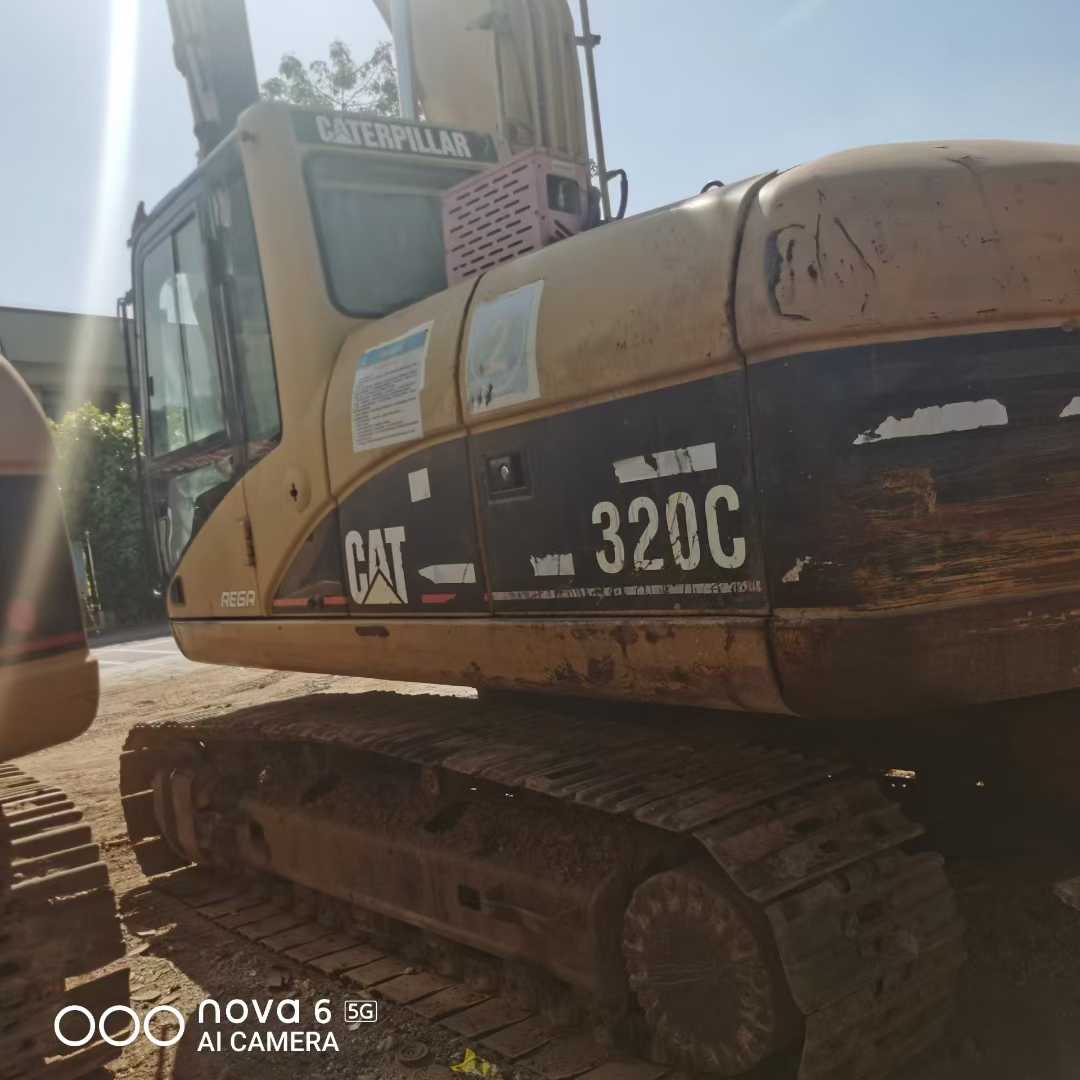

Used Caterpillar 320C Excavator 2016 Model / 9

Product Description

【 Premium Recommendation 】 Second-hand Caterpillar 320C excavator. This machine is a rare and high-quality choice in the market. It not only boasts outstanding working performance, but also maintains an excellent state both in appearance and internal condition. The cumulative working time of this excavator is only 5,000 hours, which is far lower than the average service life of similar equipment. This means that the wear degree of its main components is relatively low and its service life is longer. In terms of the power system, this machine is equipped with an original imported high-efficiency engine from Caterpillar. Even after long-term operation, it can still provide strong and stable power output. Whether it is excavation, loading or crushing operations, it can handle them with ease. Meanwhile, this engine also features excellent fuel economy, helping users effectively reduce operating costs. The hydraulic system adopts an advanced closed center load sensing design, ensuring smoothness and accuracy during operation, and can handle complex and changeable construction sites with ease. In addition, the large-capacity water tank design ensures better heat dissipation, extends continuous operation time, and reduces downtime caused by

SpecificationsValue
No.963957
Tonnage (tons)20
Working weight (kg)21115
Bucket capacity (m³)0.8
Boom length (mm)5680
Rod length (mm)2900
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCaterpillar CAT 3066 ATAAC
Rated power (kw/rpm)110/1800
Cooling modewater-cooling
Cylinder diameter × stroke (mm)102 x 130
Displacement (L)6.4
Ground specific pressure (Kpa)48.02
Rotation speed (rpm)11.5
Bucket digging force (kN)132
Rod digging force (kN)99
Travel speed (km/h)5.5
Maximum flow of main pump (l/min)205
Traveling Hydraulic Circuit (Mpa)34.4
Rotary Hydraulic Circuit (Mpa)26
Working Hydraulic Circuit (Mpa)34.3
Pilot Oil Circuit (MPa)4.12
Bucket cylinders - Number × diameter × stroke (mm)1-120 x 1030
Bucket rod cylinders - Number × diameter × stroke (mm)1-140 x 1430
Boom cylinders - Number × diameter × stroke (mm)2-120 x 1260
Fuel Tank (L)320
Hydraulic Tank (L)120
Engine Oil changes (L)30
Coolant (L)24
Hydraulic System (L)200
Total transport length (mm)9390
Total transport width (mm)2800
Total transport height (mm)3050
Full cab height (mm)3050
Minimum ground clearance (mm)460
Back end turning radius (mm)2770
Total track length (mm)4070
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3260
Maximum digging depth (mm)6550
Maximum excavation height (mm)9440
Maximum unloading height (mm)6770
Maximum vertical digging depth (mm)5440
Maximum excavation radius of stop surface (mm)9710
see more

Overview

No.963957

Brand Name:

Caterpillar

Model Number:

320C

Year:

2016

Location:

Guangdong China
