2016 Caterpillar 320C

1/8
Used Caterpillar 320C Excavator 2016 Model / 1

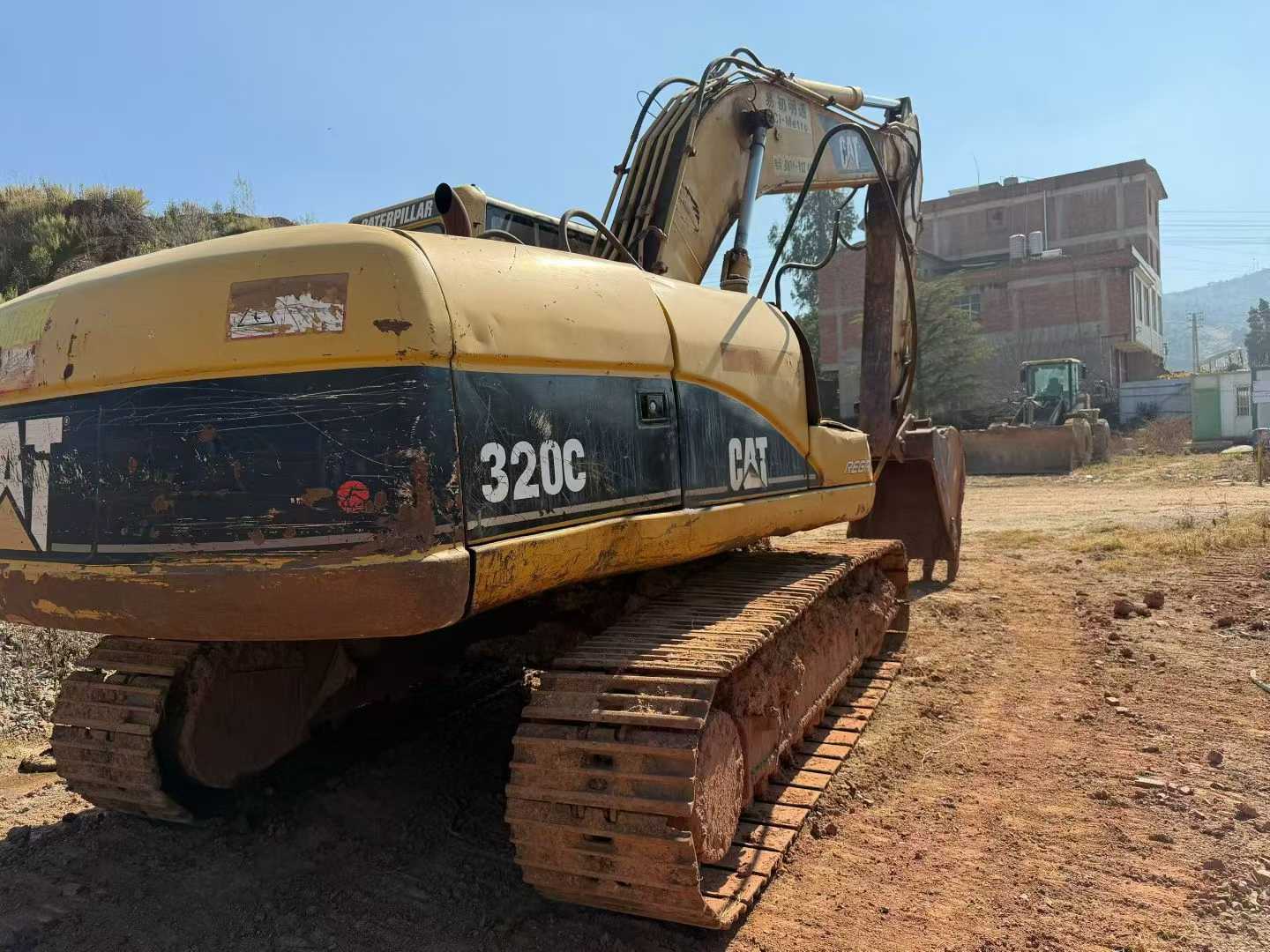

Used Caterpillar 320C Excavator 2016 Model / 2

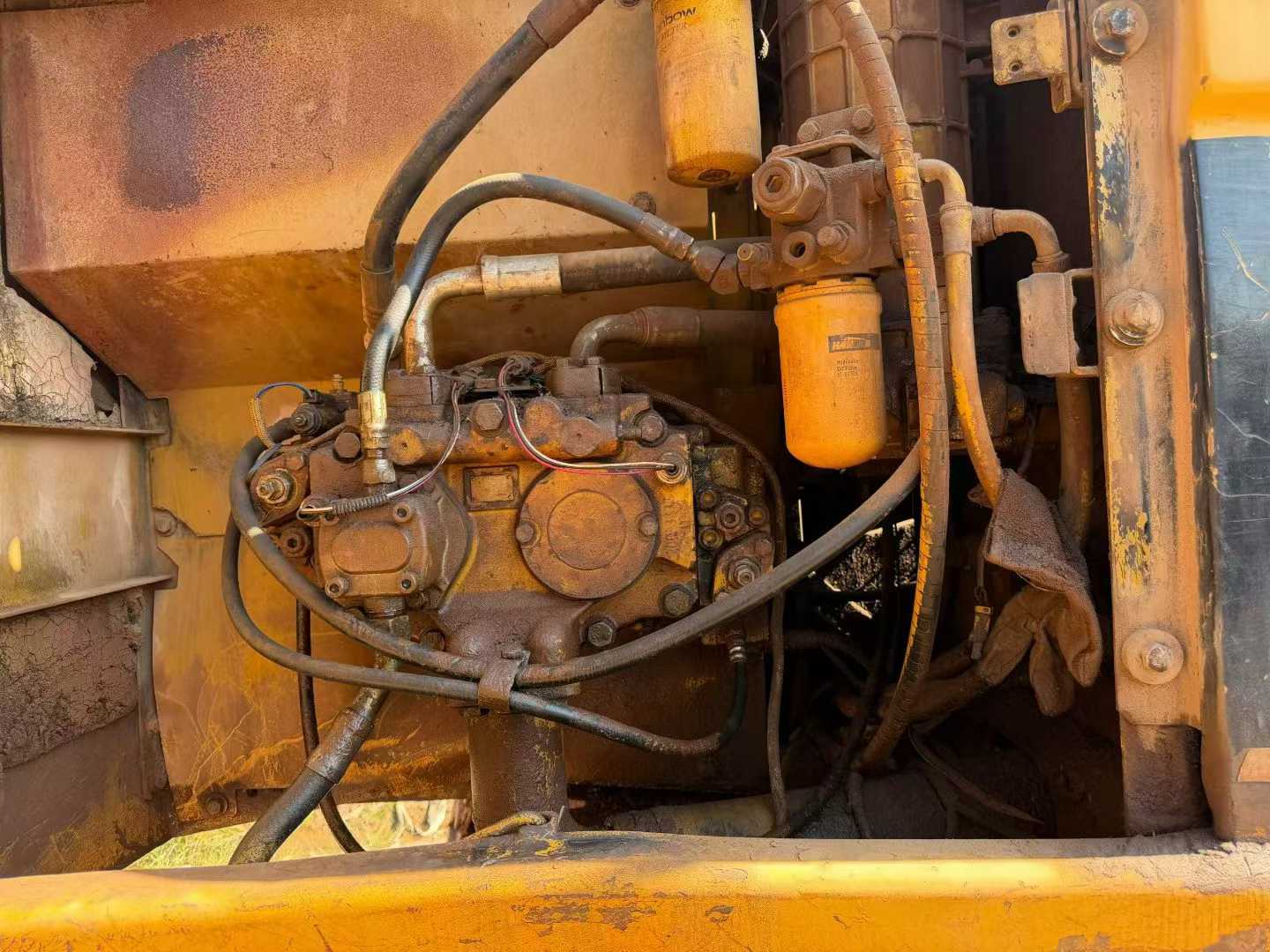

Used Caterpillar 320C Excavator 2016 Model / 3

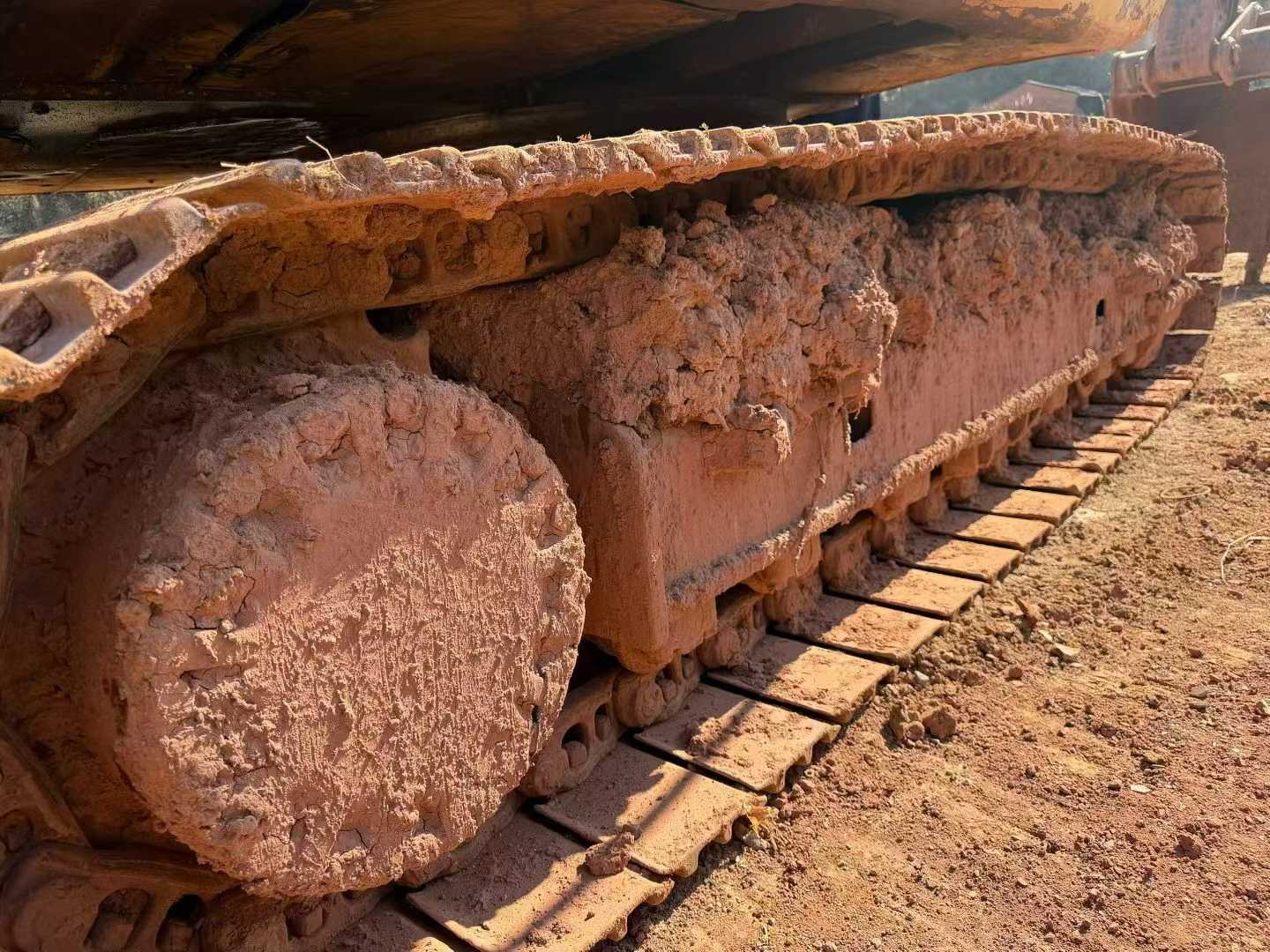

Used Caterpillar 320C Excavator 2016 Model / 4

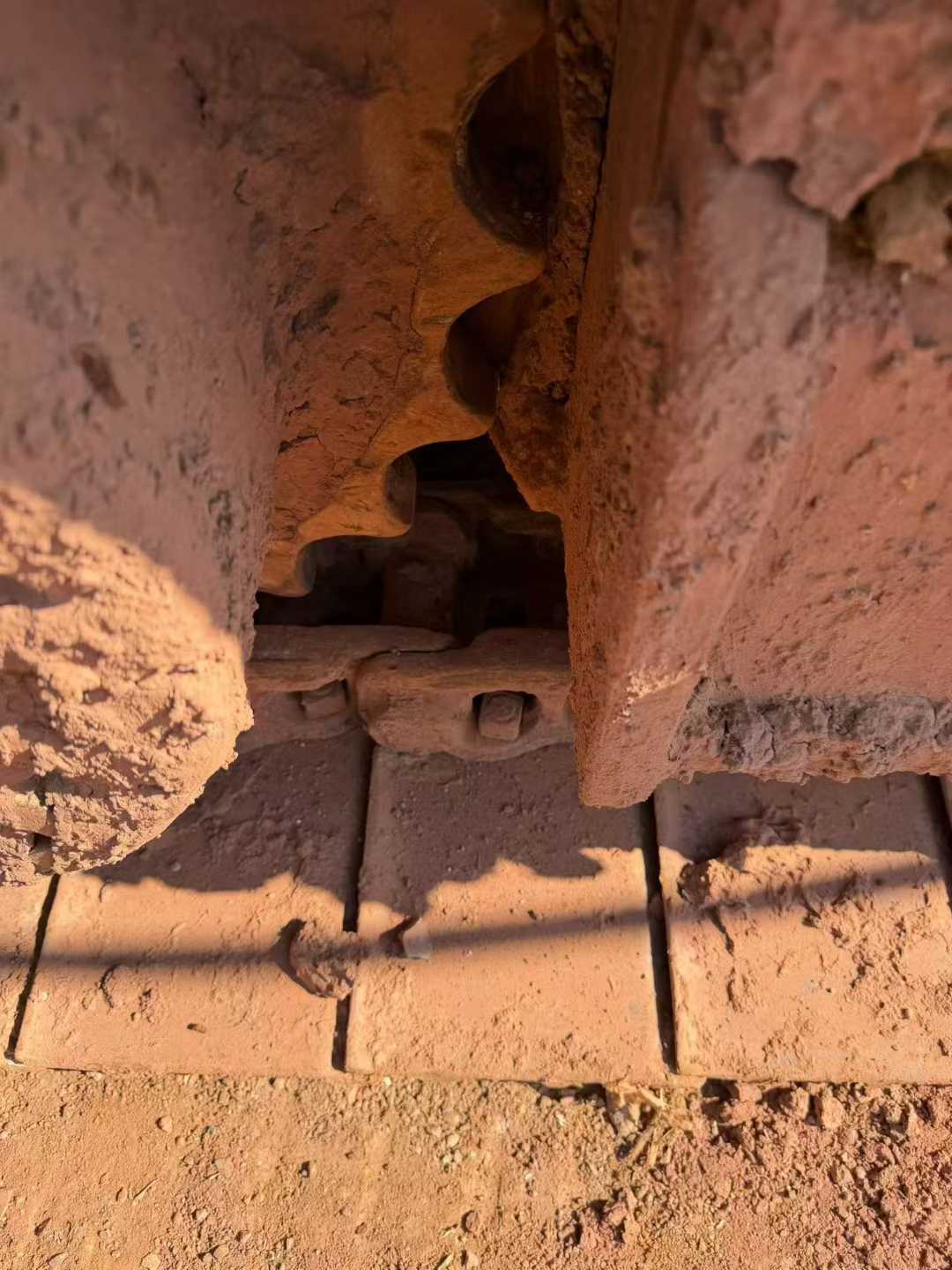

Used Caterpillar 320C Excavator 2016 Model / 5

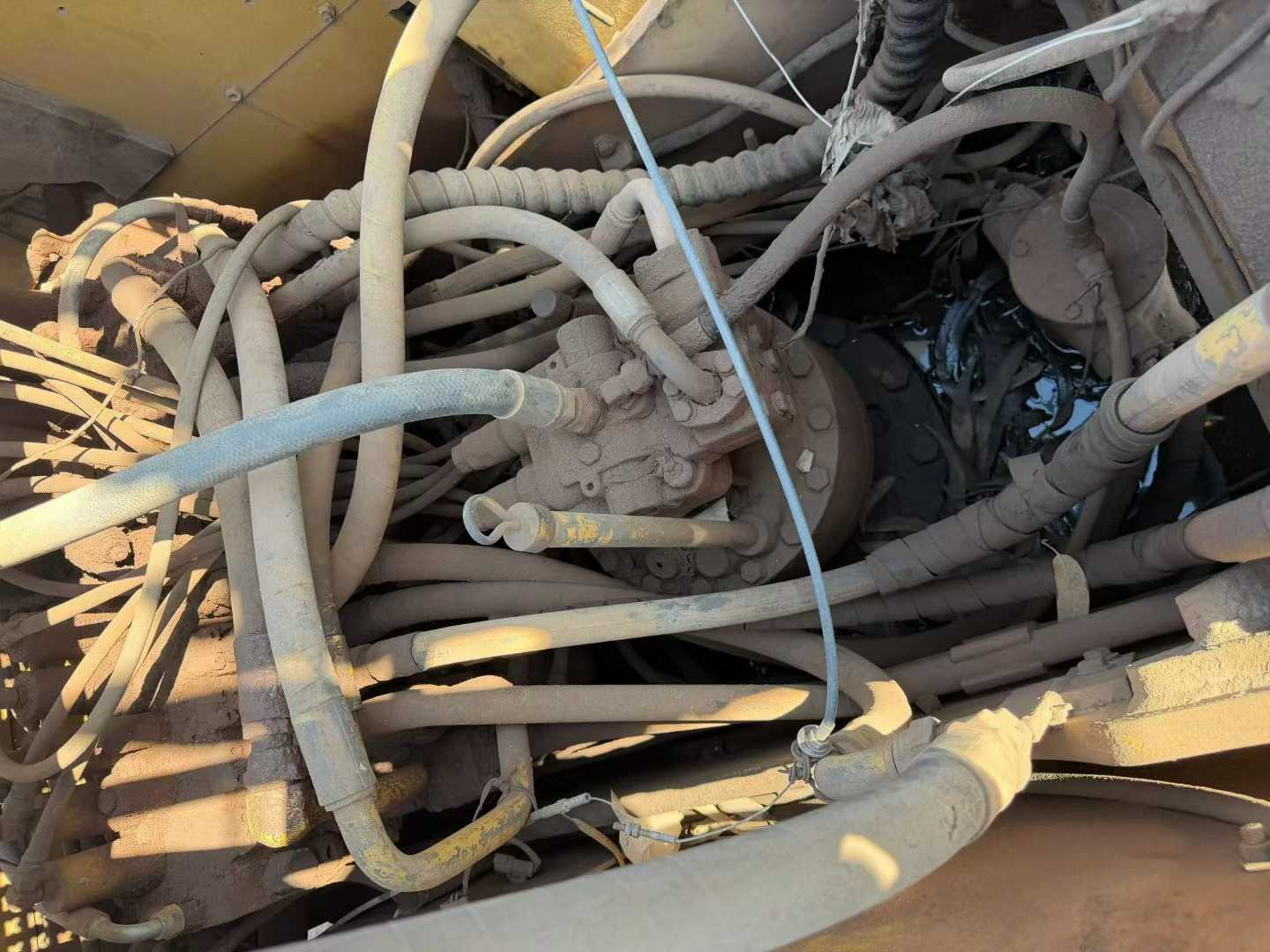

Used Caterpillar 320C Excavator 2016 Model / 6
Used Caterpillar 320C Excavator 2016 Model / 7

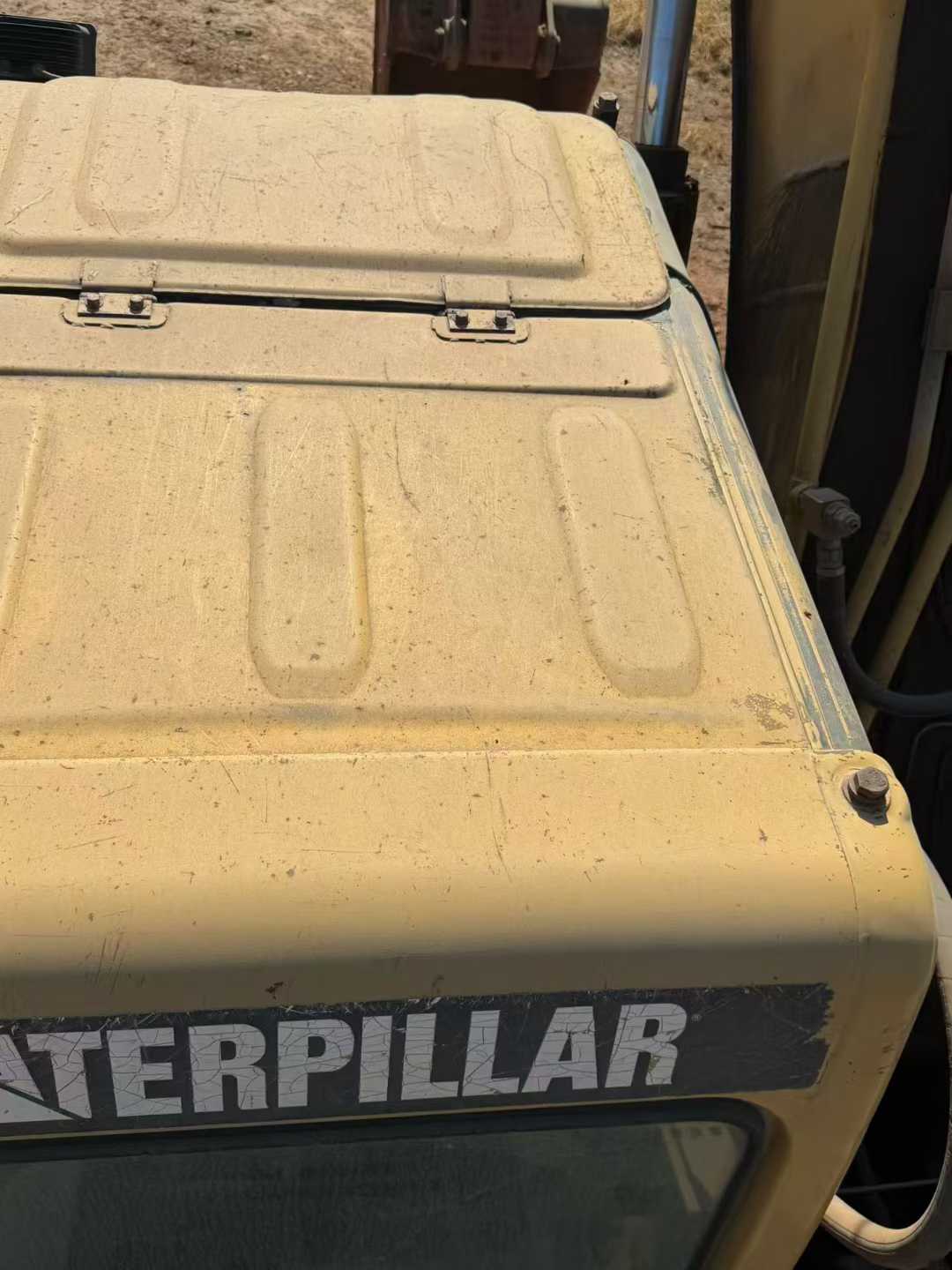

Used Caterpillar 320C Excavator 2016 Model / 8

Product Description

Second-hand Caterpillar 320C excavator We recommend to you this second-hand Caterpillar 320C excavator with outstanding performance and extremely high cost performance. This equipment has an excellent working record, with a cumulative working time of only 6,500 hours, which is of medium usage intensity. The mechanical condition is maintained very well, making it suitable for various working conditions. In terms of the power system, the Caterpillar 320C is equipped with a powerful and reliable Cat C7 engine, which is renowned for its excellent fuel economy and strong torque output. It ensures efficient operation while effectively reducing operating costs. In addition, it also features excellent cold start performance, enabling it to quickly enter the working state even in cold environments. The hydraulic system is another major highlight of this excavator. It adopts advanced load sensing technology, which can automatically adjust the oil volume according to the actual operation requirements, ensuring smooth and fluid operation while reducing energy loss. Whether it is excavation, loading or crushing operations, it can demonstrate excellent maneuverability and stability. It is worth mentioning that this excavator not only has an affo

SpecificationsValue
No.966044
Tonnage (tons)20
Working weight (kg)21115
Bucket capacity (m³)0.8
Boom length (mm)5680
Rod length (mm)2900
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCaterpillar CAT 3066 ATAAC
Rated power (kw/rpm)110/1800
Cooling modewater-cooling
Cylinder diameter × stroke (mm)102 x 130
Displacement (L)6.4
Ground specific pressure (Kpa)48.02
Rotation speed (rpm)11.5
Bucket digging force (kN)132
Rod digging force (kN)99
Travel speed (km/h)5.5
Maximum flow of main pump (l/min)205
Traveling Hydraulic Circuit (Mpa)34.4
Rotary Hydraulic Circuit (Mpa)26
Working Hydraulic Circuit (Mpa)34.3
Pilot Oil Circuit (MPa)4.12
Bucket cylinders - Number × diameter × stroke (mm)1-120 x 1030
Bucket rod cylinders - Number × diameter × stroke (mm)1-140 x 1430
Boom cylinders - Number × diameter × stroke (mm)2-120 x 1260
Fuel Tank (L)320
Hydraulic Tank (L)120
Engine Oil changes (L)30
Coolant (L)24
Hydraulic System (L)200
Total transport length (mm)9390
Total transport width (mm)2800
Total transport height (mm)3050
Full cab height (mm)3050
Minimum ground clearance (mm)460
Back end turning radius (mm)2770
Total track length (mm)4070
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3260
Maximum digging depth (mm)6550
Maximum excavation height (mm)9440
Maximum unloading height (mm)6770
Maximum vertical digging depth (mm)5440
Maximum excavation radius of stop surface (mm)9710
see more

Overview

No.966044

Brand Name:

Caterpillar

Model Number:

320C

Year:

2016

Location:

Yunnan China
