2016 Caterpillar 320C

1/9
Used Caterpillar 320C Excavator 2016 Model / 1

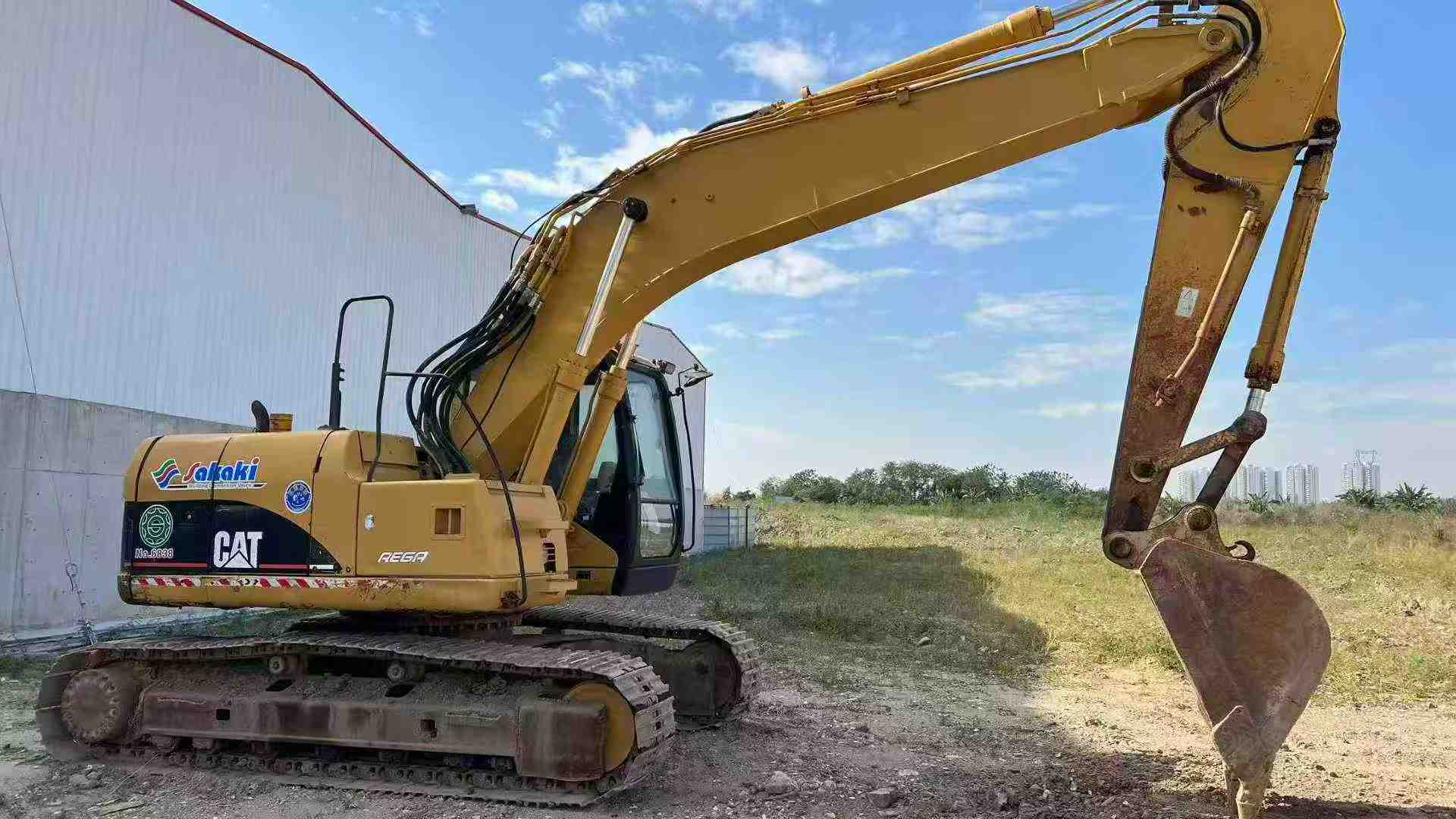

Used Caterpillar 320C Excavator 2016 Model / 2

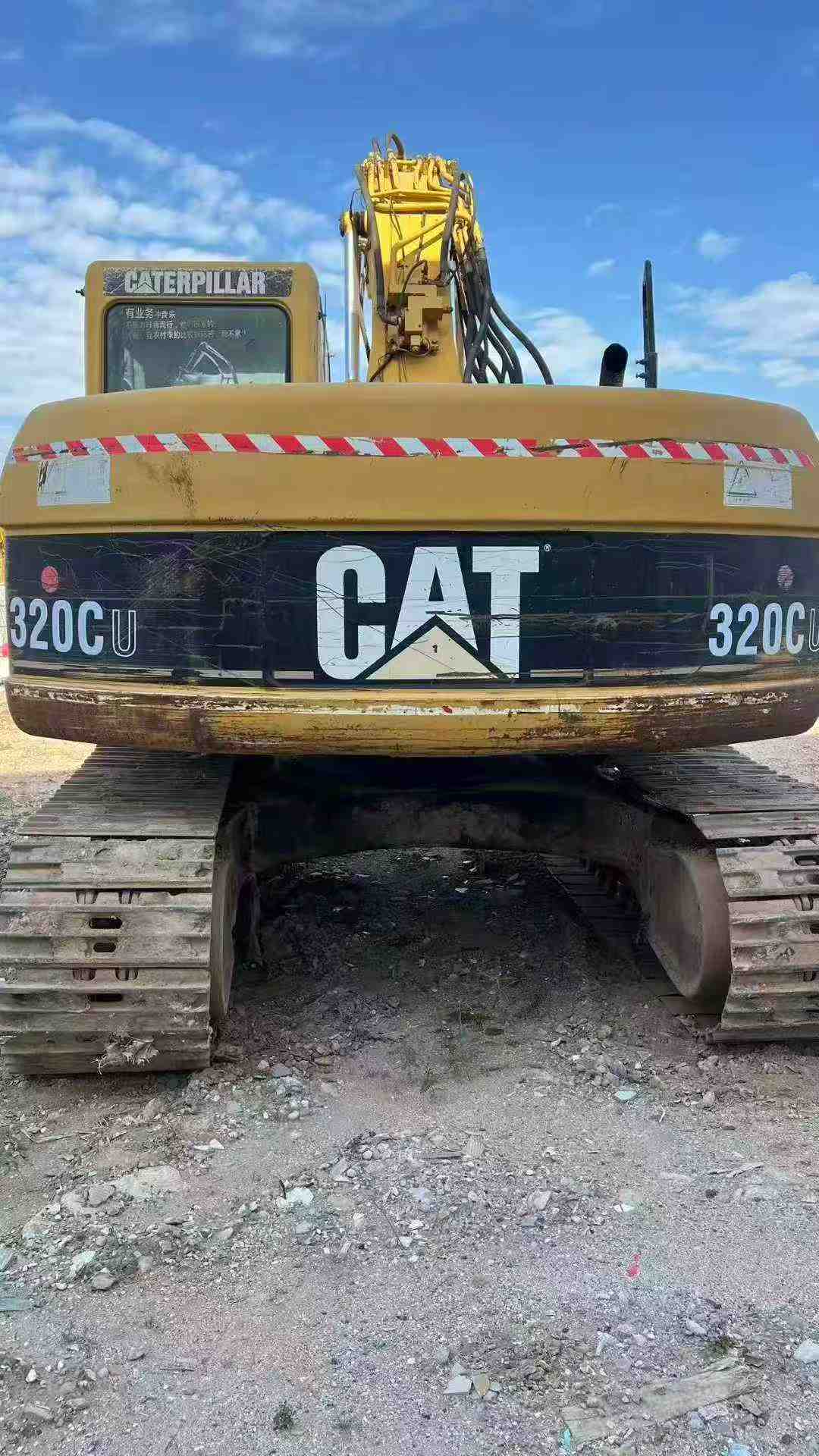

Used Caterpillar 320C Excavator 2016 Model / 3

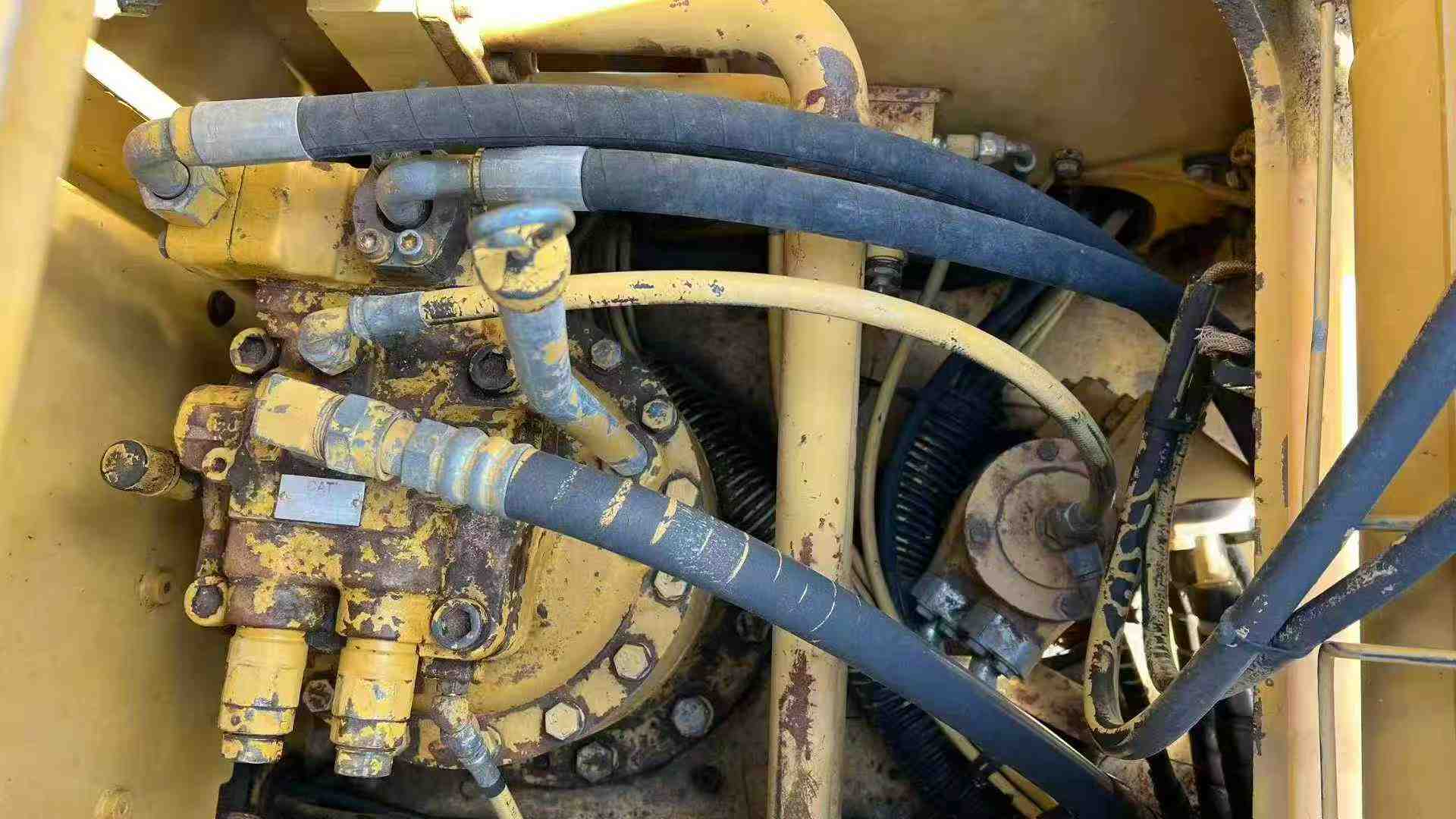

Used Caterpillar 320C Excavator 2016 Model / 4

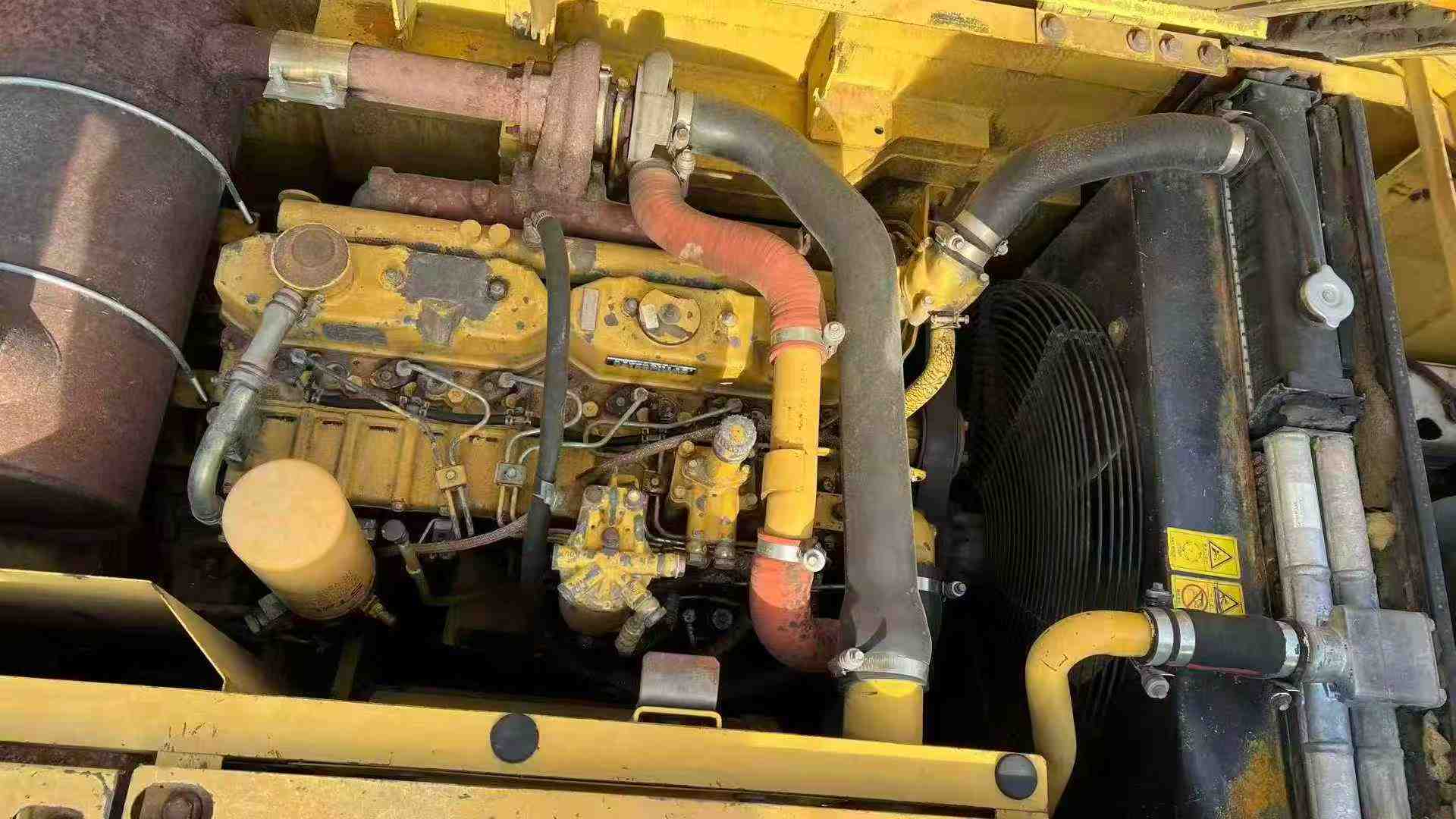

Used Caterpillar 320C Excavator 2016 Model / 5

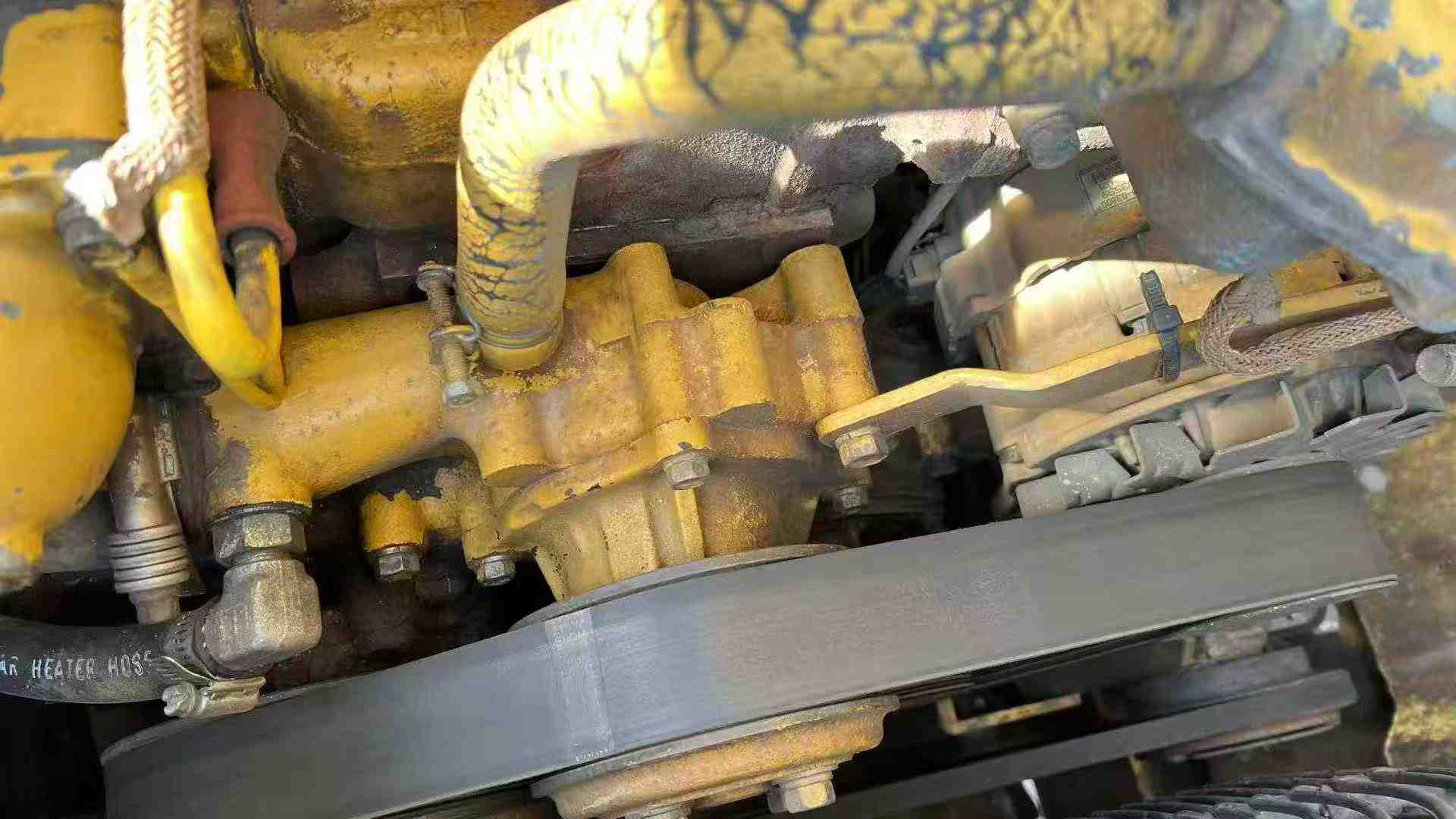

Used Caterpillar 320C Excavator 2016 Model / 6

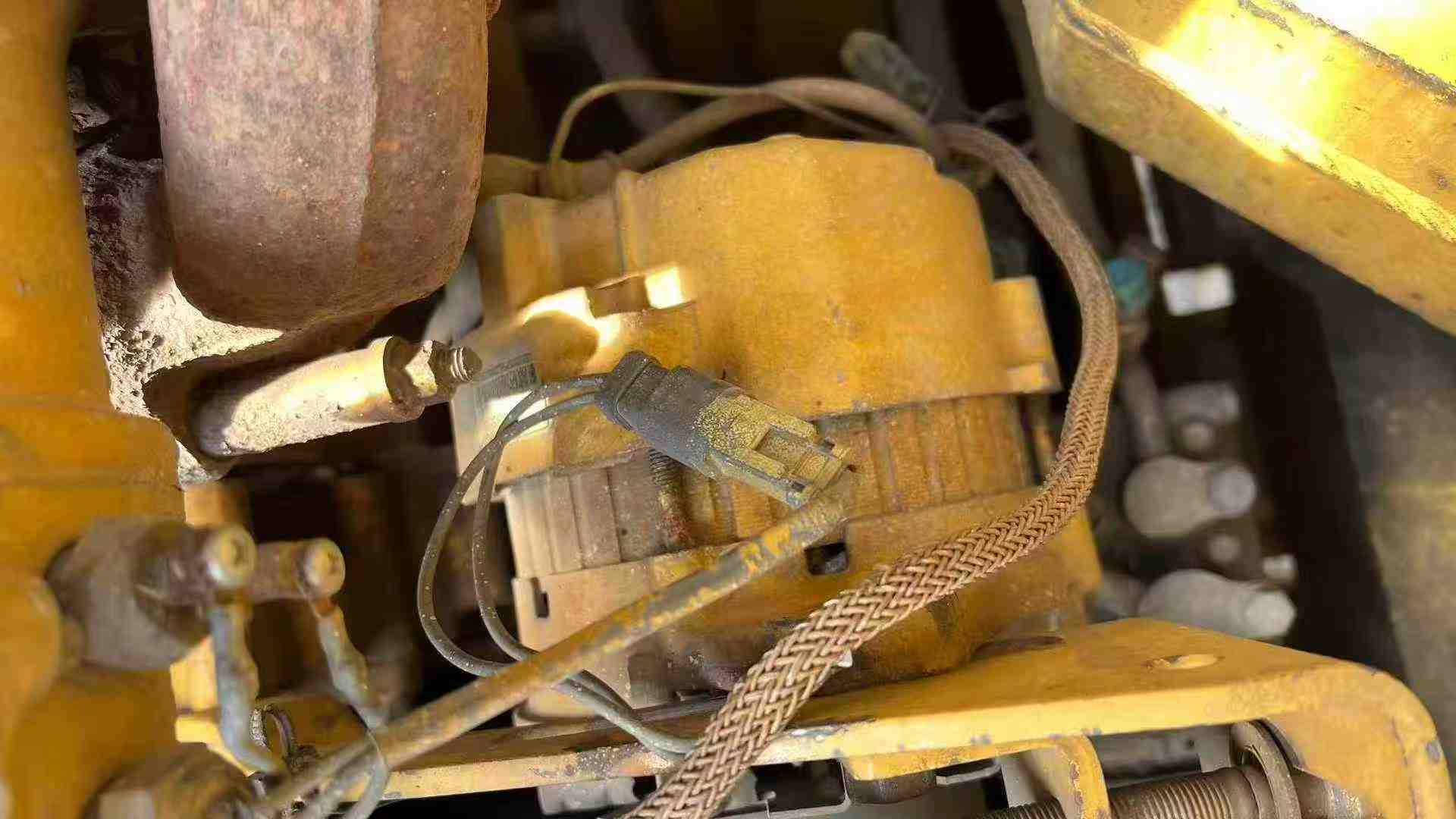

Used Caterpillar 320C Excavator 2016 Model / 7

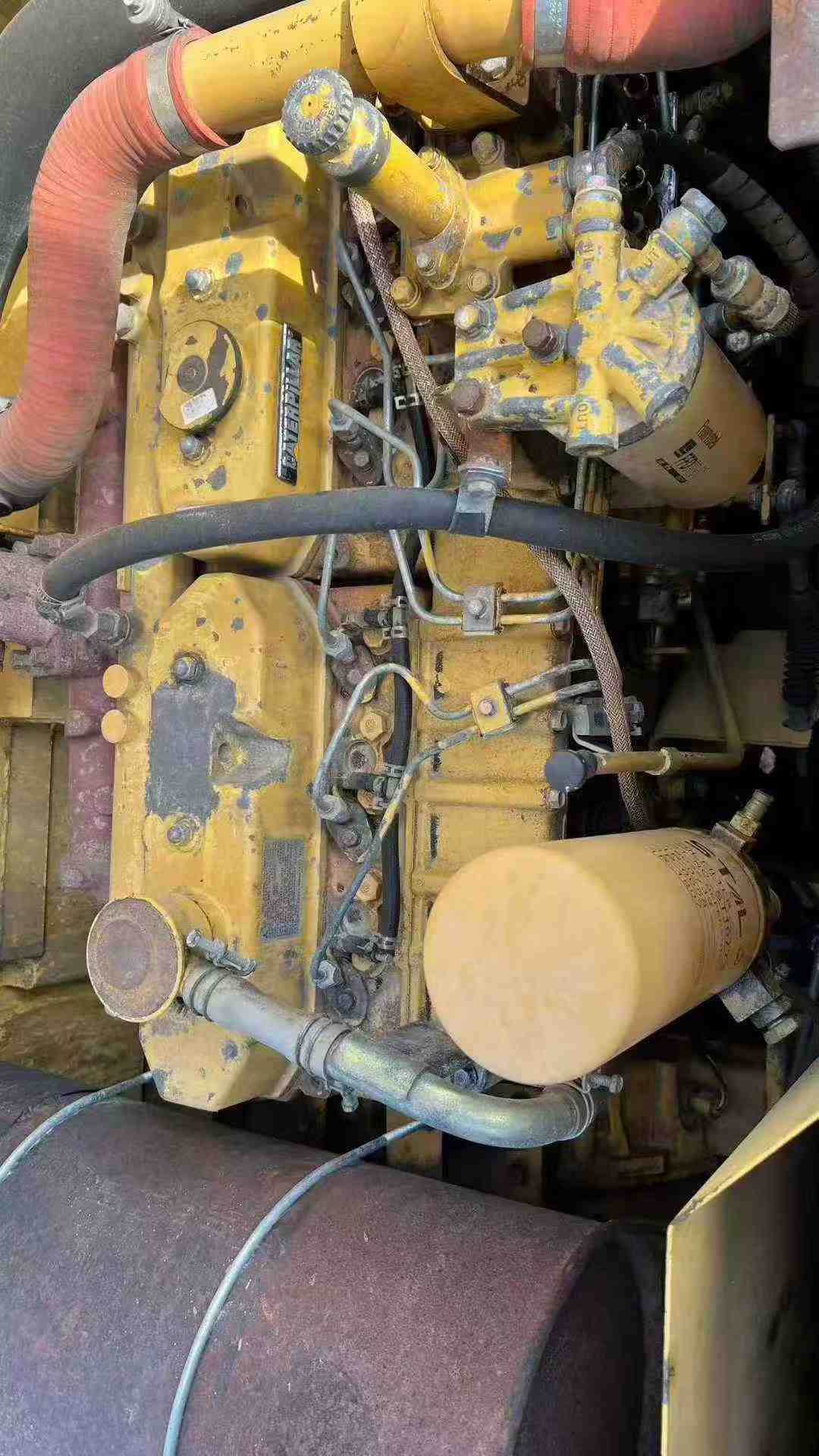

Used Caterpillar 320C Excavator 2016 Model / 8

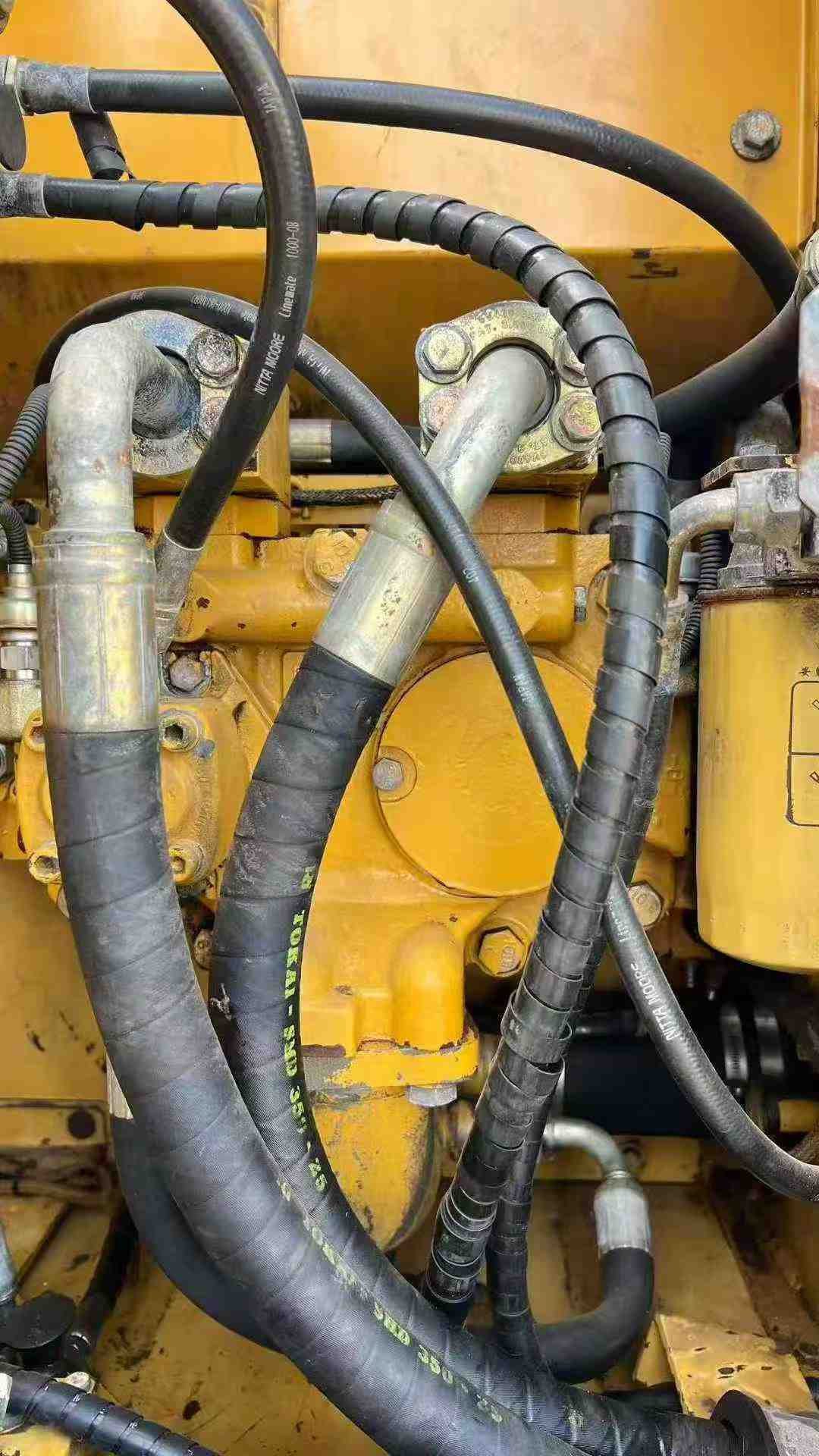

Used Caterpillar 320C Excavator 2016 Model / 9

Product Description

【 Premium Recommendation 】 Imported second-hand Caterpillar 320Cu excavators, with outstanding quality and stable performance, are the ideal choice for your construction projects. Since it was put into use, the total working time of this equipment has only been 4,500 hours, which is far lower than the average service life of similar equipment. This means that it still has a long service life to be excavated. It is particularly worth mentioning that the "three major components" of this machine - the engine, the main pump and the main valve - have all remained in their original factory condition and have never undergone any disassembly or replacement, ensuring its excellent reliability and durability. In terms of the power system, it is equipped with a high-efficiency and energy-saving diesel engine produced by Caterpillar itself. It not only provides strong power output but also has good fuel economy, effectively reducing operating costs. The advanced electronic control system ensures the best performance under various working conditions. The hydraulic system adopts a closed-loop design and is equipped with high-precision proportional control valves, making the operation of the entire machine smoother and more fluid, with rapid and se

SpecificationsValue
No.966855
Tonnage (tons)20
Working weight (kg)21115
Bucket capacity (m³)0.8
Boom length (mm)5680
Rod length (mm)2900
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCaterpillar CAT 3066 ATAAC
Rated power (kw/rpm)110/1800
Cooling modewater-cooling
Cylinder diameter × stroke (mm)102 x 130
Displacement (L)6.4
Ground specific pressure (Kpa)48.02
Rotation speed (rpm)11.5
Bucket digging force (kN)132
Rod digging force (kN)99
Travel speed (km/h)5.5
Maximum flow of main pump (l/min)205
Traveling Hydraulic Circuit (Mpa)34.4
Rotary Hydraulic Circuit (Mpa)26
Working Hydraulic Circuit (Mpa)34.3
Pilot Oil Circuit (MPa)4.12
Bucket cylinders - Number × diameter × stroke (mm)1-120 x 1030
Bucket rod cylinders - Number × diameter × stroke (mm)1-140 x 1430
Boom cylinders - Number × diameter × stroke (mm)2-120 x 1260
Fuel Tank (L)320
Hydraulic Tank (L)120
Engine Oil changes (L)30
Coolant (L)24
Hydraulic System (L)200
Total transport length (mm)9390
Total transport width (mm)2800
Total transport height (mm)3050
Full cab height (mm)3050
Minimum ground clearance (mm)460
Back end turning radius (mm)2770
Total track length (mm)4070
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3260
Maximum digging depth (mm)6550
Maximum excavation height (mm)9440
Maximum unloading height (mm)6770
Maximum vertical digging depth (mm)5440
Maximum excavation radius of stop surface (mm)9710
see more

Overview

No.966855

Brand Name:

Caterpillar

Model Number:

320C

Year:

2016

Location:

Guangdong China
