HOME>>Brands>>Caterpillar 320C

2016 Caterpillar 320C

1/9
Used Caterpillar 320C Excavator 2016 Model / 1

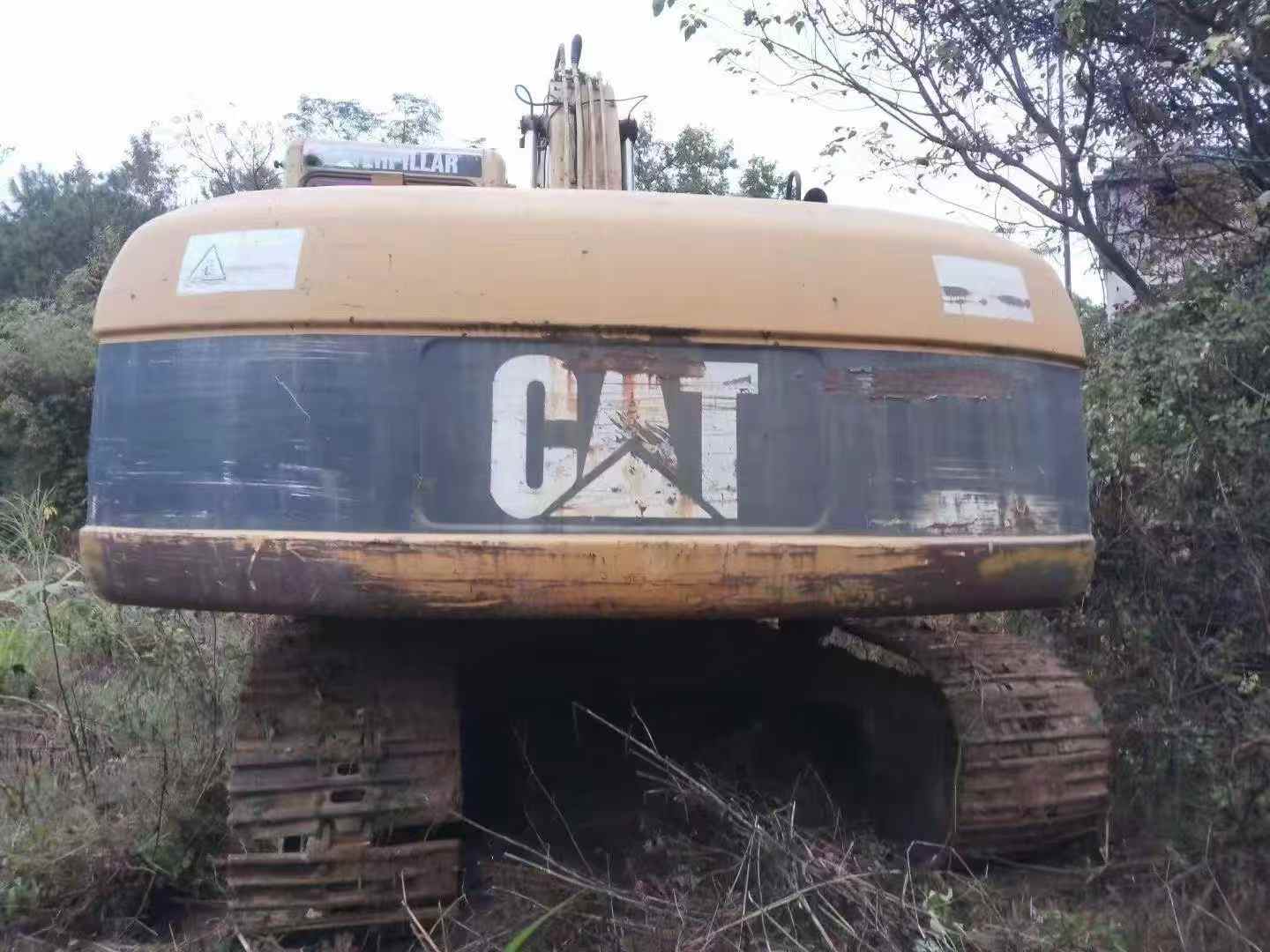

Used Caterpillar 320C Excavator 2016 Model / 2

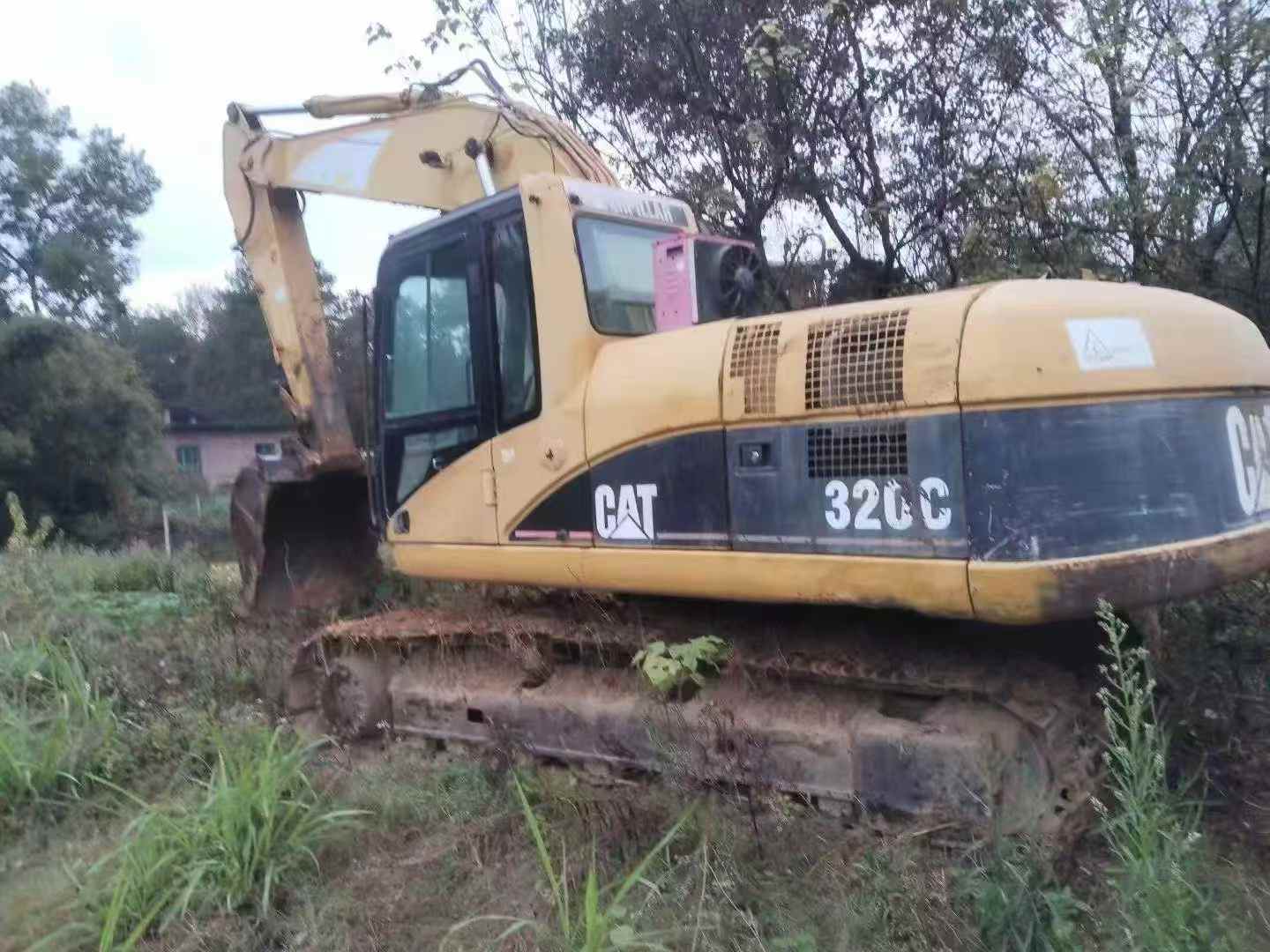

Used Caterpillar 320C Excavator 2016 Model / 3
Used Caterpillar 320C Excavator 2016 Model / 4

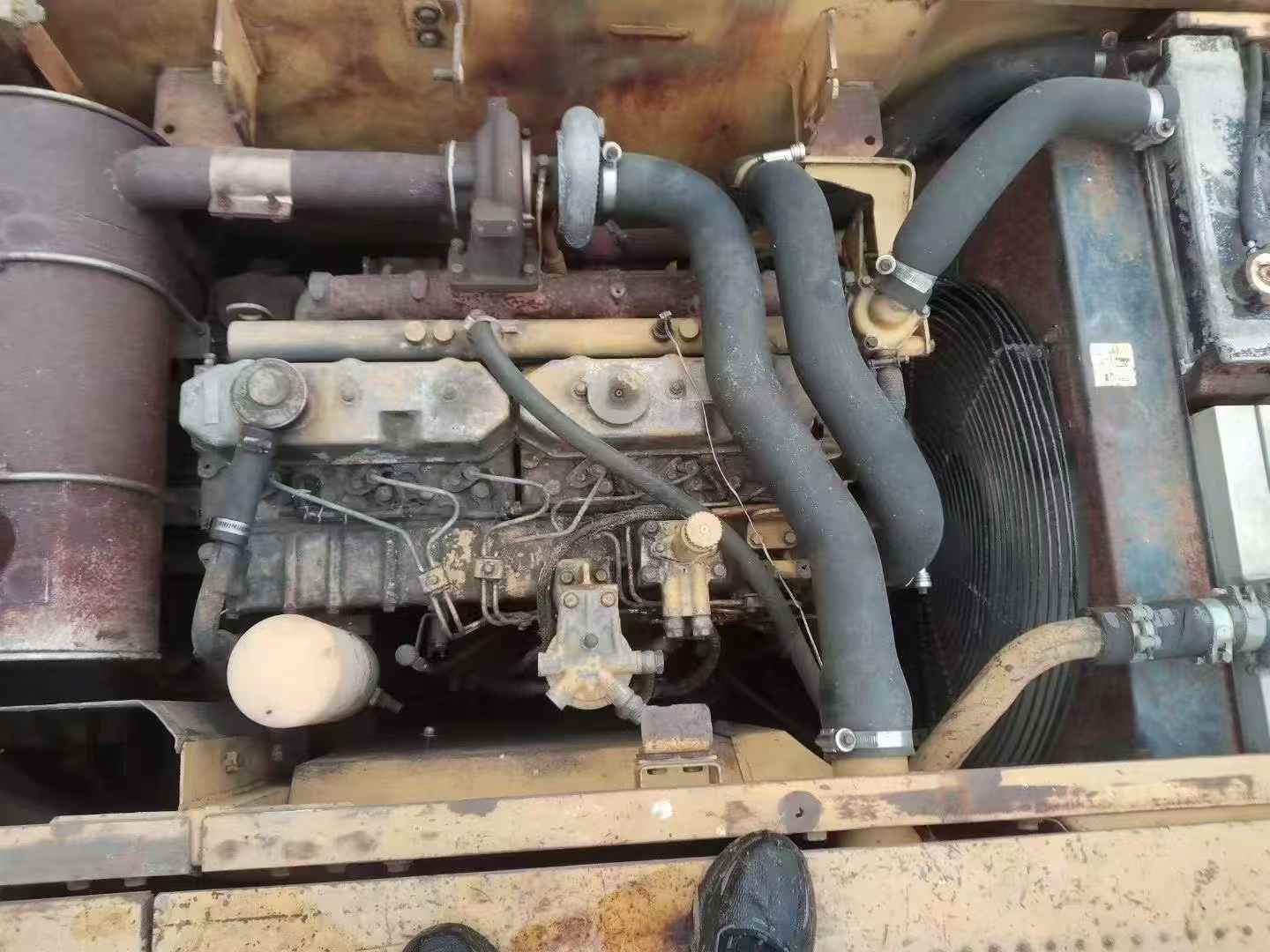

Used Caterpillar 320C Excavator 2016 Model / 5

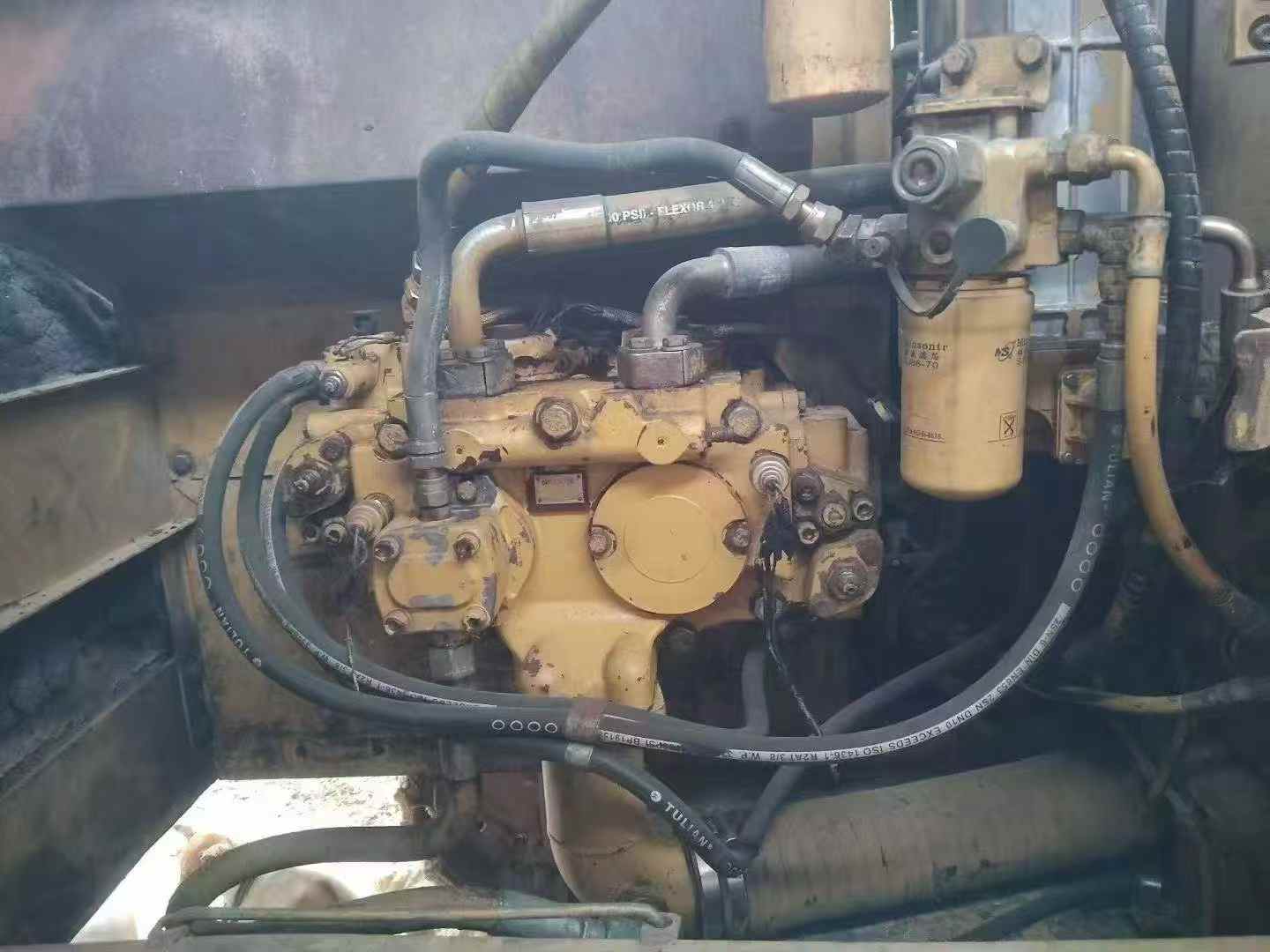

Used Caterpillar 320C Excavator 2016 Model / 6

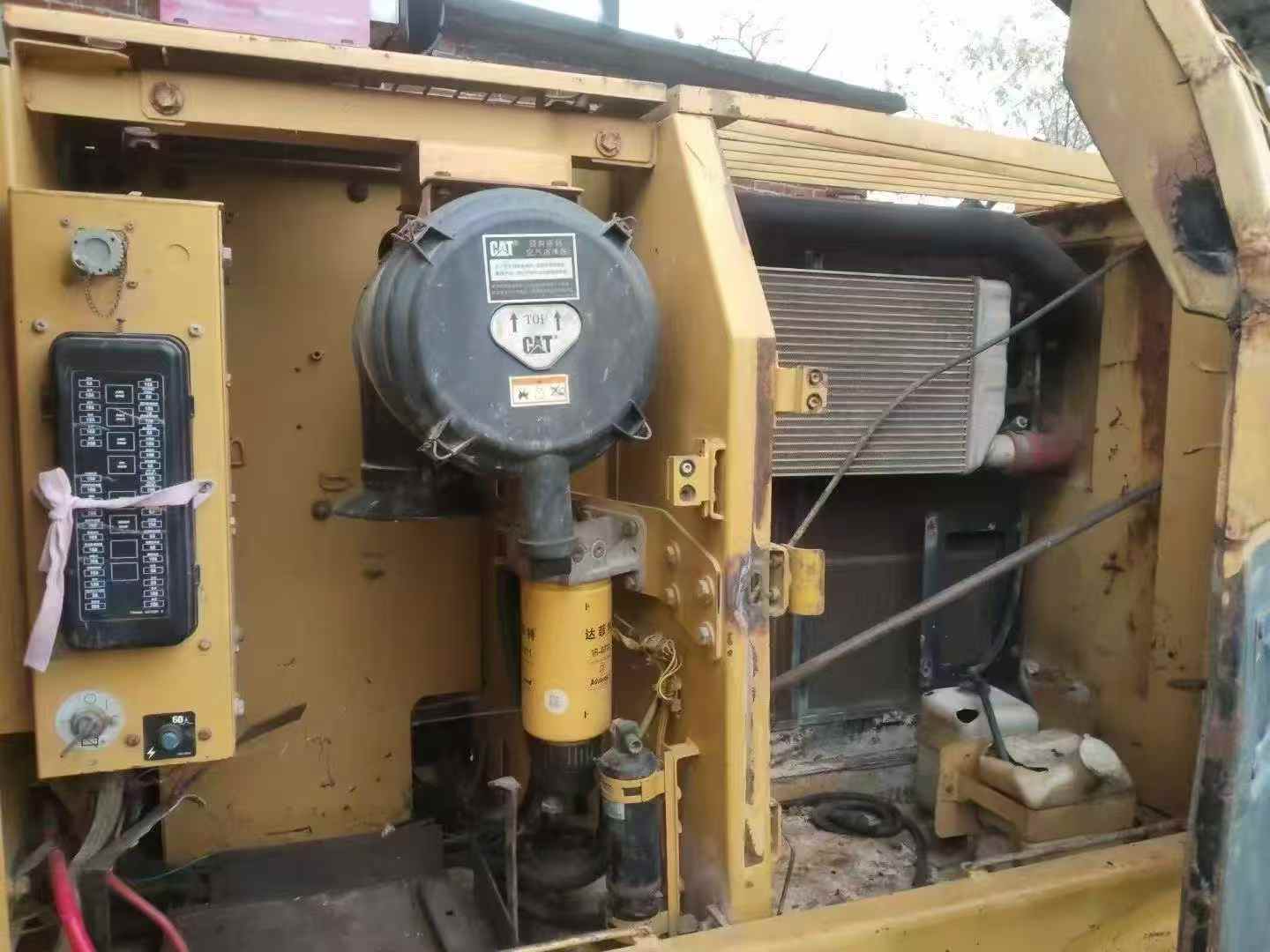

Used Caterpillar 320C Excavator 2016 Model / 7

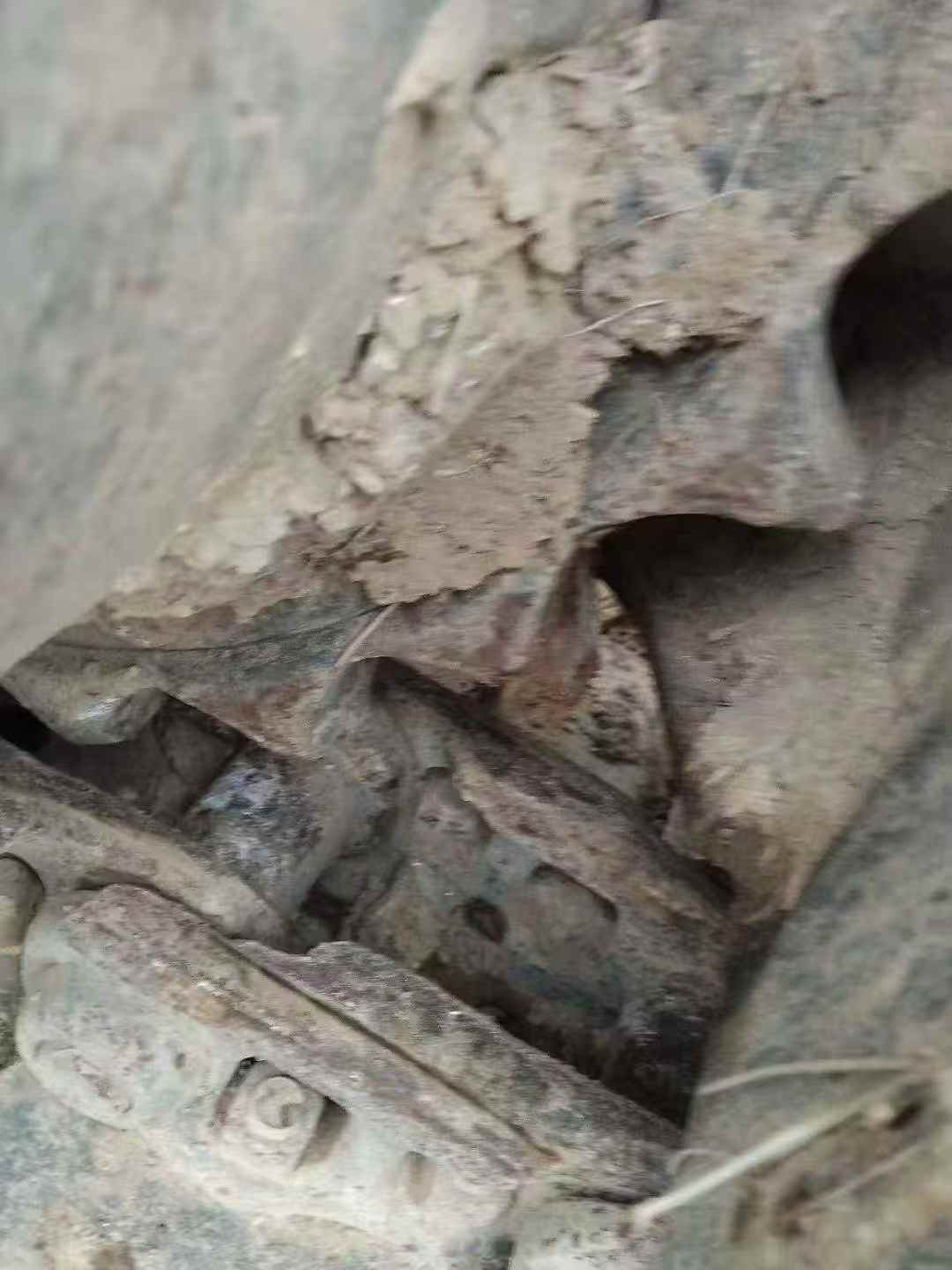

Used Caterpillar 320C Excavator 2016 Model / 8

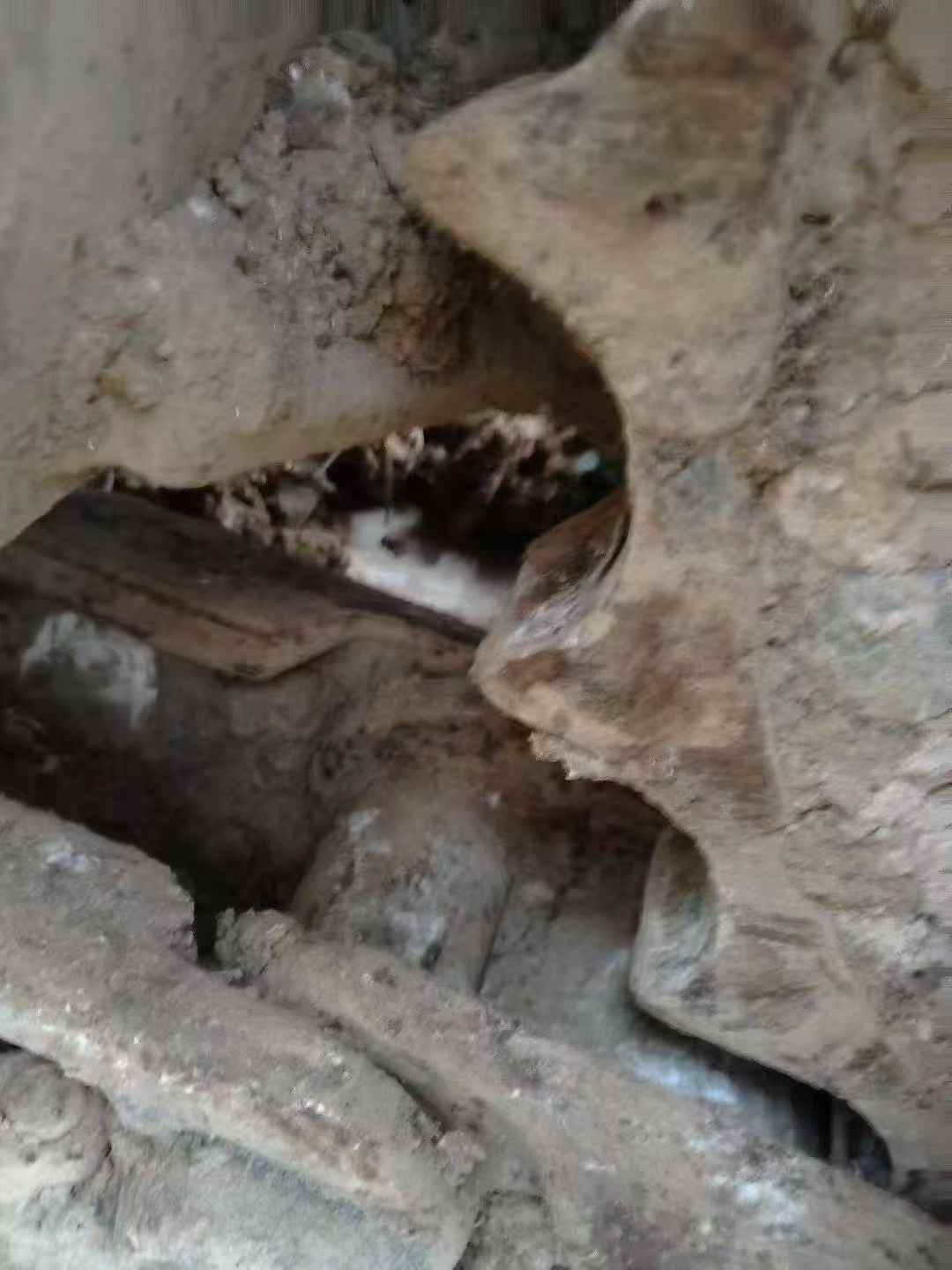

Used Caterpillar 320C Excavator 2016 Model / 9

Product Description

【 Premium Recommendation 】 Caterpillar 320C medium-cooling excavator. This equipment is a rare and cost-effective choice for you in the second-hand market. It has only 72,000 hours of working time. For a heavy machine, such a usage record indicates that it is in its prime working age, ensuring the machine's maturity while also leaving sufficient room for its service life. In terms of power, this machine is equipped with an original imported C6.4 engine from Caterpillar. This engine is renowned for its powerful output and stable, reliable performance, maintaining efficient operation under various complex working conditions. More importantly, after professional maintenance and upkeep, its fuel economy has been further improved, effectively reducing operating costs. The hydraulic system adopts advanced negative flow control technology, ensuring smooth operation, rapid response and precise controllability. Whether it is excavation, loading or crushing operations, it can handle them with ease. In addition, this model is also equipped with an efficient cooling device, which can maintain good heat dissipation even in high-temperature environments, significantly extending the service life of key components. To sum up, this Caterpillar 320C

SpecificationsValue
No.966944
Tonnage (tons)20
Working weight (kg)21115
Bucket capacity (m³)0.8
Boom length (mm)5680
Rod length (mm)2900
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCaterpillar CAT 3066 ATAAC
Rated power (kw/rpm)110/1800
Cooling modewater-cooling
Cylinder diameter × stroke (mm)102 x 130
Displacement (L)6.4
Ground specific pressure (Kpa)48.02
Rotation speed (rpm)11.5
Bucket digging force (kN)132
Rod digging force (kN)99
Travel speed (km/h)5.5
Maximum flow of main pump (l/min)205
Traveling Hydraulic Circuit (Mpa)34.4
Rotary Hydraulic Circuit (Mpa)26
Working Hydraulic Circuit (Mpa)34.3
Pilot Oil Circuit (MPa)4.12
Bucket cylinders - Number × diameter × stroke (mm)1-120 x 1030
Bucket rod cylinders - Number × diameter × stroke (mm)1-140 x 1430
Boom cylinders - Number × diameter × stroke (mm)2-120 x 1260
Fuel Tank (L)320
Hydraulic Tank (L)120
Engine Oil changes (L)30
Coolant (L)24
Hydraulic System (L)200
Total transport length (mm)9390
Total transport width (mm)2800
Total transport height (mm)3050
Full cab height (mm)3050
Minimum ground clearance (mm)460
Back end turning radius (mm)2770
Total track length (mm)4070
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3260
Maximum digging depth (mm)6550
Maximum excavation height (mm)9440
Maximum unloading height (mm)6770
Maximum vertical digging depth (mm)5440
Maximum excavation radius of stop surface (mm)9710
see more

Overview

No.966944

Brand Name:

Caterpillar

Model Number:

320C

Year:

2016

Location:

Fujian China
