2016 Caterpillar 320C

1/9
Used Caterpillar 320C Excavator 2016 Model / 1

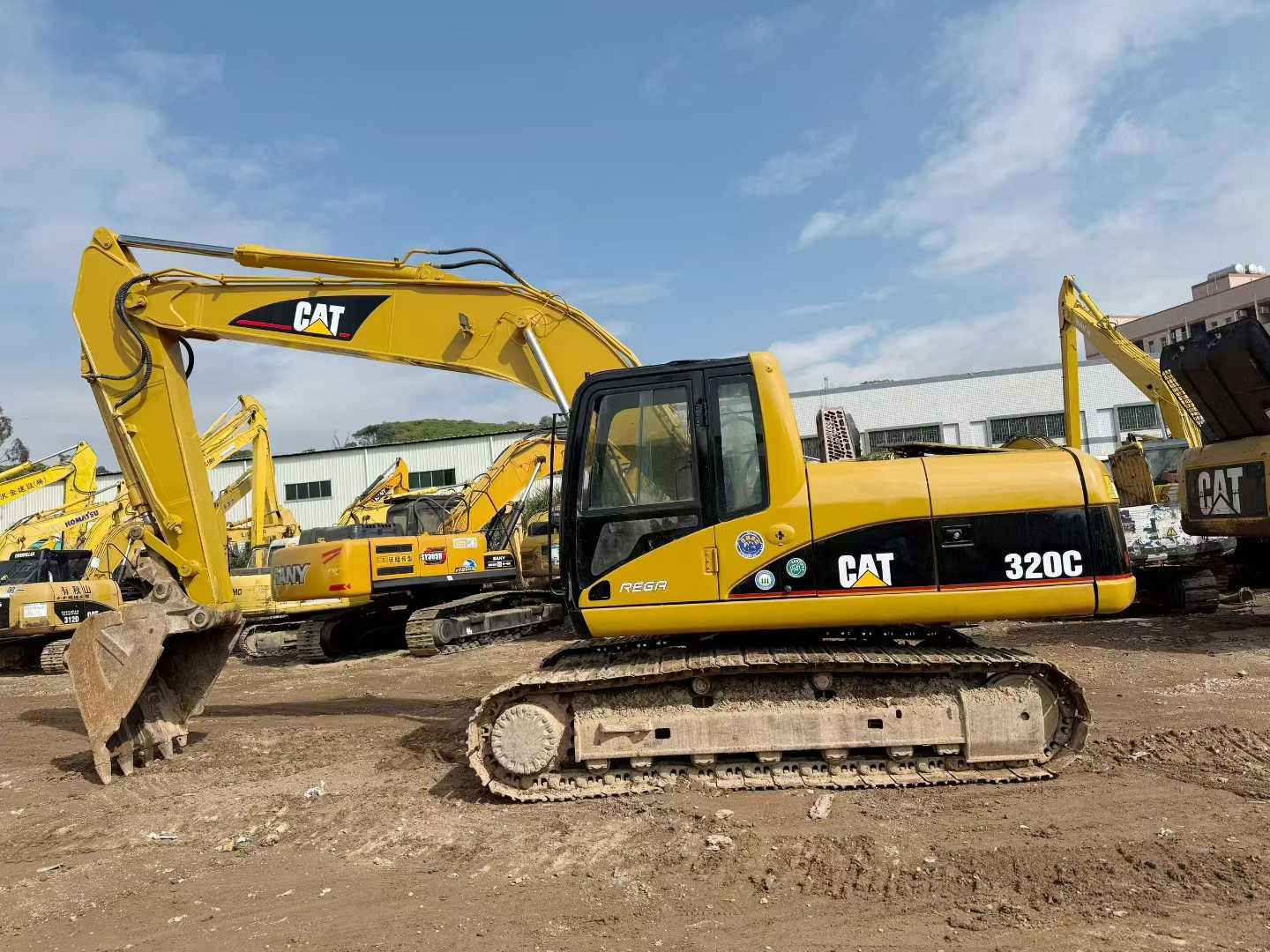

Used Caterpillar 320C Excavator 2016 Model / 2

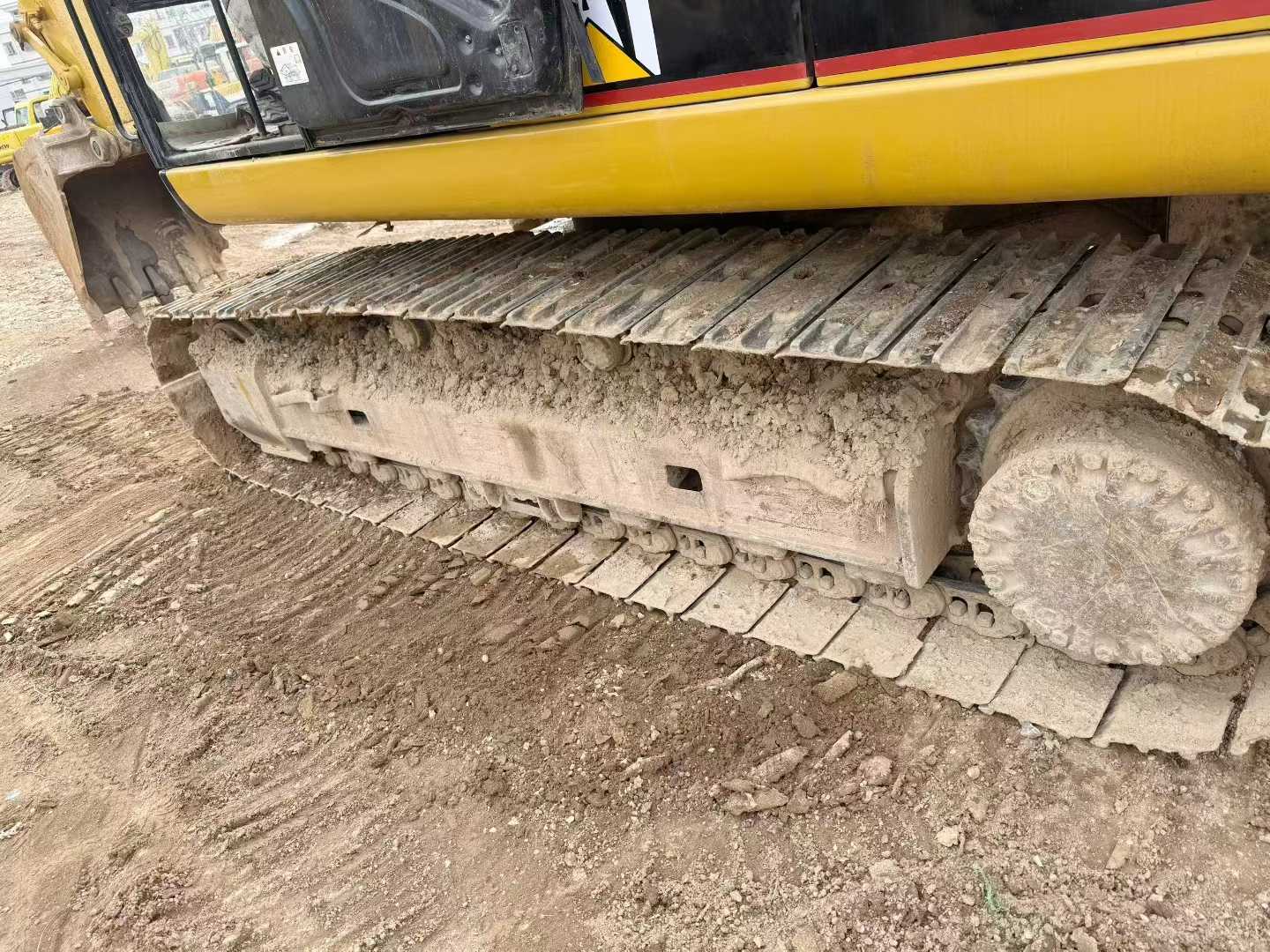

Used Caterpillar 320C Excavator 2016 Model / 3

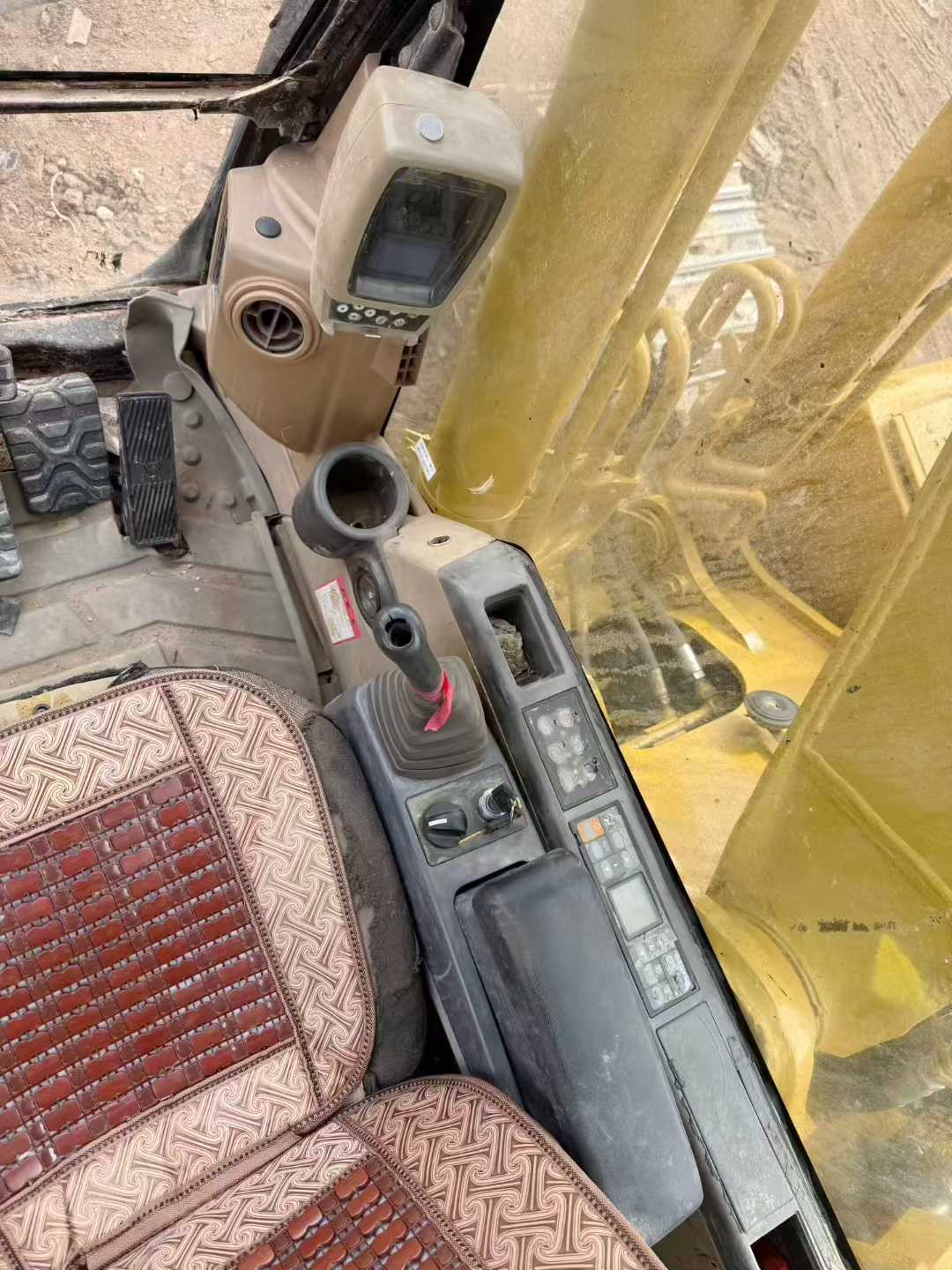

Used Caterpillar 320C Excavator 2016 Model / 4

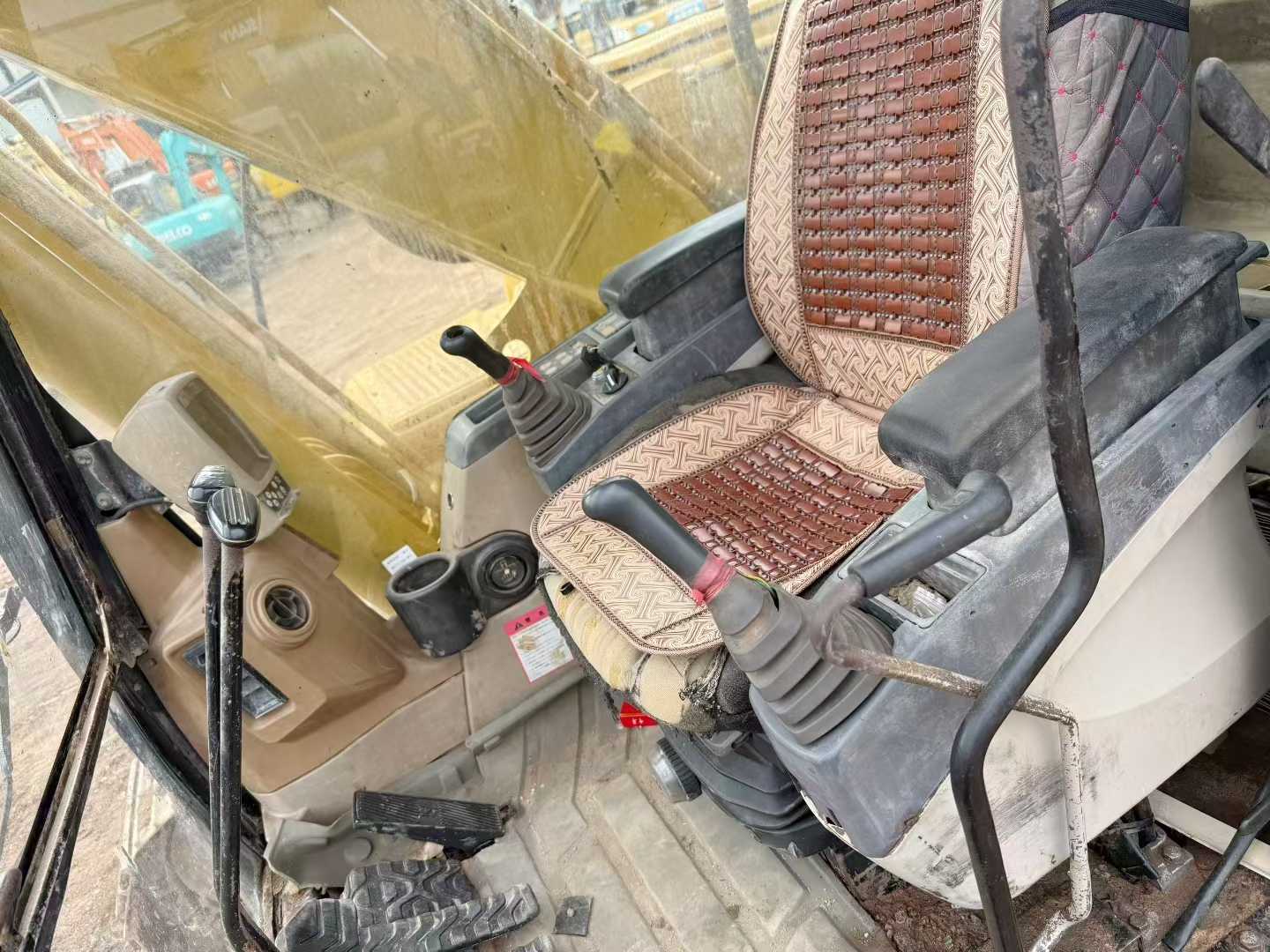

Used Caterpillar 320C Excavator 2016 Model / 5

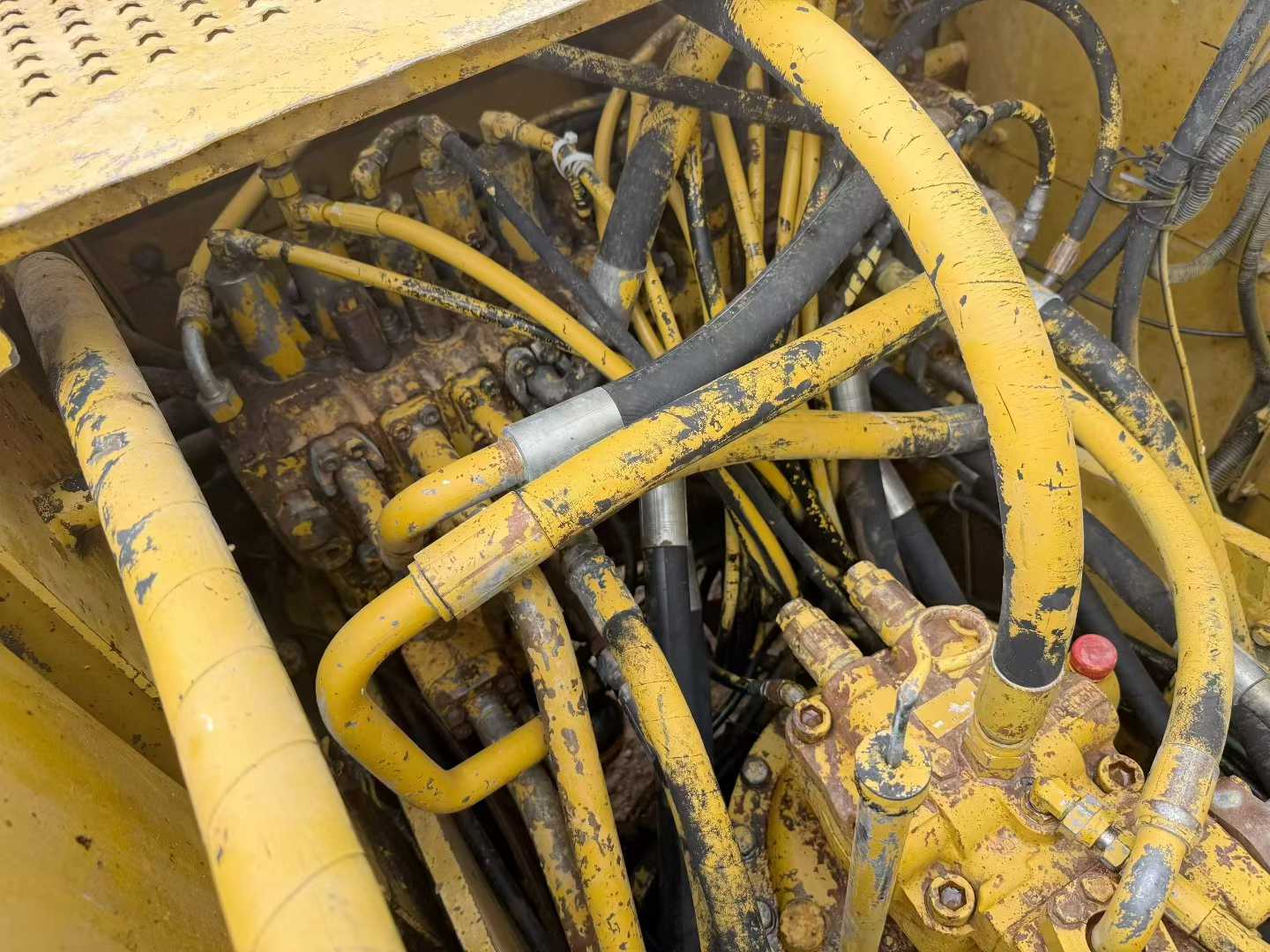

Used Caterpillar 320C Excavator 2016 Model / 6

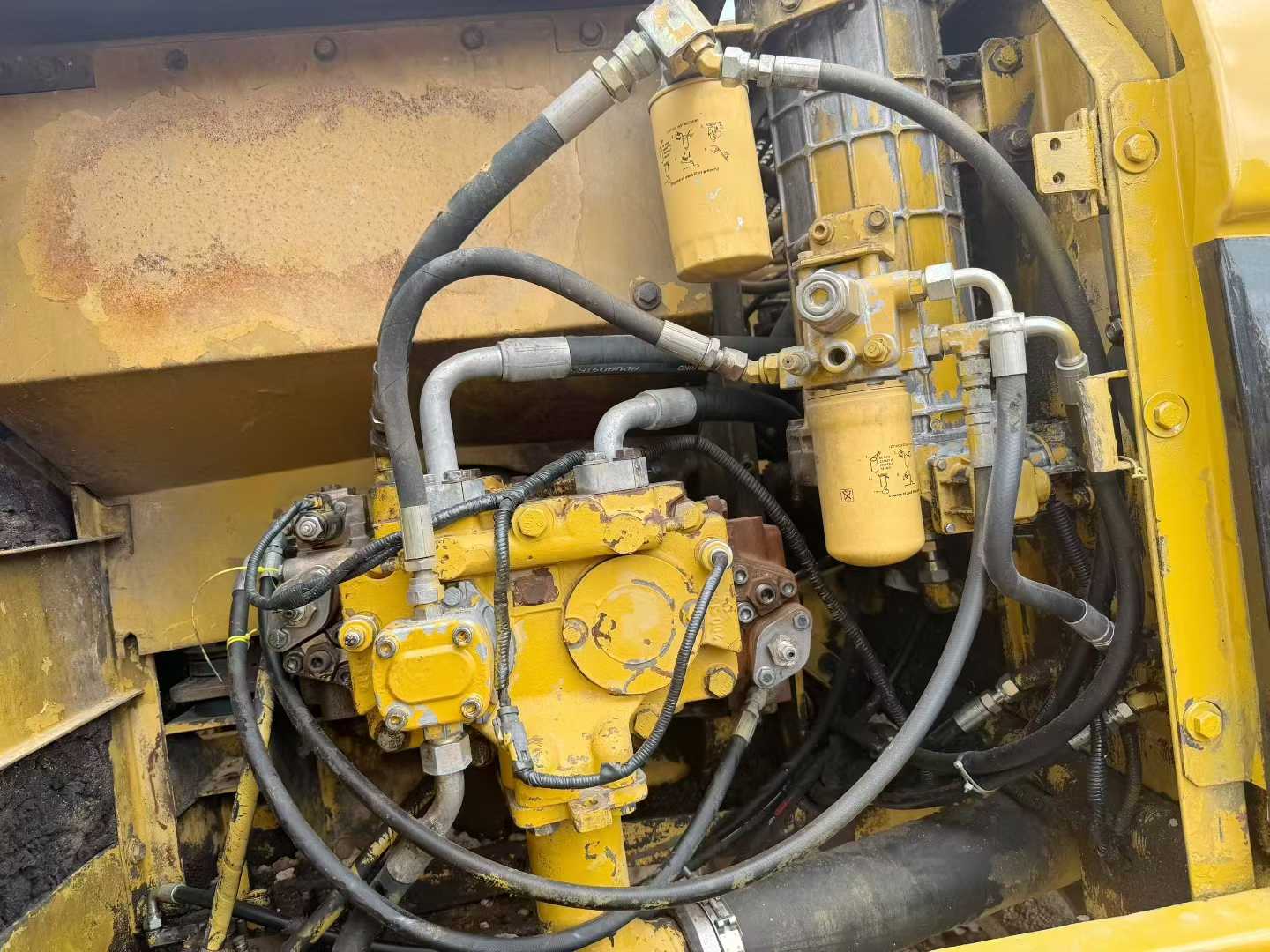

Used Caterpillar 320C Excavator 2016 Model / 7

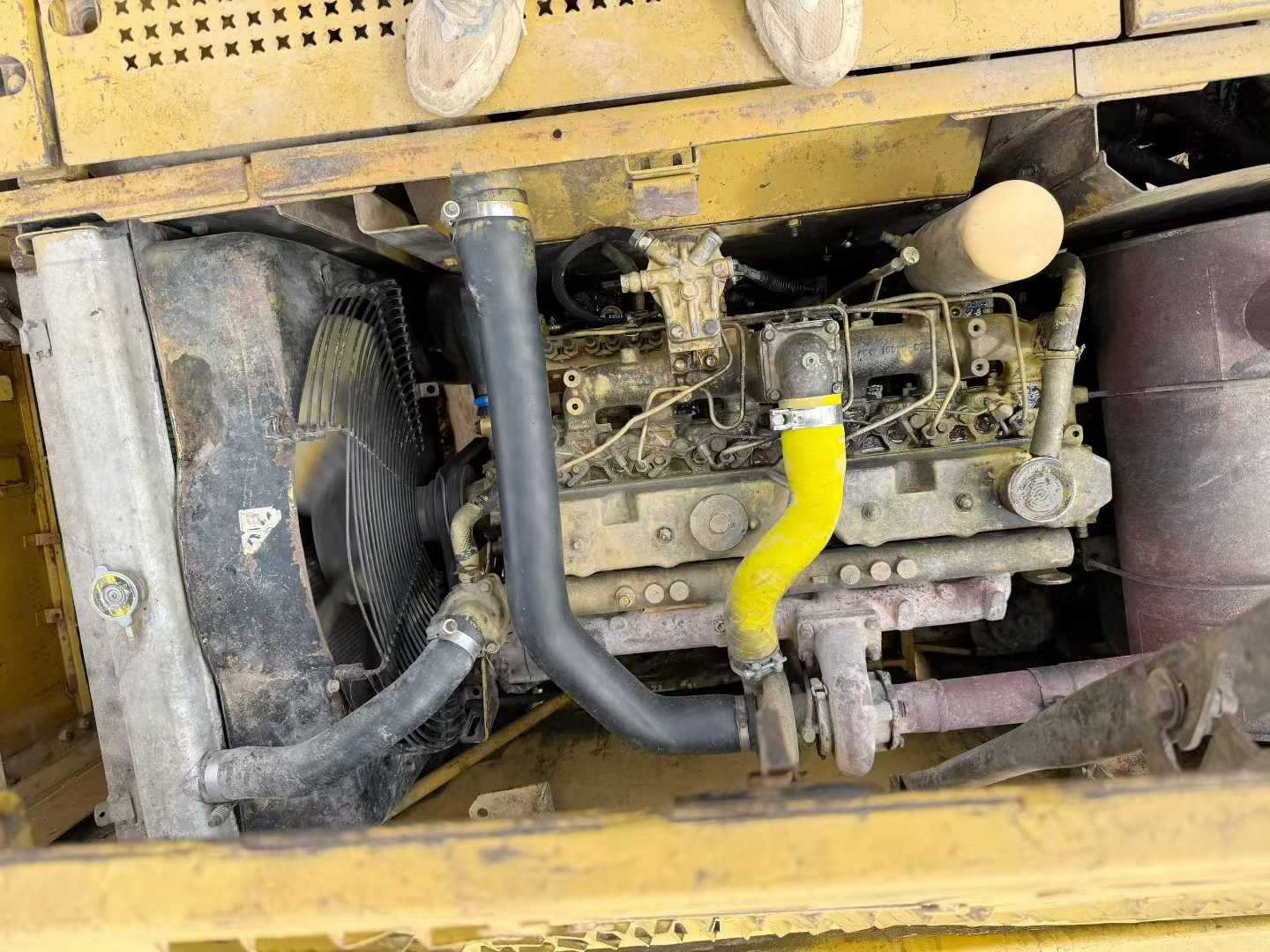

Used Caterpillar 320C Excavator 2016 Model / 8

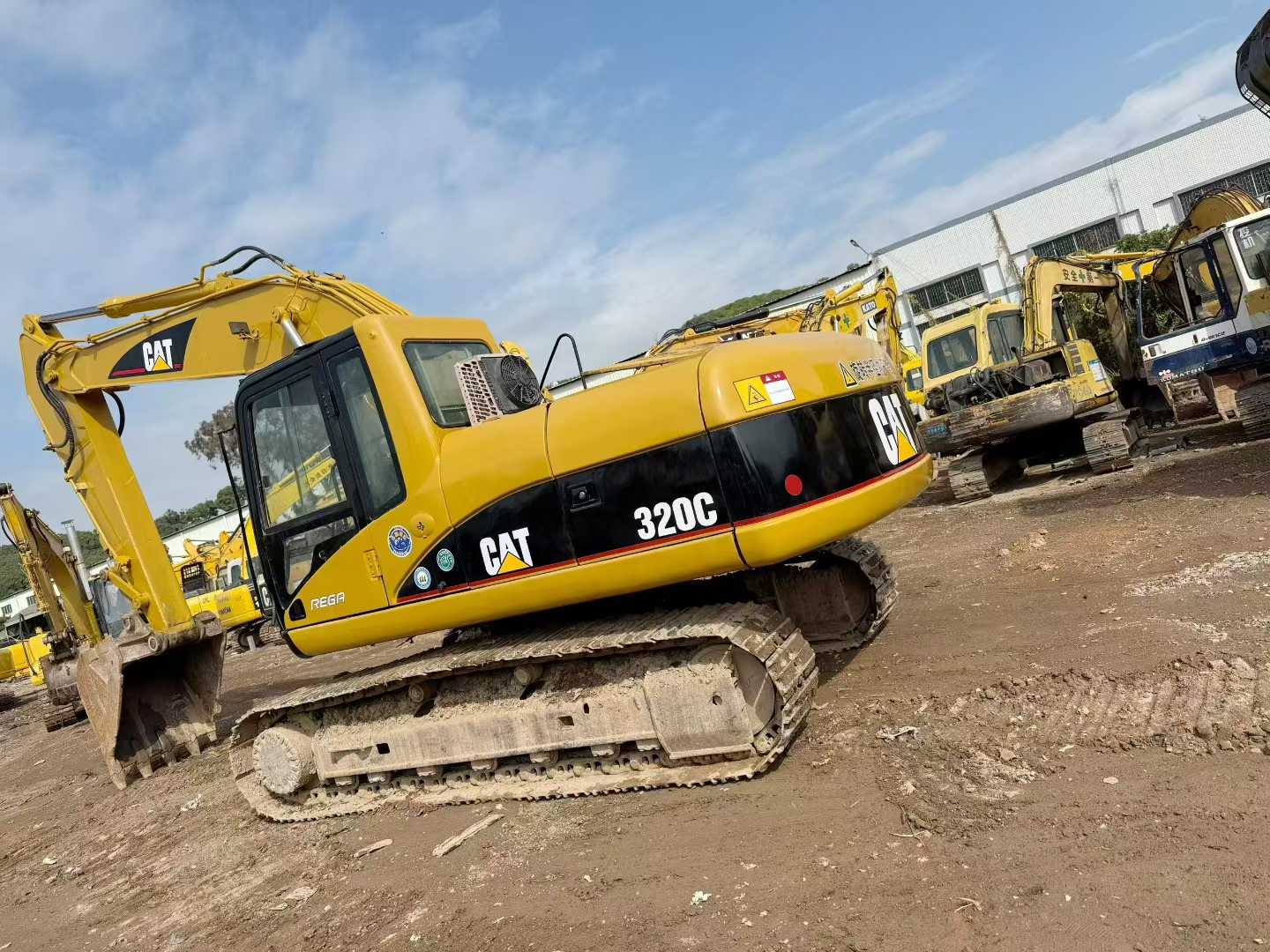

Used Caterpillar 320C Excavator 2016 Model / 9

Product Description

Second-hand Caterpillar 320C excavator Dear customer, hello! It is a great honor to recommend to you this second-hand Caterpillar 320C excavator with outstanding performance and extremely high cost performance. Since this machine was put into use, its total working time has only been 5,000 hours, which is far lower than the average service life of similar equipment. This means that it still maintains a good mechanical condition and a relatively long service life. In terms of the power system, the Caterpillar 320C is equipped with a powerful and reliable CAT C7 engine, with a maximum power of up to 140kW. It can handle complex and changeable construction environments with ease. This engine features outstanding fuel economy and low emissions. It not only effectively reduces operating costs but also meets modern environmental protection requirements. The hydraulic system is one of the key indicators for measuring the working efficiency of excavators. This machine is equipped with advanced negative flow control technology, ensuring rapid and smooth action response. Whether it is excavation, loading or crushing operations, it can handle them with ease. In addition, its highly efficient cooling system can ensure that it remains in the bes

SpecificationsValue
No.969867
Tonnage (tons)20
Working weight (kg)21115
Bucket capacity (m³)0.8
Boom length (mm)5680
Rod length (mm)2900
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCaterpillar CAT 3066 ATAAC
Rated power (kw/rpm)110/1800
Cooling modewater-cooling
Cylinder diameter × stroke (mm)102 x 130
Displacement (L)6.4
Ground specific pressure (Kpa)48.02
Rotation speed (rpm)11.5
Bucket digging force (kN)132
Rod digging force (kN)99
Travel speed (km/h)5.5
Maximum flow of main pump (l/min)205
Traveling Hydraulic Circuit (Mpa)34.4
Rotary Hydraulic Circuit (Mpa)26
Working Hydraulic Circuit (Mpa)34.3
Pilot Oil Circuit (MPa)4.12
Bucket cylinders - Number × diameter × stroke (mm)1-120 x 1030
Bucket rod cylinders - Number × diameter × stroke (mm)1-140 x 1430
Boom cylinders - Number × diameter × stroke (mm)2-120 x 1260
Fuel Tank (L)320
Hydraulic Tank (L)120
Engine Oil changes (L)30
Coolant (L)24
Hydraulic System (L)200
Total transport length (mm)9390
Total transport width (mm)2800
Total transport height (mm)3050
Full cab height (mm)3050
Minimum ground clearance (mm)460
Back end turning radius (mm)2770
Total track length (mm)4070
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3260
Maximum digging depth (mm)6550
Maximum excavation height (mm)9440
Maximum unloading height (mm)6770
Maximum vertical digging depth (mm)5440
Maximum excavation radius of stop surface (mm)9710
see more

Overview

No.969867

Brand Name:

Caterpillar

Model Number:

320C

Year:

2016

Location:

Guangdong China
