2011 Caterpillar 323DL

1/9
Used Caterpillar 323DL Excavator 2011 Model / 1

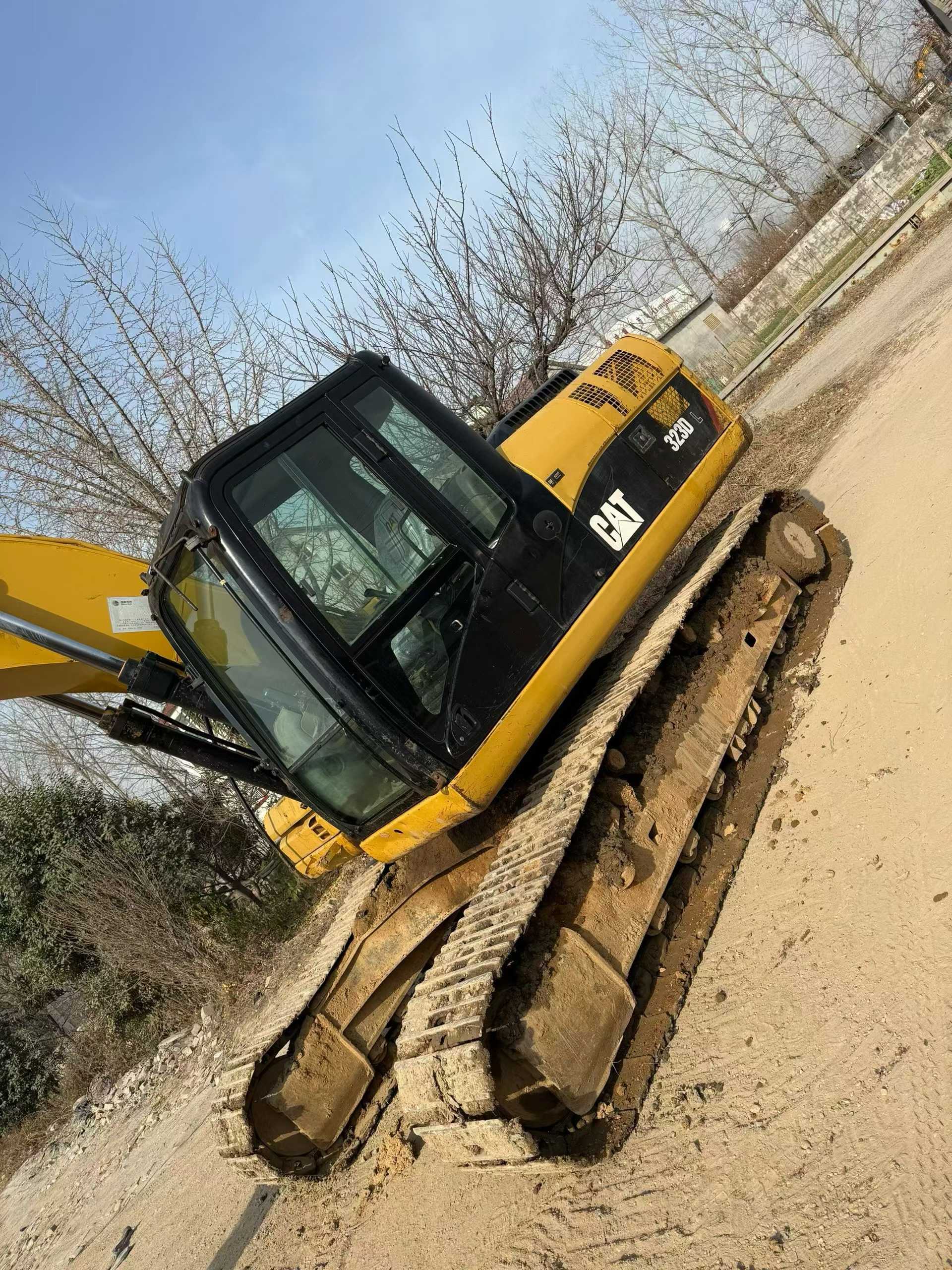

Used Caterpillar 323DL Excavator 2011 Model / 2

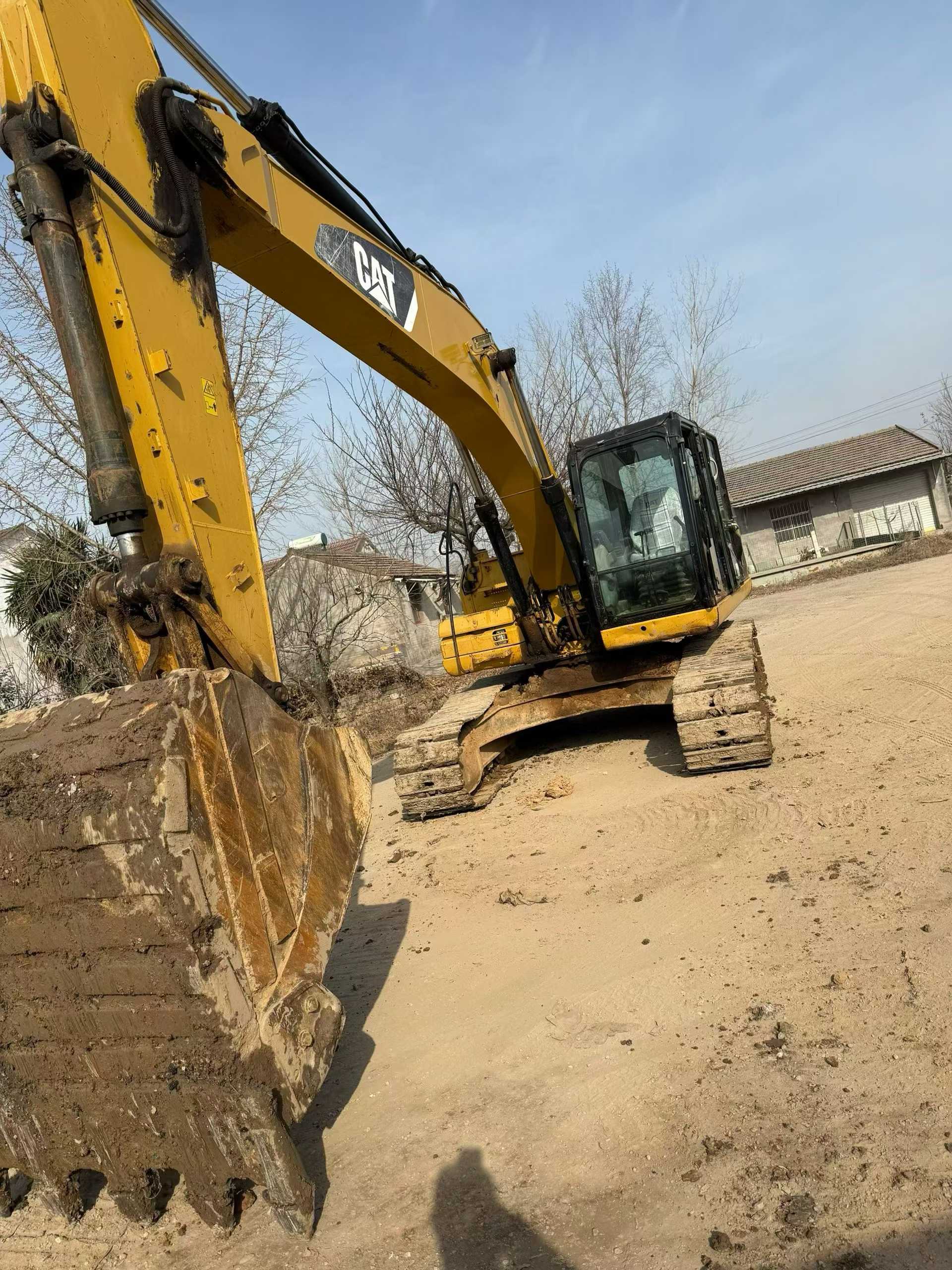

Used Caterpillar 323DL Excavator 2011 Model / 3

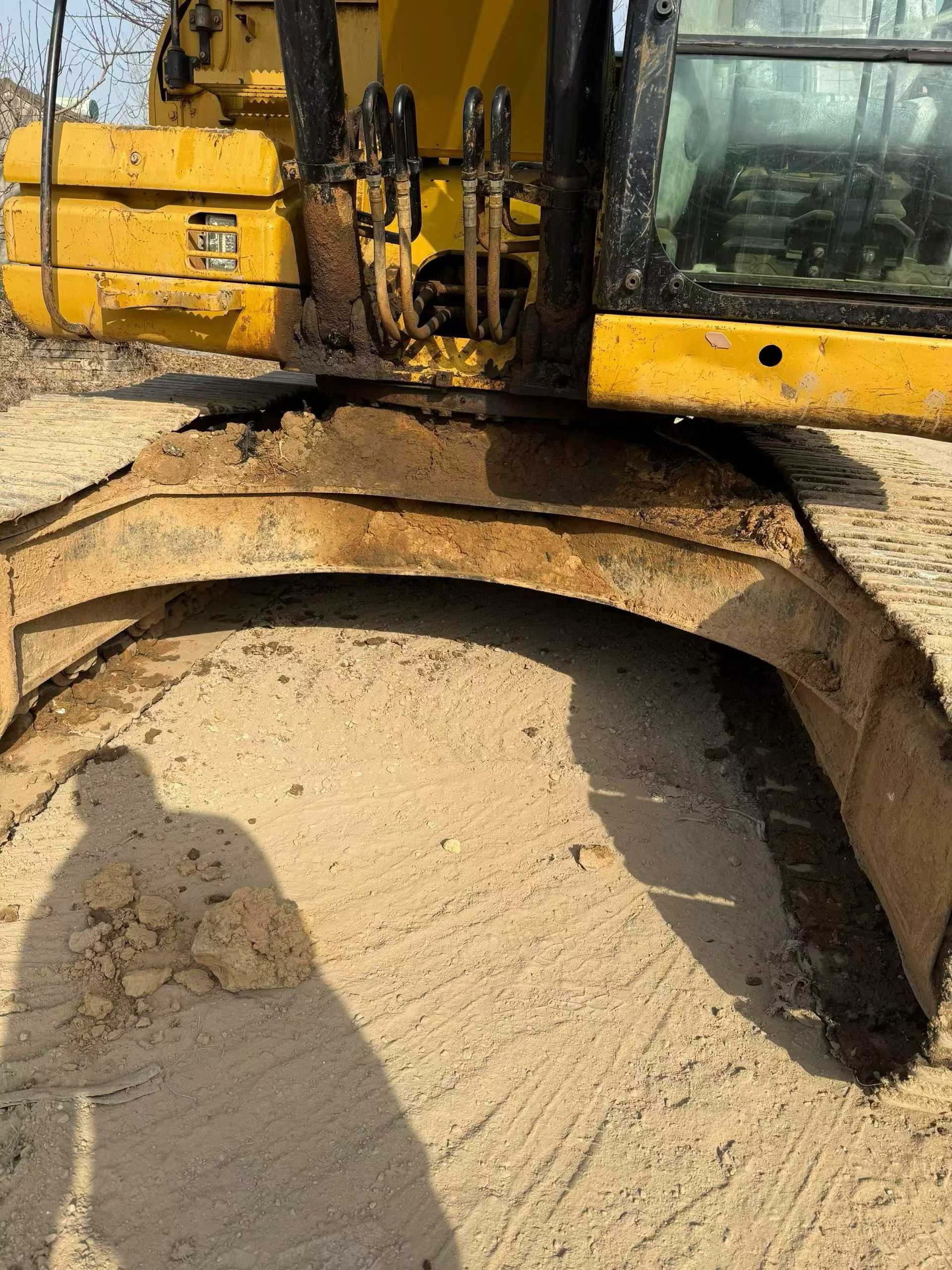

Used Caterpillar 323DL Excavator 2011 Model / 4

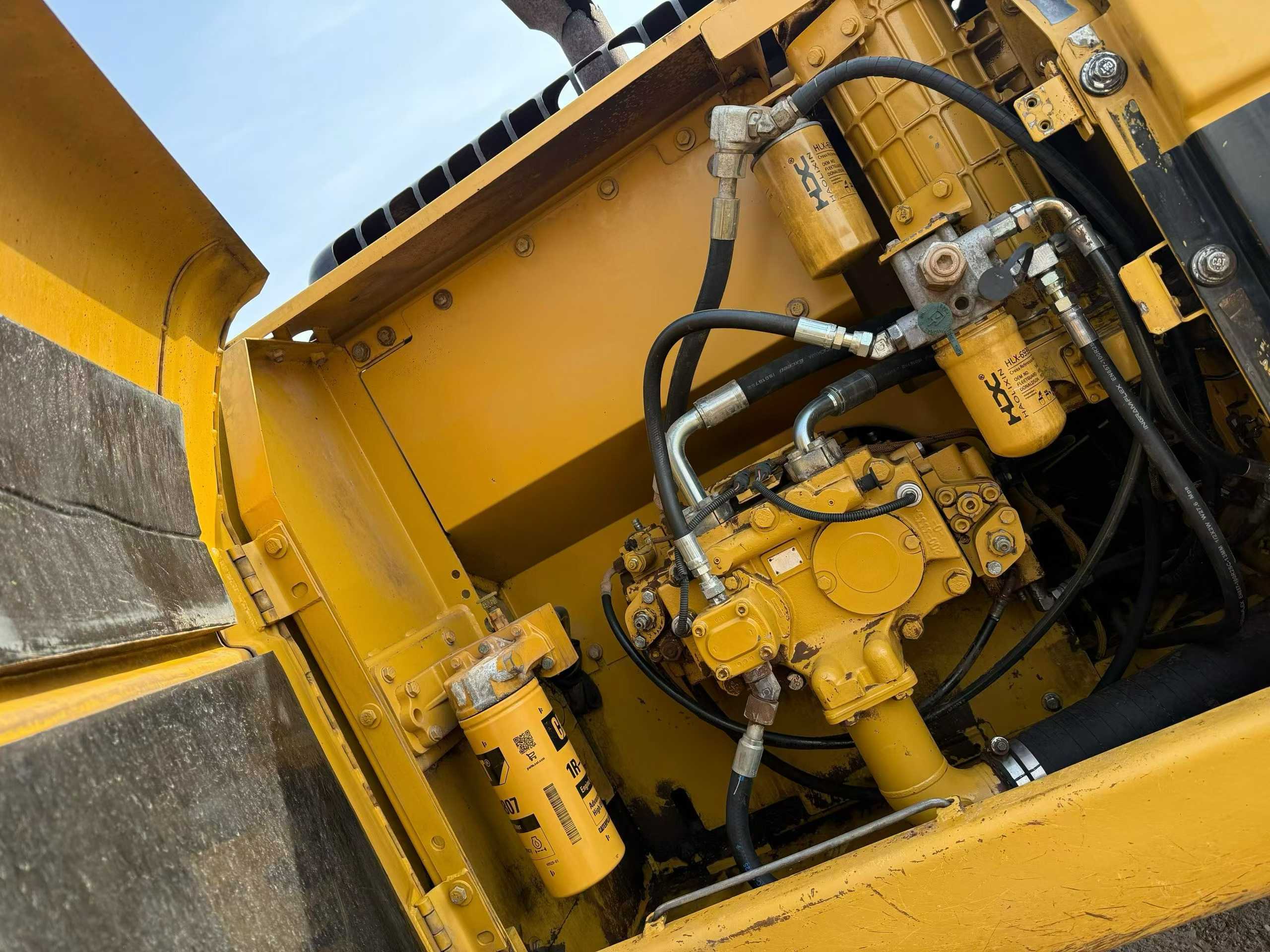

Used Caterpillar 323DL Excavator 2011 Model / 5

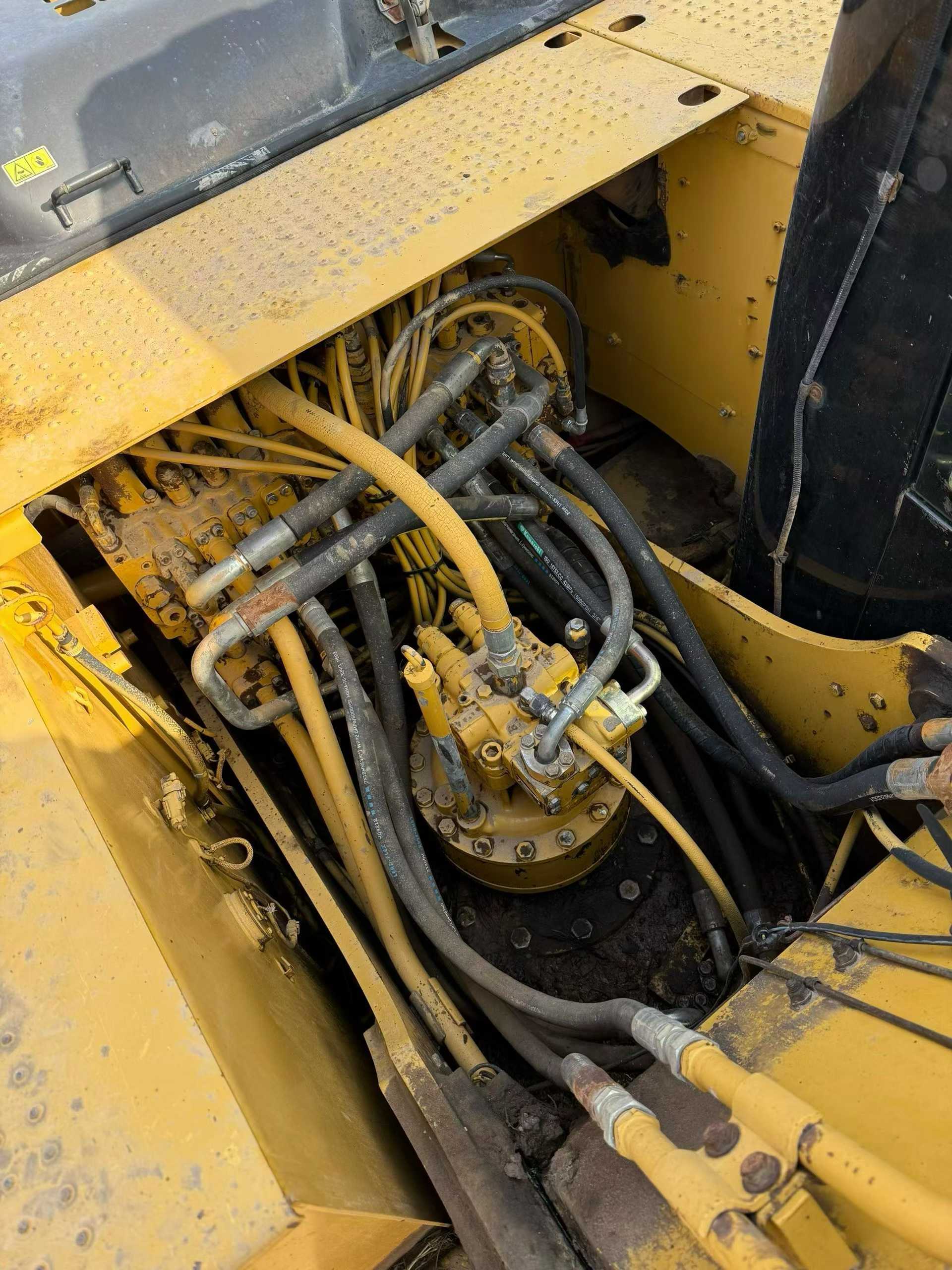

Used Caterpillar 323DL Excavator 2011 Model / 6

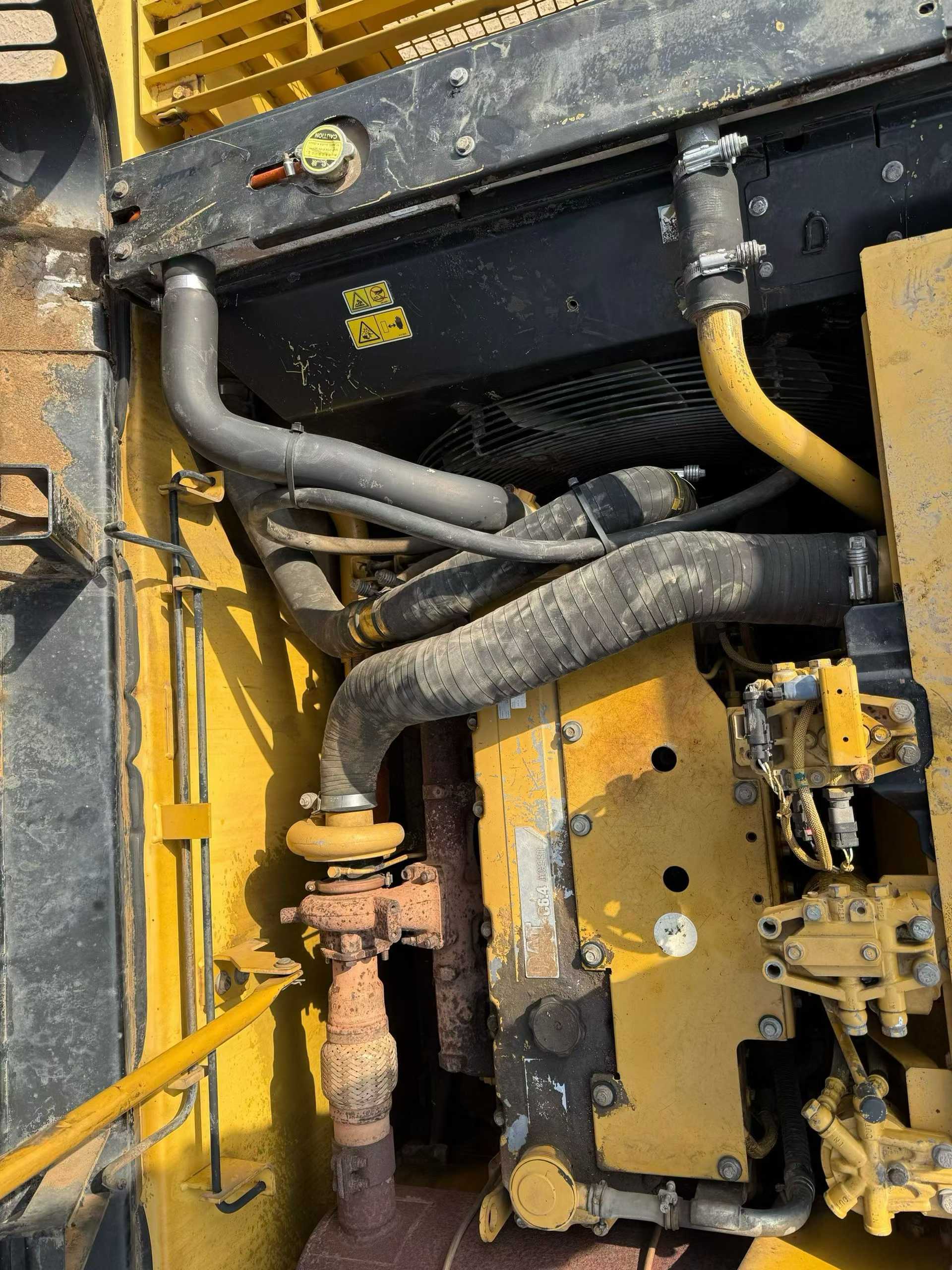

Used Caterpillar 323DL Excavator 2011 Model / 7

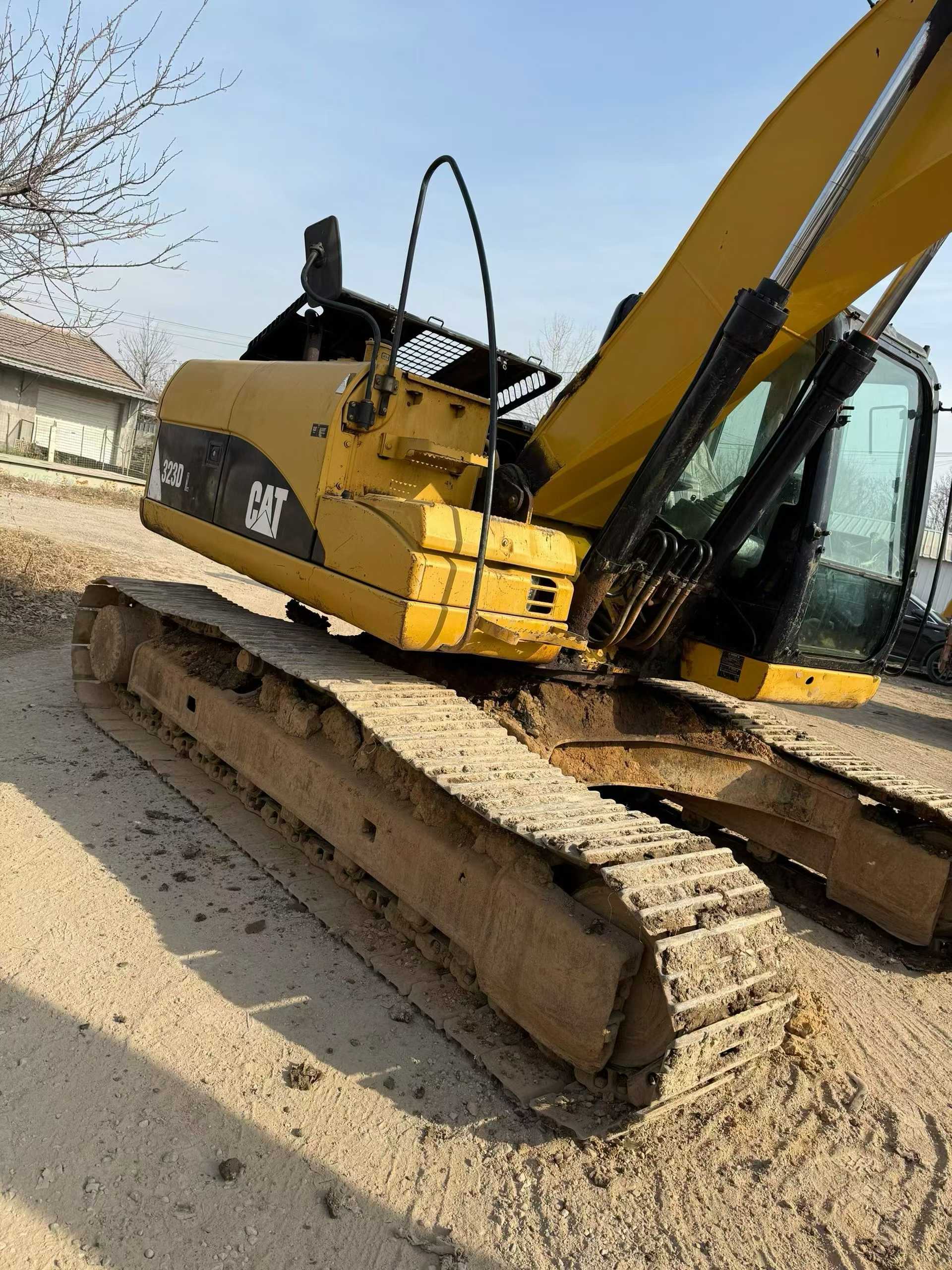

Used Caterpillar 323DL Excavator 2011 Model / 8

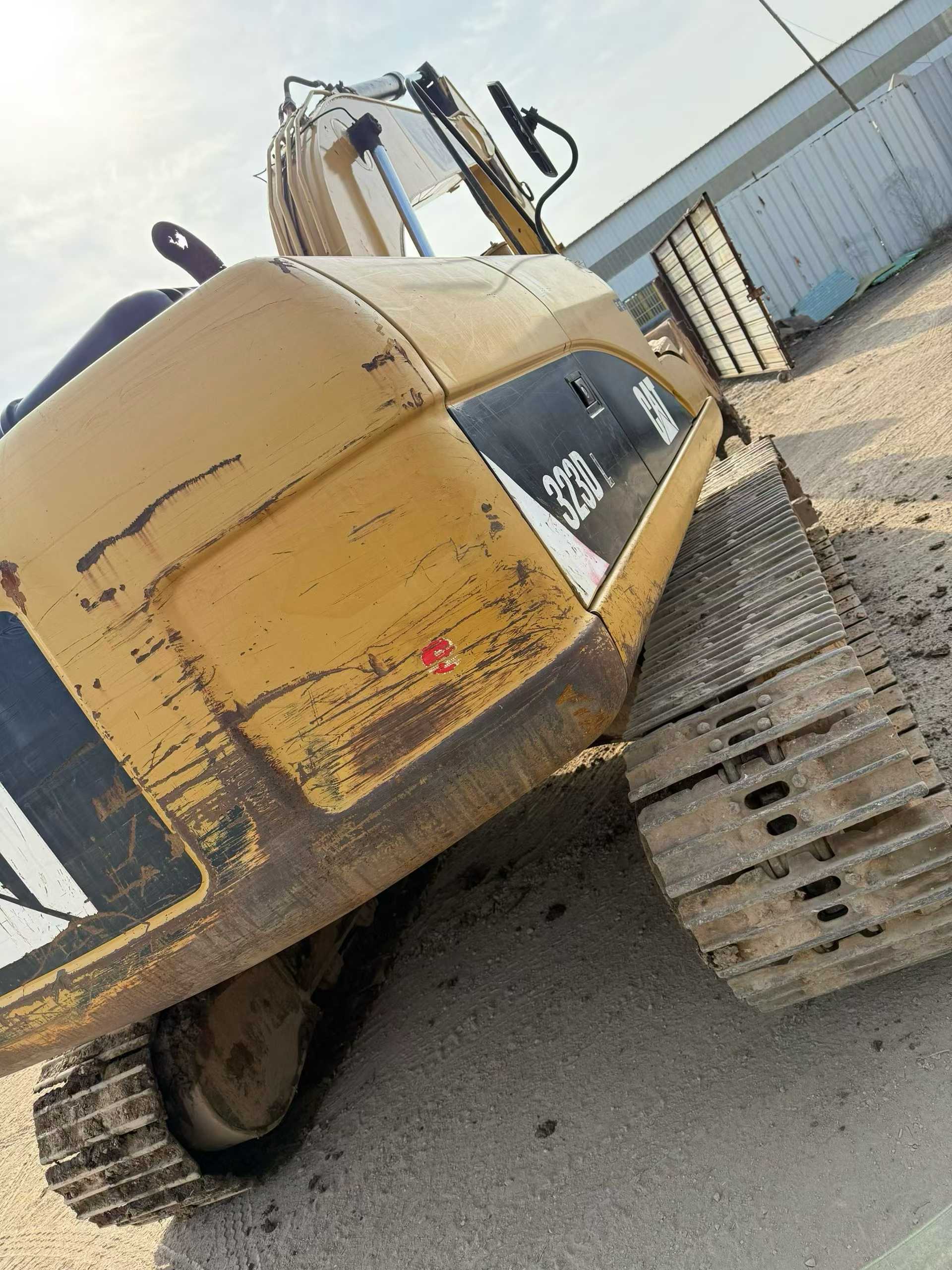

Used Caterpillar 323DL Excavator 2011 Model / 9

Product Description

【 Premium Recommendation 】2011 Caterpillar 323DL excavator. This equipment is a very popular medium-sized excavator in the market. It features outstanding performance and reliability, making it highly suitable for various earthwork operations. This machine has remained in its original state since leaving the factory, without any modification or major overhaul, ensuring its original quality and performance. In terms of working hours, the cumulative operating time of this machine is approximately 6,500 hours, which is of medium usage intensity. For a device that has been in service for 12 years, such working hours indicate that it has received good maintenance and is in the best working condition. Lower working hours also mean a long service life in the future. The power system is equipped with a Caterpillar C7.1 inline six-cylinder turbocharged diesel engine, with a maximum power output of 140kW (approximately 190 horsepower). It features strong power output and smooth operation characteristics, capable of easily handling heavy-load tasks even in complex terrain conditions. Meanwhile, this engine also features excellent fuel economy and can effectively reduce operating costs. In terms of the hydraulic system, it is equipped with an a

SpecificationsValue
No.964084
Tonnage (tons)23
Working weight (kg)22300-23100
Bucket capacity (m³)1.2
Boom length (mm)5700
Rod length (mm)2900
Country of originJapan
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeC6.4ACERT
Rated power (kw/rpm)110/2000
Cooling modewater-cooling
Cylinder diameter × stroke (mm)102 x 130
Number of cylinders (PCS)6
Displacement (L)6.4
Rotation speed (rpm)11.5
Climbing ability (%)70/35 °
Bucket digging force (kN)140
Rod digging force (kN)106
Travel speed (km/h)3.5/5.7
Main overflow set pressure (Mpa)3.5
Maximum flow of main pump (l/min)205
Traveling Hydraulic Circuit (Mpa)3.5
Rotary Hydraulic Circuit (Mpa)2.5
Hydraulic crushing pipeline is standardno
Working Hydraulic Circuit (Mpa)3.5
Pilot Oil Circuit (MPa)3.9
Bucket cylinders - Number × diameter × stroke (mm)120 x 1104
Bucket rod cylinders - Number × diameter × stroke (mm)140 x 1504
Boom cylinders - Number × diameter × stroke (mm)120 x 1260
Fuel Tank (L)410
Hydraulic Tank (L)120
Engine Oil changes (L)30
Coolant (L)25
Hydraulic System (L)260(including fuel tank)
Total transport length (mm)9460
Total transport width (mm)3180
Total transport height (mm)3050
Full cab height (mm)2950
Counterweight ground clearance (mm)1020
Minimum ground clearance (mm)450
Back end turning radius (mm)2940
Total track length (mm)4455
Track gauge (mm)2380
Track plate width (mm)600
Total track width (mm)3180
Track ground length (mm)3650
Maximum digging depth (mm)6710
Maximum excavation height (mm)9470
Maximum unloading height (mm)6500
Maximum vertical digging depth (mm)5860
Bulldozer lift or depth (mm)No bulldozer
Dodging plate width × height (mm)No bulldozer
Maximum excavation radius of stop surface (mm)9850
Maximum effective digging depth (mm)6380
see more

Overview

No.964084

Brand Name:

Caterpillar

Model Number:

323DL

Year:

2011

Location:

Jiangsu China

Are you interested in this machine?

Please contact us
