2011 Caterpillar 323DL

1/9
Used Caterpillar 323DL Excavator 2011 Model / 1

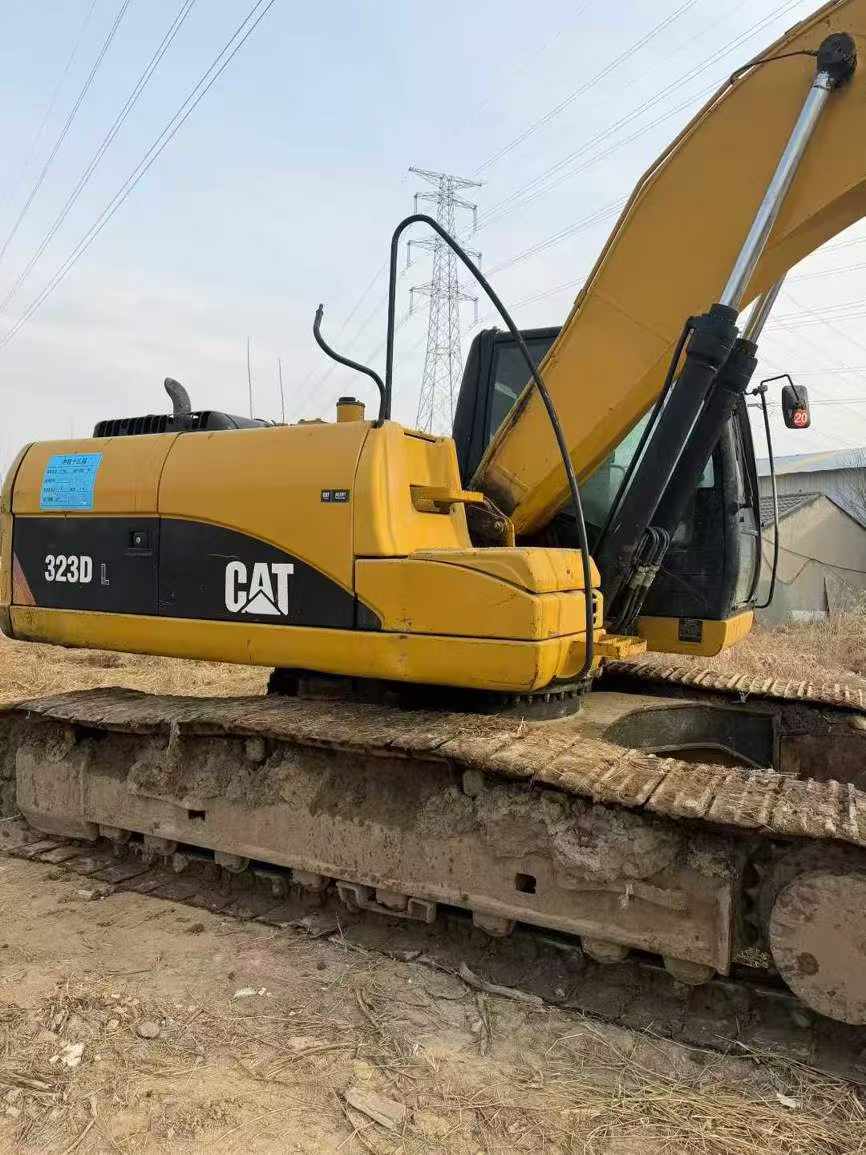

Used Caterpillar 323DL Excavator 2011 Model / 2

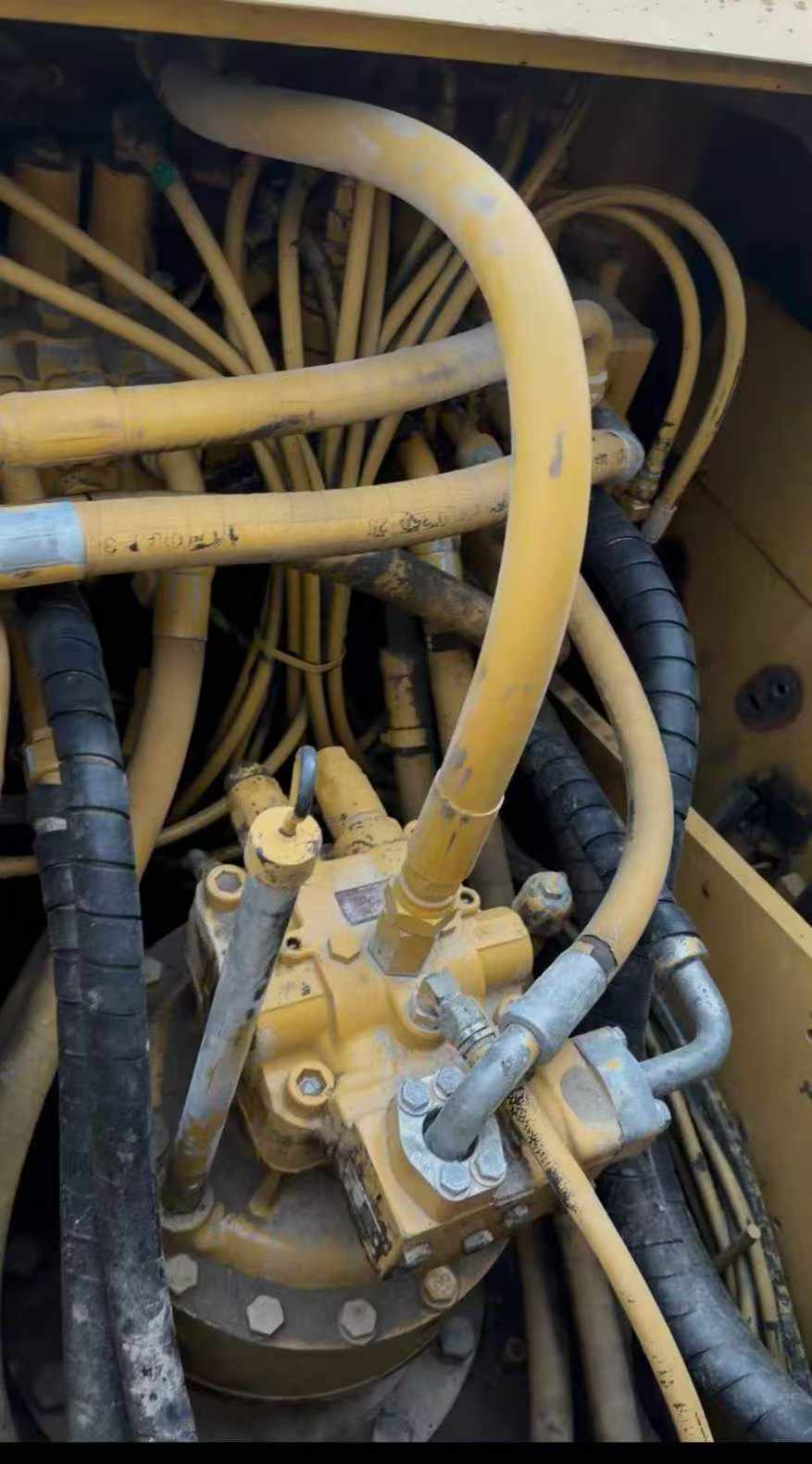

Used Caterpillar 323DL Excavator 2011 Model / 3

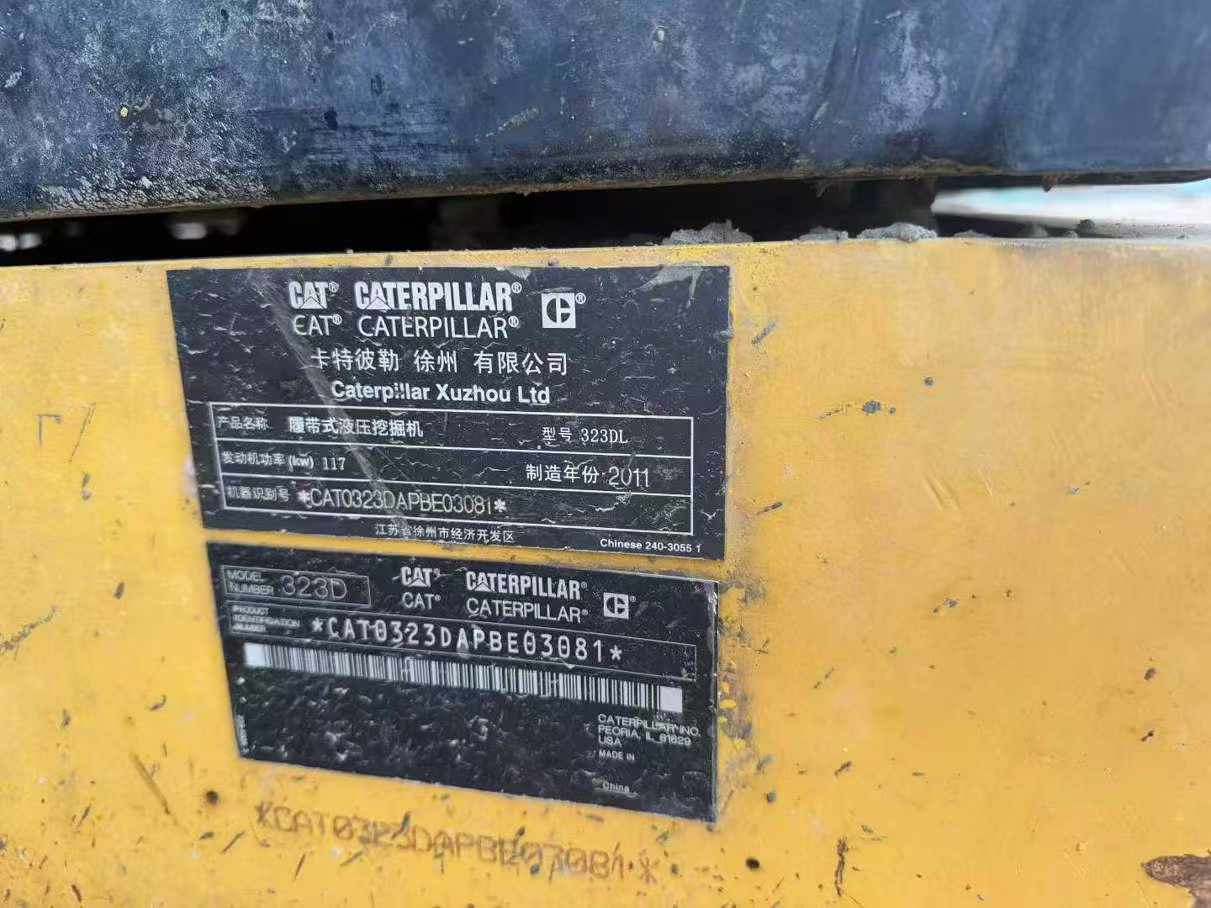

Used Caterpillar 323DL Excavator 2011 Model / 4
Used Caterpillar 323DL Excavator 2011 Model / 5

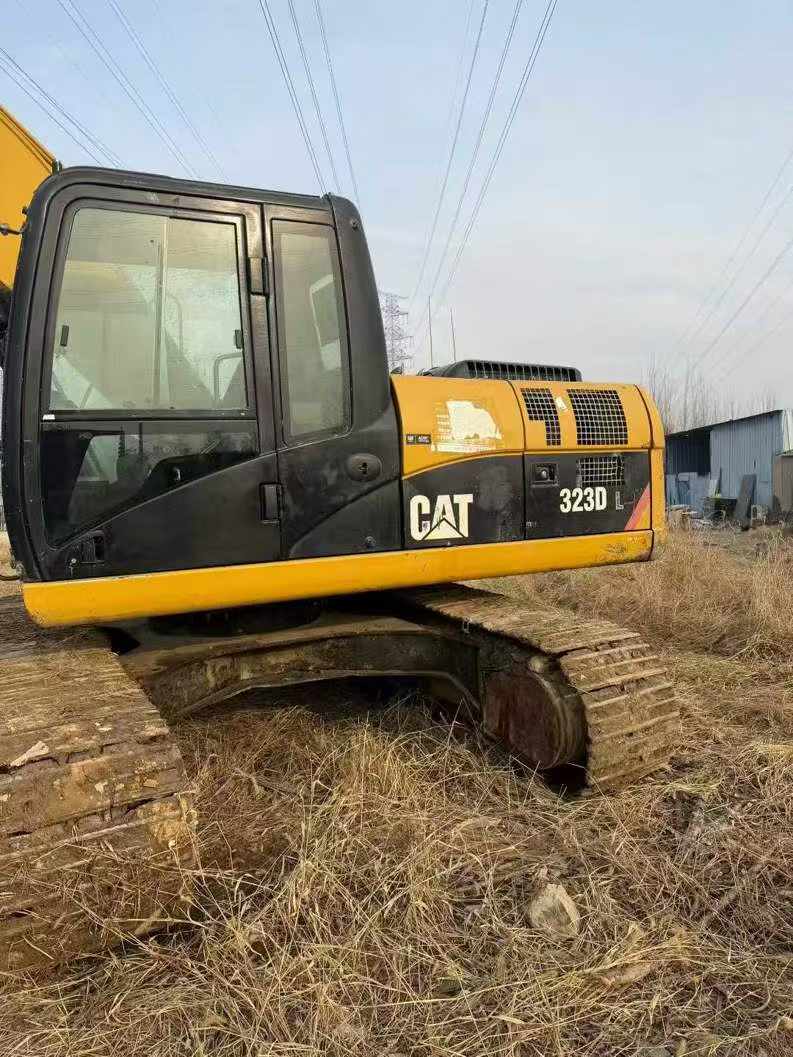

Used Caterpillar 323DL Excavator 2011 Model / 6

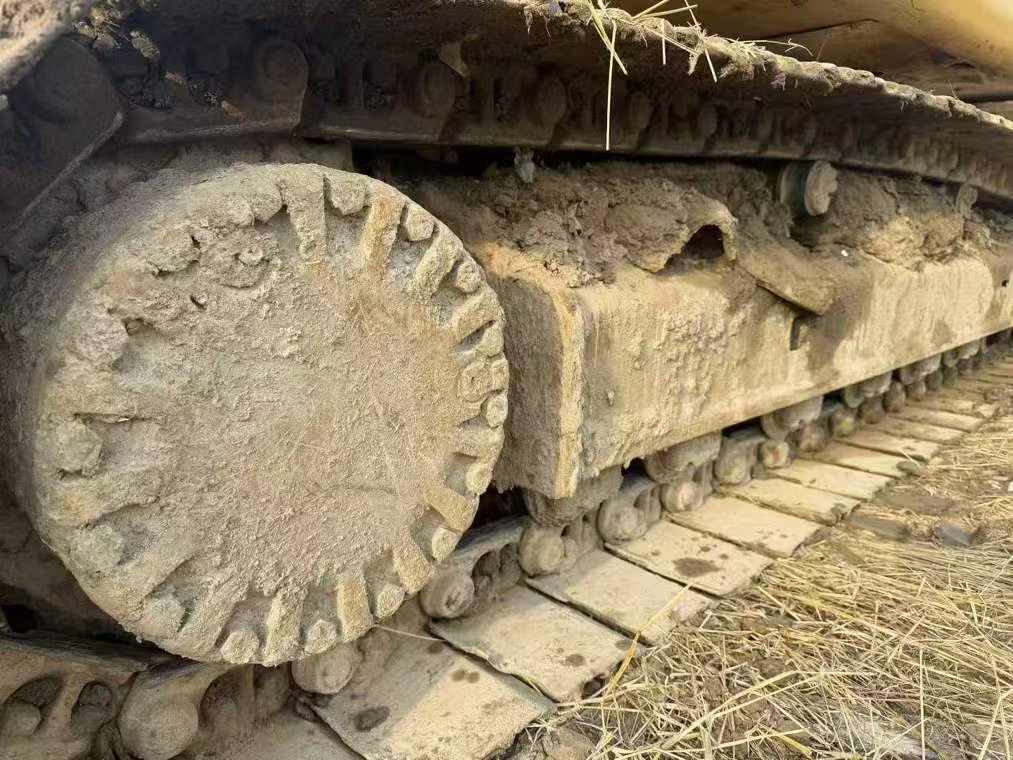

Used Caterpillar 323DL Excavator 2011 Model / 7

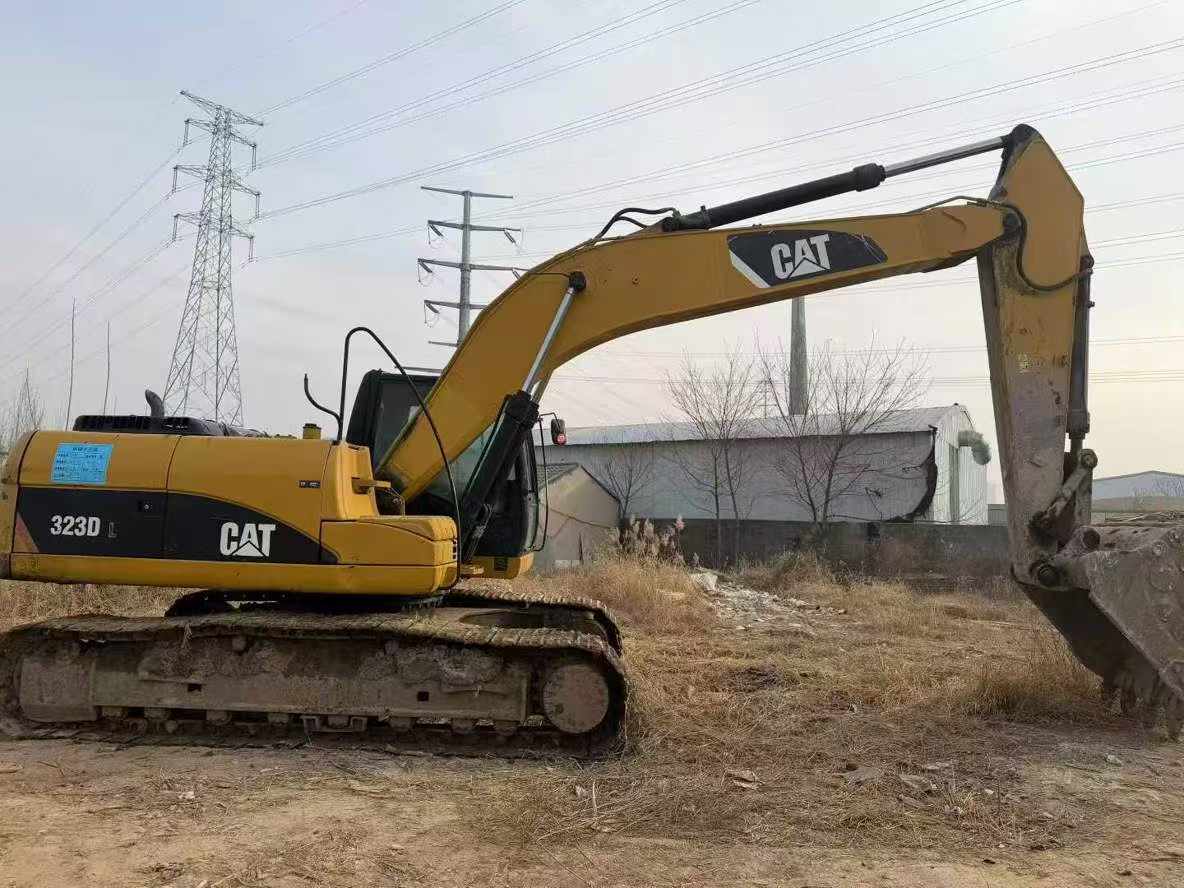

Used Caterpillar 323DL Excavator 2011 Model / 8
Used Caterpillar 323DL Excavator 2011 Model / 9

Product Description

【 Premium Recommendation 】 The 2011 Caterpillar 323DL excavator, specially designed for earthwork projects, has accumulated over 11,000 hours of working time, yet its overall condition remains excellent. Since its manufacture, this equipment has been dedicated to earthwork operations and has not been involved in other complex working conditions. Therefore, the degree of wear and tear of its core components is much lower than that of machines of the same age. In terms of the power system, this machine is equipped with an original imported Caterpillar engine, which is renowned for its powerful output and excellent fuel economy. Even after long-term operation, this engine can still provide stable and reliable performance, starting quickly and running smoothly. It can handle both flat ground excavation and slope operations with ease. The hydraulic system is one of the key indicators for evaluating the performance of an excavator, and this 323DL also performs exceptionally well in this aspect. Adopting an advanced closed center load sensitive hydraulic control system, it not only has a fast response speed but also operates precisely and smoothly. Even the slightest operation can be accurately executed, greatly improving work efficiency an

SpecificationsValue
No.964368
Tonnage (tons)23
Working weight (kg)22300-23100
Bucket capacity (m³)1.2
Boom length (mm)5700
Rod length (mm)2900
Country of originJapan
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeC6.4ACERT
Rated power (kw/rpm)110/2000
Cooling modewater-cooling
Cylinder diameter × stroke (mm)102 x 130
Number of cylinders (PCS)6
Displacement (L)6.4
Rotation speed (rpm)11.5
Climbing ability (%)70/35 °
Bucket digging force (kN)140
Rod digging force (kN)106
Travel speed (km/h)3.5/5.7
Main overflow set pressure (Mpa)3.5
Maximum flow of main pump (l/min)205
Traveling Hydraulic Circuit (Mpa)3.5
Rotary Hydraulic Circuit (Mpa)2.5
Hydraulic crushing pipeline is standardno
Working Hydraulic Circuit (Mpa)3.5
Pilot Oil Circuit (MPa)3.9
Bucket cylinders - Number × diameter × stroke (mm)120 x 1104
Bucket rod cylinders - Number × diameter × stroke (mm)140 x 1504
Boom cylinders - Number × diameter × stroke (mm)120 x 1260
Fuel Tank (L)410
Hydraulic Tank (L)120
Engine Oil changes (L)30
Coolant (L)25
Hydraulic System (L)260(including fuel tank)
Total transport length (mm)9460
Total transport width (mm)3180
Total transport height (mm)3050
Full cab height (mm)2950
Counterweight ground clearance (mm)1020
Minimum ground clearance (mm)450
Back end turning radius (mm)2940
Total track length (mm)4455
Track gauge (mm)2380
Track plate width (mm)600
Total track width (mm)3180
Track ground length (mm)3650
Maximum digging depth (mm)6710
Maximum excavation height (mm)9470
Maximum unloading height (mm)6500
Maximum vertical digging depth (mm)5860
Bulldozer lift or depth (mm)No bulldozer
Dodging plate width × height (mm)No bulldozer
Maximum excavation radius of stop surface (mm)9850
Maximum effective digging depth (mm)6380
see more

Overview

No.964368

Brand Name:

Caterpillar

Model Number:

323DL

Year:

2011

Location:

Jiangsu China
