2016 Caterpillar 324D

1/8

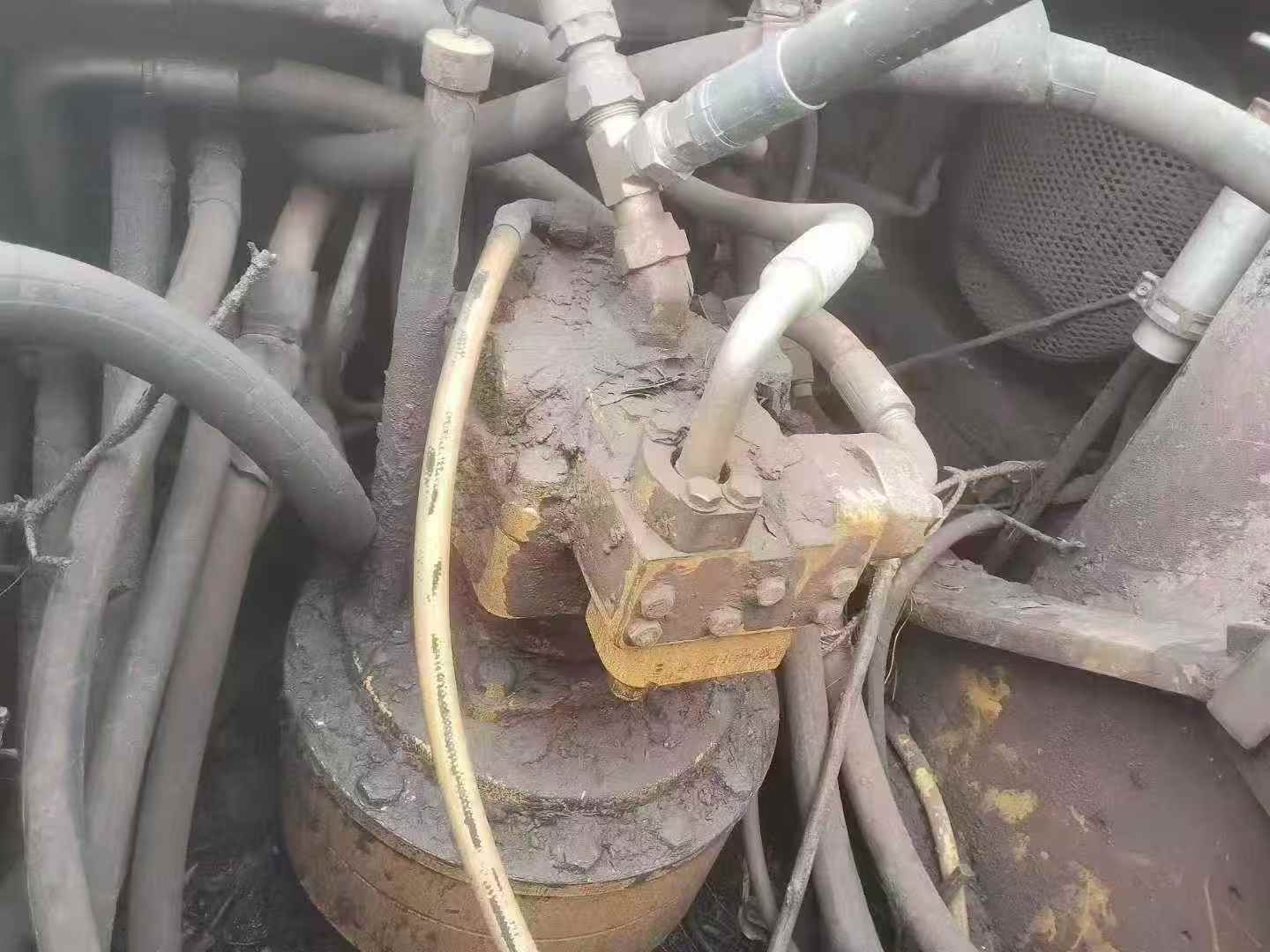

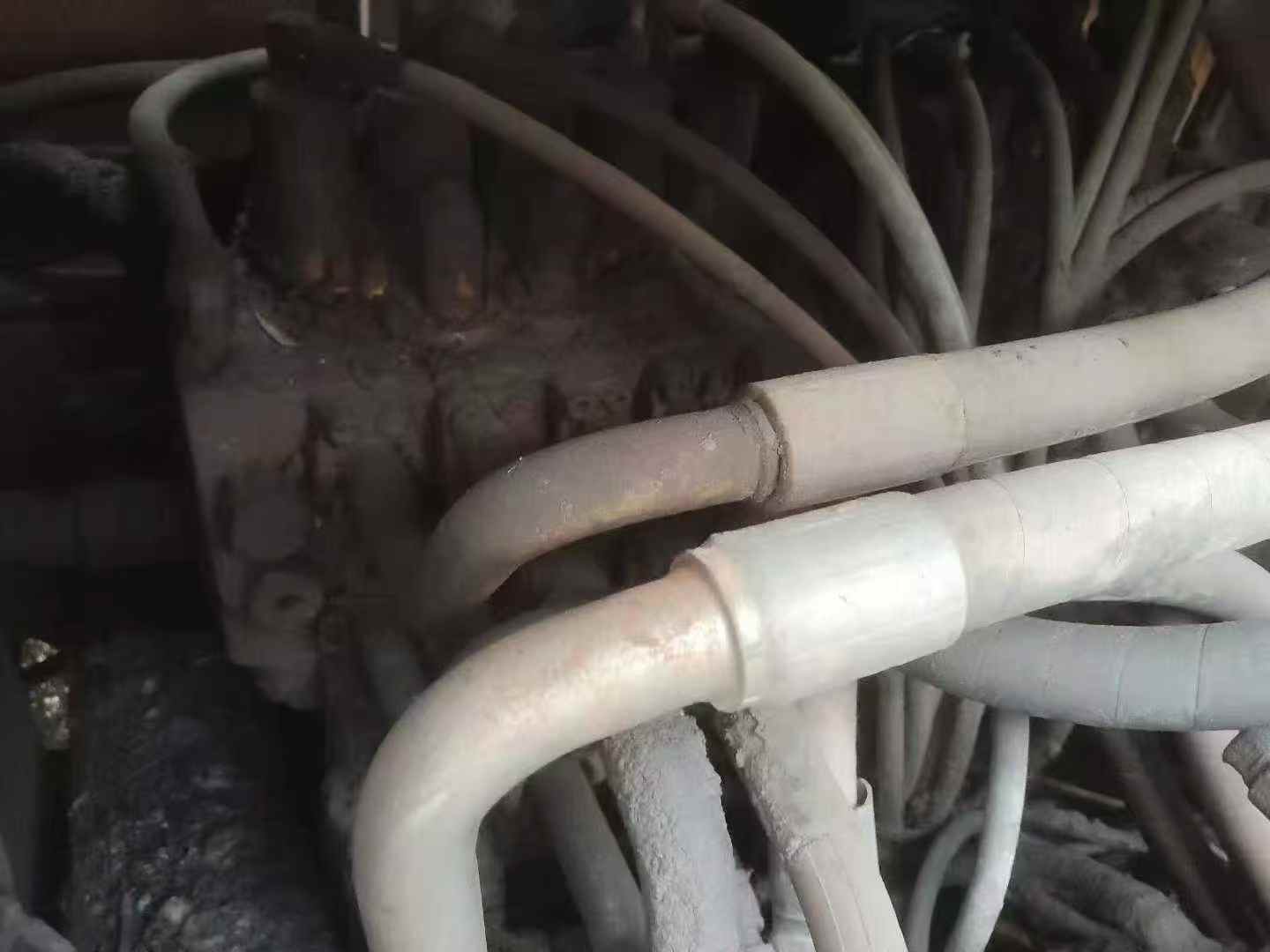

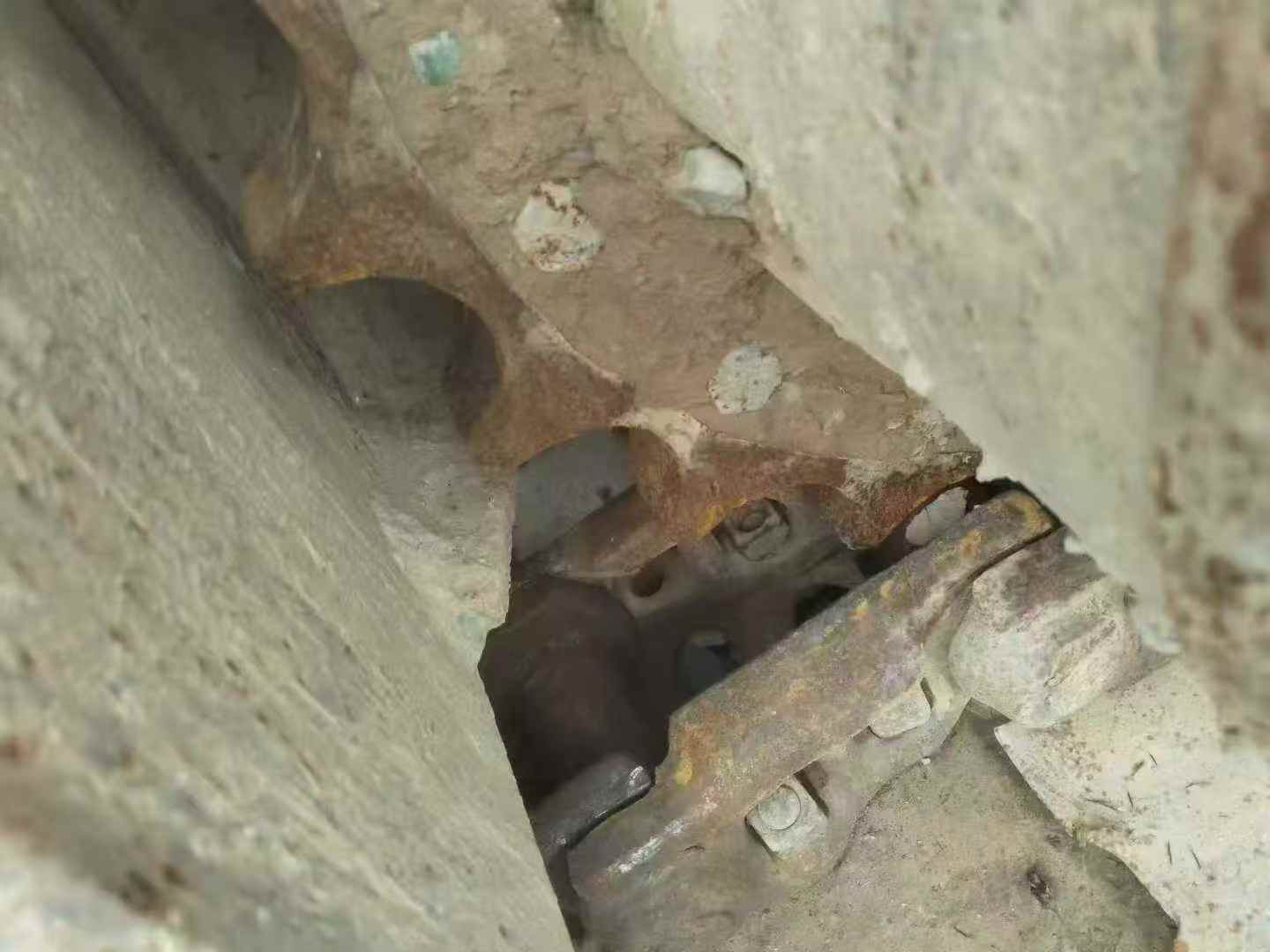

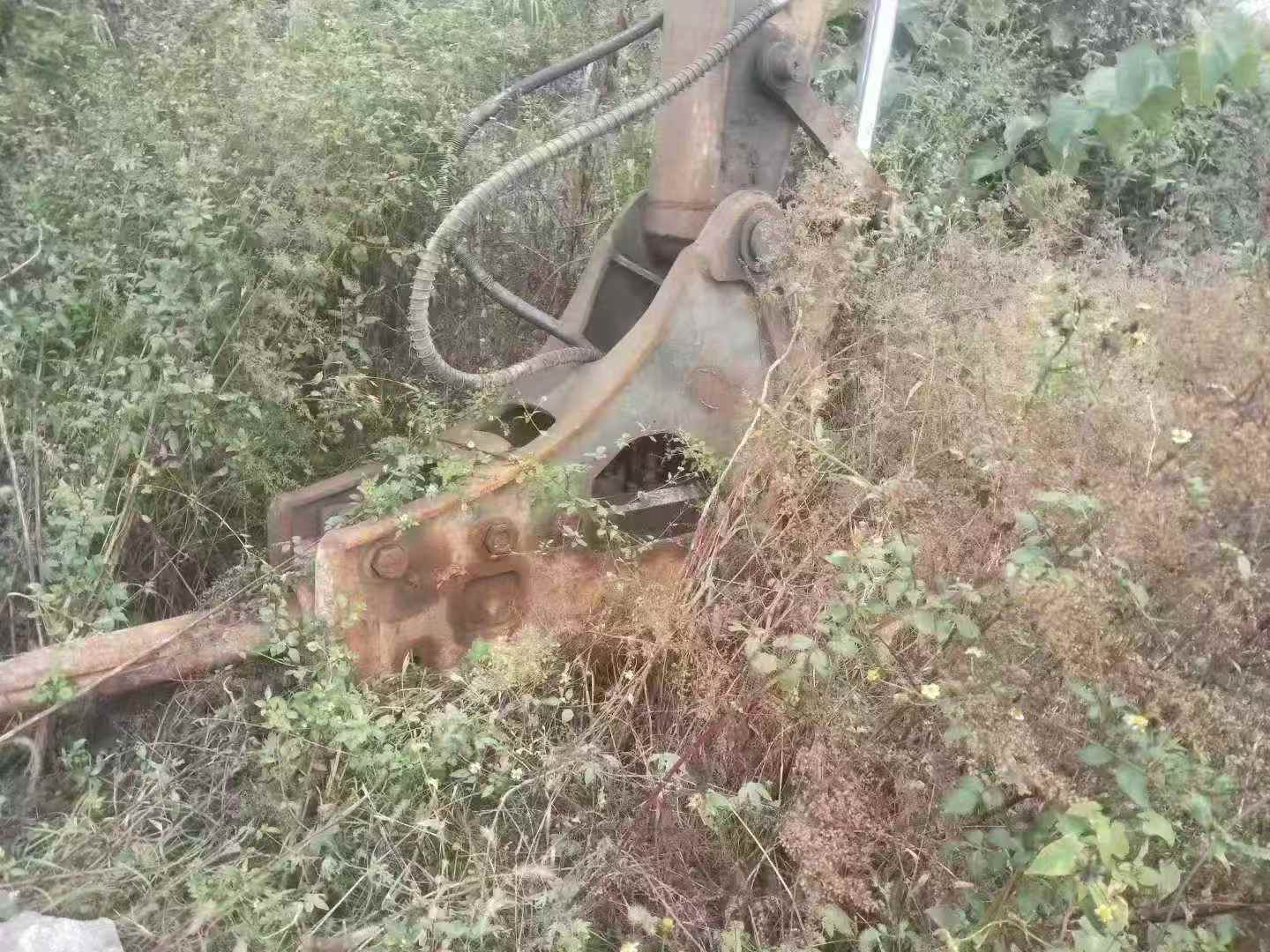

Used Caterpillar 324D Excavator 2016 Model / 1
Used Caterpillar 324D Excavator 2016 Model / 2
Used Caterpillar 324D Excavator 2016 Model / 3
Used Caterpillar 324D Excavator 2016 Model / 4
Used Caterpillar 324D Excavator 2016 Model / 5
Used Caterpillar 324D Excavator 2016 Model / 6
Used Caterpillar 324D Excavator 2016 Model / 7
Used Caterpillar 324D Excavator 2016 Model / 8

Product Description

"Caterpillar 324D Second-hand excavator This second-hand Caterpillar 324D excavator is priced at 79,800 yuan and offers an extremely high cost performance. The total working time of this machine is 4,500 hours, and it is in good working condition, suitable for various medium and small-sized engineering operations. The whole machine has a compact structure and flexible operation, making it especially suitable for construction needs in narrow urban Spaces. In terms of the power system, it adopts the original Caterpillar C4.4 engine, with a rated power of 119 kilowatts (approximately 160 horsepower). While providing strong power, its fuel economy is also well guaranteed. Whether it is excavation, loading or crushing operations, they can all be handled with ease. In addition, this engine also features low emissions and meets environmental protection requirements. It can operate normally even in the city center areas where there are strict restrictions on exhaust emissions. The hydraulic system is a major highlight of this machine. It adopts the advanced CLSS closed center load sensing system, which can automatically adjust the oil volume according to the actual load to ensure smooth and efficient operation. Meanwhile, it is equipped wit

SpecificationsValue
No.964689
Tonnage (tons)24
Working weight (kg)24240
Bucket capacity (m³)1
Boom length (mm)5900
Rod length (mm)2950
Country of originJapan
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeC7 ACERT
Rated power (kw/rpm)140/2000
Cooling modewater-cooling
Cylinder diameter × stroke (mm)102 x 130
Number of cylinders (PCS)6
Displacement (L)7.2
Rotation speed (rpm)9.6
Climbing ability (%)70/35 °
Travel speed (km/h)3.5/5.5
Main overflow set pressure (Mpa)35
Maximum flow of main pump (l/min)235
Traveling Hydraulic Circuit (Mpa)35
Rotary Hydraulic Circuit (Mpa)24.5
Hydraulic crushing pipeline is standardno
Working Hydraulic Circuit (Mpa)35
Pilot Oil Circuit (MPa)3.9
Bucket cylinders - Number × diameter × stroke (mm)1-120 x 1104
Bucket rod cylinders - Number × diameter × stroke (mm)1-140 x 1660
Boom cylinders - Number × diameter × stroke (mm)2-135 x 1305
Fuel Tank (L)520
Hydraulic Tank (L)145
Engine Oil changes (L)30
Coolant (L)30
Hydraulic System (L)300(including fuel tank)
Total transport length (mm)10060
Total transport width (mm)2990
Total transport height (mm)3170
Full cab height (mm)2980
Counterweight ground clearance (mm)1060
Minimum ground clearance (mm)470
Back end turning radius (mm)2940
Total track length (mm)4250
Track gauge (mm)2380
Track plate width (mm)600
Total track width (mm)2990
Track ground length (mm)3450
Maximum digging depth (mm)6740
Maximum excavation height (mm)9660
Maximum unloading height (mm)6700
Maximum vertical digging depth (mm)5830
Bulldozer lift or depth (mm)No bulldozer
Dodging plate width × height (mm)No bulldozer
Maximum excavation radius of stop surface (mm)10030
Maximum effective digging depth (mm)6560
see more

Overview

No.964689

Brand Name:

Caterpillar

Model Number:

324D

Year:

2016

Location:

Fujian China
