2016 Caterpillar 324D

1/8
Used Caterpillar 324D Excavator 2016 Model / 1
Used Caterpillar 324D Excavator 2016 Model / 2
Used Caterpillar 324D Excavator 2016 Model / 3
Used Caterpillar 324D Excavator 2016 Model / 4

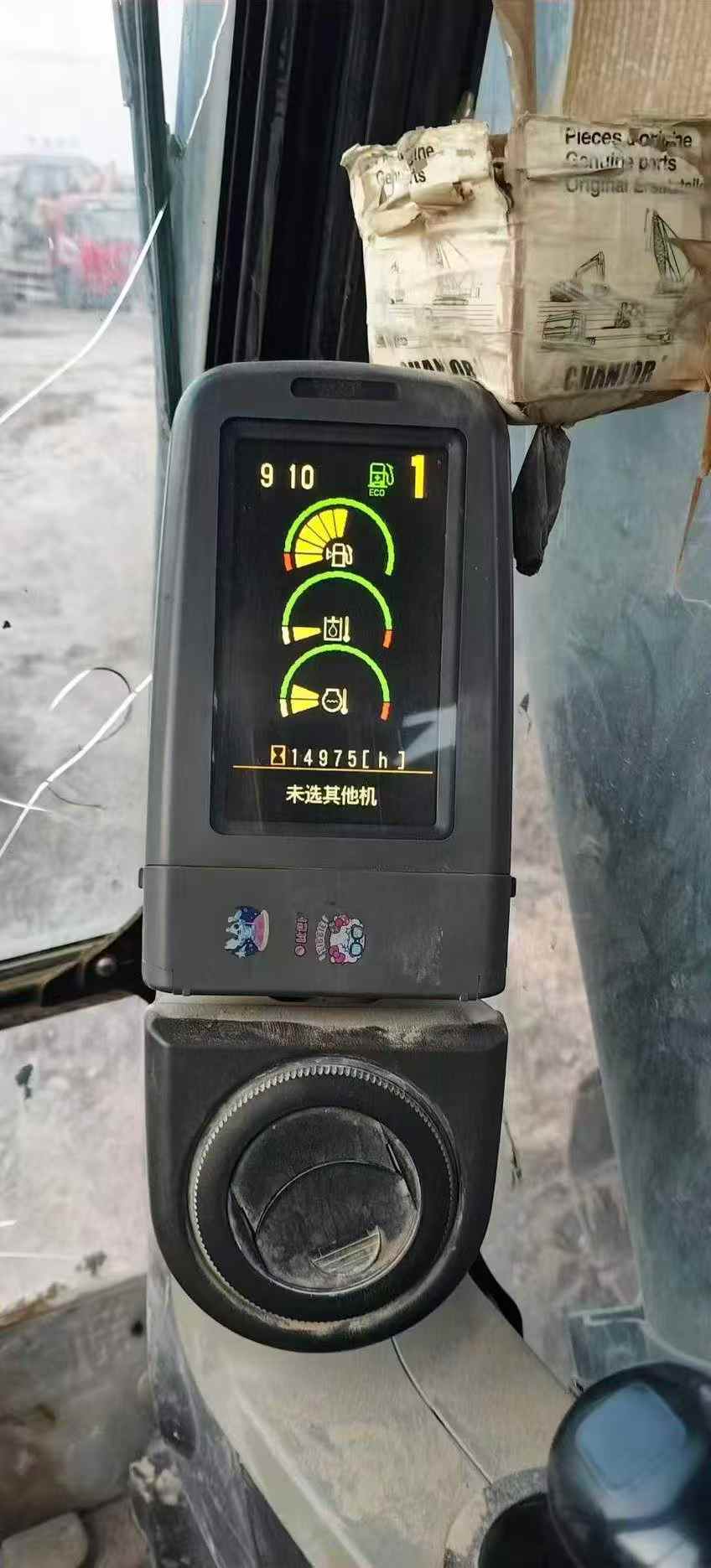

Used Caterpillar 324D Excavator 2016 Model / 5

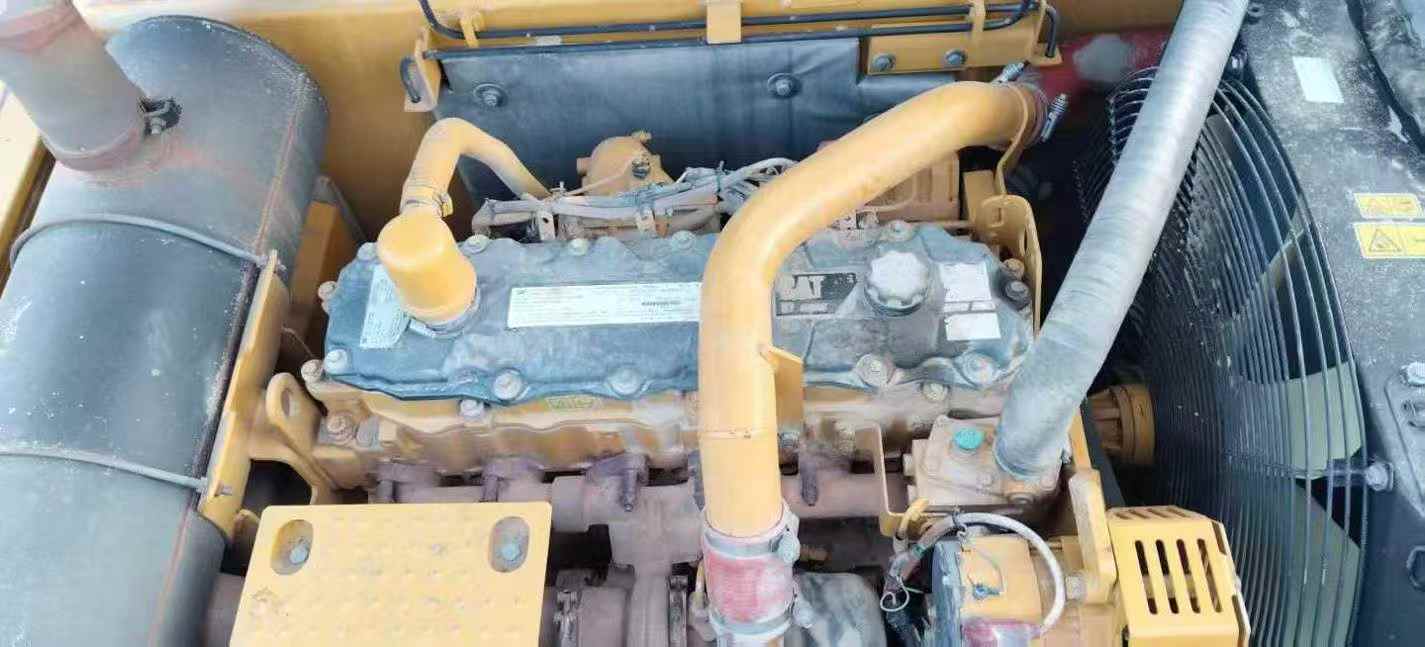

Used Caterpillar 324D Excavator 2016 Model / 6
Used Caterpillar 324D Excavator 2016 Model / 7

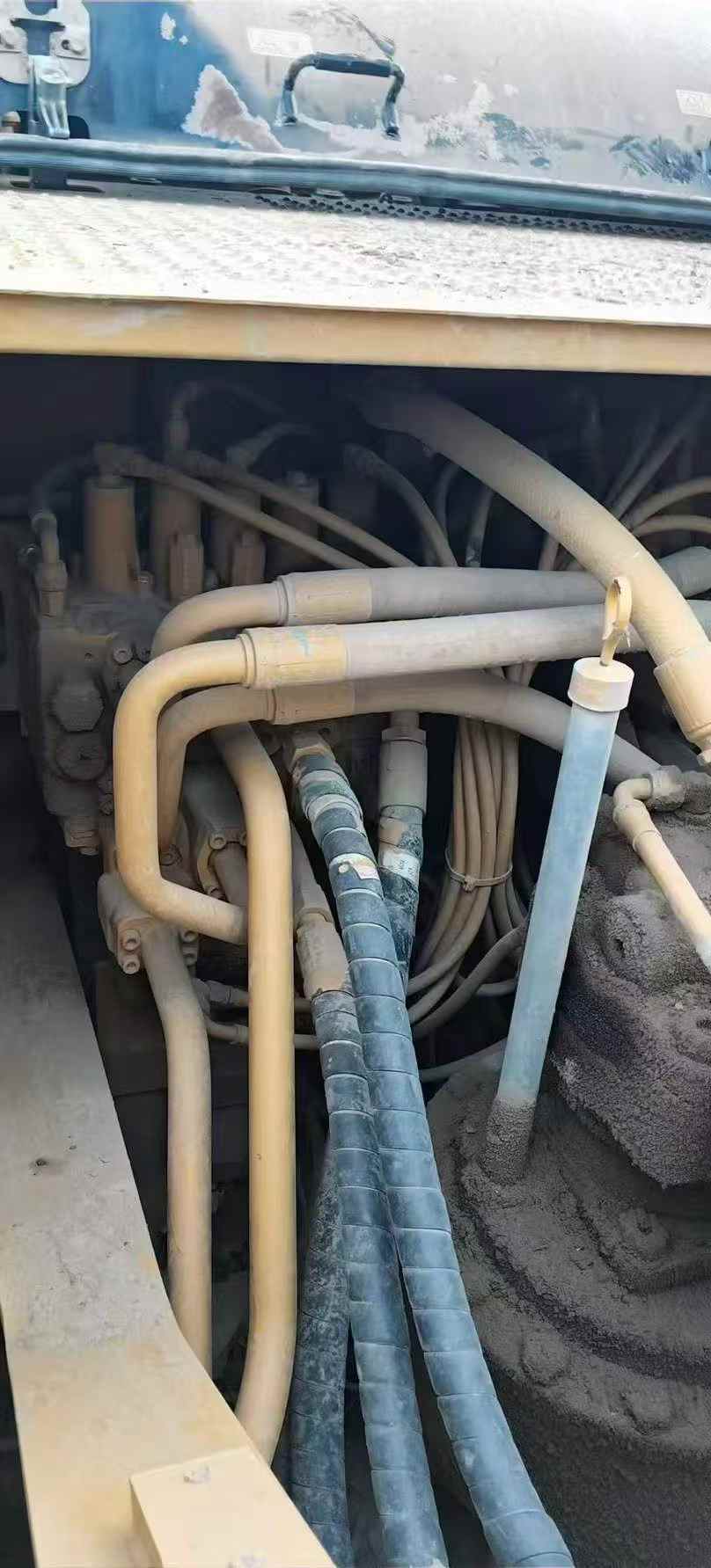

Used Caterpillar 324D Excavator 2016 Model / 8

Product Description

【 Premium Recommendation 】 Premium Caterpillar 324D second-hand excavator, the king of Cost Performance! This Carter 324D excavator is a rare high-quality second-hand device on the market, featuring outstanding working performance and excellent durability. It has undergone comprehensive testing and maintenance by our professional team to ensure that every function is in the best condition. The working hours are only 5,000 hours, which is far lower than the average service life of similar equipment. This means that it still has a long service life waiting for you to explore. In terms of the power system, this machine is equipped with a Caterpillar C7.1 ACERT engine, which is renowned for its powerful output and smooth operation performance, and can easily handle the operational requirements under various complex working conditions. Meanwhile, its advanced fuel management system can also effectively reduce fuel consumption and improve economic benefits. The hydraulic system adopts Caterpillar's patented technology, featuring rapid response and flexible operation. It performs exceptionally well in both digging force and lifting speed. More importantly, this hydraulic system has been meticulously maintained and is currently in good cond

SpecificationsValue
No.964930
Tonnage (tons)24
Working weight (kg)24240
Bucket capacity (m³)1
Boom length (mm)5900
Rod length (mm)2950
Country of originJapan
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeC7 ACERT
Rated power (kw/rpm)140/2000
Cooling modewater-cooling
Cylinder diameter × stroke (mm)102 x 130
Number of cylinders (PCS)6
Displacement (L)7.2
Rotation speed (rpm)9.6
Climbing ability (%)70/35 °
Travel speed (km/h)3.5/5.5
Main overflow set pressure (Mpa)35
Maximum flow of main pump (l/min)235
Traveling Hydraulic Circuit (Mpa)35
Rotary Hydraulic Circuit (Mpa)24.5
Hydraulic crushing pipeline is standardno
Working Hydraulic Circuit (Mpa)35
Pilot Oil Circuit (MPa)3.9
Bucket cylinders - Number × diameter × stroke (mm)1-120 x 1104
Bucket rod cylinders - Number × diameter × stroke (mm)1-140 x 1660
Boom cylinders - Number × diameter × stroke (mm)2-135 x 1305
Fuel Tank (L)520
Hydraulic Tank (L)145
Engine Oil changes (L)30
Coolant (L)30
Hydraulic System (L)300(including fuel tank)
Total transport length (mm)10060
Total transport width (mm)2990
Total transport height (mm)3170
Full cab height (mm)2980
Counterweight ground clearance (mm)1060
Minimum ground clearance (mm)470
Back end turning radius (mm)2940
Total track length (mm)4250
Track gauge (mm)2380
Track plate width (mm)600
Total track width (mm)2990
Track ground length (mm)3450
Maximum digging depth (mm)6740
Maximum excavation height (mm)9660
Maximum unloading height (mm)6700
Maximum vertical digging depth (mm)5830
Bulldozer lift or depth (mm)No bulldozer
Dodging plate width × height (mm)No bulldozer
Maximum excavation radius of stop surface (mm)10030
Maximum effective digging depth (mm)6560
see more

Overview

No.964930

Brand Name:

Caterpillar

Model Number:

324D

Year:

2016

Location:

Hunan China
