2015 Caterpillar 326DL

1/9
Used Caterpillar 326DL Excavator 2015 Model / 1
Used Caterpillar 326DL Excavator 2015 Model / 2

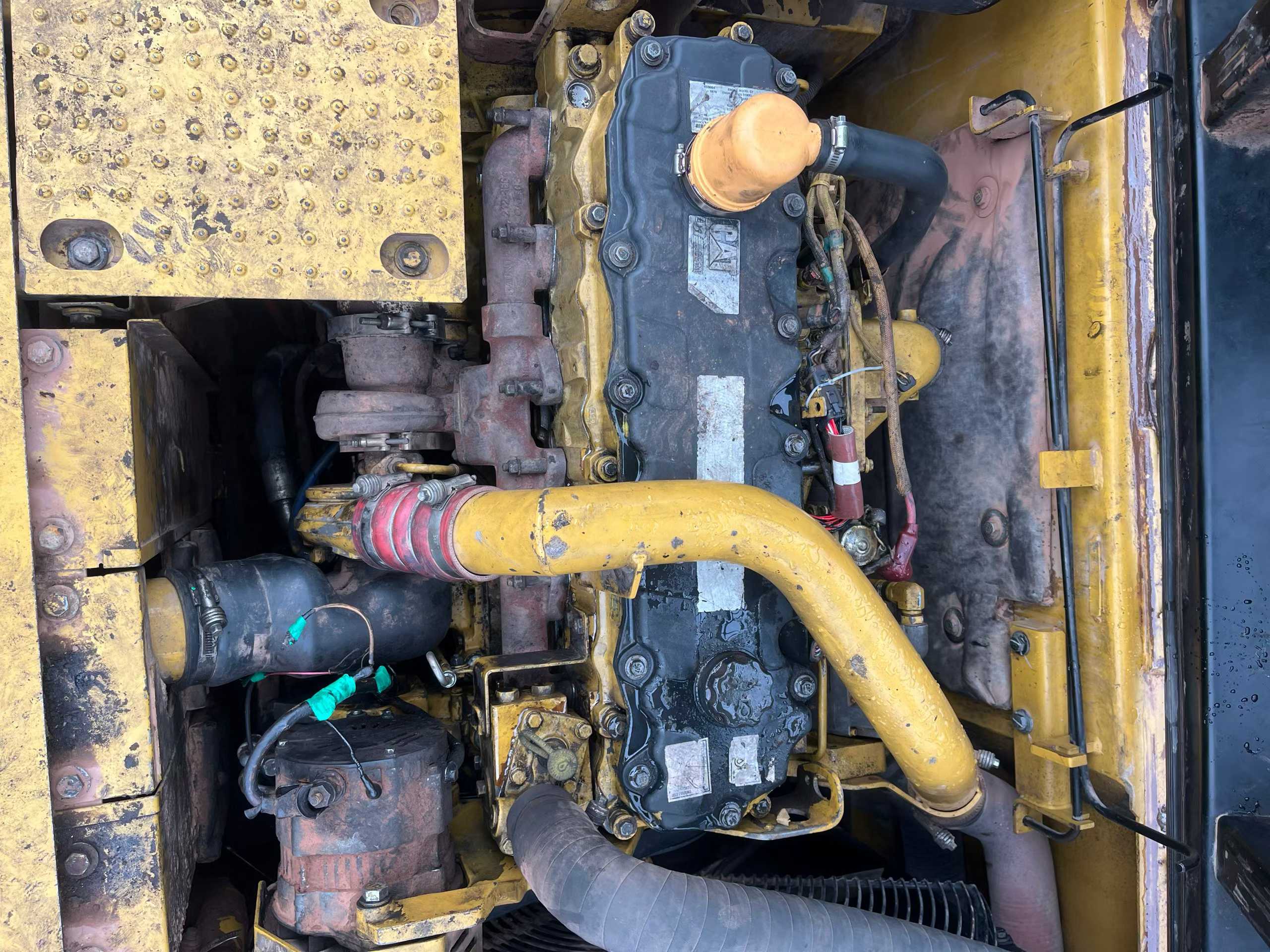

Used Caterpillar 326DL Excavator 2015 Model / 3

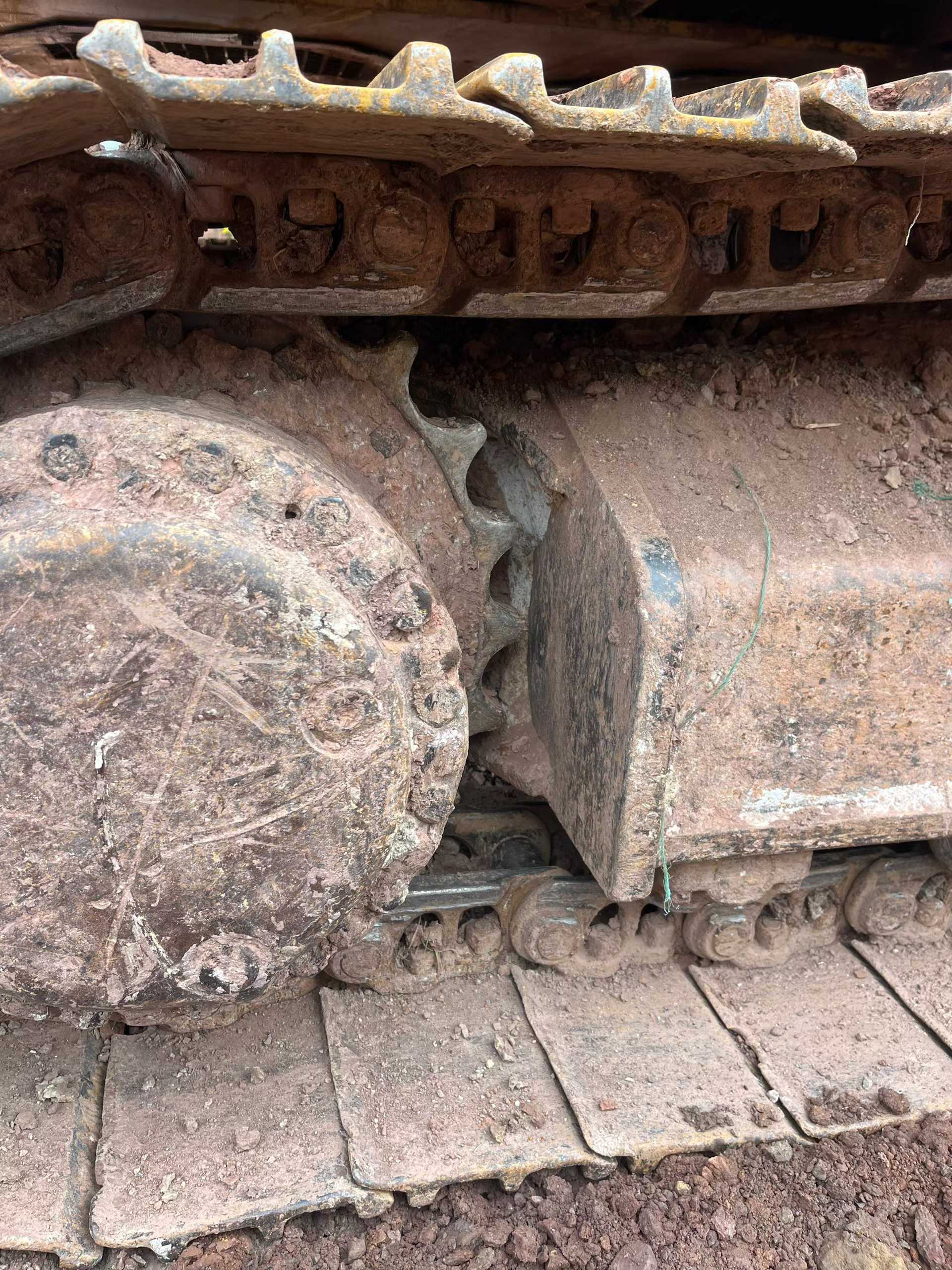

Used Caterpillar 326DL Excavator 2015 Model / 4

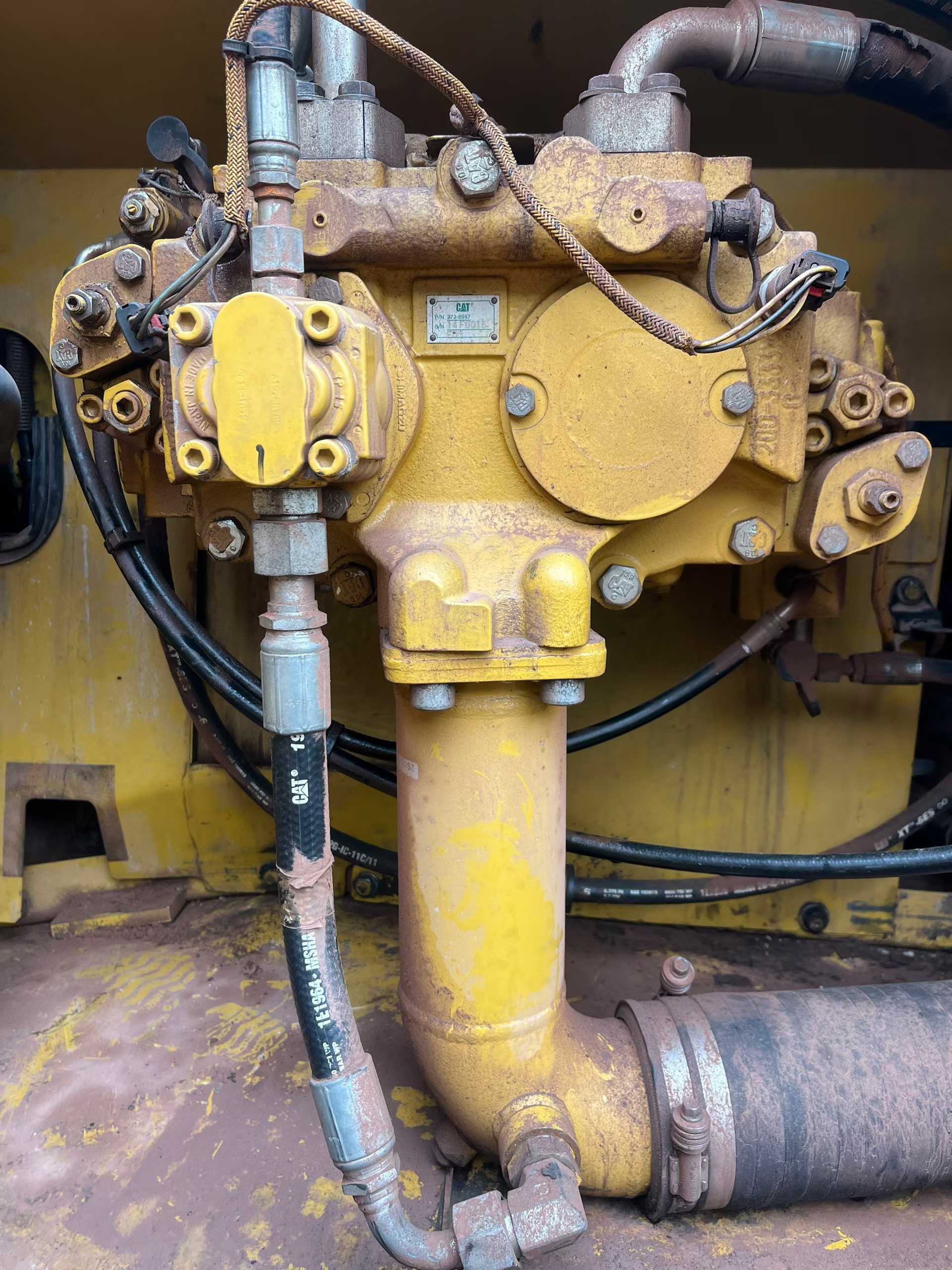

Used Caterpillar 326DL Excavator 2015 Model / 5

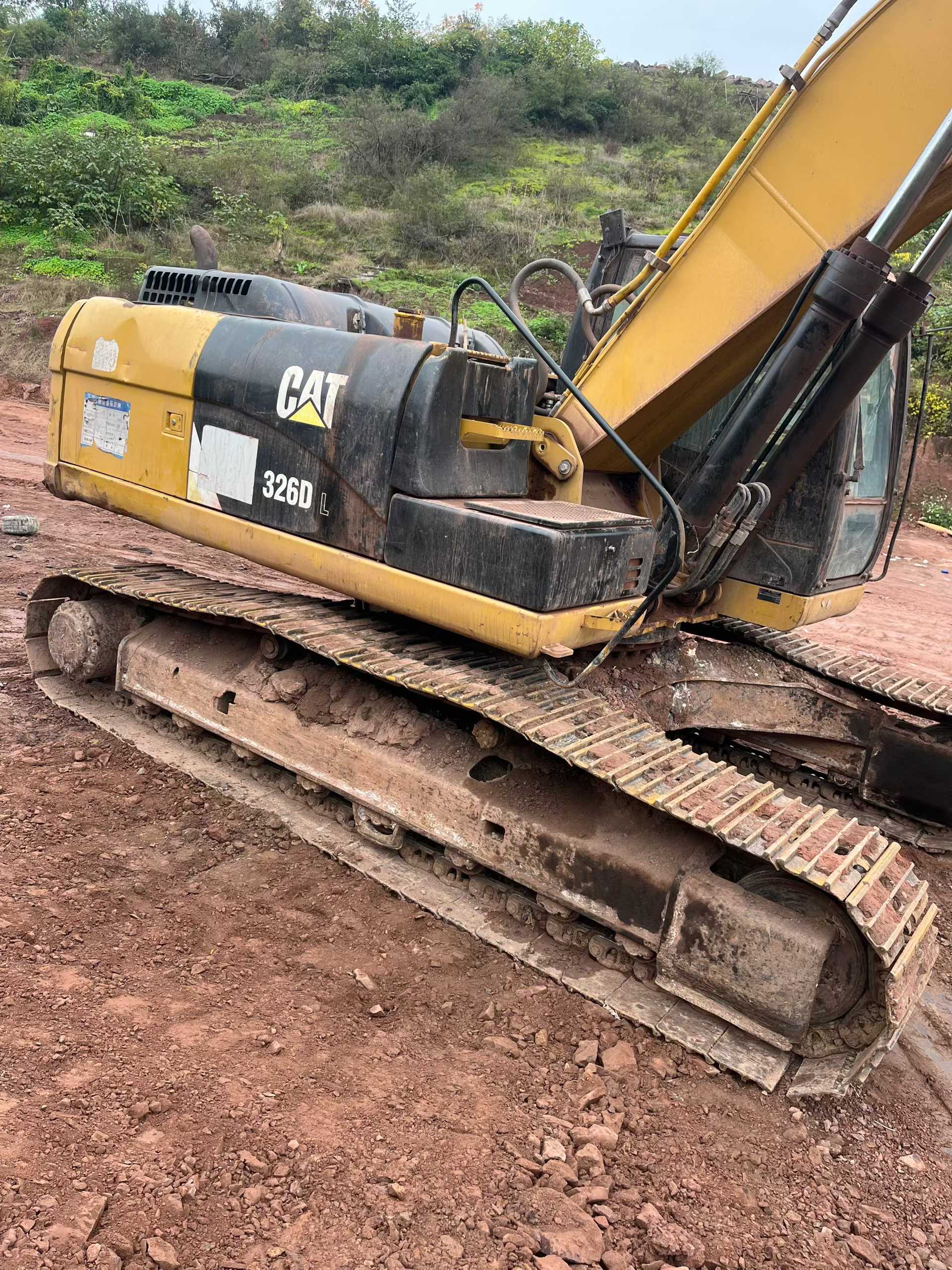

Used Caterpillar 326DL Excavator 2015 Model / 6
Used Caterpillar 326DL Excavator 2015 Model / 7

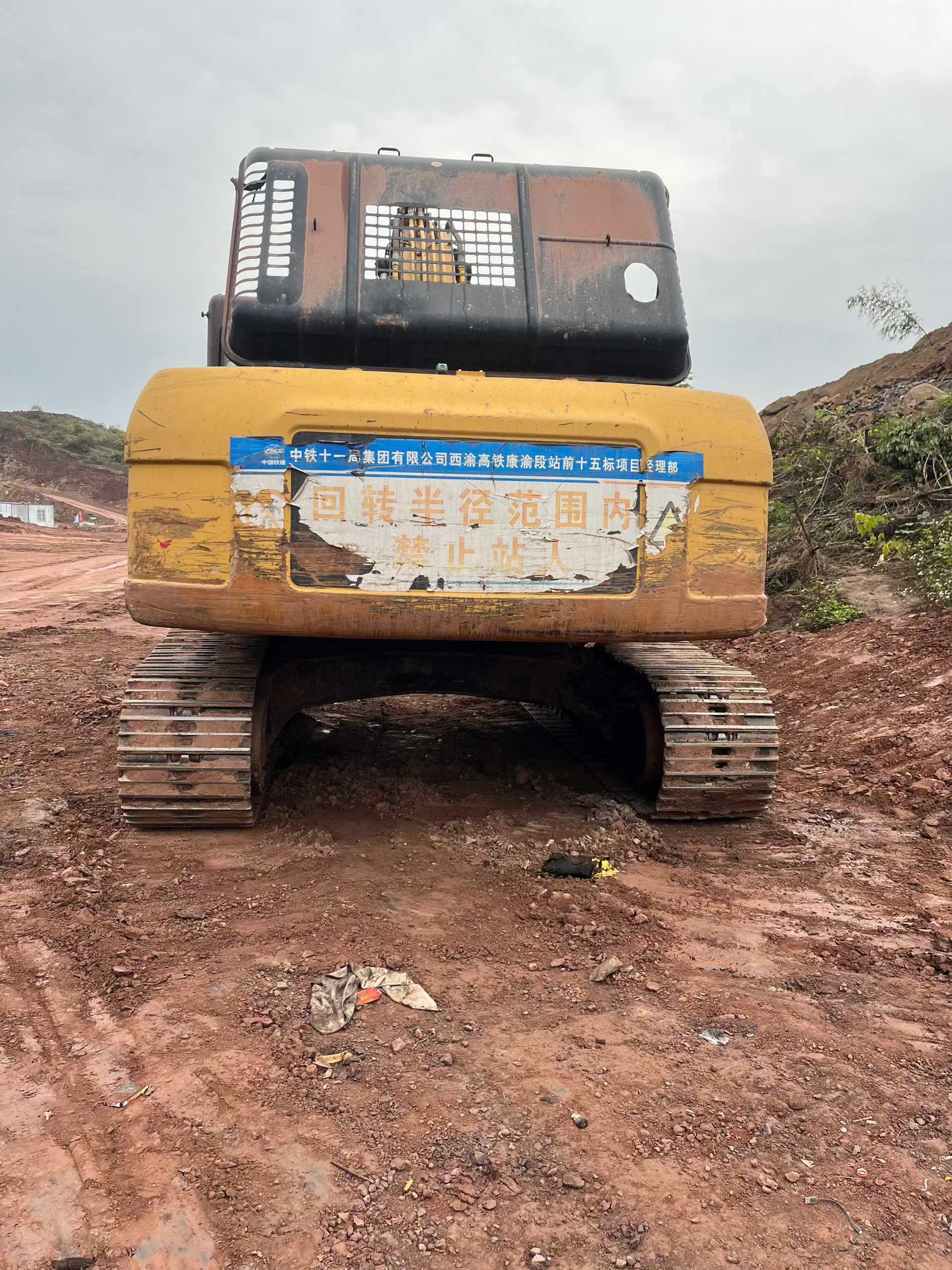

Used Caterpillar 326DL Excavator 2015 Model / 8

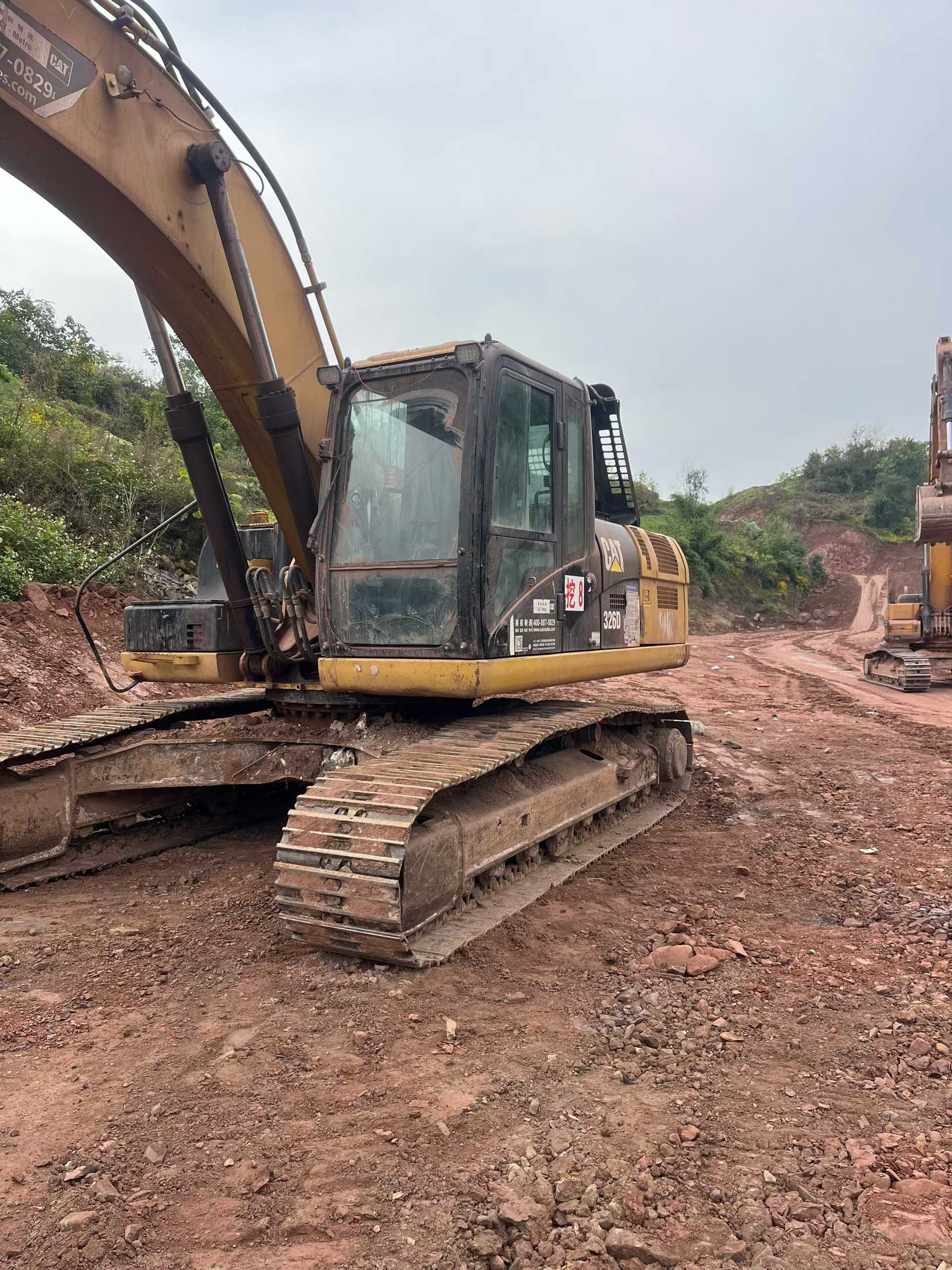

Used Caterpillar 326DL Excavator 2015 Model / 9

Product Description

【 Premium Second-hand Excavator Recommendation 】 - Caterpillar 326 Excavator Dear customer, hello! Today, we recommend a highly cost-effective second-hand excavator to you - the Caterpillar 326. This machine was purchased in 2015 and has been running stably for approximately 8,000 hours up to now (the specific working hours can be adjusted according to actual usage). Its overall performance remains excellent and it is an ideal choice for your construction projects. "Power System This equipment is equipped with a Caterpillar C7.1 ACERT engine. This straight-six turbocharged diesel engine is renowned for its powerful output and excellent fuel economy, maintaining efficient operation under various working conditions. After professional maintenance and upkeep, it starts up quickly and operates smoothly, making it capable of handling both urban infrastructure and mining operations with ease. "Hydraulic System Advanced electro-control hydraulic technology is adopted to ensure the sensitivity and accuracy of operation. The matching degree between the main pump and the motor is high, enabling rapid response, reducing energy loss and enhancing work efficiency. In addition, the hydraulic oil tank has a large capacity and good heat dissipation

SpecificationsValue
No.966278
Tonnage (tons)26
Working weight (kg)25560
Bucket capacity (m³)1.35/1.57
Boom length (mm)5300/5900
Rod length (mm)2000/2500/2950
Country of originXuzhou, Jiangsu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCaterpillar C7 ACERT
Rated power (kw/rpm)140
Cooling modewater-cooling
Cylinder diameter × stroke (mm)110 x 127
Displacement (L)7.2
Rotation speed (rpm)9.6
Bucket digging force (kN)174
Rod digging force (kN)122
Maximum tractive force (kN)227
Travel speed (km/h)5.5
Turning torque (Nm)73.4
Main overflow set pressure (Mpa)35
Rotary hydraulic motor type24.5
Type of walking hydraulic motor35
Maximum flow of main pump (l/min)235
Pilot Oil Circuit (MPa)3.9
Bucket cylinders - Number × diameter × stroke (mm)1 x 150 x 1156
Bucket rod cylinders - Number × diameter × stroke (mm)1 x 140 x 1660
Boom cylinders - Number × diameter × stroke (mm)2 x 135 x 1305
Fuel Tank (L)520
Hydraulic Tank (L)145
Engine Oil changes (L)30
Coolant (L)30
Hydraulic System (L)300
Total transport length (mm)10060
Total transport width (mm)3390
Total transport height (mm)3170
Full cab height (mm)2980
Counterweight ground clearance (mm)1060
Minimum ground clearance (mm)470
Back end turning radius (mm)2940
Total track length (mm)4630
Track gauge (mm)2590
Track plate width (mm)600
Total track width (mm)3390
Maximum digging depth (mm)6740
Maximum excavation height (mm)9660
Maximum unloading height (mm)6700
Maximum vertical digging depth (mm)5830
Maximum excavation radius of stop surface (mm)10030
Maximum effective digging depth (mm)6560
see more

Overview

No.966278

Brand Name:

Caterpillar

Model Number:

326DL

Year:

2015

Location:

Chongqing China
