2017 Caterpillar 326DL

1/9
Used Caterpillar 326DL Excavator 2017 Model / 1

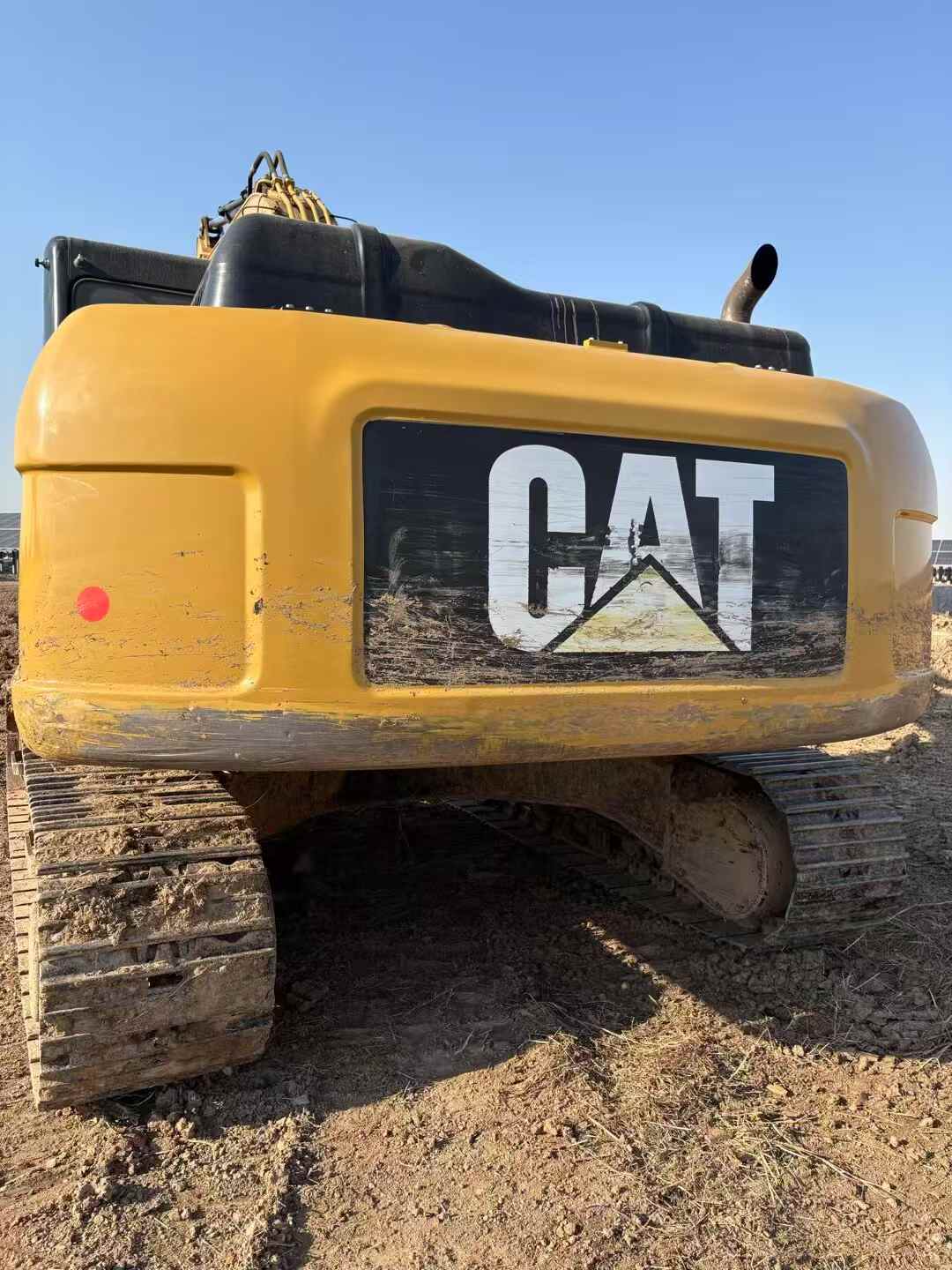

Used Caterpillar 326DL Excavator 2017 Model / 2

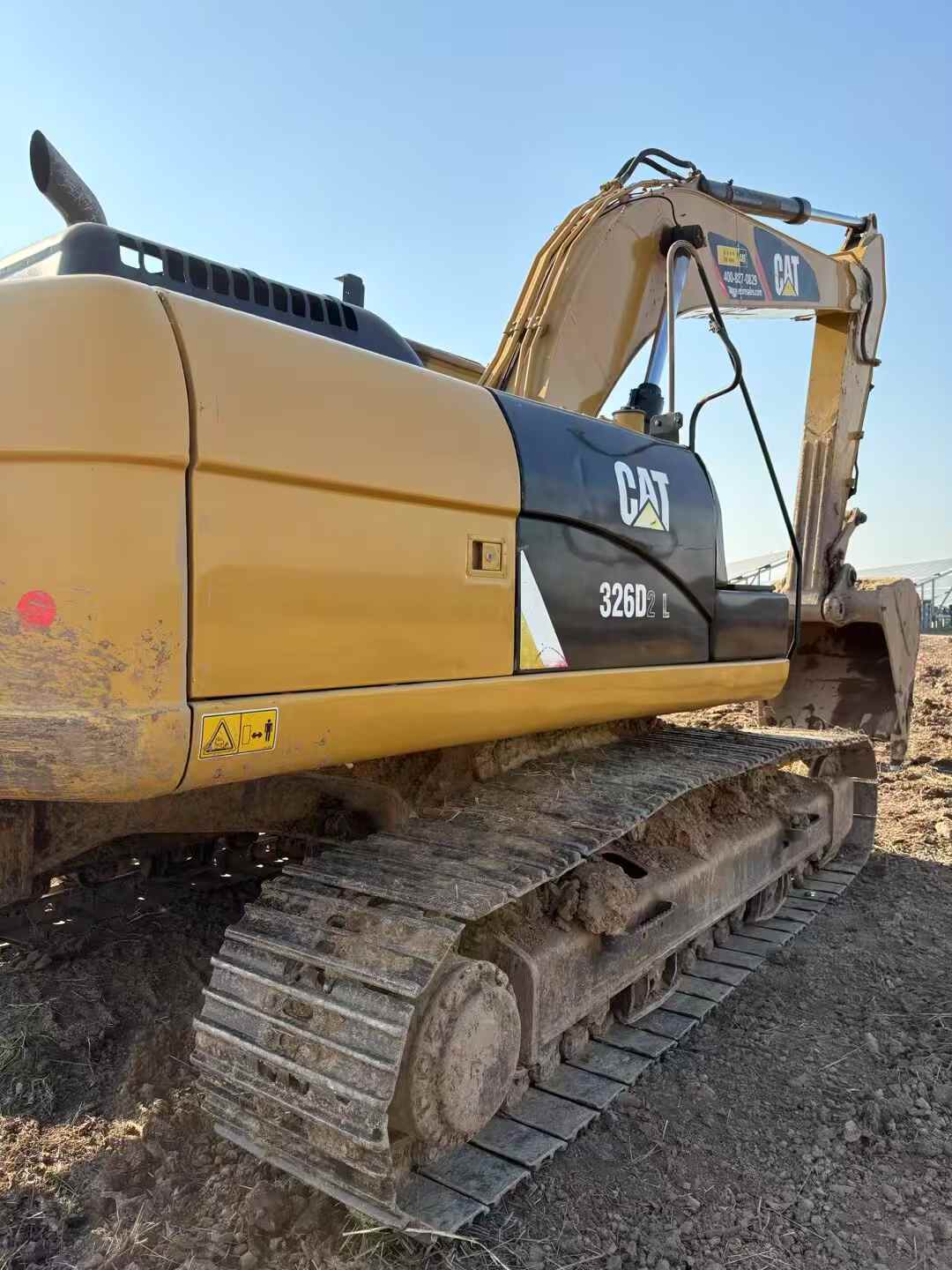

Used Caterpillar 326DL Excavator 2017 Model / 3

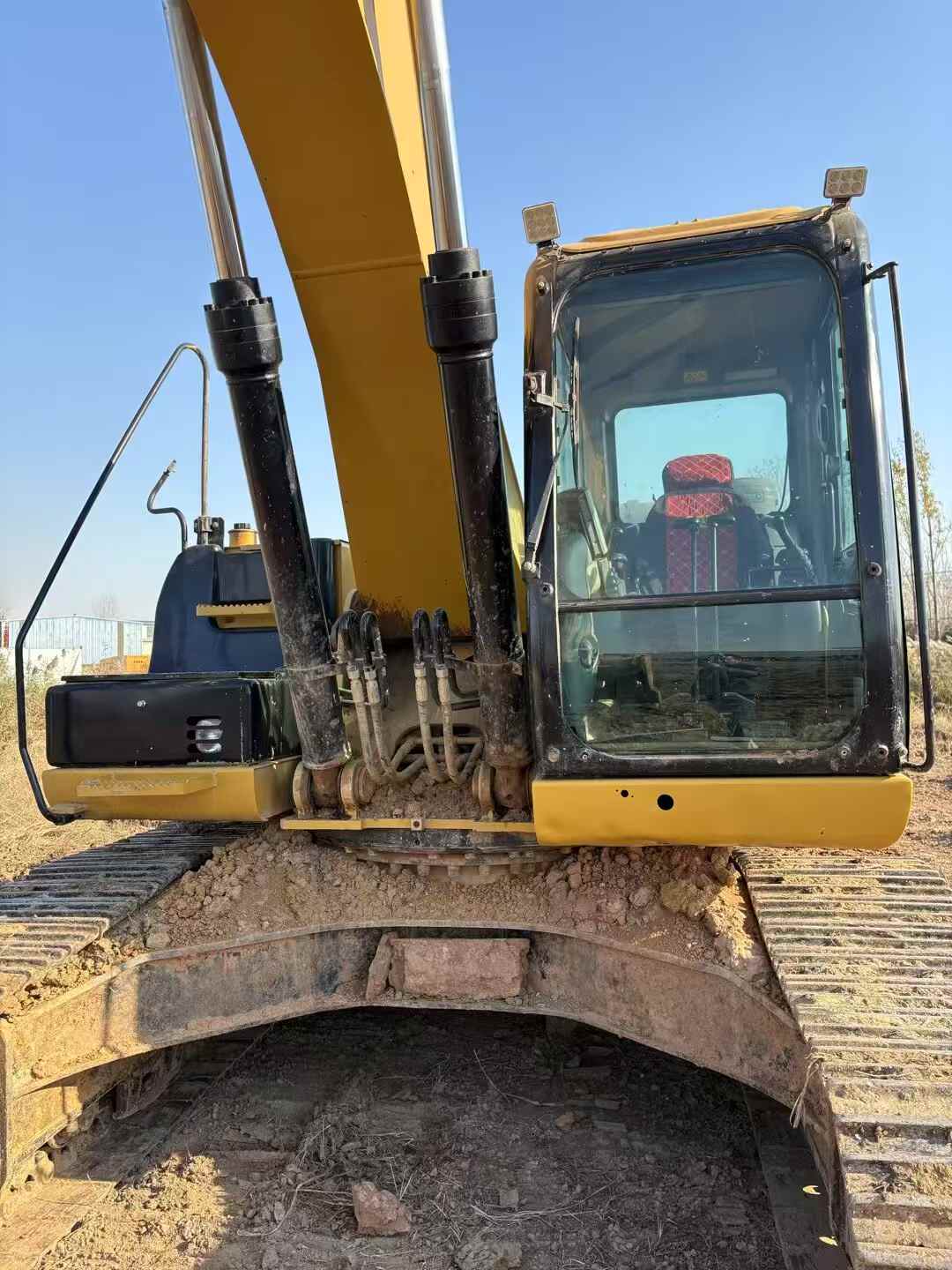

Used Caterpillar 326DL Excavator 2017 Model / 4

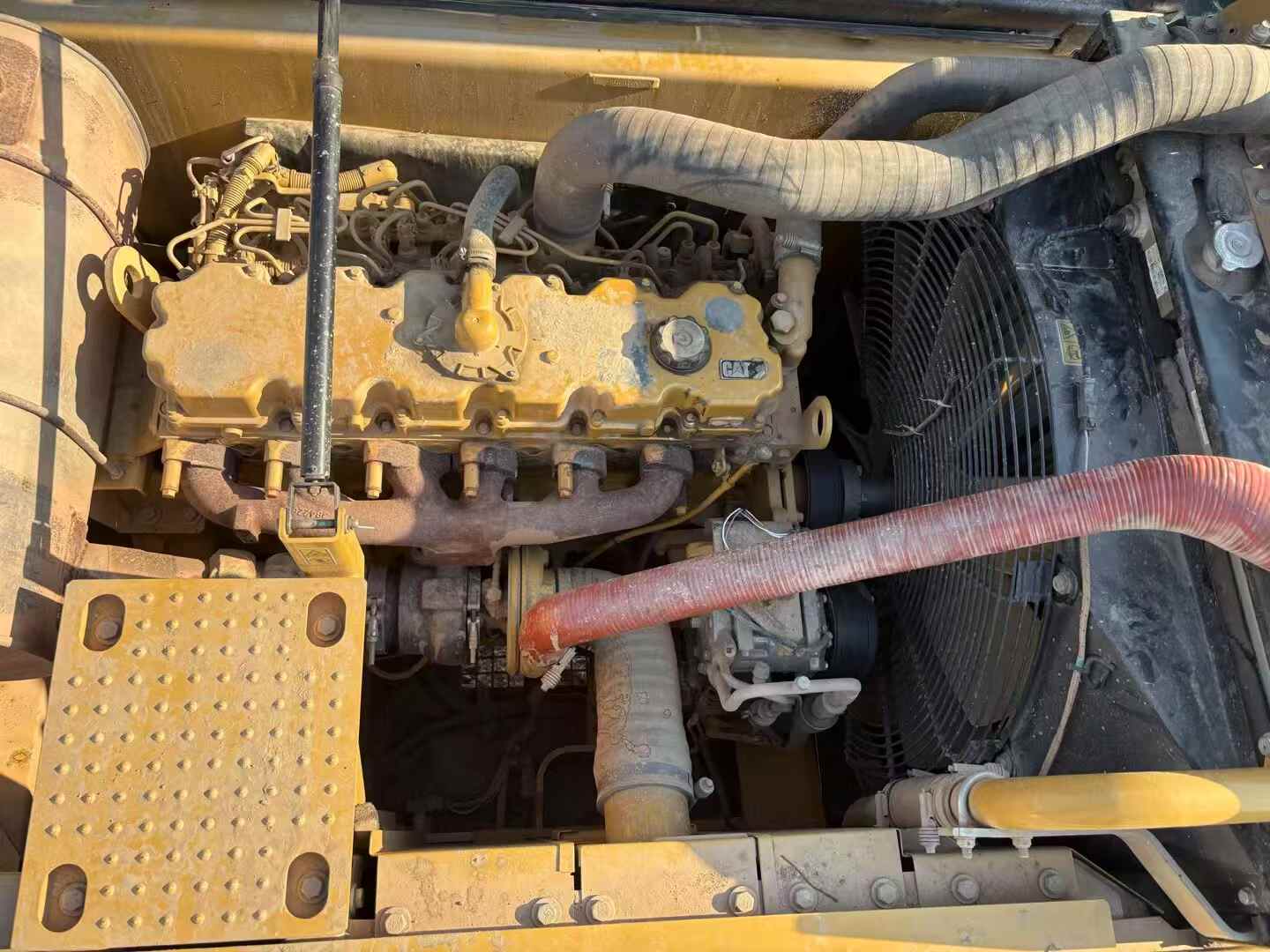

Used Caterpillar 326DL Excavator 2017 Model / 5

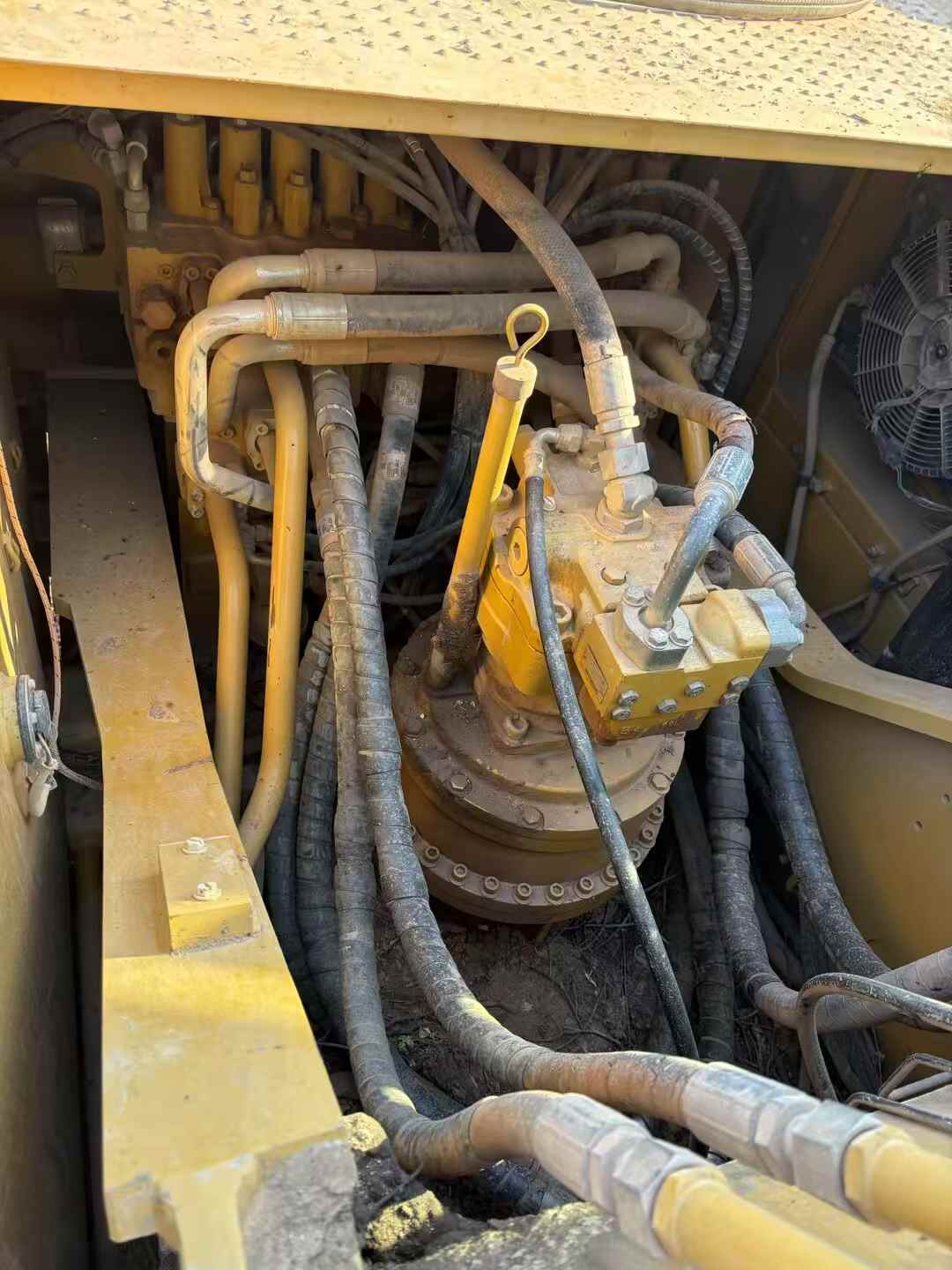

Used Caterpillar 326DL Excavator 2017 Model / 6

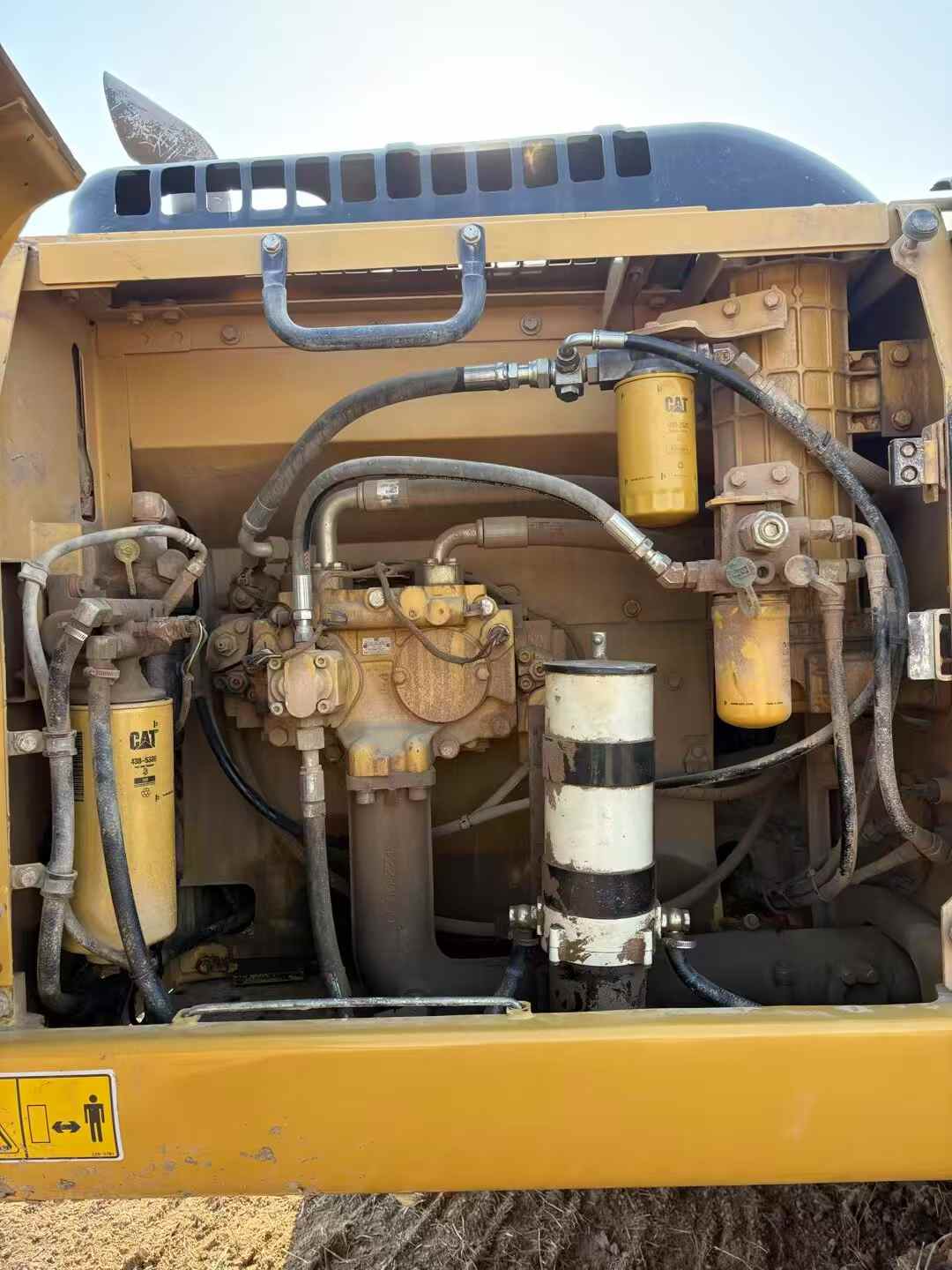

Used Caterpillar 326DL Excavator 2017 Model / 7

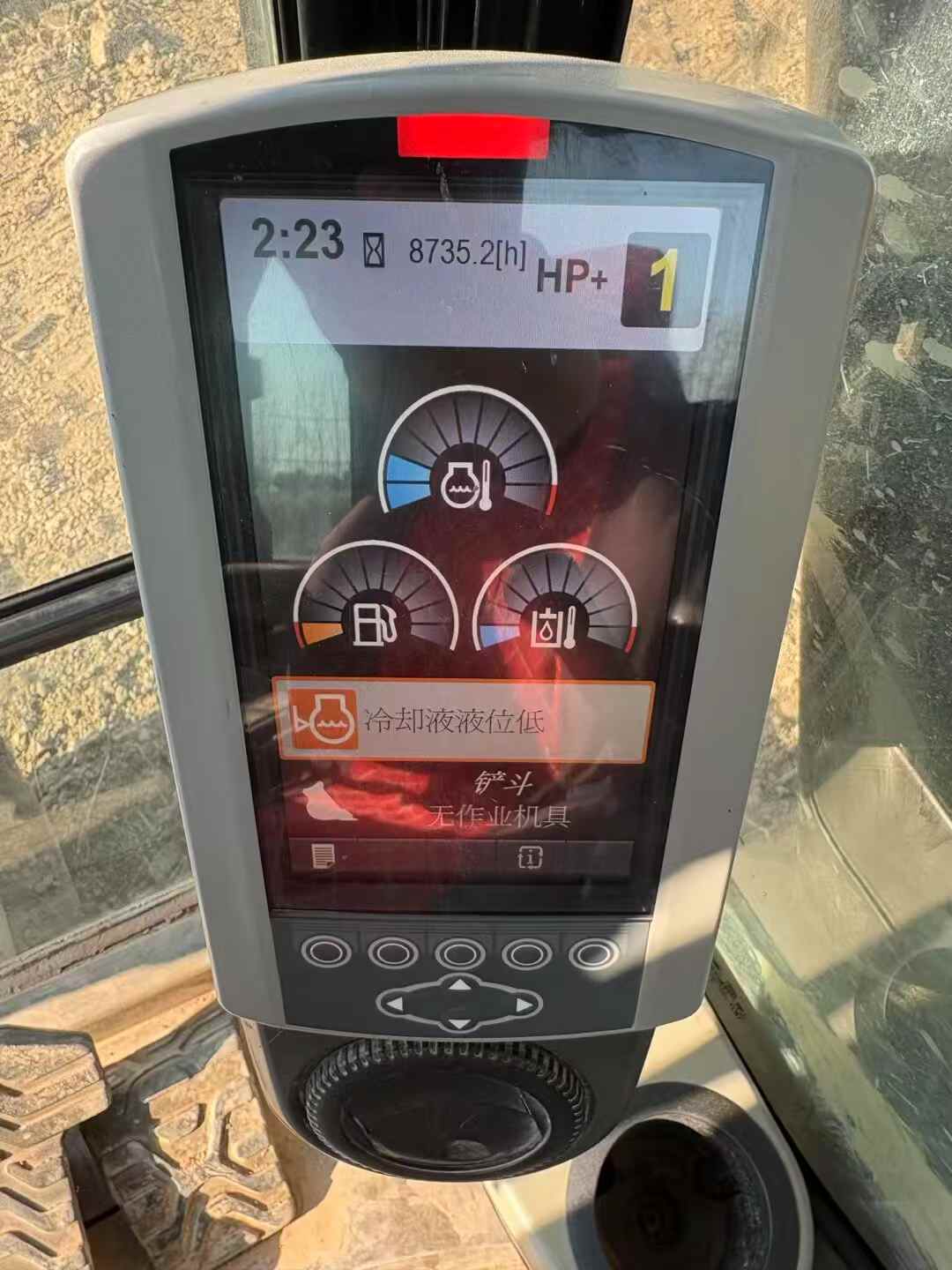

Used Caterpillar 326DL Excavator 2017 Model / 8

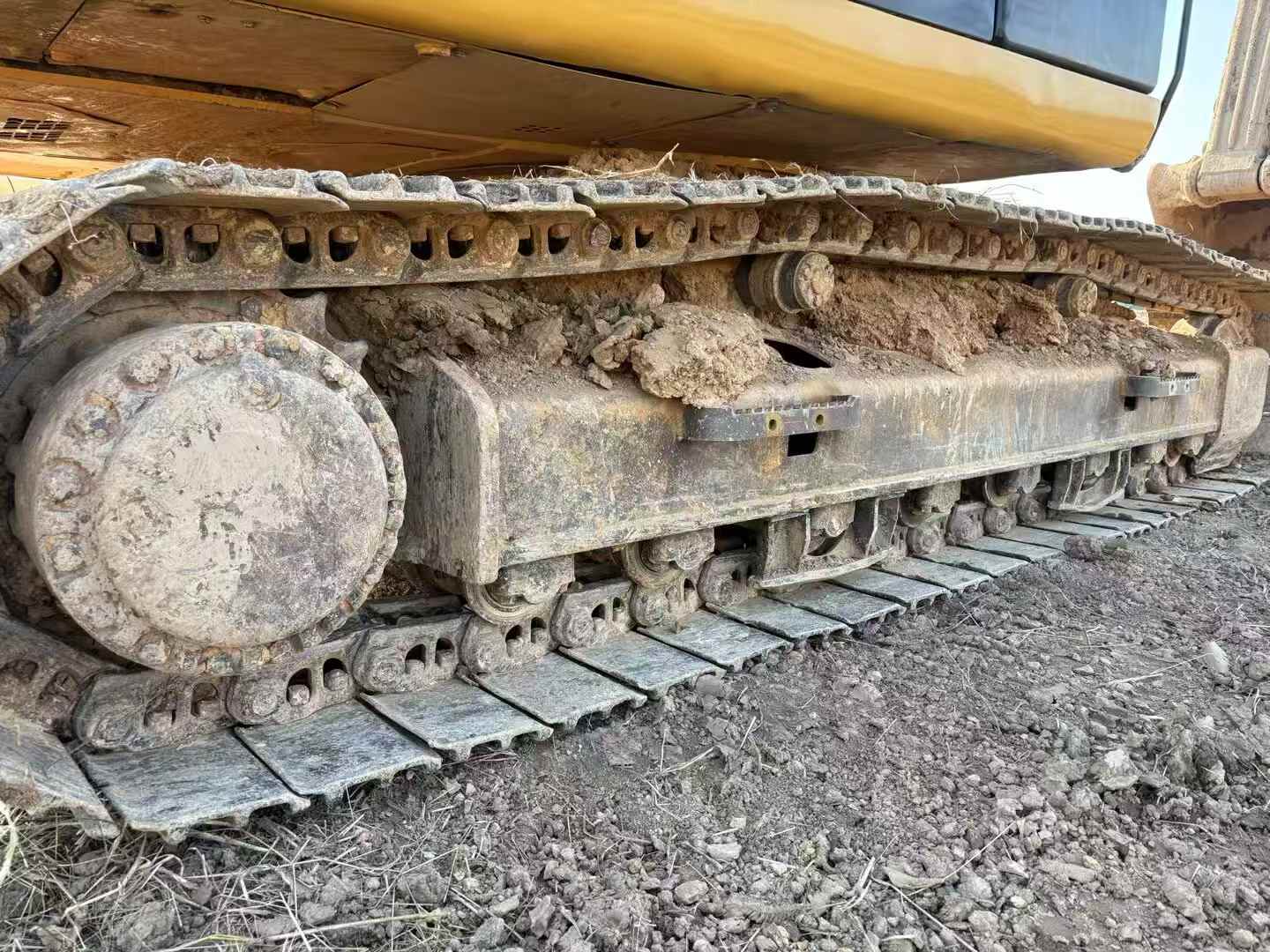

Used Caterpillar 326DL Excavator 2017 Model / 9

Product Description

【 Premium Recommendation 】 The 2017 Caterpillar 326D2L excavator has a working time of only 4,500 hours, with outstanding performance and excellent condition. This equipment is a star product in the Caterpillar family, renowned worldwide for its high efficiency and durability. It is particularly suitable for earthwork excavation operations under various complex working conditions. In terms of the power system, this aircraft is equipped with a CAT C7.1 ACERT engine, with a maximum power of up to 192kw/257hp. It not only has strong power but also low fuel consumption, meeting the National III emission standards and being energy-saving and environmentally friendly. Meanwhile, the engine has been meticulously maintained, running smoothly, with low noise and light vibration, ensuring comfort and reliability during long-term operation. The hydraulic system adopts advanced CLSS (Closed Center Load Sensing) technology, featuring fast response speed, high control accuracy, and coordinated compound actions. It can achieve precise operation and enhance work efficiency. In addition, it is equipped with an efficient cooling system and filtration device, which effectively extends the service life of the hydraulic oil and reduces maintenance costs.

SpecificationsValue
No.961761
Tonnage (tons)26
Working weight (kg)25560
Bucket capacity (m³)1.35/1.57
Boom length (mm)5300/5900
Rod length (mm)2000/2500/2950
Country of originXuzhou, Jiangsu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCaterpillar C7 ACERT
Rated power (kw/rpm)140
Cooling modewater-cooling
Cylinder diameter × stroke (mm)110 x 127
Displacement (L)7.2
Rotation speed (rpm)9.6
Bucket digging force (kN)174
Rod digging force (kN)122
Maximum tractive force (kN)227
Travel speed (km/h)5.5
Turning torque (Nm)73.4
Main overflow set pressure (Mpa)35
Rotary hydraulic motor type24.5
Type of walking hydraulic motor35
Maximum flow of main pump (l/min)235
Pilot Oil Circuit (MPa)3.9
Bucket cylinders - Number × diameter × stroke (mm)1 x 150 x 1156
Bucket rod cylinders - Number × diameter × stroke (mm)1 x 140 x 1660
Boom cylinders - Number × diameter × stroke (mm)2 x 135 x 1305
Fuel Tank (L)520
Hydraulic Tank (L)145
Engine Oil changes (L)30
Coolant (L)30
Hydraulic System (L)300
Total transport length (mm)10060
Total transport width (mm)3390
Total transport height (mm)3170
Full cab height (mm)2980
Counterweight ground clearance (mm)1060
Minimum ground clearance (mm)470
Back end turning radius (mm)2940
Total track length (mm)4630
Track gauge (mm)2590
Track plate width (mm)600
Total track width (mm)3390
Maximum digging depth (mm)6740
Maximum excavation height (mm)9660
Maximum unloading height (mm)6700
Maximum vertical digging depth (mm)5830
Maximum excavation radius of stop surface (mm)10030
Maximum effective digging depth (mm)6560
see more

Overview

No.961761

Brand Name:

Caterpillar

Model Number:

326DL

Year:

2017

Location:

Jiangsu China

Are you interested in this machine?

Please contact us
