HOME>>Brands>>Caterpillar 329D

2016 Caterpillar 329D

1/6
Used Caterpillar 329D Excavator 2016 Model / 1

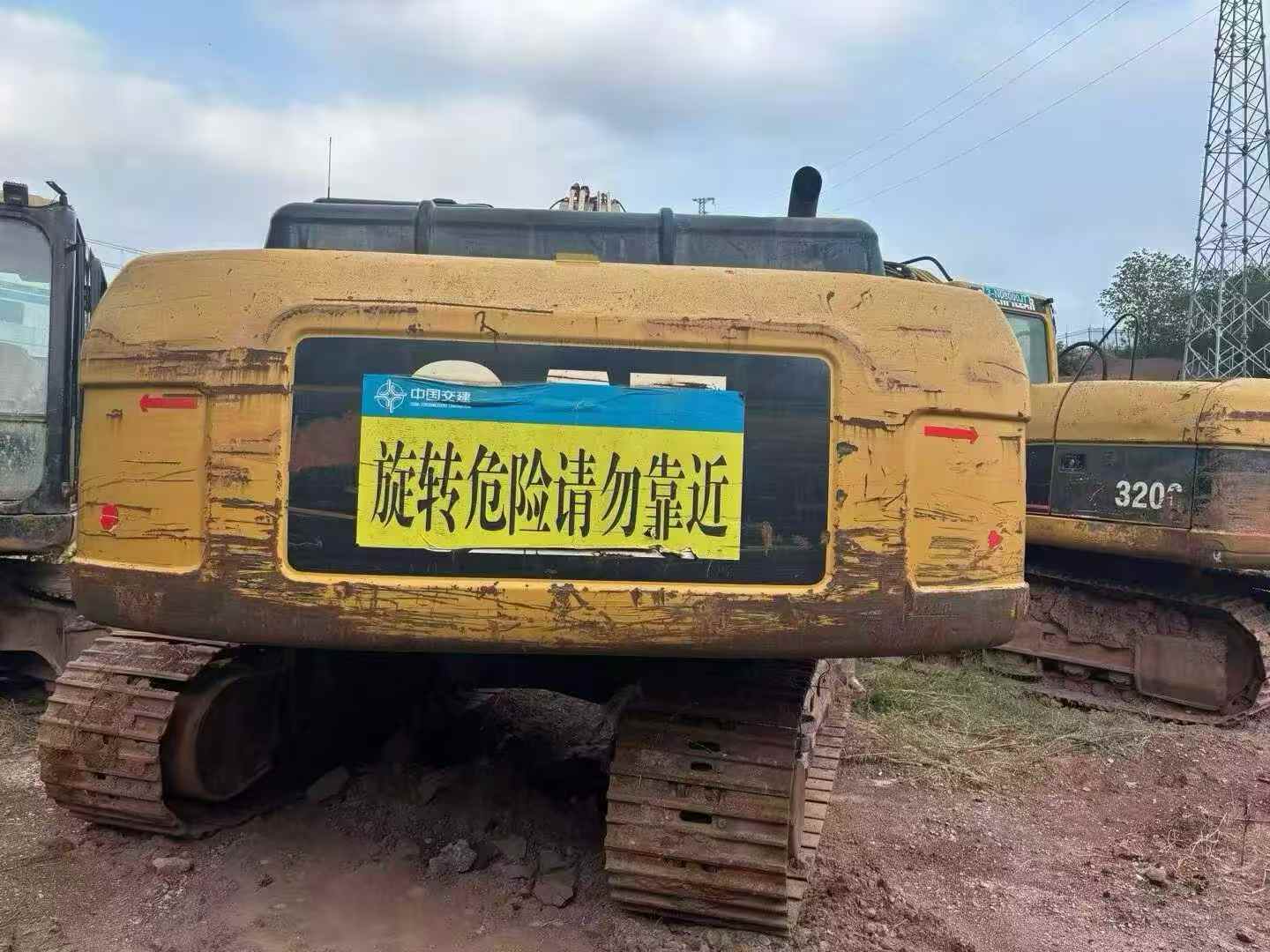

Used Caterpillar 329D Excavator 2016 Model / 2

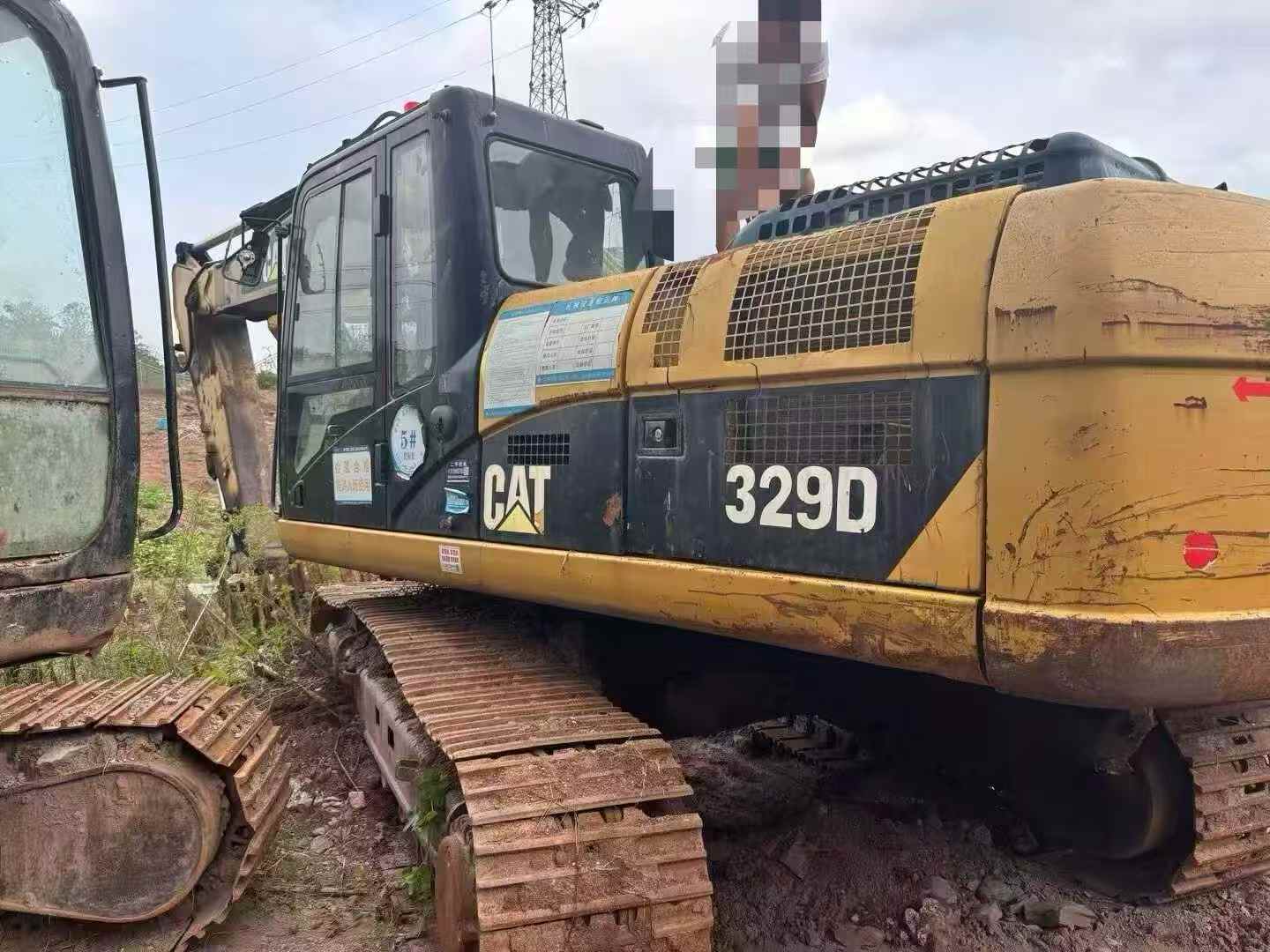

Used Caterpillar 329D Excavator 2016 Model / 3

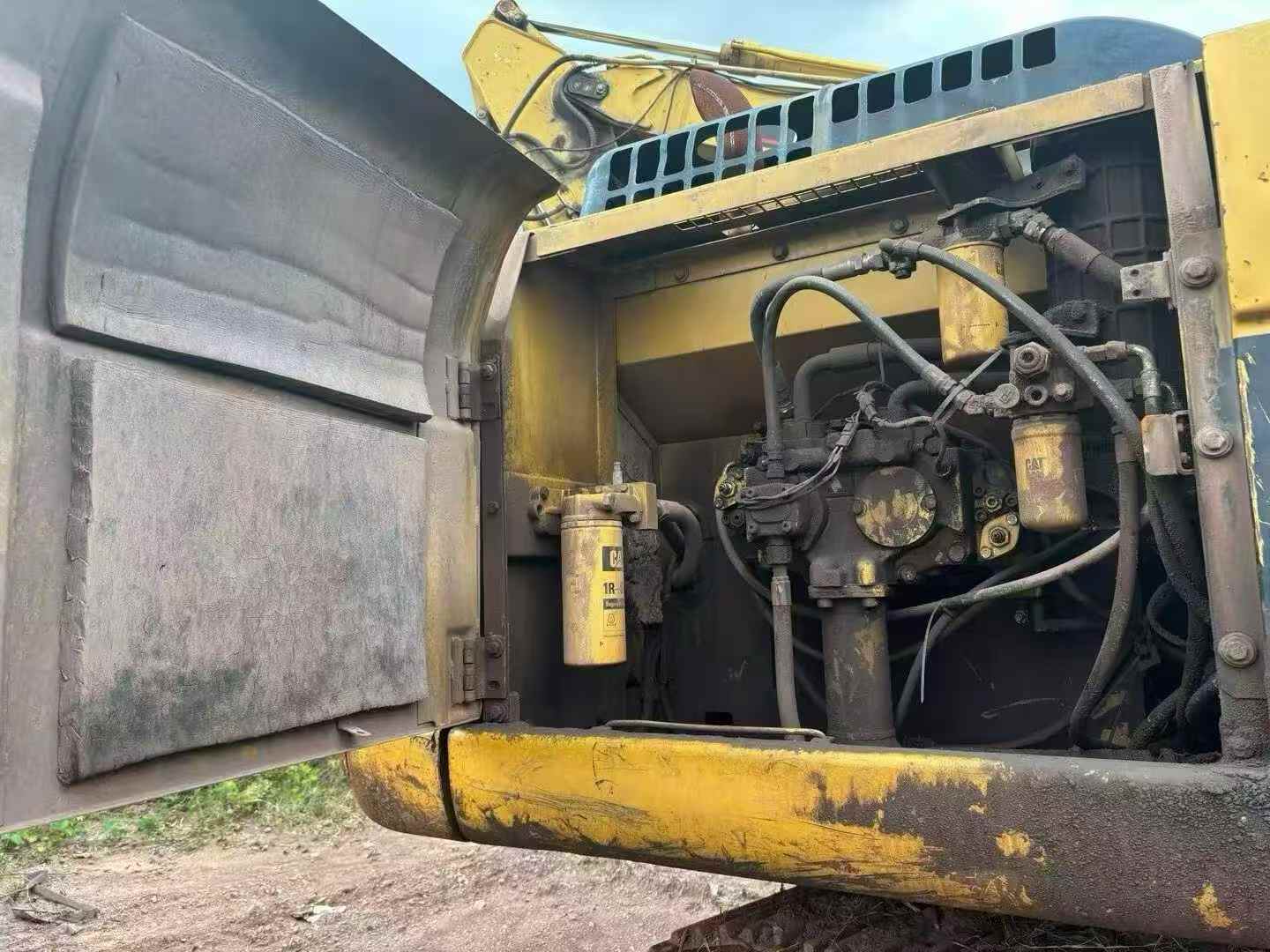

Used Caterpillar 329D Excavator 2016 Model / 4

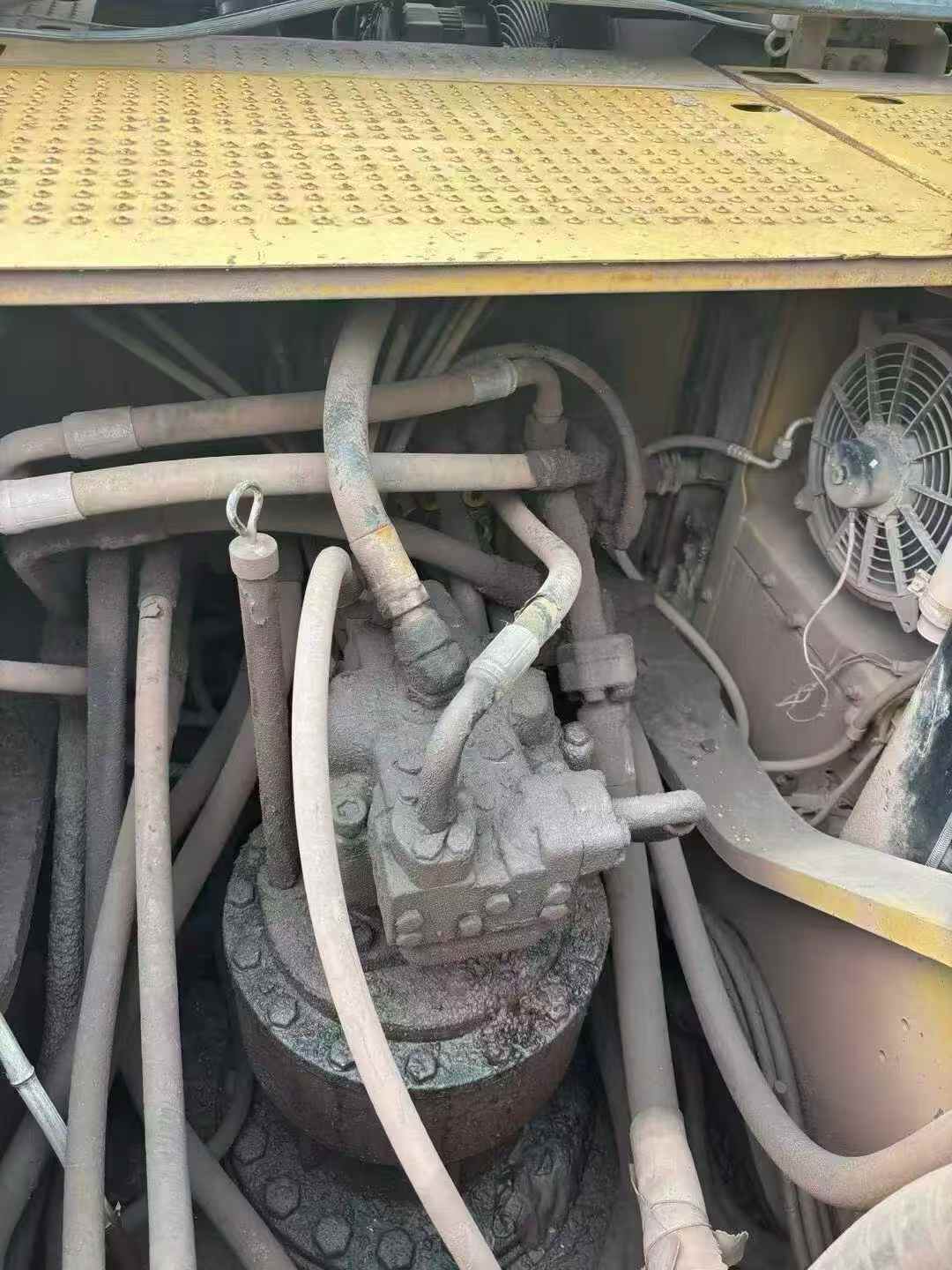

Used Caterpillar 329D Excavator 2016 Model / 5

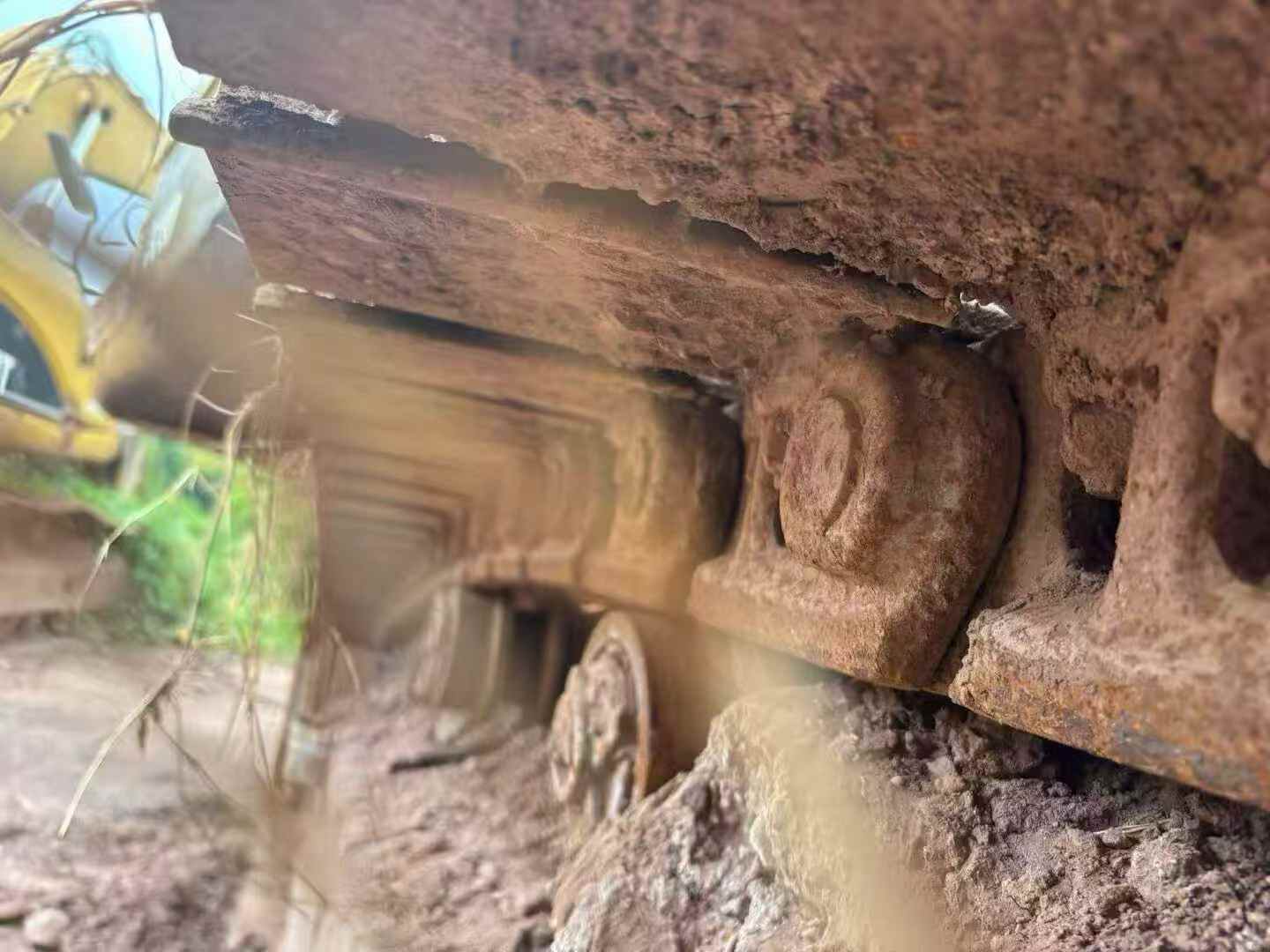

Used Caterpillar 329D Excavator 2016 Model / 6

Product Description

【 Premium Recommendation 】 First-hand stock, top-quality Caterpillar 329D excavator, reasonable price, excellent quality, ideal choice for your engineering operations! This Caterpillar 329D excavator has only been in operation for 4,000 hours since it left the factory. With a short usage period and proper maintenance, its overall condition is excellent. It is equipped with the Caterpillar C7 ACERT engine, which is renowned for its high efficiency, energy conservation and low emissions. It can provide strong power output, with a maximum power of 185kW (247 horsepower), ensuring that it can easily handle challenges in various complex working conditions. In terms of the hydraulic system, this equipment is equipped with advanced CLSS (Closed Center Load Sensing System) technology, which not only improves fuel efficiency but also enhances operational accuracy and response speed, making actions such as excavation and loading more smooth and effortless. In addition, its sturdy and durable structural design, combined with the selection of high-quality materials, further enhances the stability and service life of the entire machine. We have prepared a large amount of detailed technical materials for this machine for your reference, including

SpecificationsValue
No.965605
Tonnage (tons)29
Working weight (kg)29240
Bucket capacity (m³)1.1
Boom length (mm)6150
Rod length (mm)3200
Country of originJapan
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeC7ACERT
Rated power (kw/rpm)152/2000
Cooling modewater-cooling
Cylinder diameter × stroke (mm)110 x 127
Number of cylinders (PCS)6
Displacement (L)7.2
Rotation speed (rpm)10.2
Climbing ability (%)70/35 °
Travel speed (km/h)3.5/5.3
Main overflow set pressure (Mpa)3.5
Maximum flow of main pump (l/min)235
Traveling Hydraulic Circuit (Mpa)3.5
Rotary Hydraulic Circuit (Mpa)2.75
Hydraulic crushing pipeline is standardno
Working Hydraulic Circuit (Mpa)3.5
Pilot Oil Circuit (MPa)3.9
Bucket cylinders - Number × diameter × stroke (mm)135 x 1156
Bucket rod cylinders - Number × diameter × stroke (mm)150 x 1646
Boom cylinders - Number × diameter × stroke (mm)140 x 1407
Fuel Tank (L)520
Hydraulic Tank (L)145
Engine Oil changes (L)30
Coolant (L)30
Hydraulic System (L)310(including fuel tank)
Total transport length (mm)10410
Total transport width (mm)2990
Total transport height (mm)3180
Full cab height (mm)3040
Counterweight ground clearance (mm)1110
Minimum ground clearance (mm)490
Back end turning radius (mm)3080
Total track length (mm)4360
Track gauge (mm)2390
Track plate width (mm)600
Total track width (mm)2990
Track ground length (mm)3490
Maximum digging depth (mm)7170
Maximum excavation height (mm)9990
Maximum unloading height (mm)7020
Maximum vertical digging depth (mm)6510
Bulldozer lift or depth (mm)No bulldozer
Dodging plate width × height (mm)No bulldozer
Maximum excavation radius of stop surface (mm)10600
Maximum effective digging depth (mm)7010
see more

Overview

No.965605

Brand Name:

Caterpillar

Model Number:

329D

Year:

2016

Location:

Fujian China

Are you interested in this machine?

Please contact us
