2011 Caterpillar 329DL

1/8
Used Caterpillar 329DL Excavator 2011 Model / 1

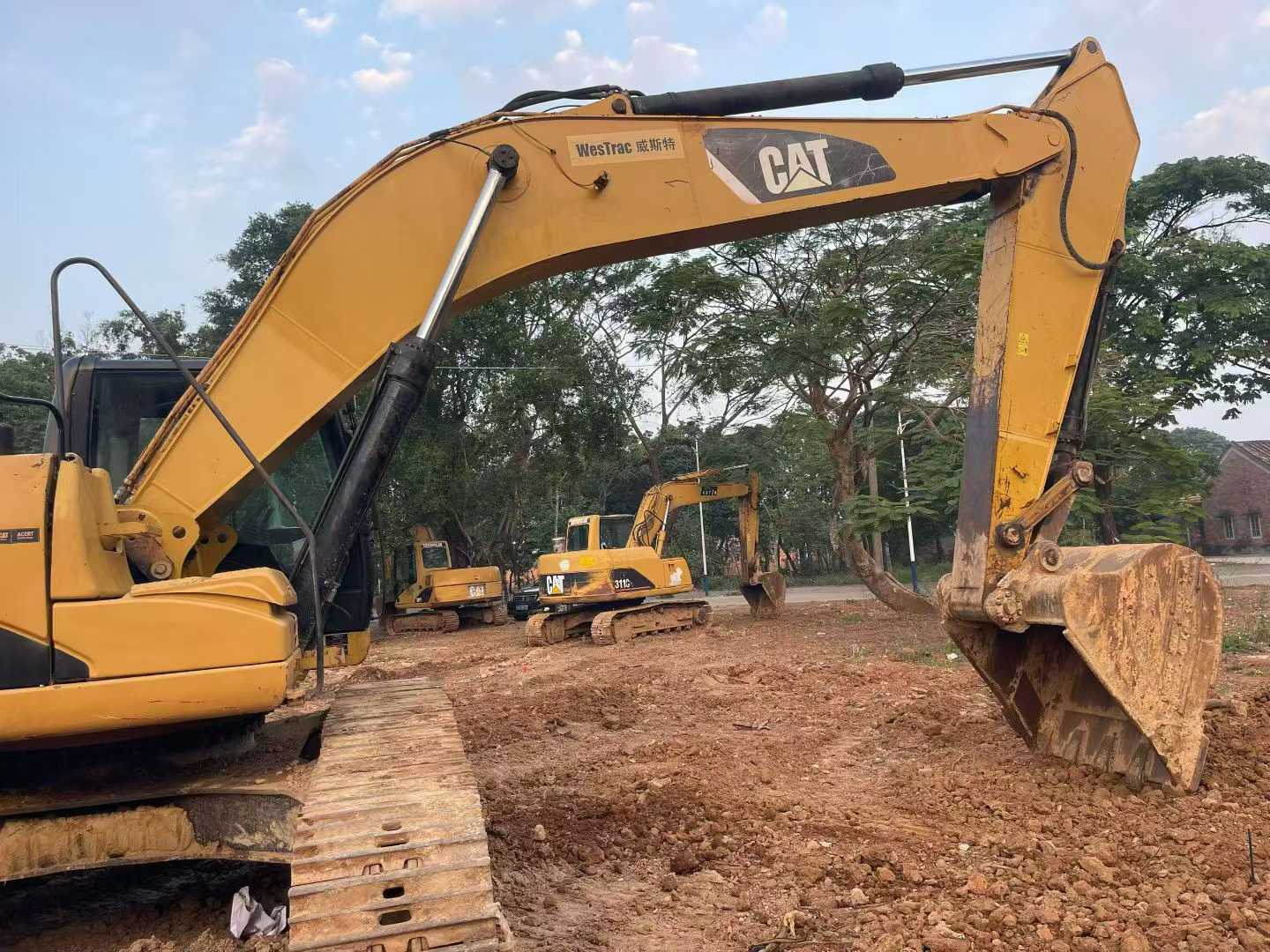

Used Caterpillar 329DL Excavator 2011 Model / 2

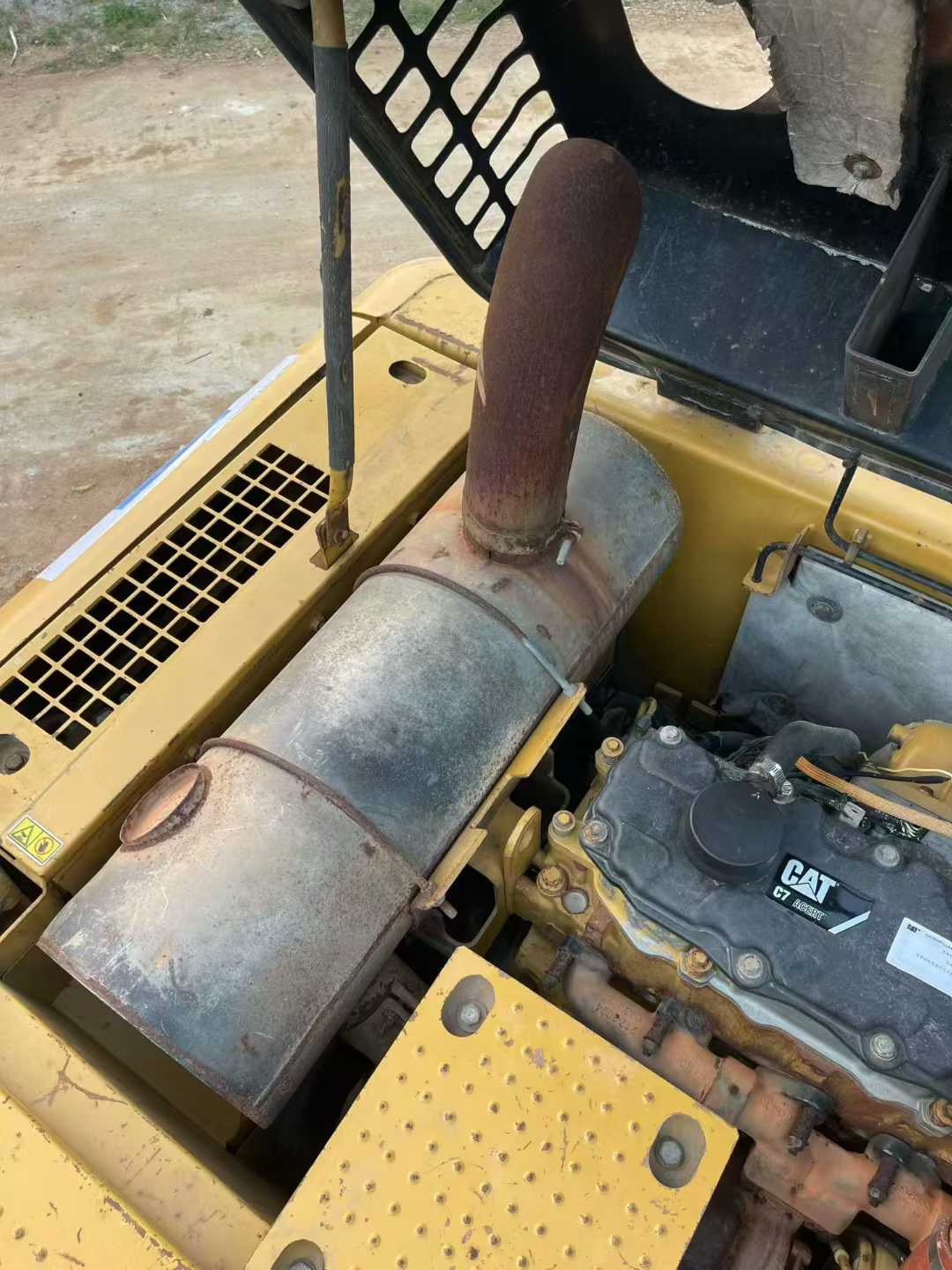

Used Caterpillar 329DL Excavator 2011 Model / 3

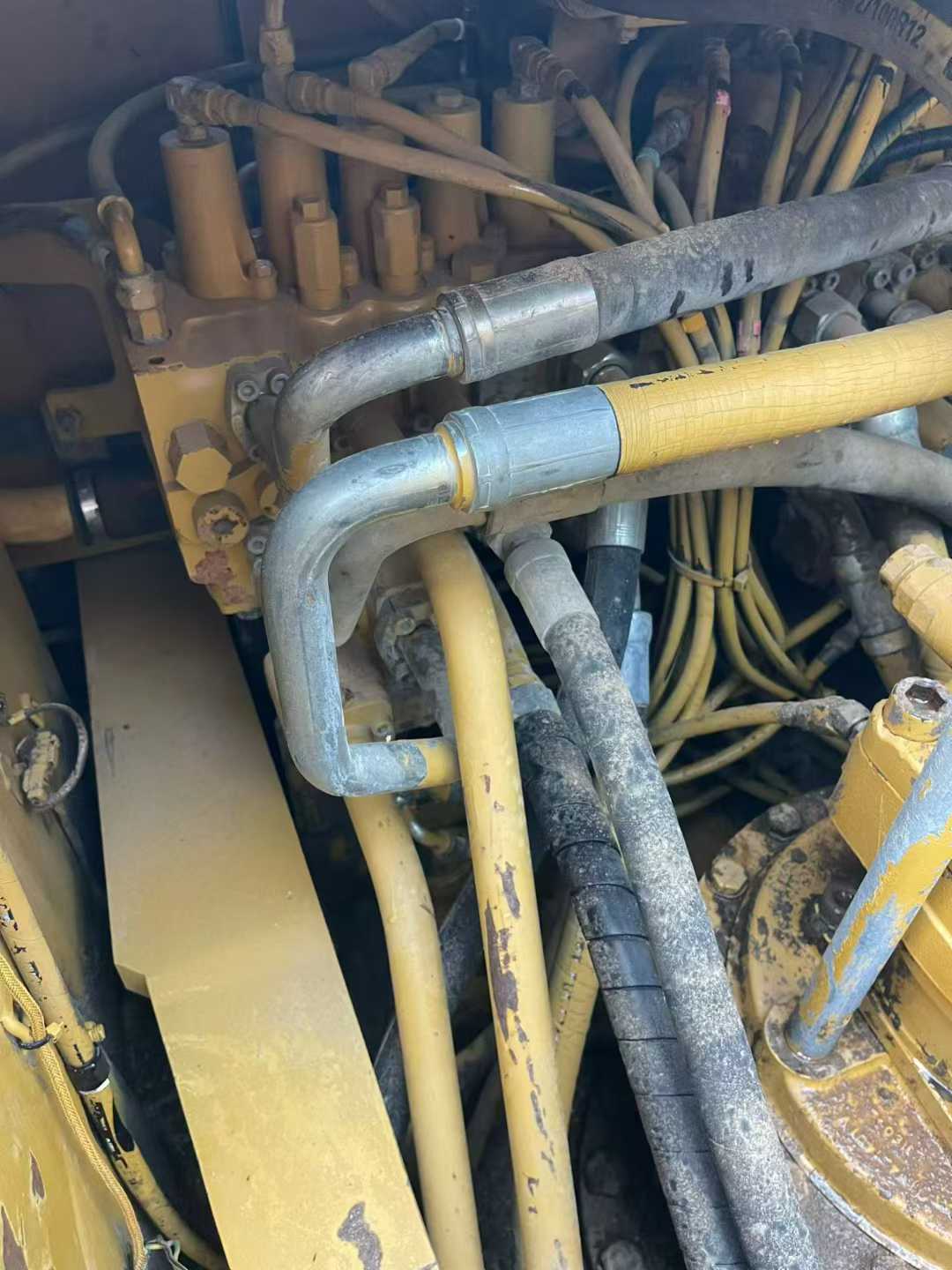

Used Caterpillar 329DL Excavator 2011 Model / 4

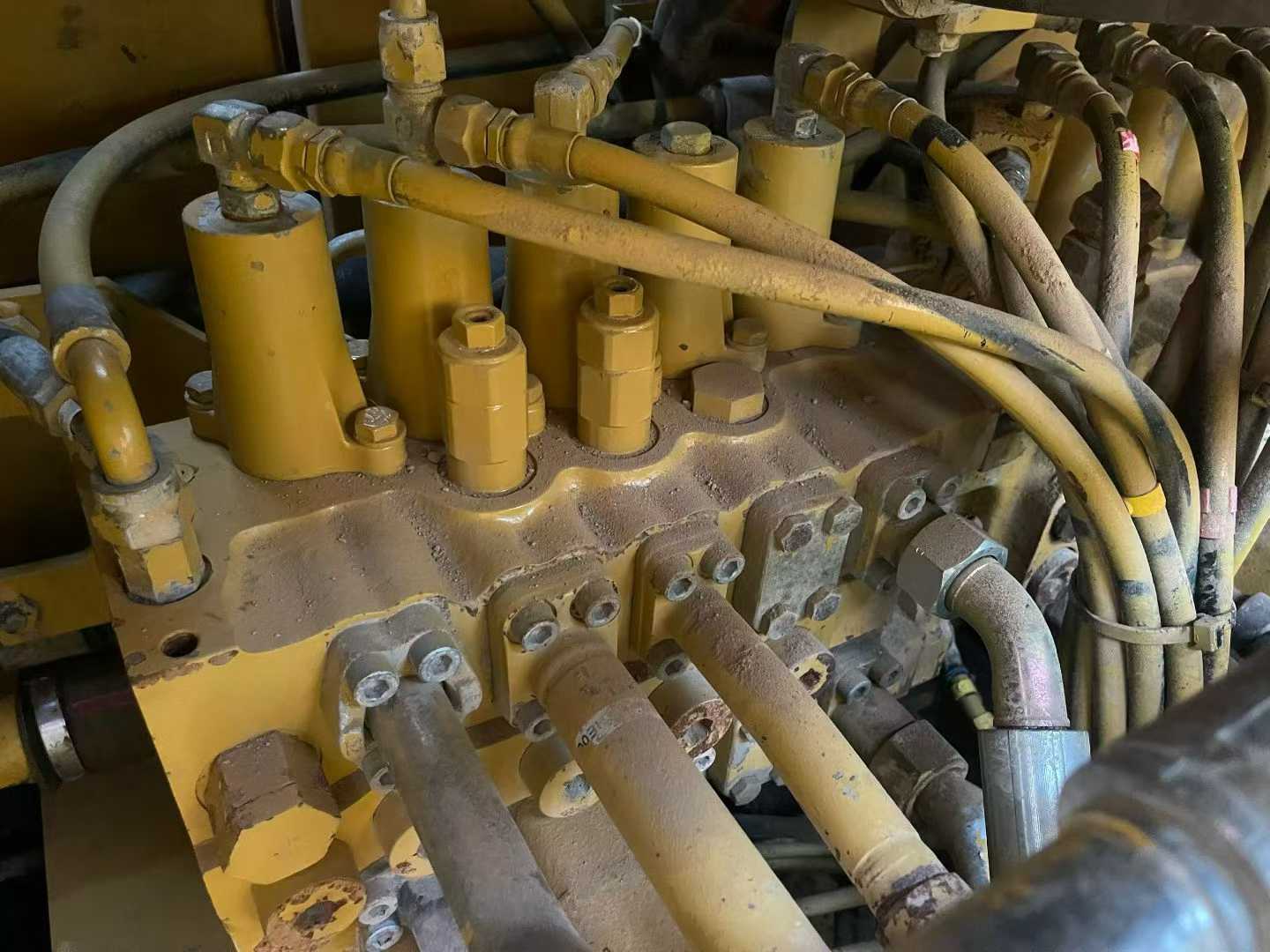

Used Caterpillar 329DL Excavator 2011 Model / 5
Used Caterpillar 329DL Excavator 2011 Model / 6
Used Caterpillar 329DL Excavator 2011 Model / 7

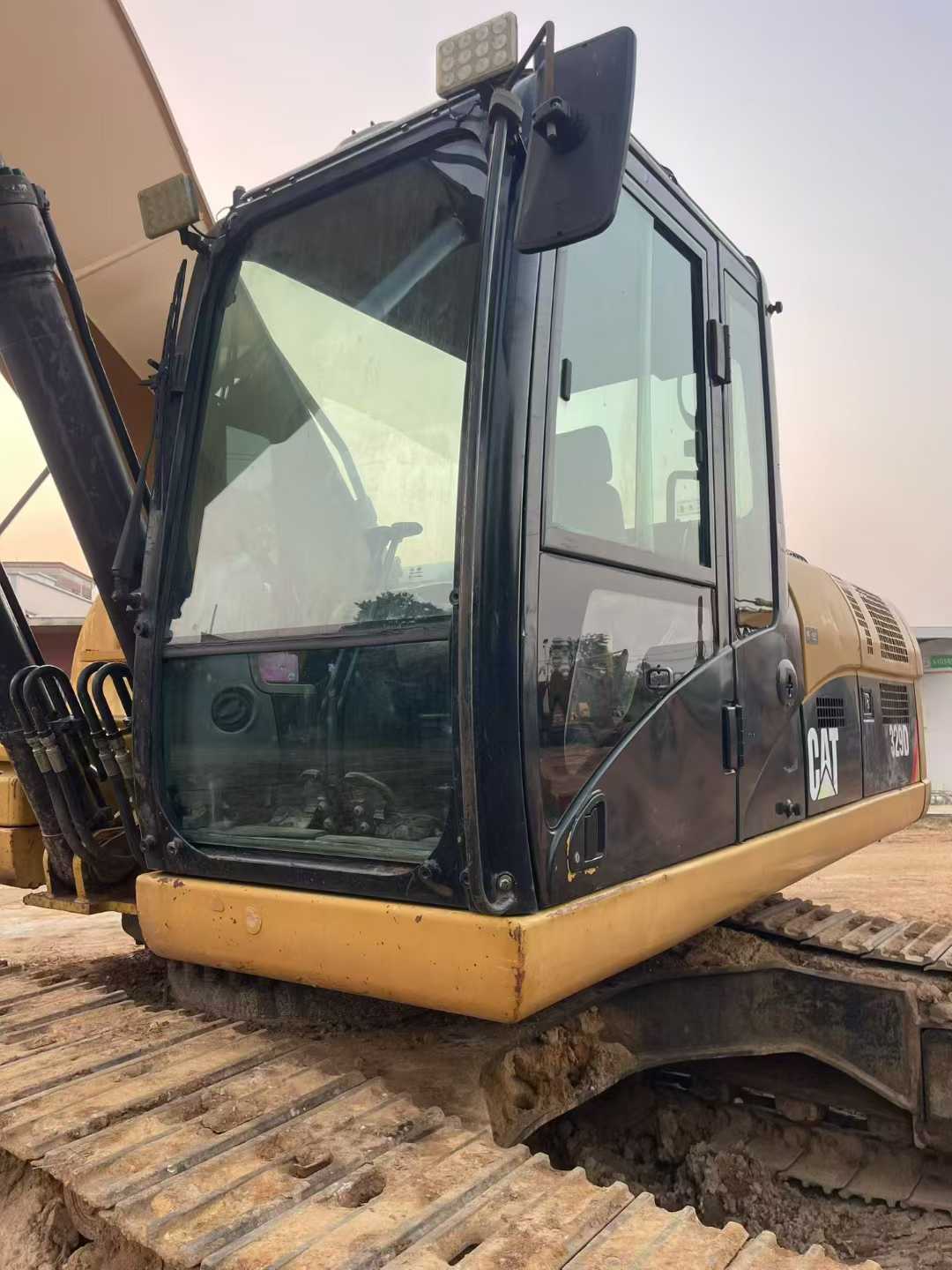

Used Caterpillar 329DL Excavator 2011 Model / 8

Product Description

【 Premium Recommendation 】2011 Caterpillar 329DL excavator, this is a high-quality second-hand excavator that has been strictly selected. Since its manufacture, this equipment has accumulated a working time of only 6,500 hours, which is far lower than the average usage time of similar equipment. This means that it is still in the best working condition and has extremely high residual value and service life. In terms of the power system, this 329DL is equipped with an original Caterpillar C7 ACERT engine, which is powerful and has high fuel efficiency, and can easily handle the operation requirements under various complex working conditions. Whether it is flat ground excavation or slope construction, it can perform outstandingly, ensuring efficient and stable operation performance. In addition, this model also adopts advanced electronic control technology, which makes the start-up more rapid and stable, while reducing noise pollution and providing a comfortable working environment for the operator. The hydraulic system is a major highlight of this excavator. It adopts a closed center load sensing hydraulic system (CLSS), which not only has a fast response speed and precise movement, but also performs well in energy conservation, signi

SpecificationsValue
No.964065
Tonnage (tons)29
Working weight (kg)29240
Bucket capacity (m³)1.1
Boom length (mm)6150
Rod length (mm)3200
Country of originJapan
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeC7ACERT
Rated power (kw/rpm)152/2000
Cooling modewater-cooling
Cylinder diameter × stroke (mm)110 x 127
Number of cylinders (PCS)6
Displacement (L)7.2
Rotation speed (rpm)10.2
Climbing ability (%)70/35 °
Travel speed (km/h)3.5/5.3
Main overflow set pressure (Mpa)3.5
Maximum flow of main pump (l/min)235
Traveling Hydraulic Circuit (Mpa)3.5
Rotary Hydraulic Circuit (Mpa)2.75
Hydraulic crushing pipeline is standardno
Working Hydraulic Circuit (Mpa)3.5
Pilot Oil Circuit (MPa)3.9
Bucket cylinders - Number × diameter × stroke (mm)135 x 1156
Bucket rod cylinders - Number × diameter × stroke (mm)150 x 1646
Boom cylinders - Number × diameter × stroke (mm)140 x 1407
Fuel Tank (L)520
Hydraulic Tank (L)145
Engine Oil changes (L)30
Coolant (L)30
Hydraulic System (L)310(including fuel tank)
Total transport length (mm)10410
Total transport width (mm)3190
Total transport height (mm)3180
Full cab height (mm)3040
Counterweight ground clearance (mm)1110
Minimum ground clearance (mm)490
Back end turning radius (mm)3080
Total track length (mm)4860
Track gauge (mm)2590
Track plate width (mm)800
Total track width (mm)3190
Track ground length (mm)3990
Maximum digging depth (mm)7170
Maximum excavation height (mm)9990
Maximum unloading height (mm)7020
Maximum vertical digging depth (mm)6510
Bulldozer lift or depth (mm)No bulldozer
Dodging plate width × height (mm)No bulldozer
Maximum excavation radius of stop surface (mm)10600
Maximum effective digging depth (mm)7010
see more

Overview

No.964065

Brand Name:

Caterpillar

Model Number:

329DL

Year:

2011

Location:

Guangdong China
