2018 Caterpillar 340DL

1/4
Used Caterpillar 340DL Excavator 2018 Model / 1

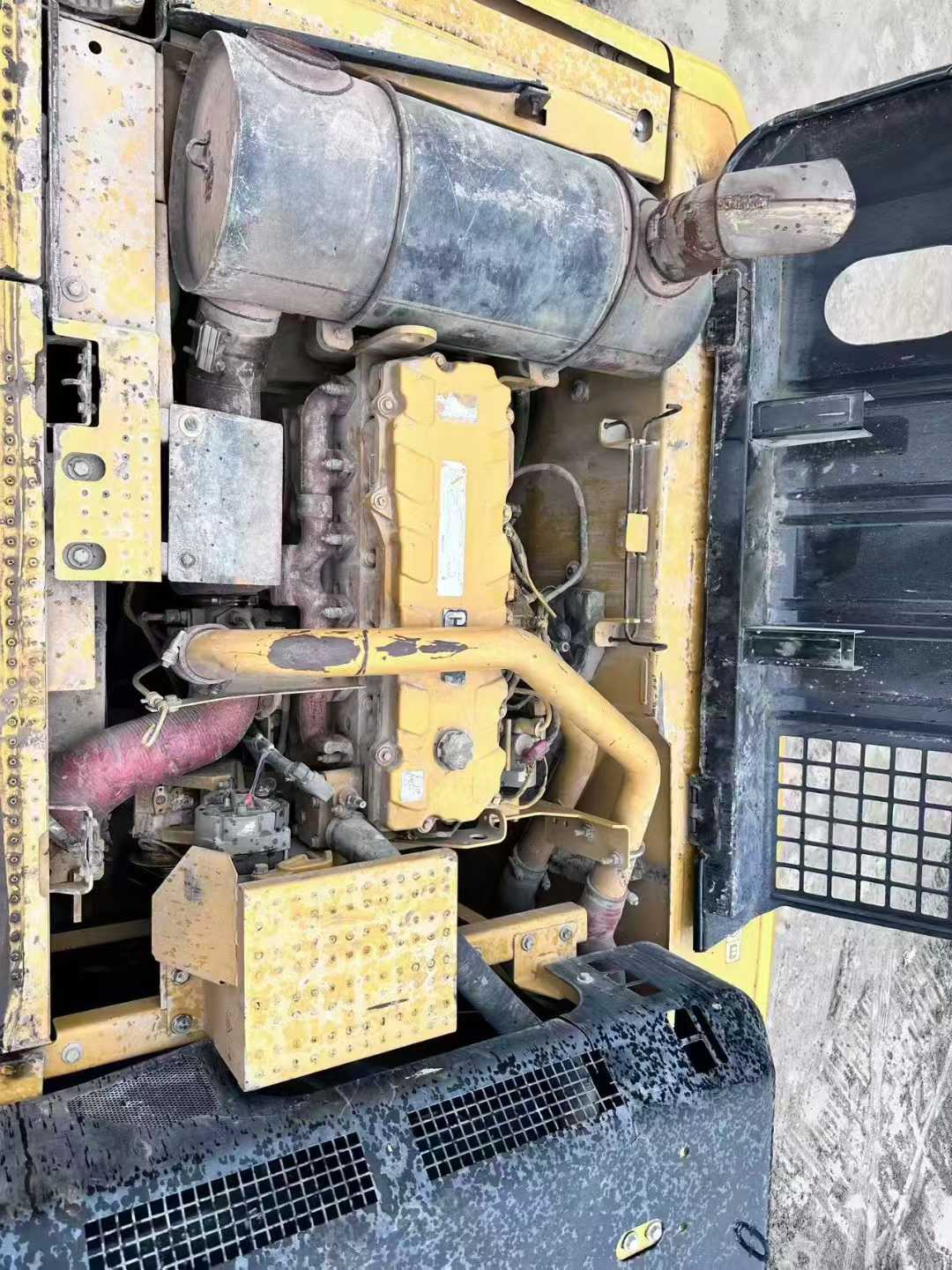

Used Caterpillar 340DL Excavator 2018 Model / 2
Used Caterpillar 340DL Excavator 2018 Model / 3

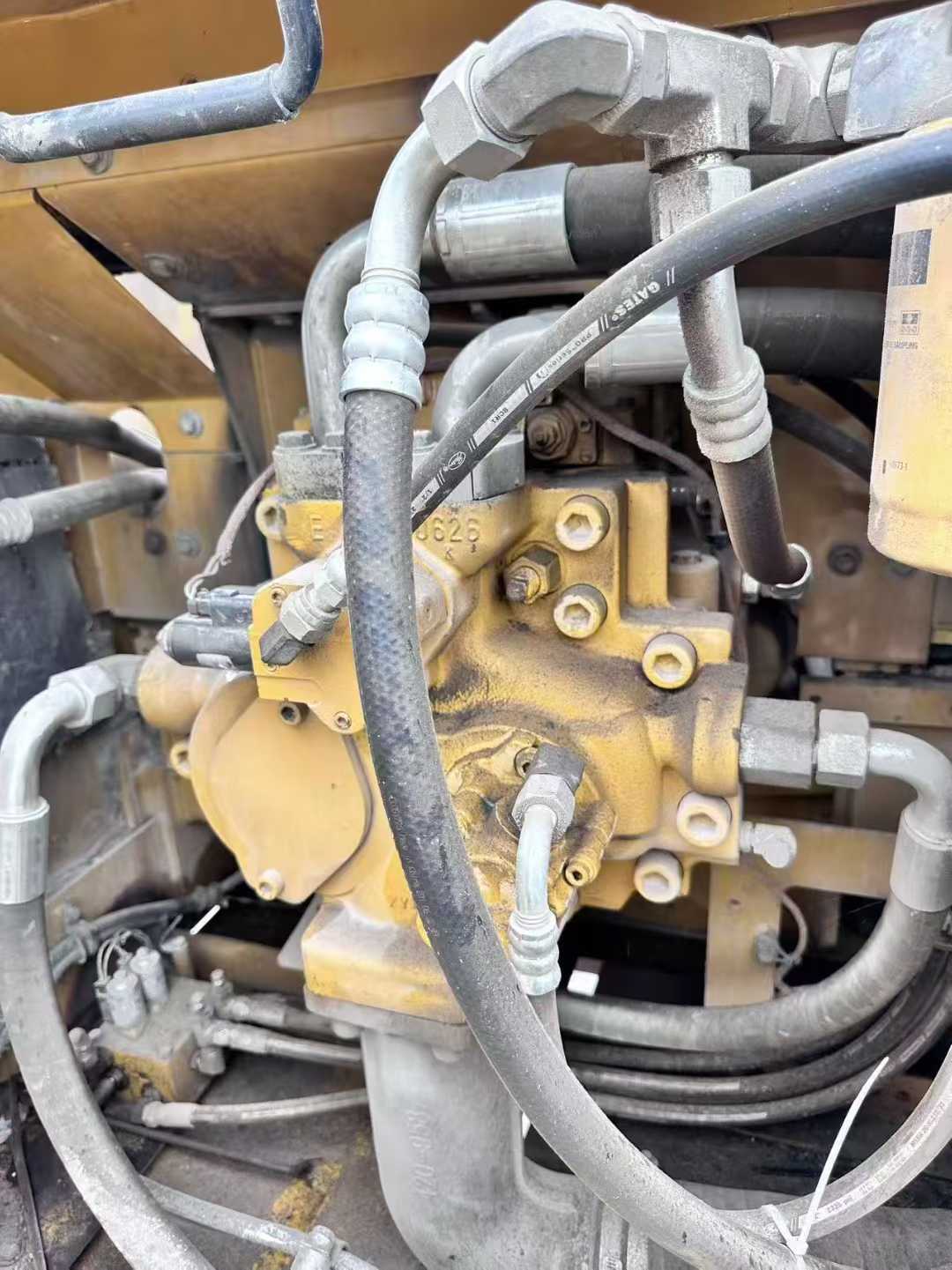

Used Caterpillar 340DL Excavator 2018 Model / 4

Product Description

【 Premium Recommendation 】 Second-hand Caterpillar 340D2-L excavator from 2018 This 2018 Caterpillar 340D2-L excavator is one of the most sought-after high-performance models in the market. It has a working time of approximately 5,000 hours, yet its overall mechanical condition is excellent, it is well maintained, and its appearance is clean with no obvious damage, almost comparable to a new car. This machine is equipped with a powerful C9 ACERT engine, which is strong in power and high in fuel efficiency, and can easily meet the operation requirements under various complex working conditions. In addition, its advanced hydraulic system design ensures smooth operation and response speed, enabling efficient completion of tasks such as excavation, loading, and crushing. This model of excavator also has several advantages and features: - ** Excellent stability and handling ** : With a widened chassis design, it can maintain good stability even on uneven ground. Meanwhile, the humanized cockpit layout enables the driver to operate for a long time more comfortably. - ** Low maintenance cost ** : Thanks to Caterpillar's consistent high-quality standards, this equipment has a low failure rate and is easy and quick to maintain on a daily basi

SpecificationsValue
No.969600
Tonnage (tons)40
Working weight (kg)38100-38600
Bucket capacity (m³)1.88/2.14
Boom length (mm)6500/6180
Rod length (mm)2550/2800/3200
Country of originXuzhou, Jiangsu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCaterpillar C9 ACERT
Rated power (kw/rpm)209
Cooling modewater-cooling
Cylinder diameter × stroke (mm)112 x 149
Number of cylinders (PCS)6
Displacement (L)8.8
Rotation speed (rpm)10
Bucket digging force (kN)176
Rod digging force (kN)158
Travel speed (km/h)5
Maximum flow of main pump (l/min)2 x 280
Traveling Hydraulic Circuit (Mpa)35
Rotary Hydraulic Circuit (Mpa)28
Working Hydraulic Circuit (Mpa)35
Pilot Oil Circuit (MPa)3.9
Bucket cylinders - Number × diameter × stroke (mm)150 x 1151
Bucket rod cylinders - Number × diameter × stroke (mm)170 x 1738
Boom cylinders - Number × diameter × stroke (mm)150 x 1440
Fuel Tank (L)620
Hydraulic Tank (L)310
Engine Oil changes (L)40
Coolant (L)40
Hydraulic System (L)410
Total transport length (mm)11200
Total transport width (mm)3520
Total transport height (mm)3690
Full cab height (mm)3420
Counterweight ground clearance (mm)1500
Minimum ground clearance (mm)743
Back end turning radius (mm)3500
Total track length (mm)5066
Track gauge (mm)2920
Track plate width (mm)600
Total track width (mm)3520
Maximum digging depth (mm)7322
Maximum excavation height (mm)10550
Maximum unloading height (mm)7277
Maximum vertical digging depth (mm)5712
Bulldozer lift or depth (mm)There is no
Dodging plate width × height (mm)There is no
Maximum excavation radius of stop surface (mm)11084
Boom turning Angle (left/right °)There is no
Maximum effective digging depth (mm)7035
see more

Overview

No.969600

Brand Name:

Caterpillar

Model Number:

340DL

Year:

2018

Location:

Hunan China
