2016 Caterpillar CT16

1/9
Used Caterpillar CT16 Excavator 2016 Model / 1

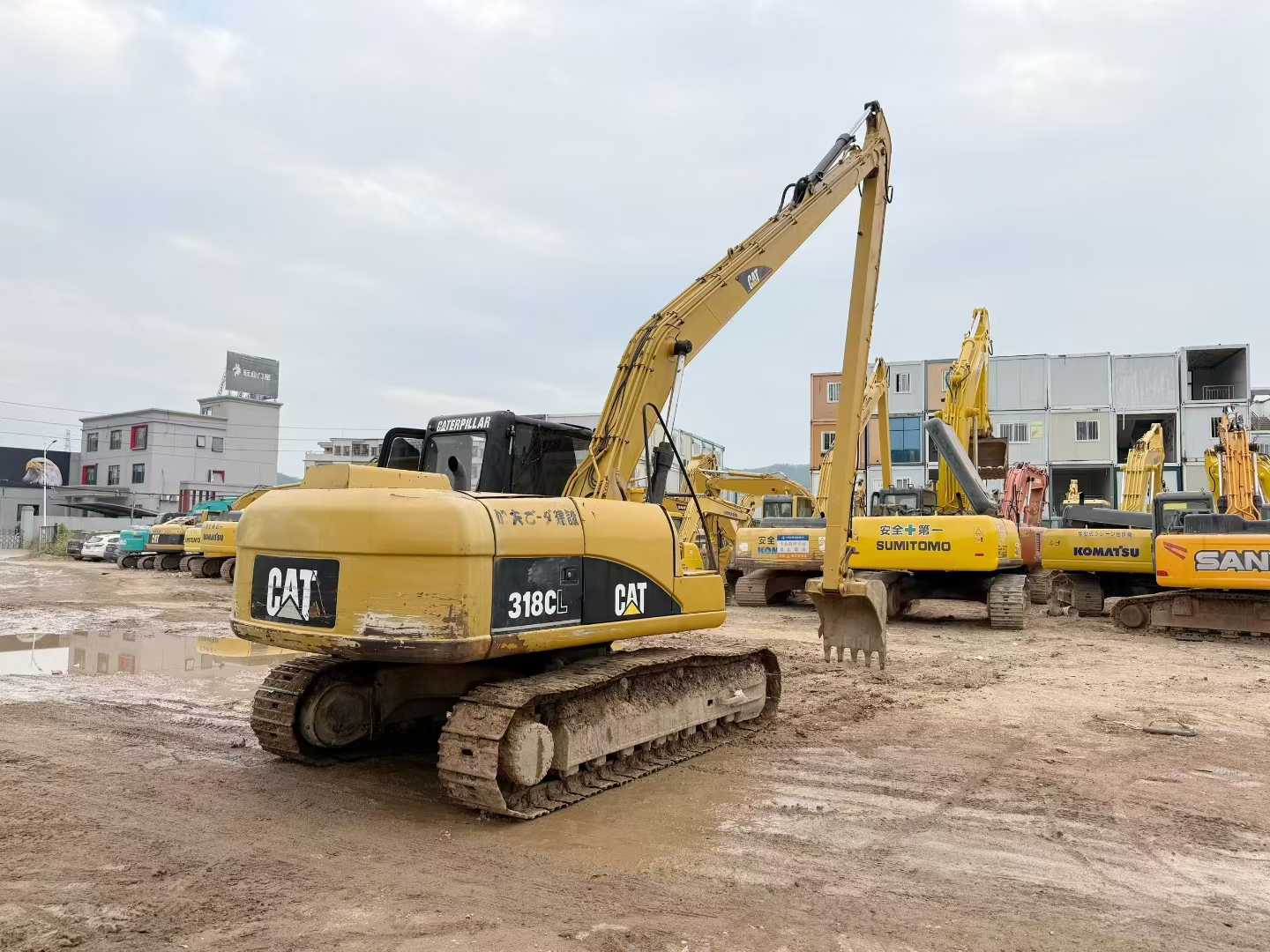

Used Caterpillar CT16 Excavator 2016 Model / 2

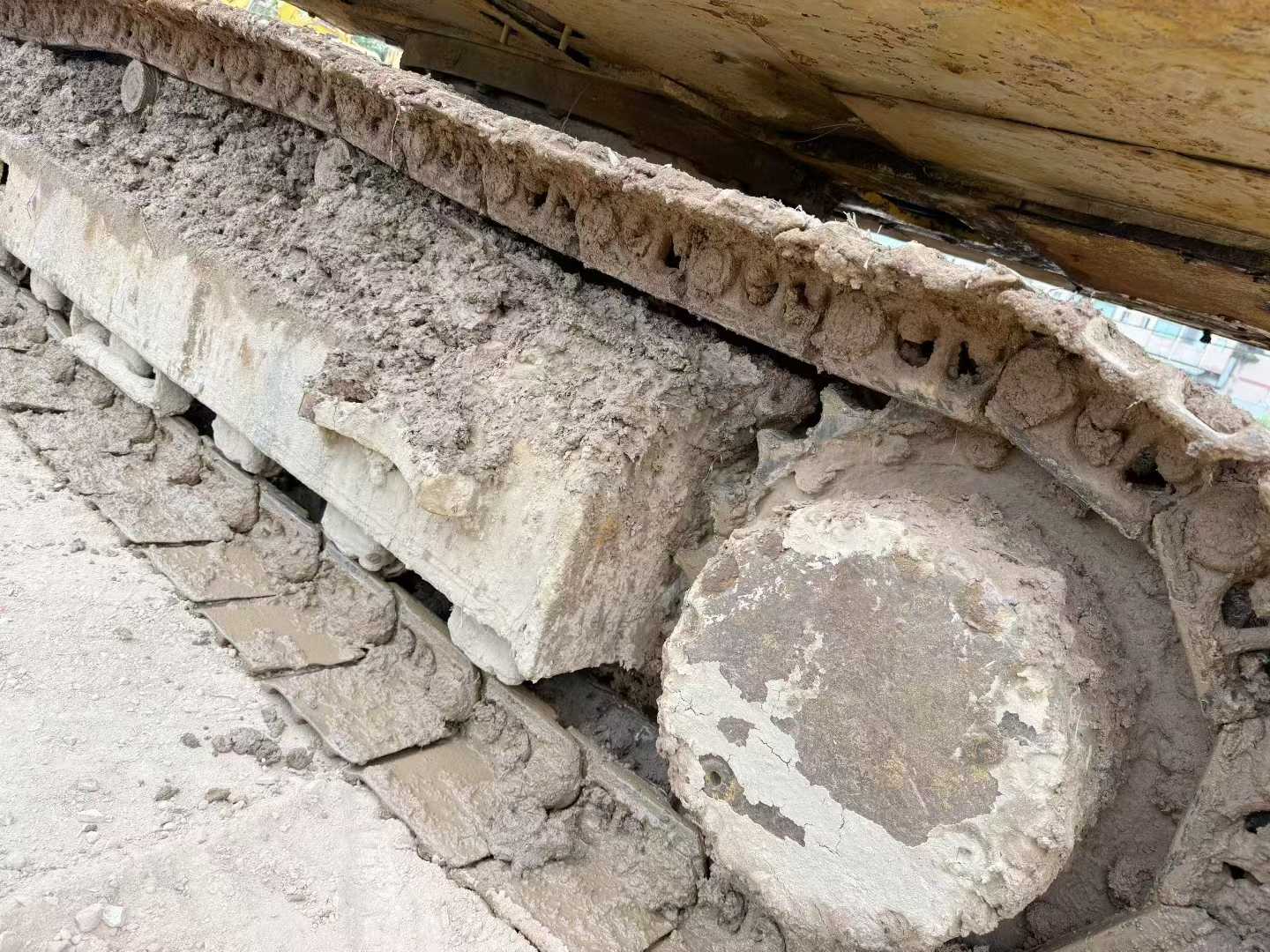

Used Caterpillar CT16 Excavator 2016 Model / 3

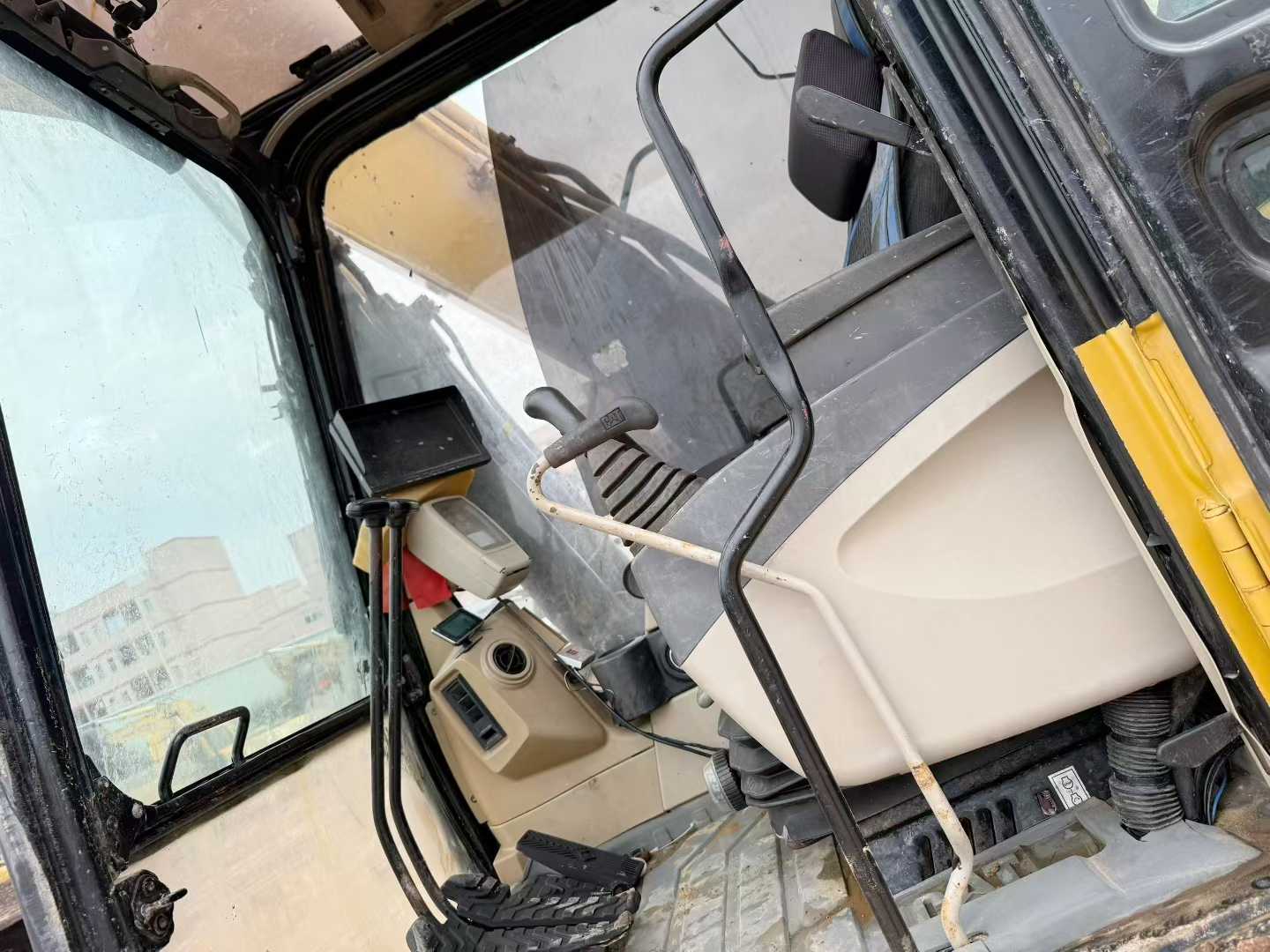

Used Caterpillar CT16 Excavator 2016 Model / 4

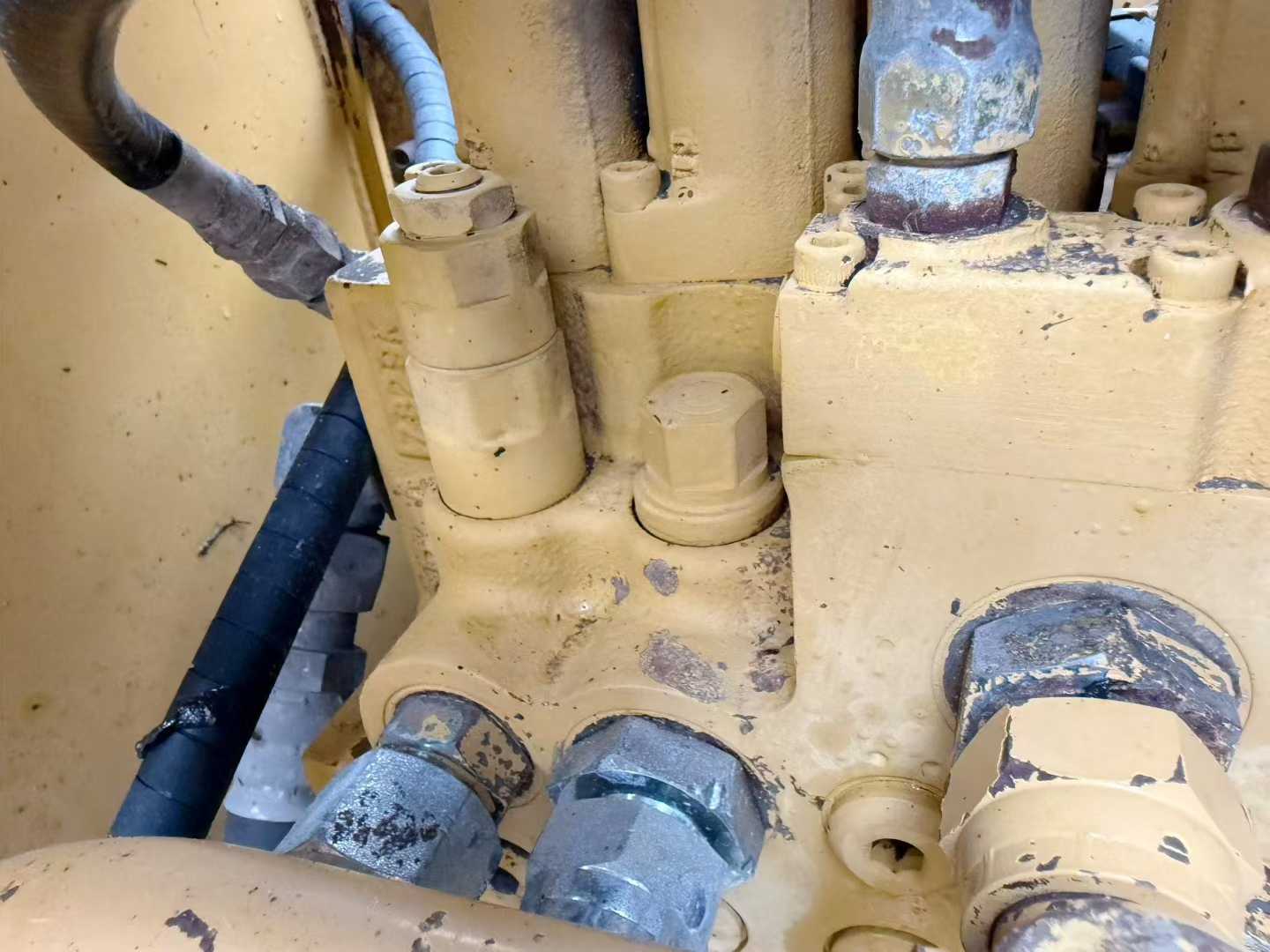

Used Caterpillar CT16 Excavator 2016 Model / 5

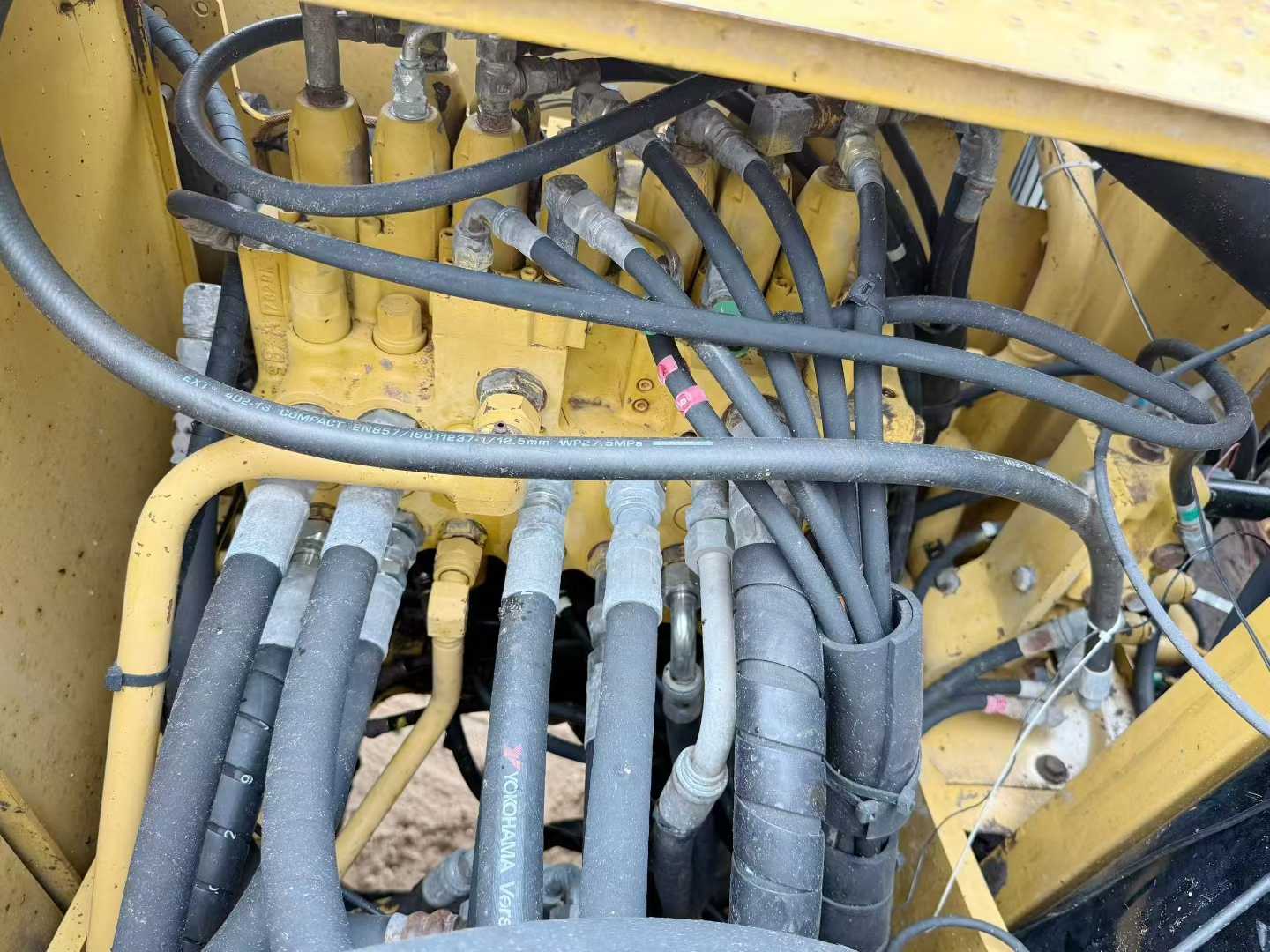

Used Caterpillar CT16 Excavator 2016 Model / 6

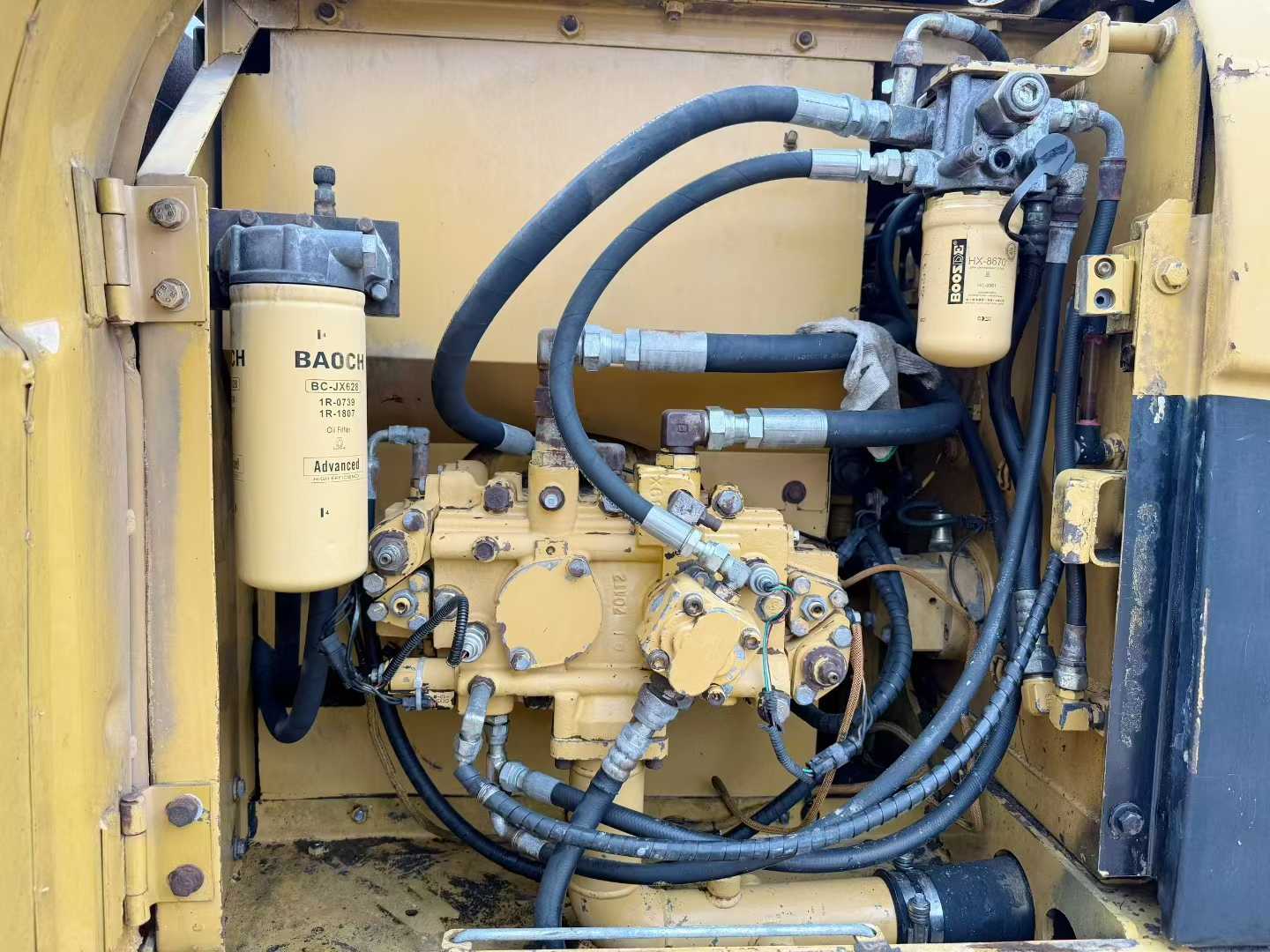

Used Caterpillar CT16 Excavator 2016 Model / 7

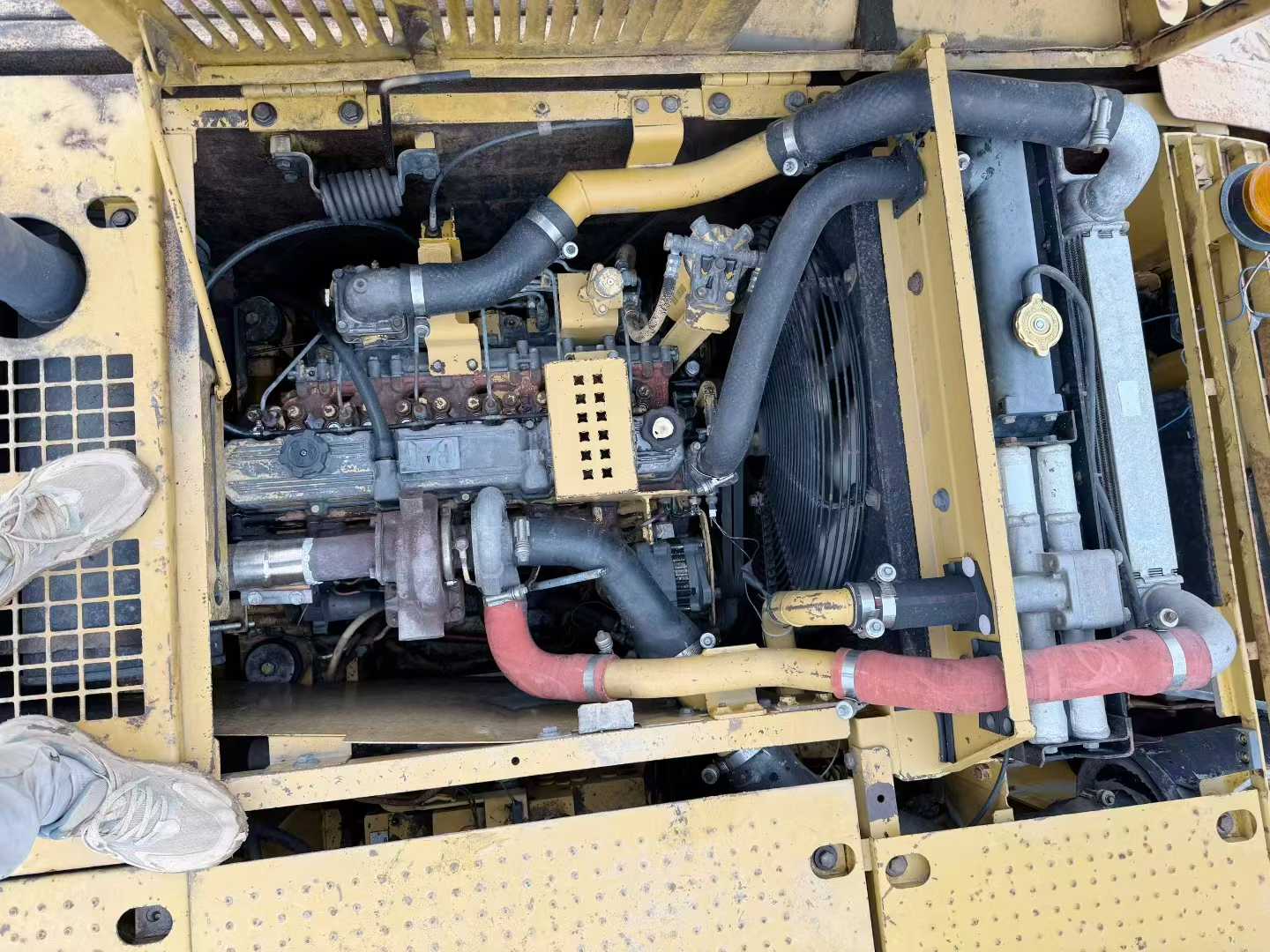

Used Caterpillar CT16 Excavator 2016 Model / 8

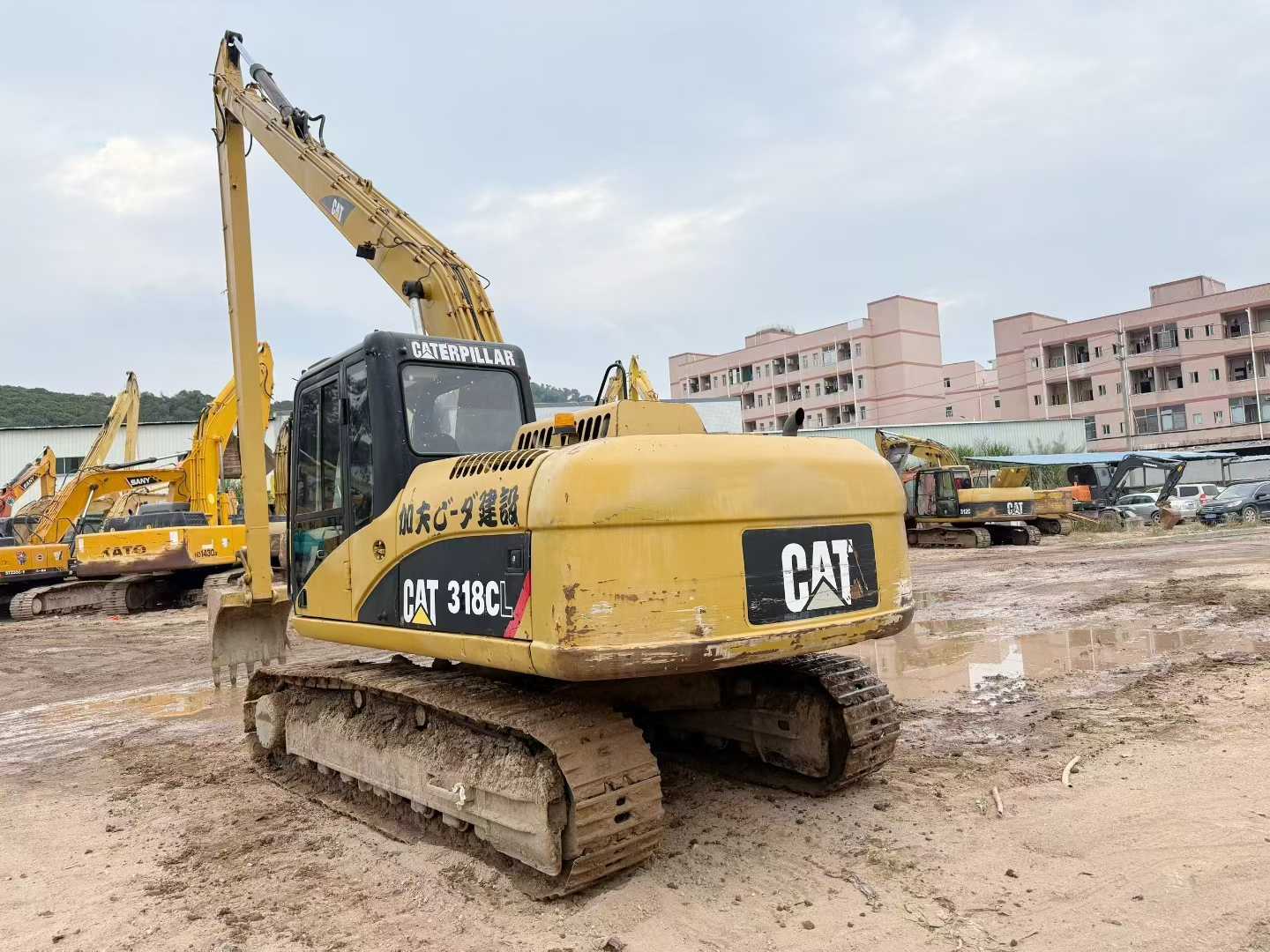

Used Caterpillar CT16 Excavator 2016 Model / 9

Product Description

【 Premium Recommendation 】 Second-hand Caterpillar 315C excavator, equipped with a 16-meter long arm, in excellent condition and at an affordable price! This Caterpillar 315C excavator is a rare high-quality second-hand device on the market. It has a working time of approximately 4,000 hours, which is much shorter than the average service life of machines of the same model. This means that it still has a long service life and good working condition. The power system adopts the original Caterpillar C4.4 engine, which is renowned for its outstanding performance, low fuel consumption and high reliability, and can provide stable and powerful power output under various working conditions. In terms of the hydraulic system, this machine adopts an advanced closed center load-sensitive hydraulic control system, ensuring smoothness and accuracy during operation. It can handle both excavation and loading tasks with ease. It is particularly worth mentioning that this excavator is equipped with a 16-meter-long extended arm, which is highly suitable for engineering projects that require deep pit excavation or high-altitude operations, significantly enhancing construction efficiency and flexibility. In addition, the overall appearance of the machin

SpecificationsValue
No.966360
Tonnage (tons)16
Working weight (kg)17600
Bucket capacity (m³)0.65
Boom length (mm)5100
Rod length (mm)2600
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCaterpillar Cat C4.4 ACERT
Rated power (kw/rpm)89
Cooling modewater-cooling
Cylinder diameter × stroke (mm)105 x 127
Displacement (L)4.4
Working formMeet EU Stage IIIB emission standards
Ground specific pressure (Kpa)49
Rotation speed (rpm)9.3
Climbing ability (%)35 °
Bucket digging force (kN)111
Rod digging force (kN)88
Maximum tractive force (kN)156.2
Travel speed (km/h)5.2
Main overflow set pressure (Mpa)35
Maximum flow of main pump (l/min)300
Traveling Hydraulic Circuit (Mpa)35
Rotary Hydraulic Circuit (Mpa)22.6
Pilot Oil Circuit (MPa)4.12
Pilot pump flow (L/min)25.8
Bucket cylinders - Number × diameter × stroke (mm)1 x 110 x 1039
Bucket rod cylinders - Number × diameter × stroke (mm)1 x 120 x 1331
Boom cylinders - Number × diameter × stroke (mm)2 x 110 x 1193
Fuel Tank (L)290
Hydraulic Tank (L)106
Engine Oil changes (L)13.5
Coolant (L)24
Hydraulic System (L)190
Total transport length (mm)8570
Total transport width (mm)2520/2590/2690 (with different width tracks)
Total transport height (mm)3180 (to the top of the boom)
Full cab height (mm)2890
Counterweight ground clearance (mm)1010
Minimum ground clearance (mm)440
Back end turning radius (mm)2500
Total track length (mm)3970
Track gauge (mm)1990
Track plate width (mm)500/600/700
Total track width (mm)2520/2590/2690
Maximum digging radius (mm)8910
Maximum digging depth (mm)6090
Maximum excavation height (mm)8920
Maximum unloading height (mm)6280
Maximum vertical digging depth (mm)4930
Maximum excavation radius of stop surface (mm)8780
Maximum effective digging depth (mm)5870
see more

Overview

No.966360

Brand Name:

Caterpillar

Model Number:

CT16

Year:

2016

Location:

Guangdong China
