2014 Doosan DX150LC

1/9
Used Doosan DX150LC Excavator 2014 Model / 1

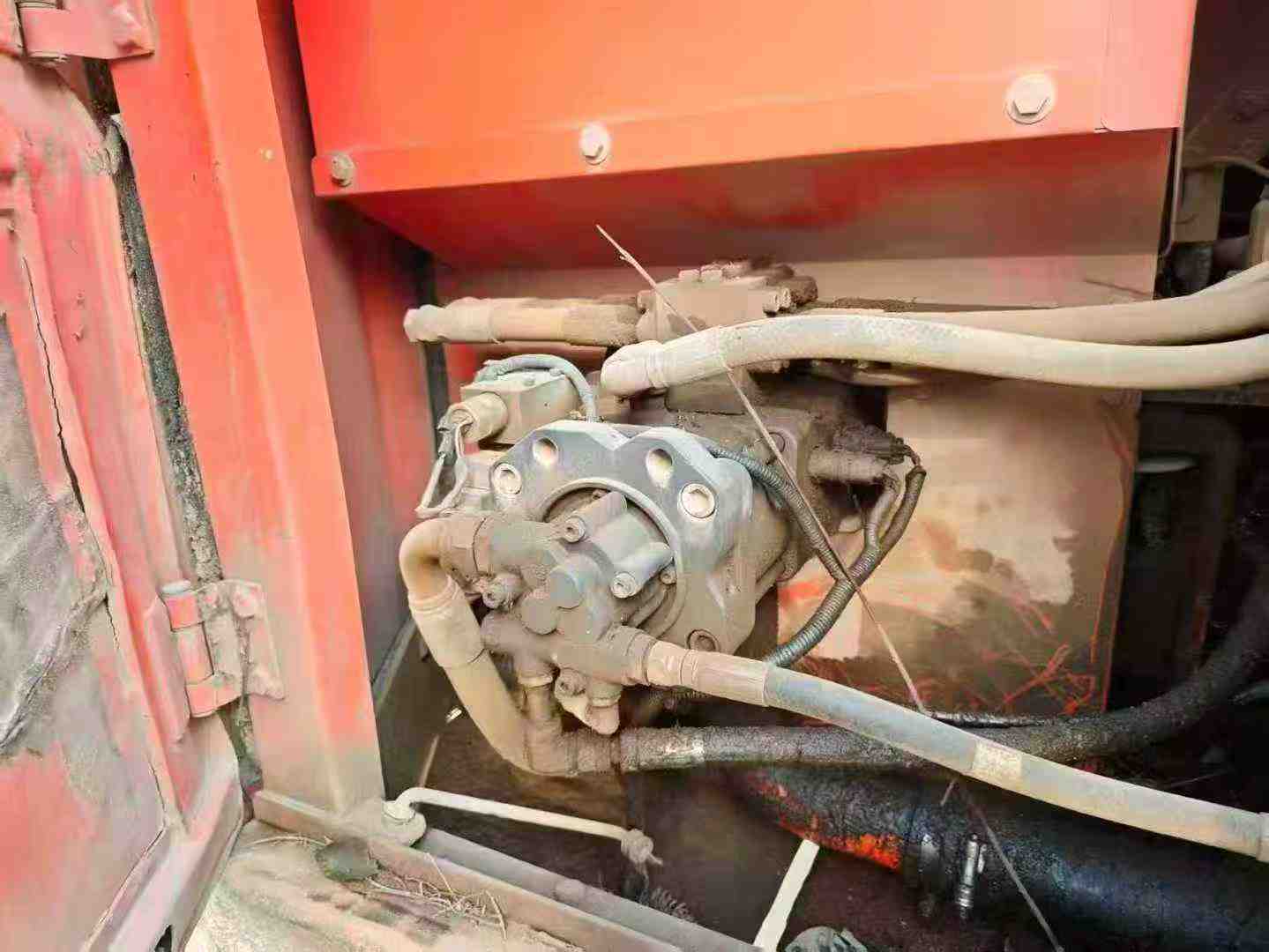

Used Doosan DX150LC Excavator 2014 Model / 2

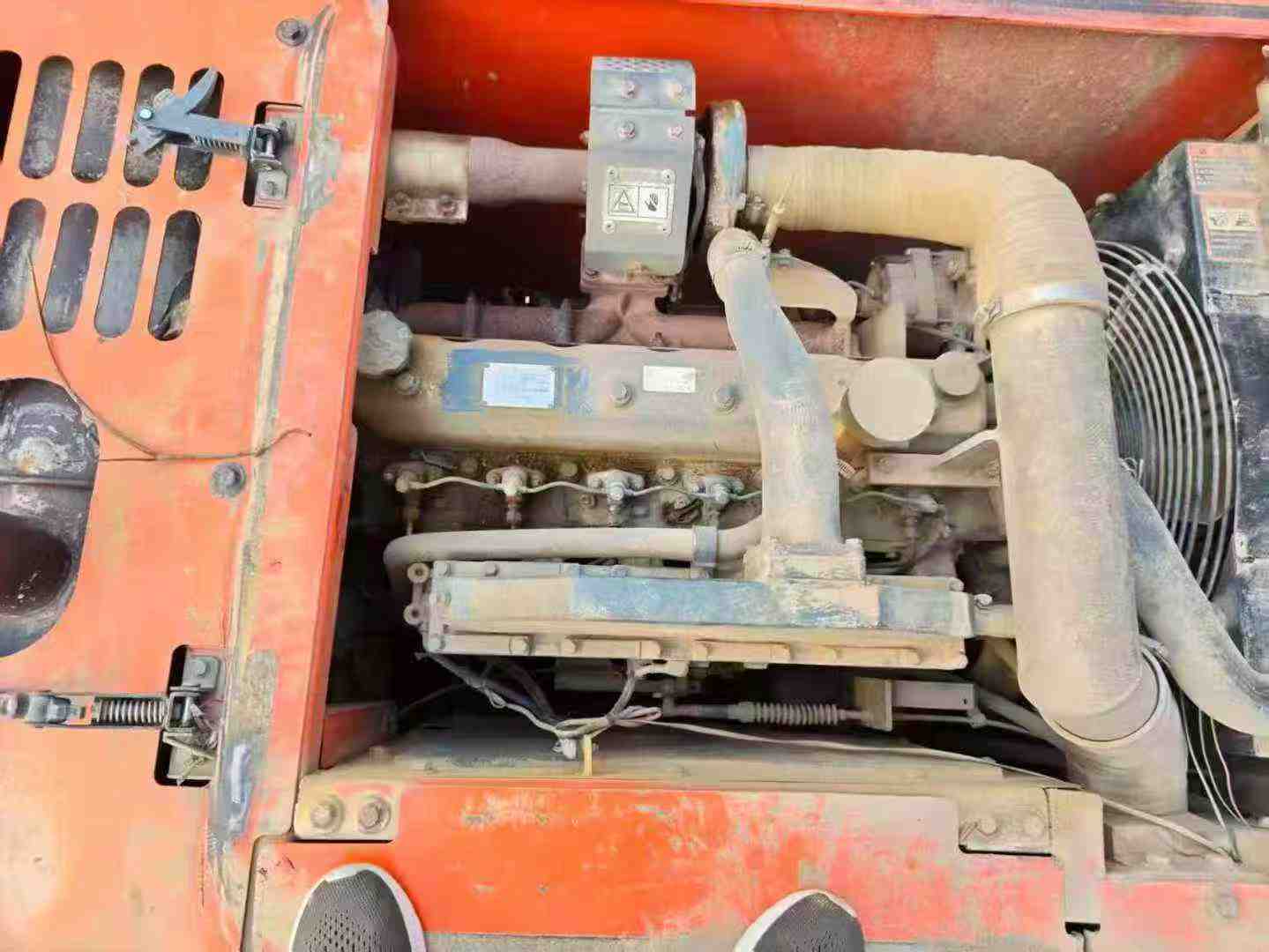

Used Doosan DX150LC Excavator 2014 Model / 3

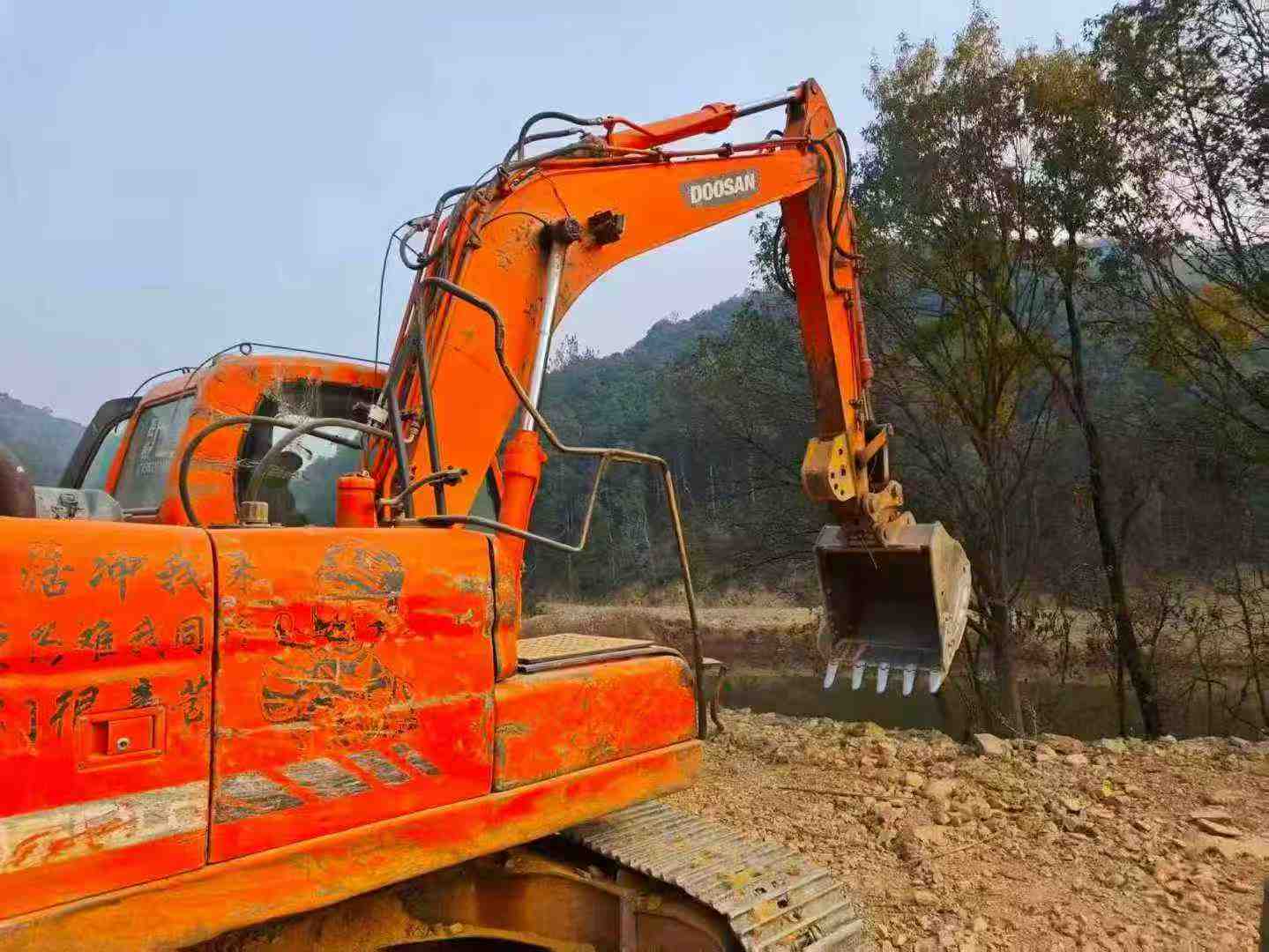

Used Doosan DX150LC Excavator 2014 Model / 4

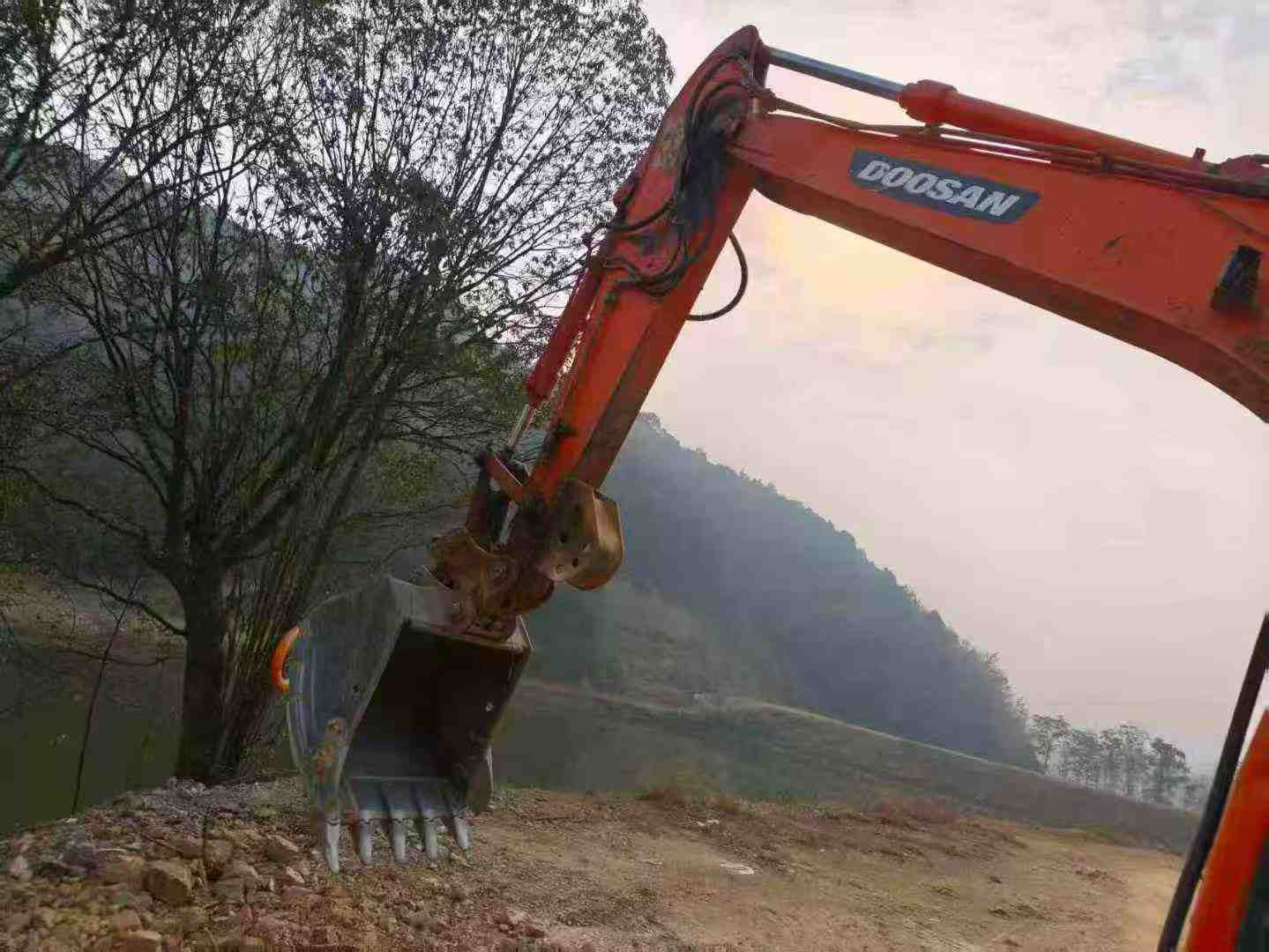

Used Doosan DX150LC Excavator 2014 Model / 5

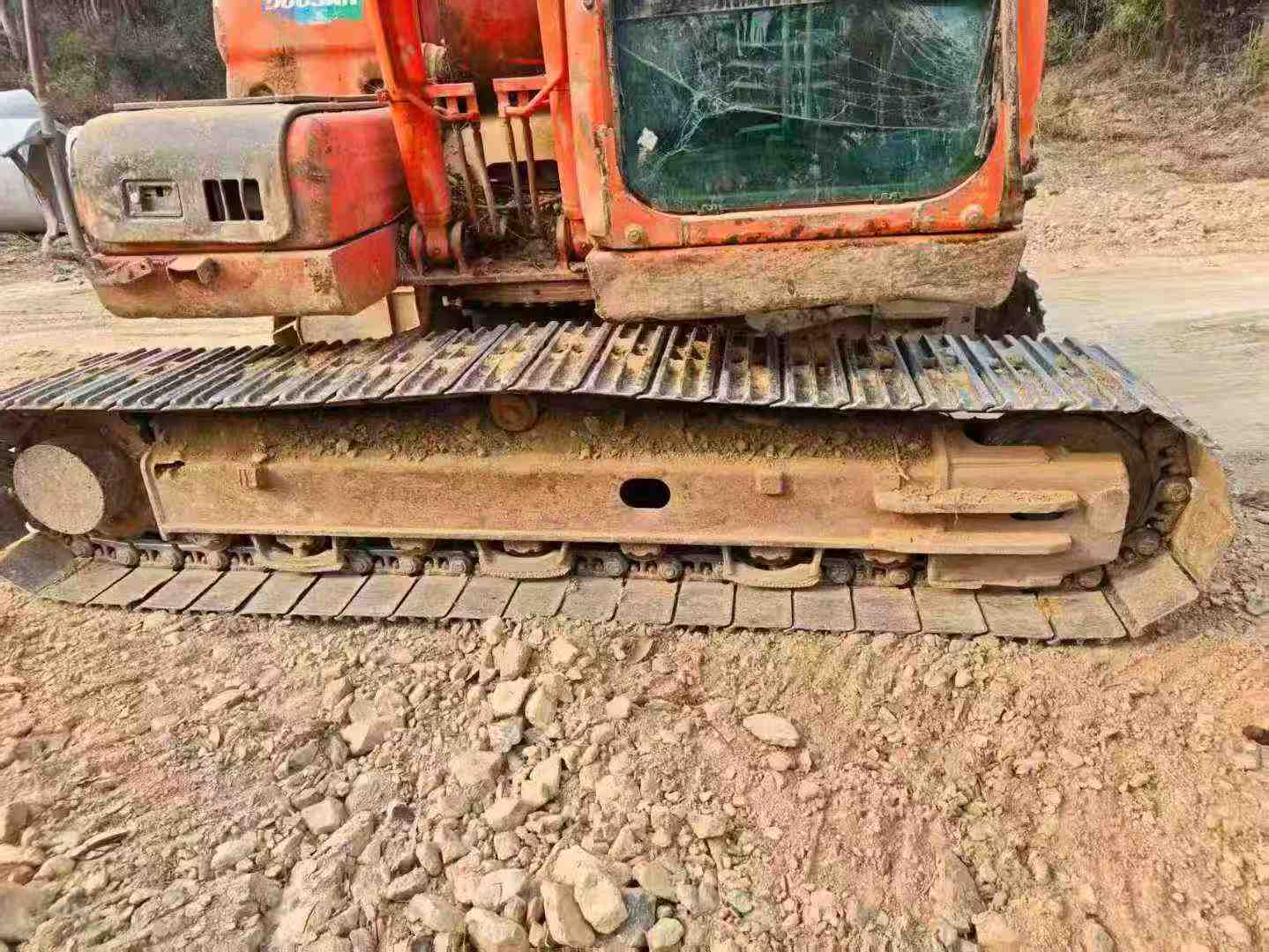

Used Doosan DX150LC Excavator 2014 Model / 6

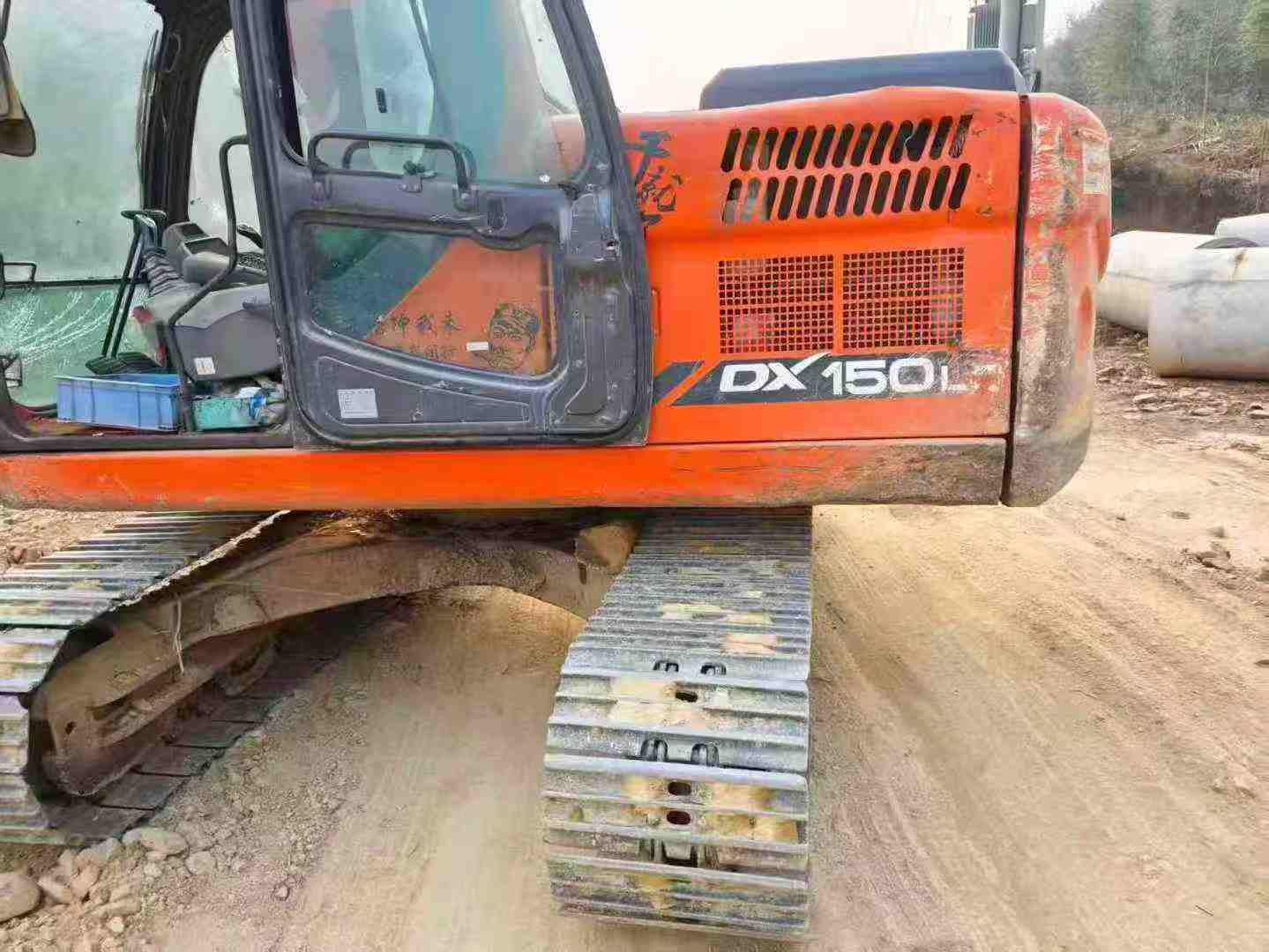

Used Doosan DX150LC Excavator 2014 Model / 7

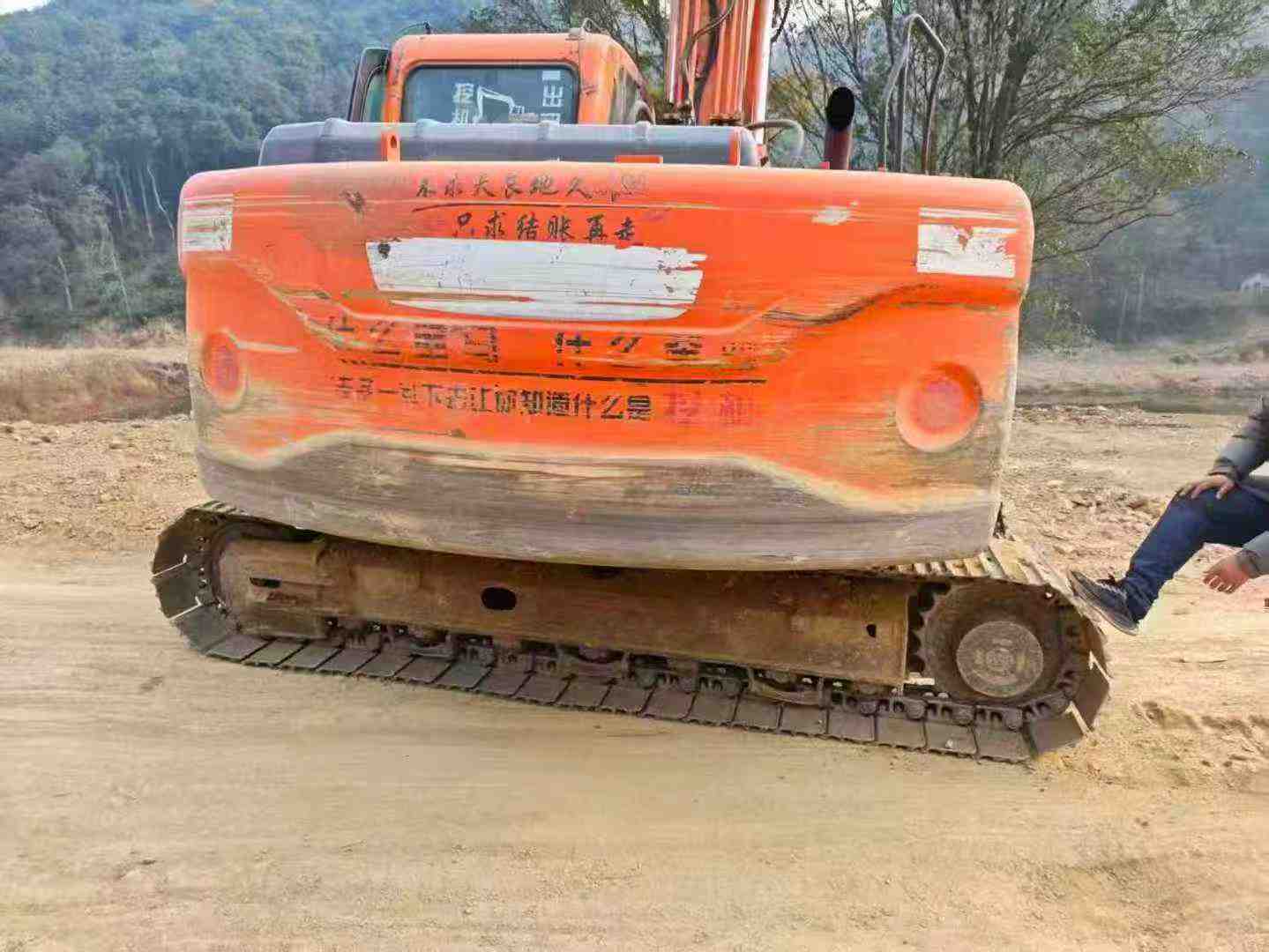

Used Doosan DX150LC Excavator 2014 Model / 8

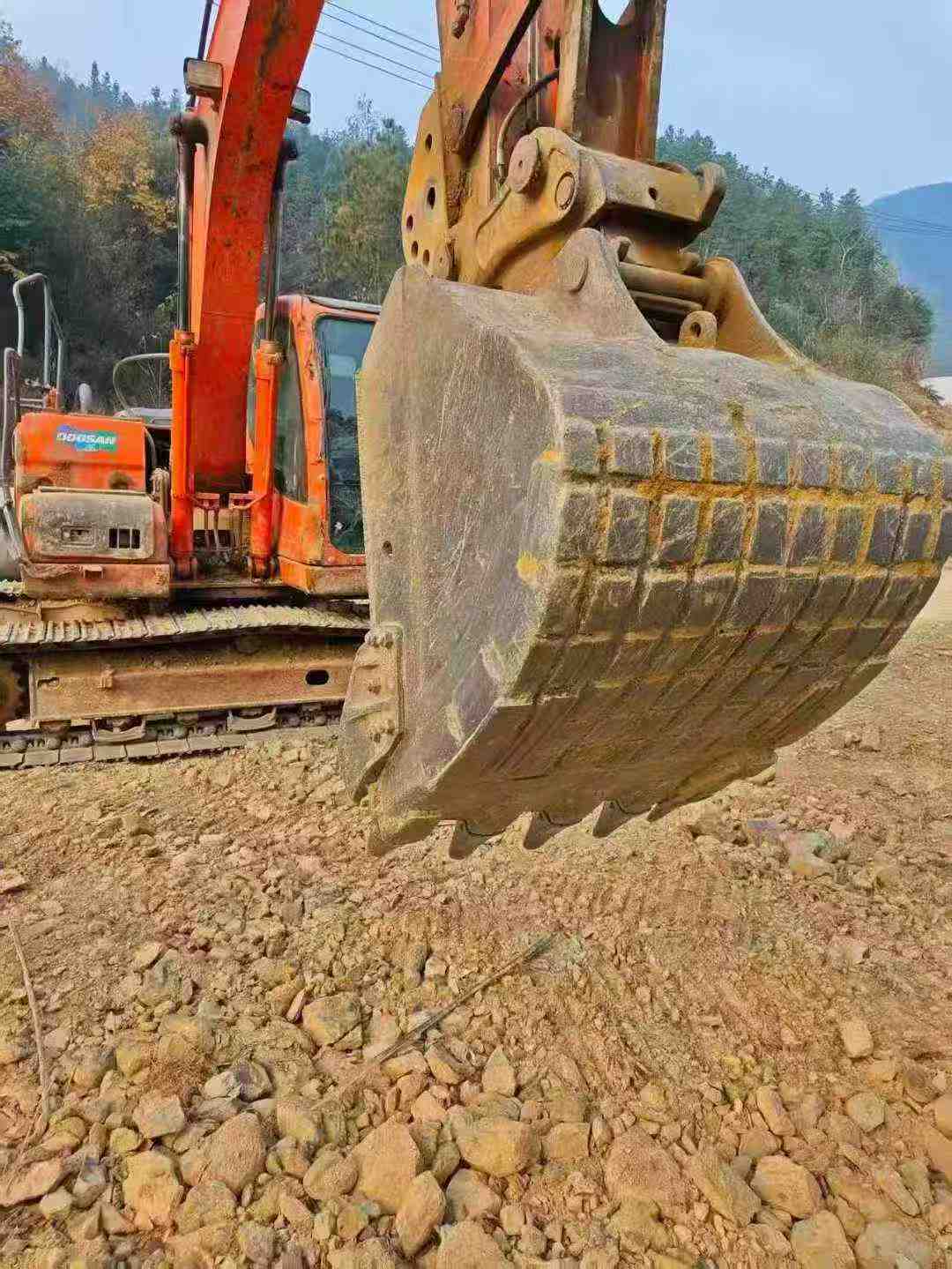

Used Doosan DX150LC Excavator 2014 Model / 9

Product Description

"Second-hand Doosan DX150LC excavator This Doosan DX150LC excavator from 2014 has been in operation for approximately 6,000 hours up to now. It is in good overall condition and well maintained. As a medium-sized excavator, it is widely used in multiple fields such as earthwork, road construction and municipal construction. Its power system is equipped with the well-tested Yanmar engine, which is renowned for its high efficiency and energy conservation. While providing strong power, it can also maintain a low fuel consumption level, making it highly suitable for long-term continuous operation. After professional testing, the engine of this machine has stable performance, starts quickly, and shows no obvious signs of wear or malfunction. In terms of the hydraulic system, Doosan DX150LC is equipped with advanced load-sensing hydraulic technology, which can automatically adjust the pumping flow according to the actual load, thereby achieving a smoother operation experience and higher work efficiency. In addition, this model also pays special attention to the design of operational comfort. The cab is spacious and bright, with a wide field of vision. The seats can be adjusted at multiple angles and are equipped with an air conditioning sys

SpecificationsValue
No.961951
Tonnage (tons)15
Working weight (kg)14000
Bucket capacity (m³)0.58
Country of originYantai
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeDB58TIS
Rated power (kw/rpm)71 / 1850
Cylinder diameter × stroke (mm)102 x 118
Number of cylinders (PCS)6
Working formDirect injection; Turbocharged, air-cooled
Ground specific pressure (Kpa)34.3
Rotation speed (rpm)12.2
Bucket digging force (kN)106
Rod digging force (kN)65
Travel speed (km/h)4.9 / 3.0
Turning torque (Nm)40
Rotary hydraulic motor typeAxial plunger type ×1
Type of walking hydraulic motorAxial plunger type x 2
Maximum flow of main pump (l/min)2 x 114
Traveling Hydraulic Circuit (Mpa)32.4
Rotary Hydraulic Circuit (Mpa)26.5
Main pump typeVariable piston pump
Working Hydraulic Circuit (Mpa)Standard 32.4/ Supercharged 34.3
Bucket cylinders - Number × diameter × stroke (mm)1-100 x 70 x 900
Bucket rod cylinders - Number × diameter × stroke (mm)1-115 x 80 x 1180
Boom cylinders - Number × diameter × stroke (mm)2-110 x 75 x 1085
Fuel Tank (L)267
Hydraulic Tank (L)147
Coolant (L)24
Total transport length (mm)7680
Total transport width (mm)2590
Total transport height (mm)2755(to top of cab)
Full cab height (mm)2750
Counterweight ground clearance (mm)890
Minimum ground clearance (mm)410
Minimum turning radius of front working device (mm)2325
Back end turning radius (mm)2200
Onboard width (mm)2540
Total track length (mm)3750
Track plate width (mm)600
Maximum digging radius (mm)8305
Maximum digging depth (mm)5655
Maximum excavation height (mm)8750
Maximum unloading height (mm)6300
Maximum vertical digging depth (mm)4450
Maximum excavation radius of stop surface (mm)8160
Maximum effective digging depth (mm)5430
see more

Overview

No.961951

Brand Name:

Doosan

Model Number:

DX150LC

Year:

2014

Location:

Zhejiang China
