Product Description

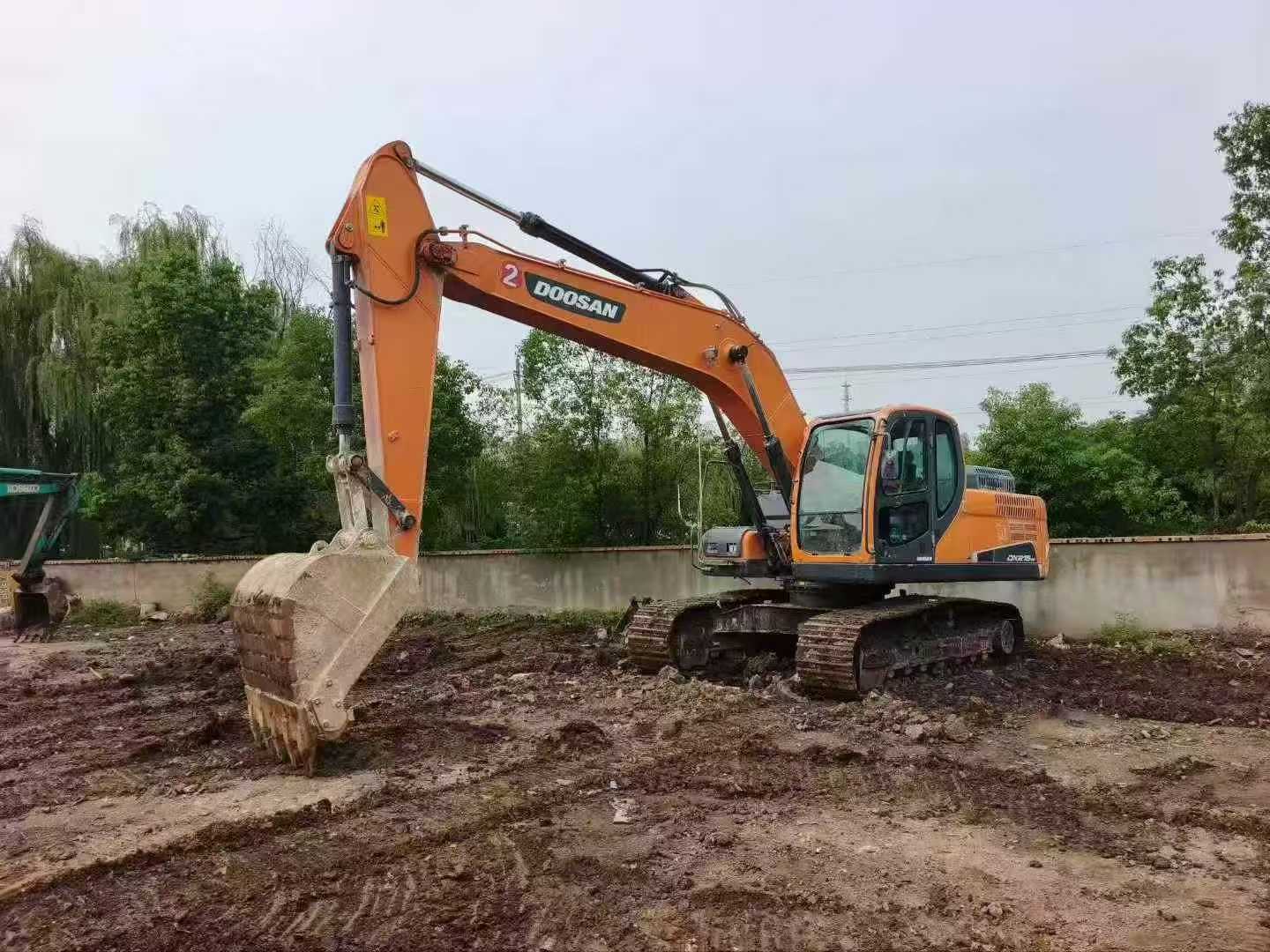

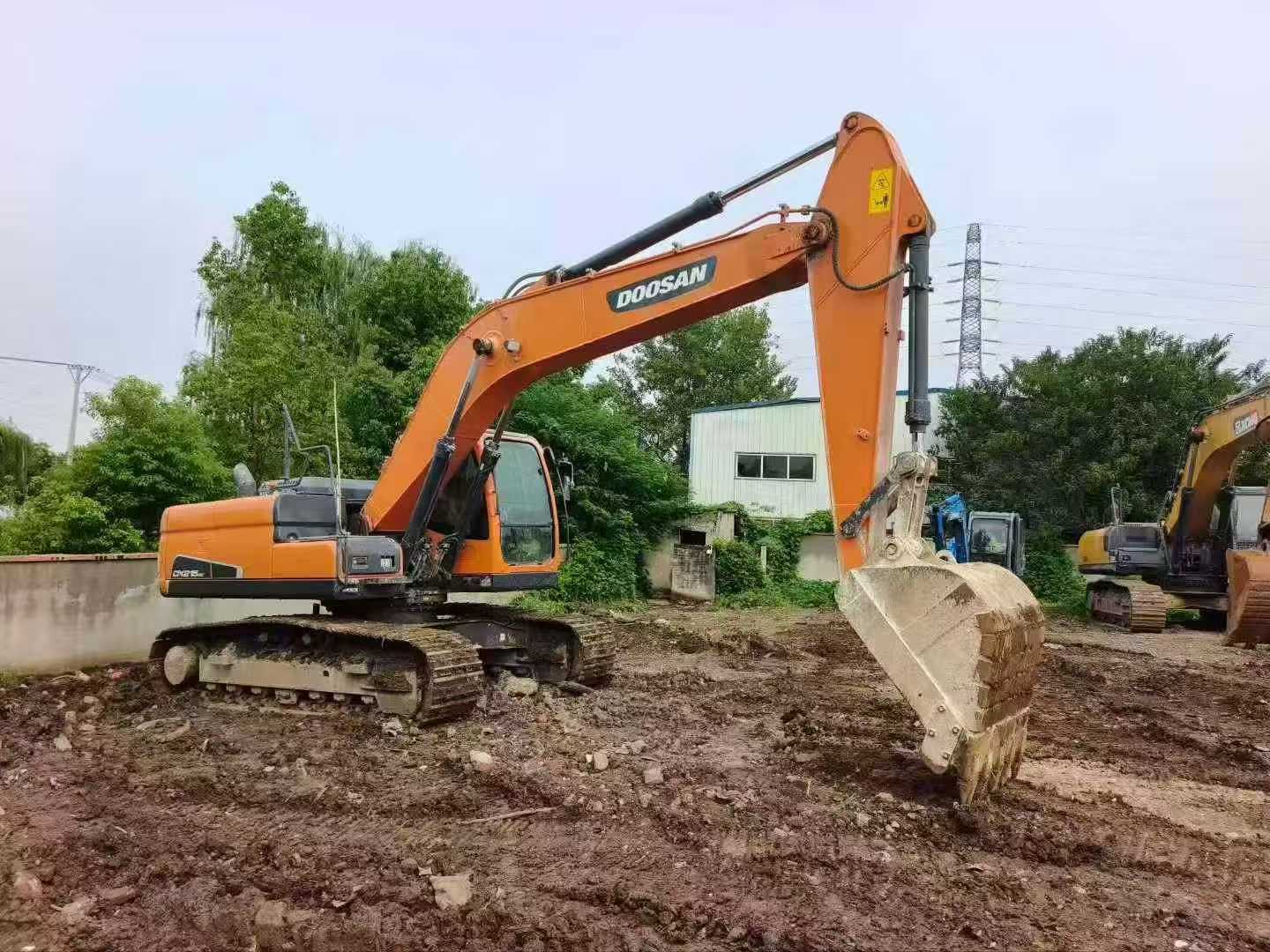

Top-quality Doosan 200-9C, top-quality earthwork, with complete procedures
| Specifications | Value |
|---|---|
| No. | 926426 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19800 |
| Bucket capacity (m³) | 0.45 |
| Boom length (mm) | 5600 |
| Rod length (mm) | 2600 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Perkins 1104D |
| Rated power (kw/rpm) | 102/2200 |
| Cylinder diameter × stroke (mm) | 105*127 |
| Number of cylinders (PCS) | 4 |
| Rotation speed (rpm) | 10.54 |
| Bucket digging force (kN) | 118.6 |
| Rod digging force (kN) | 86.3 |
| Travel speed (km/h) | 5.09/3.05 |
| Main pump type | Variable piston pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-110*70*1060 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-125*90*1443 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-115*80*1263 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 141 |
| Total transport length (mm) | 9425 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3173 |
| Counterweight ground clearance (mm) | 1091 |
| Minimum ground clearance (mm) | 475 |
| Back end turning radius (mm) | 2794 |
| Total track length (mm) | 4060 |
| Track plate width (mm) | 600 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 9500 |
| Maximum digging depth (mm) | 6210 |
| Maximum excavation height (mm) | 9419 |
| Maximum unloading height (mm) | 6648 |
| Maximum excavation radius of stop surface (mm) | 9325 |
