2014 Doosan DX215-9C

1/9

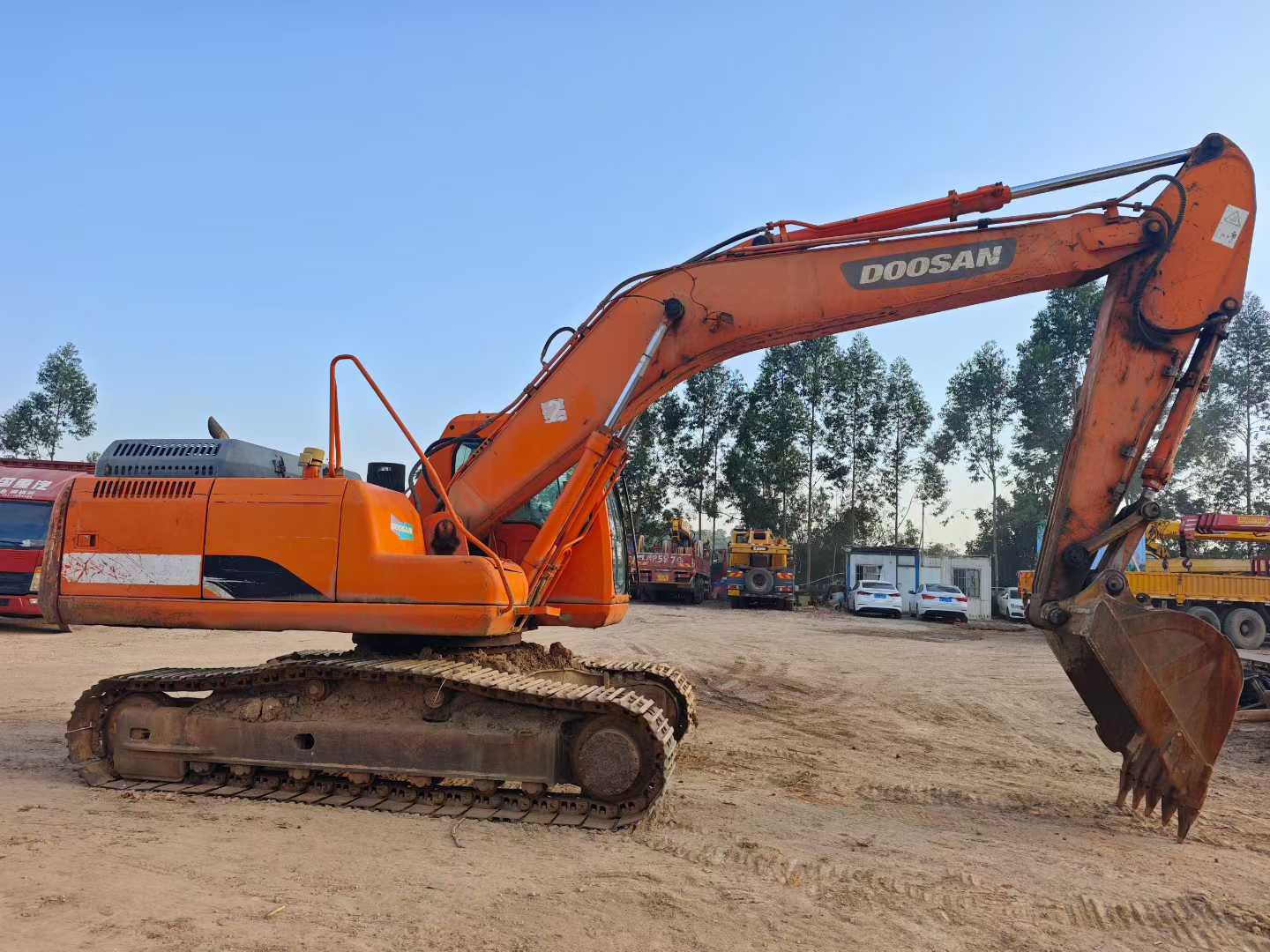

Used Doosan DX215-9C Excavator 2014 Model / 1
Used Doosan DX215-9C Excavator 2014 Model / 2

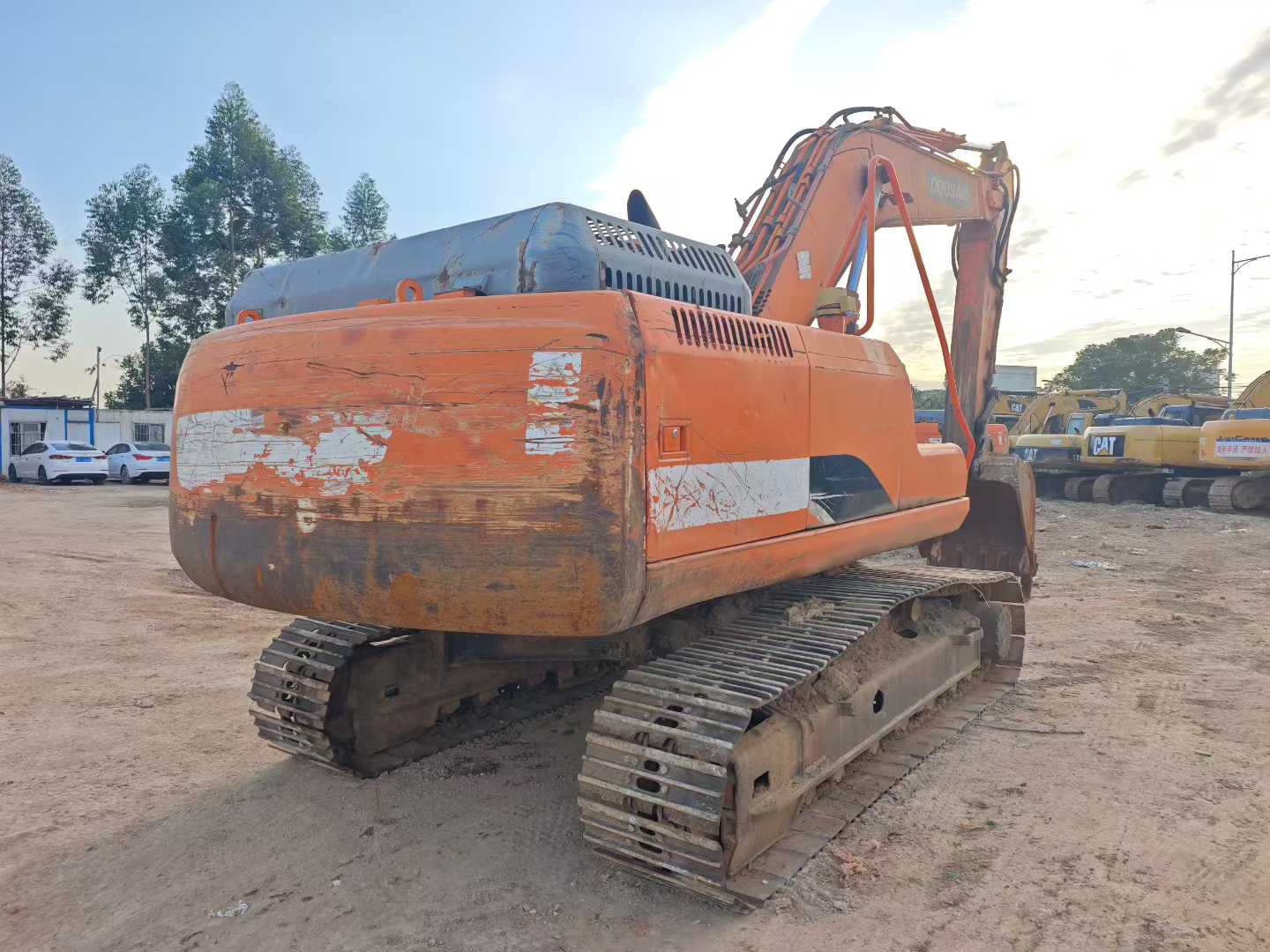

Used Doosan DX215-9C Excavator 2014 Model / 3

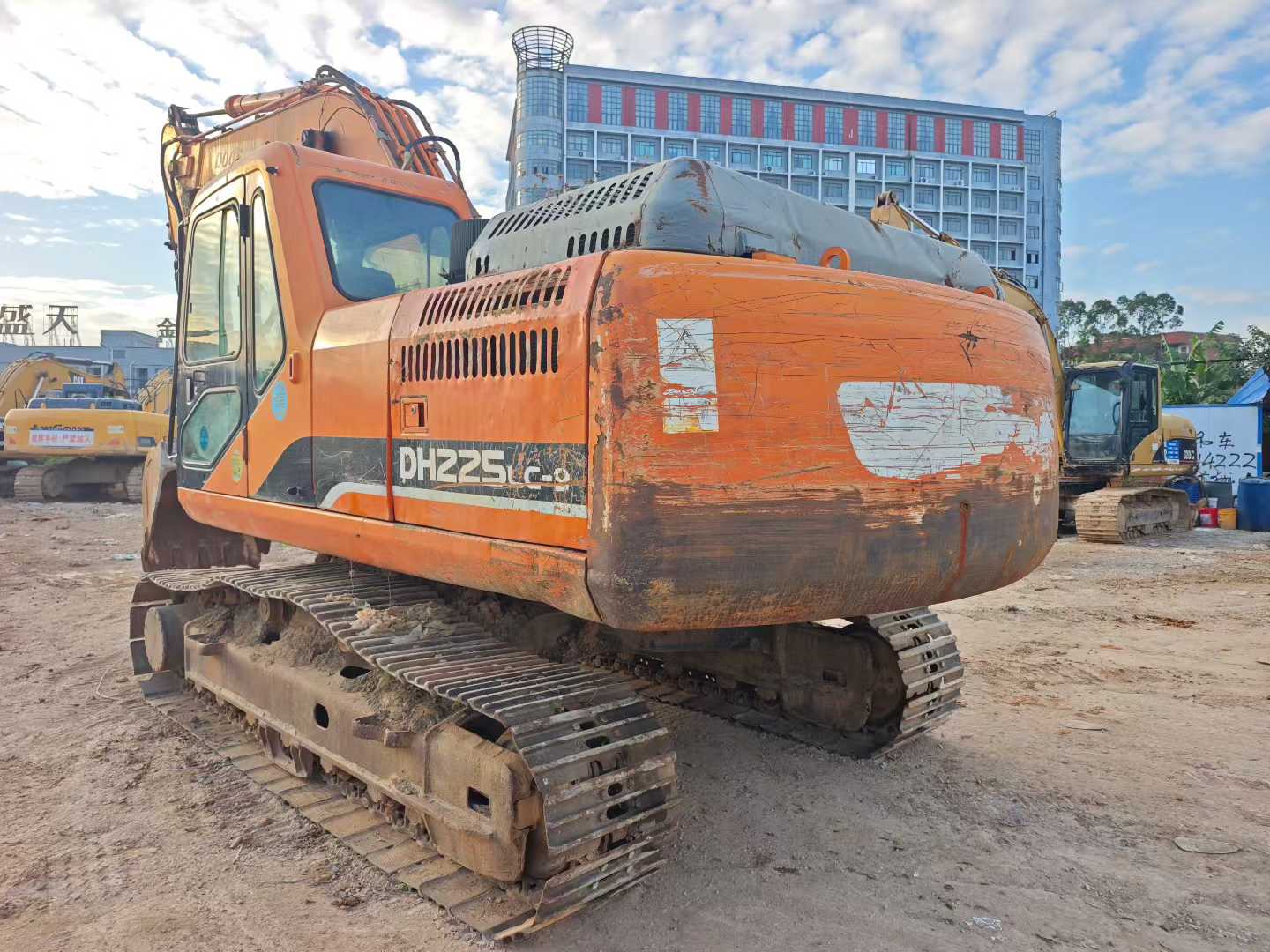

Used Doosan DX215-9C Excavator 2014 Model / 4

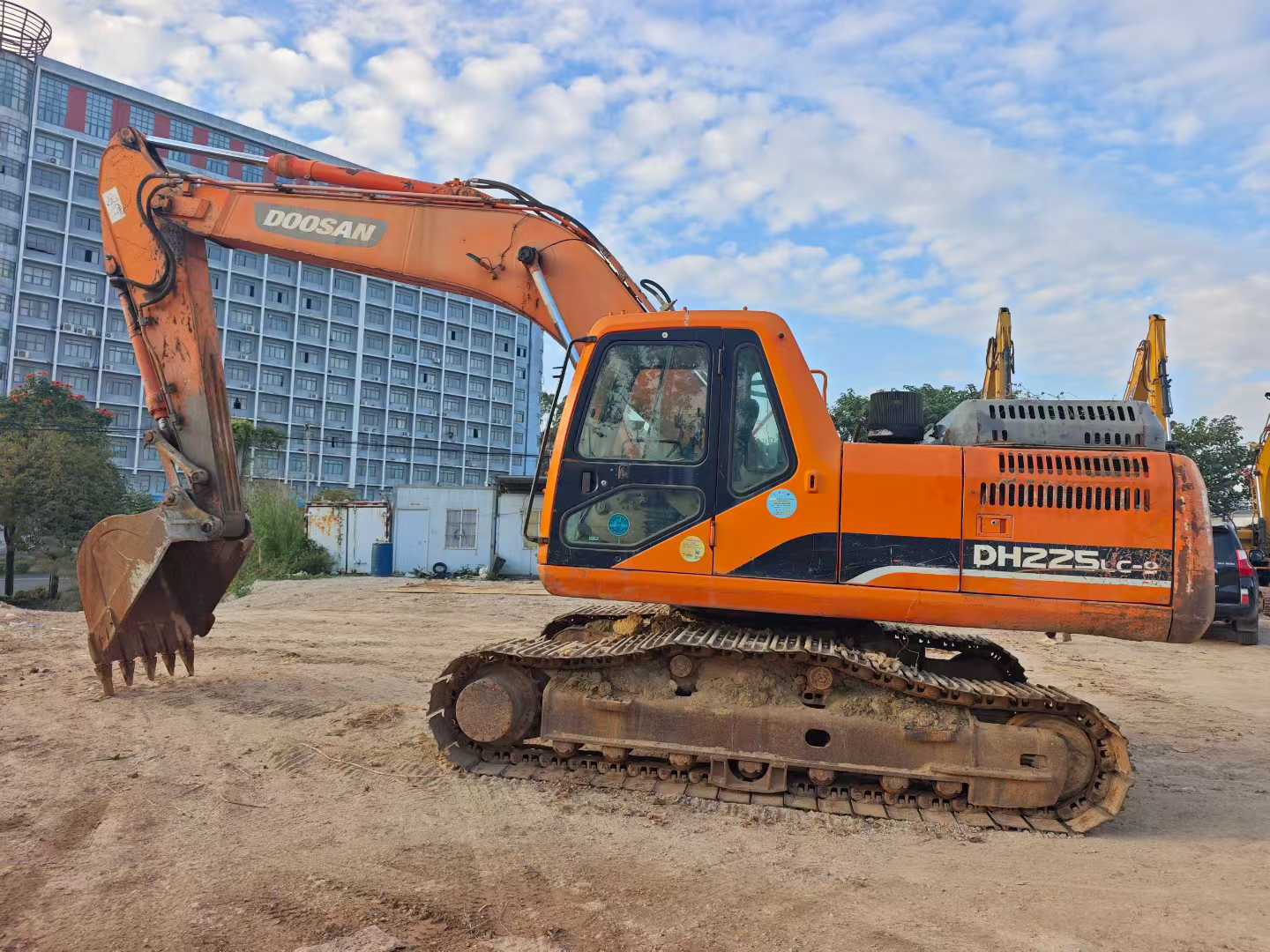

Used Doosan DX215-9C Excavator 2014 Model / 5

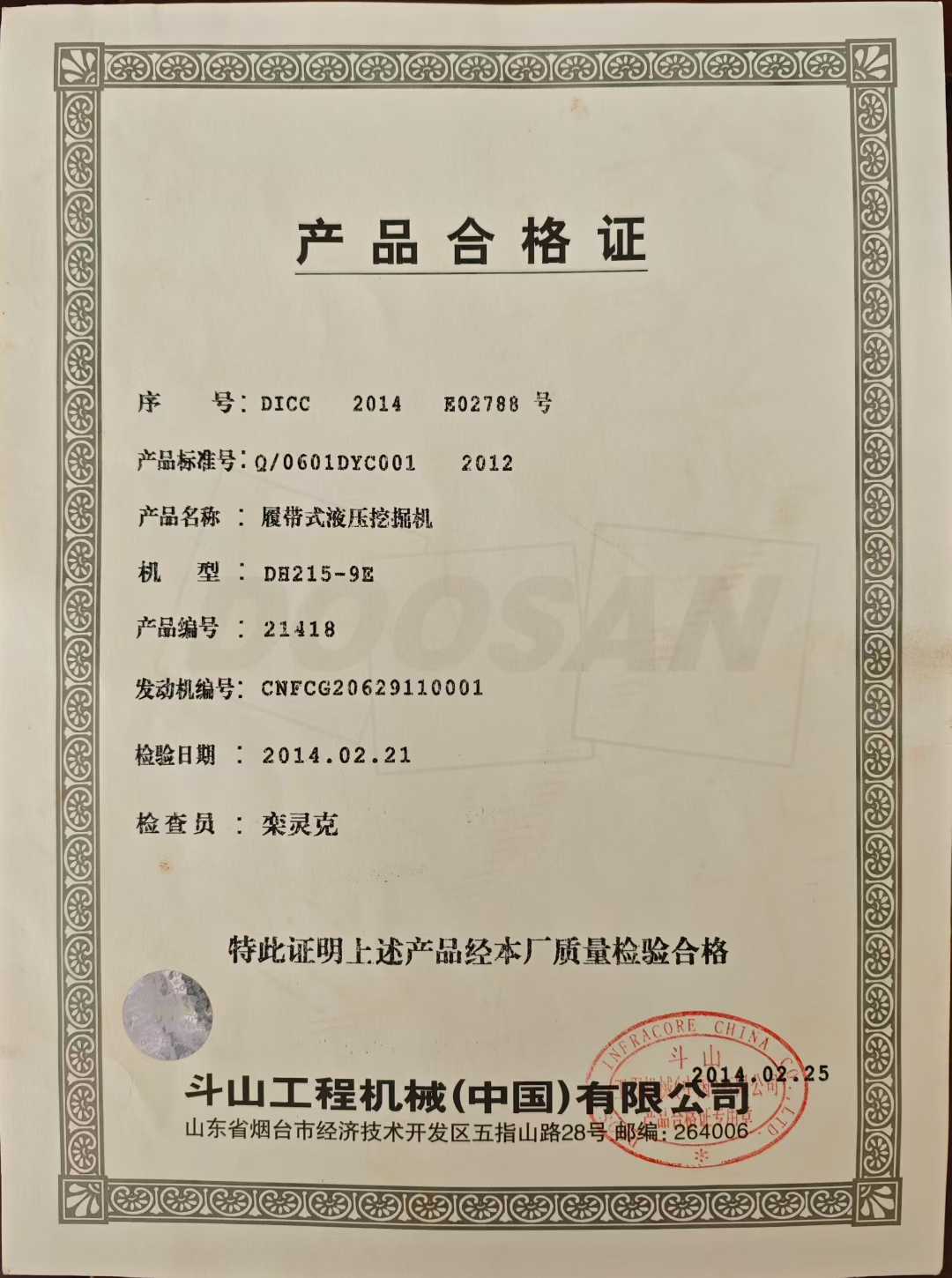

Used Doosan DX215-9C Excavator 2014 Model / 6
Used Doosan DX215-9C Excavator 2014 Model / 7
Used Doosan DX215-9C Excavator 2014 Model / 8
Used Doosan DX215-9C Excavator 2014 Model / 9

Product Description

【 Premium Recommendation 】 Doosan DH215-9C second-hand excavator from 2014, the Best choice for Value for money! This Doosan DH215-9C excavator has been working hard at the construction site since 2014, with a cumulative working time of approximately 6,000 hours. It is equipped with a powerful power system and an efficient hydraulic system, ensuring stability and reliability under various complex working conditions. The engine adopts the well-tested Doosan brand, which not only has strong power and low fuel consumption, but also has relatively low maintenance costs, making it very suitable for long-term high-intensity operations. In terms of the hydraulic system, this machine is equipped with an advanced load sensing control system, which can automatically adjust the oil volume according to the actual working load, thereby achieving the purpose of energy conservation and consumption reduction. Meanwhile, its precise operation response and smooth movement transition enable operators to easily complete fine excavation tasks and improve work efficiency. The appearance of this machine is well preserved. The main components such as the engine, pump and valve are all in good condition, with no obvious wear or damage. After professional te

SpecificationsValue
No.967674
Tonnage (tons)21
Working weight (kg)20600
Bucket capacity (m³)0.92
Boom length (mm)5700
Rod length (mm)2900
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeDL06
Rated power (kw/rpm)115/1900
Cylinder diameter × stroke (mm)100 x 125
Number of cylinders (PCS)6
Ground specific pressure (Kpa)45.8
Rotation speed (rpm)9.8
Bucket digging force (kN)136.2
Rod digging force (kN)98
Travel speed (km/h)5.3 / 2.9
Maximum flow of main pump (l/min)2 x 191
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)26.5
Main pump typeVariable piston pump
Working Hydraulic Circuit (Mpa)34.3
Pilot pump flow (L/min)32
Bucket cylinders - Number × diameter × stroke (mm)1-115*80*1060
Bucket rod cylinders - Number × diameter × stroke (mm)1-135*95*1450
Boom cylinders - Number × diameter × stroke (mm)2-120*85*1263
Fuel Tank (L)400
Hydraulic Tank (L)195
Engine Oil changes (L)27
Total transport length (mm)9506
Total transport width (mm)2800
Total transport height (mm)2891
Full cab height (mm)2985
Counterweight ground clearance (mm)1096
Minimum ground clearance (mm)475
Minimum turning radius of front working device (mm)3560
Back end turning radius (mm)2794
Onboard width (mm)2709
Total track length (mm)4060
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3610
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)45
Maximum digging radius (mm)9873
Maximum digging depth (mm)6592
Maximum excavation height (mm)9616
Maximum unloading height (mm)6830
Maximum vertical digging depth (mm)3929
Maximum excavation radius of stop surface (mm)9699
Maximum effective digging depth (mm)6411
see more

Overview

No.967674

Brand Name:

Doosan

Model Number:

DX215-9C

Year:

2014

Location:

Guangxi China
