2014 Doosan DX380LC

1/9
Used Doosan DX380LC Excavator 2014 Model / 1

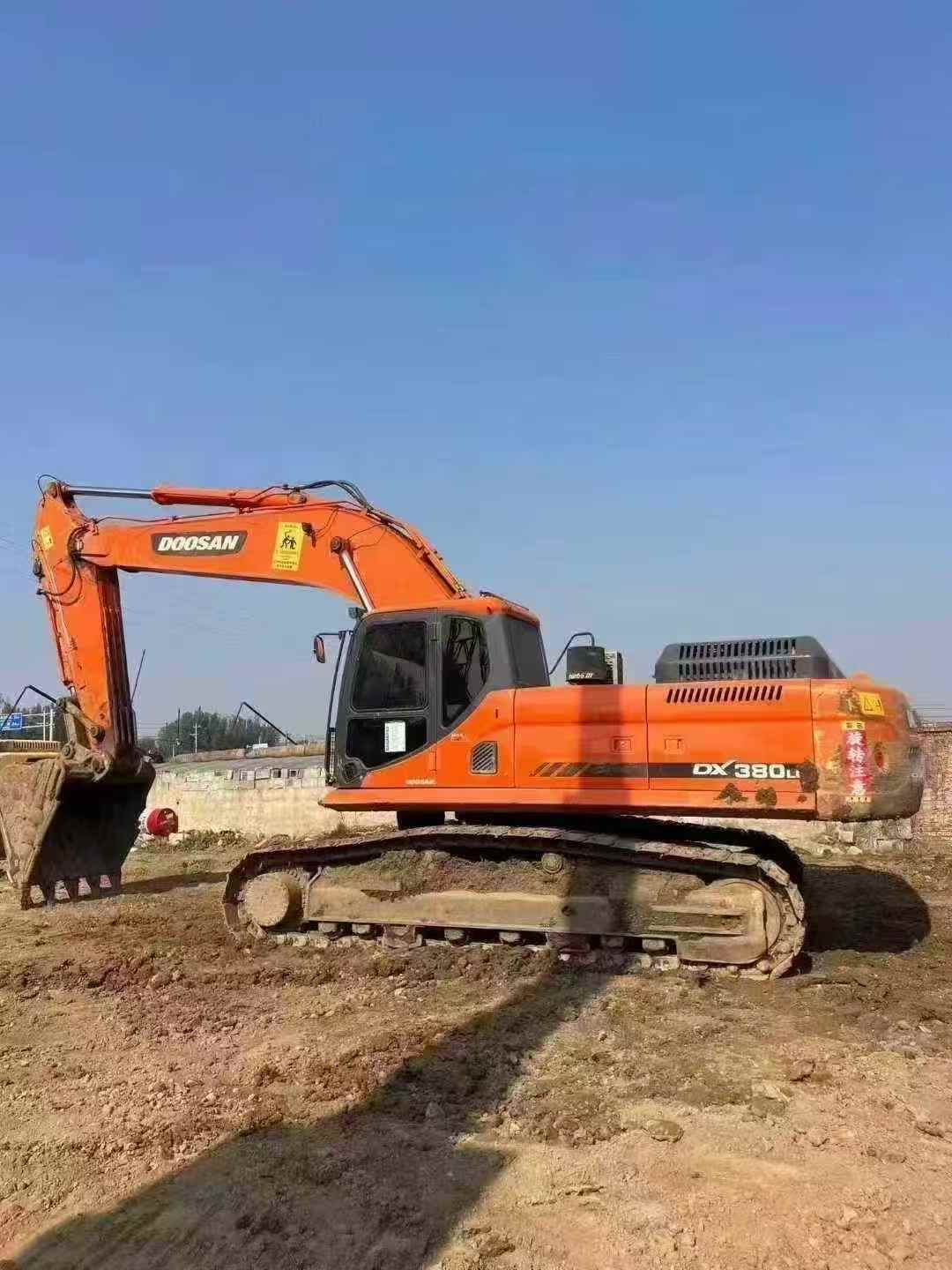

Used Doosan DX380LC Excavator 2014 Model / 2

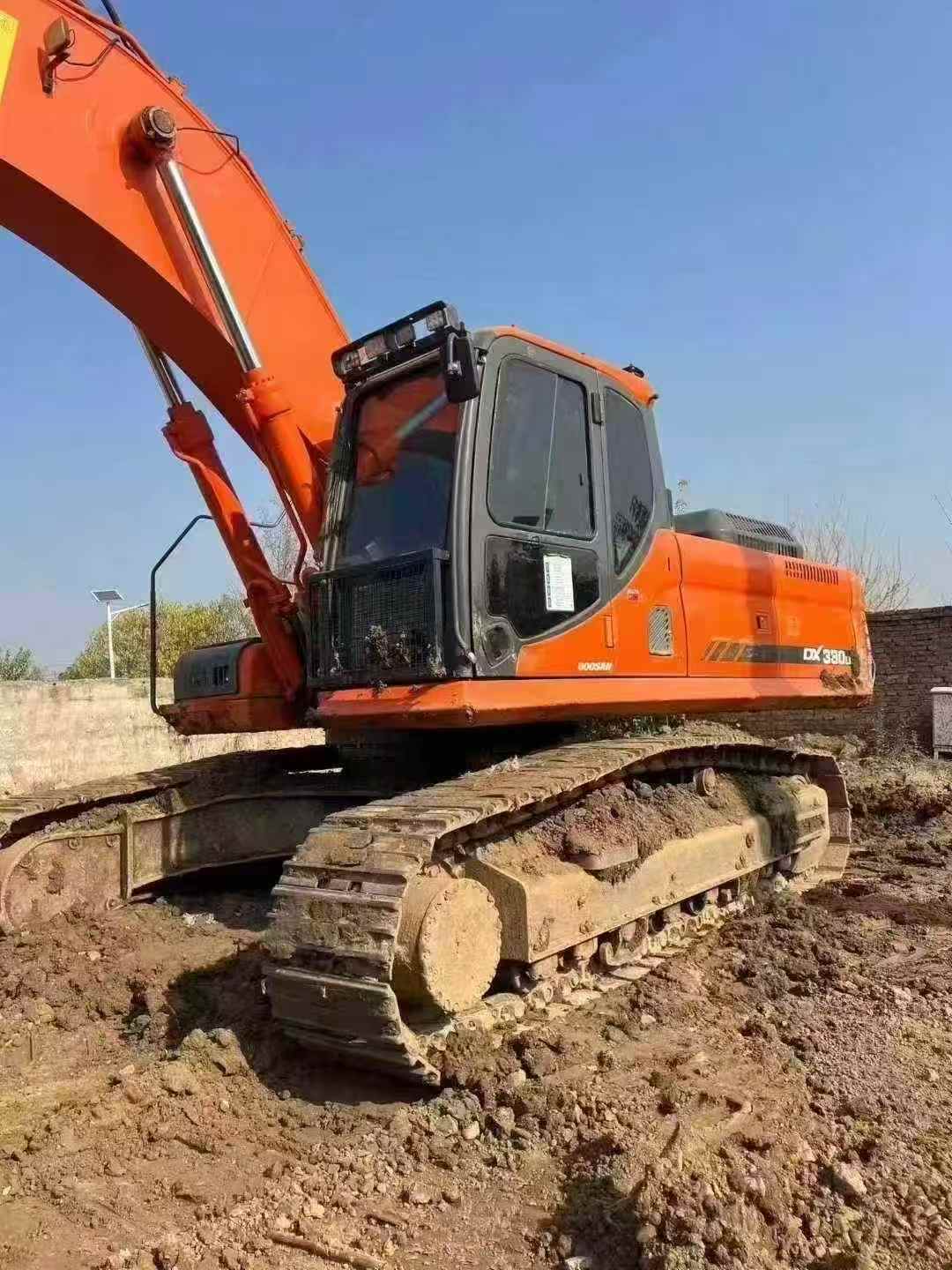

Used Doosan DX380LC Excavator 2014 Model / 3

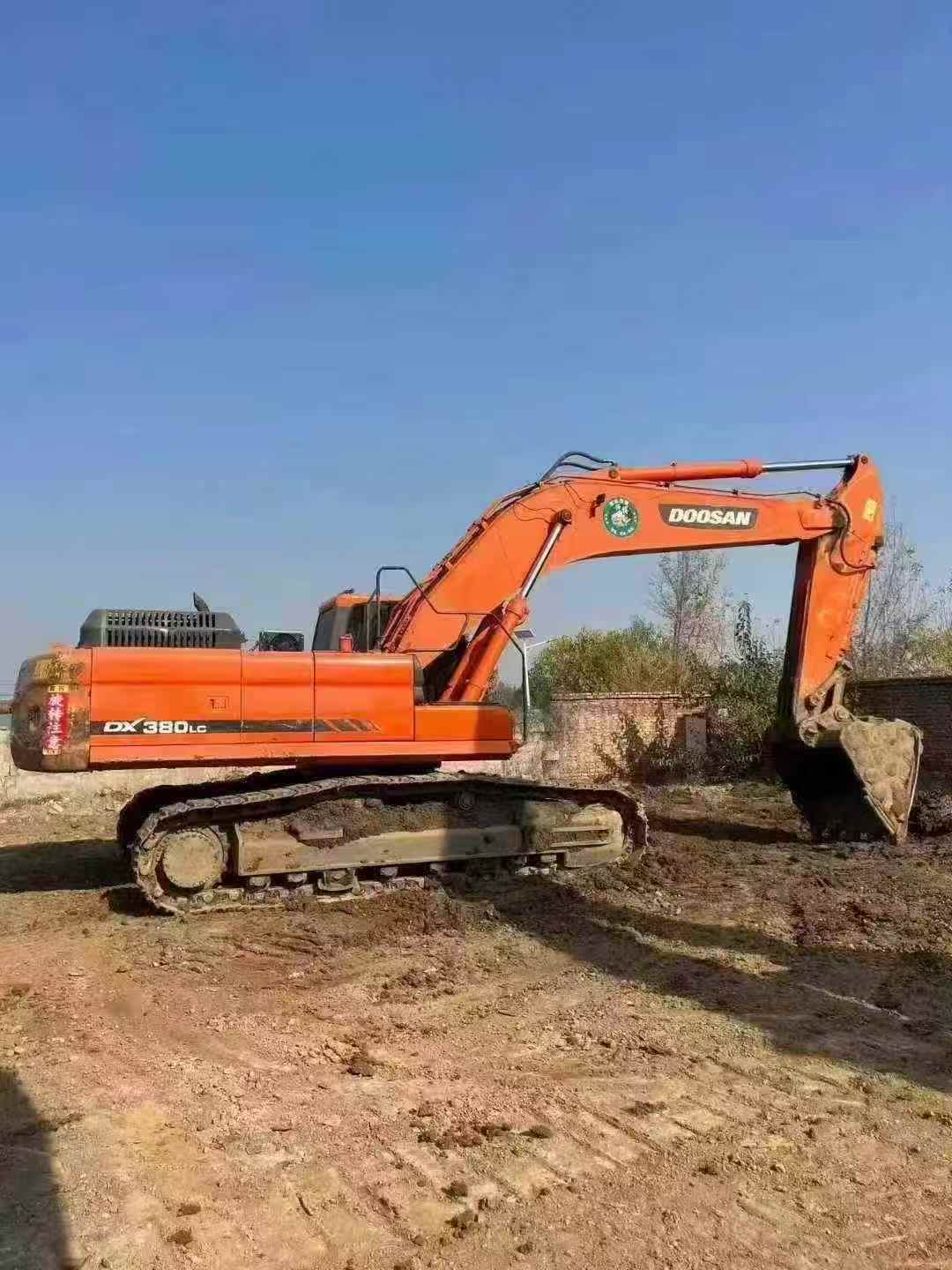

Used Doosan DX380LC Excavator 2014 Model / 4

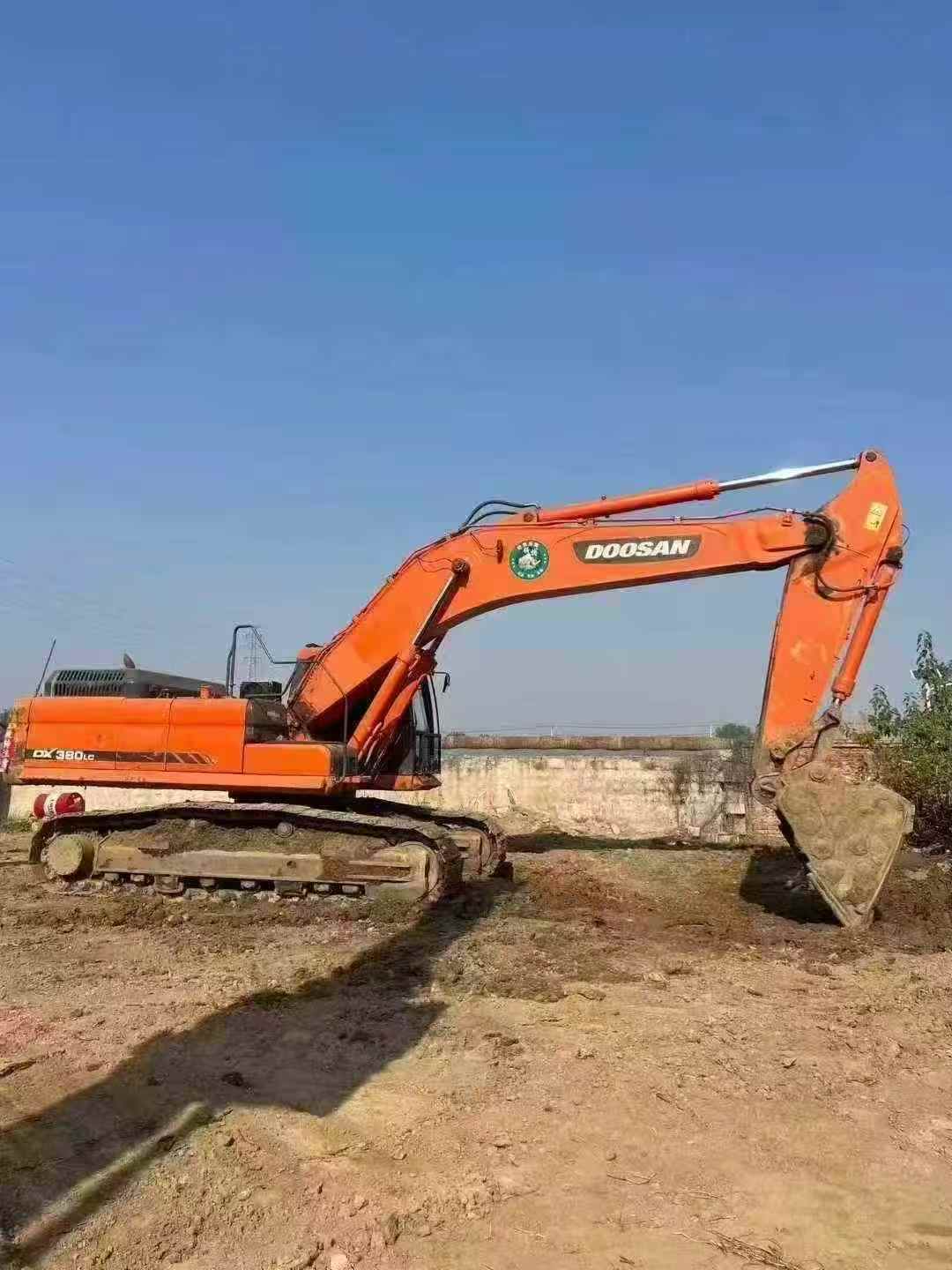

Used Doosan DX380LC Excavator 2014 Model / 5

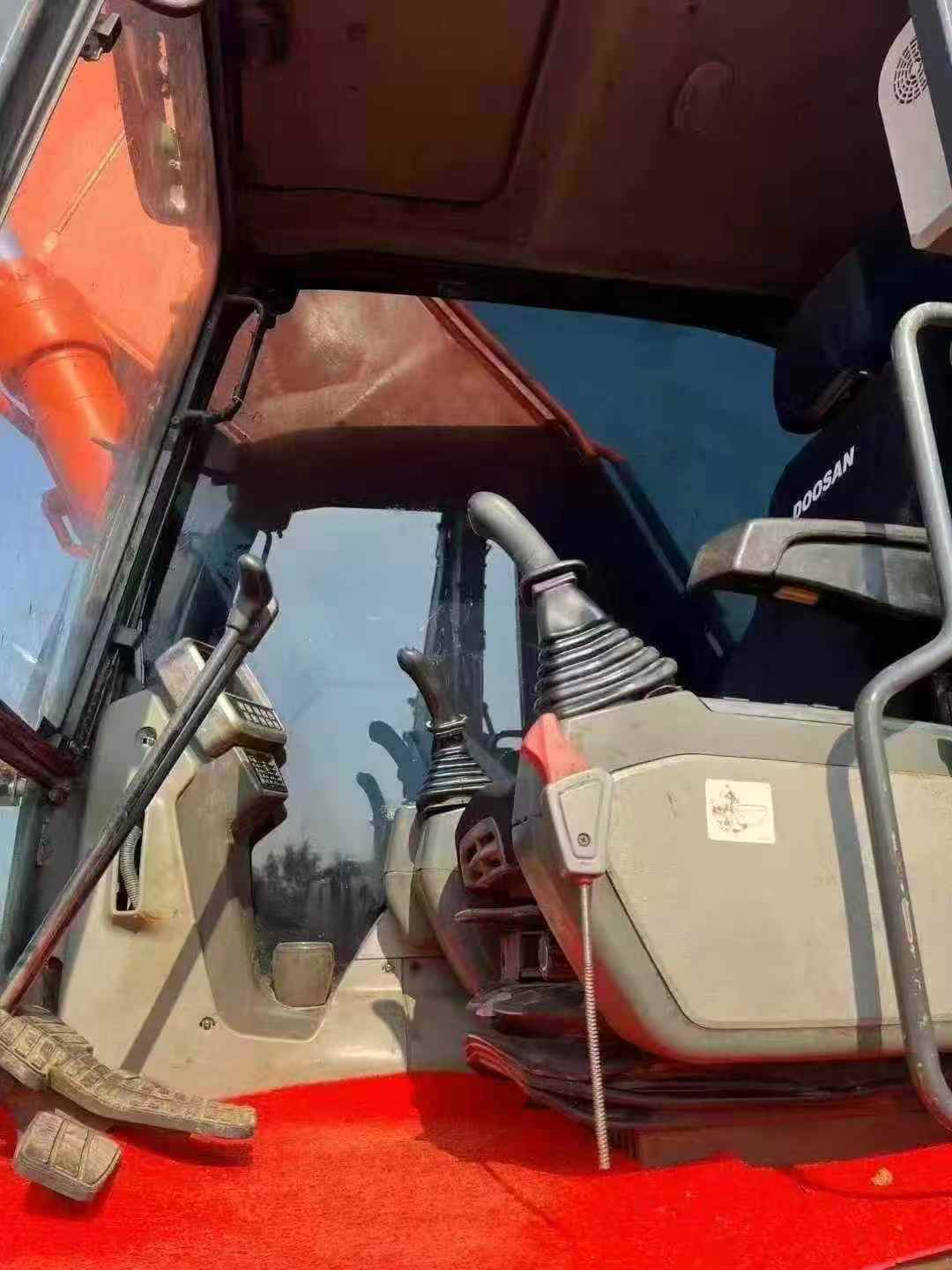

Used Doosan DX380LC Excavator 2014 Model / 6

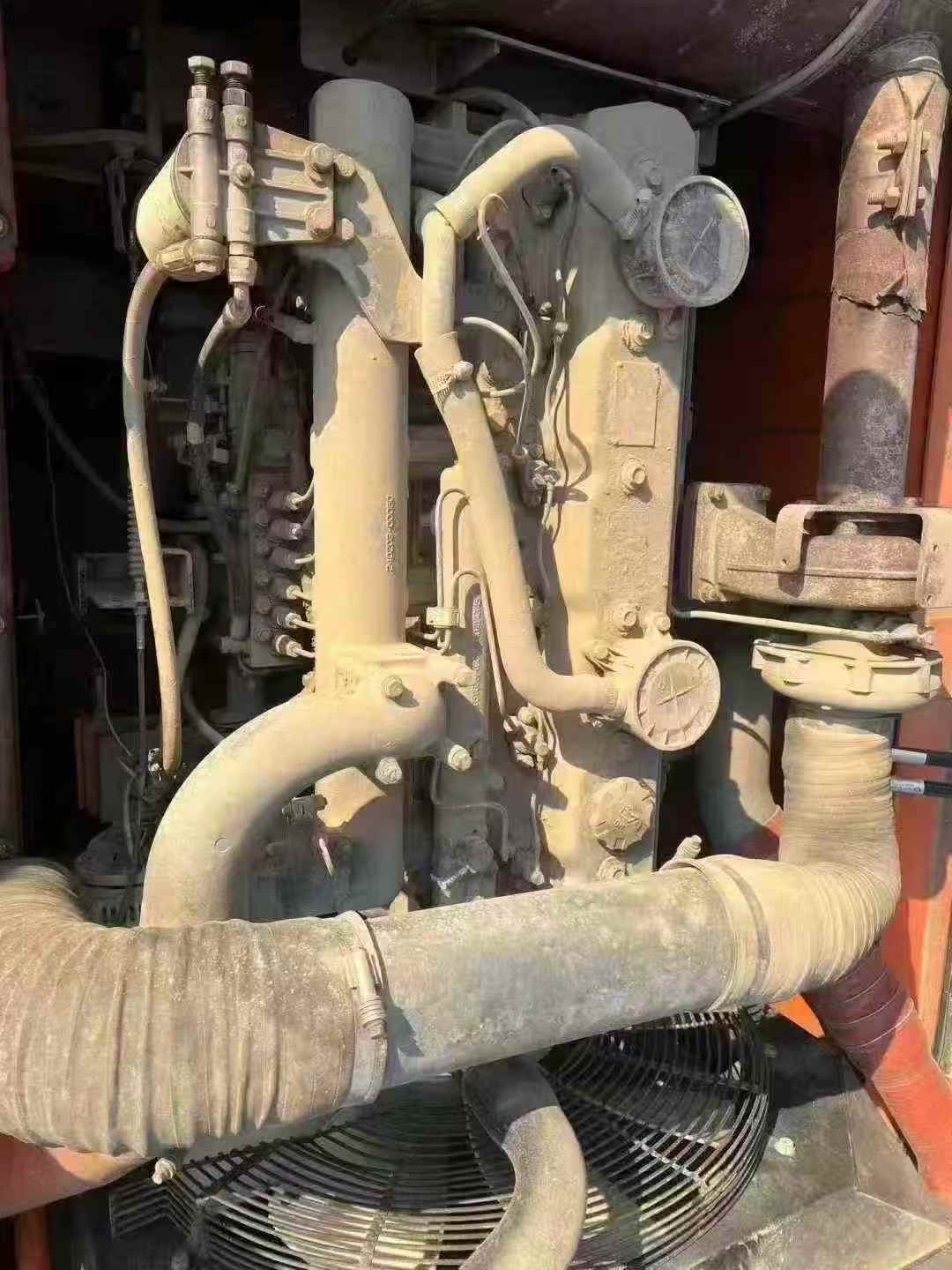

Used Doosan DX380LC Excavator 2014 Model / 7

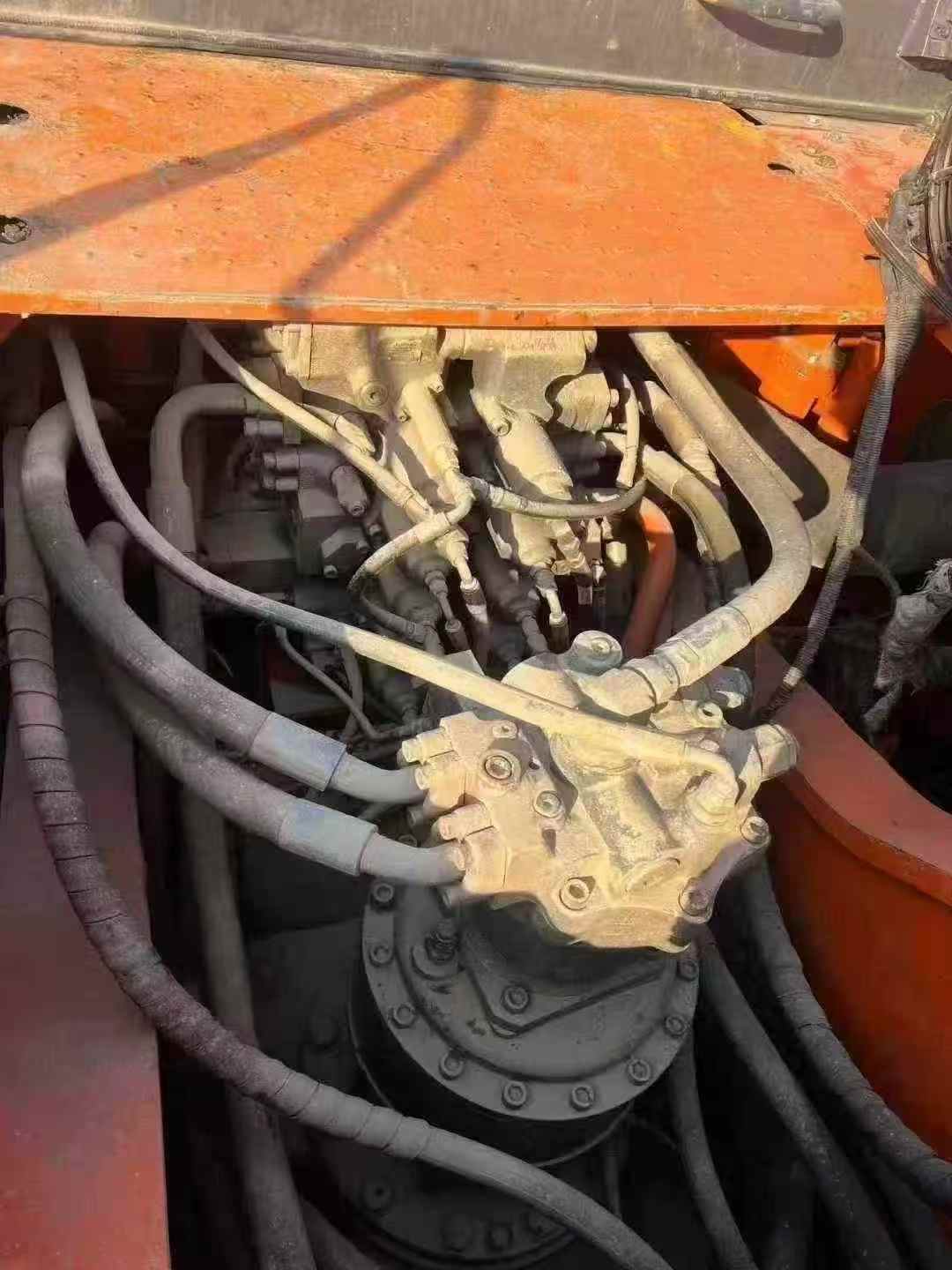

Used Doosan DX380LC Excavator 2014 Model / 8

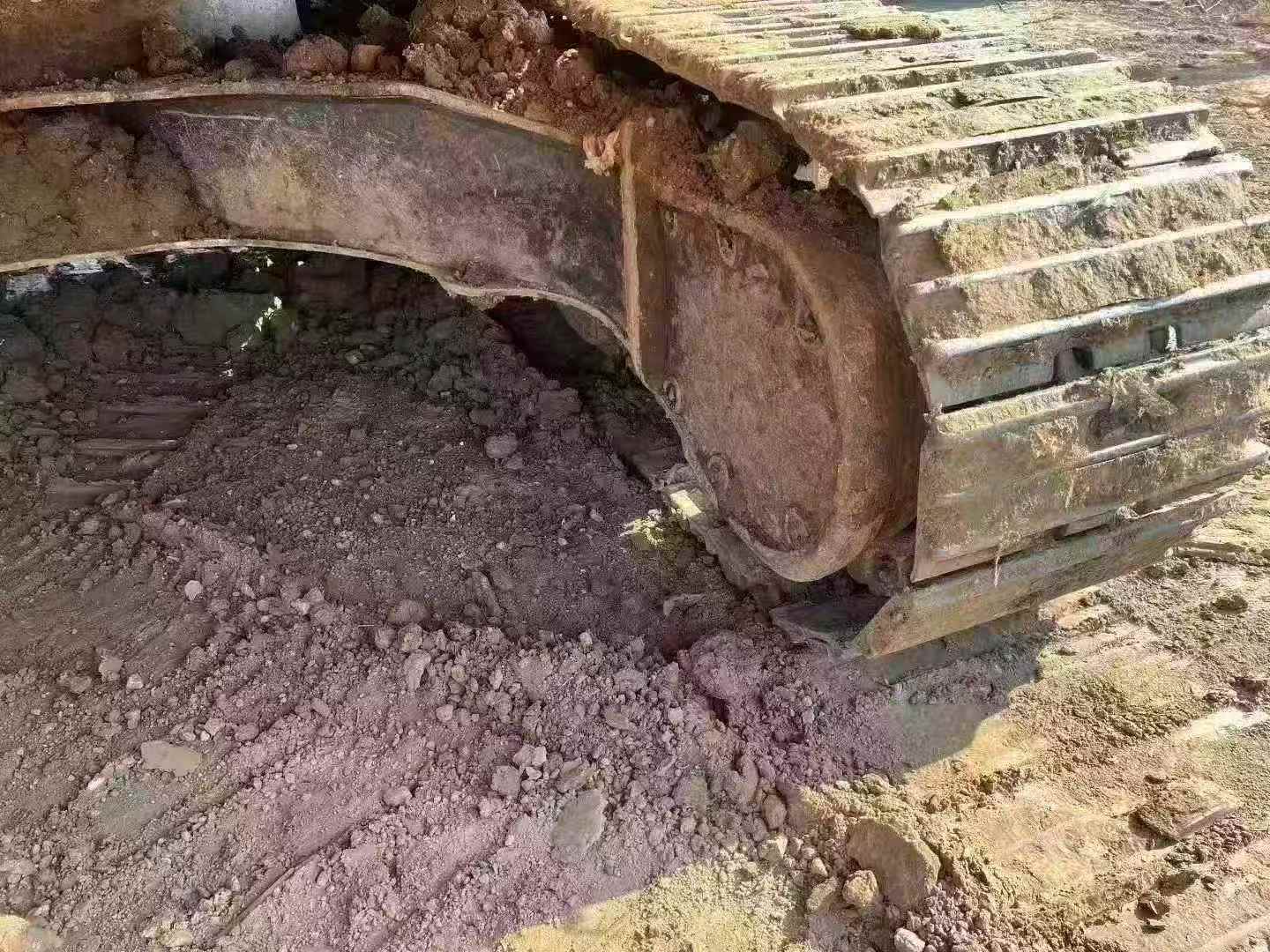

Used Doosan DX380LC Excavator 2014 Model / 9

Product Description

【 Premium Recommendation 】 This Doosan DX380LC excavator from 2014 is a rare and high-quality second-hand device in the market. Not only is its lifespan guaranteed, but its overall condition is also excellent, making it highly suitable for users who pursue high cost performance and reliable performance. Since its purchase, this excavator has mainly been used in personal engineering projects, with a working time of only about 6,000 hours, which is far lower than the average usage time of similar models. This means that its main components are still in the best working condition. In terms of the power system, this DX380LC is equipped with an efficient and reliable engine, ensuring strong and stable power output. It can handle both hard rocks and soft soil with ease. More importantly, when maintained properly on a daily basis, its fuel efficiency is also quite excellent, which can effectively reduce operating costs. The hydraulic system also performs exceptionally well, adopting advanced hydraulic technology, with rapid response and precise control, making the operation more smooth and effortless. In addition, thanks to regular professional maintenance, there is almost no leakage in the entire hydraulic system, ensuring the long-term st

SpecificationsValue
No.970393
Tonnage (tons)38
Working weight (kg)38100
Bucket capacity (m³)1.4 ~ 1.9
Boom length (mm)6500
Rod length (mm)2900
Country of originYantai, China
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeDE12TIA C2A
Rated power (kw/rpm)202(274) / 1800
Cylinder diameter × stroke (mm)123 x 155
Number of cylinders (PCS)6
Displacement (L)11.05
Working formDirect injection; Turbocharged, air-cooled
Ground specific pressure (Kpa)71.59
Bucket digging force (kN)249
Rod digging force (kN)199
Travel speed (km/h)5.1 / 3.0
Turning torque (Nm)120
Rotary hydraulic motor typeAxial plunger type ×1
Type of walking hydraulic motorAxial plunger type x 2
Maximum flow of main pump (l/min)2 x 279
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)29.4
Main pump typeVariable piston pump
Working Hydraulic Circuit (Mpa)34.3
Bucket cylinders - Number × diameter × stroke (mm)1 x 150 x 1290
Bucket rod cylinders - Number × diameter × stroke (mm)1 x 170 x 1812
Boom cylinders - Number × diameter × stroke (mm)2 x 150 x 1430
Fuel Tank (L)610
Hydraulic Tank (L)206
Engine Oil changes (L)28
Total transport length (mm)11380
Total transport width (mm)3350
Total transport height (mm)3740(to top of arm)
Full cab height (mm)3150
Counterweight ground clearance (mm)1265
Minimum ground clearance (mm)545
Minimum turning radius of front working device (mm)4485
Back end turning radius (mm)3530
Total track length (mm)4975
Track plate width (mm)600
Total track width (mm)3350
Maximum digging radius (mm)10850
Maximum digging depth (mm)7120
Maximum excavation height (mm)10150
Maximum unloading height (mm)7195
Maximum vertical digging depth (mm)3755
Maximum excavation radius of stop surface (mm)10635
Maximum effective digging depth (mm)6925
see more

Overview

No.970393

Brand Name:

Doosan

Model Number:

DX380LC

Year:

2014

Location:

Hebei China
