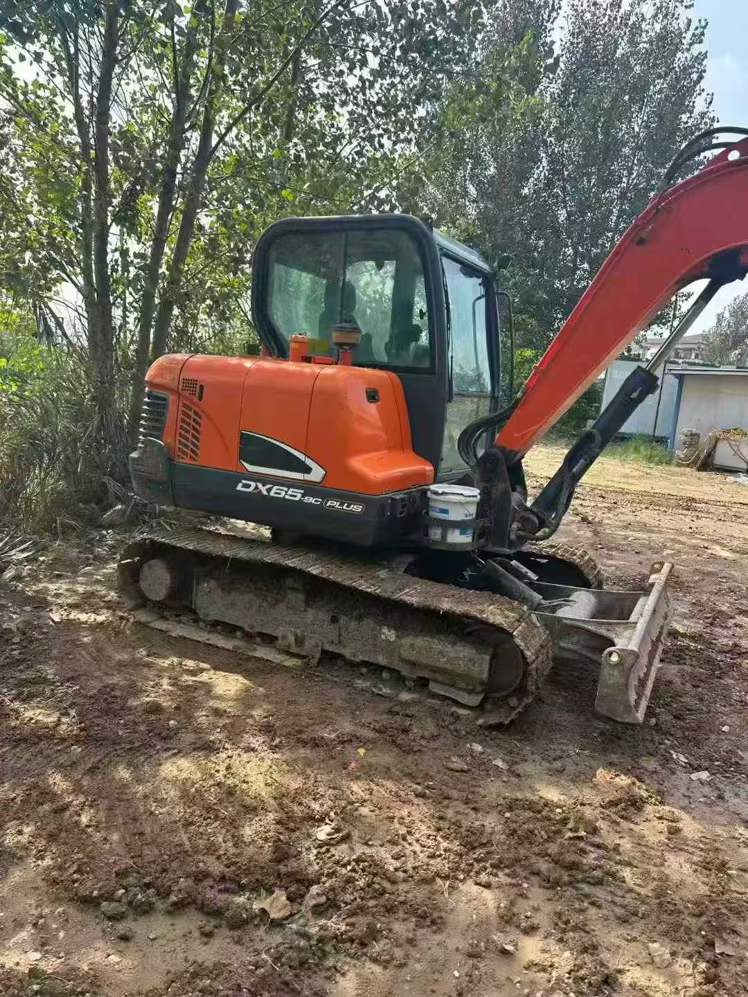

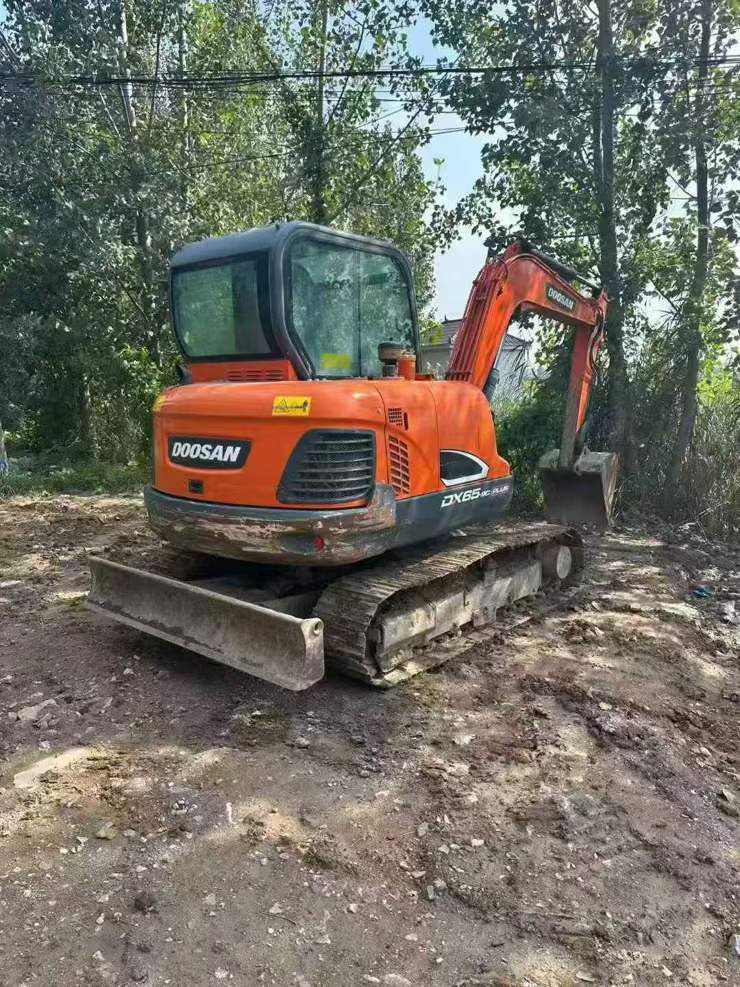

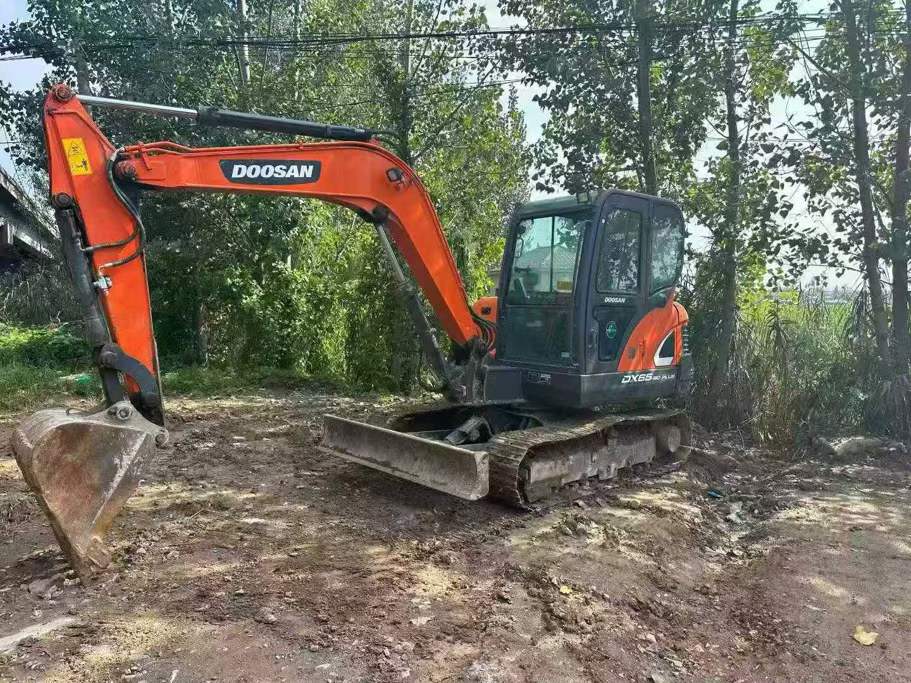

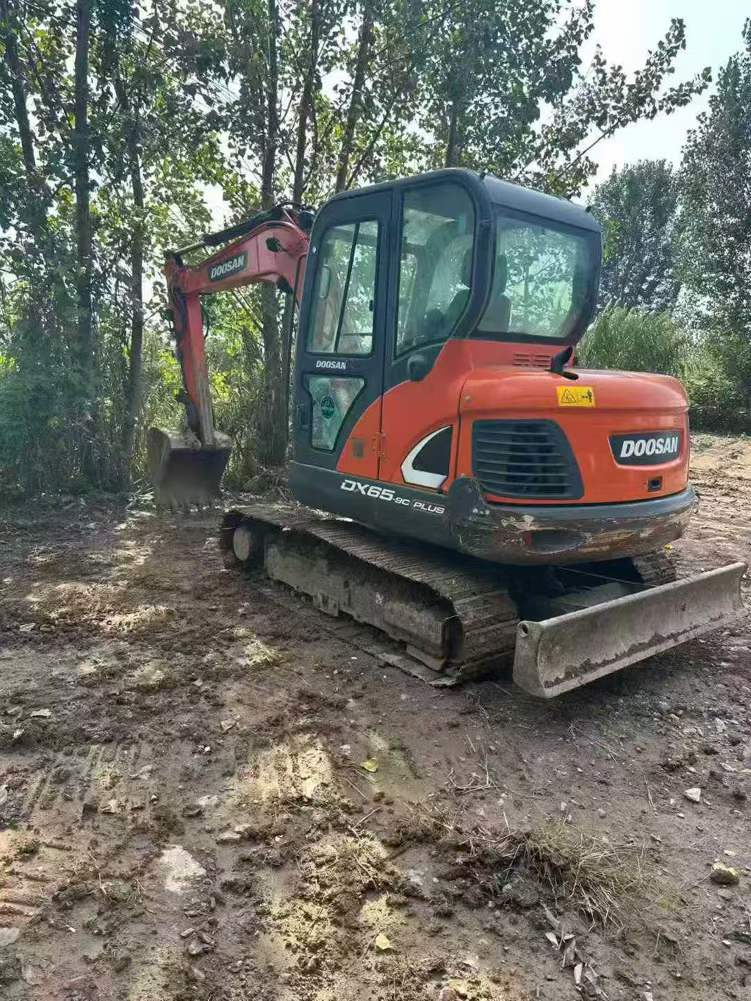

2019 Doosan DX65-9C PLUS
Product Description
A 2019 Doosan 65plus user's first-hand car, original paint and complete procedures
| Specifications | Value |
|---|---|
| No. | 943629 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5730 |
| Bucket capacity (m³) | 0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

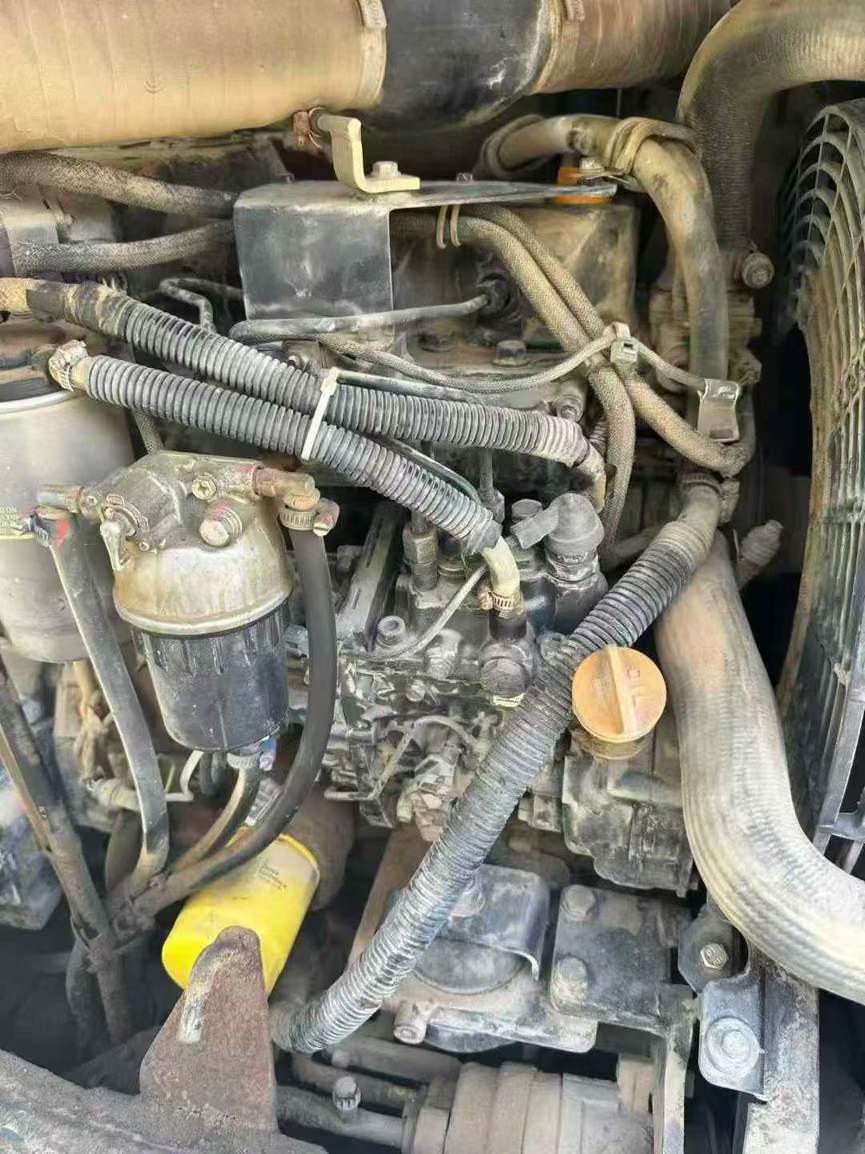

| Engine type | 4TNV98L |
| Rated power (kw/rpm) | 39/2200 |
| Cylinder diameter × stroke (mm) | 98*110 |
| Number of cylinders (PCS) | 4 |
| Rotation speed (rpm) | 9 |
| Bucket digging force (kN) | 41.2 |
| Rod digging force (kN) | 27.4 |
| Travel speed (km/h) | 4.16 / 2.3 |
| Maximum flow of main pump (l/min) | 2 x 57.8 |

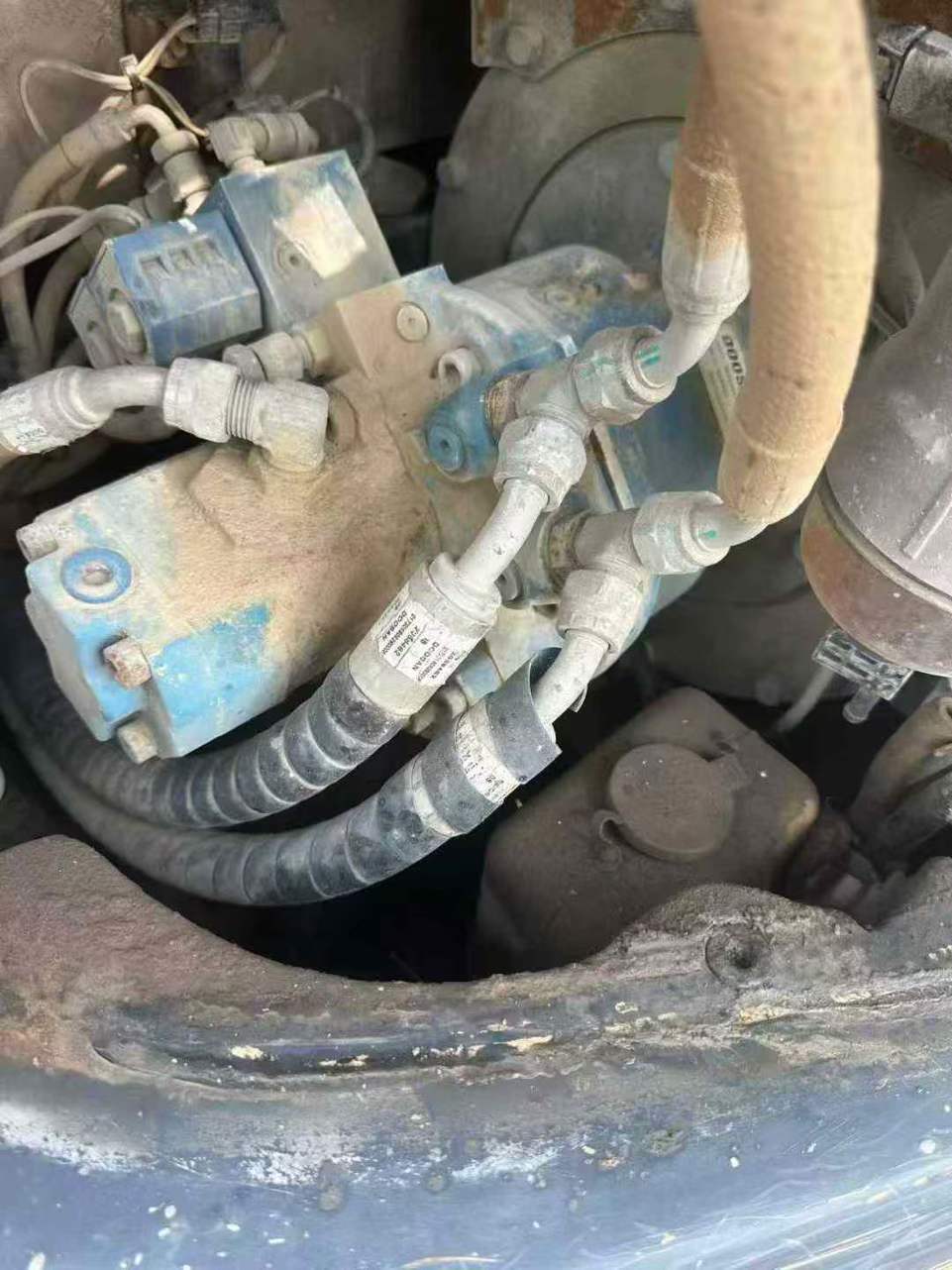

| Main pump type | Variable piston pump |
| Fuel Tank (L) | 115 |
| Hydraulic Tank (L) | 62 |
| Total transport length (mm) | 5870 |
| Total transport width (mm) | 2000 |
| Total transport height (mm) | 2565 |
| Counterweight ground clearance (mm) | 700 |
| Minimum ground clearance (mm) | 350 |
| Back end turning radius (mm) | 1660 |
| Total track length (mm) | 2540 |
| Track plate width (mm) | 400 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 40 |
| Maximum digging radius (mm) | 6136 |
| Maximum digging depth (mm) | 3807 |
| Maximum excavation height (mm) | 5788 |
| Maximum unloading height (mm) | 4064 |
| Maximum vertical digging depth (mm) | 3037 |
| Dodging plate width × height (mm) | 2000*350 |
| Maximum excavation radius of stop surface (mm) | 6000 |
see more
Overview
No.943629
Brand Name：
DoosanModel Number：
DX65-9C PLUSYear：
2019
Location：
Jiangsu China
