Product Description

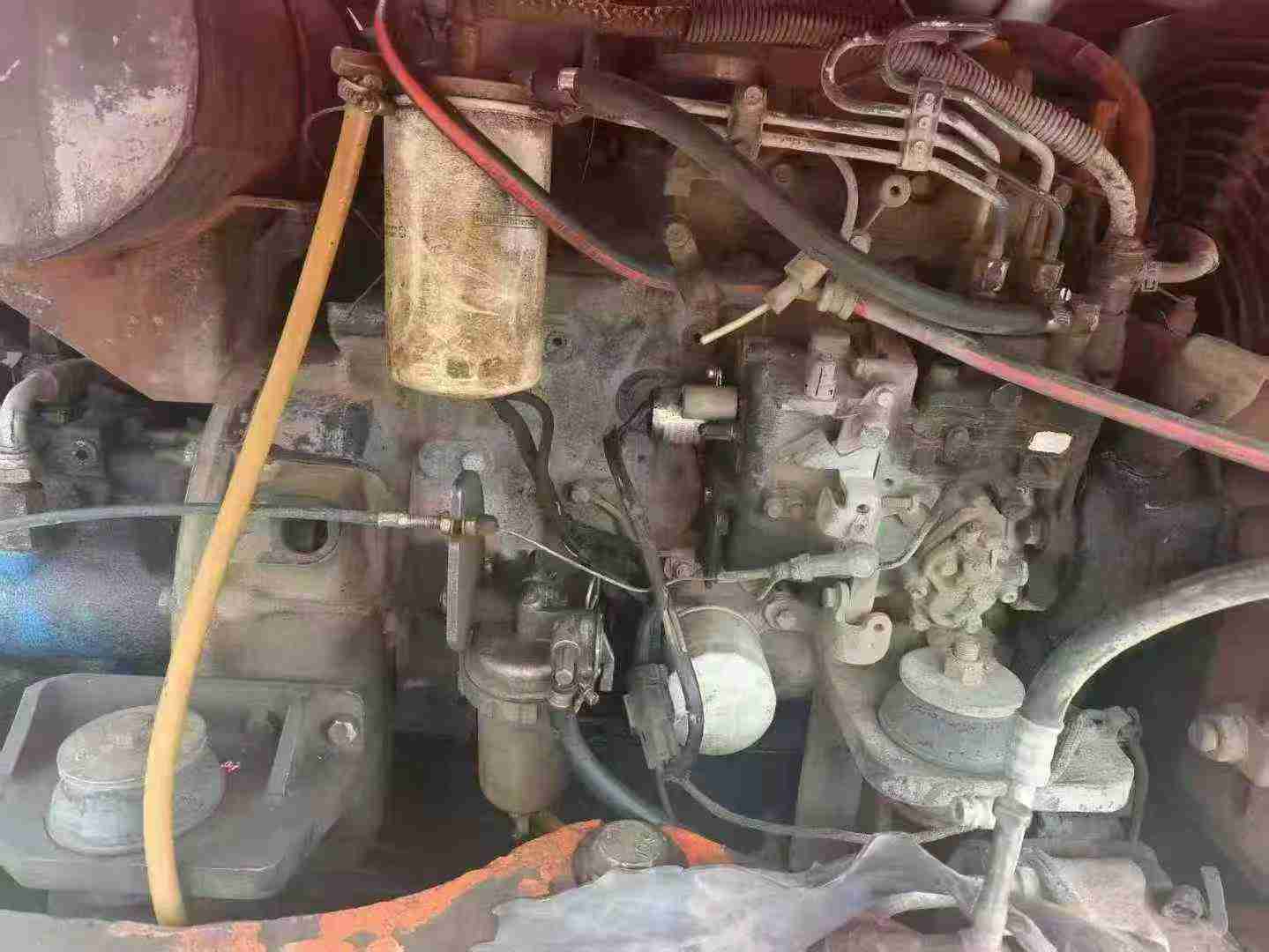

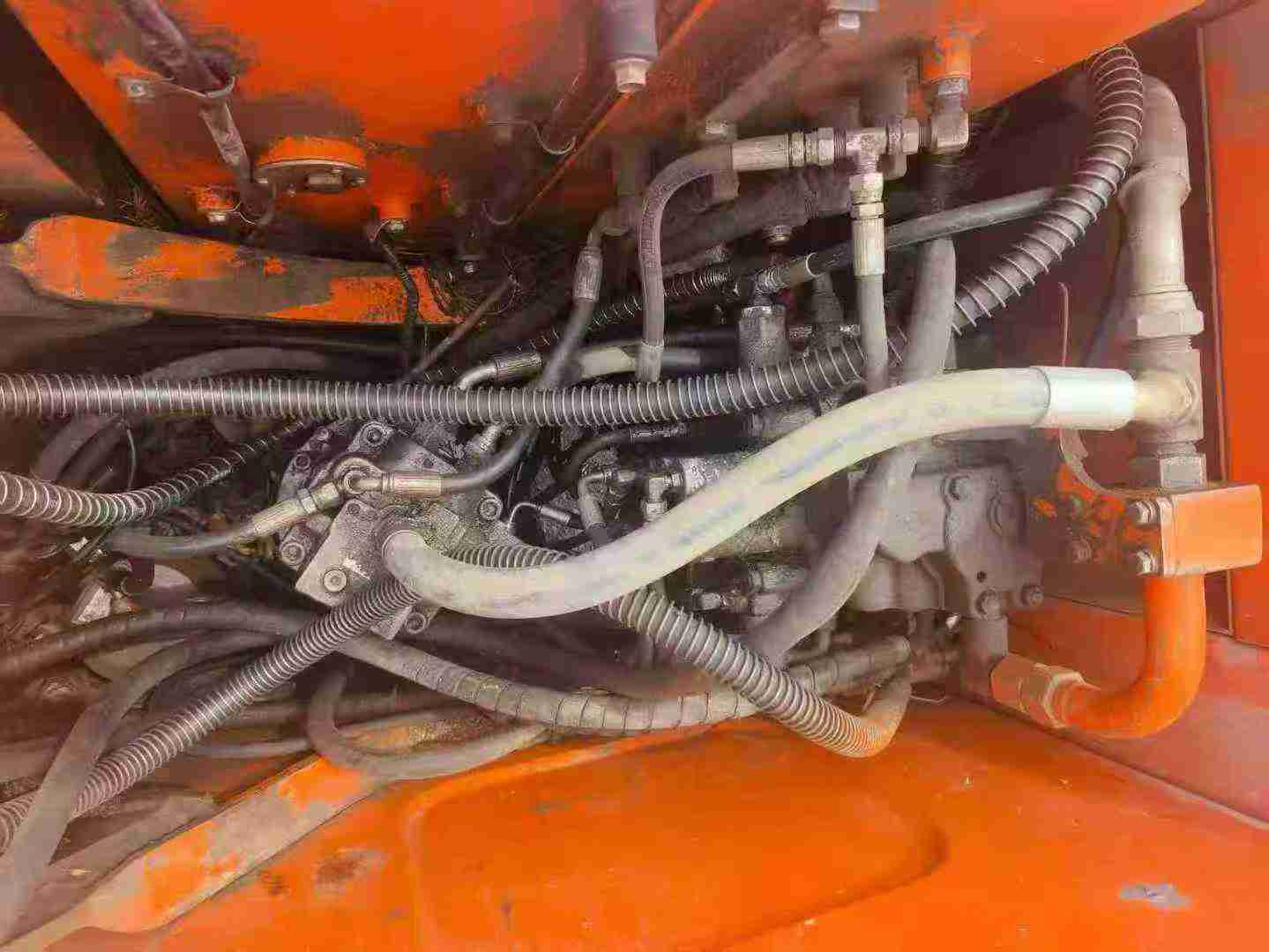

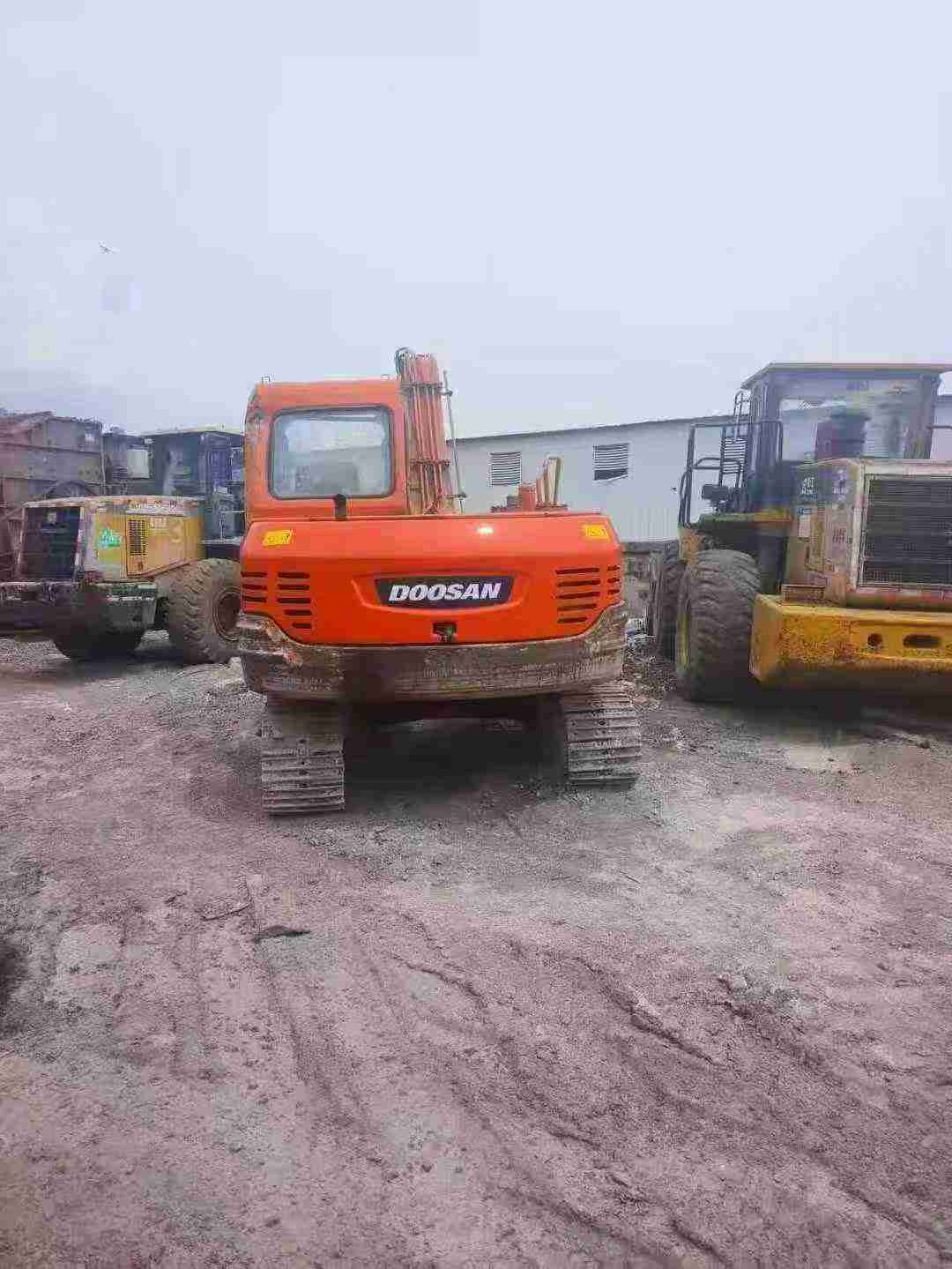

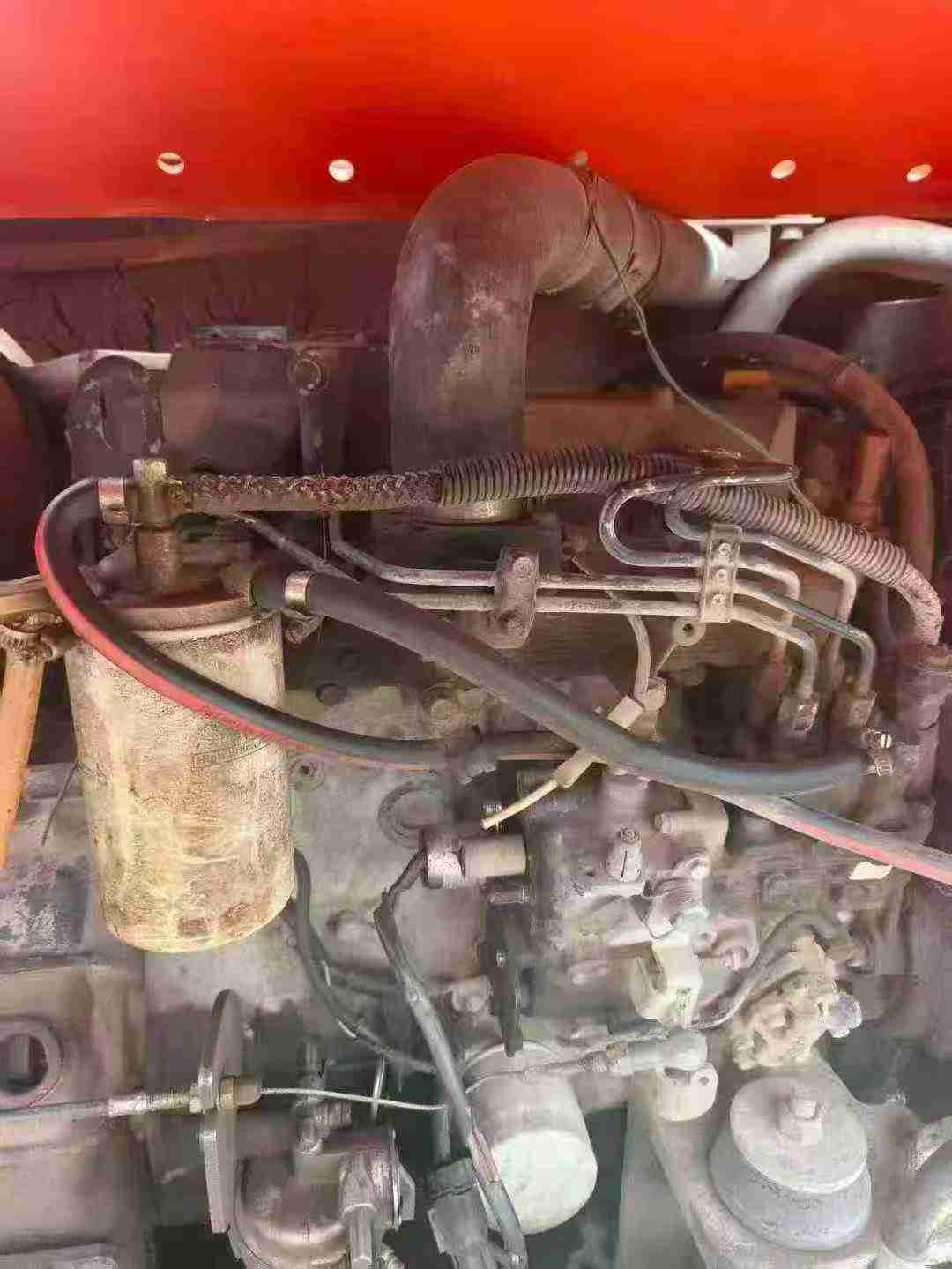

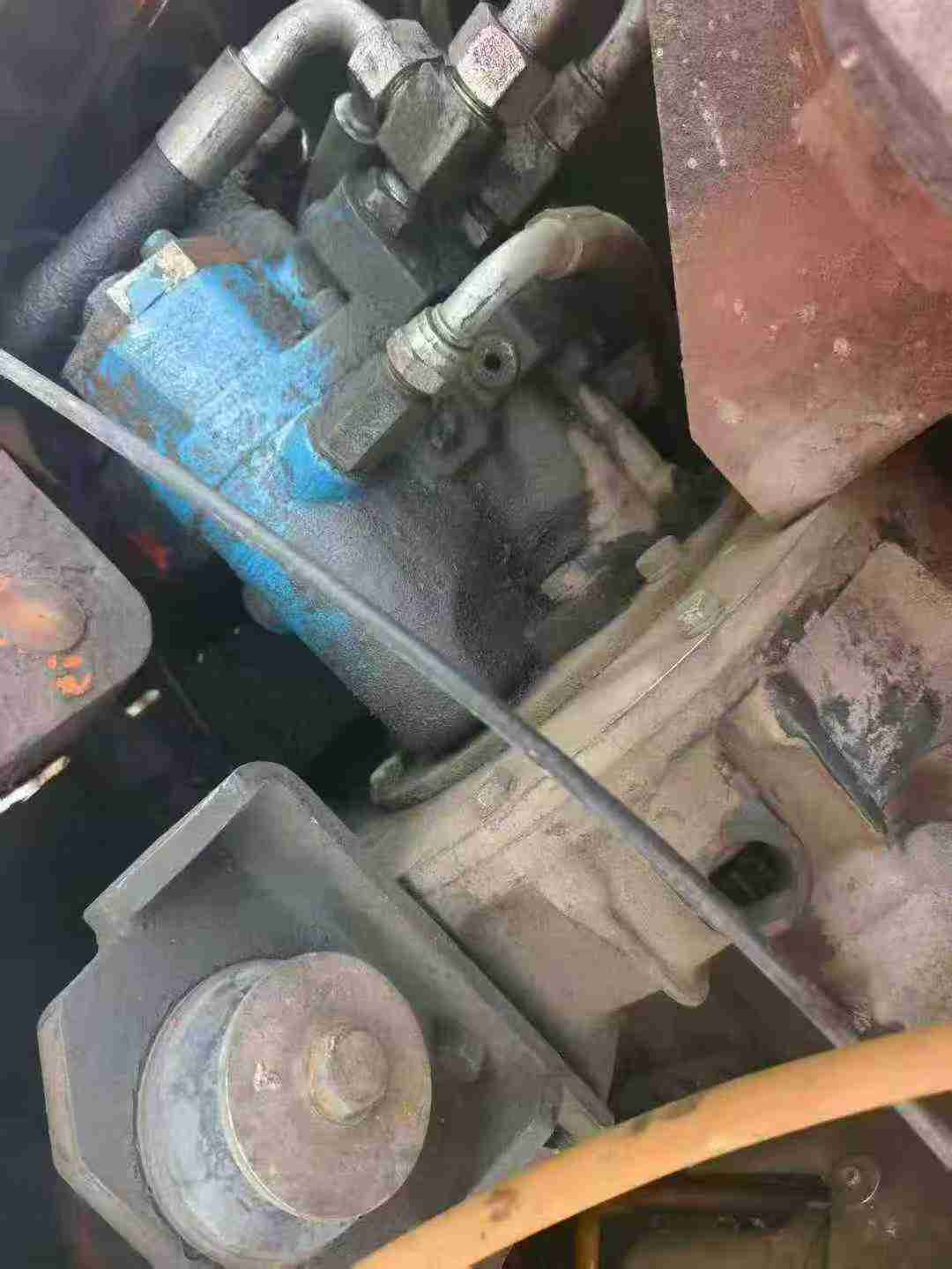

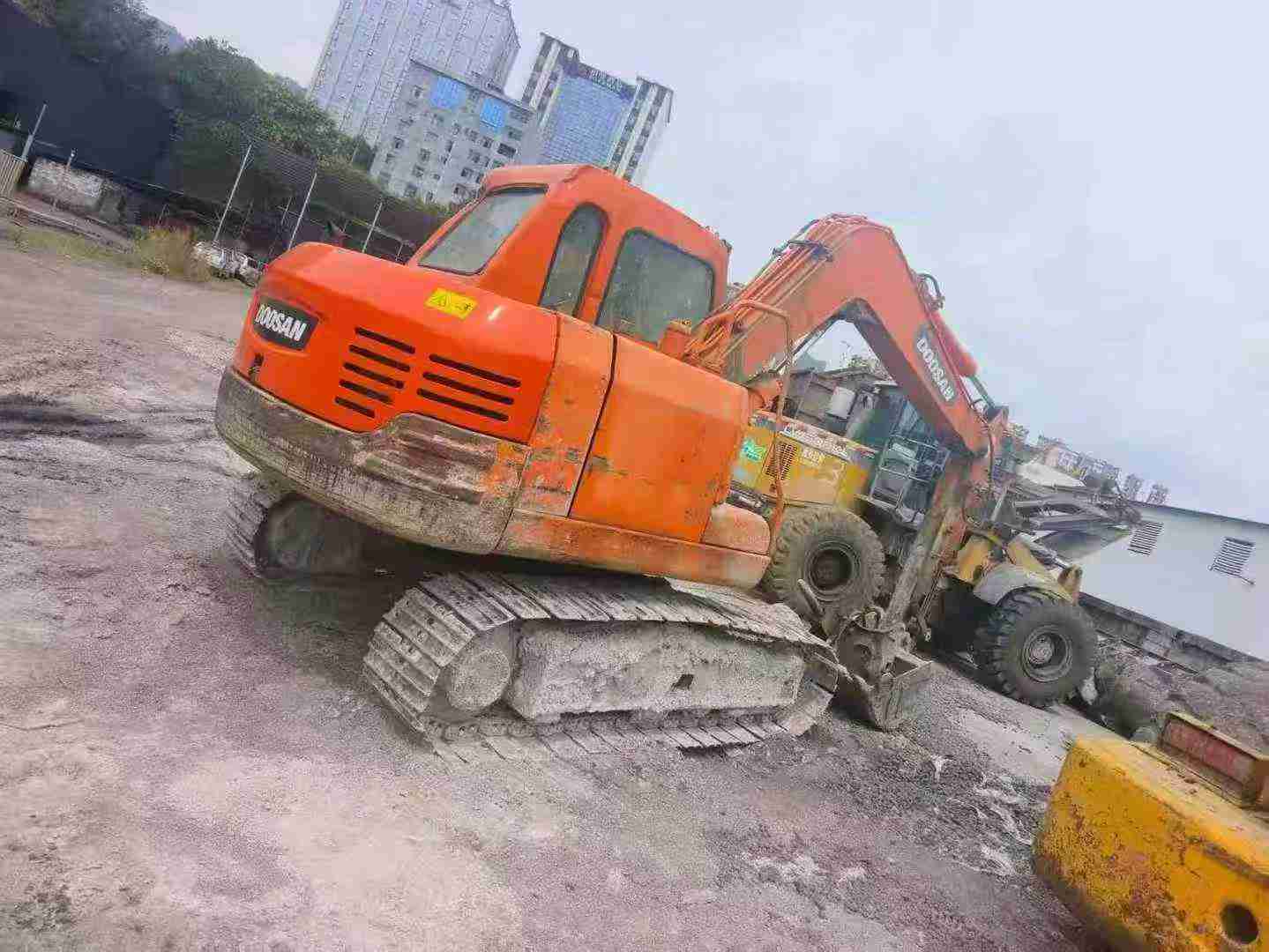

Doosan 80GO second-hand excavators, high-quality supply, sincerely inviting agents We currently have a second-hand Doosan 80GO excavator produced in 2012, priced at only 38,800 yuan, offering an extremely high cost performance. This excavator has accumulated approximately 5,000 hours of working time since its manufacture. The overall condition of the vehicle is good and there are no major accident records. As a compact excavator, Doosan 80GO has performed outstandingly in urban construction and small-scale projects. Its flexible operability and efficient working capacity have been highly praised by users. In terms of the power system, this aircraft is equipped with the well-tested Yanmar 4TNV98 engine, with a rated power of 45 kilowatts. It not only offers strong power but also has excellent fuel economy, capable of meeting the usage requirements under various complex working conditions. The hydraulic system adopts an advanced load-sensitive control system, ensuring smooth operation and rapid response during operation, while also featuring excellent energy-saving effects. In addition, the Doosan 80GO is equipped with a spacious and comfortable cab, offering a wide field of vision, so you won't feel tired even after long hours of oper
| Specifications | Value |
|---|---|
| No. | 960315 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7900 |
| Bucket capacity (m³) | 0.30 ~ 0.32 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV98 VDB24 |
| Rated power (kw/rpm) | 41.4 / 2100 |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct injection; Naturally aspirated, air-cooled |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 41 |
| Maximum tractive force (kN) | 63 |
| Travel speed (km/h) | 4.9 / 3.1 |
| Turning torque (Nm) | 24.2 |
| Maximum flow of main pump (l/min) | 75.6 * 2 + 18.7 |
| Traveling Hydraulic Circuit (Mpa) | 28 |
| Working Hydraulic Circuit (Mpa) | 28 |
| Fuel Tank (L) | 145 |
| Total transport length (mm) | 6000 |
| Total transport width (mm) | 2290 |
| Total transport height (mm) | 2685 |
| Full cab height (mm) | 2,690 |
| Counterweight ground clearance (mm) | 825 |
| Back end turning radius (mm) | 1800 |
| Onboard width (mm) | 2,200 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1,770 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2,220 |
| Maximum digging radius (mm) | 6350 |
| Maximum digging depth (mm) | 4165 |
| Maximum excavation height (mm) | 7120 |
| Maximum unloading height (mm) | 5115 |
| Maximum vertical digging depth (mm) | 3328 |
| Dodging plate width × height (mm) | 2200 x 418 |
