Product Description

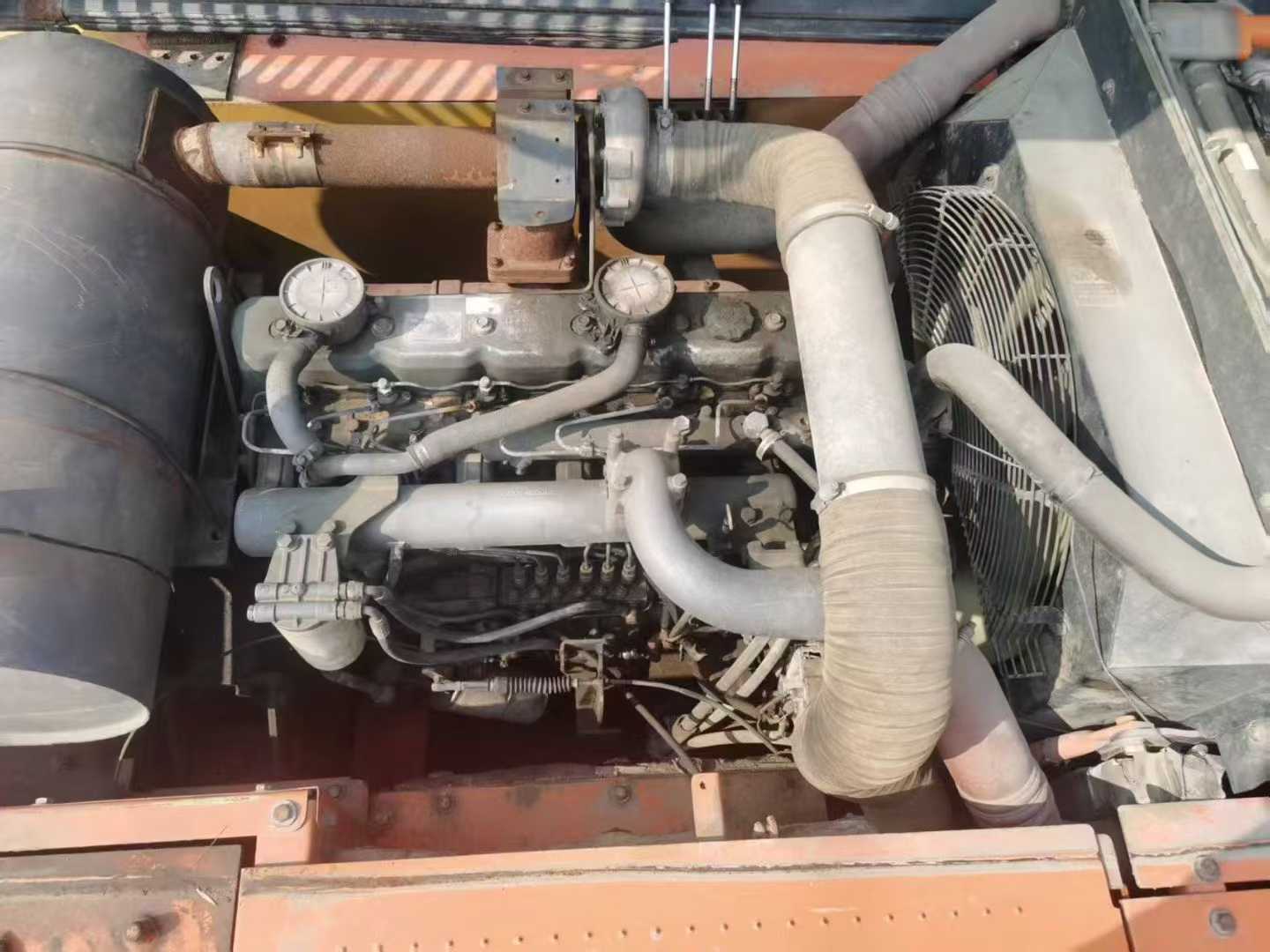

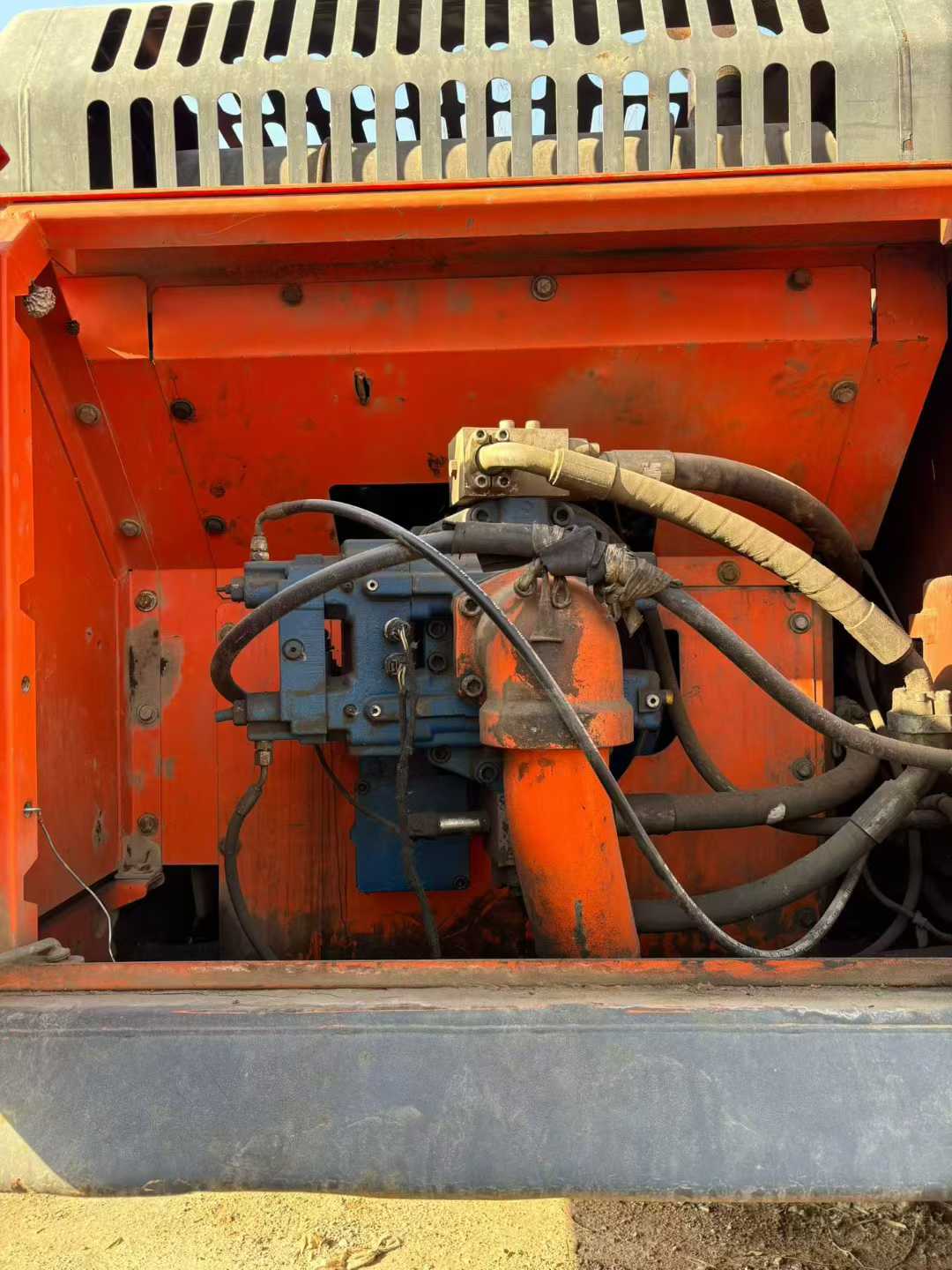

【 Premium Recommendation 】2015 Doosan DH380LC-7 excavator with 26-meter extended arm treatment, now available for sale with sincerity! Since its commissioning in 2015, this Doosan DH380LC-7 excavator has been in operation for only 6,000 hours, with a moderate usage frequency and an overall good mechanical condition. It is equipped with a powerful six-cylinder turbocharged engine, with a maximum power output of 240kW at 1900rpm. It is powerful, stable and reliable, and can easily handle the operation requirements under various complex working conditions. In addition, this machine is equipped with an advanced hydraulic system, featuring a variable plunger pump and a closed-circuit design. This ensures high efficiency and energy conservation while significantly enhancing operational flexibility and response speed, making your construction more effortless and convenient. It is particularly worth mentioning that this equipment is equipped with a rare 26-meter ultra-long extended arm device, which gives it an incomparable advantage in special scenarios such as deep foundation pit excavation and river dredging. Compared with ordinary models, it can carry out excavation operations more deeply, greatly improving work efficiency and reducing t
| Specifications | Value |
|---|---|
| No. | 968070 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7900 |
| Bucket capacity (m³) | 0.30 ~ 0.32 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV98 VDB24 |
| Rated power (kw/rpm) | 41.4 / 2100 |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct injection; Naturally aspirated, air-cooled |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 41 |
| Maximum tractive force (kN) | 63 |
| Travel speed (km/h) | 4.9 / 3.1 |
| Turning torque (Nm) | 24.2 |
| Maximum flow of main pump (l/min) | 75.6 * 2 + 18.7 |
| Traveling Hydraulic Circuit (Mpa) | 28 |
| Working Hydraulic Circuit (Mpa) | 28 |
| Fuel Tank (L) | 145 |
| Total transport length (mm) | 6000 |
| Total transport width (mm) | 2290 |
| Total transport height (mm) | 2685 |
| Full cab height (mm) | 2,690 |
| Counterweight ground clearance (mm) | 825 |
| Back end turning radius (mm) | 1800 |
| Onboard width (mm) | 2,200 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1,770 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2,220 |
| Maximum digging radius (mm) | 6350 |
| Maximum digging depth (mm) | 4165 |
| Maximum excavation height (mm) | 7120 |
| Maximum unloading height (mm) | 5115 |
| Maximum vertical digging depth (mm) | 3328 |
| Dodging plate width × height (mm) | 2200 x 418 |
