Product Description

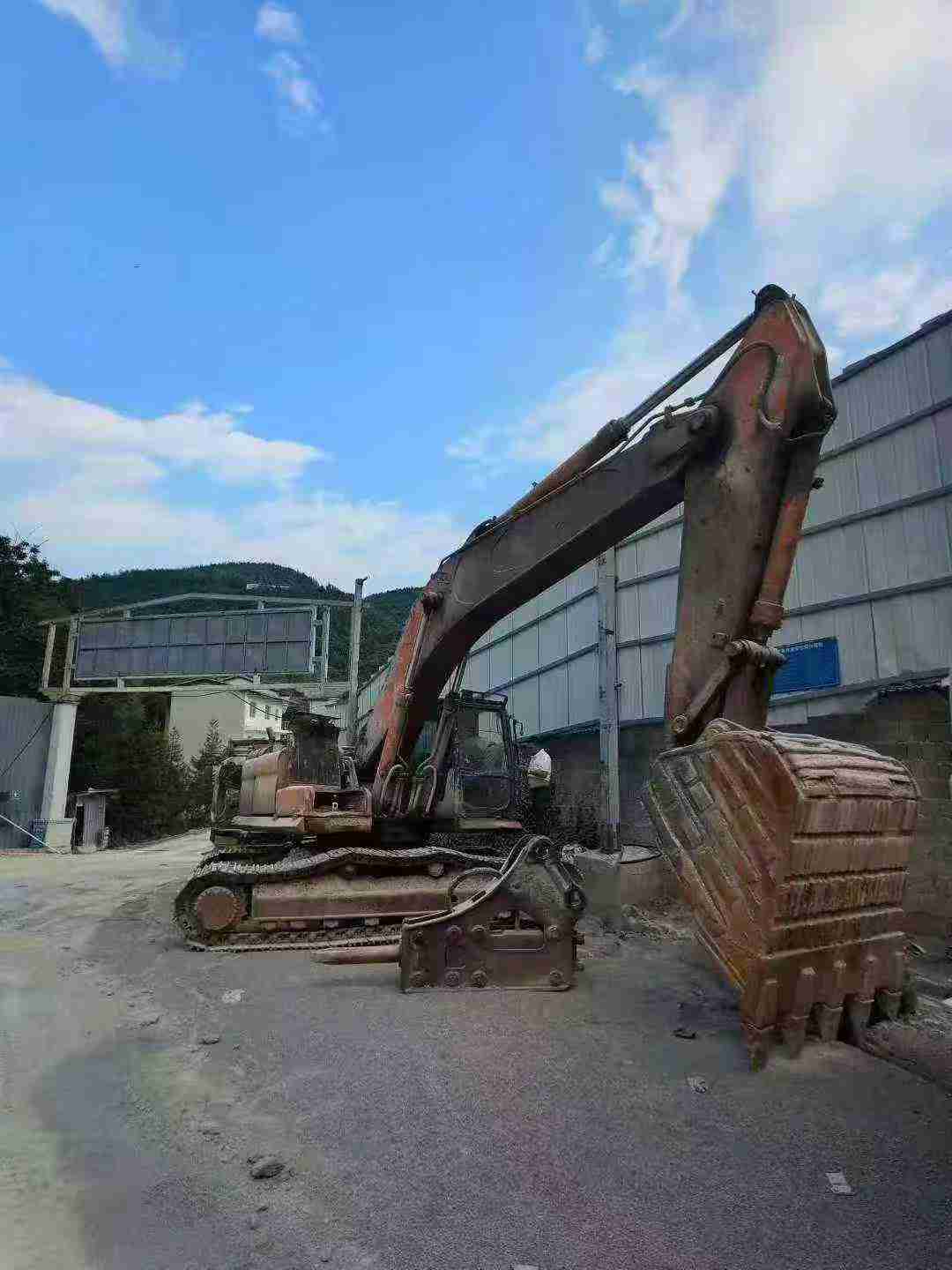

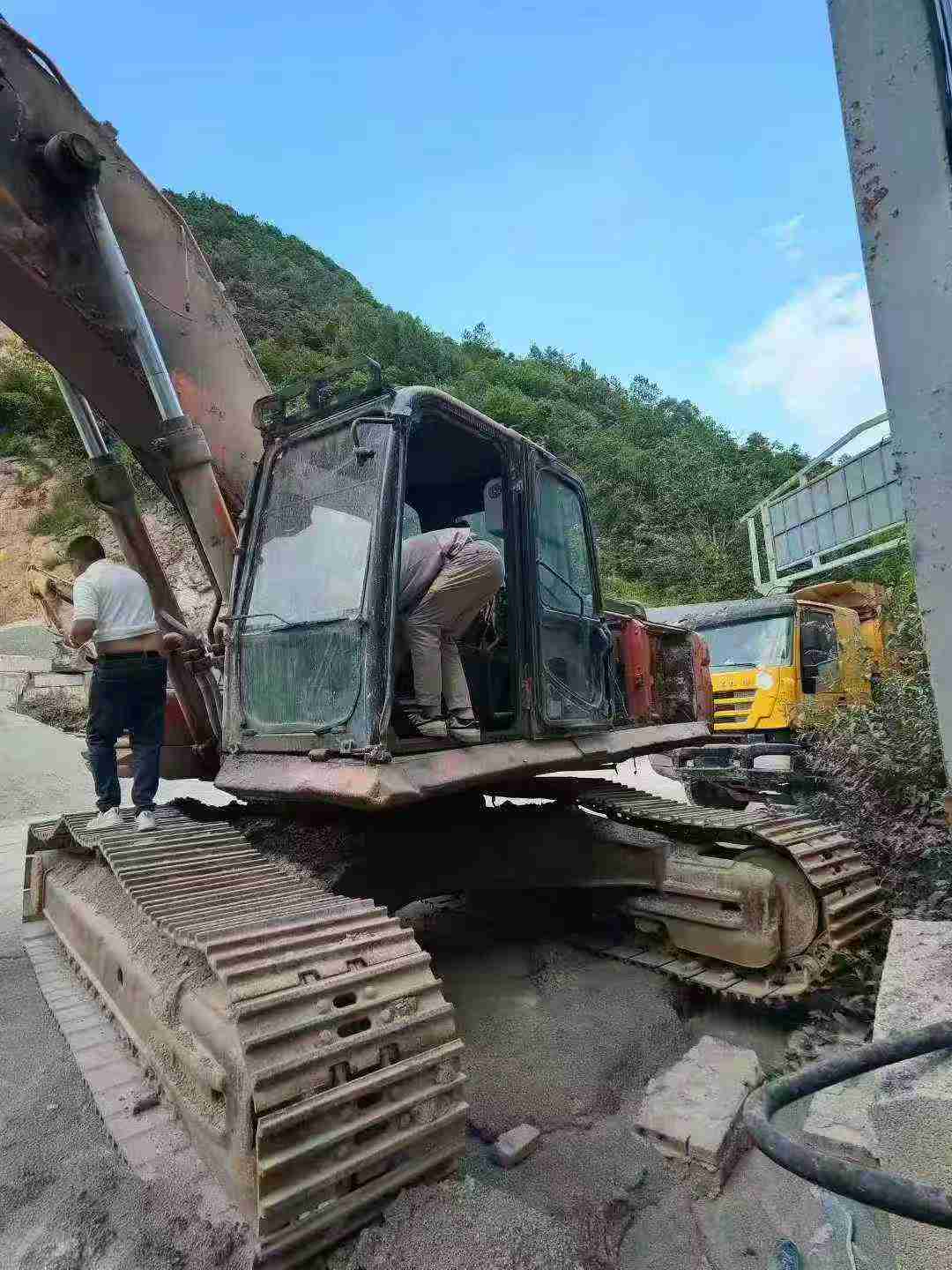

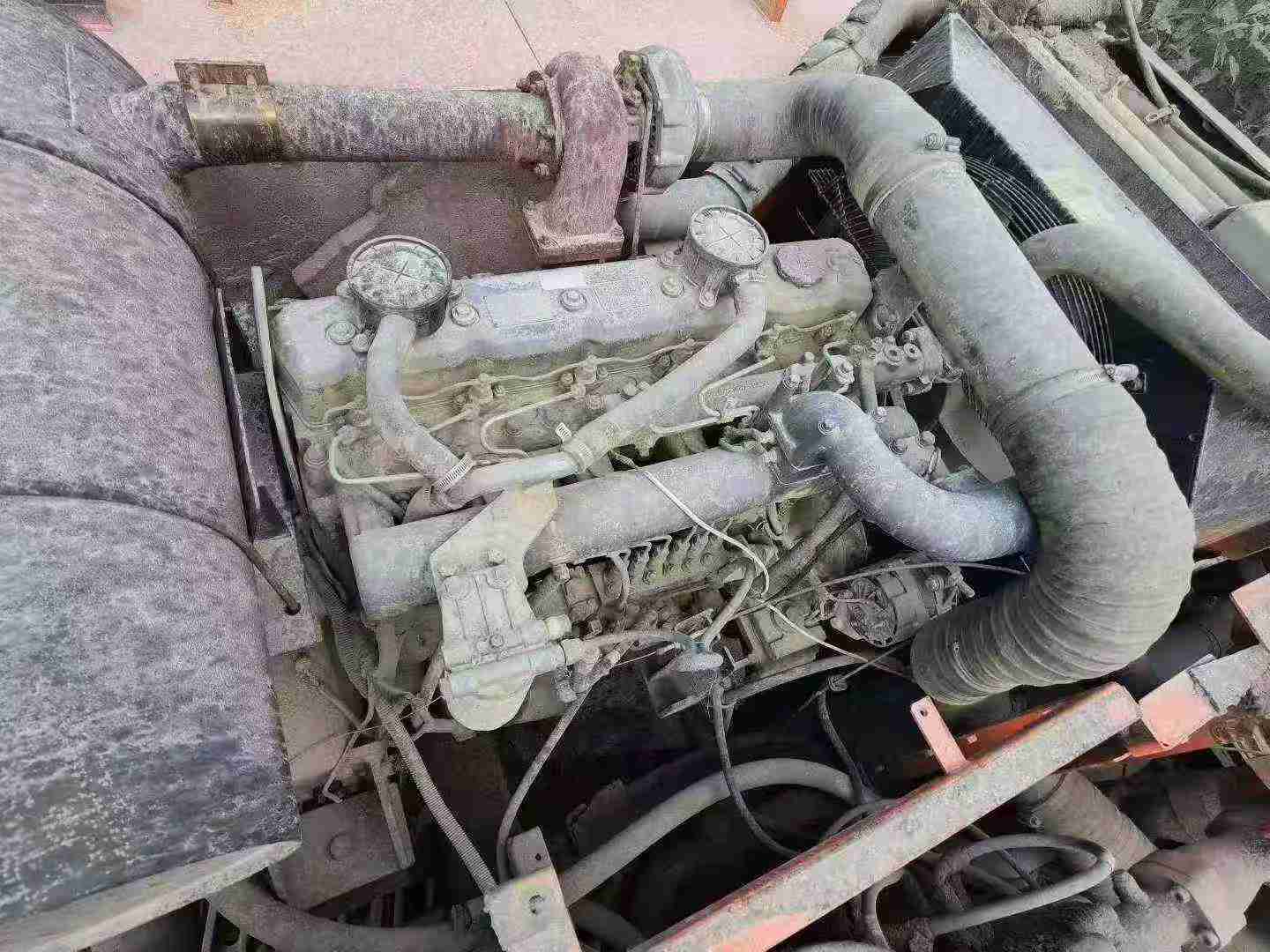

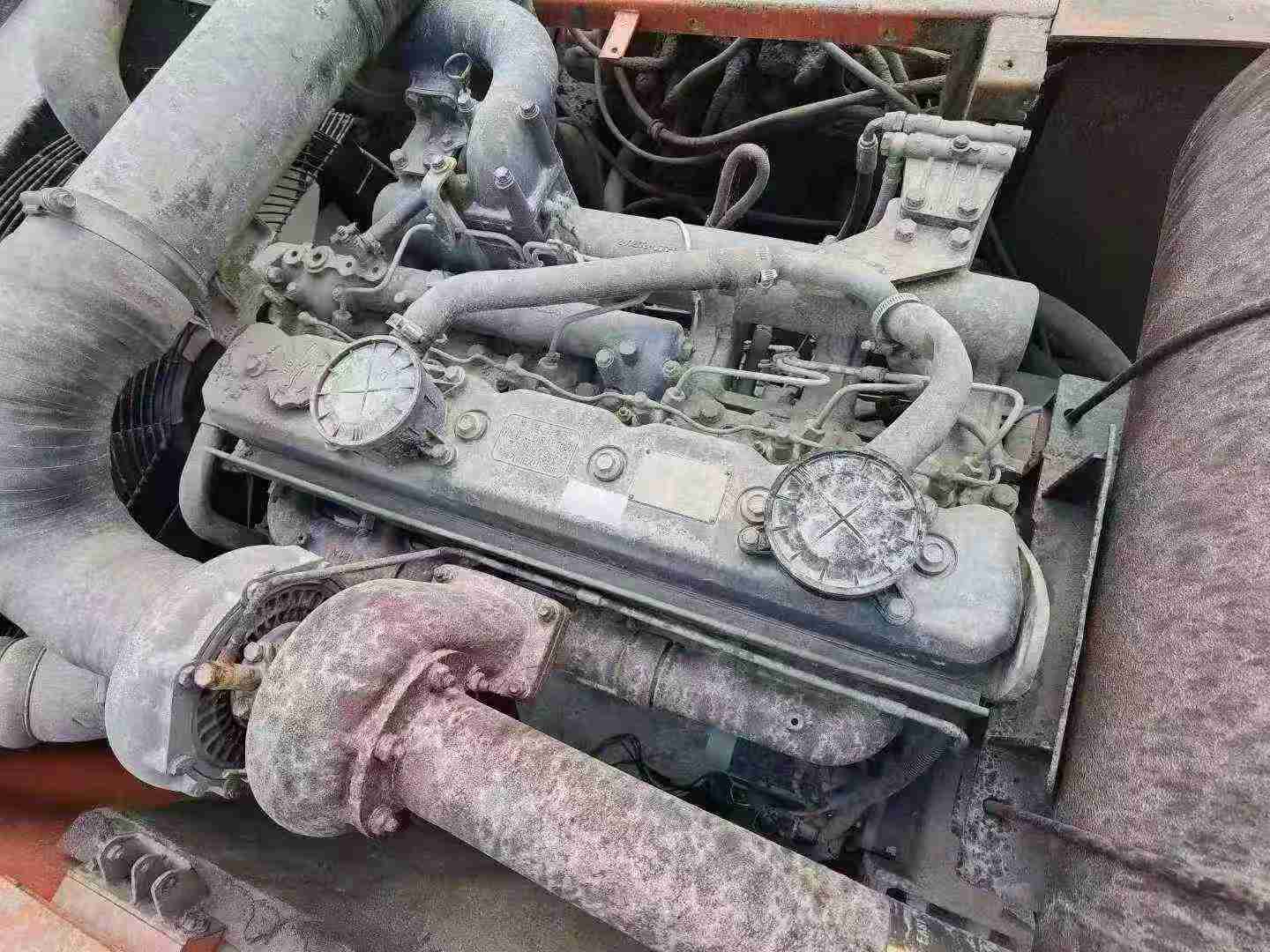

【 Recommendations for Premium Second-hand Excavators There is currently an original Doosan 380Dx excavator produced in 2016, priced at just over 130,000 yuan! This is a device with an extremely high cost performance, which is very suitable for friends who need efficient construction but have a limited budget. The cumulative working time of this excavator is only about 5,000 hours, which is approximately half of the normal service life of similar equipment. This indicates that it still has a long service life and good performance. "Power System It is equipped with a Cummins QSB6.7 engine, which is renowned for its powerful output and smooth operation. It can provide abundant torque even at low RPMS, ensuring the machine's outstanding performance under various complex working conditions. Meanwhile, advanced fuel injection technology leads to lower fuel consumption and reduced maintenance costs. Over the long term, it can save you a considerable amount of expenses. "Hydraulic System Equipped with the latest generation of CLSS (Closed Center Load Sensing) hydraulic control system, it can achieve rapid response and precise control, and can easily handle operations such as excavation, loading and crushing. In addition, this system also fea
| Specifications | Value |
|---|---|
| No. | 960350 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7900 |
| Bucket capacity (m³) | 0.30 ~ 0.32 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV98 VDB24 |
| Rated power (kw/rpm) | 41.4 / 2100 |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct injection; Naturally aspirated, air-cooled |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 41 |
| Maximum tractive force (kN) | 63 |
| Travel speed (km/h) | 4.9 / 3.1 |
| Turning torque (Nm) | 24.2 |
| Maximum flow of main pump (l/min) | 75.6 * 2 + 18.7 |
| Traveling Hydraulic Circuit (Mpa) | 28 |
| Working Hydraulic Circuit (Mpa) | 28 |
| Fuel Tank (L) | 145 |
| Total transport length (mm) | 6000 |
| Total transport width (mm) | 2290 |
| Total transport height (mm) | 2685 |
| Full cab height (mm) | 2,690 |
| Counterweight ground clearance (mm) | 825 |
| Back end turning radius (mm) | 1800 |
| Onboard width (mm) | 2,200 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1,770 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2,220 |
| Maximum digging radius (mm) | 6350 |
| Maximum digging depth (mm) | 4165 |
| Maximum excavation height (mm) | 7120 |
| Maximum unloading height (mm) | 5115 |
| Maximum vertical digging depth (mm) | 3328 |
| Dodging plate width × height (mm) | 2200 x 418 |
