Product Description

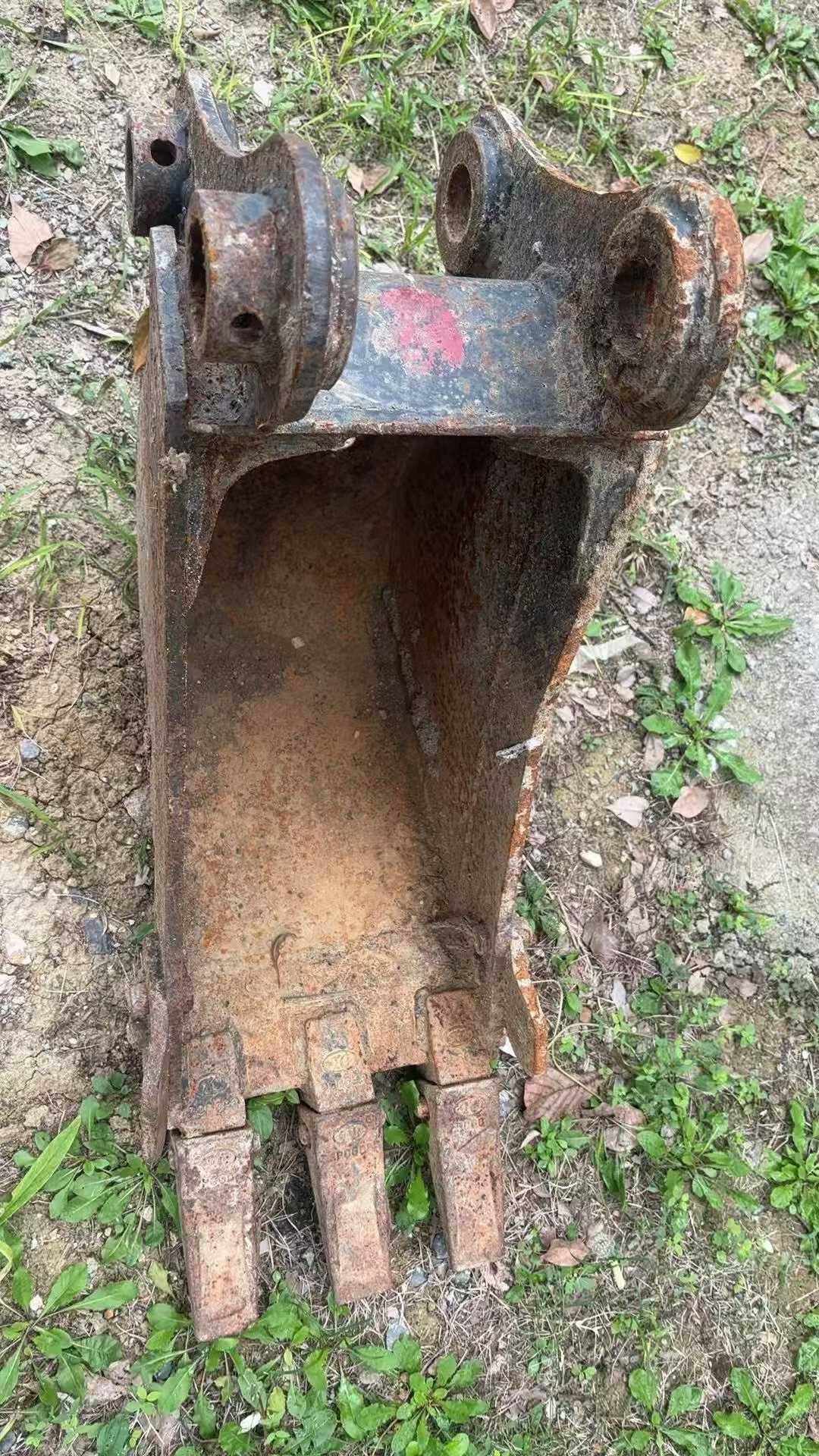

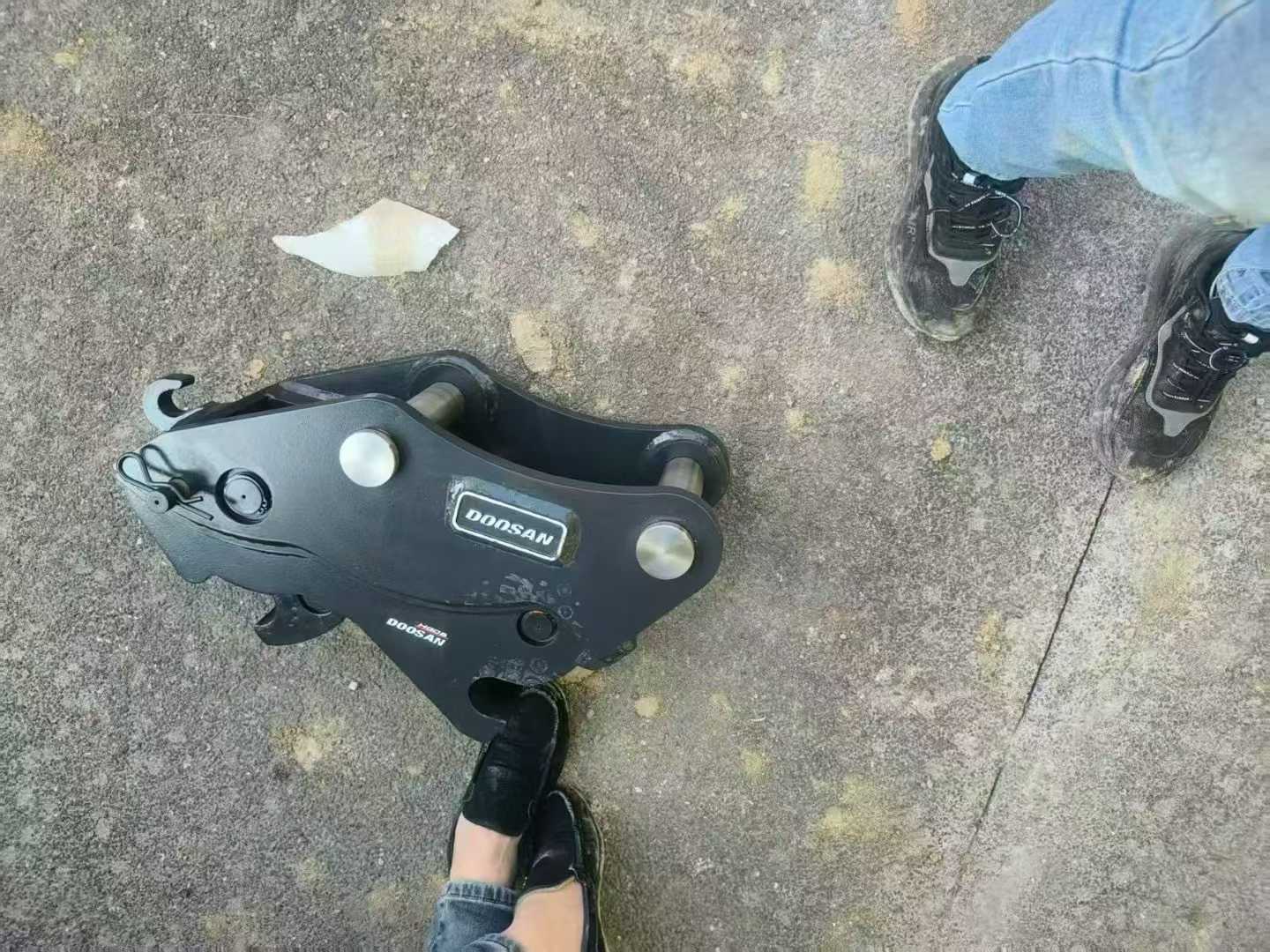

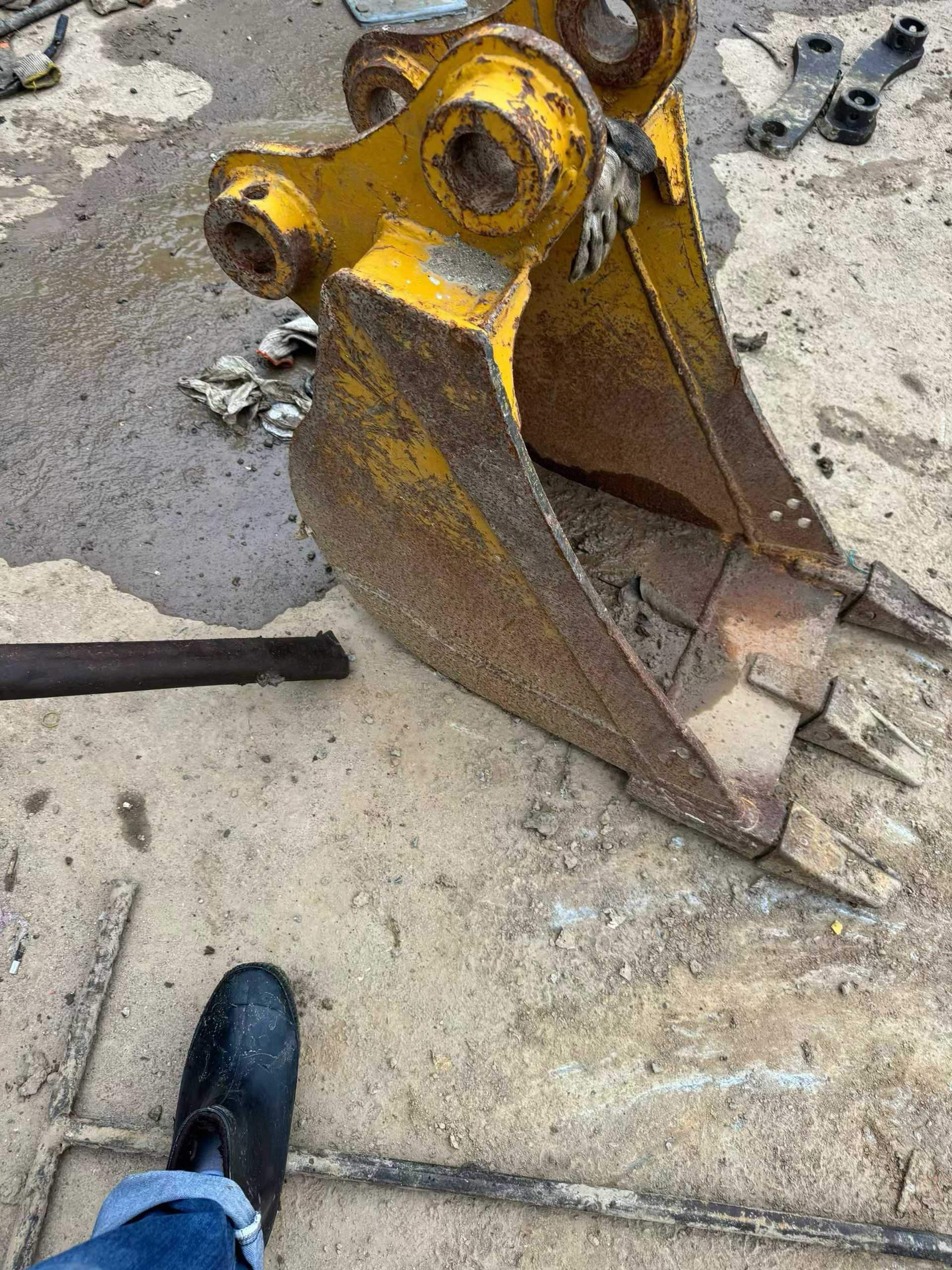

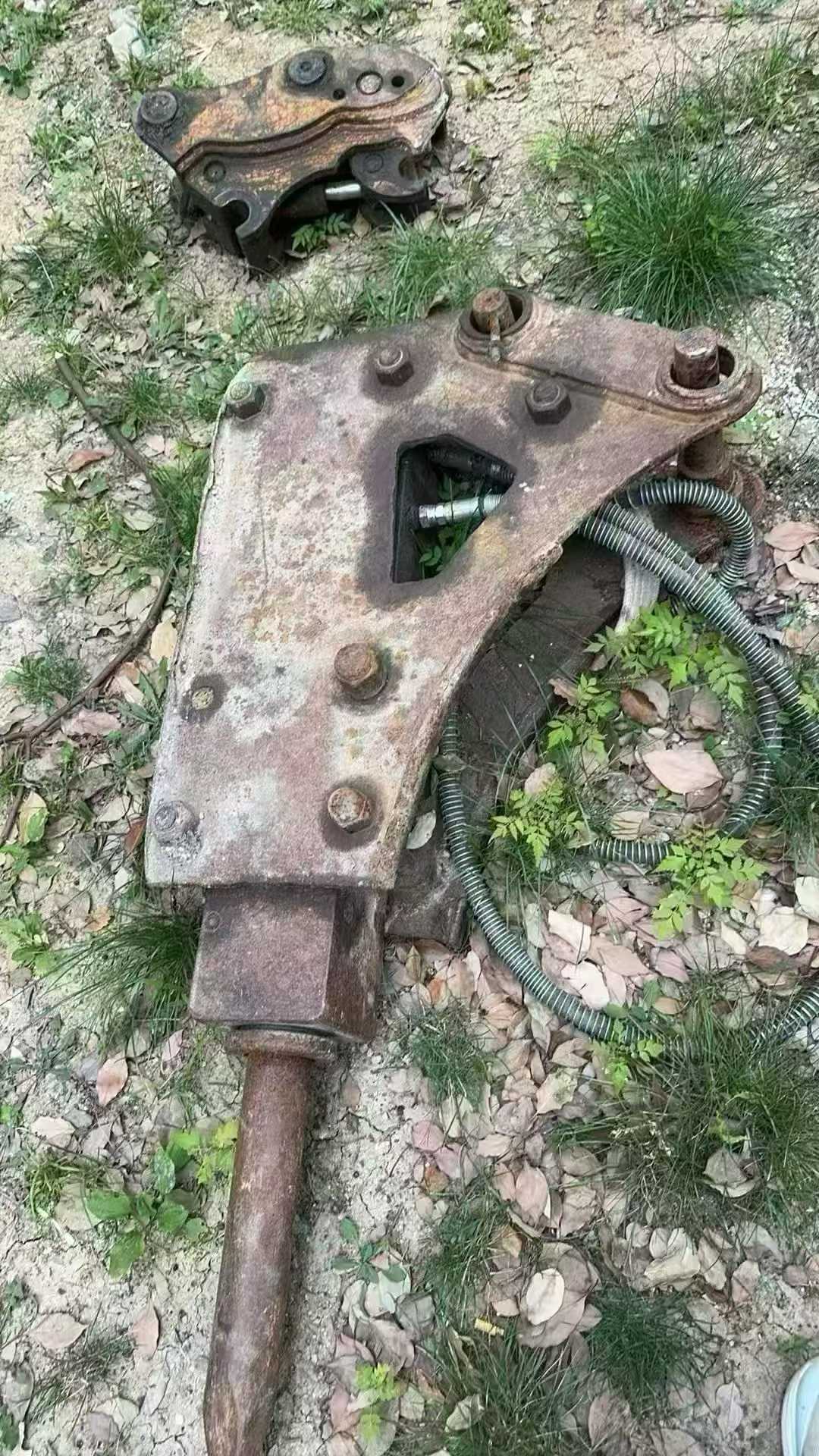

9.5 new 68 hammer, 50 shaft, small bucket, 40 wide, 45 shaft, small bucket, 30 wide, 50 shaft quick connection, Doosan original 45-shaft hydraulic quick connection, all 68 hammer and 45 shaft are sold at low prices.
| Specifications | Value |
|---|---|
| No. | 953731 |
| Tonnage (tons) | 5 |
| Working weight (kg) | 4653 |
| Country of origin | America |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar Yanmar V2403-M-D1-E3B-BC-5 |
| Rated power (kw/rpm) | 30.2/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 87.1 by 102.4 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.3 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 58 |
| Bucket digging force (kN) | 35.8 |
| Rod digging force (kN) | 25.7 |
| Travel speed (km/h) | 2.4/4.2 |
| Maximum flow of main pump (l/min) | 99.1 |
| Fuel Tank (L) | 79.9 |
| Hydraulic Tank (L) | 15.1 |
| Engine Oil changes (L) | 7.1 |
| Coolant (L) | 8.3 |
| Hydraulic System (L) | 54.9 |
| Total transport length (mm) | 5353 |
| Total transport width (mm) | 1960 |
| Total transport height (mm) | 2532 |
| Full cab height (mm) | 2532 |
| Counterweight ground clearance (mm) | 640 |
| Minimum turning radius of front working device (mm) | 2491 |
| Track gauge (mm) | 1560 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 1960 |
| Track ground length (mm) | 1998 |
| Maximum digging radius (mm) | 5802 |
| Maximum digging depth (mm) | 3300 |
| Maximum excavation height (mm) | 5345 |
| Maximum unloading height (mm) | 3697 |
| Maximum vertical digging depth (mm) | 2815 |
| Bulldozer lift or depth (mm) | 384/465 |
| Dodging plate width × height (mm) | 1960 x 446 |
| Maximum excavation radius of stop surface (mm) | 5670 |
| Boom turning Angle (left/right °) | 70/55 |
