Product Description
Detailed information of the second-hand Hitachi 120-5 excavator The second-hand Hitachi 120-5 excavator we recommend to you is not only reasonably priced (only 69,900 yuan), but also in excellent overall condition, making it very suitable for use in medium and small-sized engineering projects. This type of equipment has a working time of only about 3,000 hours. For a medium-sized excavator, such a working hour indicates that it is still in good mechanical condition and has a relatively long service life. In terms of power, this machine is equipped with an original imported Hitachi engine, which features strong power output and smooth operation performance. After professional testing, all performance indicators of the engine meet the standards, with no abnormal noise or oil leakage. This ensures construction efficiency while also reducing fuel consumption costs. In addition, it is equipped with an advanced fuel management system, which can effectively improve fuel utilization and reduce operating costs. The hydraulic system is one of the important factors in measuring the performance of an excavator. This machine adopts a highly efficient and reliable combination of hydraulic pumps and motors, which are sensitive in response and smoo
| Specifications | Value |
|---|---|
| No. | 965597 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12200 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4.6 |
| Rod length (mm) | 2.52 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

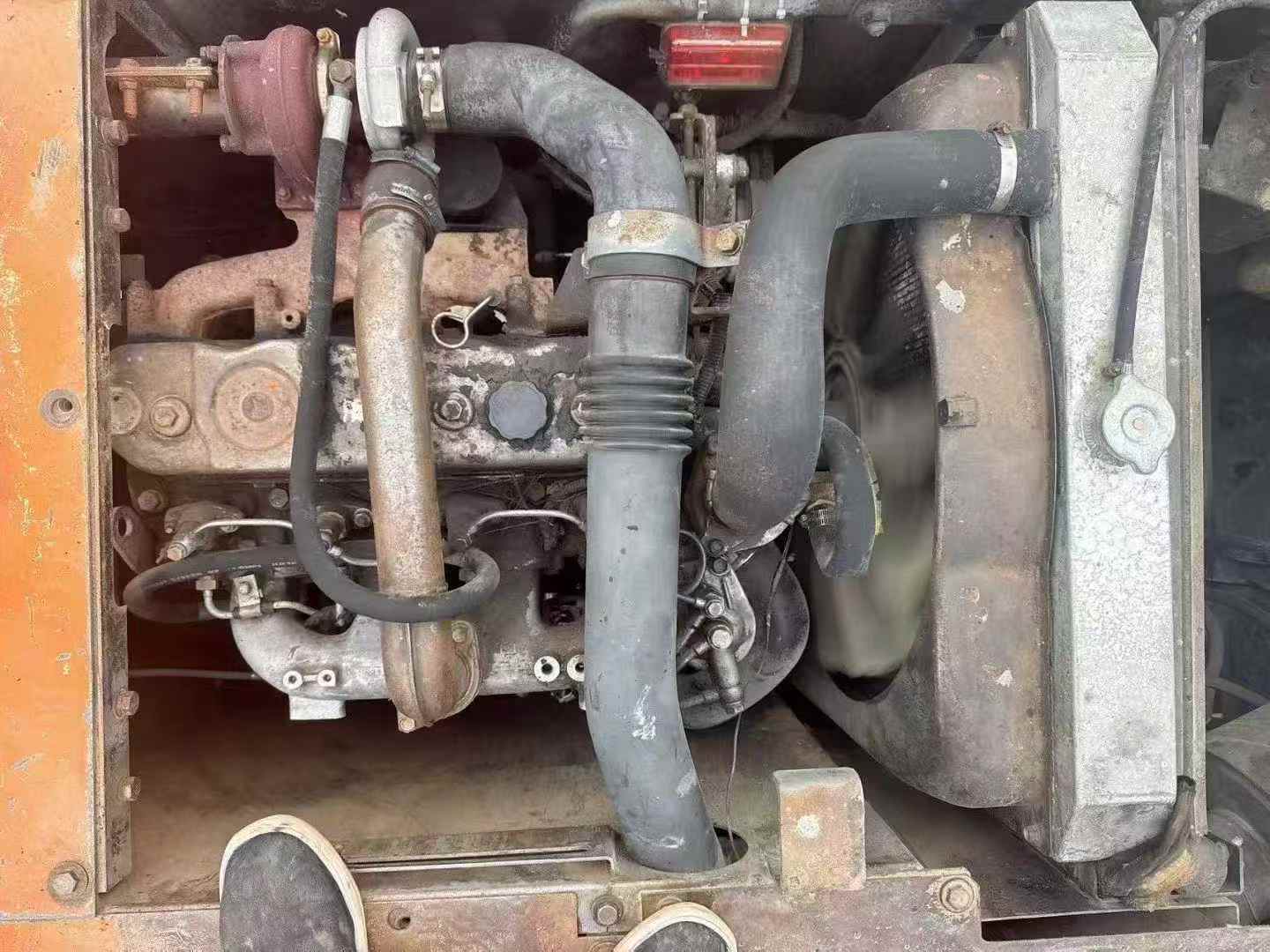

| Engine type | ISUZU CC-4BG1TC |
| Rated power (kw/rpm) | 66/2150 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 13.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 99 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative plunger pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 69(Full box 130) |
| Engine Oil changes (L) | 15.8 |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2740 |
| Full cab height (mm) | 2740 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8270 |
| Maximum digging depth (mm) | 5570 |
| Maximum excavation height (mm) | 8570 |
| Maximum unloading height (mm) | 6160 |
| Maximum vertical digging depth (mm) | 5020 |
| Bulldozer lift or depth (mm) | No bulldozer |
