Product Description

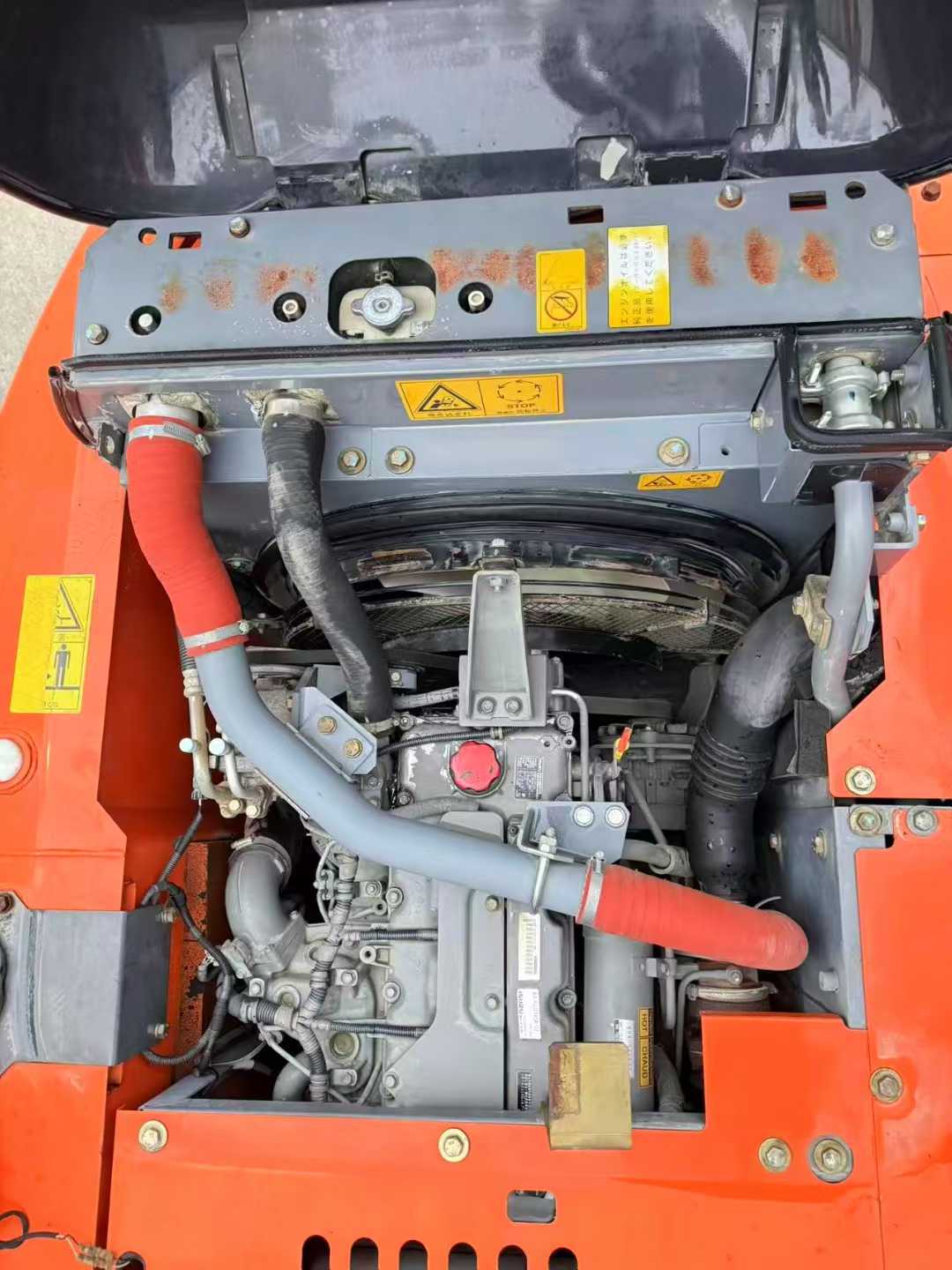

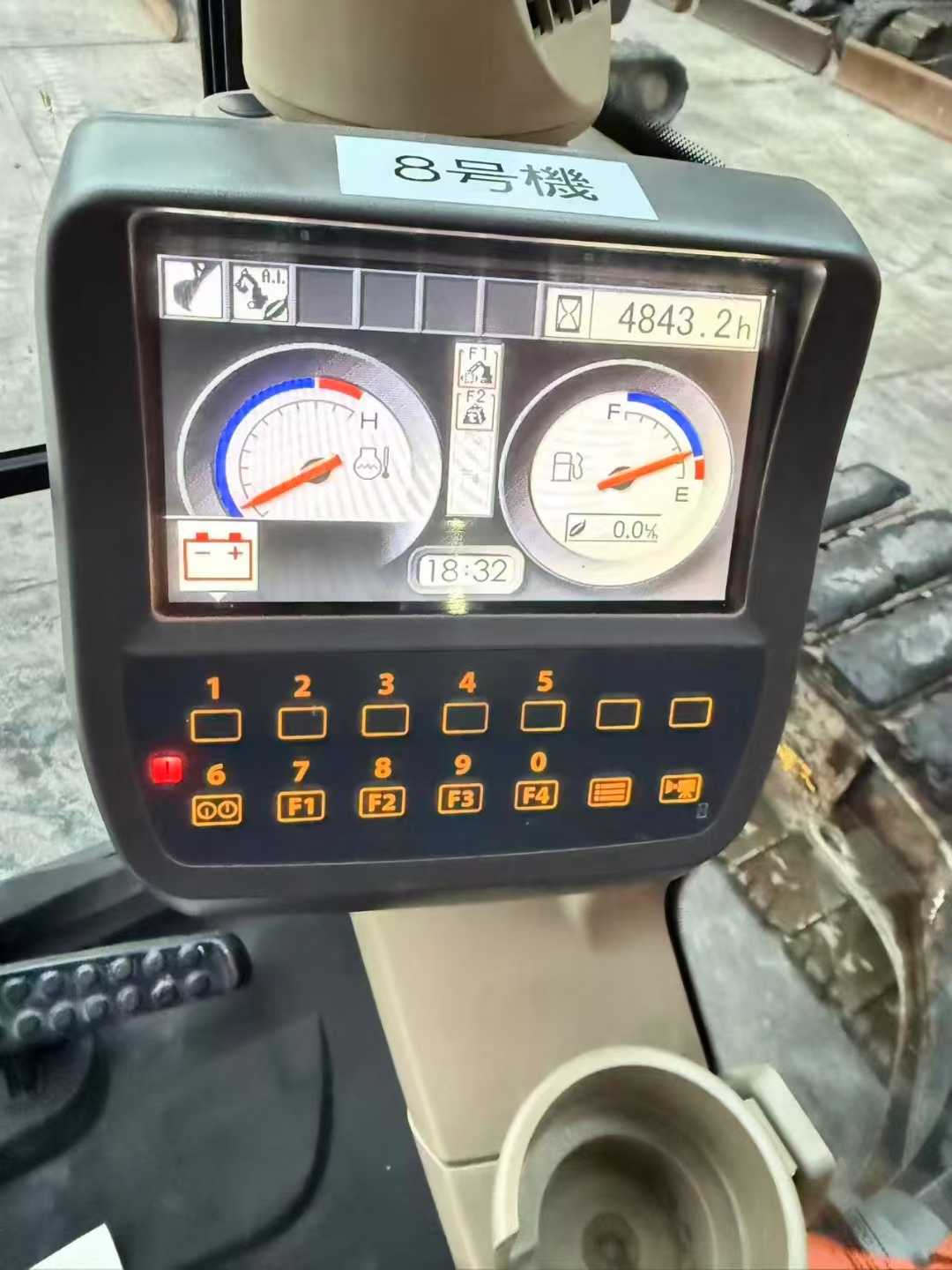

【 Premium Recommendation 】 Second-hand Hitachi 120-3 excavator This second-hand Hitachi 120-3 excavator is one of the high-quality models we have carefully selected. It has a good working condition and outstanding performance, with a total working time of only 5,000 hours. For a second-hand excavator, this is undoubtedly a very attractive figure, indicating that its main components are still within their best service life. In terms of the power system, this machine is equipped with an original imported Hitachi engine, which not only has strong power but also good fuel economy, and can meet the operation requirements under various complex working conditions. More importantly, this engine has undergone strict maintenance and care, ensuring that it remains in a stable and reliable working condition even after long-term and high-intensity operation. The hydraulic system adopts the latest technological achievements of Hitachi, featuring fast response speed, high control accuracy and low energy consumption. Whether it is excavation, loading or crushing operations, they can all be handled with ease, ensuring the efficient completion of tasks while significantly reducing the labor intensity of the operators. In addition, this machine also
| Specifications | Value |
|---|---|
| No. | 966286 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12200 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4.6 |
| Rod length (mm) | 2.52 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4BG1TC |
| Rated power (kw/rpm) | 66/2150 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 13.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 99 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative plunger pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 69(Full box 130) |
| Engine Oil changes (L) | 15.8 |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2740 |
| Full cab height (mm) | 2740 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8270 |
| Maximum digging depth (mm) | 5570 |
| Maximum excavation height (mm) | 8570 |
| Maximum unloading height (mm) | 6160 |
| Maximum vertical digging depth (mm) | 5020 |
| Bulldozer lift or depth (mm) | No bulldozer |
