Product Description

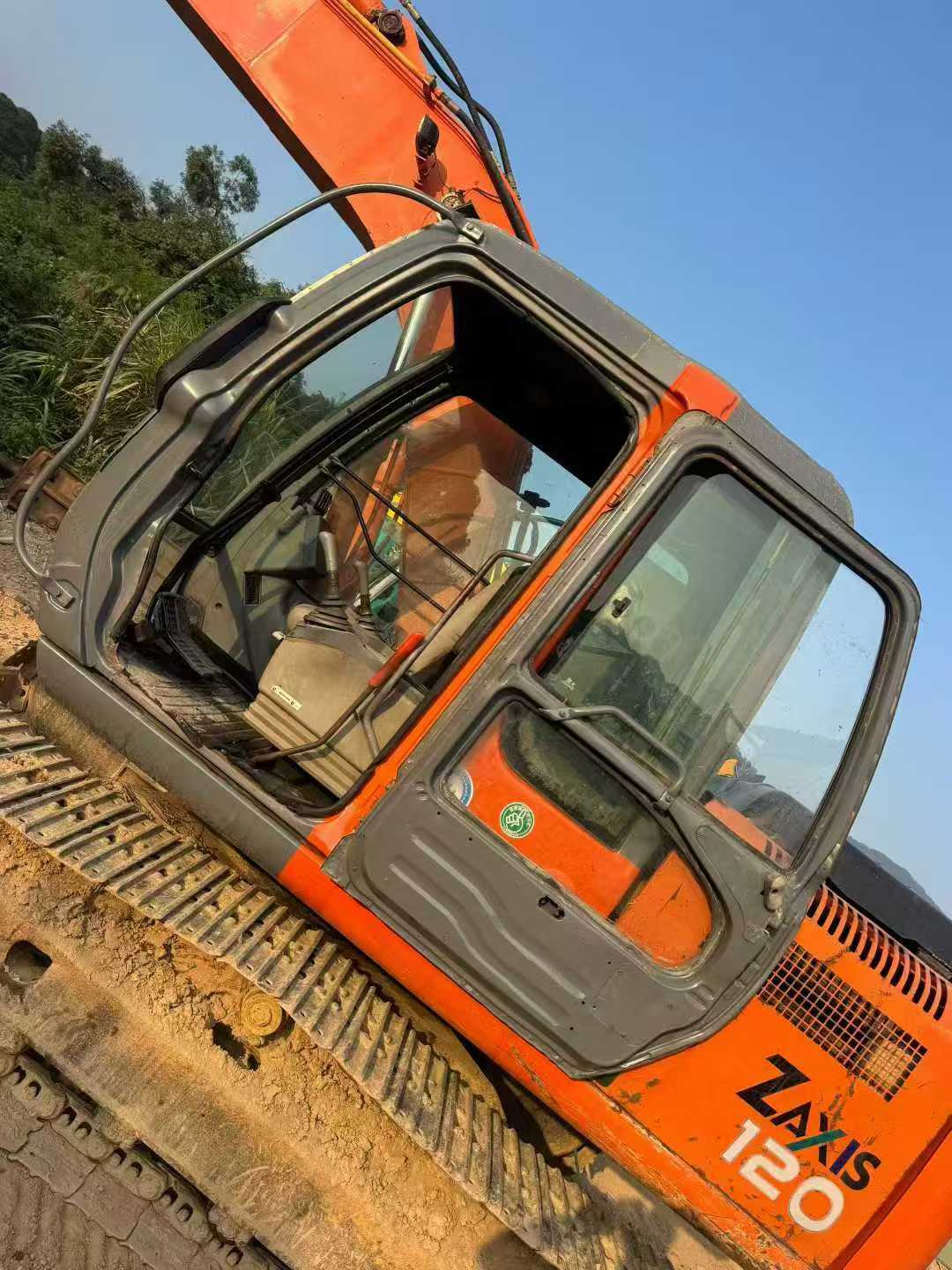

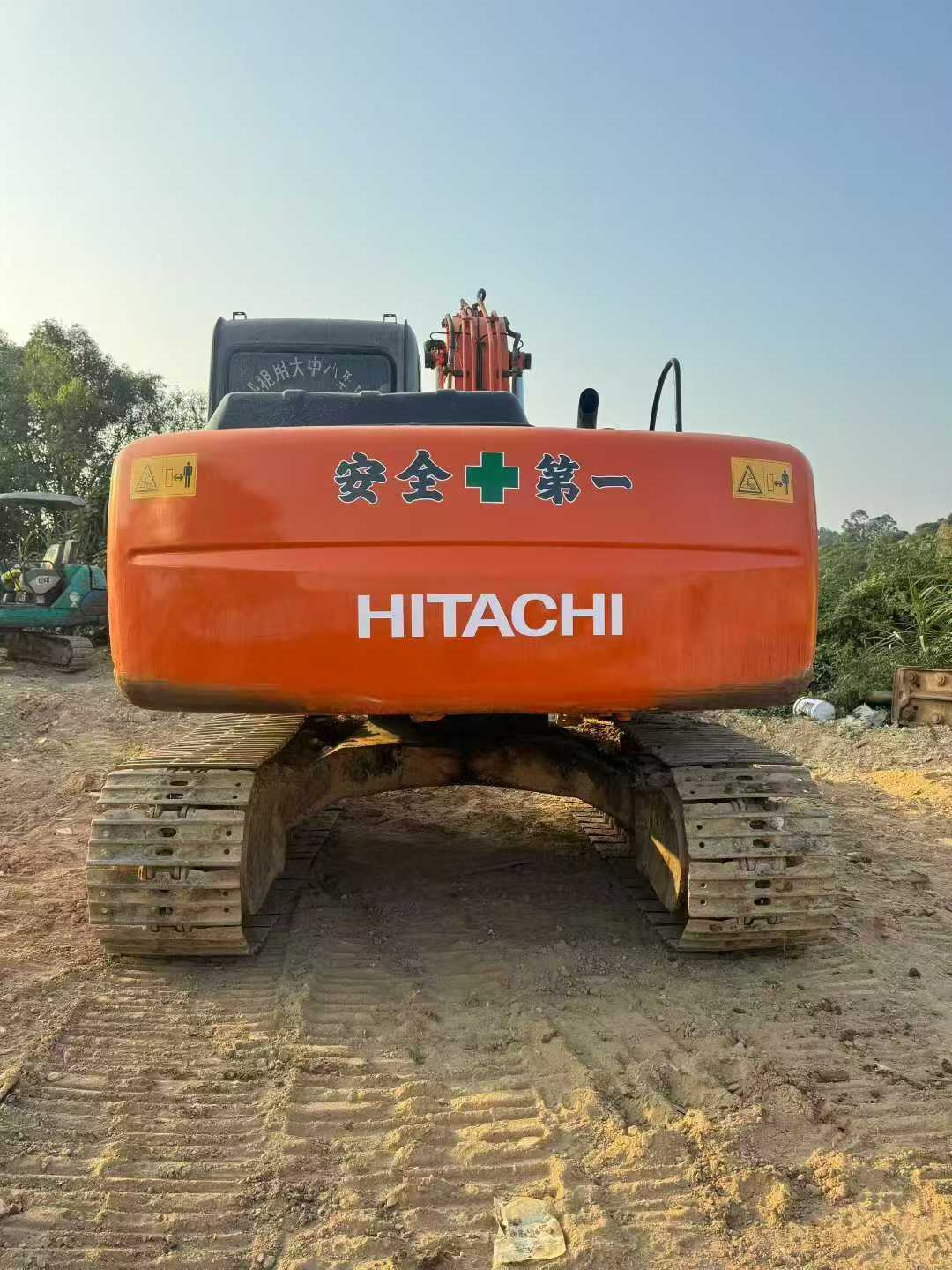

Detailed Introduction of the second-hand Hitachi 120-6 Excavator Dear customer, hello! We are extremely honored to recommend this second-hand Hitachi 120-6 excavator to you. This machine not only has a well-maintained appearance and a very beautiful overall condition, but also has a very favorable price and an extremely high cost performance. It is an ideal choice for your engineering work. The working time of this excavator is only 4,500 hours, which is far lower than the average service life of similar equipment. This means that it still has a long service life waiting to be of value. In terms of the power system, it is equipped with a highly efficient and energy-saving Hitachi original imported engine, which operates stably and reliably with good fuel economy. Even under harsh working conditions, it can maintain strong power output. The hydraulic system adopts advanced closed center load sensing technology, featuring fast response speed and high control accuracy. It can handle both excavation and loading operations with ease, significantly enhancing work efficiency. In addition, its sturdy and durable structural design and the selection of high-quality materials also ensure the reliability of long-term high-intensity work. In con
| Specifications | Value |
|---|---|
| No. | 969534 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12200 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4.6 |
| Rod length (mm) | 2.52 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

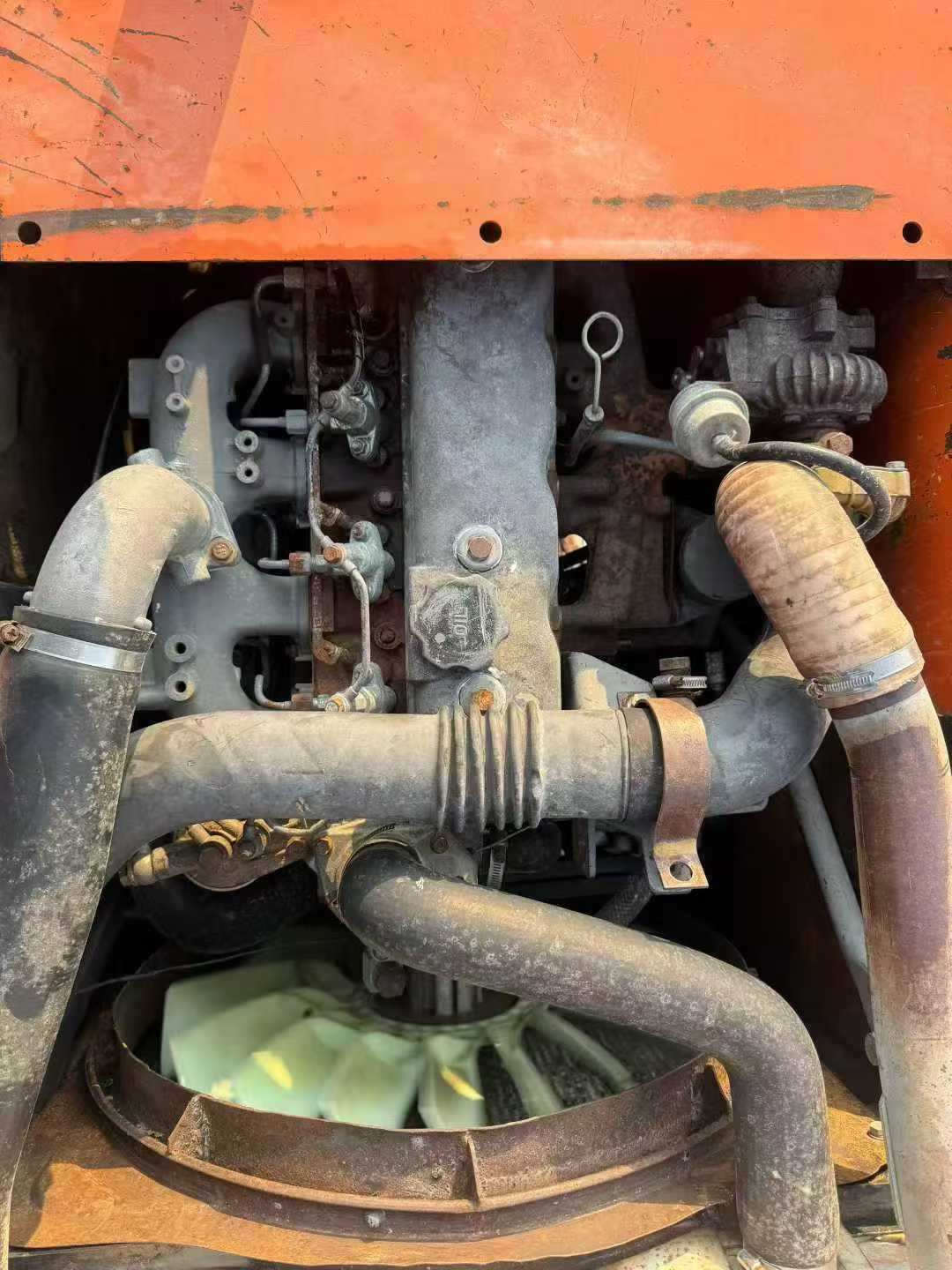

| Engine type | ISUZU CC-4BG1TC |
| Rated power (kw/rpm) | 66/2150 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 13.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 99 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative plunger pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 69(Full box 130) |
| Engine Oil changes (L) | 15.8 |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2740 |
| Full cab height (mm) | 2740 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8270 |
| Maximum digging depth (mm) | 5570 |
| Maximum excavation height (mm) | 8570 |
| Maximum unloading height (mm) | 6160 |
| Maximum vertical digging depth (mm) | 5020 |
| Bulldozer lift or depth (mm) | No bulldozer |
