2016 Hitachi ZX200-3G

1/9
Used Hitachi ZX200-3G Excavator 2016 Model / 1

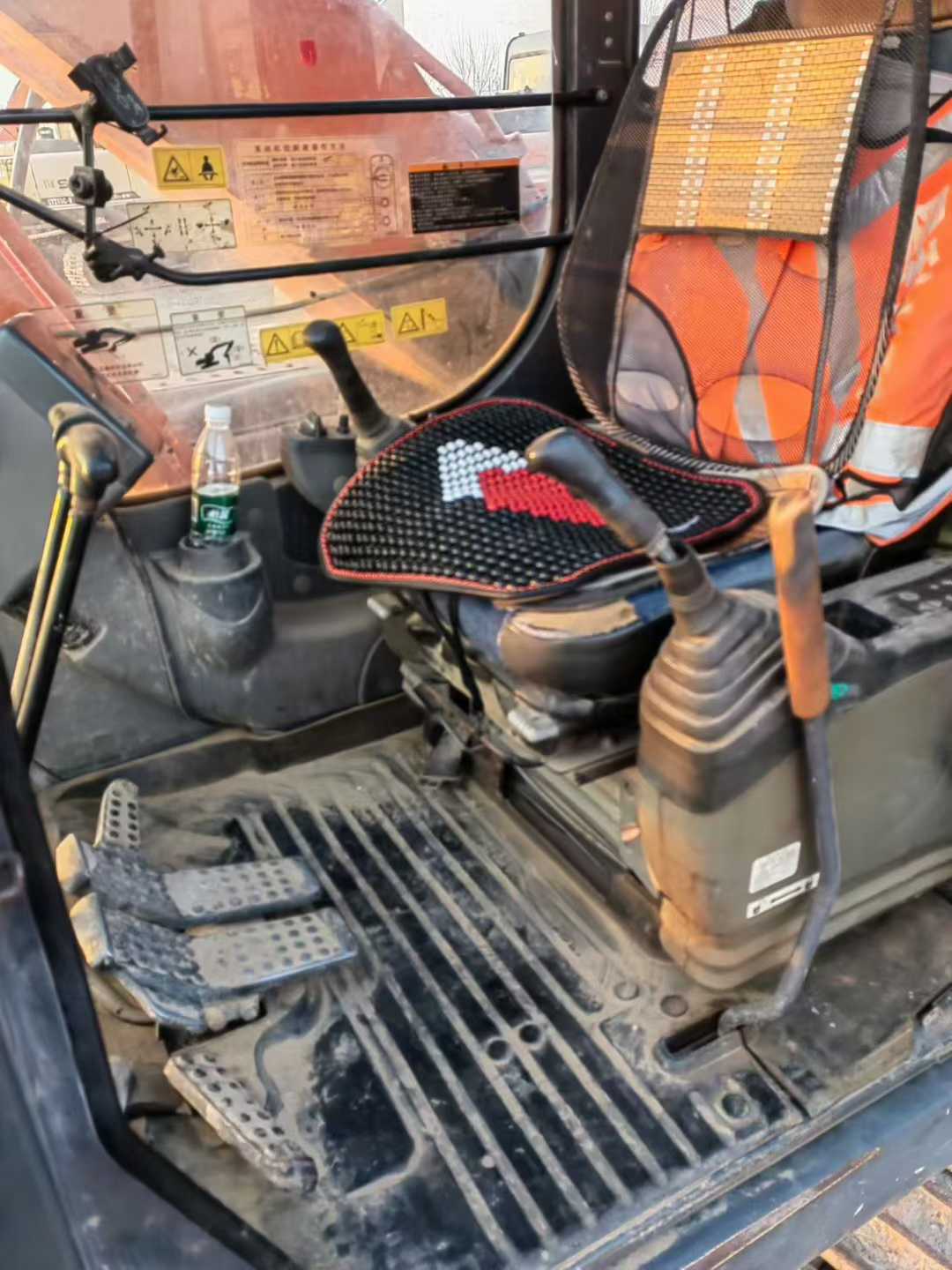

Used Hitachi ZX200-3G Excavator 2016 Model / 2
Used Hitachi ZX200-3G Excavator 2016 Model / 3

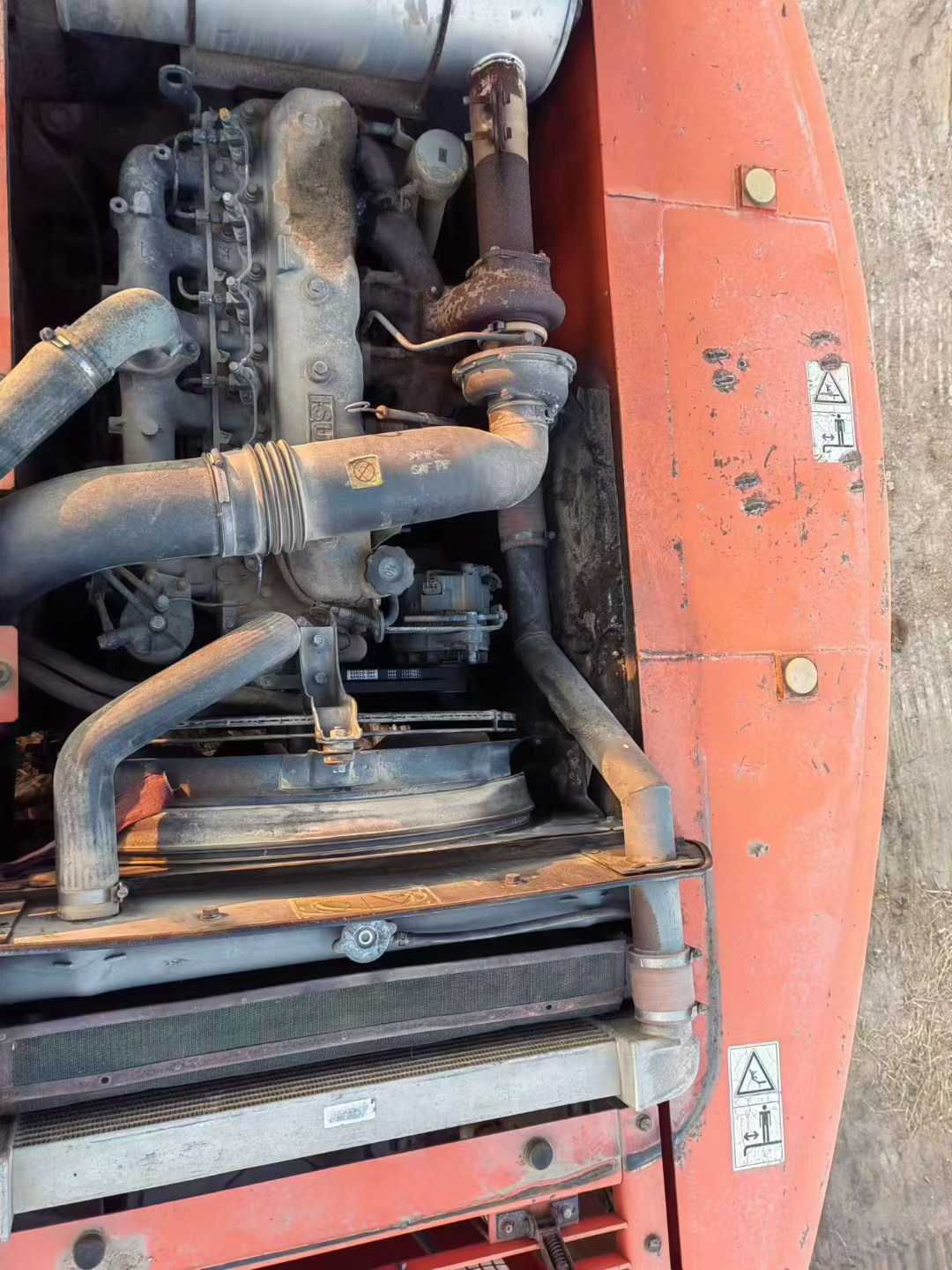

Used Hitachi ZX200-3G Excavator 2016 Model / 4

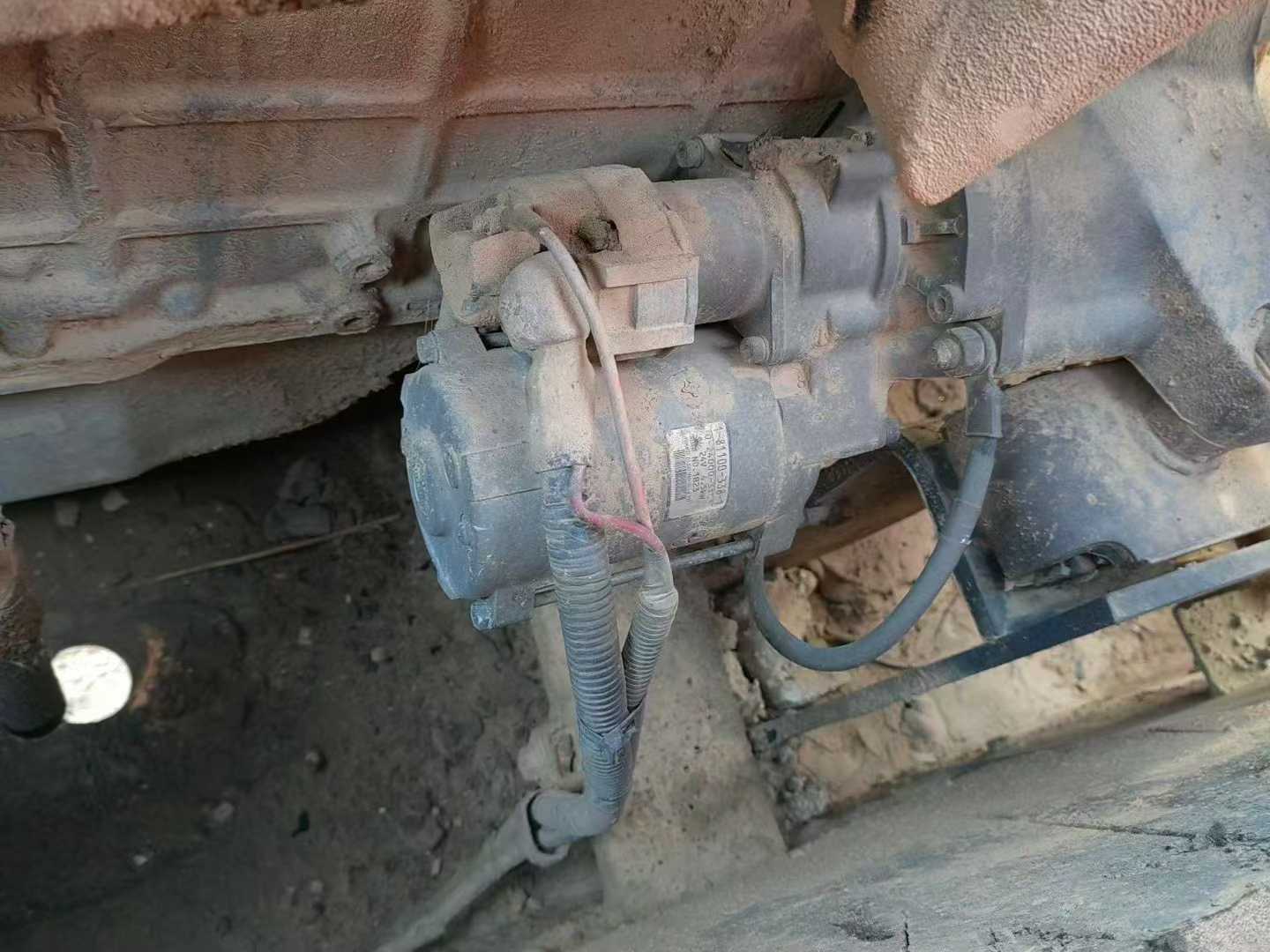

Used Hitachi ZX200-3G Excavator 2016 Model / 5
Used Hitachi ZX200-3G Excavator 2016 Model / 6

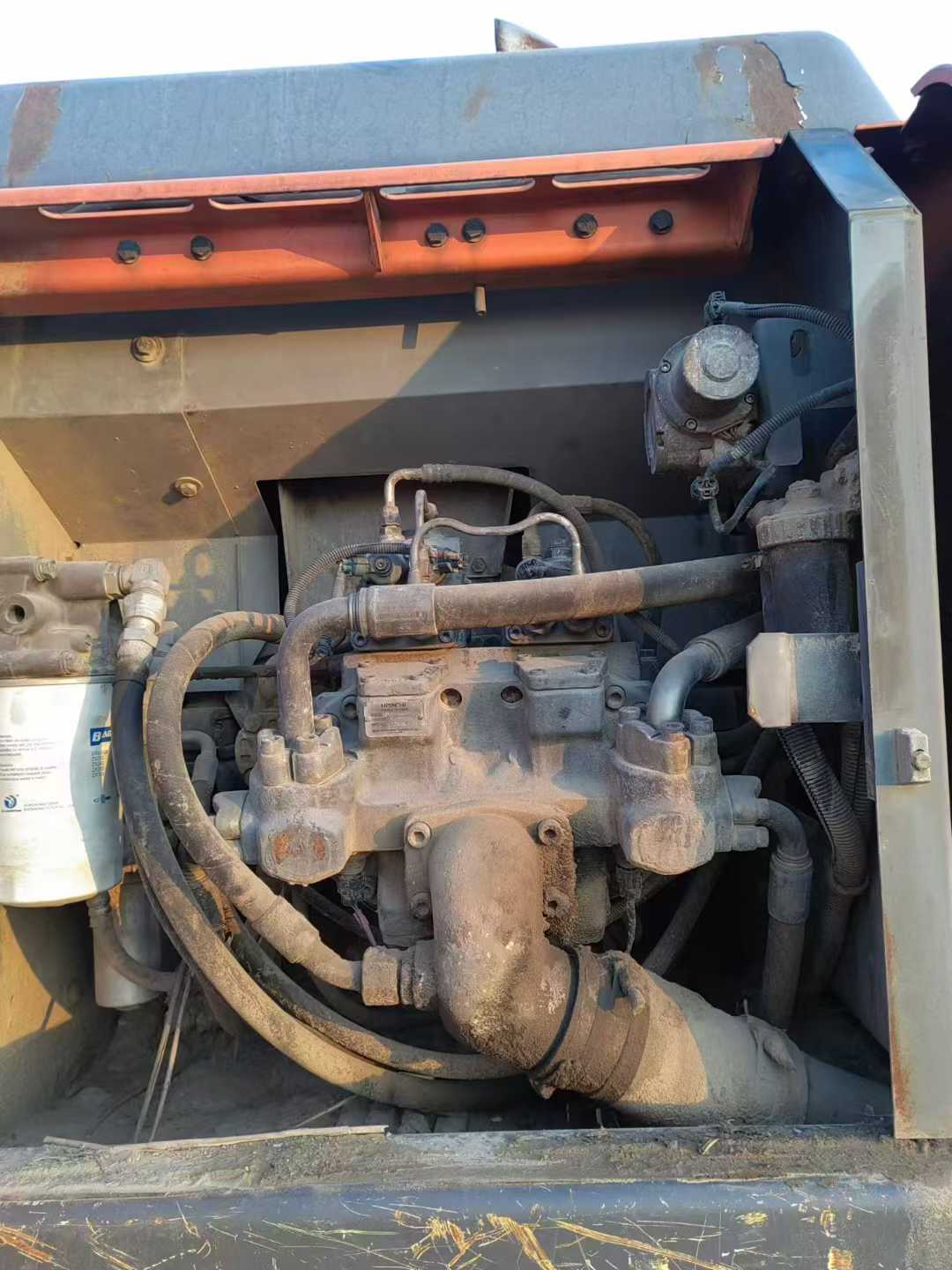

Used Hitachi ZX200-3G Excavator 2016 Model / 7
Used Hitachi ZX200-3G Excavator 2016 Model / 8

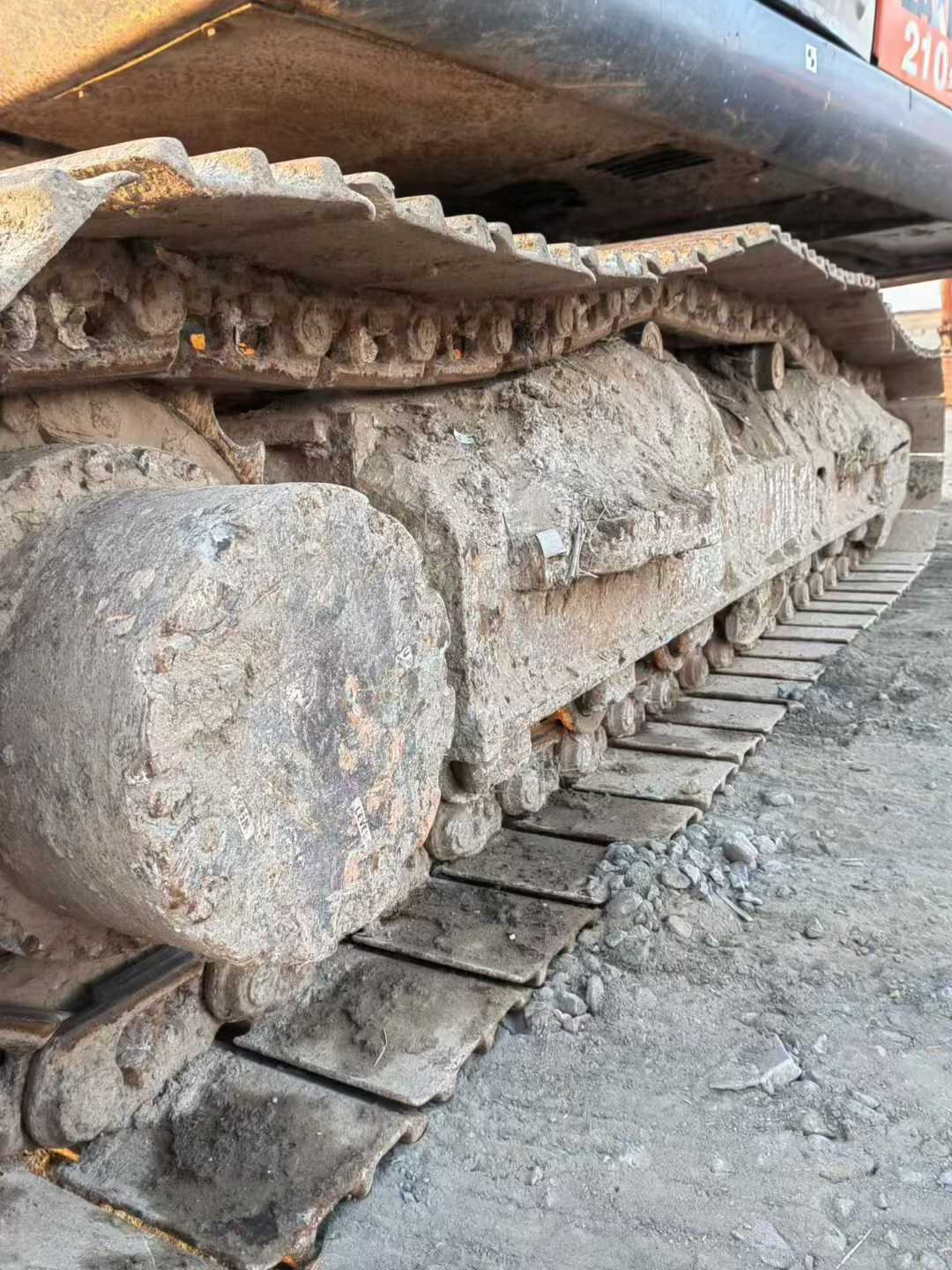

Used Hitachi ZX200-3G Excavator 2016 Model / 9

Product Description

【 Premium Recommendation 】 Hitachi 200-3G excavator. This machine can be regarded as the "top grade" in the market and is an ideal choice for earthwork projects. This equipment has remained in its original paint condition since leaving the factory. Its appearance shows almost no wear or scratches, and the body is as clean as new, demonstrating its excellent history of maintenance and care. Working hours: This Hitachi 200-3G excavator has only been in operation for about 4,500 hours. For a medium-sized excavator, such a short usage period means it still has a long service life waiting for a new owner to excavate. Power system: Equipped with an original imported Hitachi engine, it features stable and reliable performance, quick start-up, and can ensure efficient operation even under harsh working conditions. After professional testing, there are no abnormal sounds inside the engine, and all components work well together, ensuring strong power output and low fuel consumption performance. Hydraulic system: Equipped with advanced negative flow control technology, it features high response sensitivity and smooth operation. The key components such as the pump body and valve block have never been disassembled or replaced, indicating that th

SpecificationsValue
No.966081
Tonnage (tons)20
Working weight (kg)19800
Bucket capacity (m³)0.91
Boom length (mm)5.68(H Type)
Rod length (mm)2.91(H type)
Country of originHefei, Anhui Province
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU AA-6BG1T
Rated power (kw/rpm)110/2100
Cooling modewater-cooling
Cylinder diameter × stroke (mm)105 x 125
Number of cylinders (PCS)6
Displacement (L)6.494
Working form4 stroke, water cooled, direct injection, turbocharged, intercooled
Ground specific pressure (Kpa)44
Bucket digging force (kN)151
Rod digging force (kN)109
Rotary hydraulic motor typeAxial piston motor
Type of walking hydraulic motorVariable axial piston motor ×2
Maximum flow of main pump (l/min)194 x 2
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)30.4
Main pump typeVariable axial piston pump ×2
Working Hydraulic Circuit (Mpa)34.3
Pilot Oil Circuit (MPa)3.9
Bucket cylinders - Number × diameter × stroke (mm)1-115x80
Bucket rod cylinders - Number × diameter × stroke (mm)1-135 x 95
Boom cylinders - Number × diameter × stroke (mm)2-120 x 85
Fuel Tank (L)360
Hydraulic Tank (L)135
Engine Oil changes (L)25
Coolant (L)23
Hydraulic System (L)240
Total transport length (mm)9500
Total transport width (mm)2860
Total transport height (mm)2970
Full cab height (mm)2960
Counterweight ground clearance (mm)1040
Minimum ground clearance (mm)450
Back end turning radius (mm)2750
Total track length (mm)4170
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3370
Maximum digging radius (mm)9910
Maximum digging depth (mm)6660
Maximum excavation height (mm)9610
Maximum unloading height (mm)6790
Maximum vertical digging depth (mm)6040
Bulldozer lift or depth (mm)There is no
Dodging plate width × height (mm)There is no
Boom turning Angle (left/right °)There is no
see more

Overview

No.966081

Brand Name:

Hitachi

Model Number:

ZX200-3G

Year:

2016

Location:

Shandong China
