Product Description

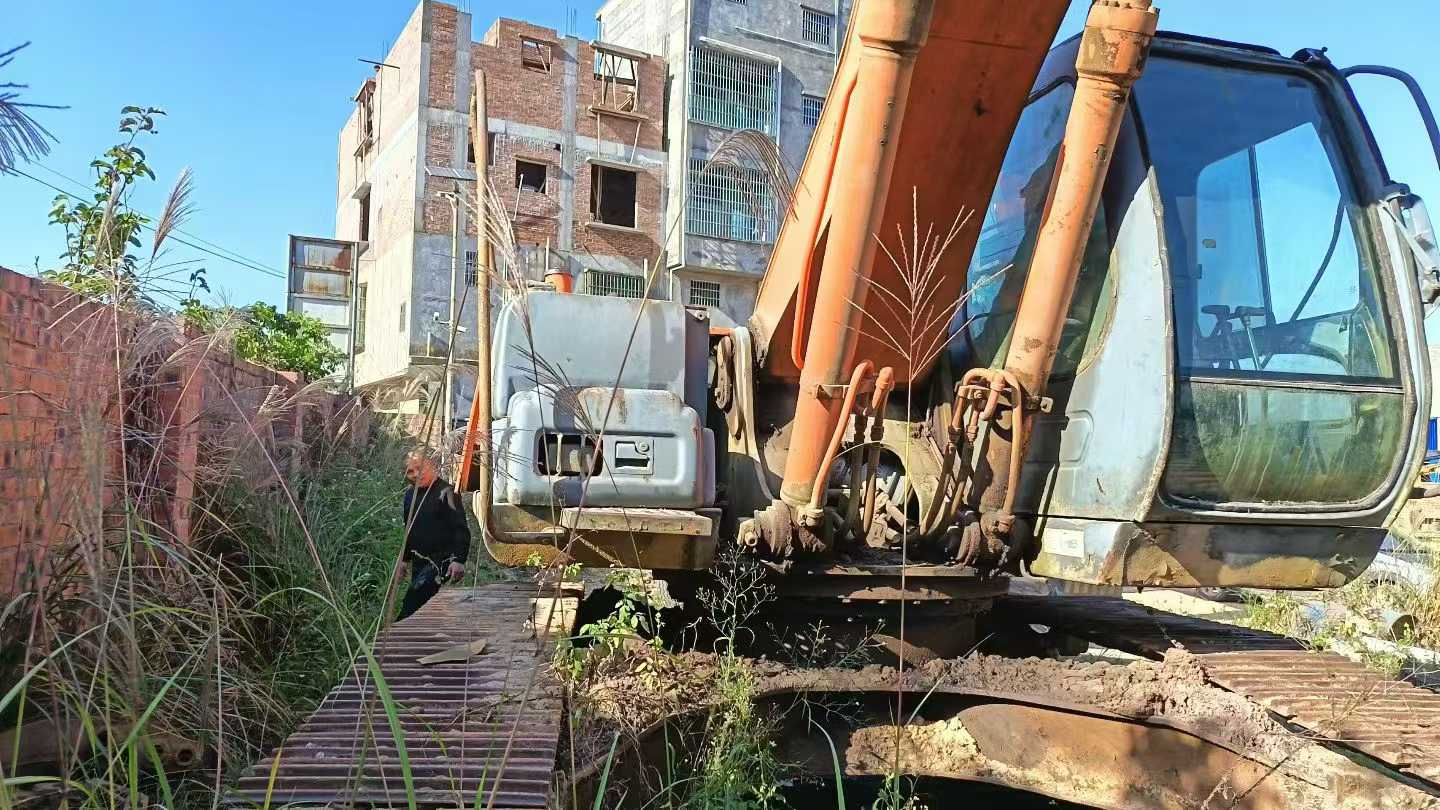

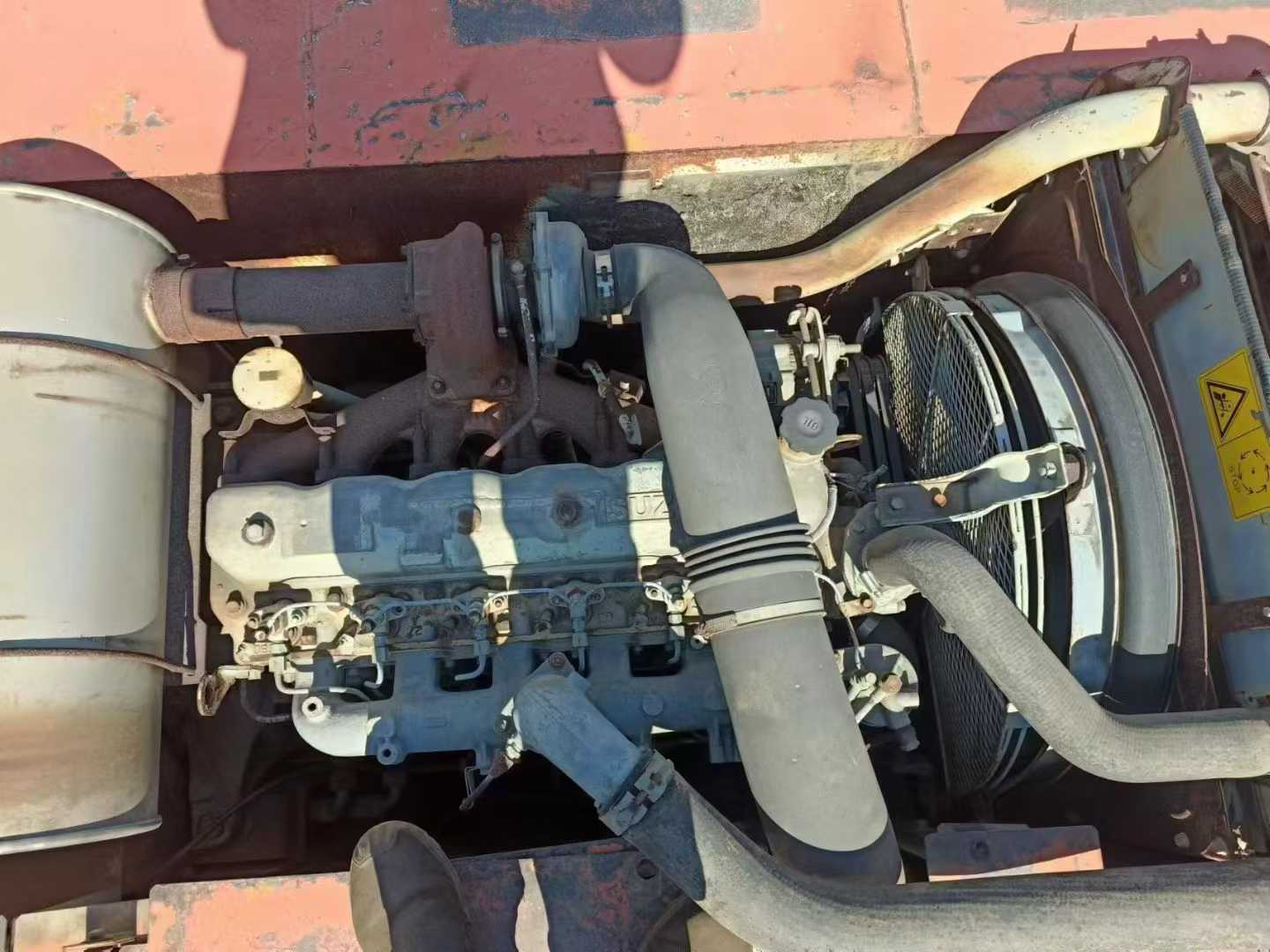

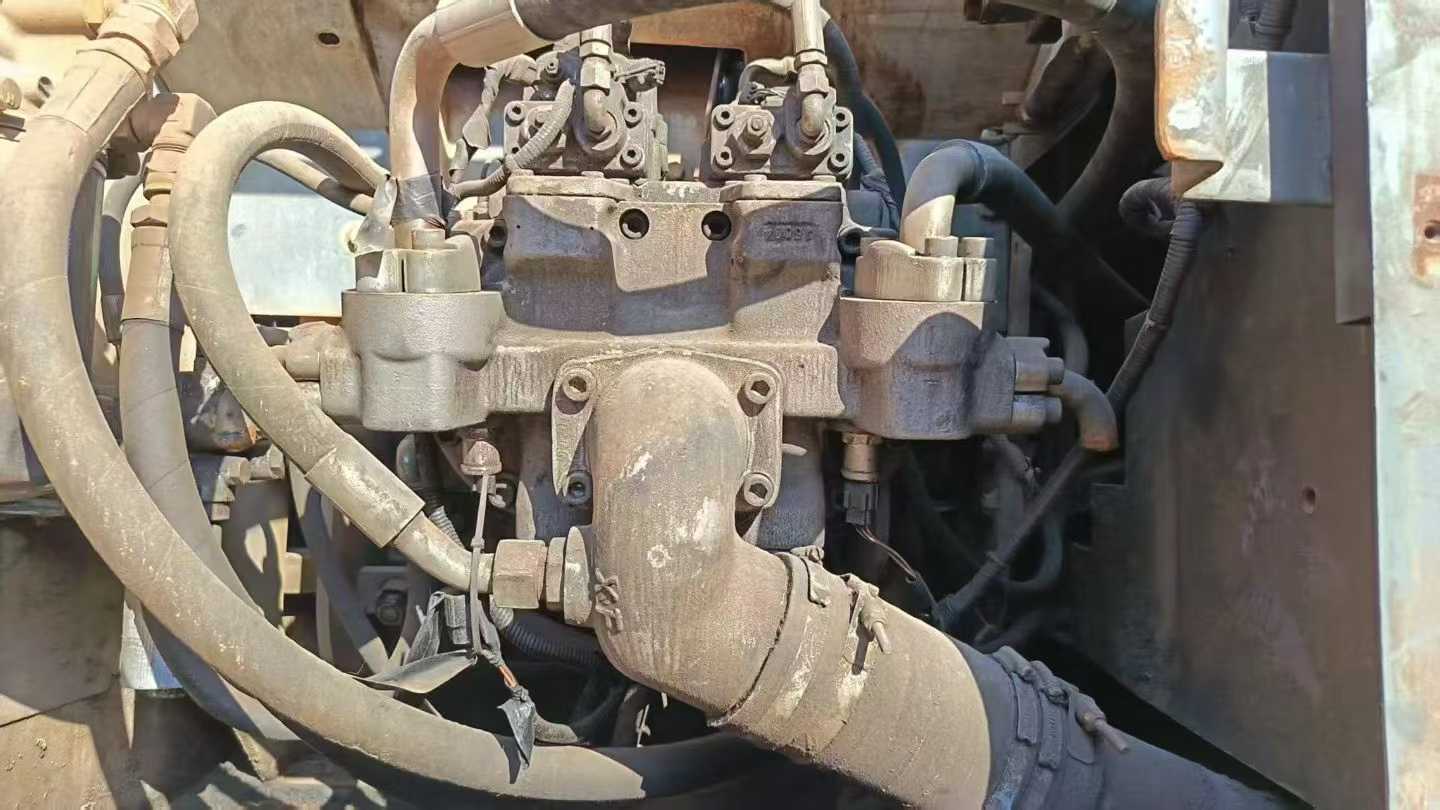

【 Second-hand Hitachi ZX240-3G Excavator This second-hand Hitachi ZX240-3G excavator from 2012 has accumulated a working time of 7,500 hours since it was put into use. It is in good overall condition and has stable performance. This machine is equipped with the original imported ISUZU AH-6HK1X inline six-cylinder water-cooled turbocharged engine from Hitachi, with a rated power of 129kW/2000rpm. It has strong power and good fuel economy, and can maintain efficient operation even under harsh working conditions. Its advanced common rail electronic fuel injection system not only enhances combustion efficiency but also significantly reduces emission pollution, meeting national environmental protection standards. In terms of the hydraulic system, the ZX240-3G is equipped with Hitachi's unique HIOS III hydraulic control system, which can achieve smooth and rapid operation response, ensuring high precision and flexibility during excavation operations. In addition, this model also features a powerful bucket shaft digging force (up to 155kN at most), making it capable of handling both earthwork excavation and rock crushing with ease. It is worth mentioning that this excavator adopts a reinforced chassis design, which enhances the overall stab
| Specifications | Value |
|---|---|
| No. | 962725 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 23800 |
| Bucket capacity (m³) | 1 |
| Boom length (mm) | 6 |
| Rod length (mm) | 2.96 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AH-4HK1X |
| Rated power (kw/rpm) | 132/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Working form | Direct injection, turbocharged, with intercooler |
| Ground specific pressure (Kpa) | 52 |
| Rotation speed (rpm) | 13.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 180 |
| Rod digging force (kN) | 125 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 2 x 224 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 32.4 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 130 x 90 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 x 100 |
| Boom cylinders - Number × diameter × stroke (mm) | 126 x 90 |
| Fuel Tank (L) | 500 |
| Hydraulic Tank (L) | 156/243(full container) |
| Engine Oil changes (L) | 23 |
| Coolant (L) | 26 |
| Total transport length (mm) | 10150 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3070 |
| Full cab height (mm) | 3010 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4260 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3460 |
| Maximum digging radius (mm) | 10290 |
| Maximum digging depth (mm) | 6960 |
| Maximum excavation height (mm) | 10160 |
| Maximum unloading height (mm) | 7200 |
| Maximum vertical digging depth (mm) | 6030 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
