Product Description

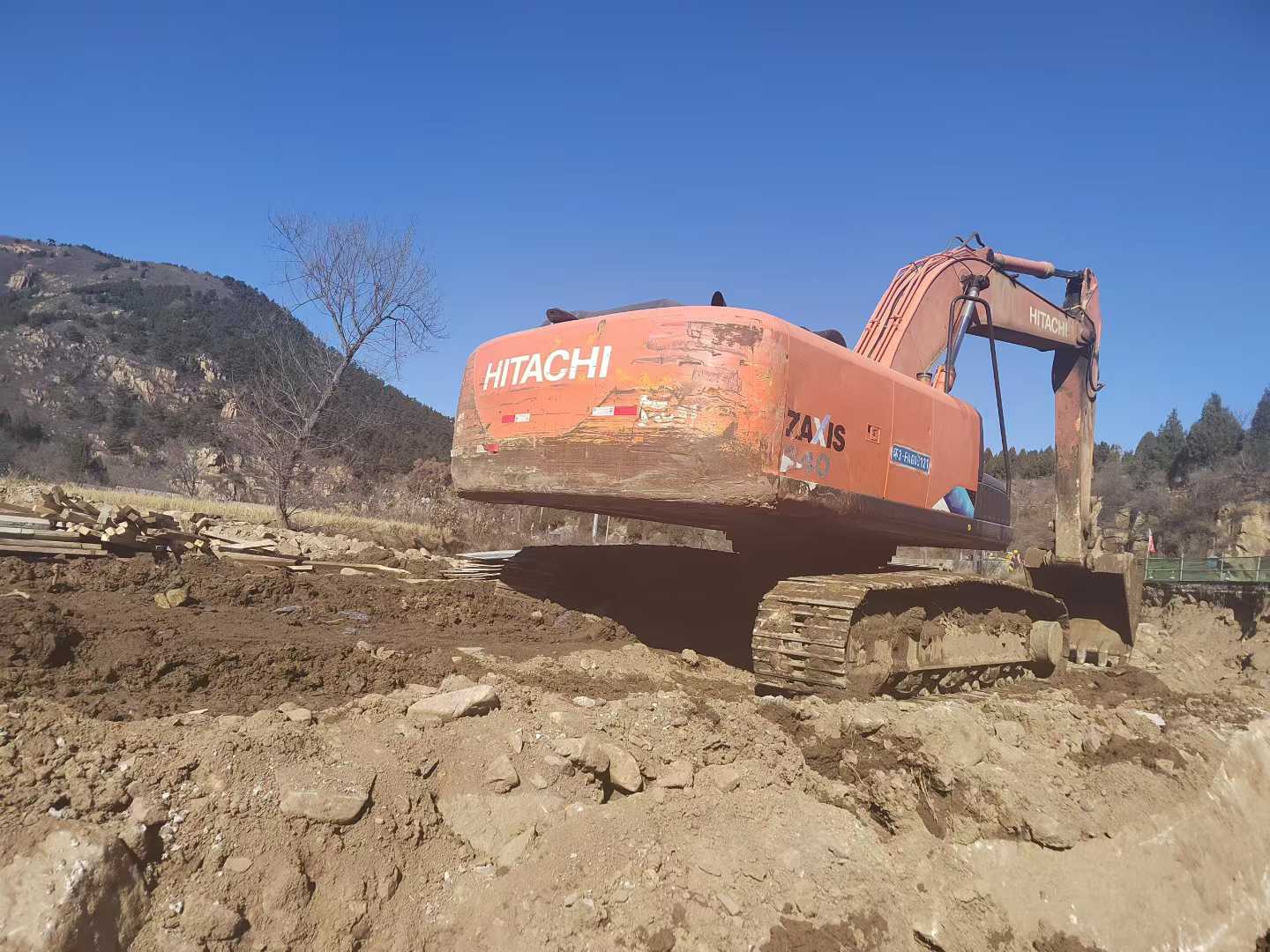

The Hitachi 240-5A from 2018 is very beautiful and has excellent performance. It's not expensive, costing over 200,000 yuan. There are detailed pictures and videos. It's a customer's first-hand car with complete procedures.
| Specifications | Value |
|---|---|
| No. | 958809 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 24300-24400 |
| Bucket capacity (m³) | 1.2-1.4 |
| Boom length (mm) | 6000 |
| Rod length (mm) | 2960 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu GH-4HK1XKSA-01 |
| Rated power (kw/rpm) | 127/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Maximum torque (N.m) | 640/1500 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Working form | 4-stroke, water-cooled, electronically controlled direct injection, turbocharged, intercooled |
| Ground specific pressure (Kpa) | 53 |
| Rotation speed (rpm) | 12.4 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 188 |
| Rod digging force (kN) | 131 |
| Maximum tractive force (kN) | 222 |
| Travel speed (km/h) | 5.5/3.4 |
| Turning torque (Nm) | 77.5 |
| Rotary hydraulic motor type | 1 swashplate plunger motor |
| Type of walking hydraulic motor | 2 variable swash plate plunger motor |
| Maximum flow of main pump (l/min) | 2 x 224 + 32 |
| Traveling Hydraulic Circuit (Mpa) | 34.8 |
| Rotary Hydraulic Circuit (Mpa) | 32.4 |
| Main pump type | 2 variable axial piston pumps +1 gear pump |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 130 x 90 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 140 x 100 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 125 x 90 |
| Fuel Tank (L) | 510 |
| Hydraulic Tank (L) | 156 |
| Engine Oil changes (L) | 23 |
| Coolant (L) | 31 |
| Hydraulic System (L) | 280 |
| Total transport length (mm) | 10360 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3080 |
| Full cab height (mm) | 3010 |
| Counterweight ground clearance (mm) | 1080 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3440 |
| Back end turning radius (mm) | 3140 |
| Total track length (mm) | 4260 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3460 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10290 |
| Maximum digging depth (mm) | 6960 |
| Maximum excavation height (mm) | 10160 |
| Maximum unloading height (mm) | 7200 |
| Maximum vertical digging depth (mm) | 6030 |
| Maximum excavation radius of stop surface (mm) | 10110 |
