Product Description

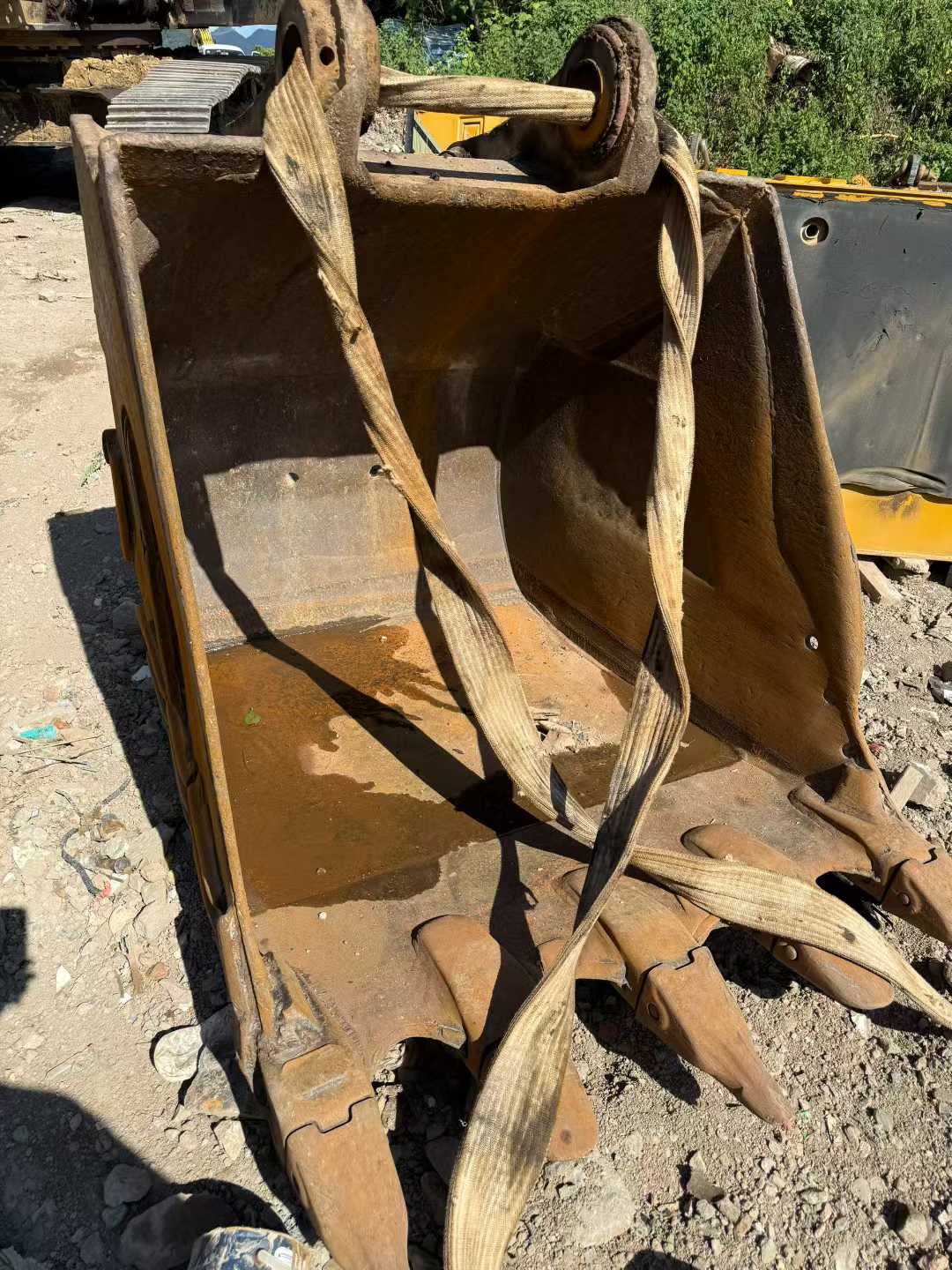

"Recommendation of Premium Second-hand Excavators We have carefully selected for you a second-hand excavator with excellent performance and good maintenance, model Calendar 360. This excavator not only has a neat appearance but also is in good mechanical condition, making it highly suitable for various medium and small-sized engineering operations. Its working time is only 2,500 hours, which is far shorter than the average service life of similar equipment. This means you will get a nearly brand new machine, but at a more affordable price. This excavator is equipped with a powerful and reliable engine, ensuring efficient operation even under complex working conditions. Its power system has been comprehensively inspected and maintained by a professional team. It performs excellently in both start-up speed and fuel economy, effectively reducing your operating costs. Meanwhile, the advanced hydraulic system design makes the operation more precise and smooth, greatly enhancing work efficiency. In addition, it is worth mentioning that the vehicle comes with an original factory bucket, ensuring quality. It can be put into use immediately without the need to purchase additional accessories, further saving initial investment. In conclusion,
| Specifications | Value |
|---|---|
| No. | 966576 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |
| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
