Product Description

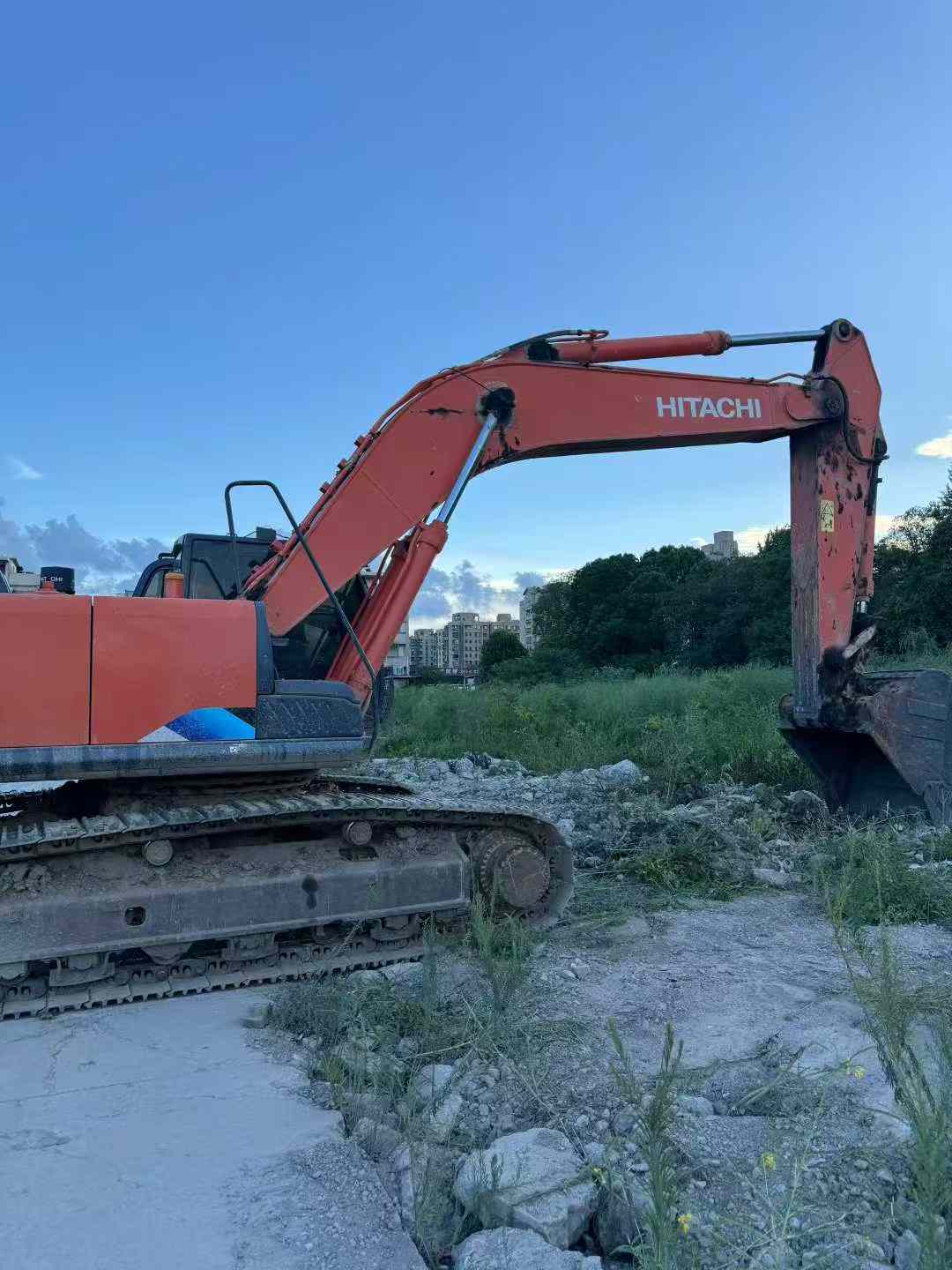

【 Premium Recommendation 】 20-year-old Hitachi 360 second-hand excavator, a powerful tool for earthwork projects! This Hitachi 360 excavator from 2010 has only been in operation for 7,500 hours so far, with a relatively low usage frequency. The overall condition of the vehicle is in excellent condition, being 90% new. Both its exterior and interior are well maintained. It is a highly efficient machine specially designed for earthwork operations, and is very suitable for large-scale earthwork excavation, transportation and other engineering needs. In terms of the power system, this aircraft is equipped with a high-performance engine imported from Hitachi. It not only has strong power but also excellent fuel economy, which can effectively reduce operating costs while ensuring work efficiency. Even in harsh working environments, it can stably output strong power, ensuring no pressure during long-term continuous operation. The hydraulic system adopts advanced negative flow control technology, which is flexible and precise in operation, with a fast response speed. Both the digging force and the lifting force can be fully exerted, greatly improving the construction efficiency. In addition, its excellent heat dissipation performance and se
| Specifications | Value |
|---|---|
| No. | 970191 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5850 |
| Bucket capacity (m³) | 0.22 |
| Boom length (mm) | 3.49 |
| Rod length (mm) | 1.6(Enhanced version) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 41.4 |
| Rod digging force (kN) | 28.4 |
| Travel speed (km/h) | 2.5/4.5 |
| Main overflow set pressure (Mpa) | 24.5 |

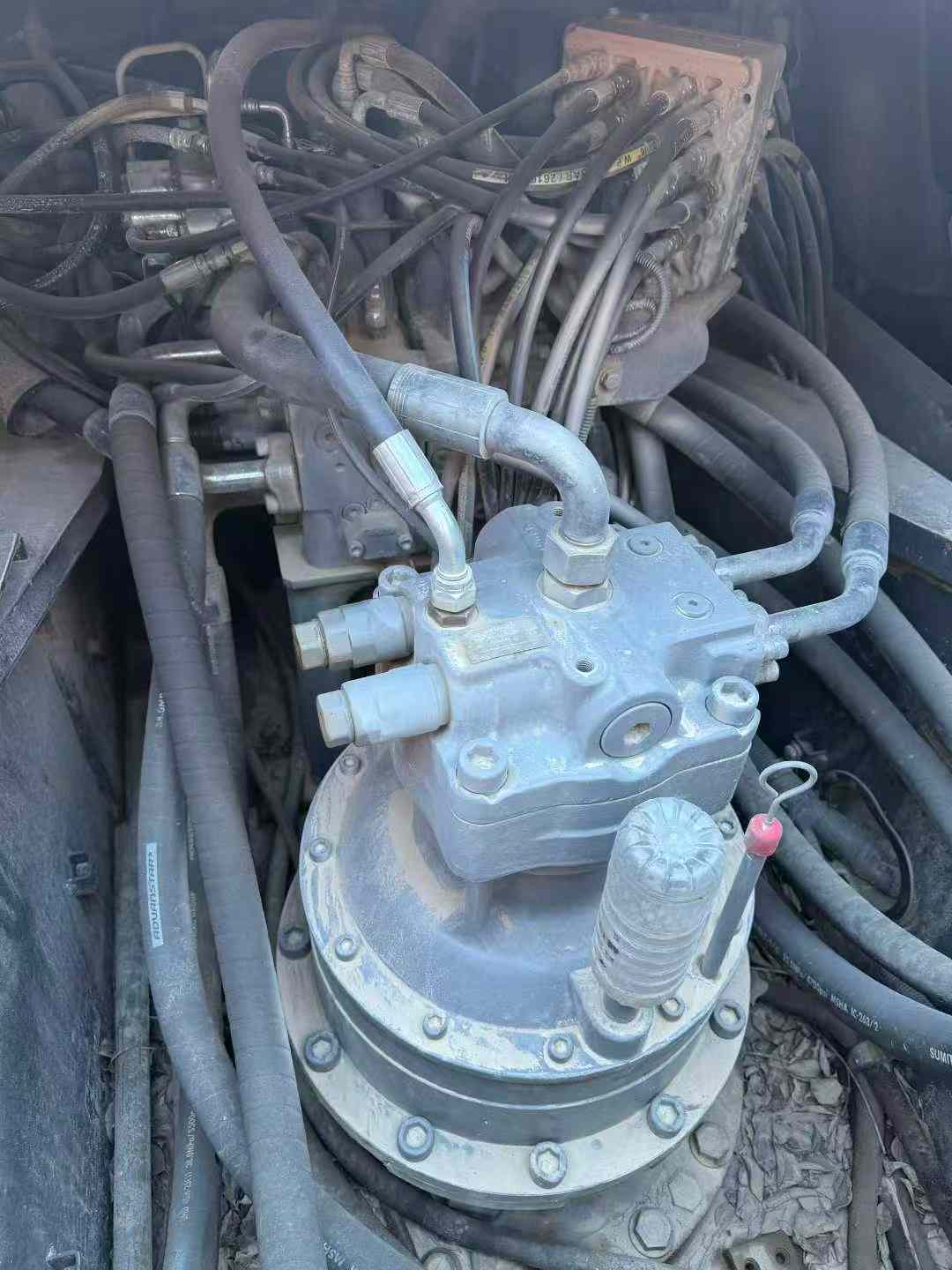

| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable swash plate plunger motor ×2 |
| Main pump type | Variable piston pump ×2+ gear pump ×2 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 61(Full box 95) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2470 |
| Full cab height (mm) | 2470 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2480 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Track ground length (mm) | 2000 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 5800 |
| Maximum unloading height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3300 |
| Bulldozer lift or depth (mm) | 430/400 |
