Product Description

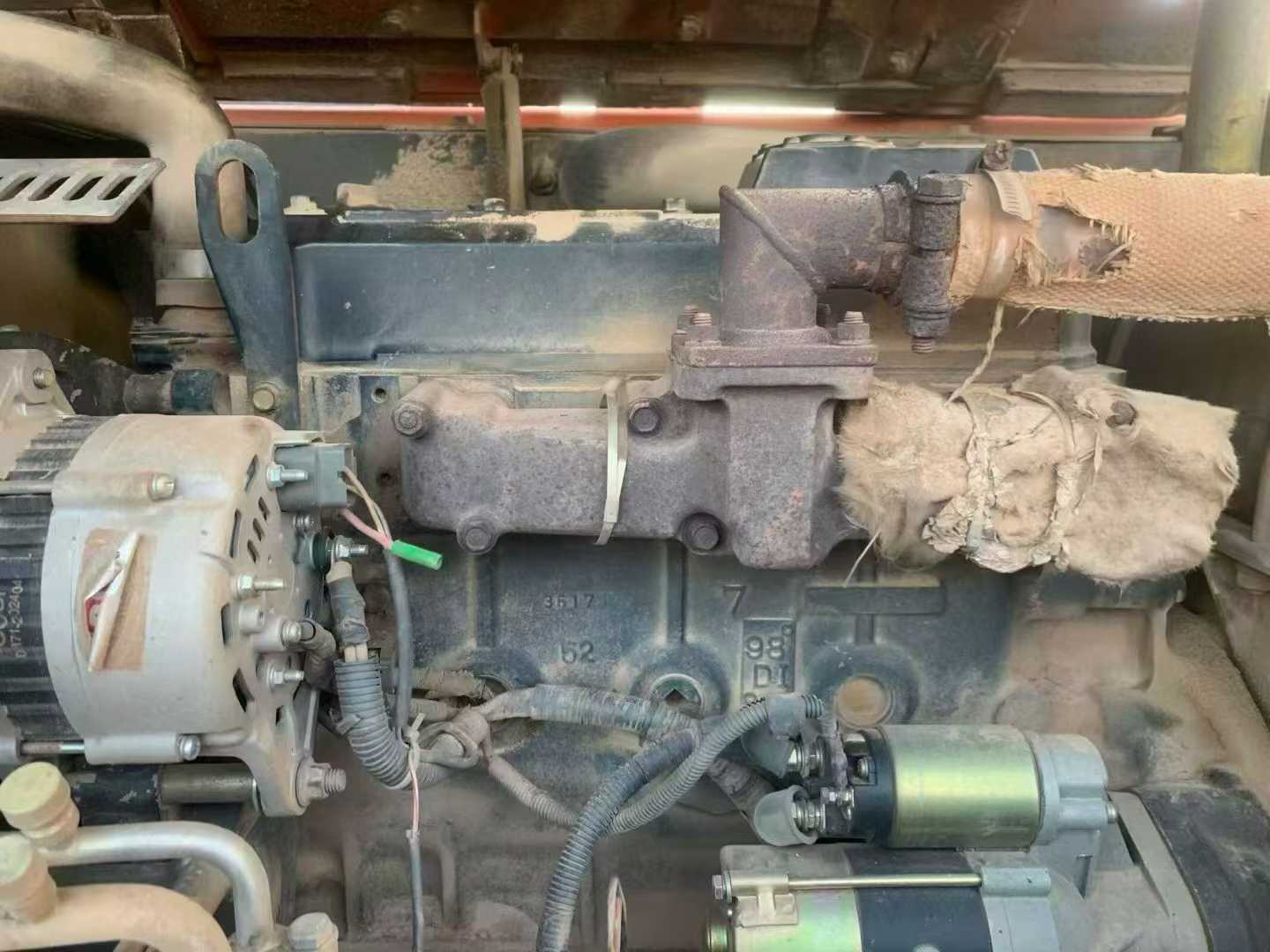

【 Premium Recommendation 】 Second-hand Hitachi ZX60-5G excavator from 2013, complete procedures, affordable price! Since its release in 2013, this Hitachi ZX60-5G excavator has only accumulated 4,500 hours of operation and is in the best working condition. This machine is equipped with an original imported Isuzu 4BG1 turbocharged engine, which is powerful and fuel-efficient. It can maintain high efficiency even under harsh working conditions. Meanwhile, it is equipped with Hitachi's unique HIOS III hydraulic system, which can achieve precise control and rapid response. This not only improves the operation efficiency but also significantly reduces fuel consumption, making the operation more smooth and stable. In addition, this excavator has undergone comprehensive inspection and maintenance by a professional team to ensure that all key components such as pumps and valve bodies are in good condition and free from any potential faults. The appearance is clean and tidy, the paint surface is intact, the interior of the cab is clean and comfortable, and the air conditioning cooling effect is excellent, providing a good working environment for the operator. More importantly, all the procedures of this equipment are very complete, including
| Specifications | Value |
|---|---|
| No. | 969282 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.24 |
| Country of origin | Hefei (Capital of Anhui Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV98-AVHBW |
| Rated power (kw/rpm) | 42.4/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Maximum torque (N.m) | 236 |
| Number of cylinders (PCS) | 4 |
| Working form | Four-stroke, water-cooled, direct injection |
| Rotation speed (rpm) | 9.1 |
| Climbing ability (%) | 70% (35°) |
| Maximum tractive force (kN) | 38.5 |
| Travel speed (km/h) | 0-4.5/0-2.5 |
| Turning torque (Nm) | 10 |
| Rotary hydraulic motor type | 1 axial plunger motor |
| Type of walking hydraulic motor | 2 variable axial piston motors |
| Traveling Hydraulic Circuit (Mpa) | 24.5 |
| Rotary Hydraulic Circuit (Mpa) | 17.6 |
| Main pump type | 3 variable axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 24.5 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 60 |
| Coolant (L) | 8 |
| Hydraulic System (L) | 93 |
| Total transport length (mm) | 6060 |
| Total transport width (mm) | 2060 |
| Total transport height (mm) | 2085 |
| Full cab height (mm) | 2475 |
| Counterweight ground clearance (mm) | 620 |
| Minimum ground clearance (mm) | 310 |
| Minimum turning radius of front working device (mm) | 2510 |
| Back end turning radius (mm) | 1650 |
| Onboard width (mm) | 2060 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 3850 |
| Maximum excavation height (mm) | 4080 |
| Maximum vertical digging depth (mm) | 3440 |
| Dodging plate width × height (mm) | 200 x 400 |
| Maximum excavation radius of stop surface (mm) | 6130 |
