Product Description

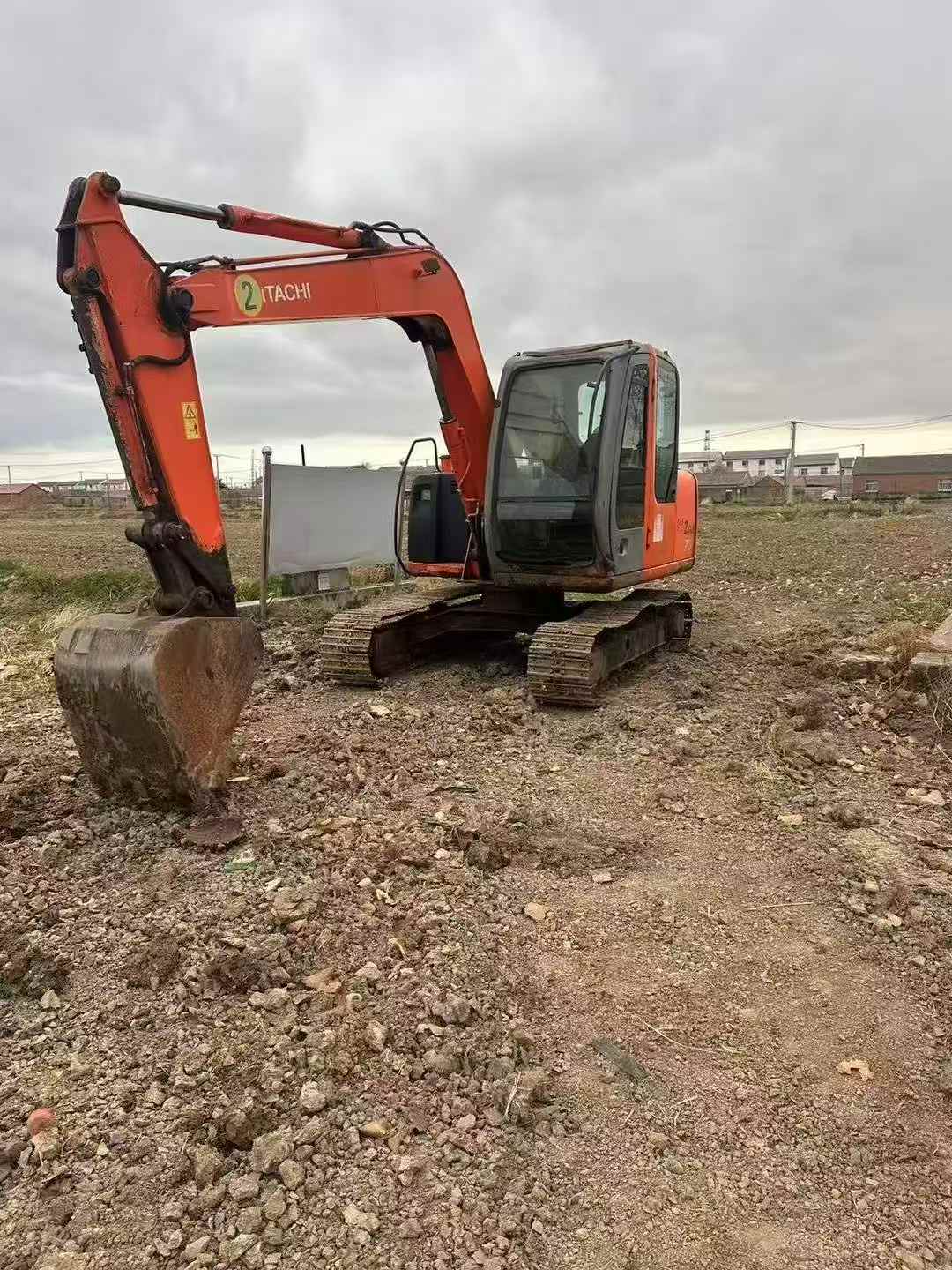

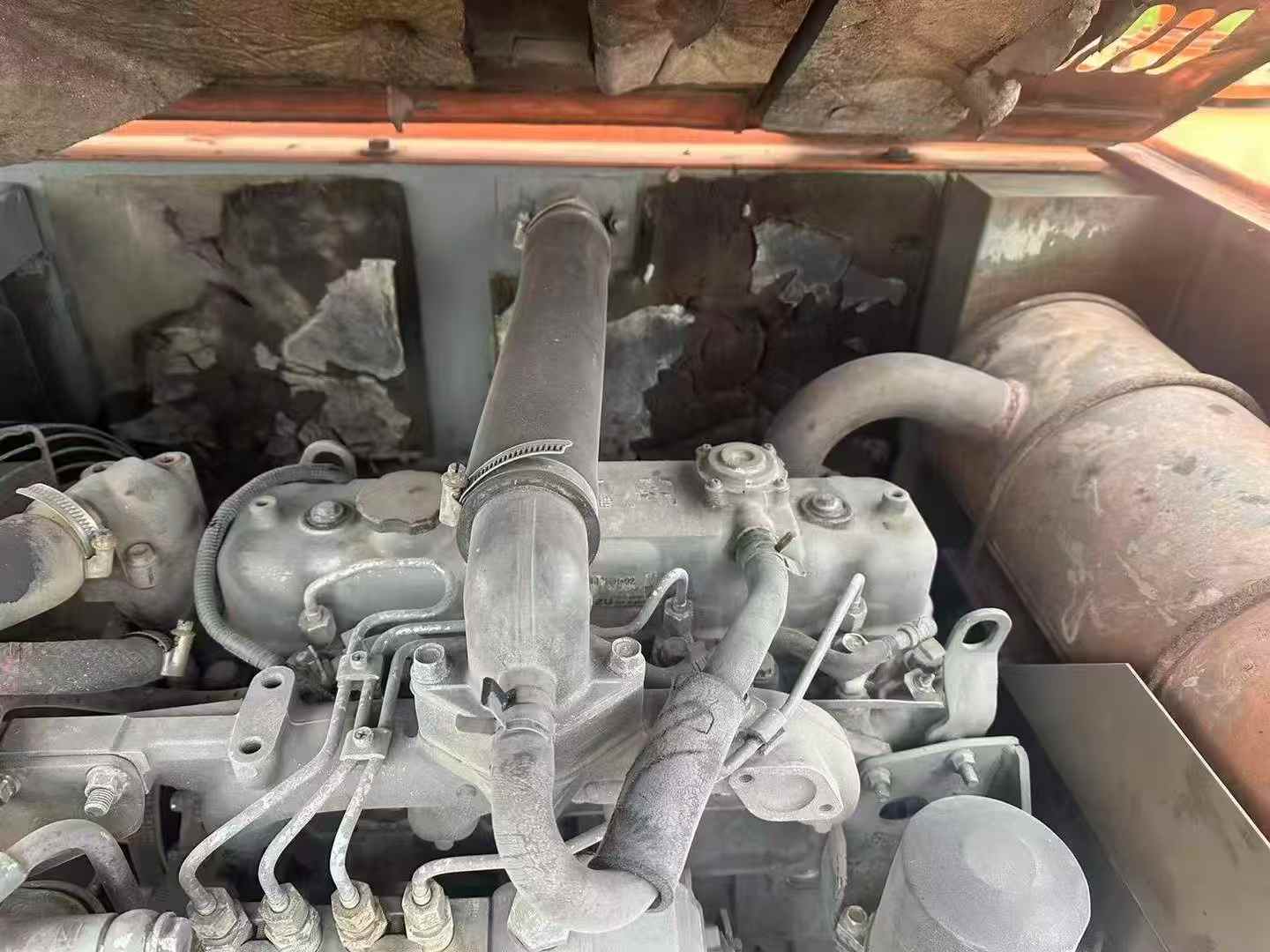

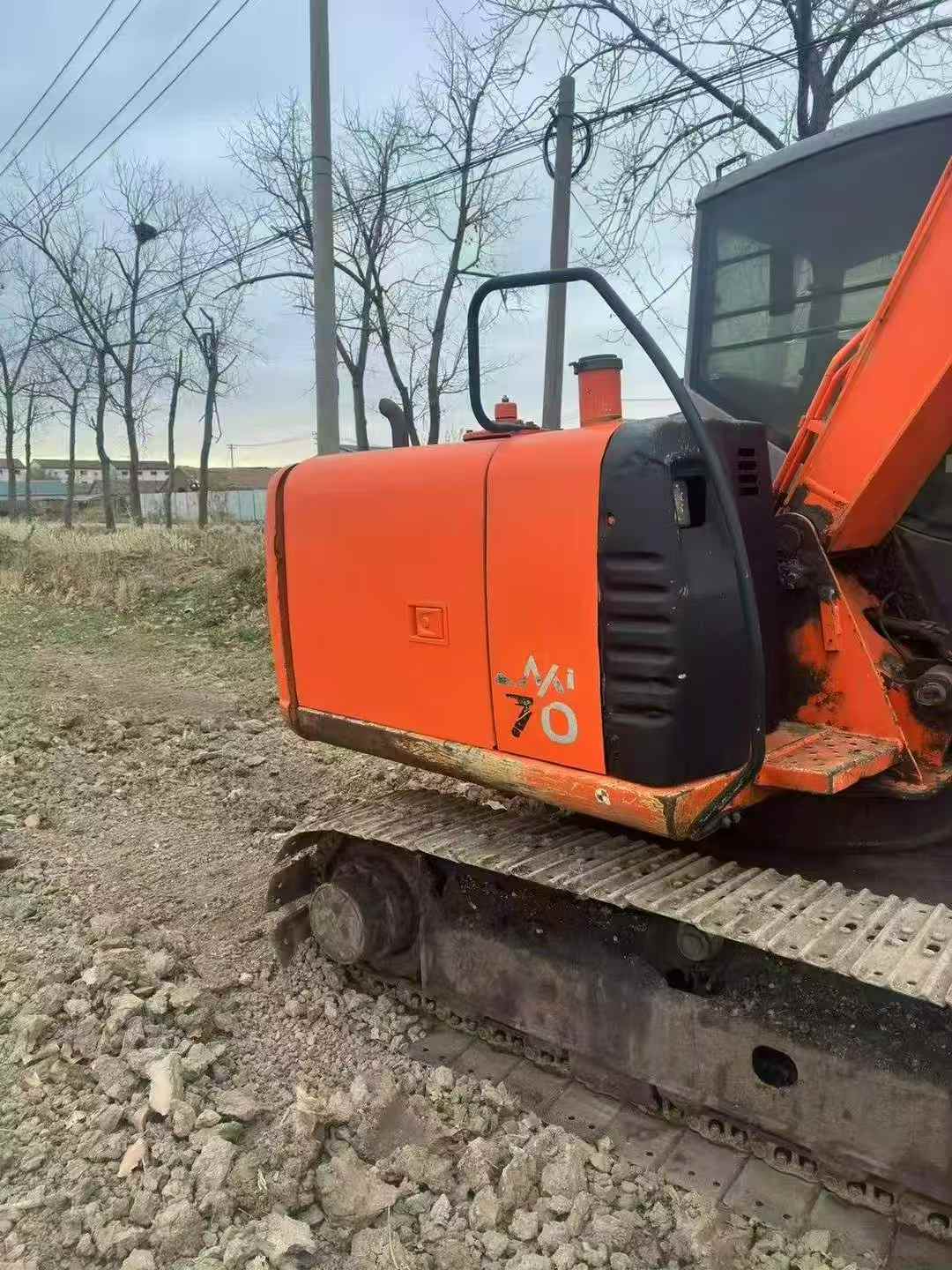

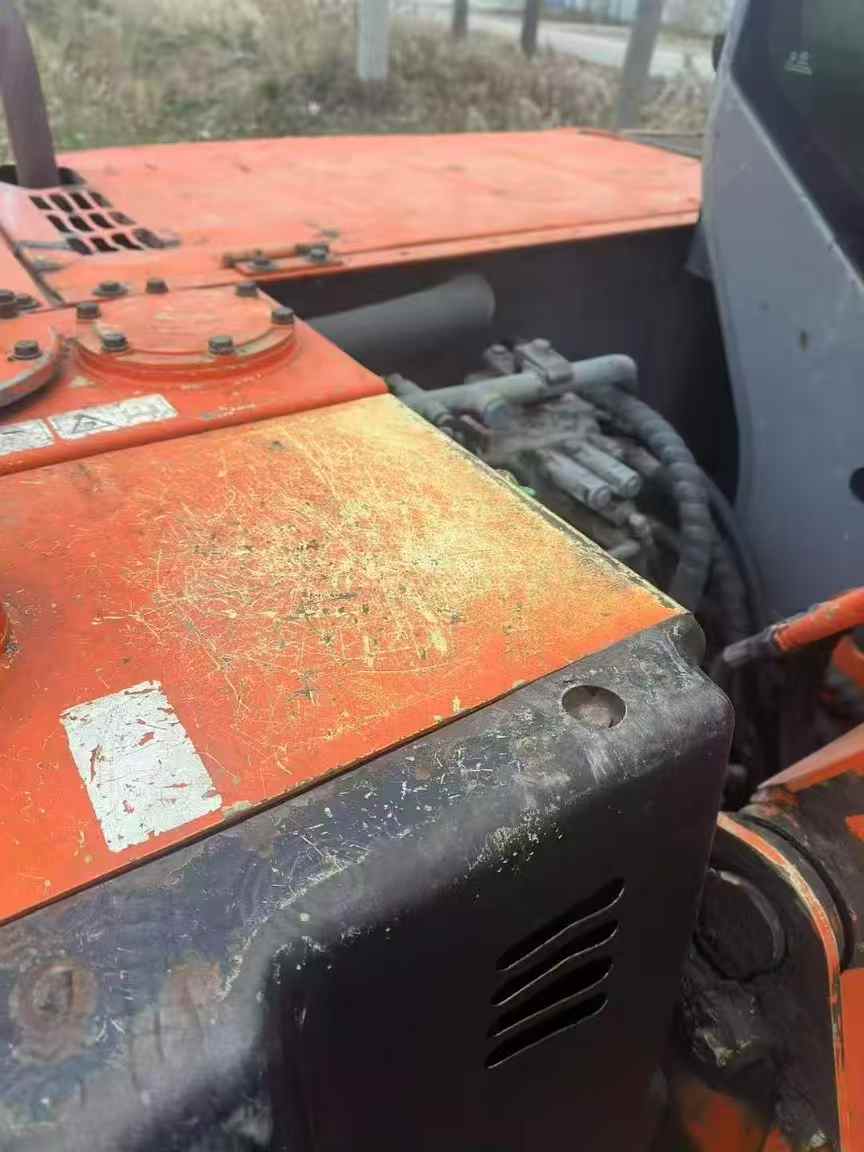

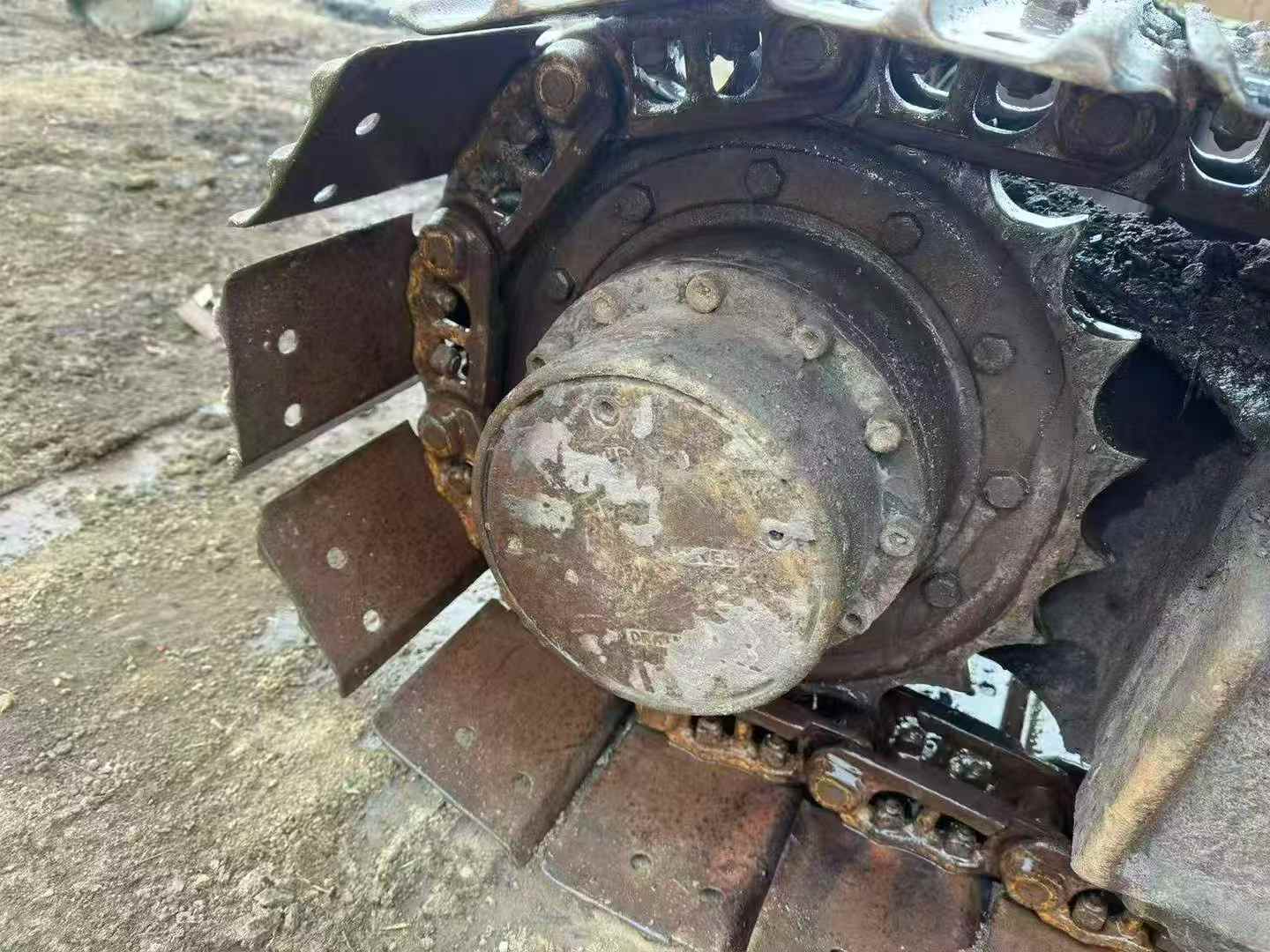

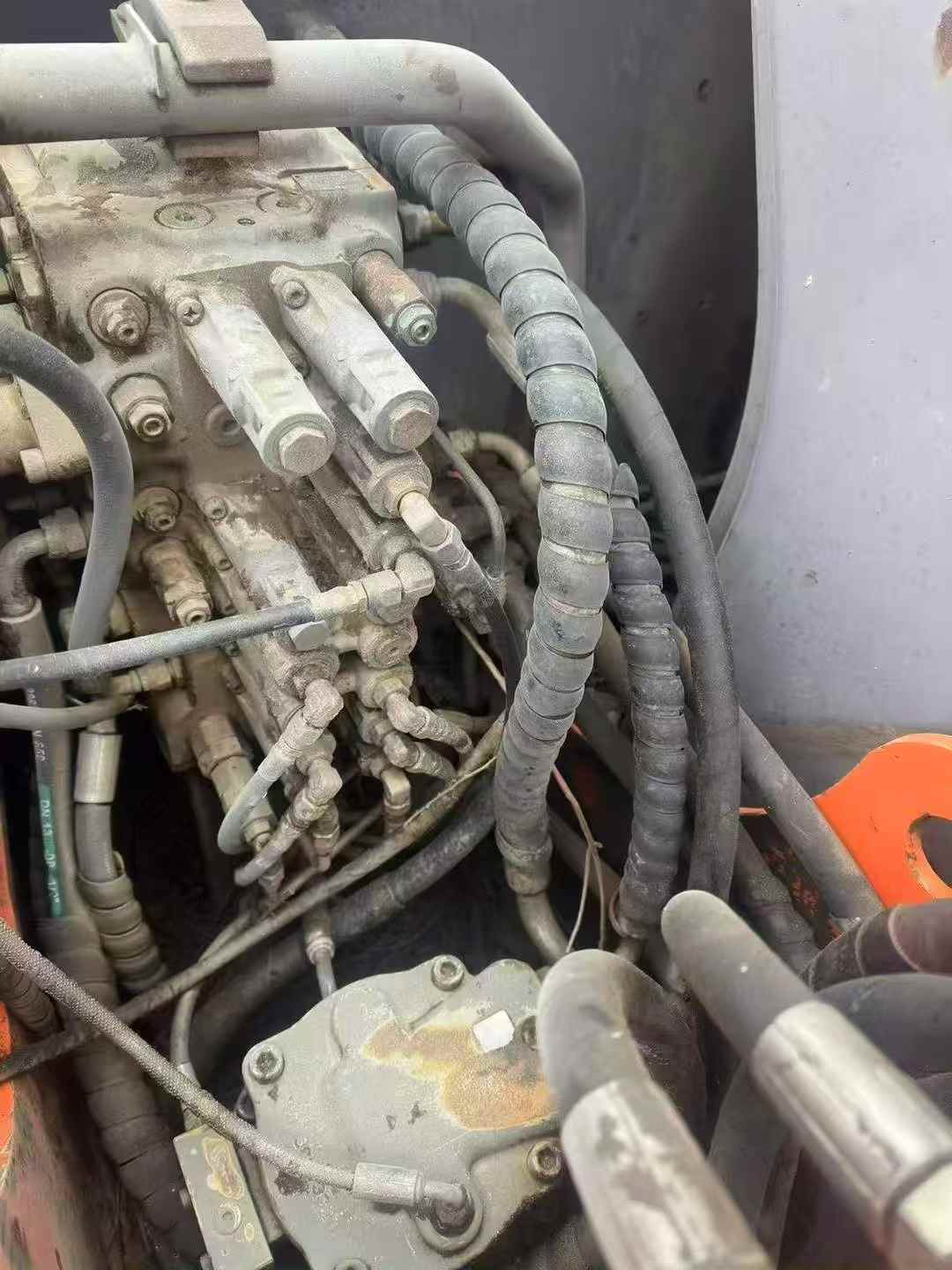

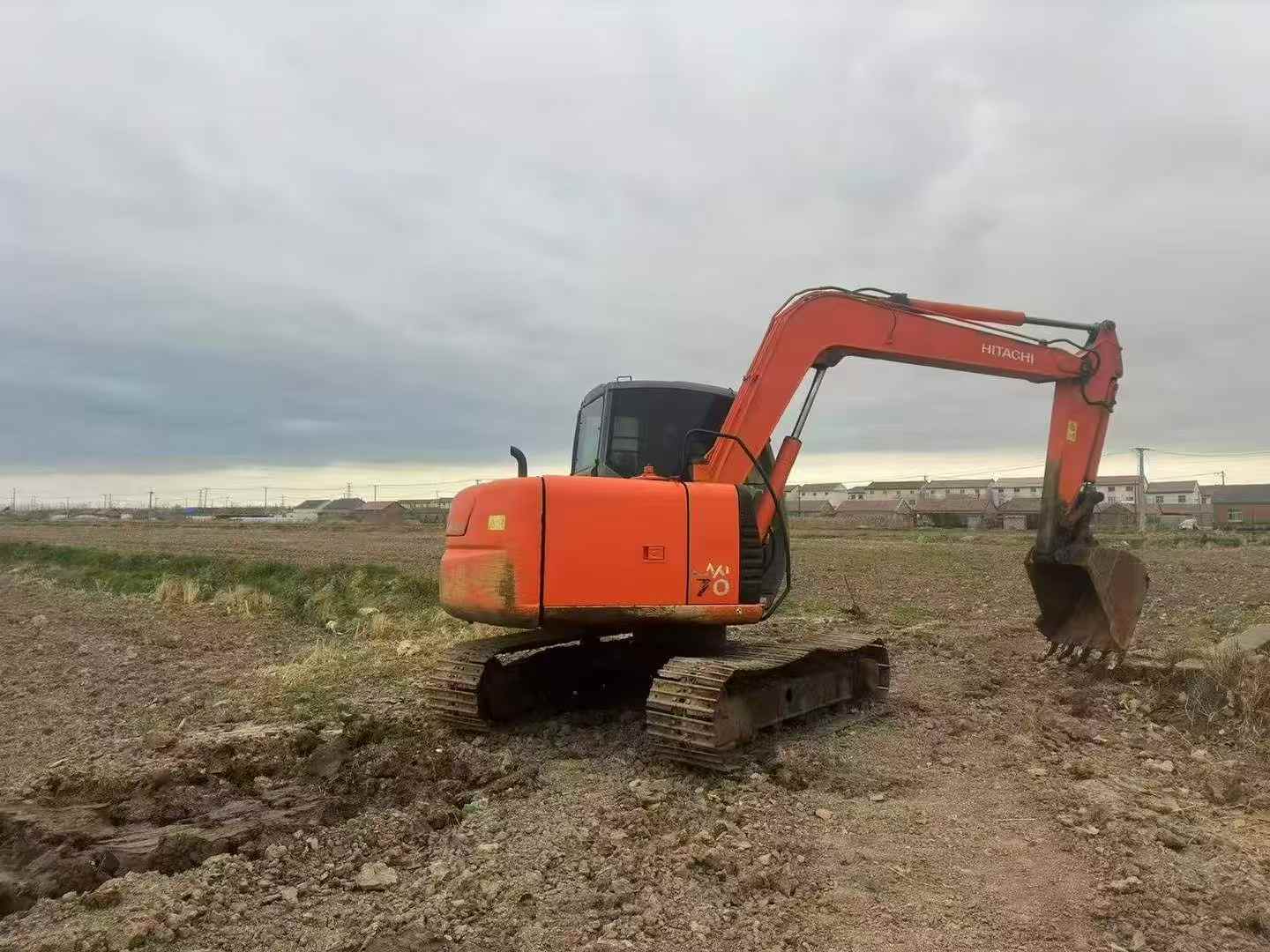

【 Premium Recommendation 】 Second-hand Hitachi ZX70 excavator from 2012. This is a high-quality device with outstanding performance and proper maintenance. The total working time of this machine is 4,500 hours, which is in the best condition of the mechanical life cycle. It not only ensures the maturity and stability of the machine but also avoids the wear and tear caused by excessive use. In terms of power, this excavator is equipped with an original imported Hitachi engine, which has been meticulously tuned and maintained. It operates stably and powerful at idle speed and can provide strong power output even at low speeds, ensuring efficient operation under various working conditions. In addition, it has excellent fuel economy performance, significantly reducing operating costs. The hydraulic system adopts an advanced closed-loop design, combined with high-precision proportional valve control technology, which enables the entire machine to respond quickly and accurately. Whether it is excavation, loading or crushing operations, it can handle them with ease. User feedback shows that its working efficiency far exceeds that of similar products, and the phrase "extremely fast" is by no means an exaggeration. The chassis part is equall
| Specifications | Value |
|---|---|
| No. | 965934 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6510 |
| Bucket capacity (m³) | 0.3 |
| Boom length (mm) | 3.72 |
| Rod length (mm) | 1.62(reinforced type) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.318 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 30 |
| Rotation speed (rpm) | 11.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 55 |
| Rod digging force (kN) | 38 |
| Travel speed (km/h) | 3.4/5.0 |
| Main overflow set pressure (Mpa) | 31.4 |
| Rotary hydraulic motor type | Variable piston pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Main pump type | Variable piston pump ×3+ gear pump ×1 |
| Fuel Tank (L) | 135 |
| Hydraulic Tank (L) | 60(over 100) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2600 |
| Full cab height (mm) | 2600 |
| Counterweight ground clearance (mm) | 760 |
| Minimum ground clearance (mm) | 360 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2765 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2200 |
| Track ground length (mm) | 2140 |
| Maximum digging radius (mm) | 6320 |
| Maximum digging depth (mm) | 4170 |
| Maximum excavation height (mm) | 7150 |
| Maximum unloading height (mm) | 5060 |
| Maximum vertical digging depth (mm) | 3730 |
| Bulldozer lift or depth (mm) | No bulldozer |
