Product Description

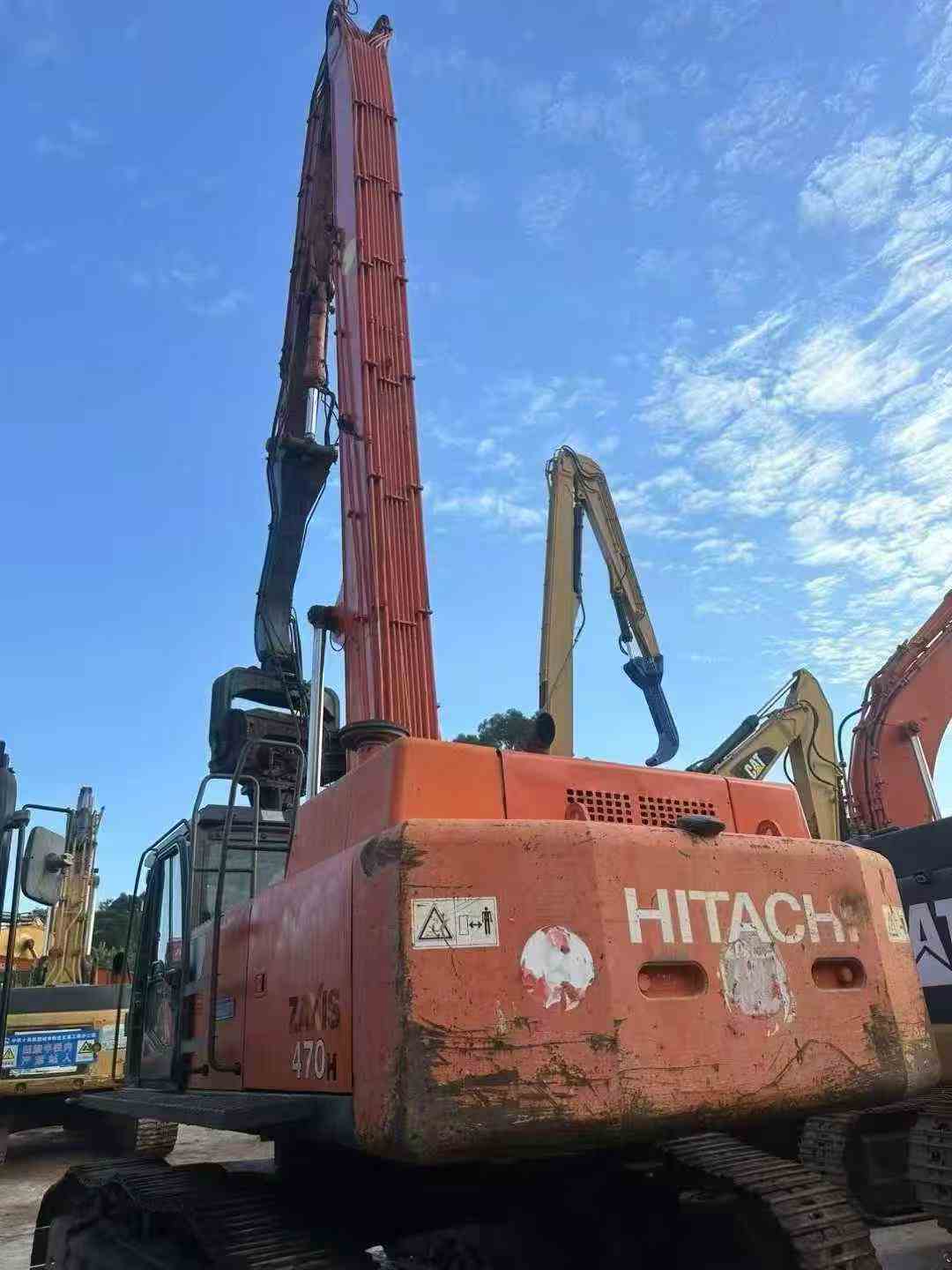

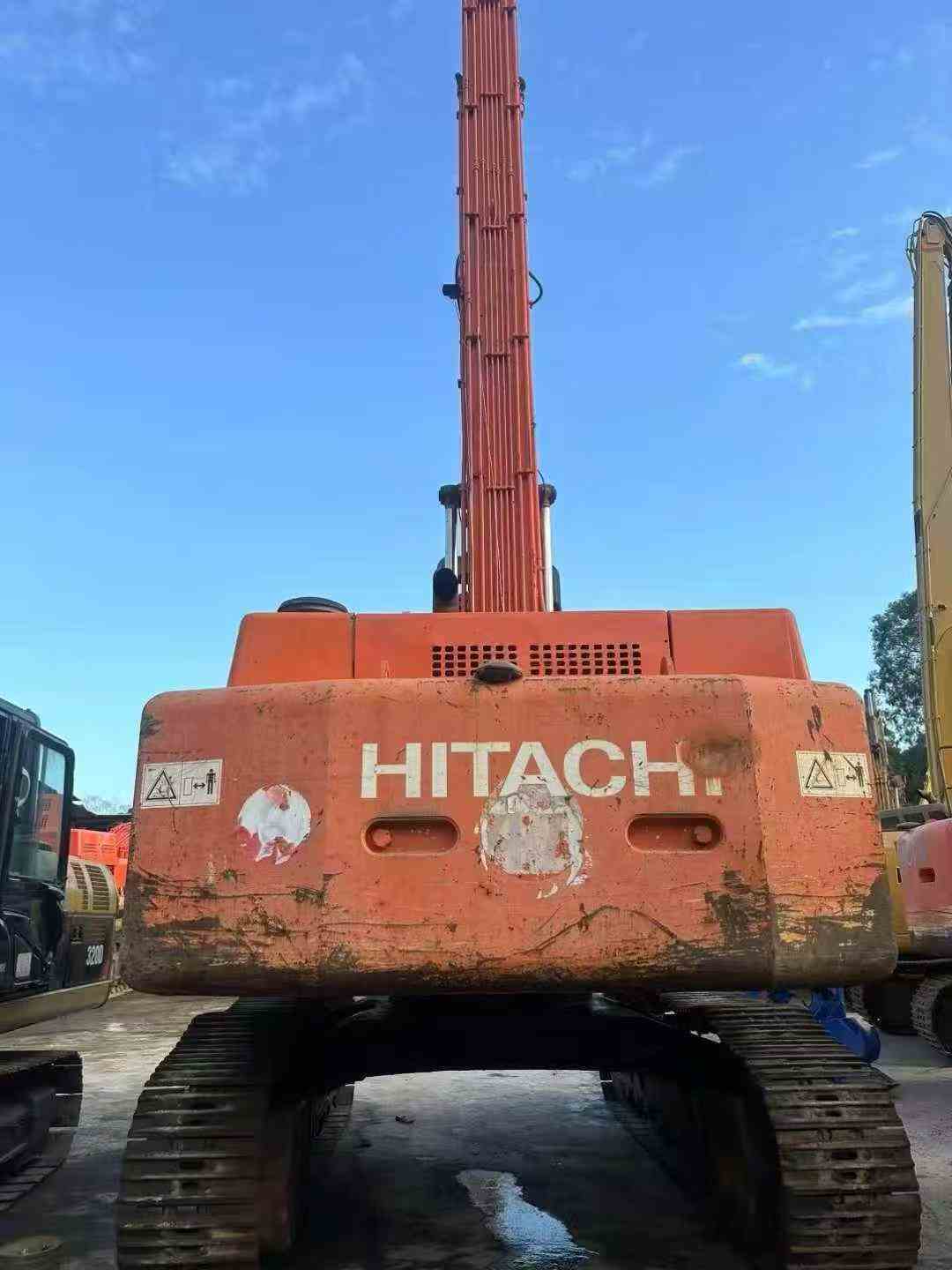

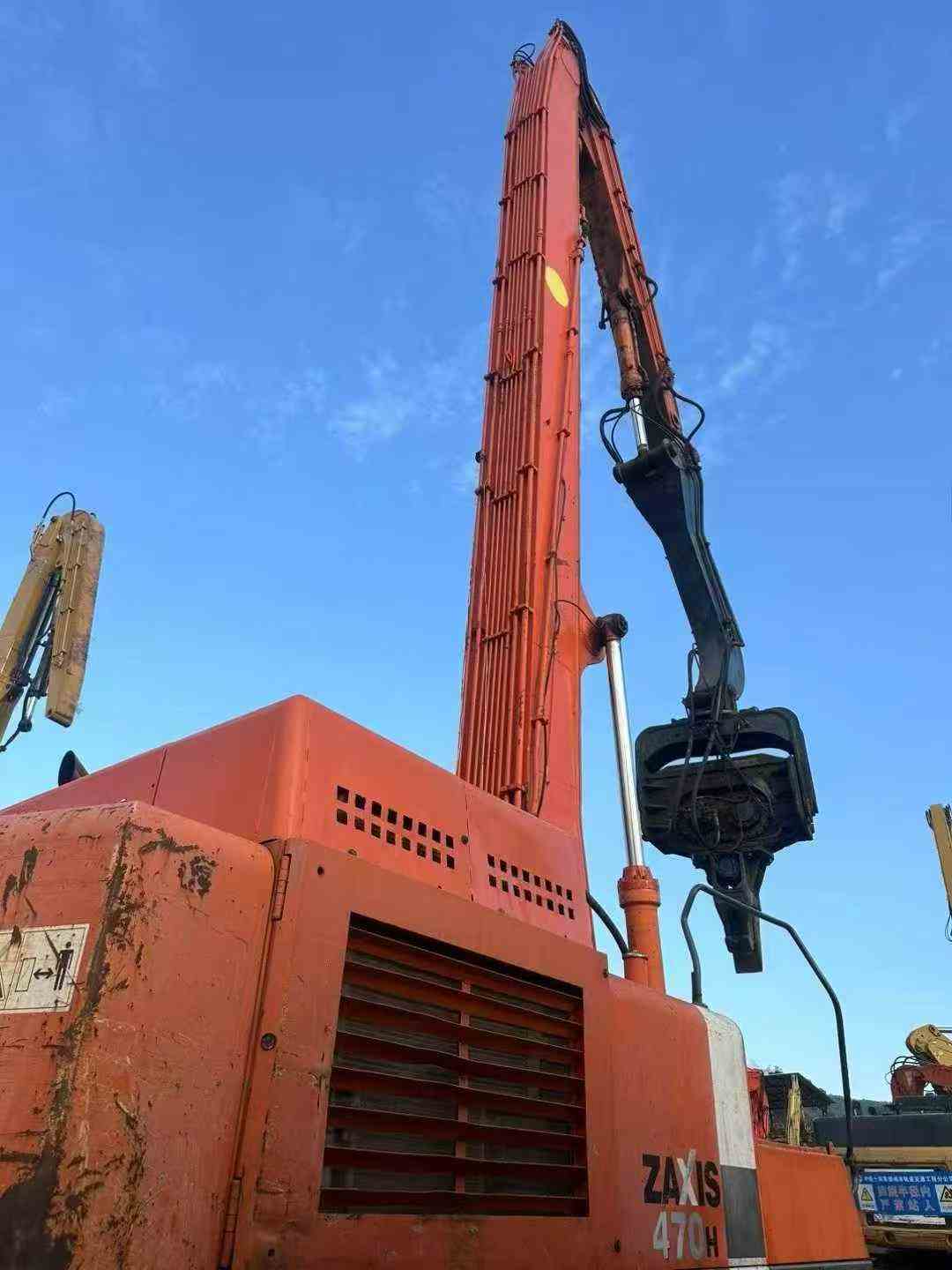

【 Second-hand Hitachi 470-3 Pile driver for sale at a loss, excellent quality 】 Dear customer, hello! We currently have a second-hand Hitachi 470-3 pile driver at a high original price. Due to business adjustments in our company, we are now selling it at a loss. This machine works for only over 2,000 hours and is used at a relatively low frequency, yet its overall performance remains in an extremely excellent state. "Power System This equipment is equipped with an original imported Hitachi engine, which is powerful and stable, has high fuel economy, and can easily handle various complex working conditions. The engine has been meticulously maintained and serviced by a professional team, ensuring its efficient operation and long service life. "Hydraulic System Equipped with an advanced hydraulic control system, it has extremely high operational sensitivity and can handle both precise operations and heavy tasks with ease. There is no leakage in the hydraulic pump or pipelines, ensuring the reliability and safety of the entire machine's operation. "Other Highlights This model has been equipped with additional counterweights, which enhance the overall stability of the machine and make it more convenient to handle deep foundation pit exc
| Specifications | Value |
|---|---|
| No. | 964345 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6510 |
| Bucket capacity (m³) | 0.3 |
| Boom length (mm) | 3.72 |
| Rod length (mm) | 1.62(reinforced type) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.318 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 30 |
| Rotation speed (rpm) | 11.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 55 |
| Rod digging force (kN) | 38 |
| Travel speed (km/h) | 3.4/5.0 |
| Main overflow set pressure (Mpa) | 31.4 |
| Rotary hydraulic motor type | Variable piston pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Main pump type | Variable piston pump ×3+ gear pump ×1 |
| Fuel Tank (L) | 135 |
| Hydraulic Tank (L) | 60(over 100) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2600 |
| Full cab height (mm) | 2600 |
| Counterweight ground clearance (mm) | 760 |
| Minimum ground clearance (mm) | 360 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2765 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2200 |
| Track ground length (mm) | 2140 |
| Maximum digging radius (mm) | 6320 |
| Maximum digging depth (mm) | 4170 |
| Maximum excavation height (mm) | 7150 |
| Maximum unloading height (mm) | 5060 |
| Maximum vertical digging depth (mm) | 3730 |
| Bulldozer lift or depth (mm) | No bulldozer |
