2016 Hyundai 130LVS

1/9
Used Hyundai 130LVS Excavator 2016 Model / 1

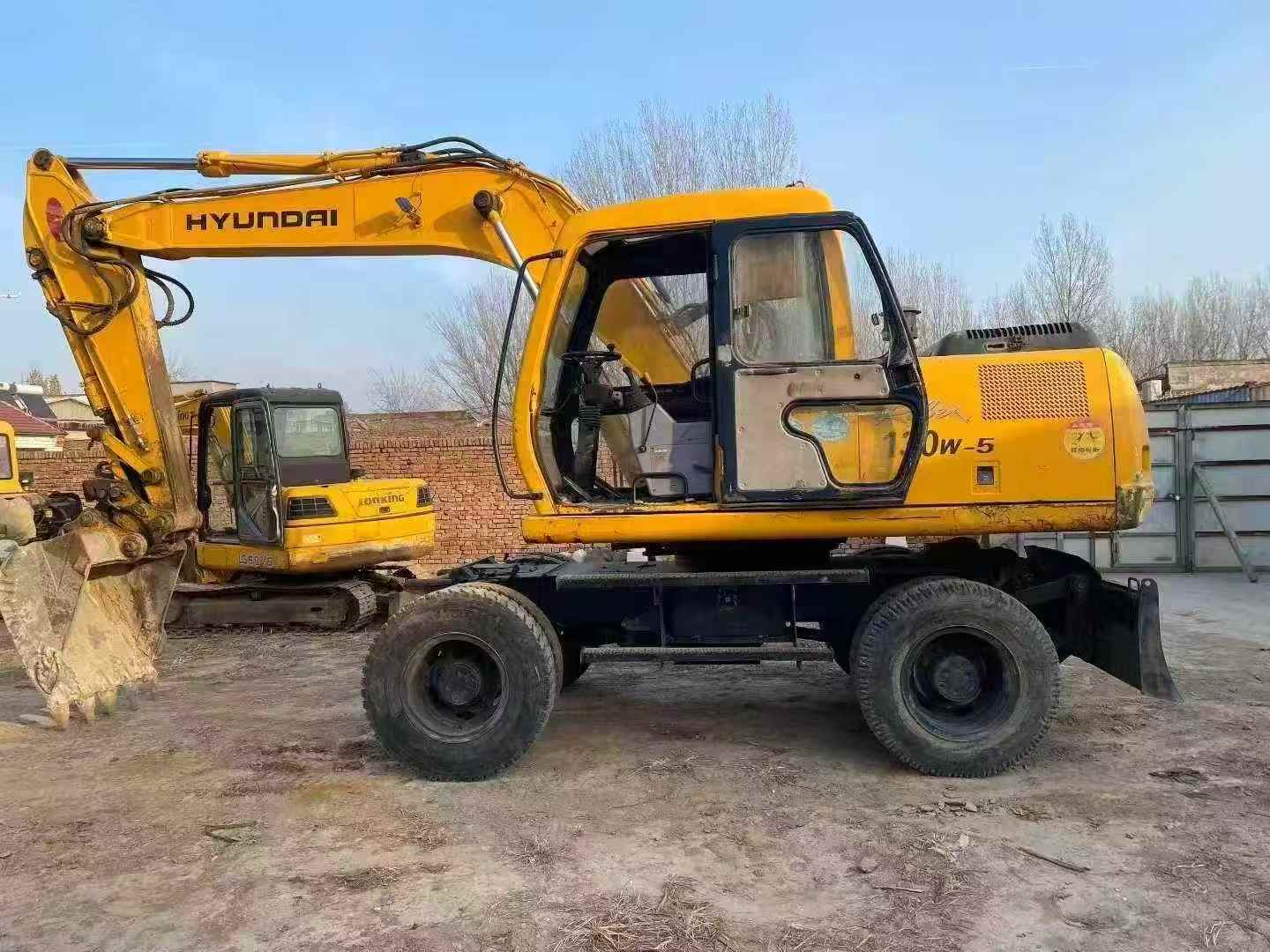

Used Hyundai 130LVS Excavator 2016 Model / 2

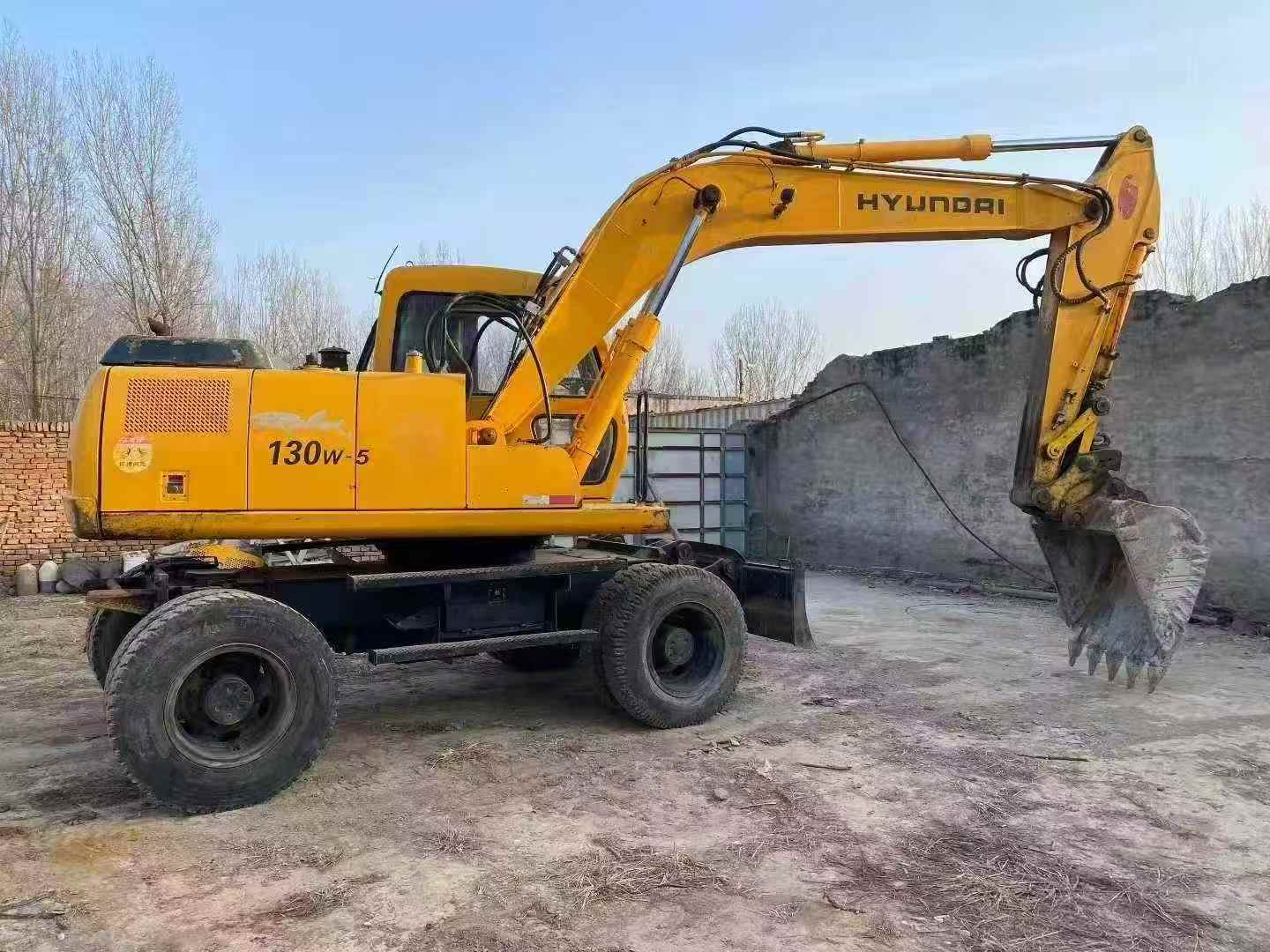

Used Hyundai 130LVS Excavator 2016 Model / 3

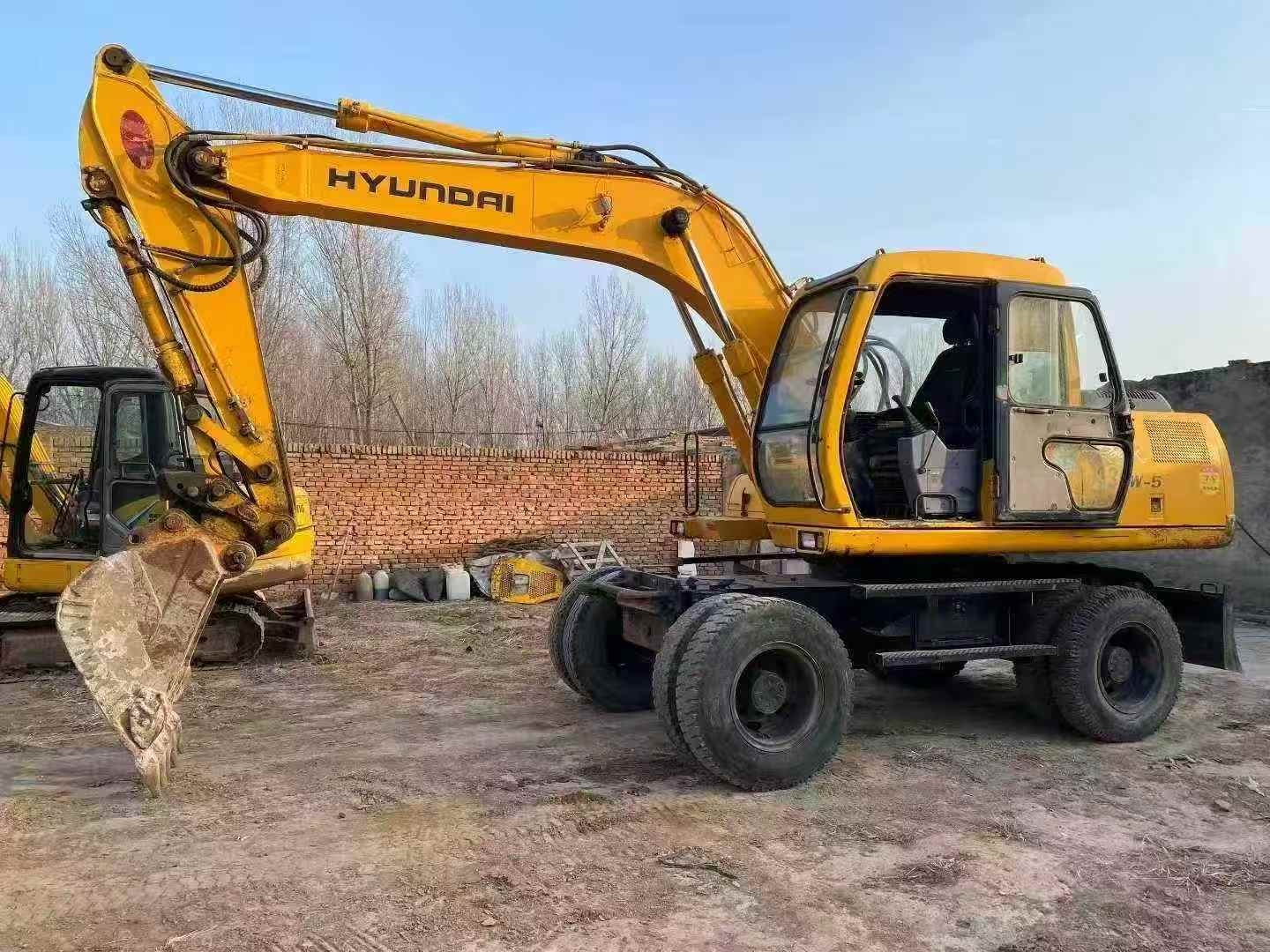

Used Hyundai 130LVS Excavator 2016 Model / 4

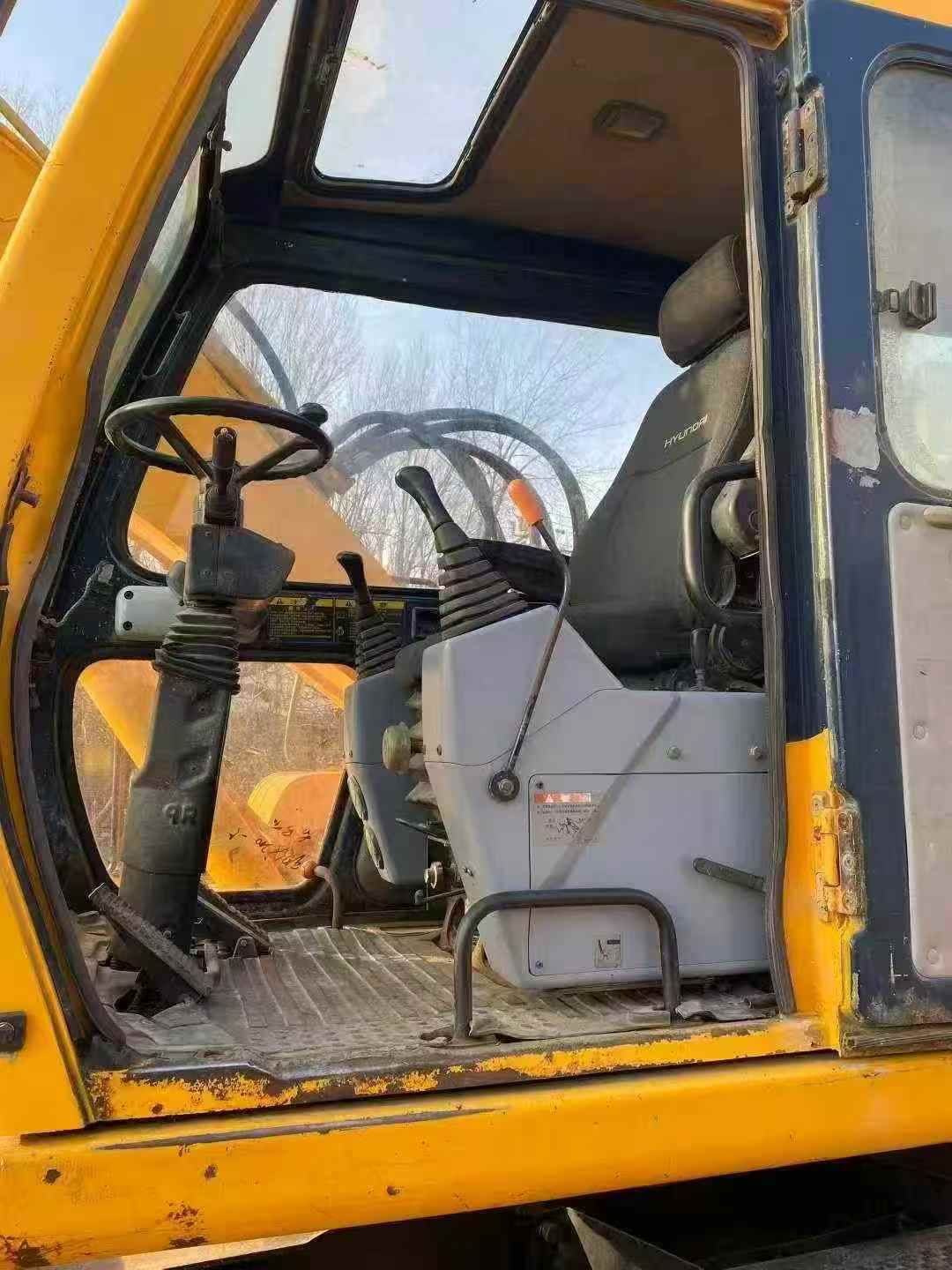

Used Hyundai 130LVS Excavator 2016 Model / 5

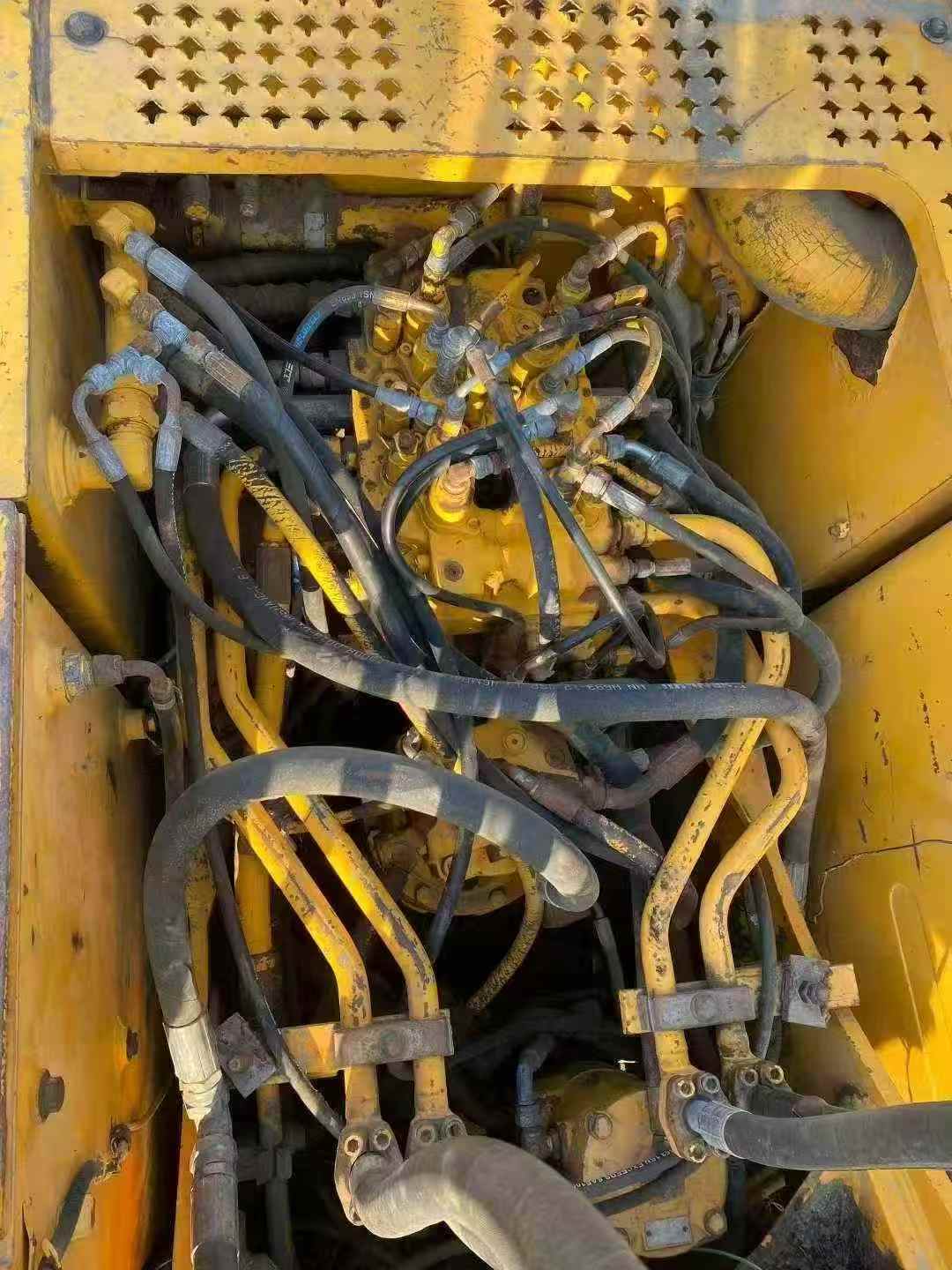

Used Hyundai 130LVS Excavator 2016 Model / 6

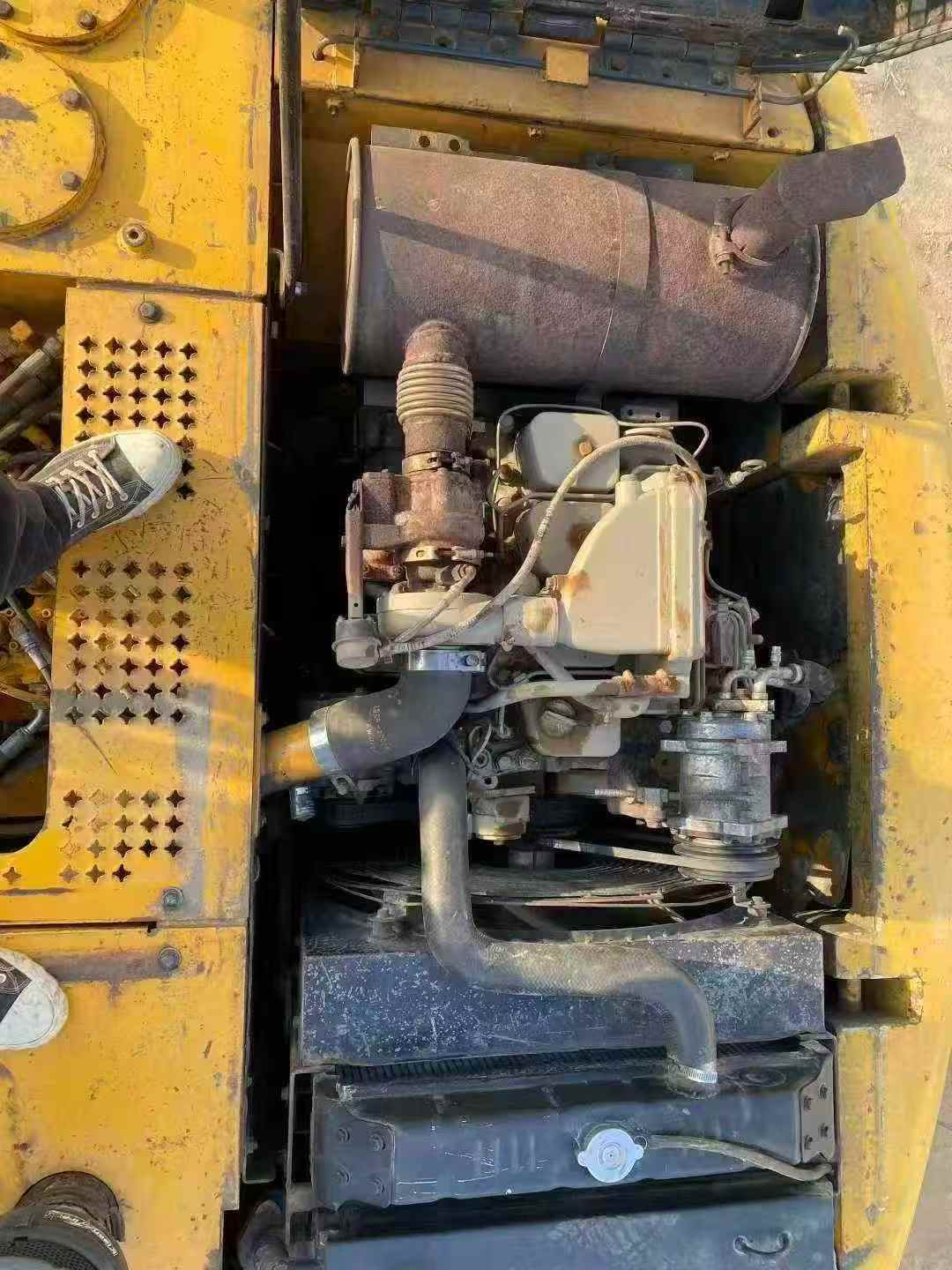

Used Hyundai 130LVS Excavator 2016 Model / 7

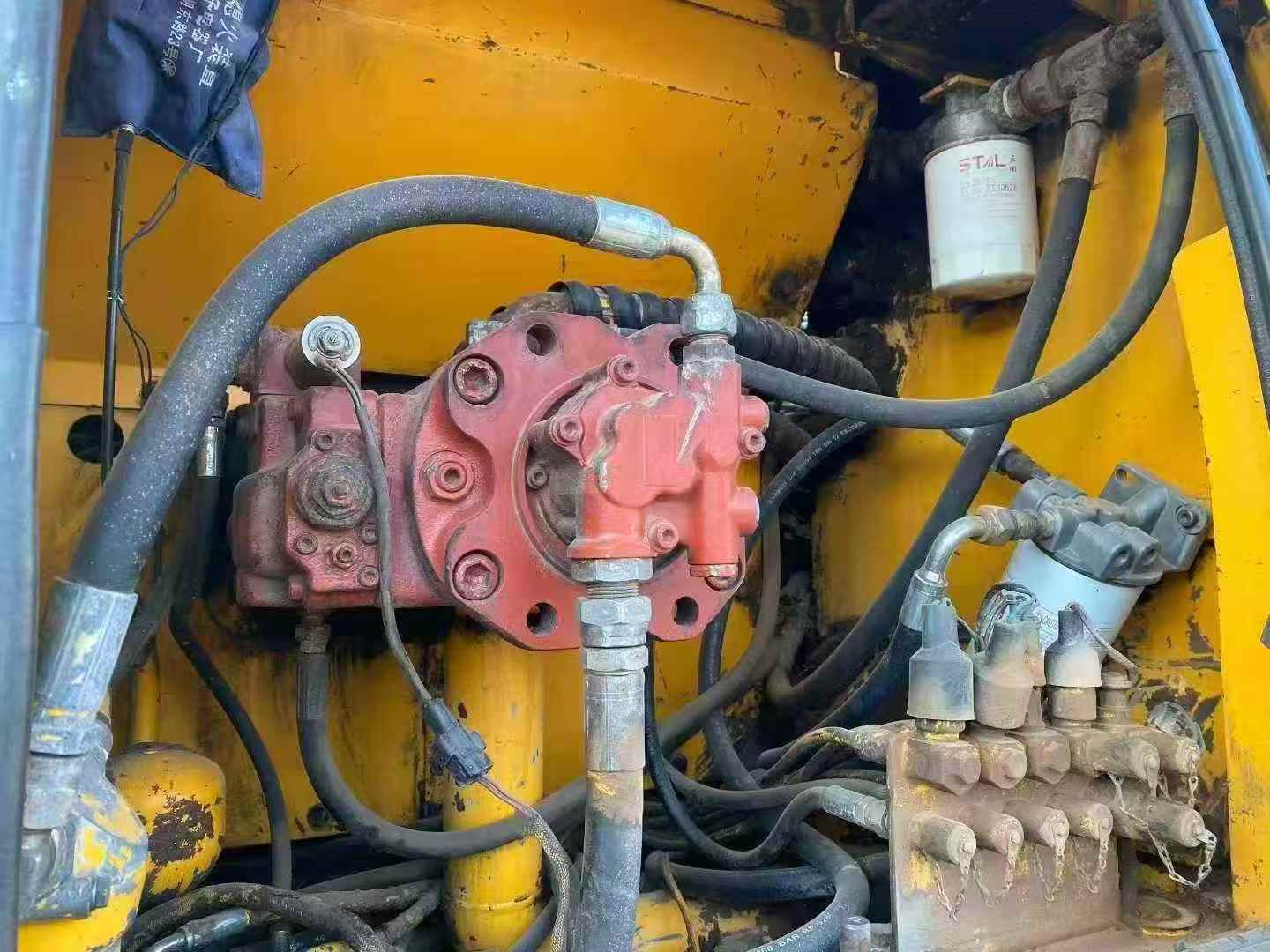

Used Hyundai 130LVS Excavator 2016 Model / 8

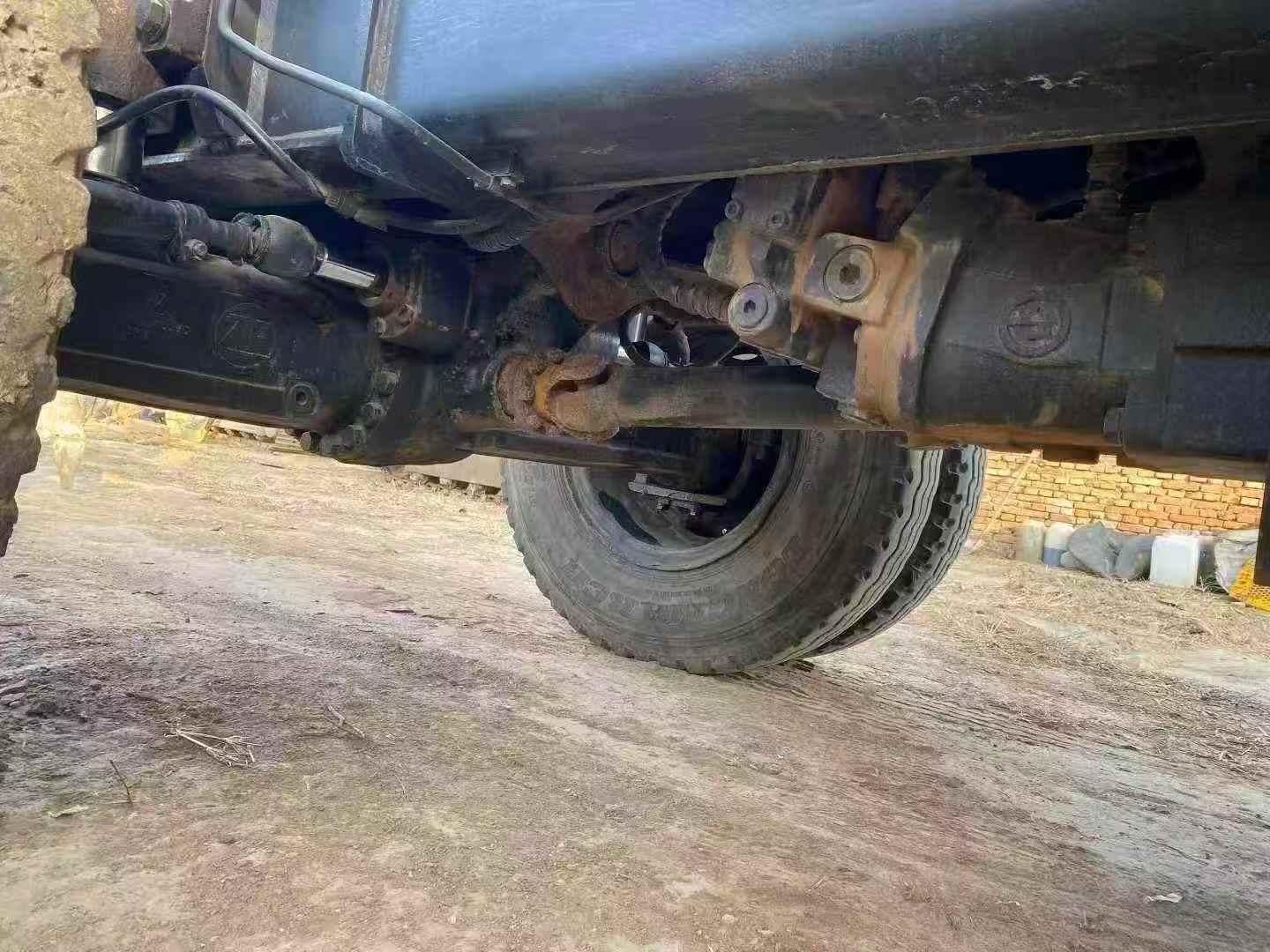

Used Hyundai 130LVS Excavator 2016 Model / 9

Product Description

【 Premium Recommendation 】 The out-of-print Hyundai 130W-5 wheeled excavator is an extremely rare and high-quality second-hand construction machinery in the market. Since its manufacture, this device has accumulated a working time of only 2,600 hours, which is far lower than the average service life of similar devices. This means that it still has a long service life and extremely high cost performance. In terms of the power system, this machine is equipped with an efficient and energy-saving engine, which not only has strong power but also excellent fuel economy, and can easily meet the operation requirements under various complex working conditions. Whether it is flat ground excavation or slope walking, it performs well, ensuring construction efficiency while also reducing operating costs. The hydraulic system is a major highlight of this excavator. It adopts an advanced load-sensitive control system, which makes the operation more precise and smooth, and the response speed faster, greatly improving work efficiency. Meanwhile, its stability and reliability have also been widely recognized, and it can still maintain a good working condition under long-term and high-intensity operations. In addition, this equipment is also equipped

SpecificationsValue
No.970397
Tonnage (tons)13
Bucket capacity (m³)0.3-0.59m3
Boom length (mm)4300mm
Rod length (mm)2260mm
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeMITSUBISHI 4FRC
Rated power (kw/rpm)131(98) / 2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)102 (4.0) x 120 (4.7)
Displacement (L)4.2
Working form4 cylinder 4 stroke water cooled direct injection engine
Climbing ability (%)70
Travel speed (km/h)5.5 km/h (3.4 mph) / 3.2 km/h (2.0 mph)
Maximum flow of main pump (l/min)2 x 124
Traveling Hydraulic Circuit (Mpa)365
Rotary Hydraulic Circuit (Mpa)285
Main pump typeTwo variable plunger pump
Working Hydraulic Circuit (Mpa)350
Bucket cylinders - Number × diameter × stroke (mm)1-100 x 70 x 840
Bucket rod cylinders - Number × diameter × stroke (mm)1-115 x 80 x 1138
Boom cylinders - Number × diameter × stroke (mm)2-105 x 75 x 1075
Fuel Tank (L)270
Hydraulic Tank (L)124
Engine Oil changes (L)17.5
Hydraulic System (L)210
Total transport height (mm)8330
Counterweight ground clearance (mm)935
Back end turning radius (mm)2310
Onboard width (mm)2476
Total track length (mm)4300
Total track width (mm)2500
Maximum digging radius (mm)8330mm
Maximum digging depth (mm)5550mm
Maximum excavation height (mm)8500mm
Maximum unloading height (mm)6060mm
Maximum vertical digging depth (mm)5330mm
Maximum excavation radius of stop surface (mm)8180mm
see more

Overview

No.970397

Brand Name:

Hyundai

Model Number:

130LVS

Year:

2016

Location:

Hebei China
