Local stock available The premium Hyundai model costs 305-7= 77,700 yuan Load the vehicle on site at any time
| Specifications | Value |
|---|---|
| No. | 932813 |
| Tonnage (tons) | 31 |
| Working weight (kg) | 31700 |
| Bucket capacity (m³) | 1.44/1.63 |
| Boom length (mm) | 6250 |
| Rod length (mm) | 3050/2850 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

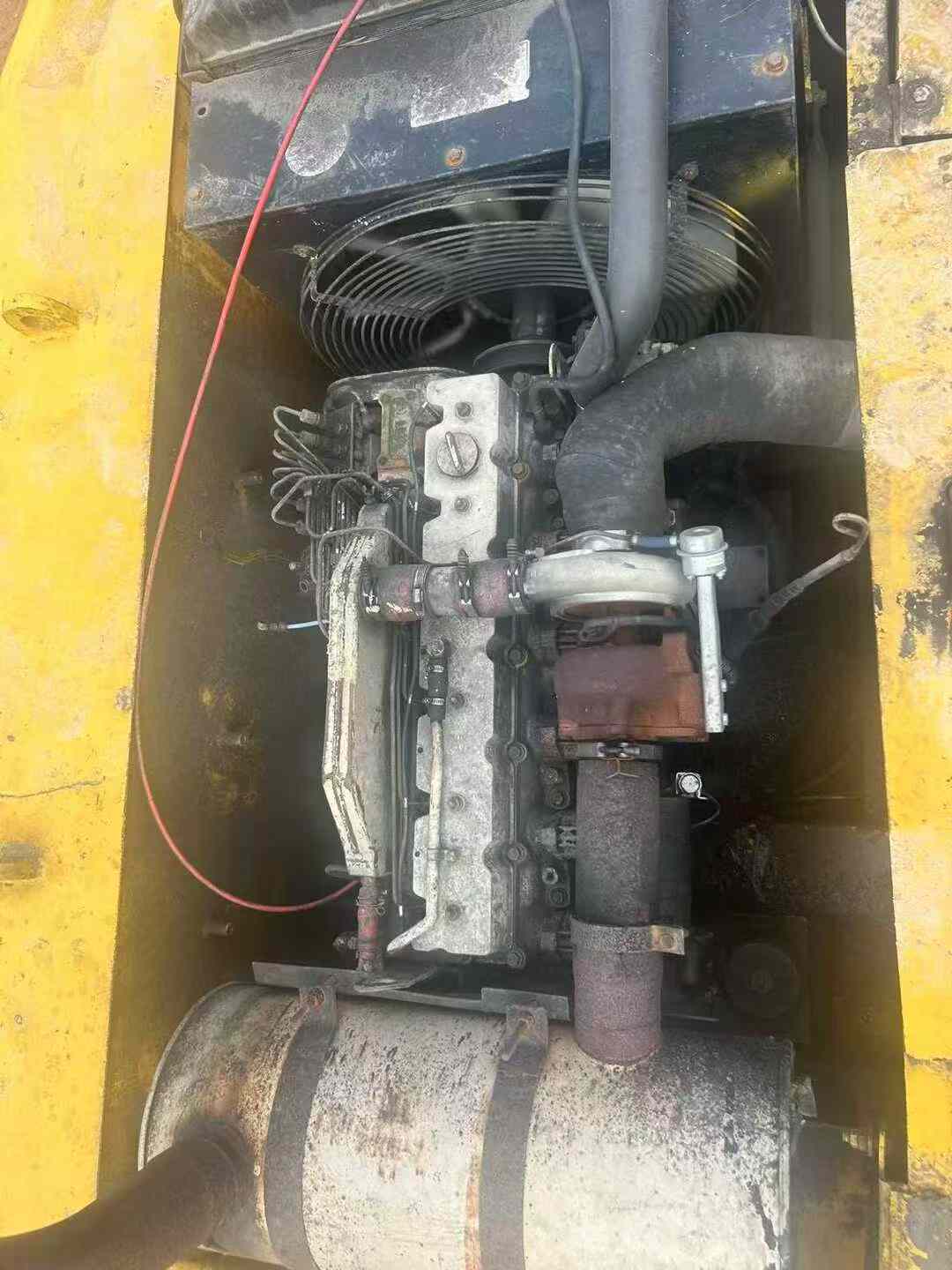

| Engine type | Cummins B7 |
| Rated power (kw/rpm) | 173/2000 |
| Cylinder diameter × stroke (mm) | 107*124 |
| Maximum torque (N.m) | 949/1200 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Rotation speed (rpm) | 10.7 |
| Travel speed (km/h) | 5.6/3.2 |
| Turning torque (Nm) | 93.7k |
| Maximum flow of main pump (l/min) | 2*285 |
| Fuel Tank (L) | 460 |
| Hydraulic Tank (L) | 200 |
| Engine Oil changes (L) | 34 |
| Coolant (L) | 41 |
| Hydraulic System (L) | 360 |
| Urea Tank (L) | 70 |
| Total transport length (mm) | 10600 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3240 |
| Full cab height (mm) | 3130 |
| Counterweight ground clearance (mm) | 1190 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4280 |
| Back end turning radius (mm) | 3210 |
| Onboard width (mm) | 2980 |

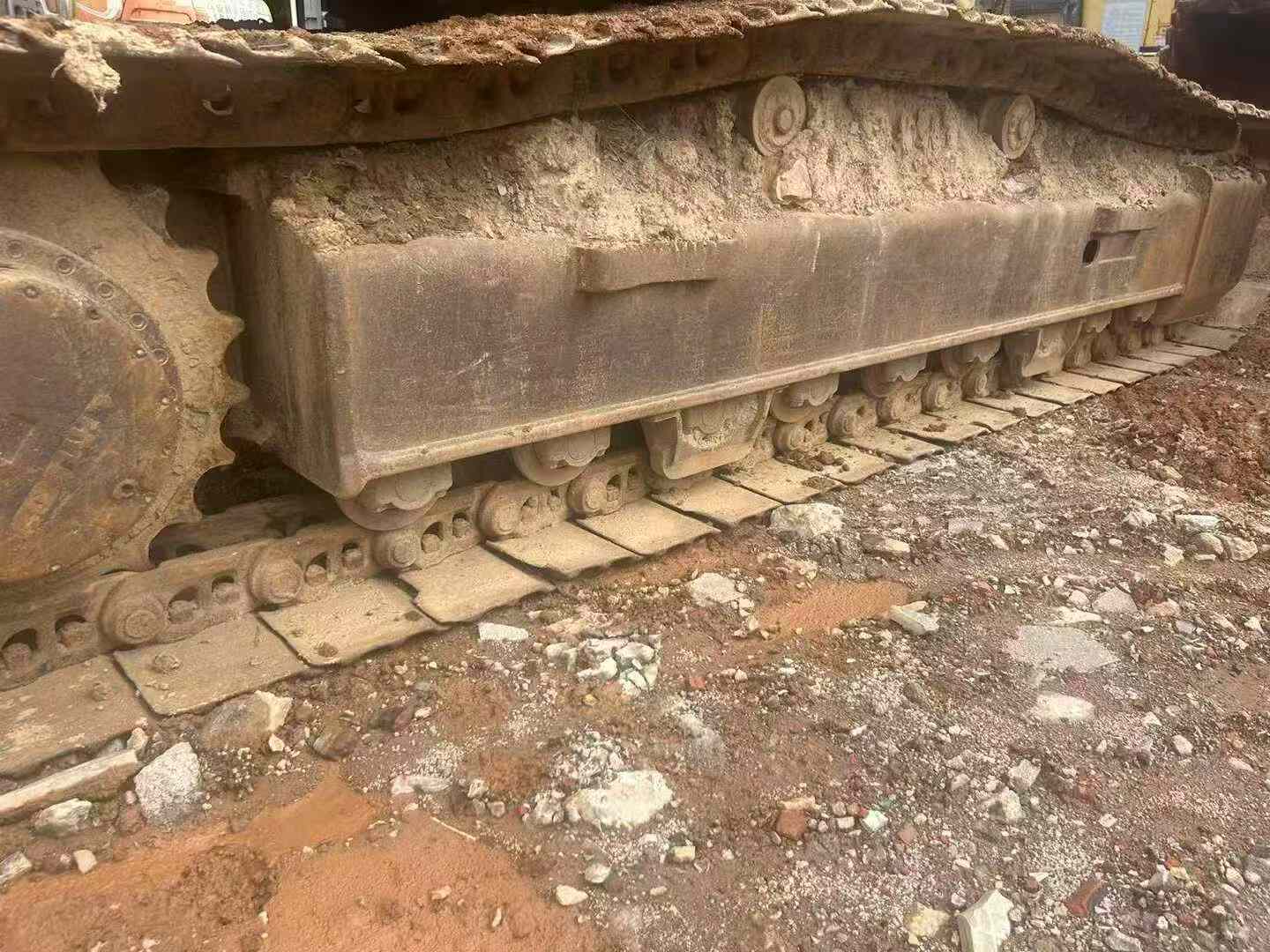

| Total track length (mm) | 4940 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4030 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 48 |
| Maximum digging radius (mm) | 10785 |
| Maximum digging depth (mm) | 7305 |
| Maximum excavation height (mm) | 10115 |
| Maximum unloading height (mm) | 7175 |
| Maximum vertical digging depth (mm) | 5065 |
| Maximum excavation radius of stop surface (mm) | 10580 |
