2012 Hyundai HX75

1/6
Used Hyundai HX75 Excavator 2012 Model / 1

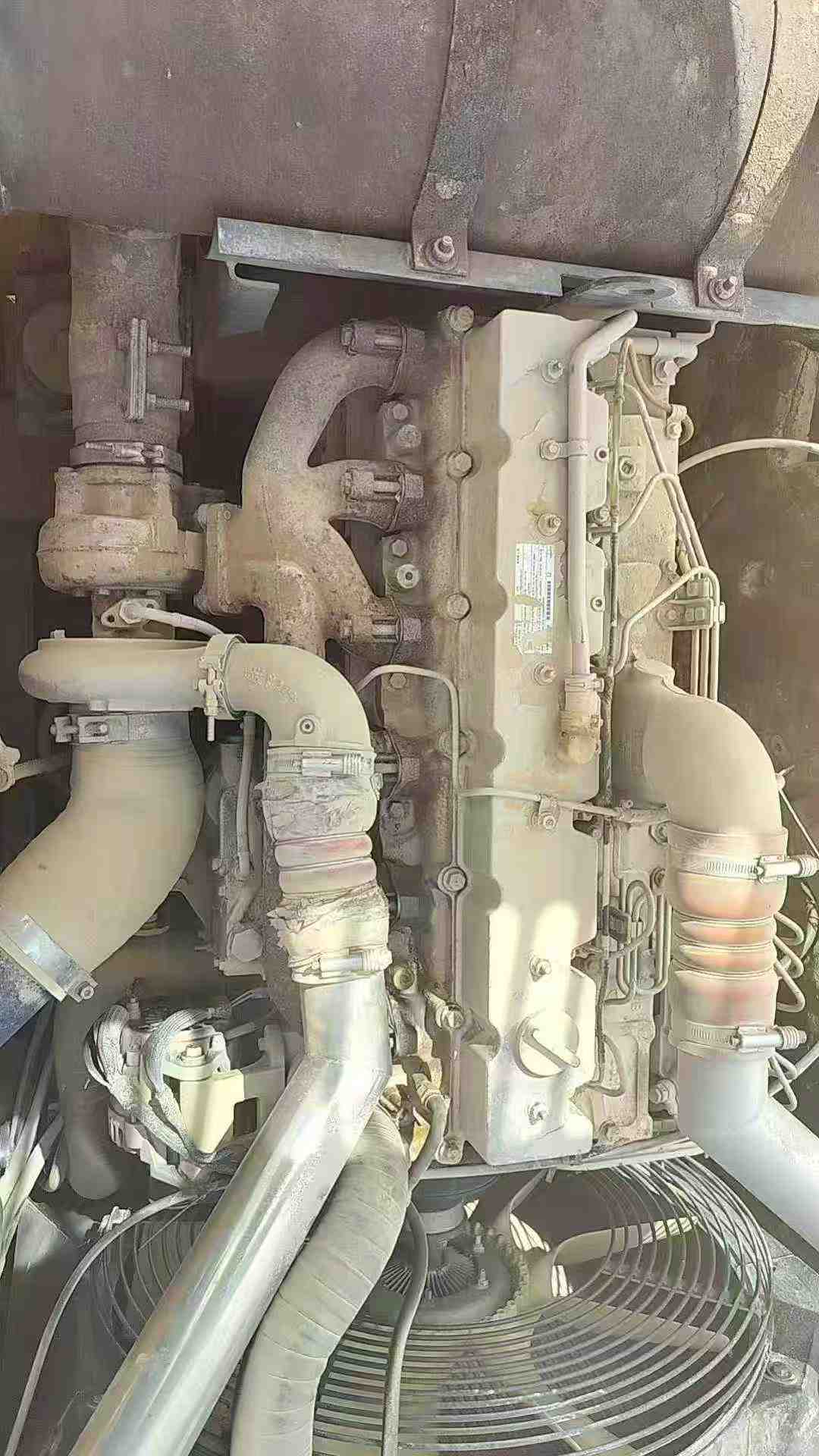

Used Hyundai HX75 Excavator 2012 Model / 2

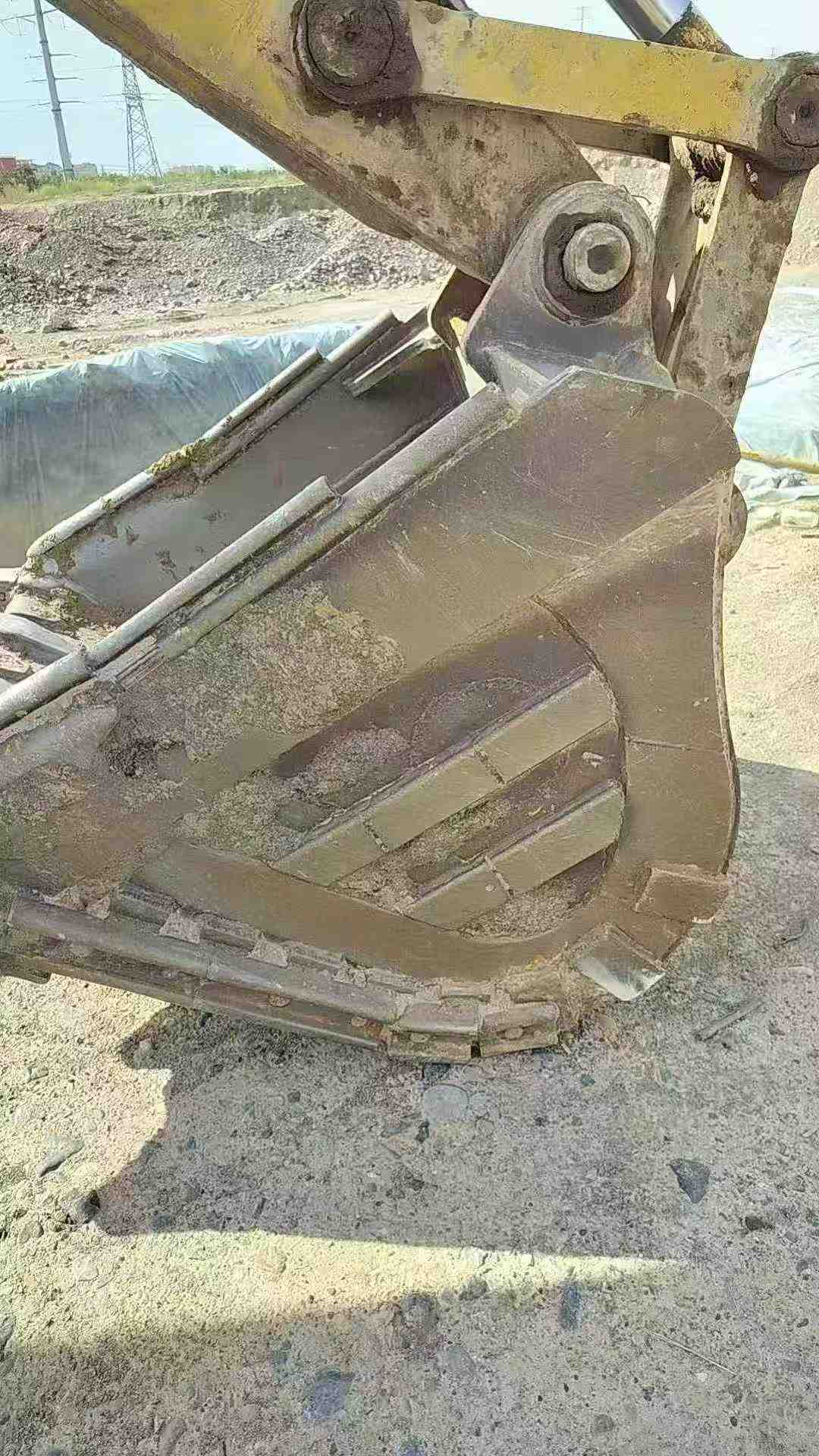

Used Hyundai HX75 Excavator 2012 Model / 3
Used Hyundai HX75 Excavator 2012 Model / 4

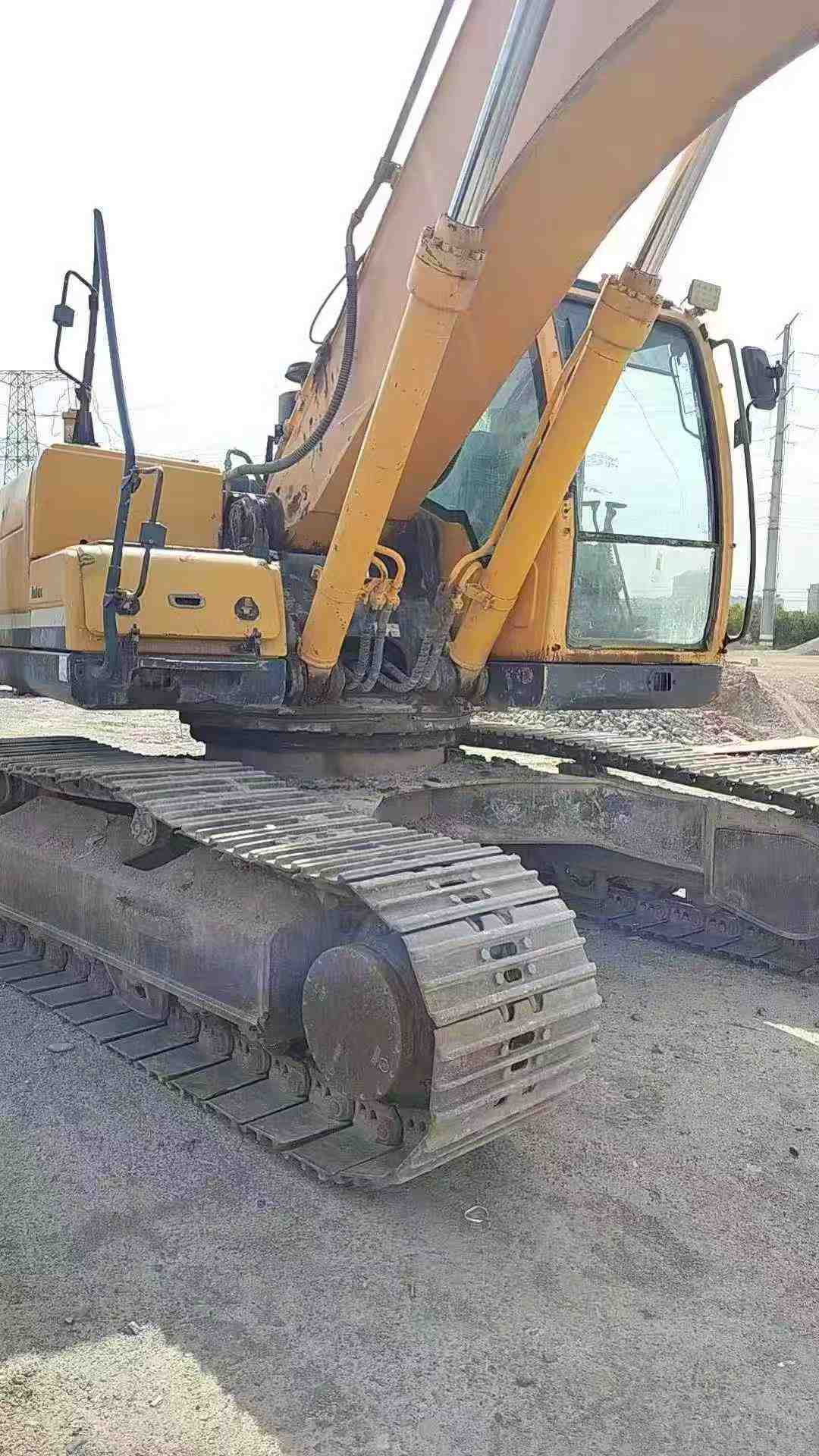

Used Hyundai HX75 Excavator 2012 Model / 5

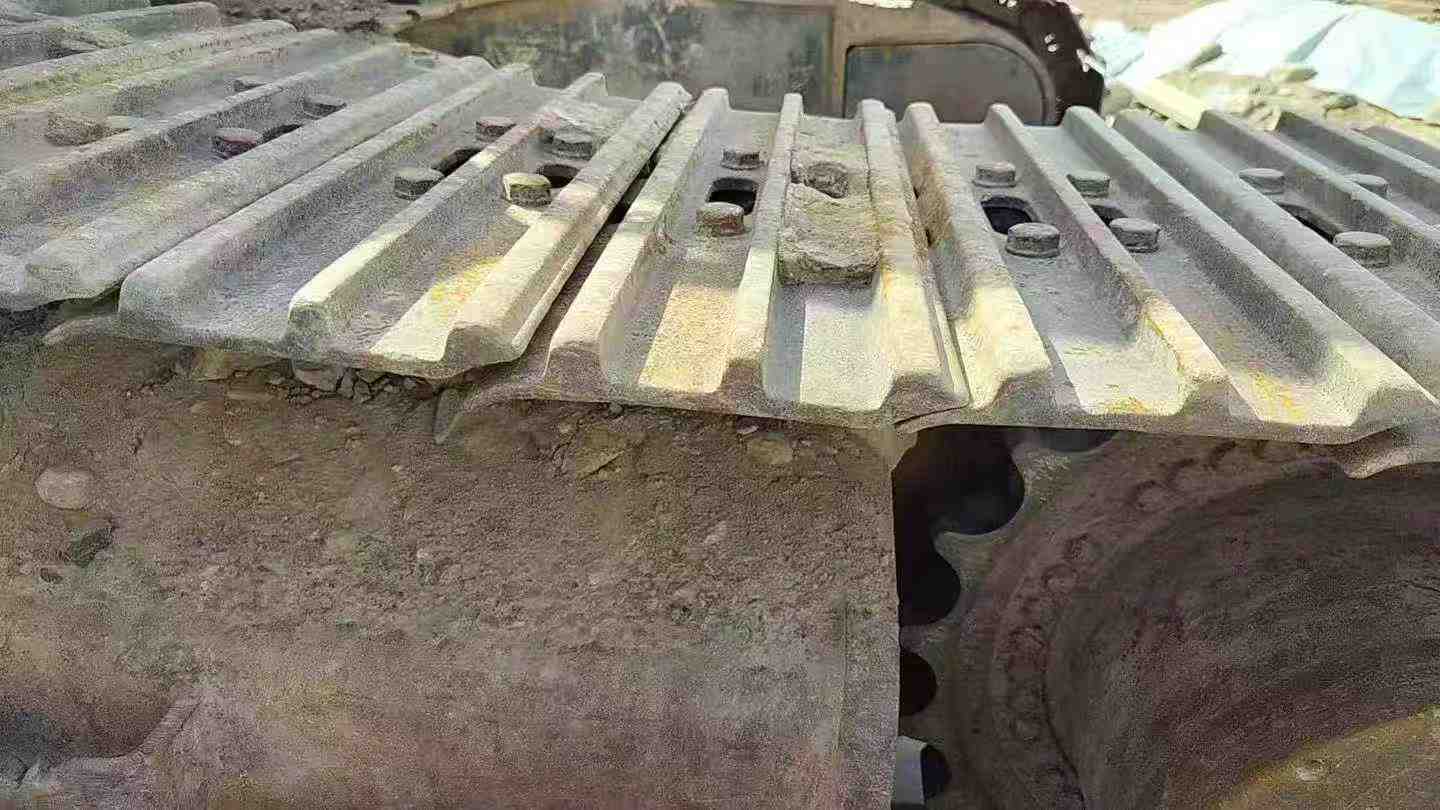

Used Hyundai HX75 Excavator 2012 Model / 6

Product Description

【 Premium Recommendation 】 Second-hand Hyundai R275-9T excavator from 2012 This second-hand Hyundai R275-9T excavator from 2012 has a cumulative working time of only 6,500 hours. It is well maintained and in excellent condition. As a medium to large-sized excavator, it performs outstandingly in various complex working conditions. Whether it is earthwork, demolition operations or mining, it can handle them with ease. In terms of the power system, this aircraft is equipped with a Cummins QSB6.7-C240 engine, with a maximum output power of up to 186kW (approximately 250 horsepower). It not only offers strong power but also features excellent fuel economy and stable, reliable operation. In addition, this engine also features excellent low-temperature starting performance, enabling it to quickly enter the working state even in cold environments, significantly enhancing construction efficiency. The hydraulic system adopts advanced negative flow control technology, ensuring the flexibility and accuracy of operation while reducing energy consumption. Both the main pump and the motor are from well-known brands, with stable quality and a long service life. The whole machine is equipped with an automatic idle speed function. When there is no lo

SpecificationsValue
No.966459
Tonnage (tons)7
Working weight (kg)7000
Bucket capacity (m³)0.32
Boom length (mm)3700
Rod length (mm)1670
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeYanmar 4TNV98-Z
Rated power (kw/rpm)44.4/2100
Cooling modewater-cooling
Cylinder diameter × stroke (mm)98 x 110
Number of cylinders (PCS)4
Rotation speed (rpm)12.5
Climbing ability (%)70
Bucket digging force (kN)55.9
Rod digging force (kN)43.9
Travel speed (km/h)4.0/2.4
Maximum flow of main pump (l/min)158
Main pump typeVariable piston pump
Fuel Tank (L)140
Hydraulic Tank (L)130
Engine Oil changes (L)9.2
Coolant (L)11
Hydraulic System (L)75
Total transport length (mm)6080
Total transport width (mm)2260
Total transport height (mm)2550
Counterweight ground clearance (mm)755
Minimum turning radius of front working device (mm)1750
Back end turning radius (mm)1730
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)38
Maximum digging radius (mm)6335
Maximum digging depth (mm)4015
Maximum excavation height (mm)7175
Maximum unloading height (mm)5080
Maximum vertical digging depth (mm)3120
Maximum excavation radius of stop surface (mm)6185
see more

Overview

No.966459

Brand Name:

Hyundai

Model Number:

HX75

Year:

2012

Location:

Zhejiang China
