2016 Hyundai R110-7

1/5
Used Hyundai R110-7 Excavator 2016 Model / 1

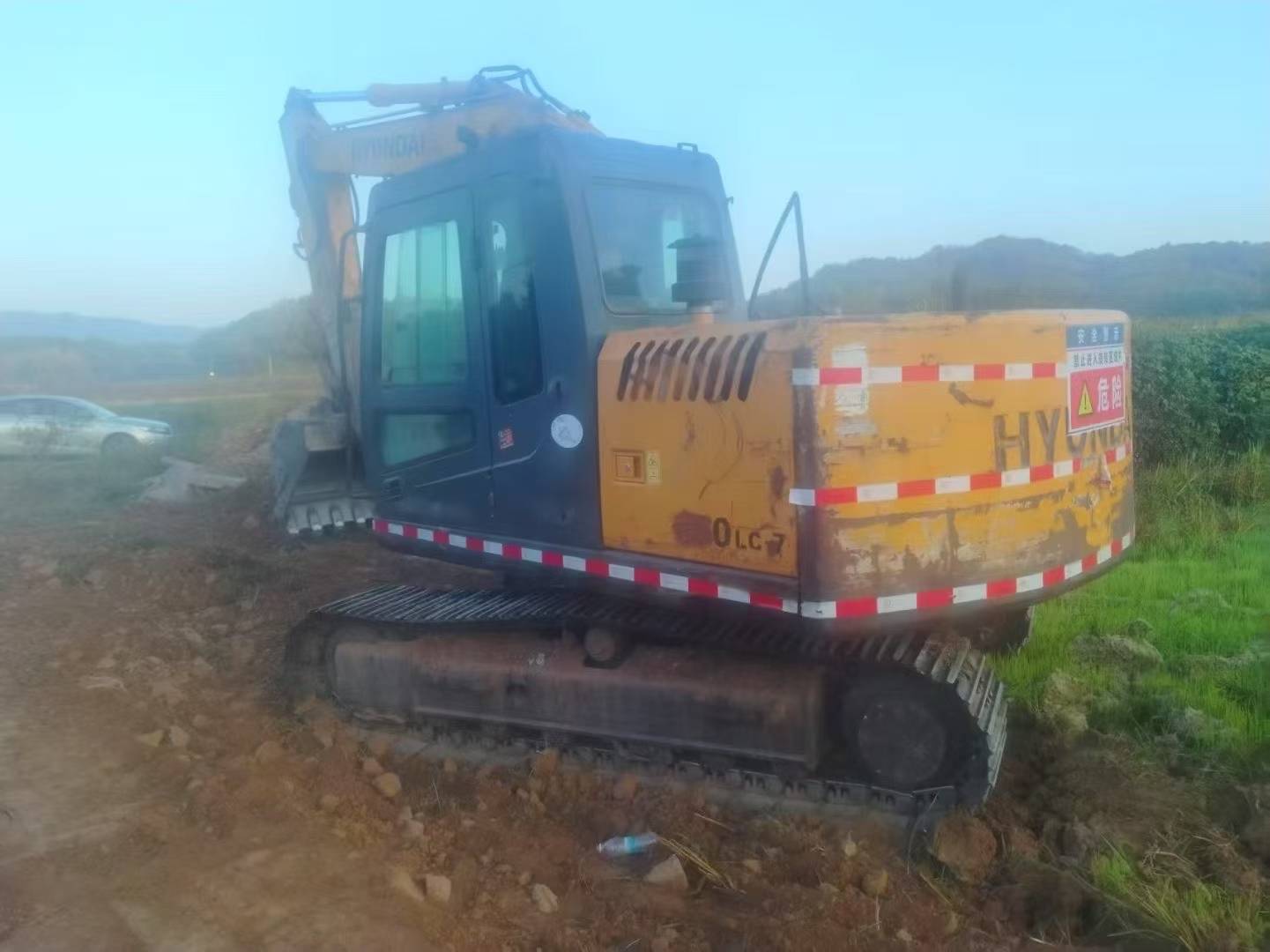

Used Hyundai R110-7 Excavator 2016 Model / 2
Used Hyundai R110-7 Excavator 2016 Model / 3

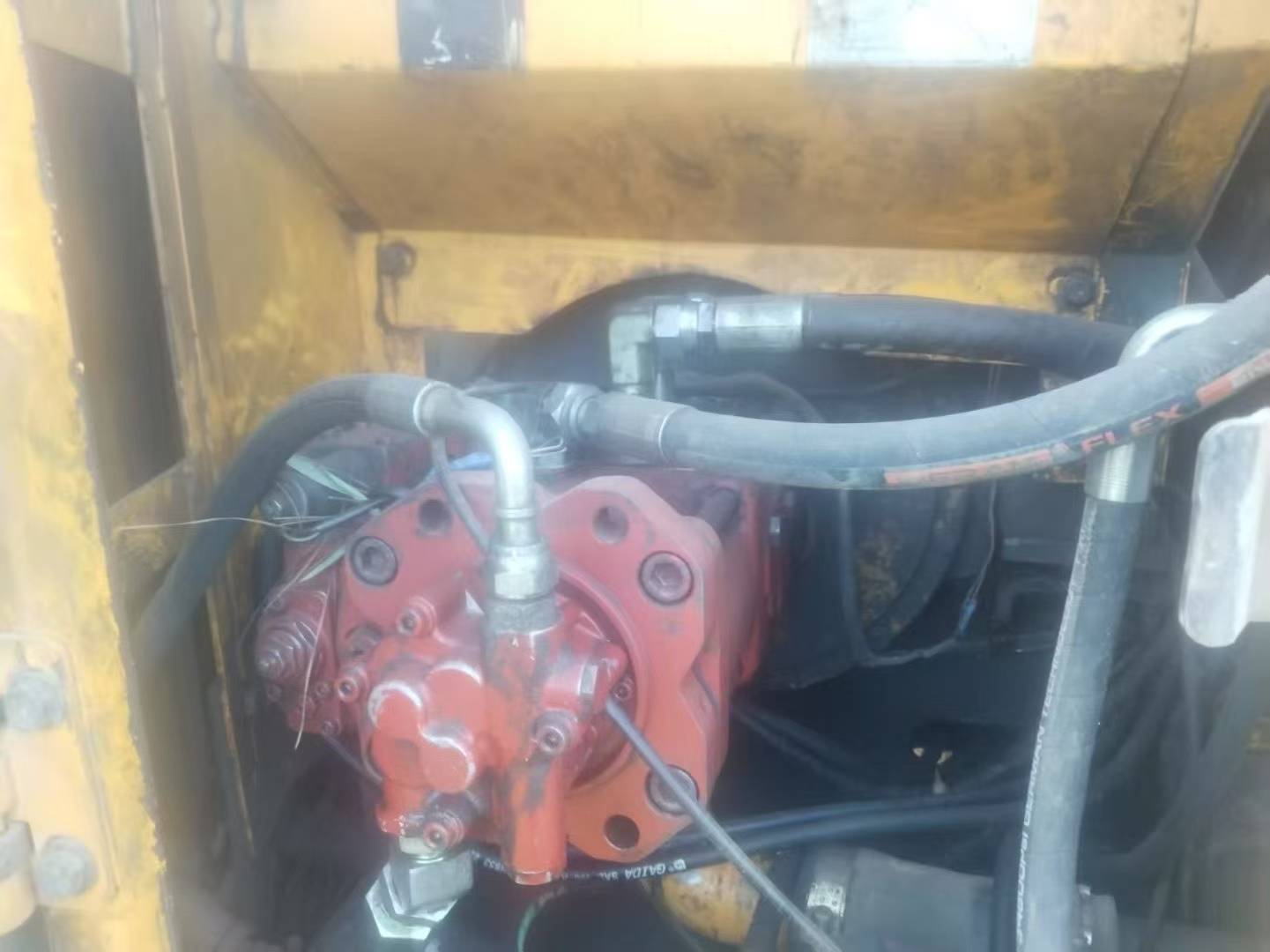

Used Hyundai R110-7 Excavator 2016 Model / 4
Used Hyundai R110-7 Excavator 2016 Model / 5

Product Description

"Modern 110-7 second-hand excavator This second-hand Hyundai 110-7 excavator is priced at only 65,000 yuan, offering an extremely high cost performance. It has a working time of up to 8,000 hours, yet its overall condition remains good, making it highly suitable for small-scale projects or individual users who require efficient and stable operations. This aircraft is equipped with a well-tested Cummins 4-cylinder inline water-cooled turbocharged engine, which can deliver a maximum power of 90 horsepower (approximately 67 kilowatts), providing strong performance while ensuring fuel economy. Even in the face of complex terrains and heavy-load working environments, it can handle them with ease. Advanced electronic control injection technology not only enhances combustion efficiency but also reduces emissions, meeting the requirements of national environmental protection standards. In terms of the hydraulic system, a load-sensitive control system (LS) is adopted, which can automatically adjust the flow and pressure according to the actual operation requirements, achieving precise control and smooth action conversion. The large-capacity main pump, in combination with the high-precision proportional valve, ensures strong excavation force

SpecificationsValue
No.966870
Tonnage (tons)11
Working weight (kg)11200
Bucket capacity (m³)0.30-0.59
Boom length (mm)4300
Rod length (mm)2260
Country of originPeking
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeMitsubishi S4K-T
Rated power (kw/rpm)70/1950
Cooling modewater-cooling
Maximum torque (N.m/rpm)371.4
Number of cylinders (PCS)4
Displacement (L)4.2
Working formFour-cylinder, four-stroke turbocharged direct injection diesel engine
Rotation speed (rpm)13
Climbing ability (%)70/35 °
Bucket digging force (kN)78.5
Rod digging force (kN)55.7
Travel speed (km/h)3.4-5.5
Rotary hydraulic motor typeQuantitative swash plate plunger motor
Type of walking hydraulic motorVariable swash plate plunger motor
Maximum flow of main pump (l/min)2 x 112
Traveling Hydraulic Circuit (Mpa)33
Rotary Hydraulic Circuit (Mpa)24
Hydraulic crushing pipeline is standardno
Main pump type2× variable axial piston pump
Working Hydraulic Circuit (Mpa)33
Pilot Oil Circuit (MPa)3.5
Fuel Tank (L)250
Hydraulic Tank (L)100
Engine Oil changes (L)17.5
Total transport length (mm)7270
Total transport width (mm)2490
Total transport height (mm)2800
Full cab height (mm)2800
Counterweight ground clearance (mm)900
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)2380
Back end turning radius (mm)2130
Onboard width (mm)2800
Total track length (mm)3340
Track gauge (mm)1990
Track plate width (mm)500
Total track width (mm)2490
Track ground length (mm)2610
Maximum digging radius (mm)7740
Maximum digging depth (mm)5090
Maximum excavation height (mm)8070
Maximum unloading height (mm)5710
Maximum vertical digging depth (mm)4430
Bulldozer lift or depth (mm)There is no
Dodging plate width × height (mm)There is no
Maximum excavation radius of stop surface (mm)7610
Maximum effective digging depth (mm)4870
see more

Overview

No.966870

Brand Name:

Hyundai

Model Number:

R110-7

Year:

2016

Location:

Jiangxi China
