2014 Hyundai R150W-9

1/5
Used Hyundai R150W-9 Excavator 2014 Model / 1

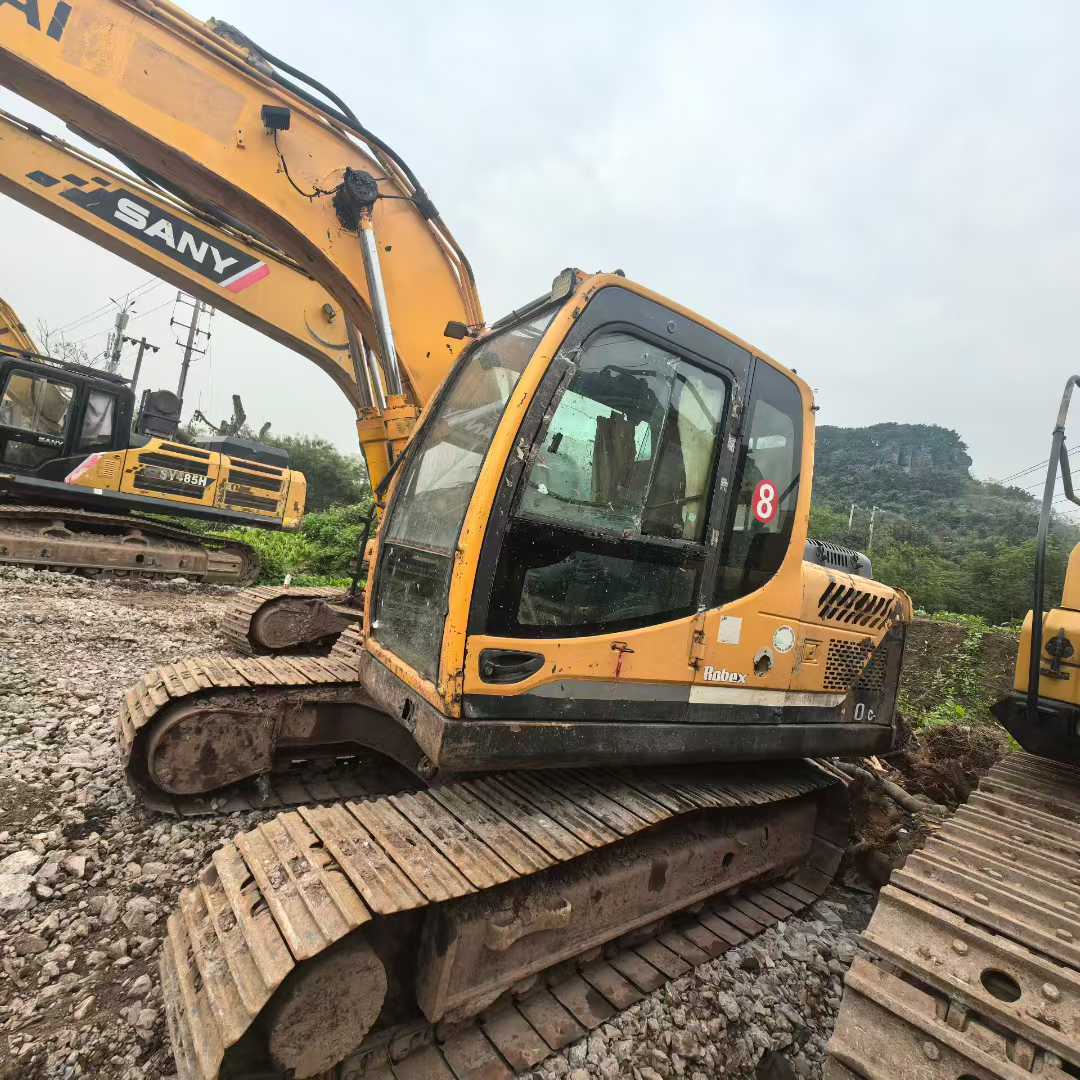

Used Hyundai R150W-9 Excavator 2014 Model / 2

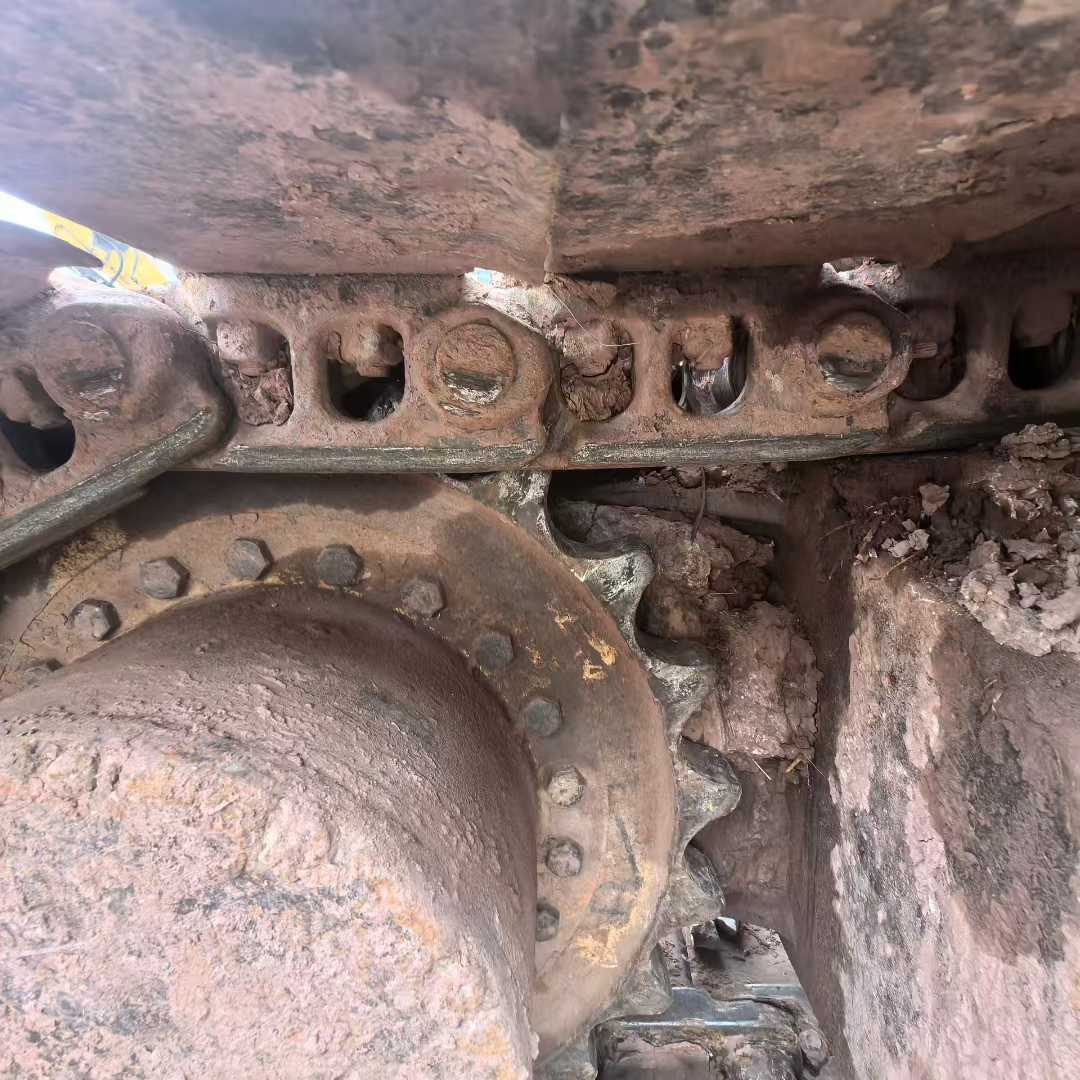

Used Hyundai R150W-9 Excavator 2014 Model / 3

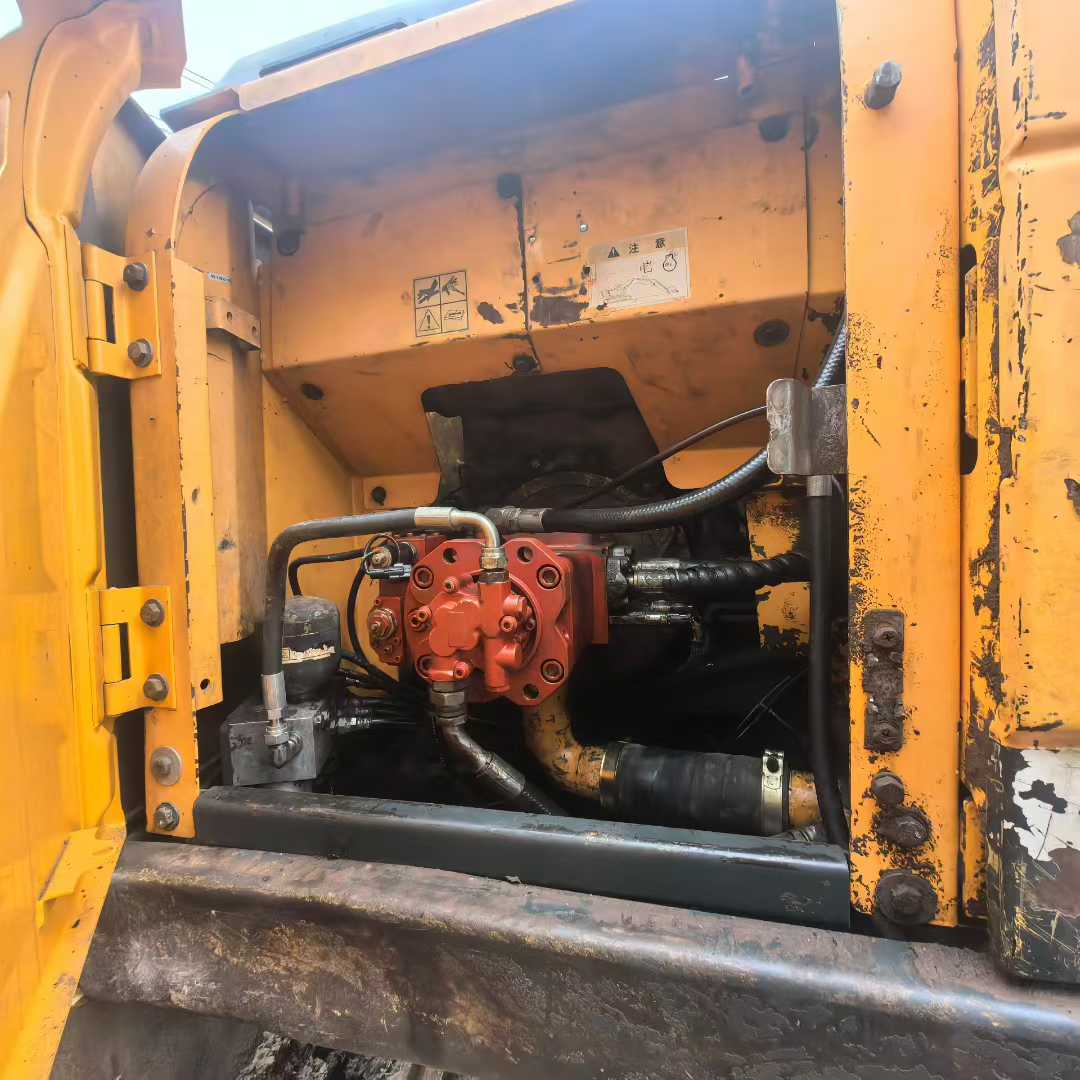

Used Hyundai R150W-9 Excavator 2014 Model / 4

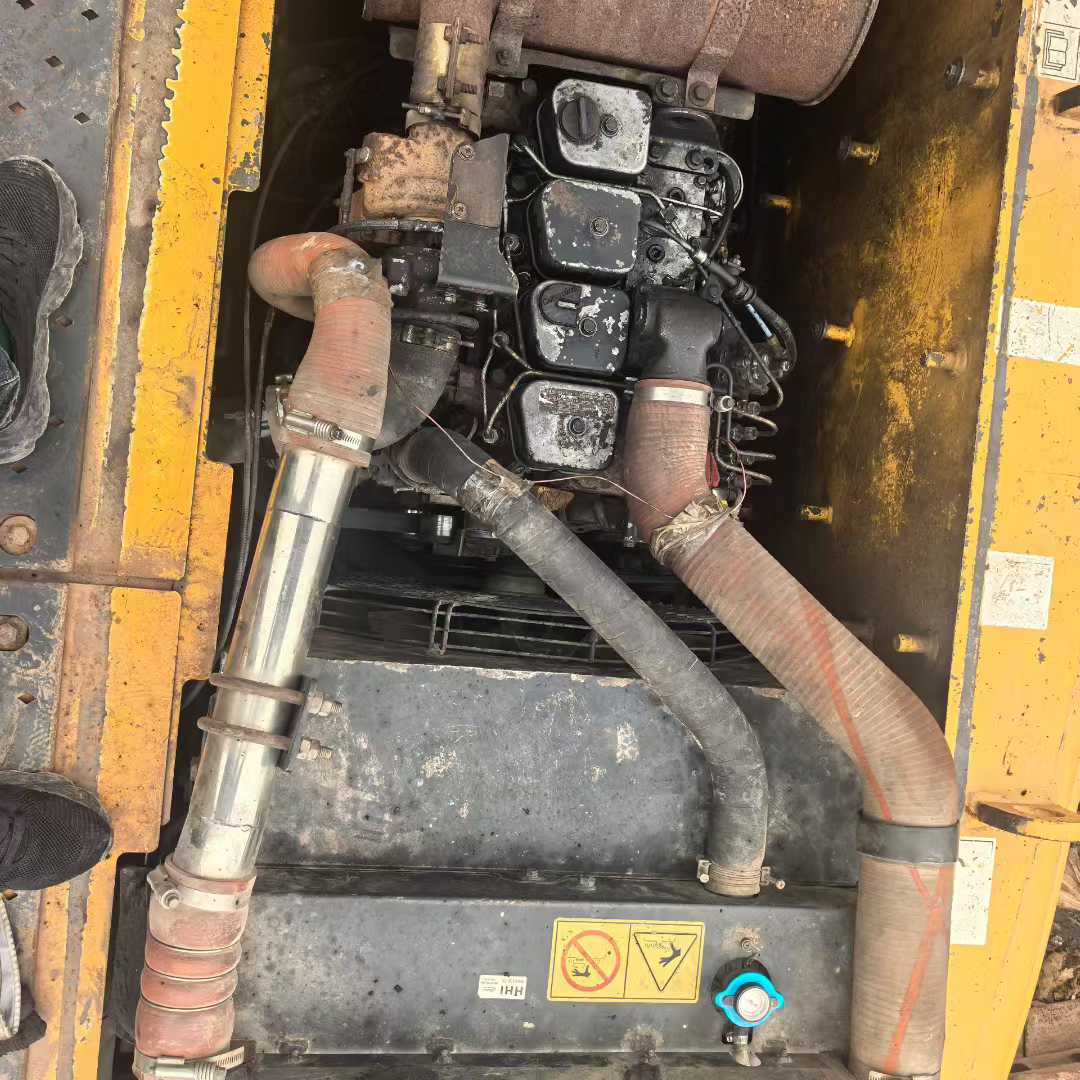

Used Hyundai R150W-9 Excavator 2014 Model / 5

Product Description

This 2014 Hyundai R150-9 excavator is a medium-sized excavator that has received high praise in the market. It has a working time of up to 6,000 hours, which proves its durability and reliability. This excavator is equipped with an efficient Cummins 4-cylinder diesel engine, with a maximum output power of up to 110 horsepower (82 kilowatts). It not only has strong power but also excellent fuel economy, making it highly suitable for operation in various complex working conditions. In terms of the hydraulic system, the Hyundai R150-9 adopts an advanced negative flow control system, ensuring smooth and precise operation while effectively reducing fuel consumption. Another advantage of this system is its fast response speed, which makes actions such as excavation and loading more smooth and efficient. In addition, its spacious and comfortable cab design is also one of the notable advantages. It is equipped with an air conditioning system and ergonomic seats, ensuring the driver's good condition even during long working hours. Overall, this second-hand Hyundai R150-9 excavator stands out among many products of the same level with its outstanding performance, reliable quality and comfortable operating environment. Whether it is used for co

SpecificationsValue
No.966555
Tonnage (tons)15
Working weight (kg)13700
Bucket capacity (m³)0.23-0.71
Boom length (mm)4600
Rod length (mm)2100
Country of originPeking
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCummins B5.9-C
Rated power (kw/rpm)112/1950
Total displacement (L)5.9
Cooling modewater-cooling
remarkSix-cylinder four-stroke turbocharged direct injection engine
Maximum torque (N.m)613.48
Number of cylinders (PCS)6
Forward speed (Km/h)37
Rotation speed (rpm)13
Climbing ability (%)35
Bucket digging force (kN)101.9
Rod digging force (kN)65.6
Maximum tractive force (kN)83.3
Driving formHydraulic motor
Main overflow set pressure (Mpa)350
Rotary hydraulic motor typeVariable swash plate plunger motor
Maximum flow of main pump (l/min)2 x 168
Main pump typeVariable swash plate piston pump
Working Hydraulic Circuit (Mpa)Quantitative swash plate plunger motor
Fuel Tank (L)270
Hydraulic Tank (L)126
Total transport length (mm)7760
Total transport width (mm)2500
Total transport height (mm)3500
Full cab height (mm)3137
Counterweight ground clearance (mm)1233
Wheelbase (mm)2800
Single tire width (mm)900×20-14PR
Total tire outside width (mm)2495
Wheel base (mm)1944
Minimum ground clearance (mm)365
Onboard width (mm)2500
Maximum digging radius (mm)7920
Maximum excavation radius (mm)7700
Maximum digging depth (mm)4850
Maximum excavation height (mm)8470
Maximum unloading height (mm)6040
Maximum vertical digging depth (mm)4460
Minimum turning radius (mm)2670
Dodging plate width × height (mm)2490 x 559
see more

Overview

No.966555

Brand Name:

Hyundai

Model Number:

R150W-9

Year:

2014

Location:

Peking China
