Product Description

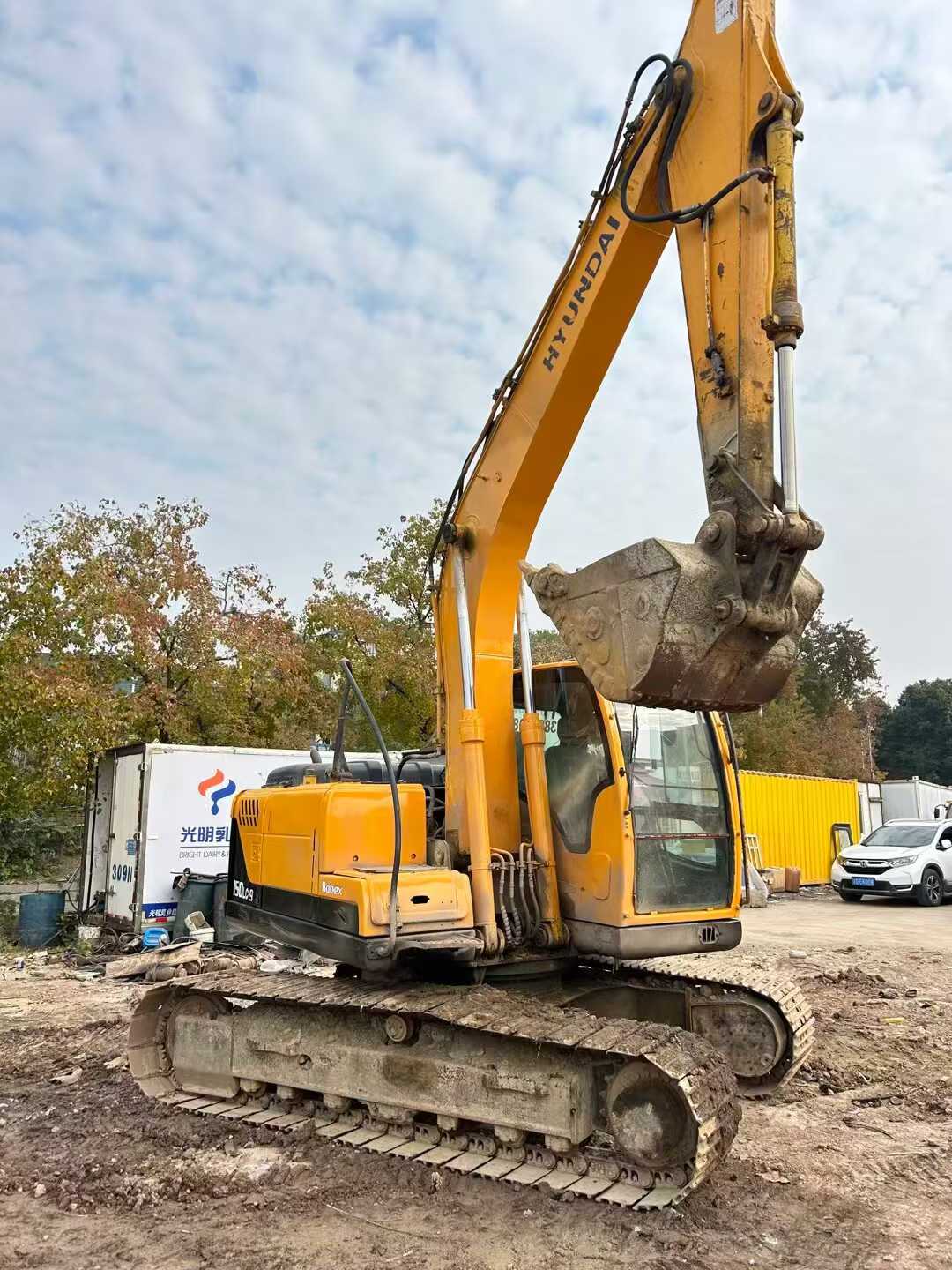

【 Premium second-hand Hyundai 150-9 excavator on Sale 】 Dear customer, hello! We currently have a fully renovated modern 150-9 excavator on sale. This excavator was originally prepared for consignment to customers, but due to certain reasons, it is now being sold at an extremely favorable price. This device not only has a brand-new appearance but also features stable and reliable performance, making it highly suitable for small and medium-sized projects. 【 Basic Information Brand model: Hyundai 150-9 - Working hours: Approximately 3,000 hours (Please refer to the on-board materials for the exact figure) - Power System: Equipped with an original imported engine, it features strong power and excellent fuel economy, ensuring efficient operation even under harsh working conditions. - Hydraulic system: Equipped with an advanced hydraulic control system, it responds quickly and operates precisely, ensuring high efficiency and safety during the construction process. - Price Advantage: You can own it for only 78,000 RMB, offering an extremely high cost performance! "Special Note This machine has undergone a comprehensive inspection and necessary maintenance work to ensure that all components are in good condition. In terms of appearance, we
| Specifications | Value |
|---|---|
| No. | 966536 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 13700 |
| Bucket capacity (m³) | 0.23-0.71 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2100 |
| Country of origin | Peking |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins B5.9-C |
| Rated power (kw/rpm) | 112/1950 |
| Total displacement (L) | 5.9 |
| Cooling mode | water-cooling |
| remark | Six-cylinder four-stroke turbocharged direct injection engine |
| Maximum torque (N.m) | 613.48 |
| Number of cylinders (PCS) | 6 |
| Forward speed (Km/h) | 37 |
| Rotation speed (rpm) | 13 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 101.9 |
| Rod digging force (kN) | 65.6 |
| Maximum tractive force (kN) | 83.3 |
| Driving form | Hydraulic motor |
| Main overflow set pressure (Mpa) | 350 |
| Rotary hydraulic motor type | Variable swash plate plunger motor |
| Maximum flow of main pump (l/min) | 2 x 168 |
| Main pump type | Variable swash plate piston pump |
| Working Hydraulic Circuit (Mpa) | Quantitative swash plate plunger motor |
| Fuel Tank (L) | 270 |
| Hydraulic Tank (L) | 126 |
| Total transport length (mm) | 7760 |
| Total transport width (mm) | 2500 |
| Total transport height (mm) | 3500 |
| Full cab height (mm) | 3137 |
| Counterweight ground clearance (mm) | 1233 |
| Wheelbase (mm) | 2800 |
| Single tire width (mm) | 900×20-14PR |
| Total tire outside width (mm) | 2495 |
| Wheel base (mm) | 1944 |
| Minimum ground clearance (mm) | 365 |
| Onboard width (mm) | 2500 |
| Maximum digging radius (mm) | 7920 |
| Maximum excavation radius (mm) | 7700 |
| Maximum digging depth (mm) | 4850 |
| Maximum excavation height (mm) | 8470 |
| Maximum unloading height (mm) | 6040 |
| Maximum vertical digging depth (mm) | 4460 |
| Minimum turning radius (mm) | 2670 |
| Dodging plate width × height (mm) | 2490 x 559 |
