2018 Hyundai R210WVS

1/8
Used Hyundai R210WVS Excavator 2018 Model / 1
Used Hyundai R210WVS Excavator 2018 Model / 2

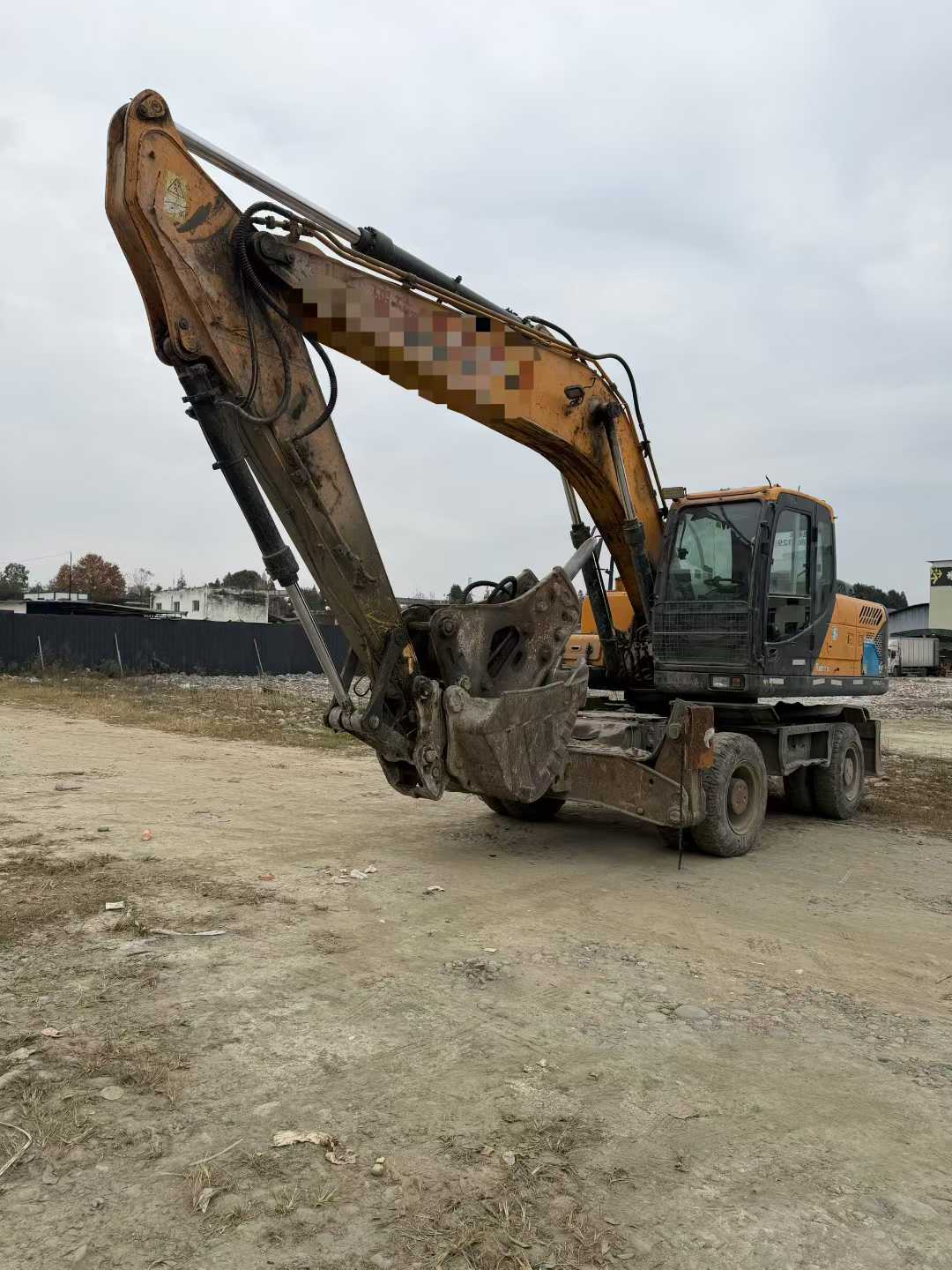

Used Hyundai R210WVS Excavator 2018 Model / 3

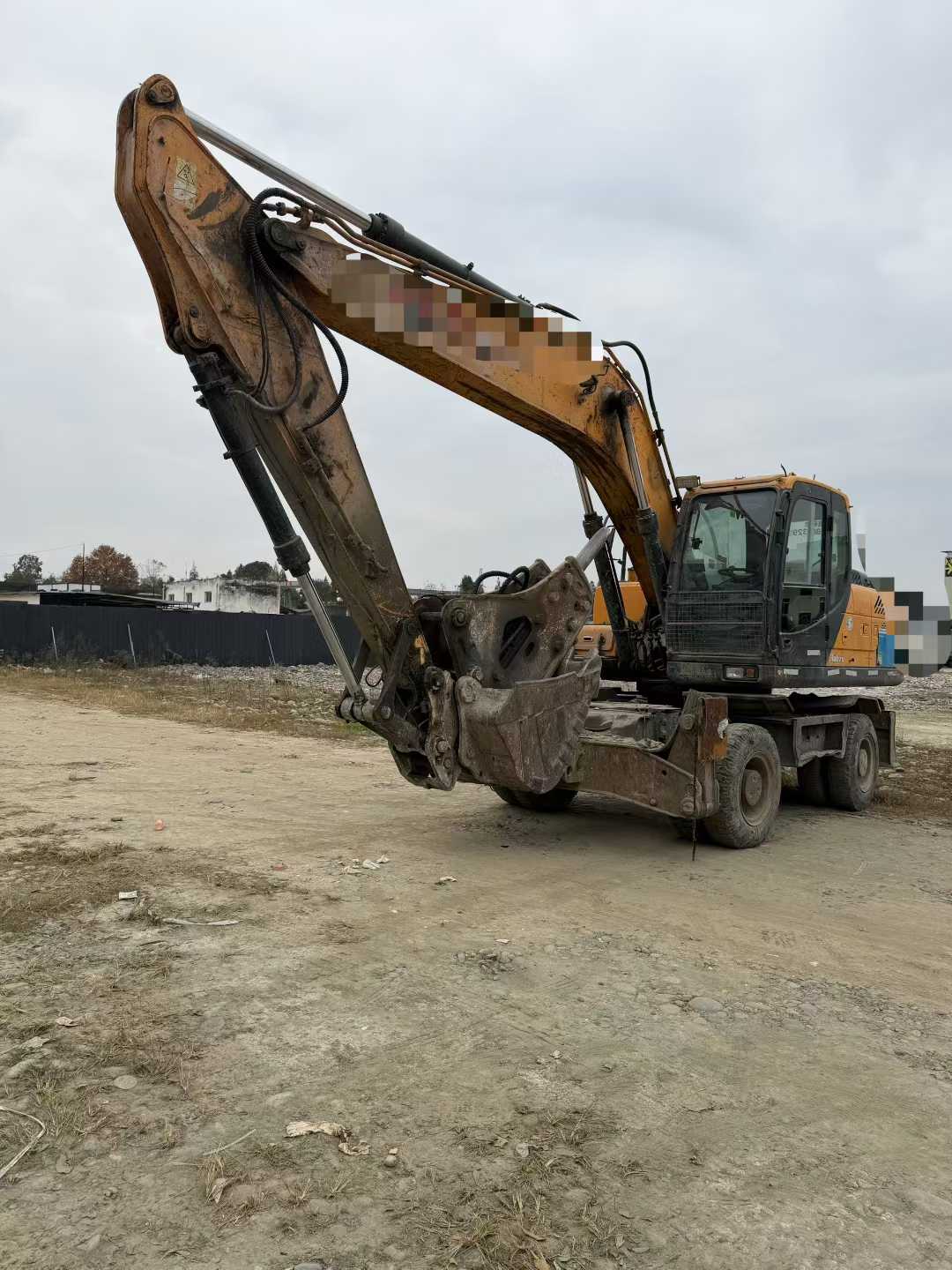

Used Hyundai R210WVS Excavator 2018 Model / 4

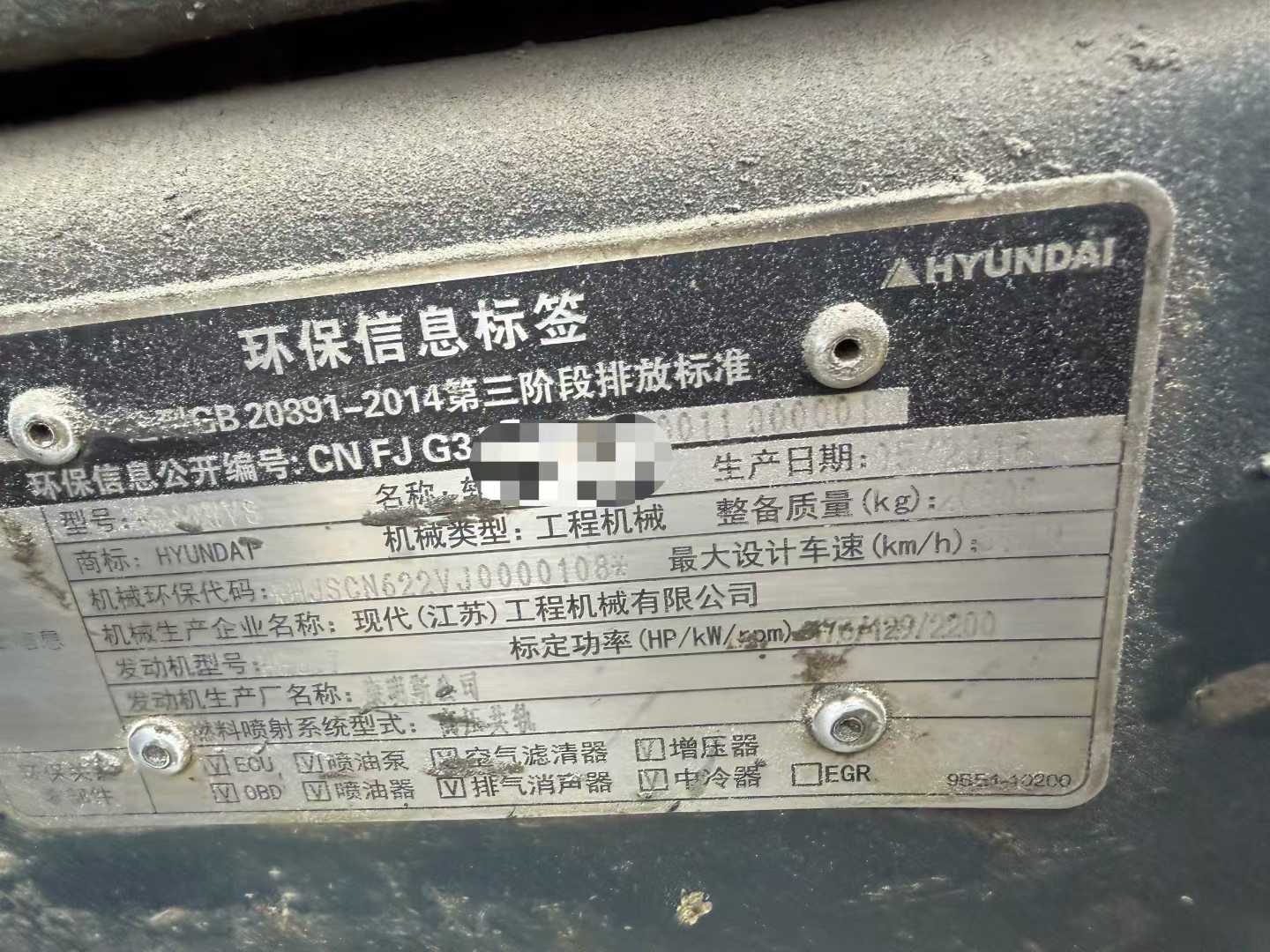

Used Hyundai R210WVS Excavator 2018 Model / 5

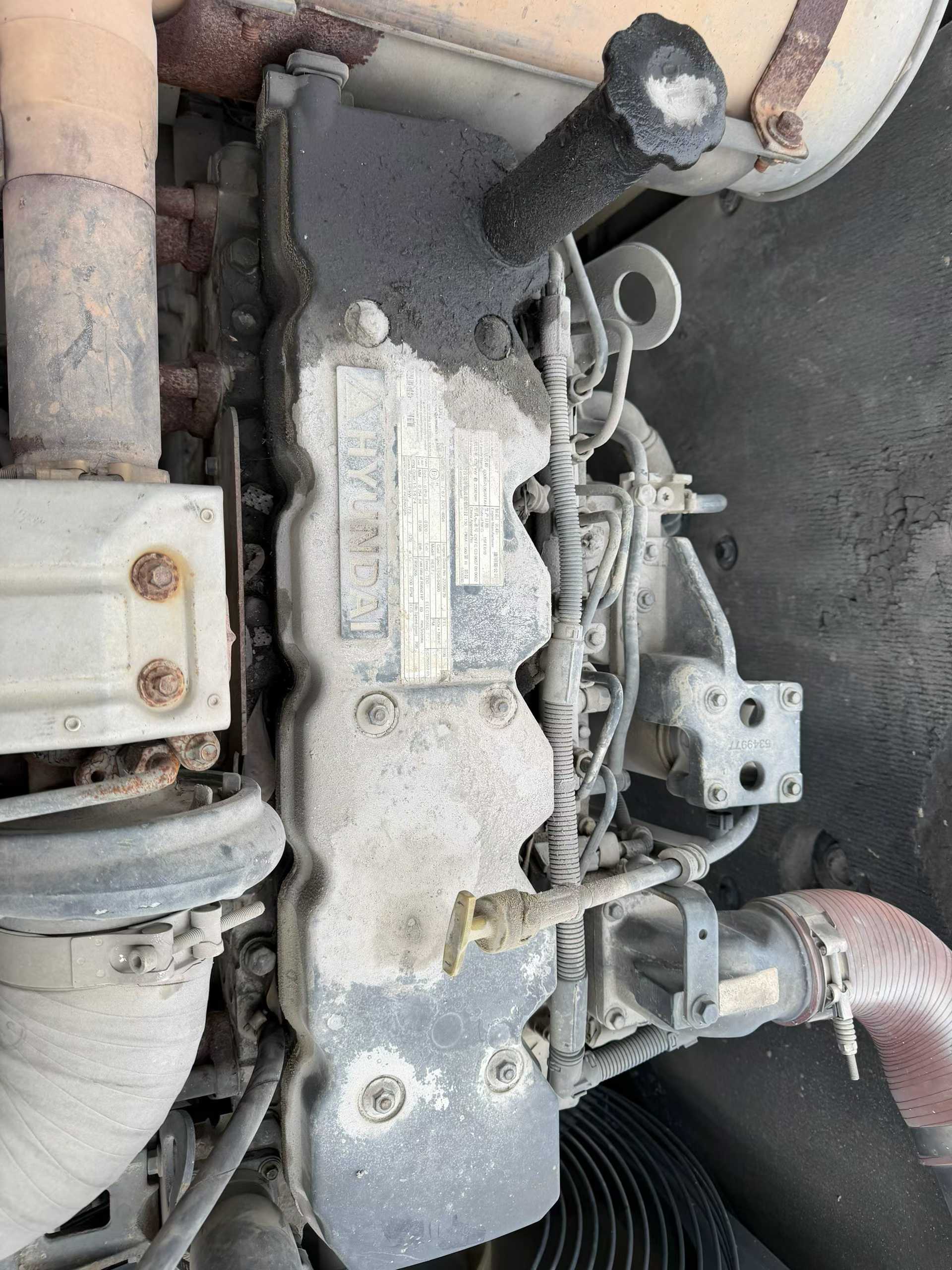

Used Hyundai R210WVS Excavator 2018 Model / 6

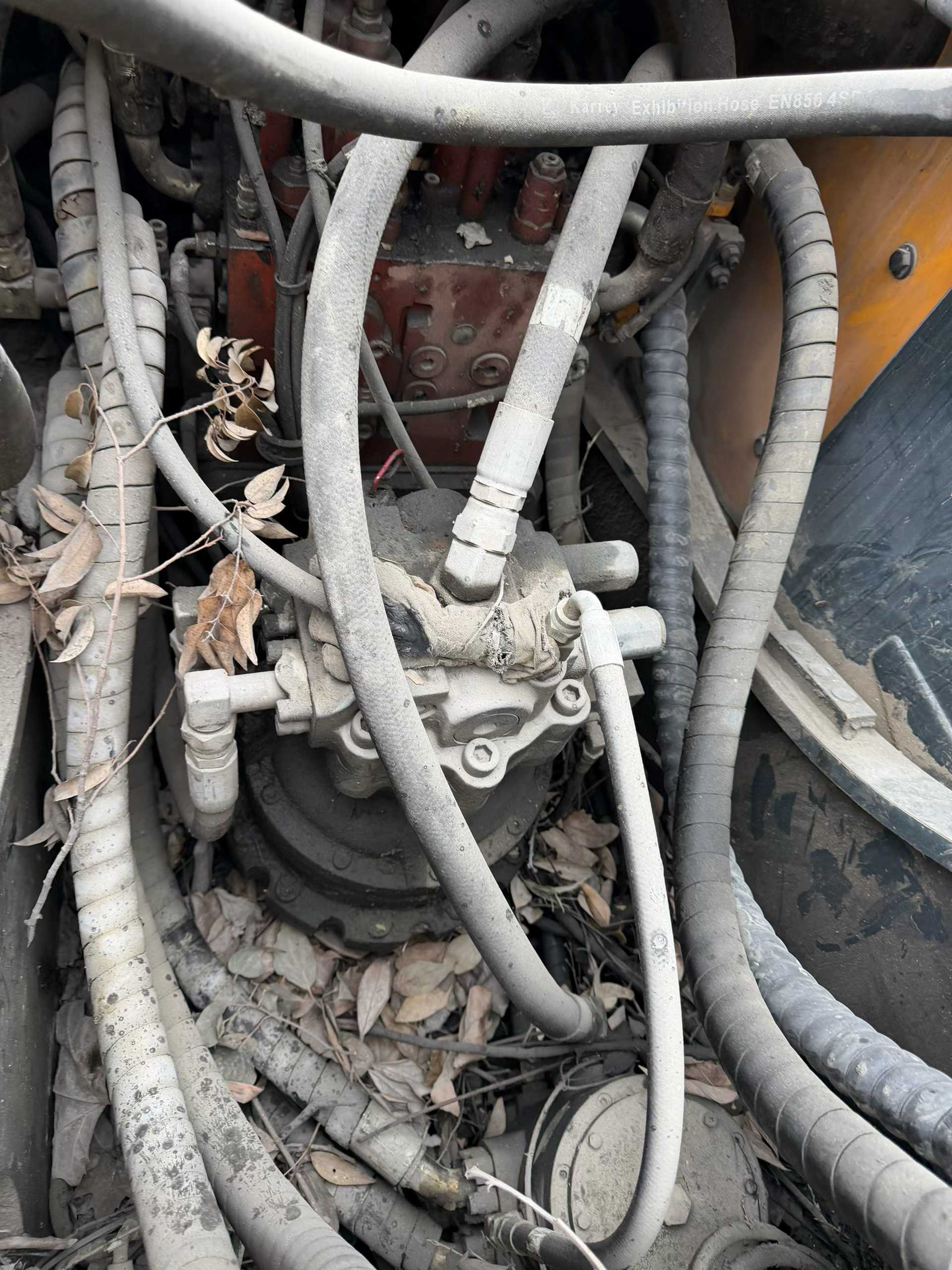

Used Hyundai R210WVS Excavator 2018 Model / 7

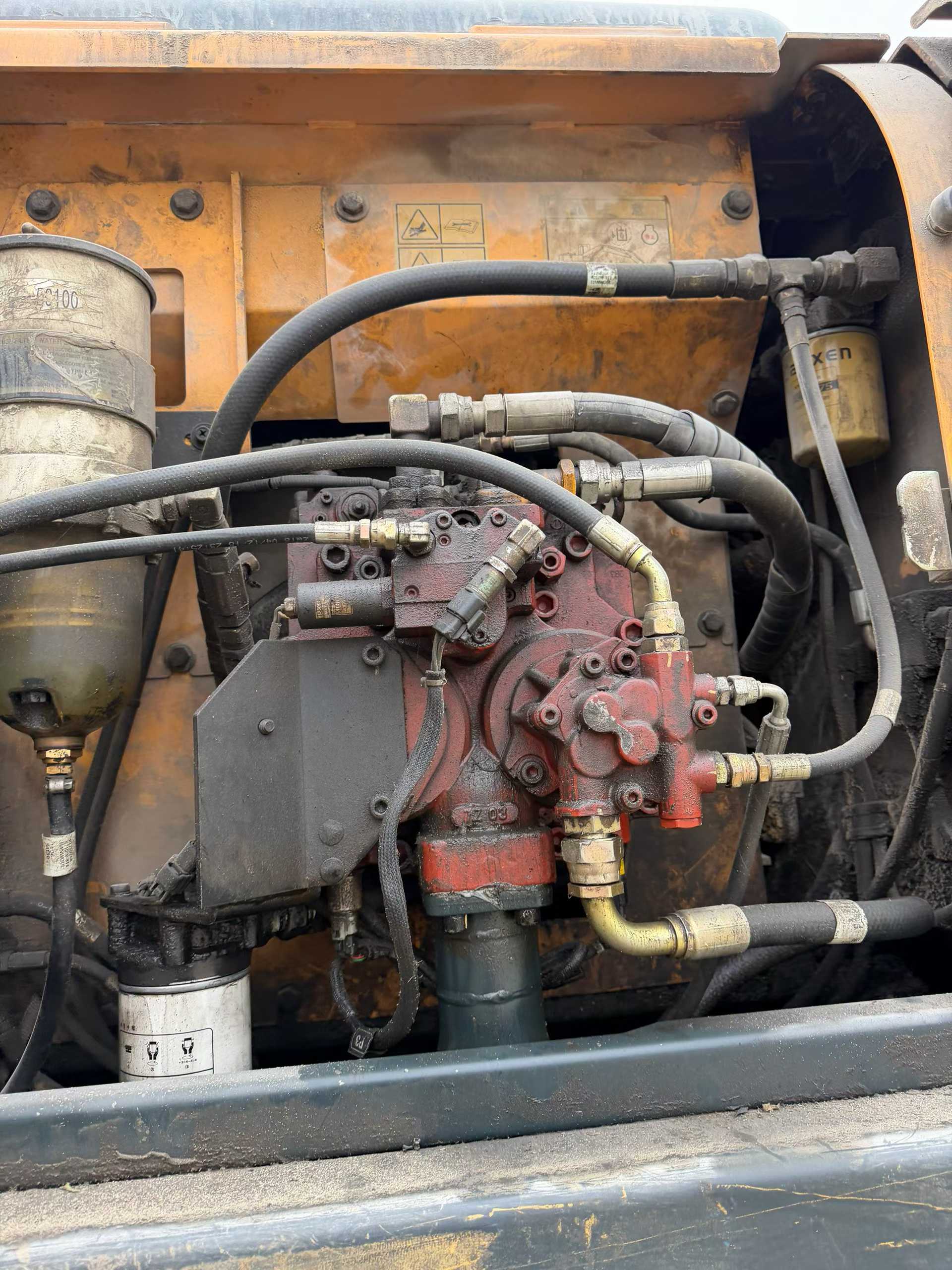

Used Hyundai R210WVS Excavator 2018 Model / 8

Product Description

【 Premium Recommendation 】 The Hyundai R210W-9A wheeled excavator, manufactured in 2018, features outstanding overall performance and reliable quality. Since its manufacture, this equipment has accumulated a working time of only 3,500 hours. With proper maintenance and excellent condition, it is a rare high-quality second-hand excavator in the market. In terms of the power system, this machine is equipped with a Cummins 6-cylinder turbocharged engine, with a maximum output power of 129kW (approximately 173 horsepower). It not only has strong power but also good fuel economy, capable of meeting the operational requirements under various working conditions. Meanwhile, this engine also features low noise and low emissions, meeting the National III emission standards and being environmentally friendly and energy-saving. The hydraulic system adopts advanced negative flow control technology, ensuring smooth operation and response speed. It can handle excavation, loading and crushing operations with ease. In addition, its unique intelligent control system can automatically adjust the oil volume according to the actual load, thus achieving the goal of high efficiency and energy conservation. Both the boom and the bucket arm are made of high-

SpecificationsValue
No.961642
Tonnage (tons)21
Working weight (kg)20,800
Bucket capacity (m³)0.92
Boom length (mm)5650
Rod length (mm)2920
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHyundai HE6.7
Rated power (kw/rpm)129/2200
Total displacement (L)6.7
Cooling modewater-cooling
Cylinder diameter × stroke (mm)107*124
Number of cylinders (PCS)6
Forward speed (Km/h)9.3/37.9
Rotation speed (rpm)10.3
Minimum turning radius (m)6.69
Maximum flow of main pump (l/min)2*228
Main pump typeTwo variable plunger pump
Fuel Tank (L)310
Hydraulic Tank (L)165
Engine Oil changes (L)24
Coolant (L)35
Hydraulic System (L)340
Total transport length (mm)9,680 / 9,570 / 9,500
Total transport width (mm)2,490
Total transport height (mm)3,180
Counterweight ground clearance (mm)1305
Wheelbase (mm)2800
Wheel base (mm)1874
Minimum ground clearance (mm)345
Back end turning radius (mm)2800
Maximum digging radius (mm)9960
Maximum excavation radius (mm)9750
Maximum digging depth (mm)6380
Maximum excavation height (mm)10000
Maximum unloading height (mm)7160
Maximum vertical digging depth (mm)5810
Minimum turning radius (mm)3580
Bulldozer lift or depth (mm)445*120
Dodging plate width × height (mm)2,490*610
see more

Overview

No.961642

Brand Name:

Hyundai

Model Number:

R210WVS

Year:

2018

Location:

Sichuan China
