HOME>>Brands>>Hyundai R215-7

2010 Hyundai R215-7

1/9
Used Hyundai R215-7 Excavator 2010 Model / 1

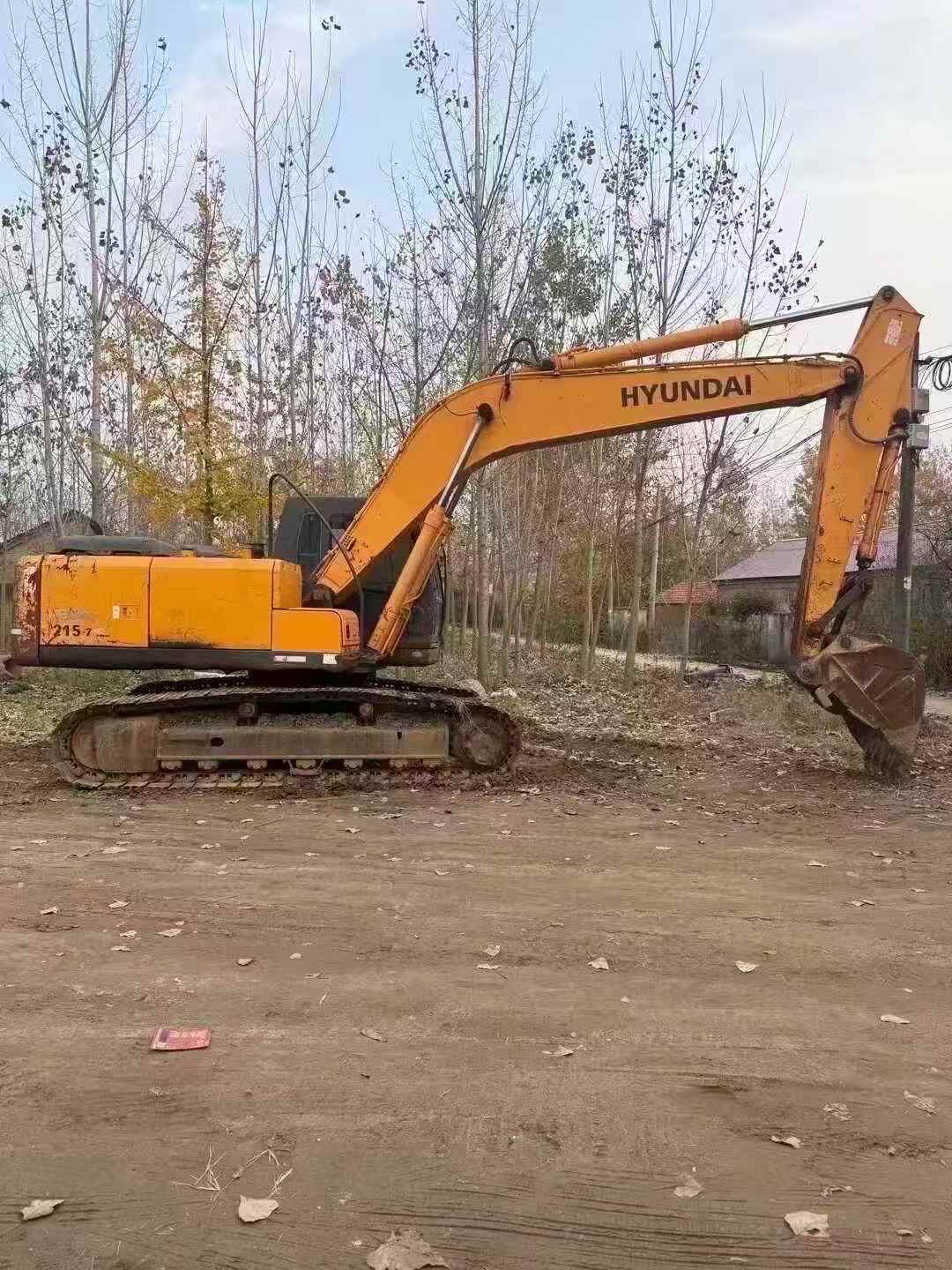

Used Hyundai R215-7 Excavator 2010 Model / 2

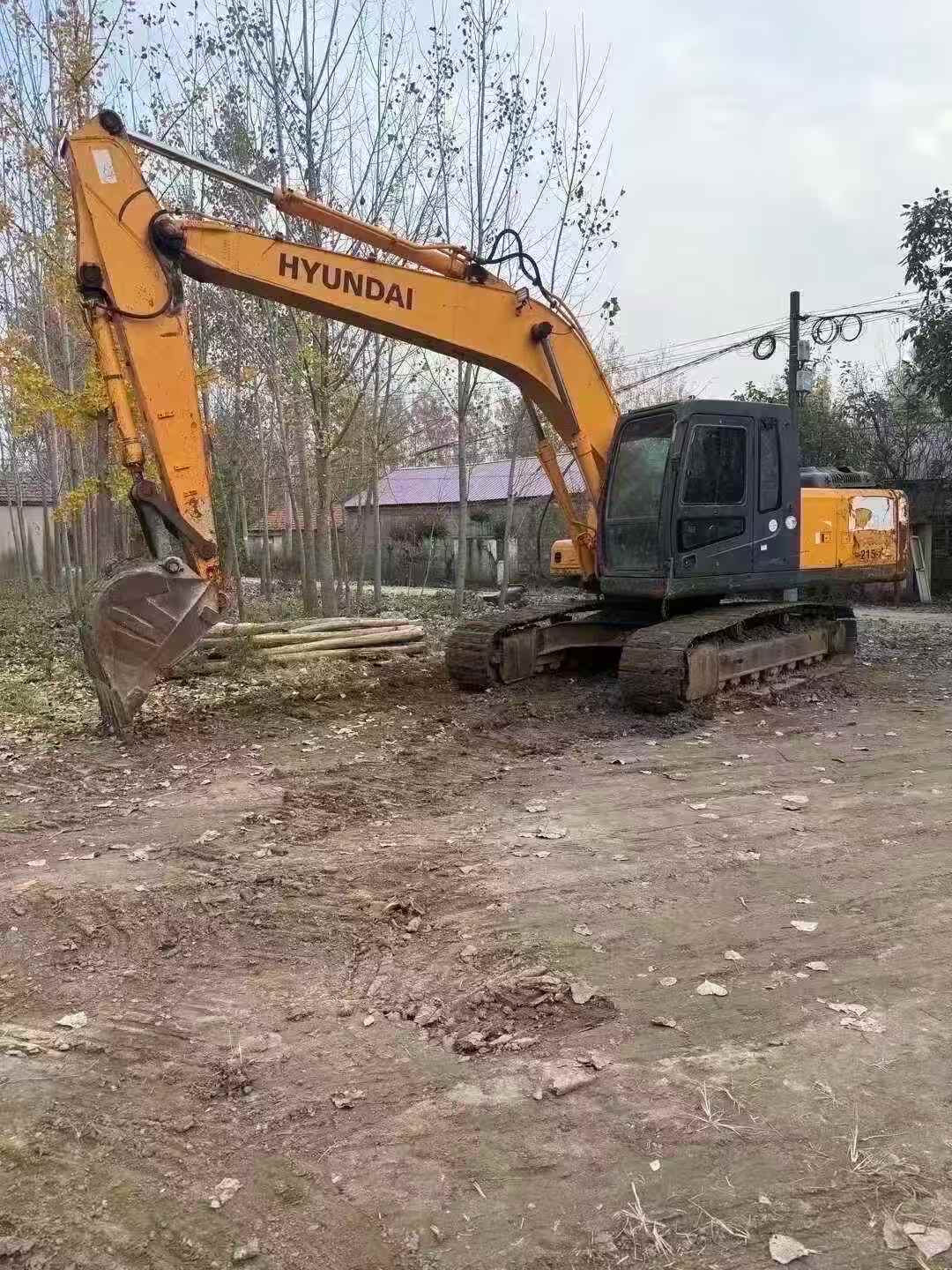

Used Hyundai R215-7 Excavator 2010 Model / 3

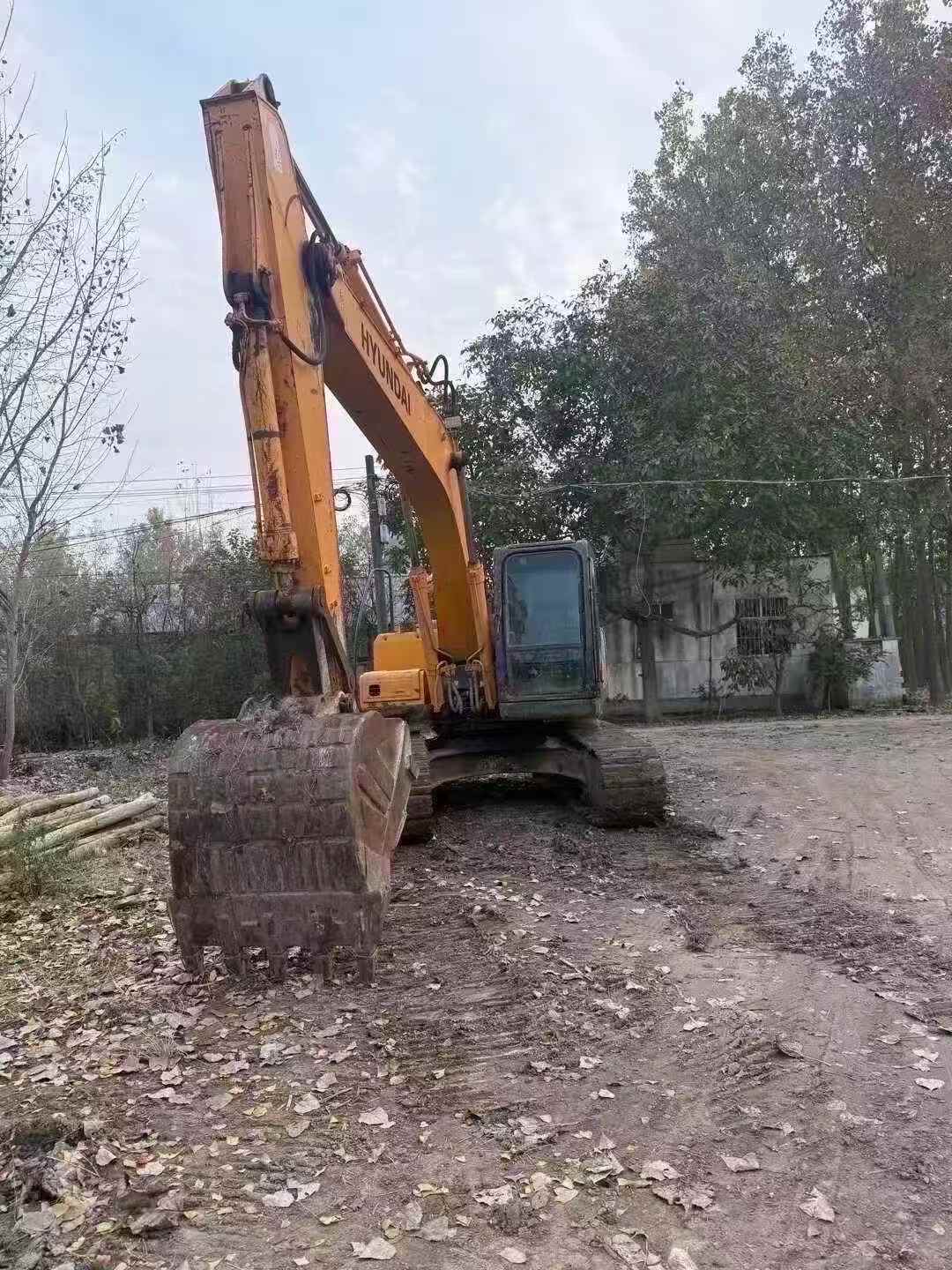

Used Hyundai R215-7 Excavator 2010 Model / 4

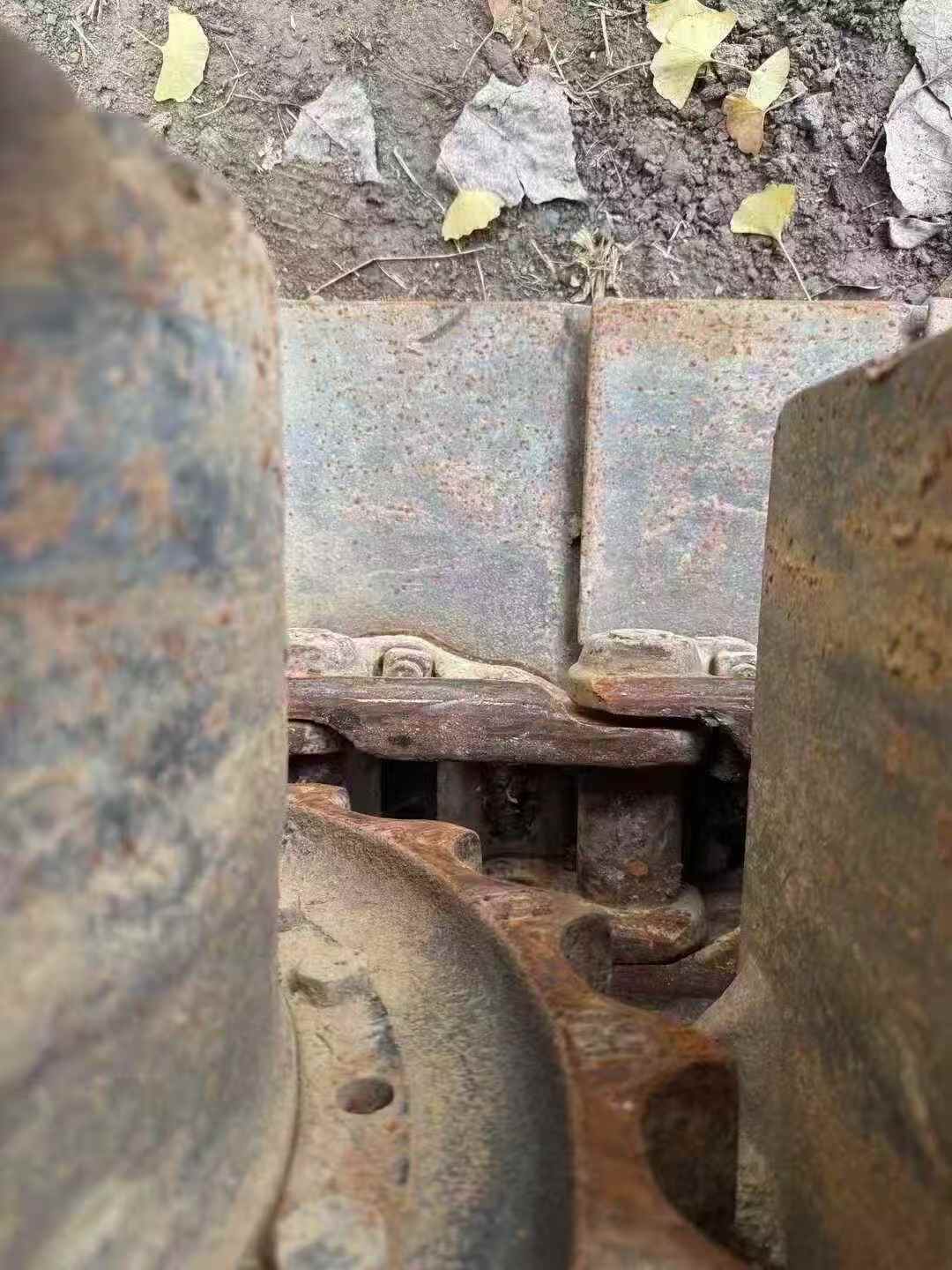

Used Hyundai R215-7 Excavator 2010 Model / 5

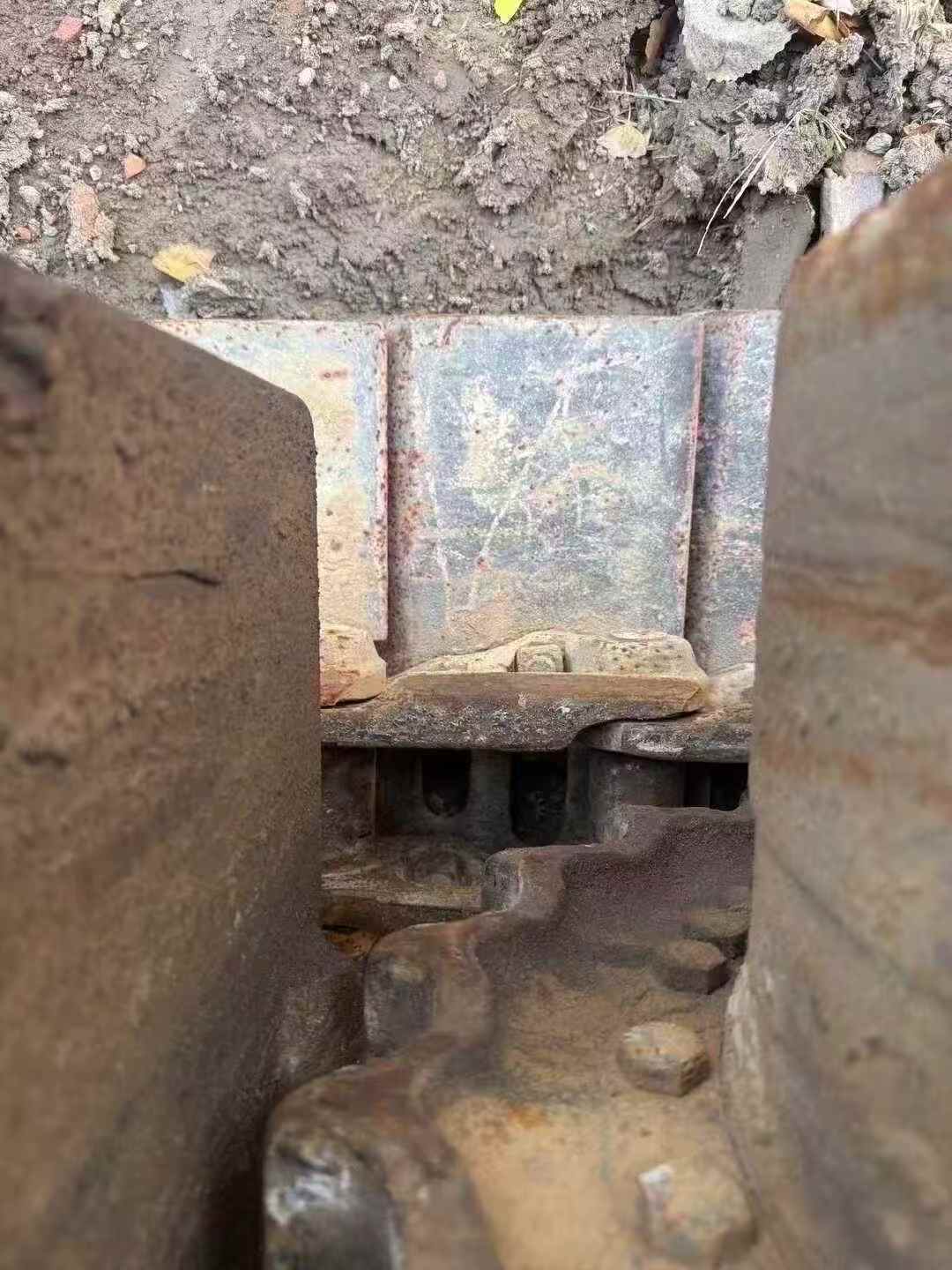

Used Hyundai R215-7 Excavator 2010 Model / 6

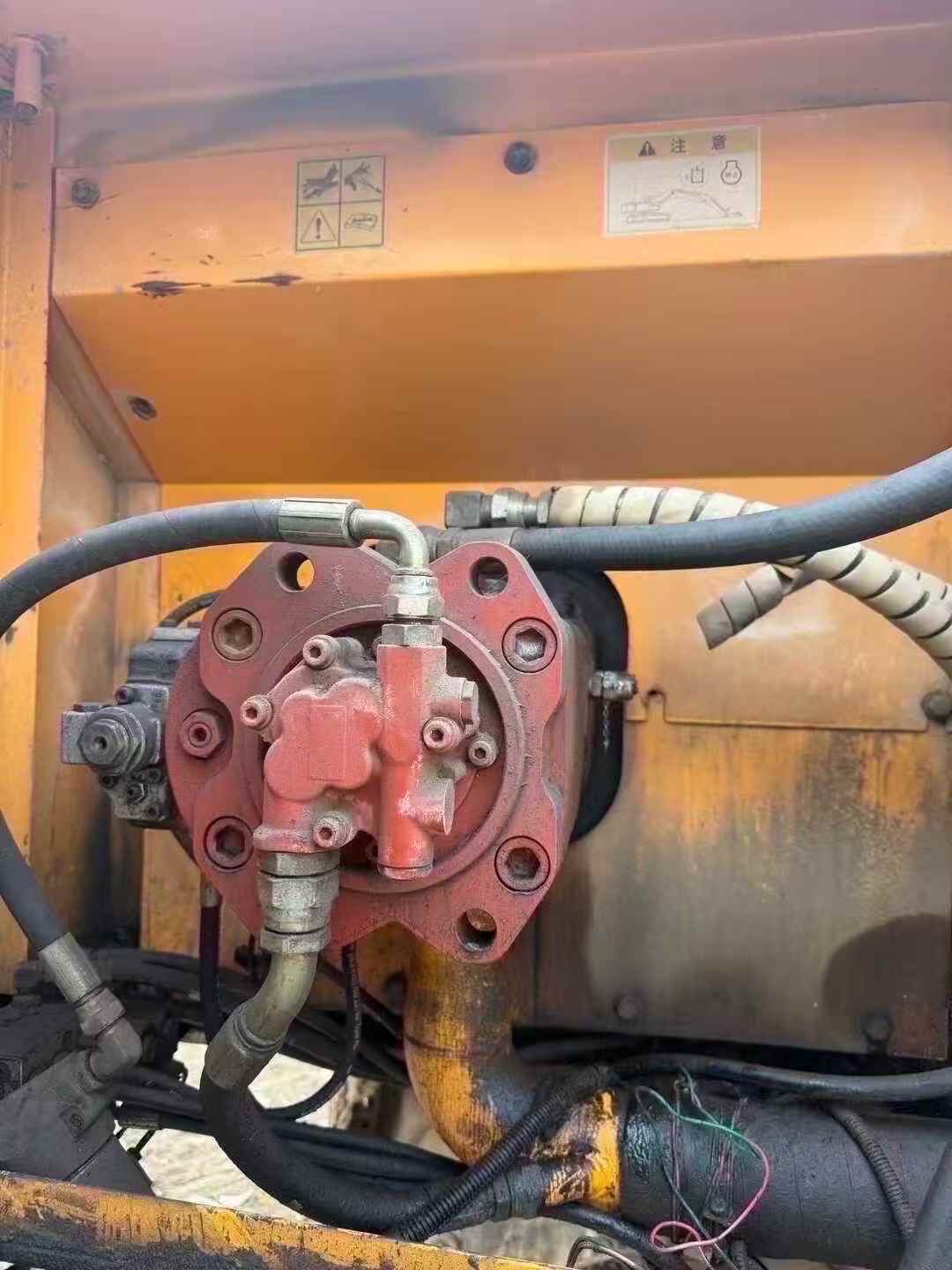

Used Hyundai R215-7 Excavator 2010 Model / 7

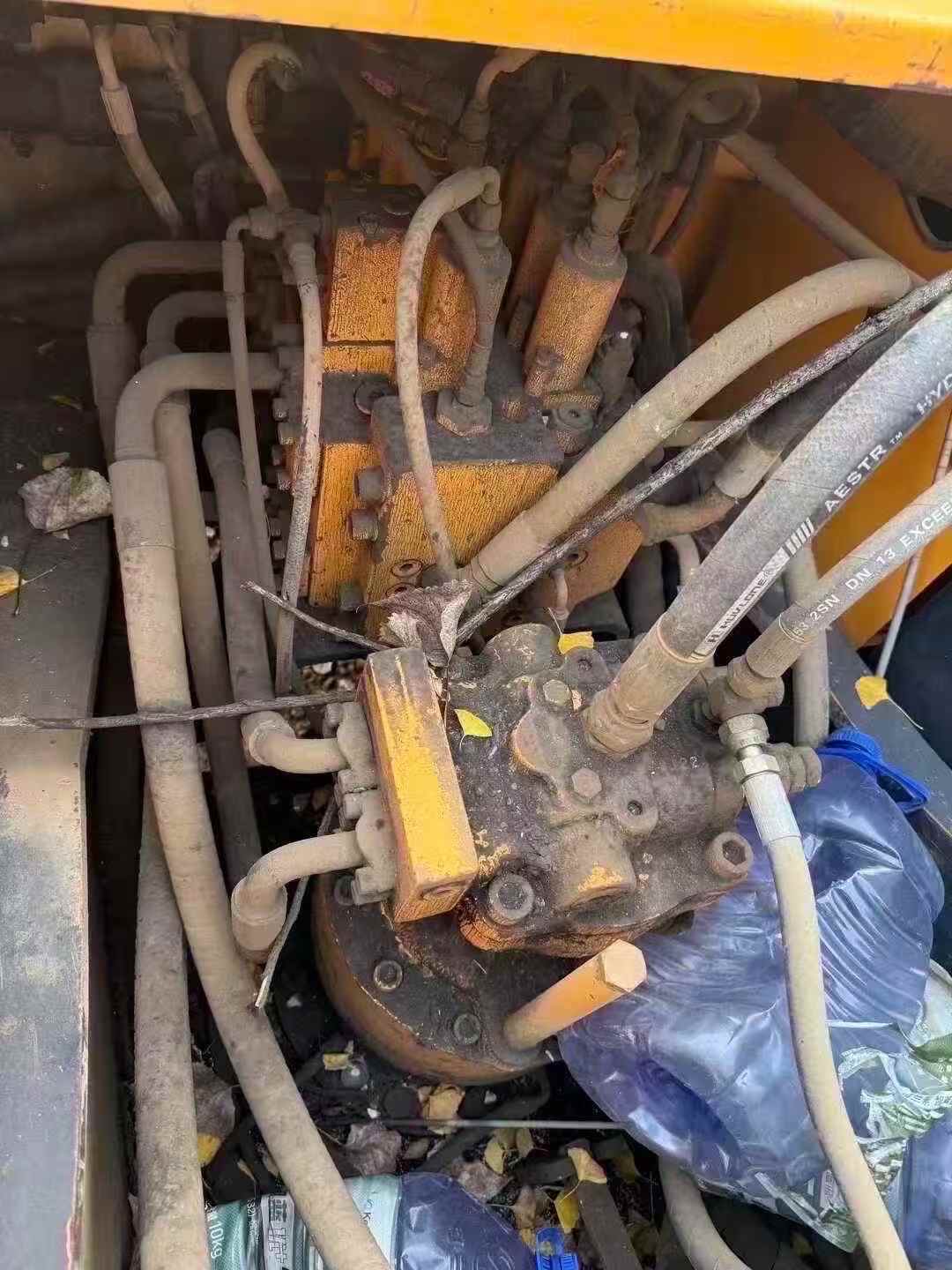

Used Hyundai R215-7 Excavator 2010 Model / 8

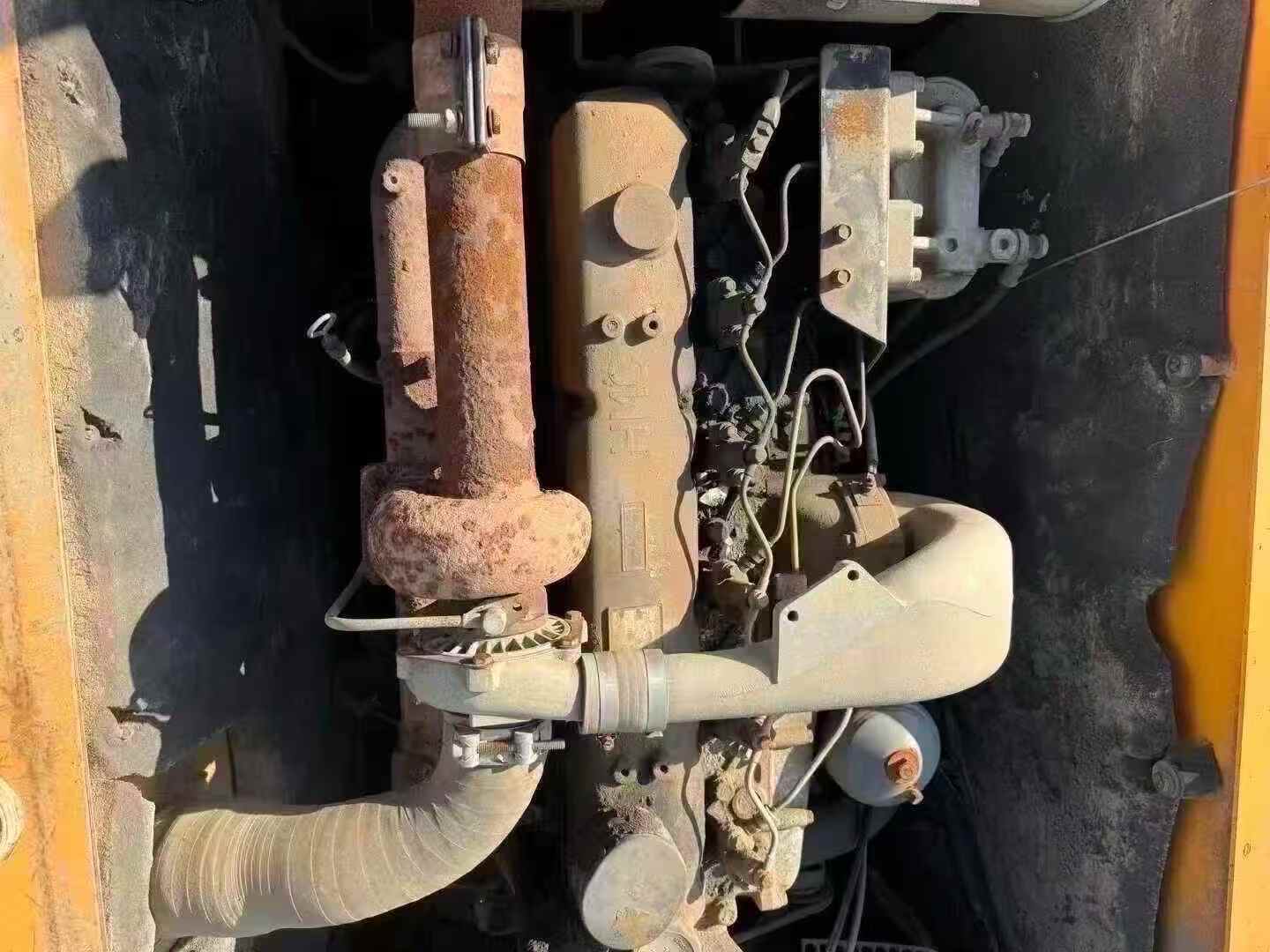

Used Hyundai R215-7 Excavator 2010 Model / 9

Product Description

【 Premium Recommendation 】2010 Hyundai R215-7 second-hand excavator, an absolute cost-performance choice! Since its release in 2010, this modern R215-7 excavator has only worked for over 60,000 hours in total, which is far lower than the average service life of similar equipment. Its outstanding performance and stable operating state make it a rare "top-quality" model in the market. In terms of power, this machine is equipped with a high-performance Cummins engine, which not only has strong power but also excellent fuel economy, and can easily meet the operation requirements under various complex working conditions. More importantly, it adopts advanced electronic throttle technology, making operation more precise and smooth. This not only significantly enhances work efficiency but also reduces fuel consumption costs. The hydraulic system is provided by world-renowned suppliers, ensuring that the entire machine maintains efficient and stable performance even under long-term high-load operation. Whether it is heavy tasks such as excavation, loading or crushing, they can all be accomplished with ease. In addition, this excavator is also equipped with an electronic shutdown function, which further simplifies the daily maintenance proce

SpecificationsValue
No.962568
Tonnage (tons)21
Working weight (kg)20700
Bucket capacity (m³)0.92
Boom length (mm)5650
Rod length (mm)2920
Country of originJiangsu (Province)
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHyundai D6BT-C
Rated power (kw/rpm)110/1950
Cooling modewater-cooling
Cylinder diameter × stroke (mm)118 x 115
Number of cylinders (PCS)6
Displacement (L)7
Working formSix-cylinder four-stroke turbocharged direct injection engine
Ground specific pressure (Kpa)47
Rotation speed (rpm)12.5
Climbing ability (%)70/35 °
Bucket digging force (kN)123.3
Rod digging force (kN)95.1
Travel speed (km/h)3.5/5.2
Main overflow set pressure (Mpa)47
Rotary hydraulic motor typeQuantitative swash plate axial piston motor
Type of walking hydraulic motorVariable swash plate axial piston motor
Maximum flow of main pump (l/min)2 x 220
Traveling Hydraulic Circuit (Mpa)280
Rotary Hydraulic Circuit (Mpa)240
Main pump type2× variable axial piston pump + gear pump
Working Hydraulic Circuit (Mpa)280
Pilot Oil Circuit (MPa)35
Bucket cylinders - Number × diameter × stroke (mm)120 * 80 * 1120
Bucket rod cylinders - Number × diameter × stroke (mm)140 * 95 * 1570
Boom cylinders - Number × diameter × stroke (mm)125 * 85 * 1320
Fuel Tank (L)320
Hydraulic Tank (L)165
Engine Oil changes (L)16.3
Coolant (L)32.7
Hydraulic System (L)270
Total transport length (mm)9510
Total transport width (mm)2800
Total transport height (mm)2990
Full cab height (mm)2920
Counterweight ground clearance (mm)1060
Minimum ground clearance (mm)480
Back end turning radius (mm)2830
Total track length (mm)4160
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3360
Maximum digging radius (mm)9930
Maximum digging depth (mm)6800
Maximum excavation height (mm)9730
Maximum unloading height (mm)6910
Maximum vertical digging depth (mm)6060
Bulldozer lift or depth (mm)There is no
Dodging plate width × height (mm)There is no
Maximum excavation radius of stop surface (mm)9760
Maximum effective digging depth (mm)6610
see more

Overview

No.962568

Brand Name:

Hyundai

Model Number:

R215-7

Year:

2010

Location:

Jiangsu China
