HOME>>Brands>>Hyundai R215-7

2016 Hyundai R215-7

1/5
Used Hyundai R215-7 Excavator 2016 Model / 1

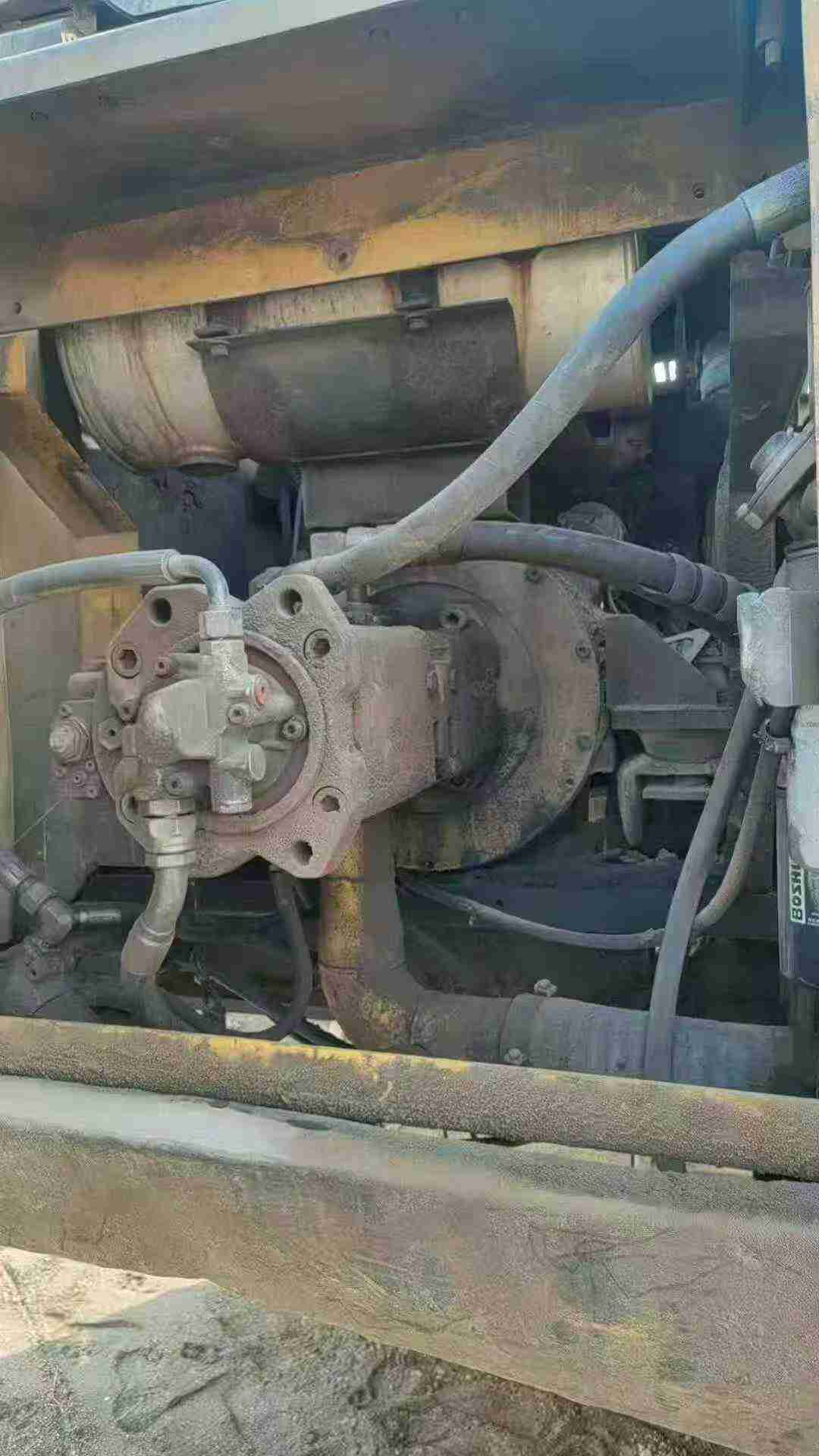

Used Hyundai R215-7 Excavator 2016 Model / 2

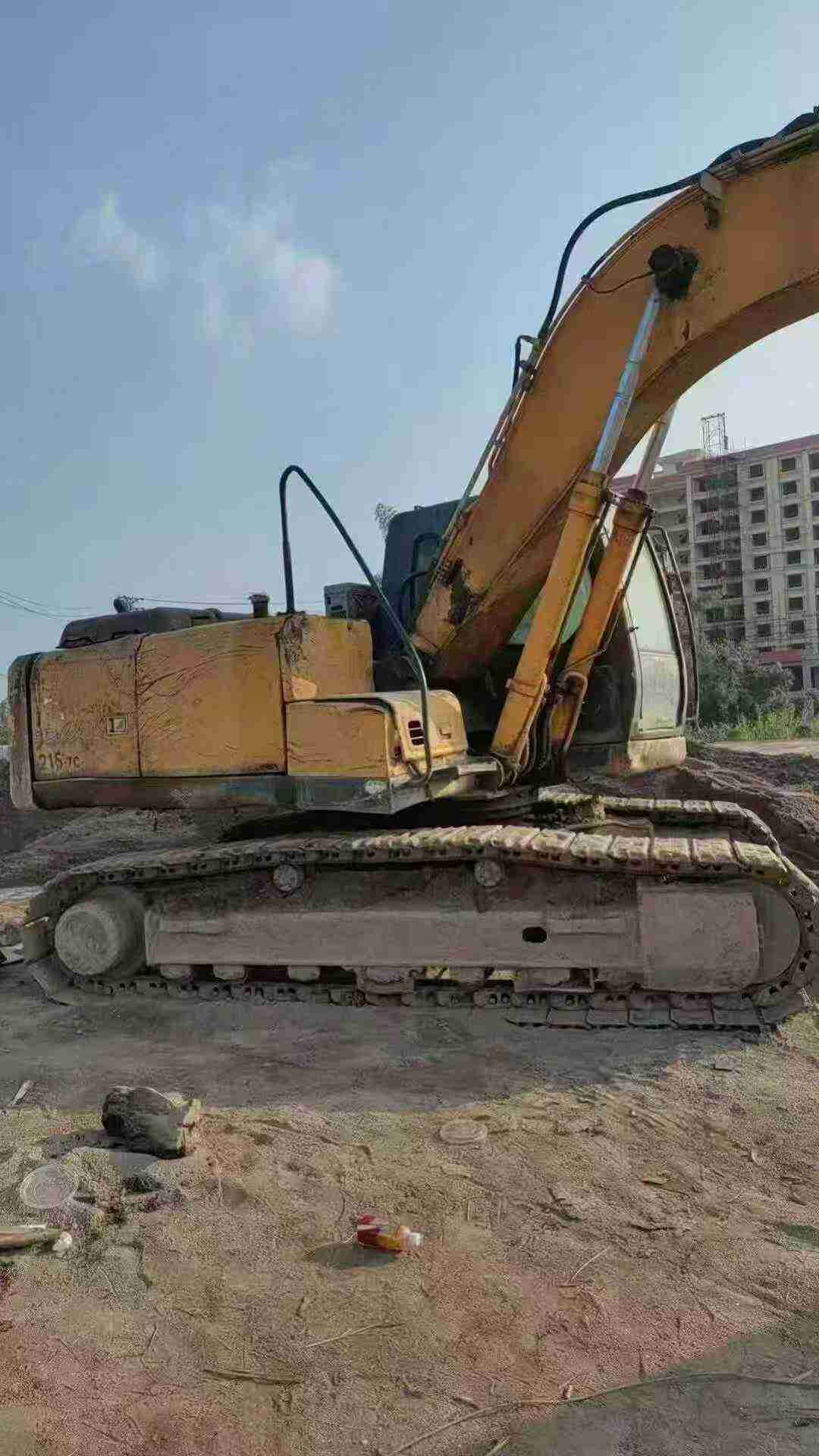

Used Hyundai R215-7 Excavator 2016 Model / 3

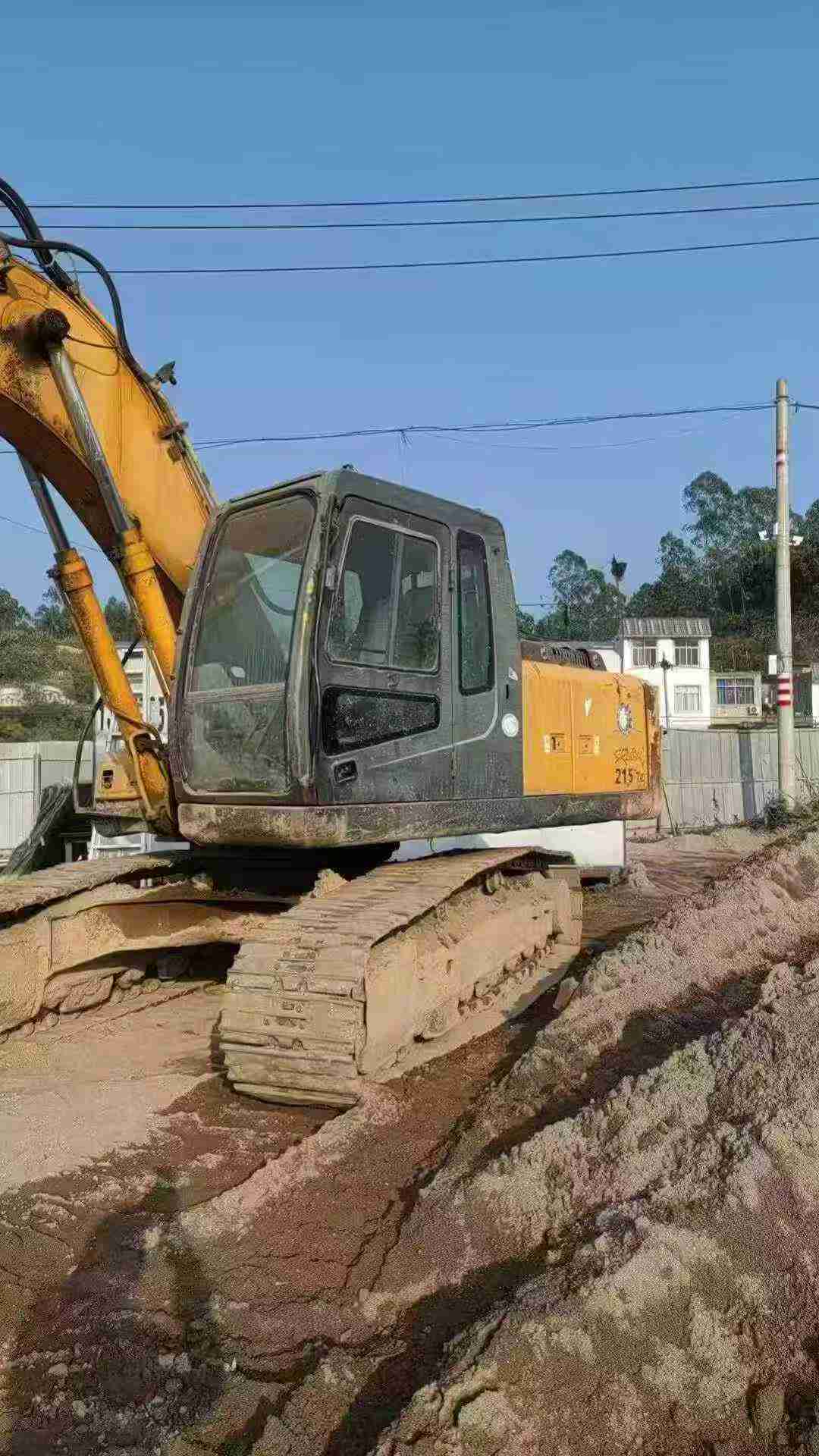

Used Hyundai R215-7 Excavator 2016 Model / 4

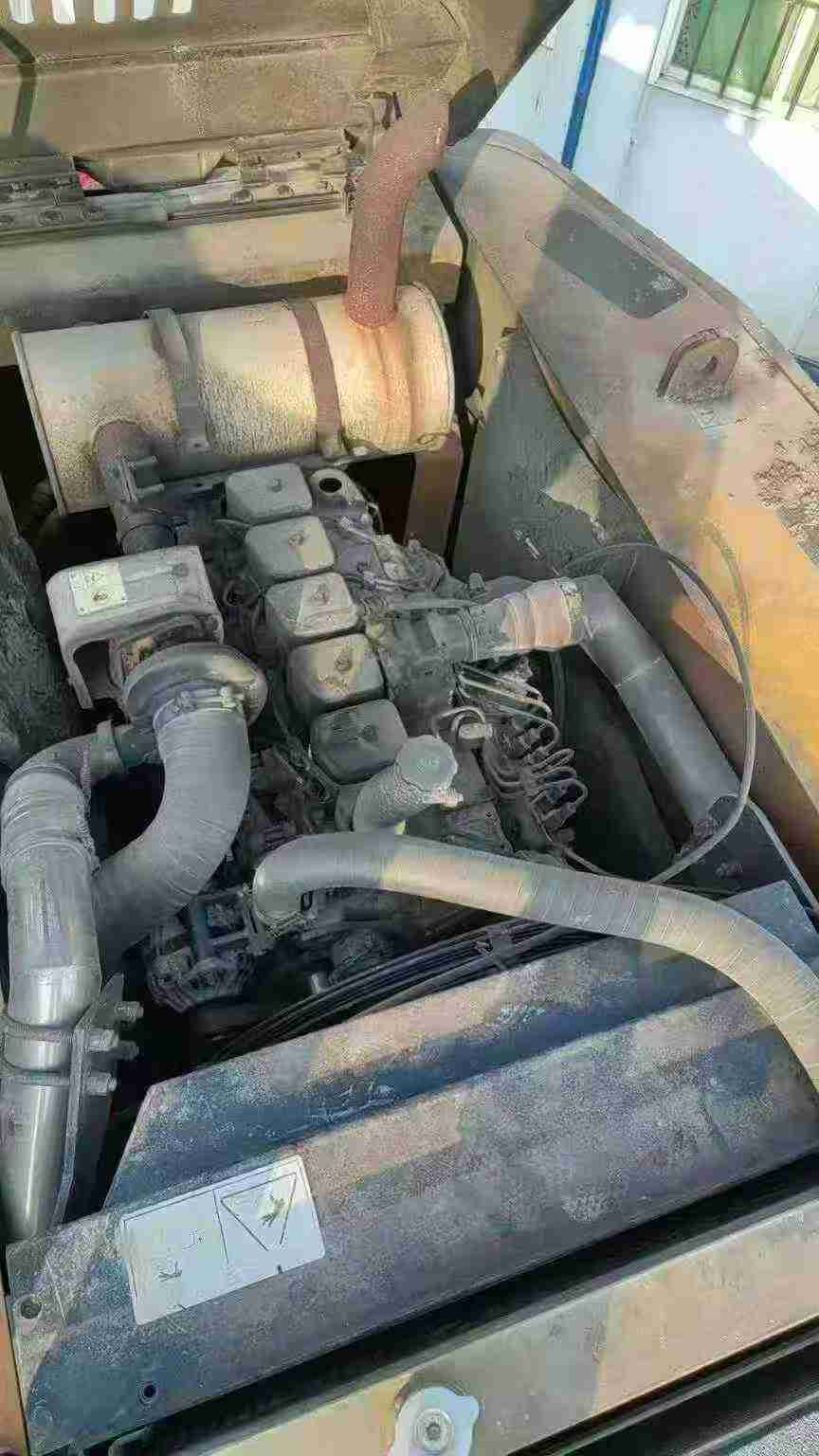

Used Hyundai R215-7 Excavator 2016 Model / 5

Product Description

【 Modern 215-7 Black Diamond Second-hand Excavator This second-hand Hyundai 215-7 Black Diamond excavator is priced at only 50,000 RMB, offering an extremely high cost performance. As a medium-sized excavator with a good reputation in the market, it not only has outstanding performance but is also very convenient to maintain and service, making it highly suitable for the usage requirements of medium and small-sized engineering projects. The machine has been in operation for approximately 4,000 hours, maintaining a good overall condition with no major accident records. The power system is equipped with a high-performance Cummins engine, which is powerful, stable and reliable. Even in complex and changeable working environments, it can handle them with ease. In addition, this excavator is equipped with an advanced hydraulic control system, which is flexible and precise to operate, effectively improving work efficiency and reducing fuel consumption costs. It is worth mentioning that the "Black Diamond" series is renowned for its sturdiness and durability. With a well-designed body structure and strong compressive resistance, it can maintain a good working condition even under long-term high-intensity operations. Meanwhile, its cab is s

SpecificationsValue
No.970575
Tonnage (tons)21
Working weight (kg)20700
Bucket capacity (m³)0.92
Boom length (mm)5650
Rod length (mm)2920
Country of originJiangsu (Province)
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHyundai D6BT-C
Rated power (kw/rpm)110/1950
Cooling modewater-cooling
Cylinder diameter × stroke (mm)118 x 115
Number of cylinders (PCS)6
Displacement (L)7
Working formSix-cylinder four-stroke turbocharged direct injection engine
Ground specific pressure (Kpa)47
Rotation speed (rpm)12.5
Climbing ability (%)70/35 °
Bucket digging force (kN)123.3
Rod digging force (kN)95.1
Travel speed (km/h)3.5/5.2
Main overflow set pressure (Mpa)47
Rotary hydraulic motor typeQuantitative swash plate axial piston motor
Type of walking hydraulic motorVariable swash plate axial piston motor
Maximum flow of main pump (l/min)2 x 220
Traveling Hydraulic Circuit (Mpa)280
Rotary Hydraulic Circuit (Mpa)240
Main pump type2× variable axial piston pump + gear pump
Working Hydraulic Circuit (Mpa)280
Pilot Oil Circuit (MPa)35
Bucket cylinders - Number × diameter × stroke (mm)120 * 80 * 1120
Bucket rod cylinders - Number × diameter × stroke (mm)140 * 95 * 1570
Boom cylinders - Number × diameter × stroke (mm)125 * 85 * 1320
Fuel Tank (L)320
Hydraulic Tank (L)165
Engine Oil changes (L)16.3
Coolant (L)32.7
Hydraulic System (L)270
Total transport length (mm)9510
Total transport width (mm)2800
Total transport height (mm)2990
Full cab height (mm)2920
Counterweight ground clearance (mm)1060
Minimum ground clearance (mm)480
Back end turning radius (mm)2830
Total track length (mm)4160
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3360
Maximum digging radius (mm)9930
Maximum digging depth (mm)6800
Maximum excavation height (mm)9730
Maximum unloading height (mm)6910
Maximum vertical digging depth (mm)6060
Bulldozer lift or depth (mm)There is no
Dodging plate width × height (mm)There is no
Maximum excavation radius of stop surface (mm)9760
Maximum effective digging depth (mm)6610
see more

Overview

No.970575

Brand Name:

Hyundai

Model Number:

R215-7

Year:

2016

Location:

Sichuan China

Are you interested in this machine?

Please contact us
