Product Description

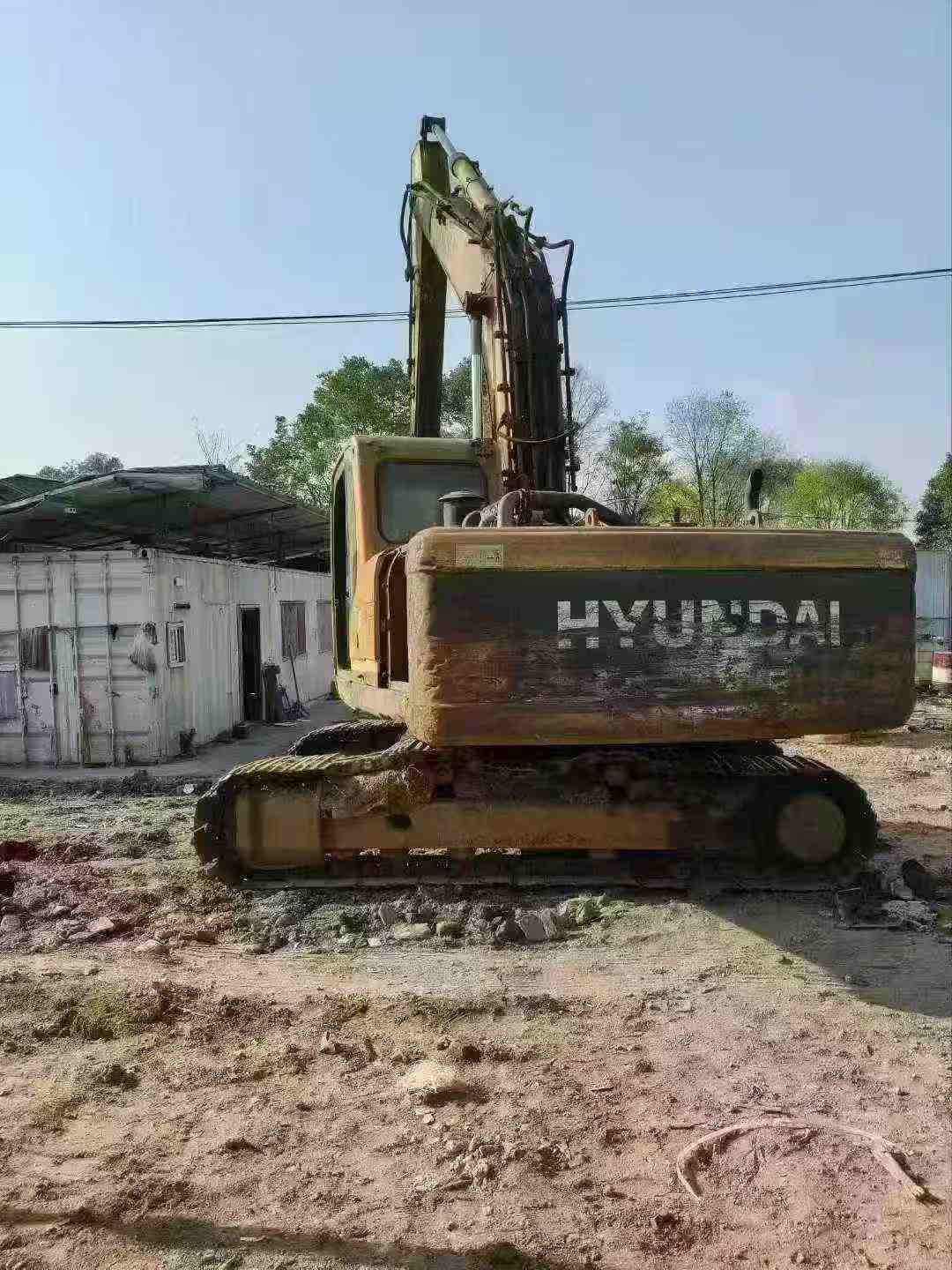

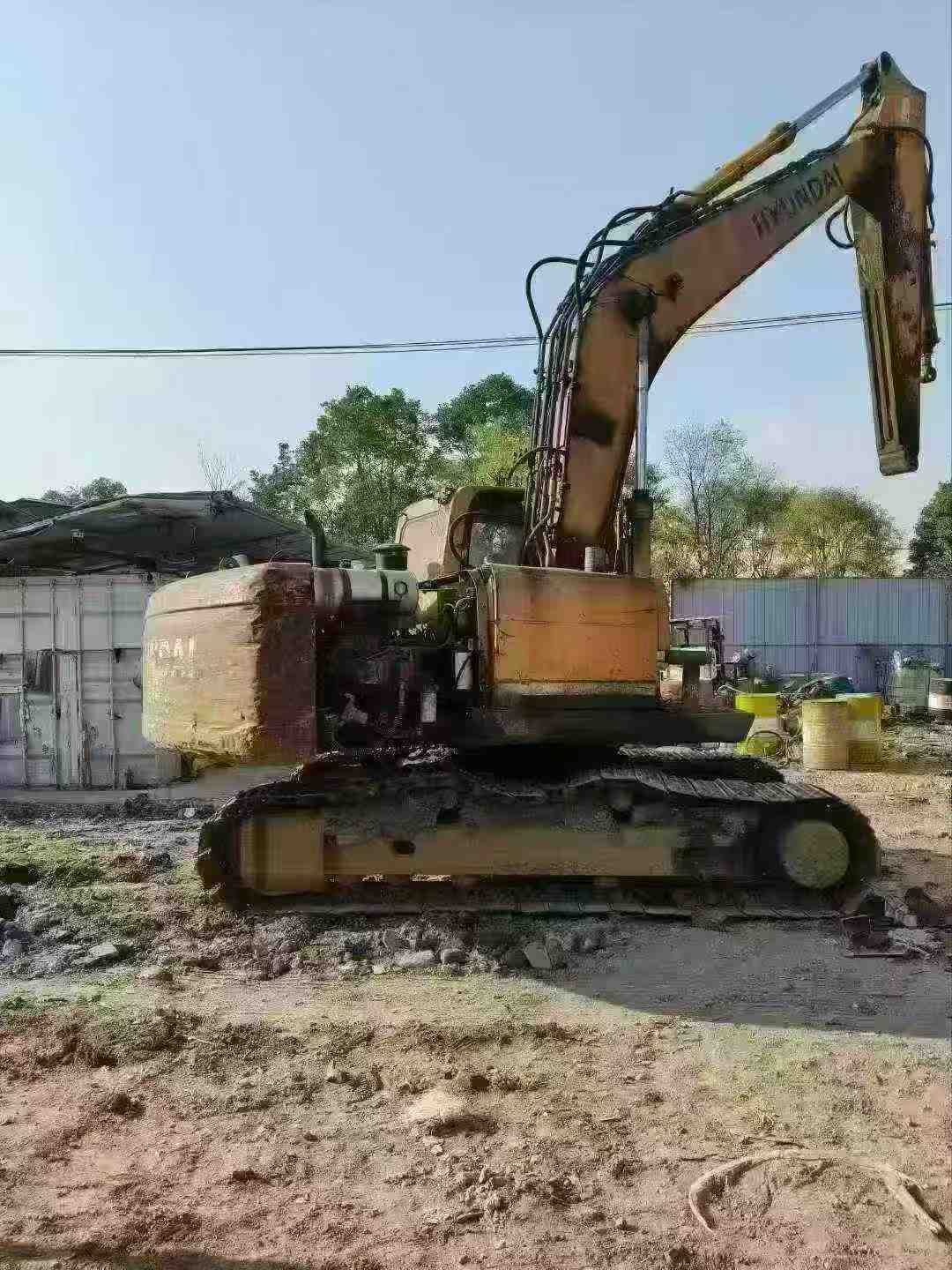

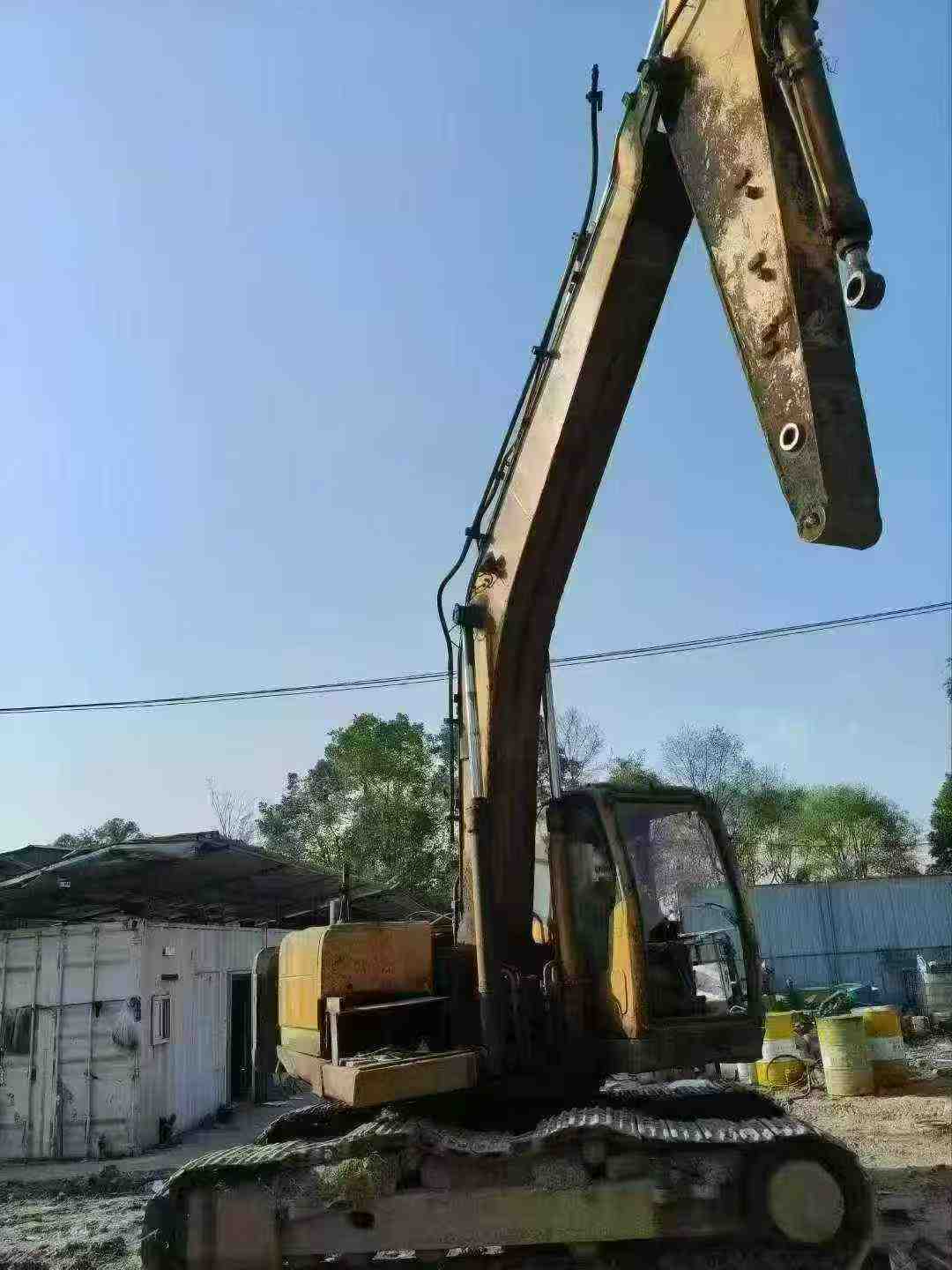

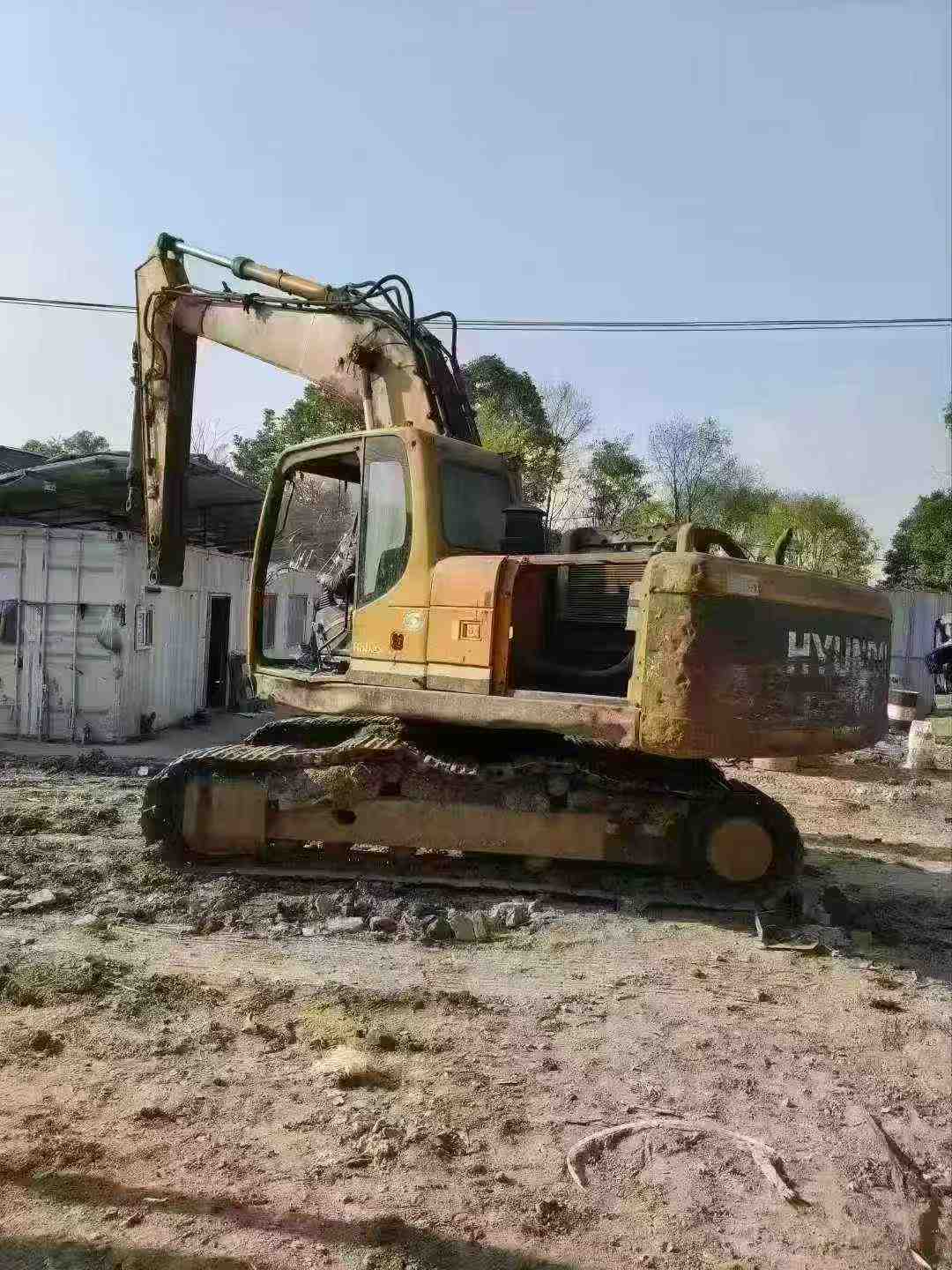

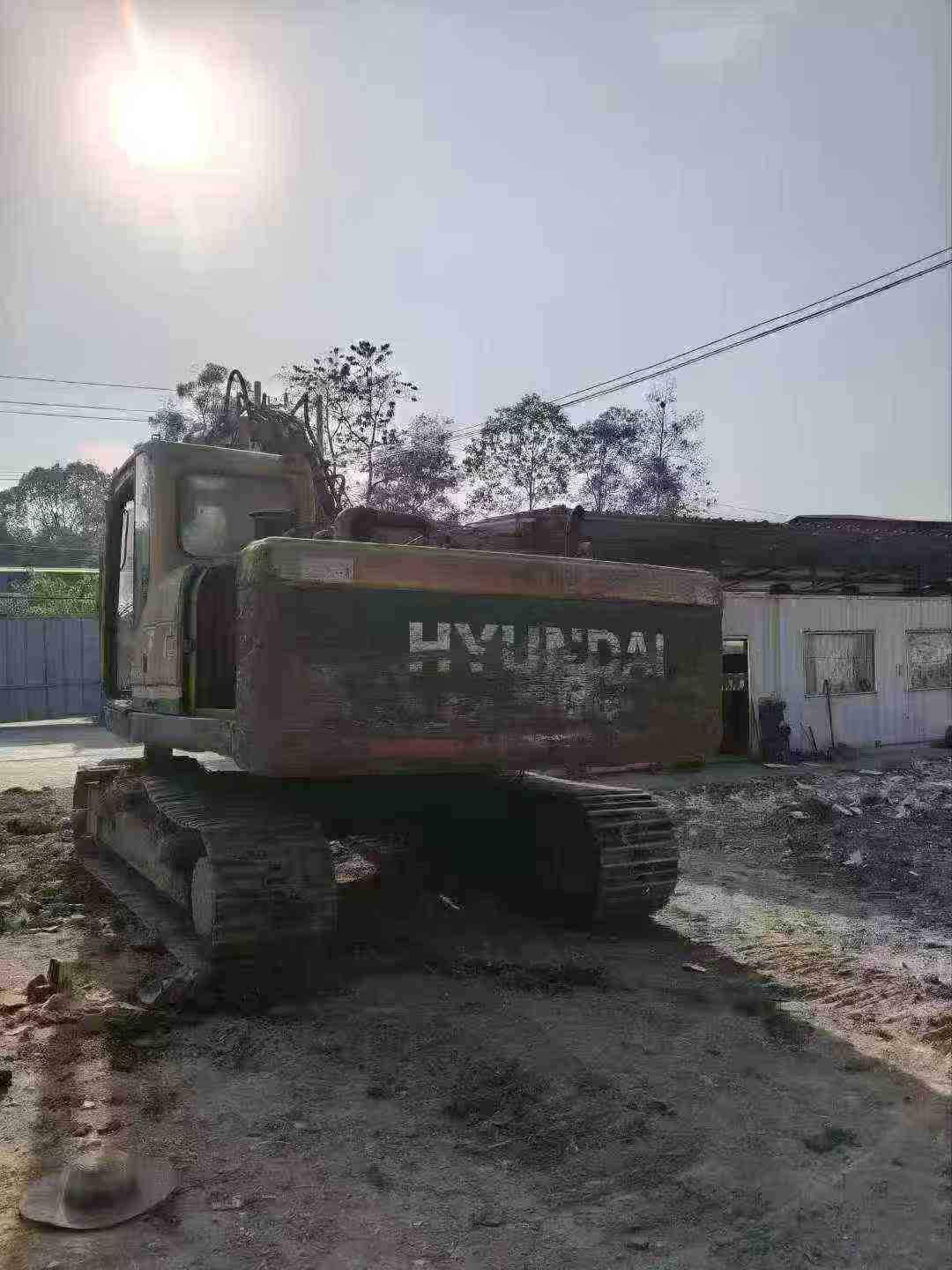

【 Modern 215-9T second-hand Excavator We currently have a batch of second-hand Hyundai 215-9T excavators in first-hand supply and are seeking agency partners at an extremely favorable price of 100,000 yuan. This device not only offers high cost performance but also features stable and reliable performance, making it highly suitable for the usage requirements of medium and small-sized engineering projects. 【 Basic Information - Working hours: The average working hours of this batch of excavators are approximately 3,000 hours, which is in the golden stage of mechanical service life. This not only ensures sufficient durability but also avoids the increase in maintenance costs due to excessive use. - Power System: It adopts Cummins B series engines as the power source, featuring strong power output and smooth operation characteristics. After a comprehensive inspection and maintenance by a professional team, it is ensured that the engine is in good condition and can meet the operation requirements under various complex working conditions. - Hydraulic system: Equipped with an advanced hydraulic control system, it operates flexibly and precisely, and responds quickly. Whether it's tasks such as digging, loading or leveling the ground, they
| Specifications | Value |
|---|---|
| No. | 970821 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.92 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2920 |
| Country of origin | Jiangsu (Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

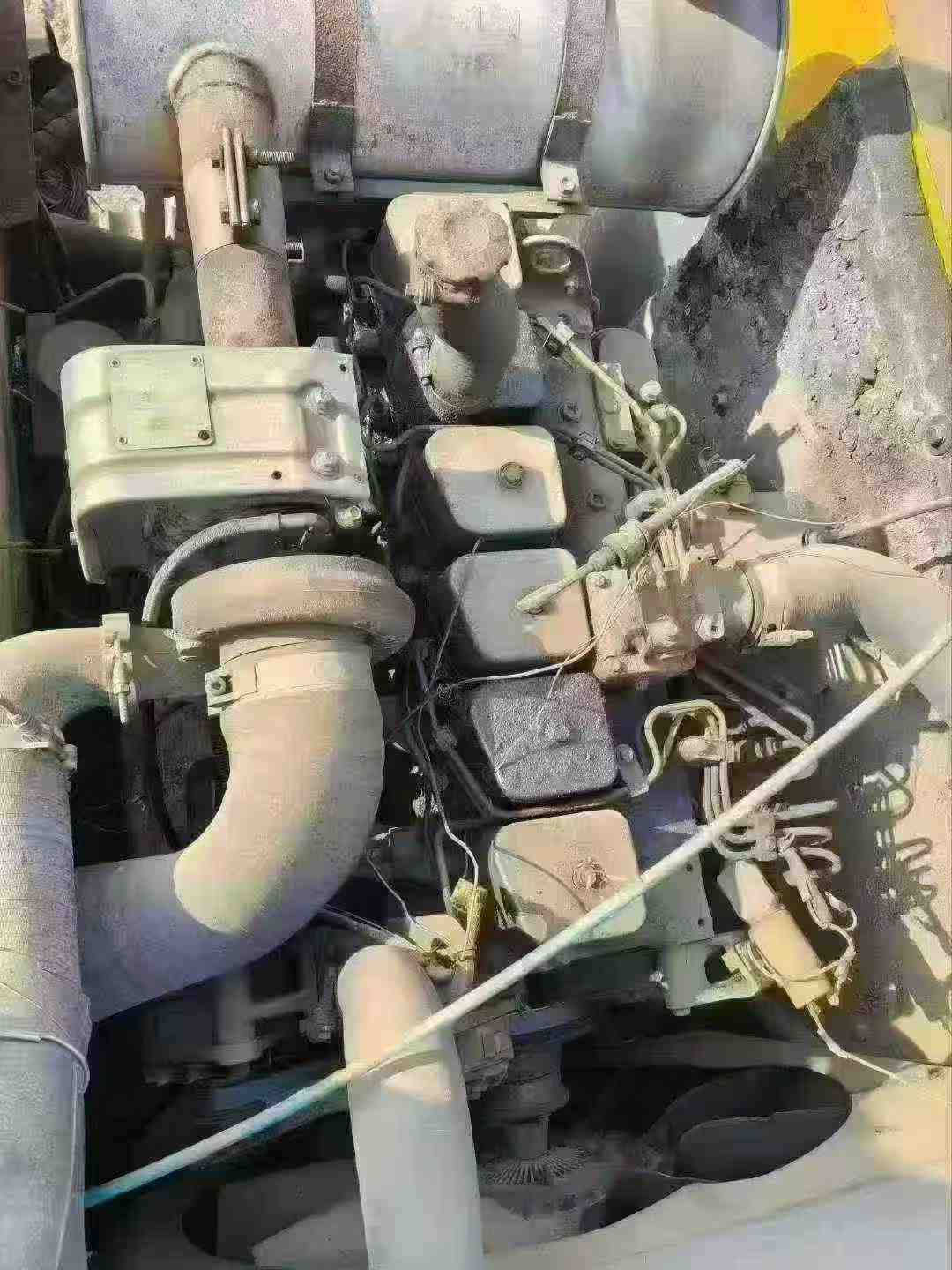

| Engine type | Hyundai D6BV-C |
| Rated power (kw/rpm) | 110/1950 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107 x 124 |
| Maximum torque (N.m) | 568.4 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.545 |
| Working form | Six-cylinder four-stroke turbocharged direct injection engine |
| Ground specific pressure (Kpa) | 48 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 143.7 |
| Rod digging force (kN) | 102.4 |
| Maximum tractive force (kN) | 195 |
| Travel speed (km/h) | 5.3/3.4 |
| Rotary hydraulic motor type | Quantitative swash plate axial piston pump |
| Type of walking hydraulic motor | Variable swash plate axial piston pump |
| Maximum flow of main pump (l/min) | 2 x 222 |
| Traveling Hydraulic Circuit (Mpa) | 330 |
| Rotary Hydraulic Circuit (Mpa) | 265 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2× variable axial piston pump + gear pump |
| Working Hydraulic Circuit (Mpa) | 330 |
| Pilot Oil Circuit (MPa) | 40 |
| Bucket cylinders - Number × diameter × stroke (mm) | 120 * 85 * 1055 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 * 100 * 1510 |
| Boom cylinders - Number × diameter × stroke (mm) | 120 * 85 * 1290 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 160 |
| Engine Oil changes (L) | 16.3 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 275 |
| Total transport length (mm) | 9530 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3030 |
| Full cab height (mm) | 2920 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 3740 |
| Back end turning radius (mm) | 2840 |
| Onboard width (mm) | 2740 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9980 |
| Maximum digging depth (mm) | 6730 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 6280 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 9820 |
| Maximum effective digging depth (mm) | 6560 |
